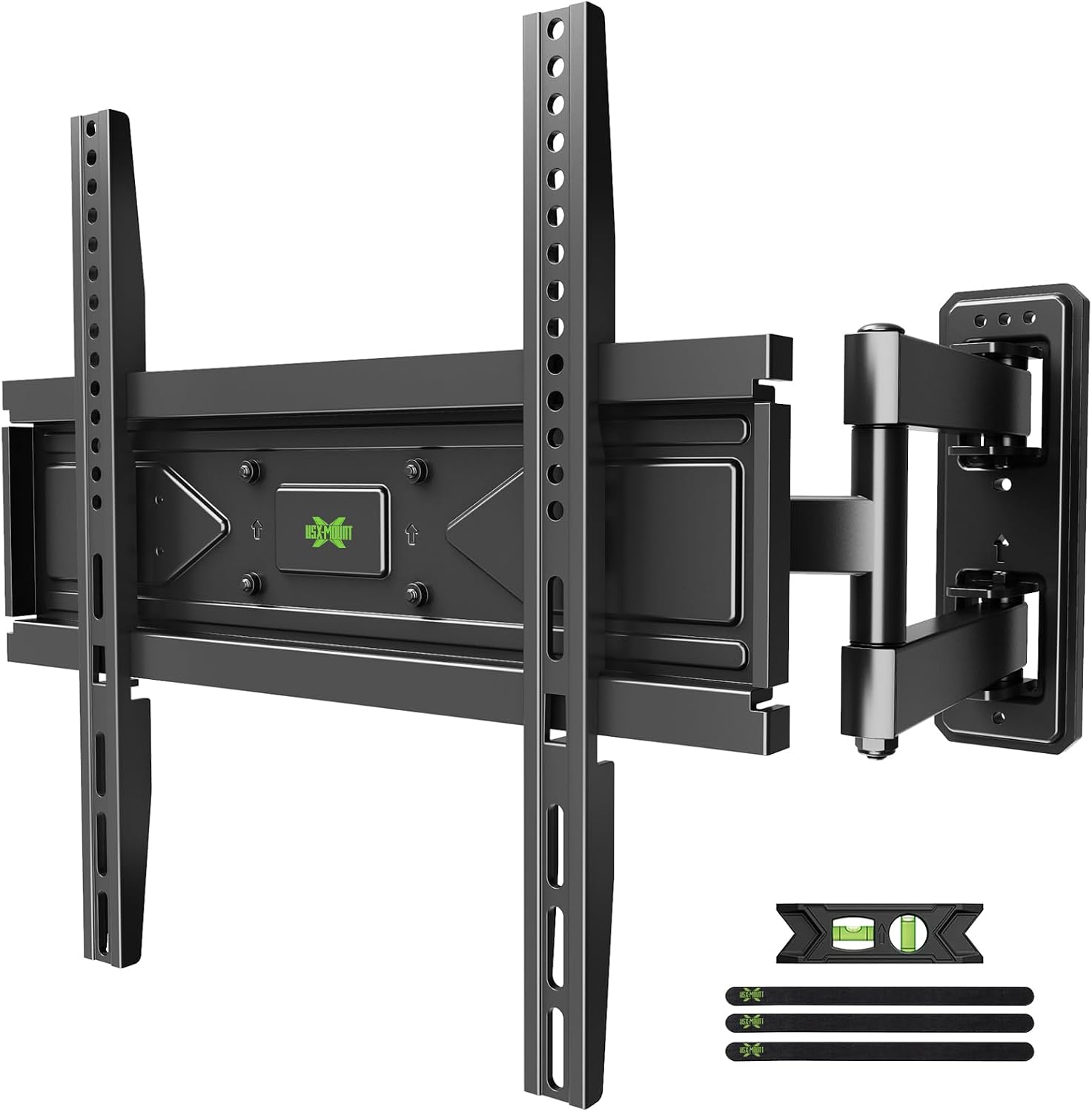

USX MOUNT XMM904 Full-Motion TV Wall Mount for 26–60-Inch TVs

A fixed viewing position suits a straightforward setup, while a room with changing seating or glare calls for more flexibility. The USX MOUNT XMM904 is a full-motion wall mount designed to let you adjust your TV’s position as needed.

Its arm extends up to 19.37 inches and swivels, making it useful for corner placement or directing the screen towards different parts of a room.

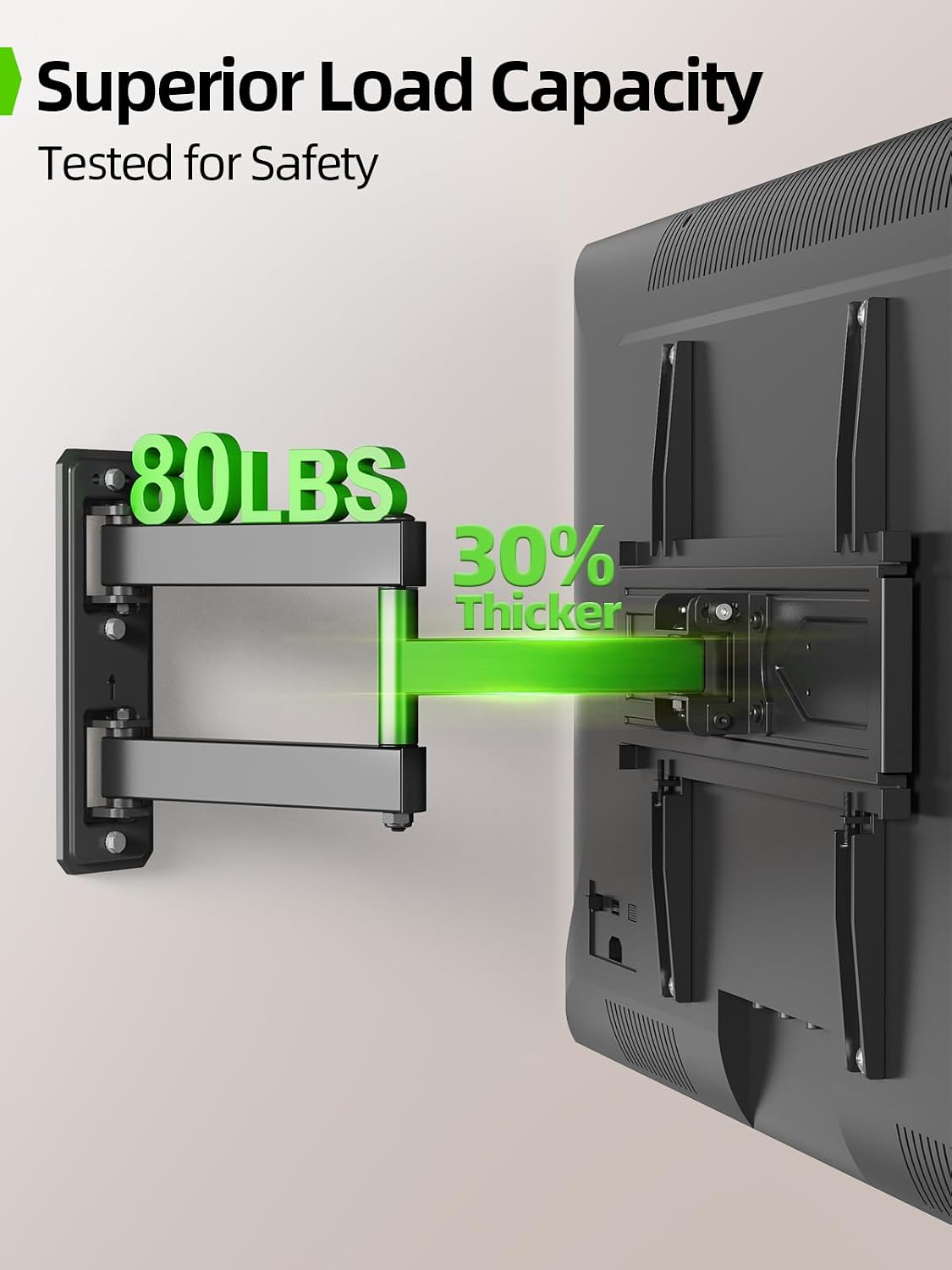

With tilt and levelling adjustments, you can fine-tune the screen after installation. The mount is made for compatible 26–60-inch TVs weighing up to 80 lbs.

Worth noting

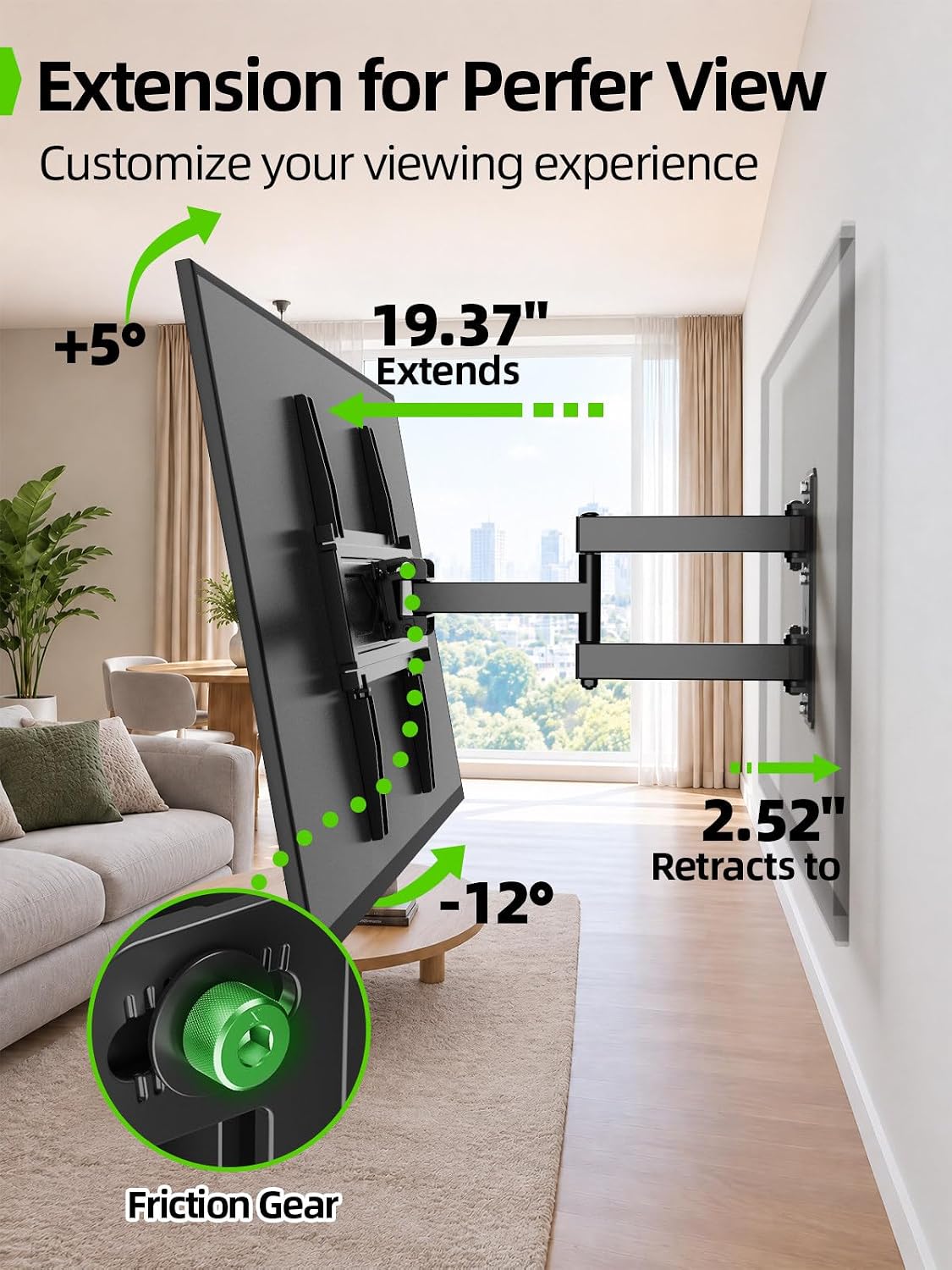

The articulating arm extends up to 19.37 inches from the wall and retracts to 2.52 inches in its home position. That range gives you room to pull the TV forward for a better viewing angle, then tuck it closer to the wall when you’re finished. The black metal mount also includes a cable strap to help keep TV cables together for a tidier installation.

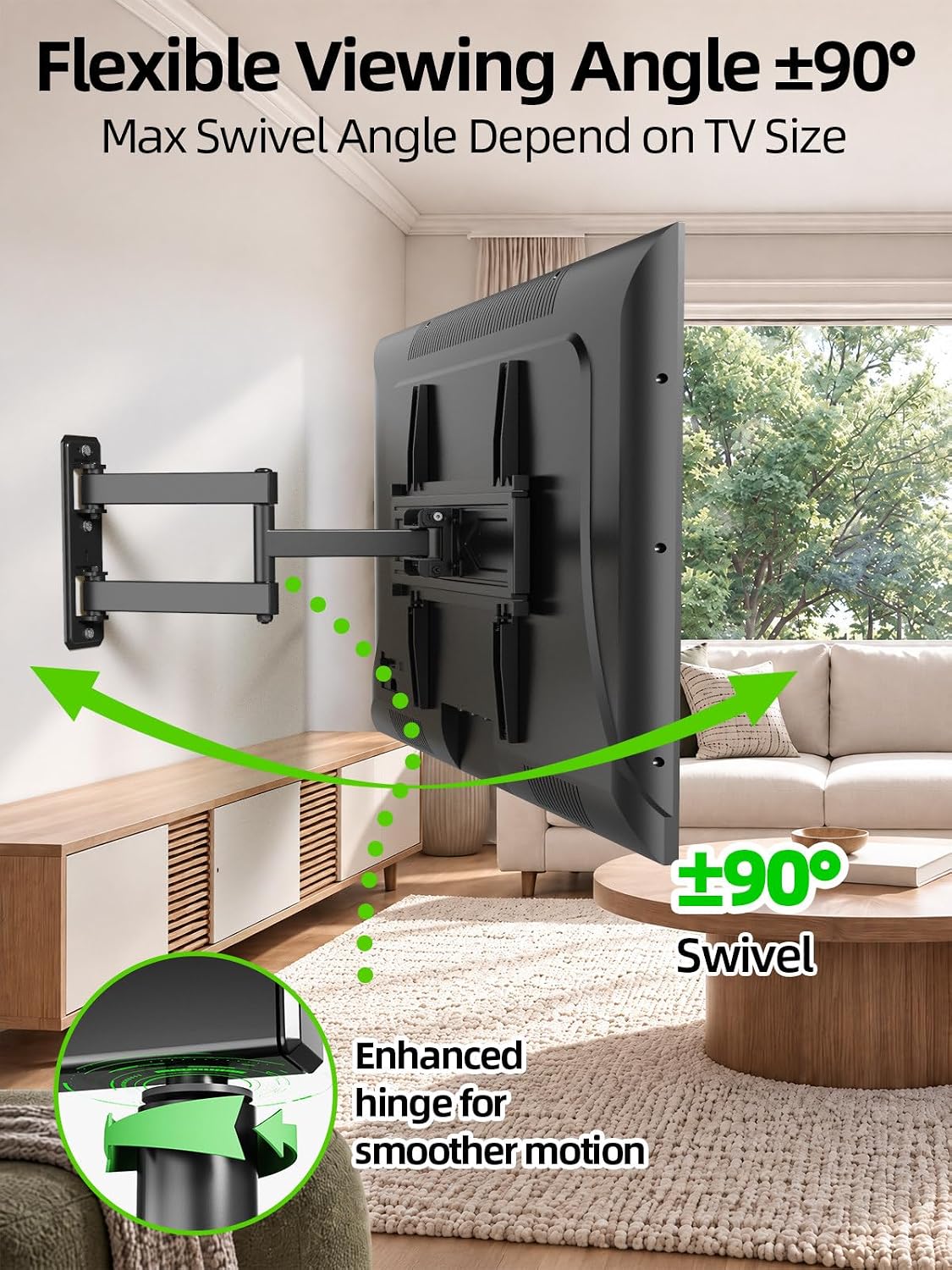

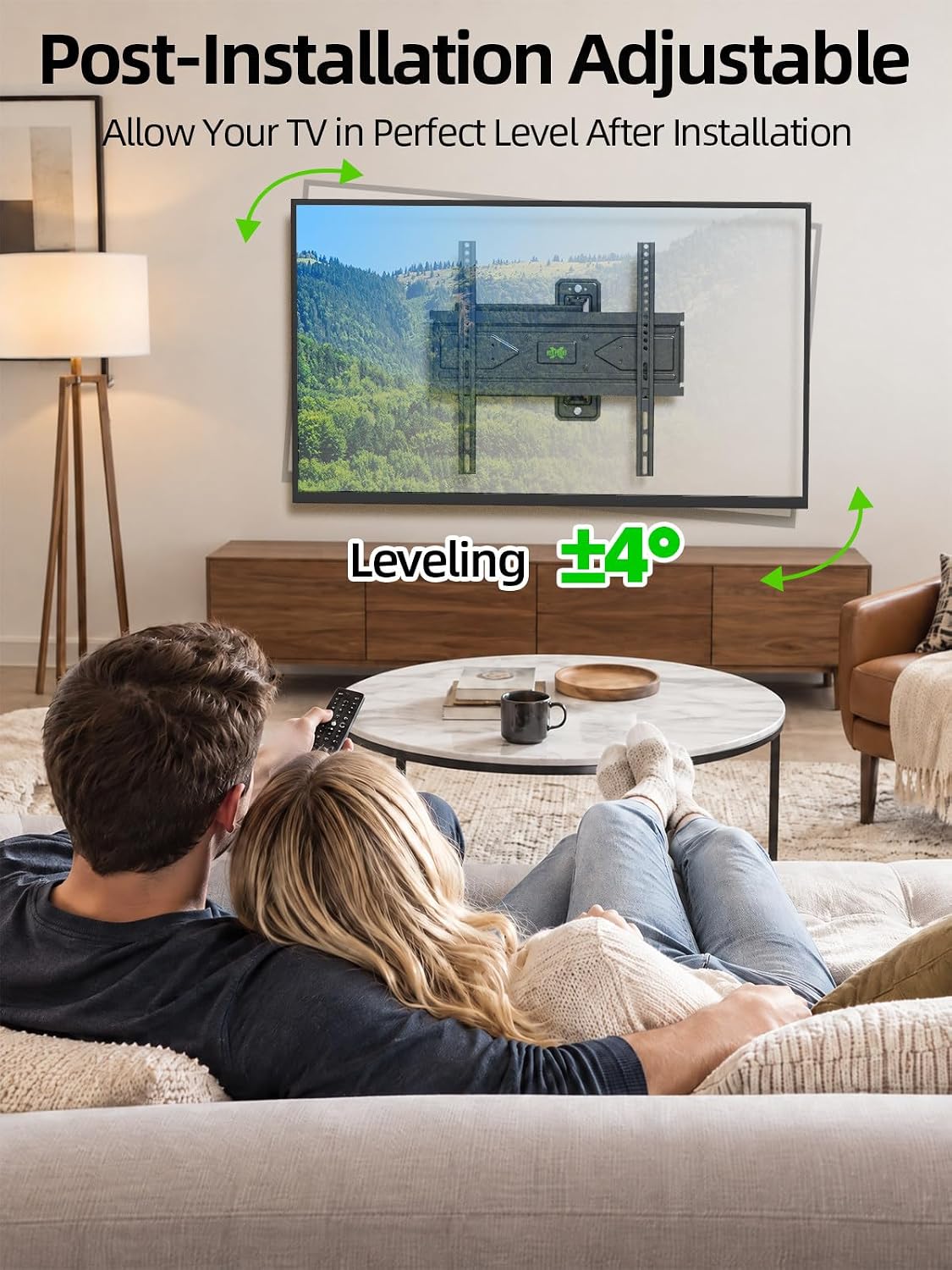

For screen adjustment, the mount offers a swivel of up to ±90°, with the maximum angle depending on TV size. Tilt ranges from +5° to -12°, and the screen can be levelled by ±4° after mounting. Together, these adjustments are handy when a TV needs to face a seating area from an off-centre wall or corner position.

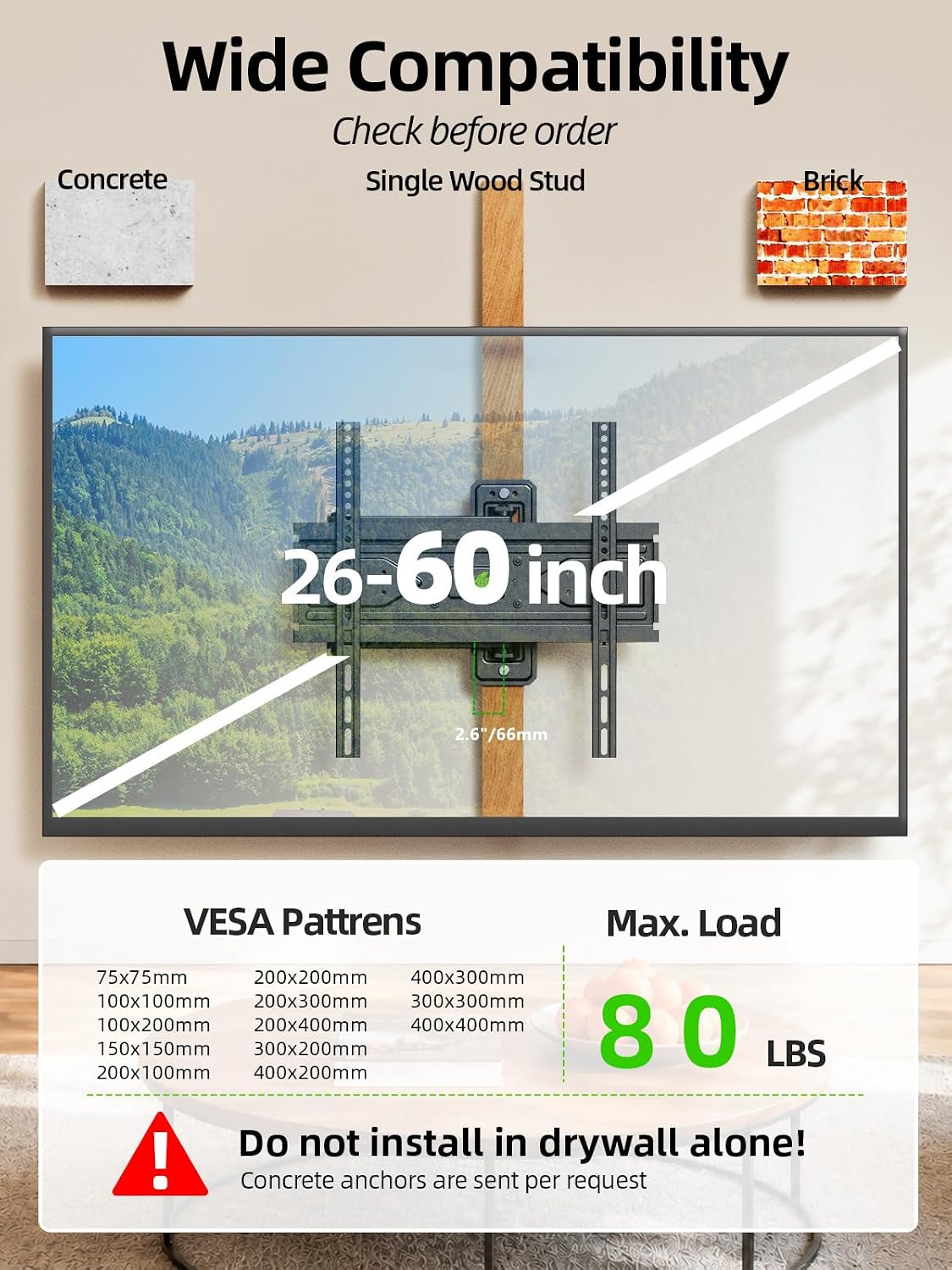

The bracket supports VESA mounting patterns from 75x75 mm to 400x400 mm and TVs up to 80 lbs. It is designed for installation on a wood stud, solid brick or concrete wall, and is not intended for drywall installation. For concrete mounting, anchors are sent by request.

Everyday use

This mount works well in shared living spaces where the preferred viewing direction can change. For example, extend and swivel the TV towards a dining area while people are seated there, then return it closer to the wall when the room is used differently. Its retracting position helps keep the screen nearer the wall between viewing sessions, while the arm provides extra reach when a straight-on position is not practical.

A fixed mount is a more direct choice when the screen will always face one seating area. The XMM904 is suited to setups where adjustable direction and extension are useful features in everyday viewing.

Getting the most from it

Before installation, match your TV’s weight and VESA pattern to the mount’s supported range, and choose a suitable wood stud, solid brick or concrete wall. The package includes a drilling template, detailed instructions and standard mounting hardware in labelled bags. Following the template helps position the bracket for the intended screen placement. For a concrete wall installation, request the concrete anchors.

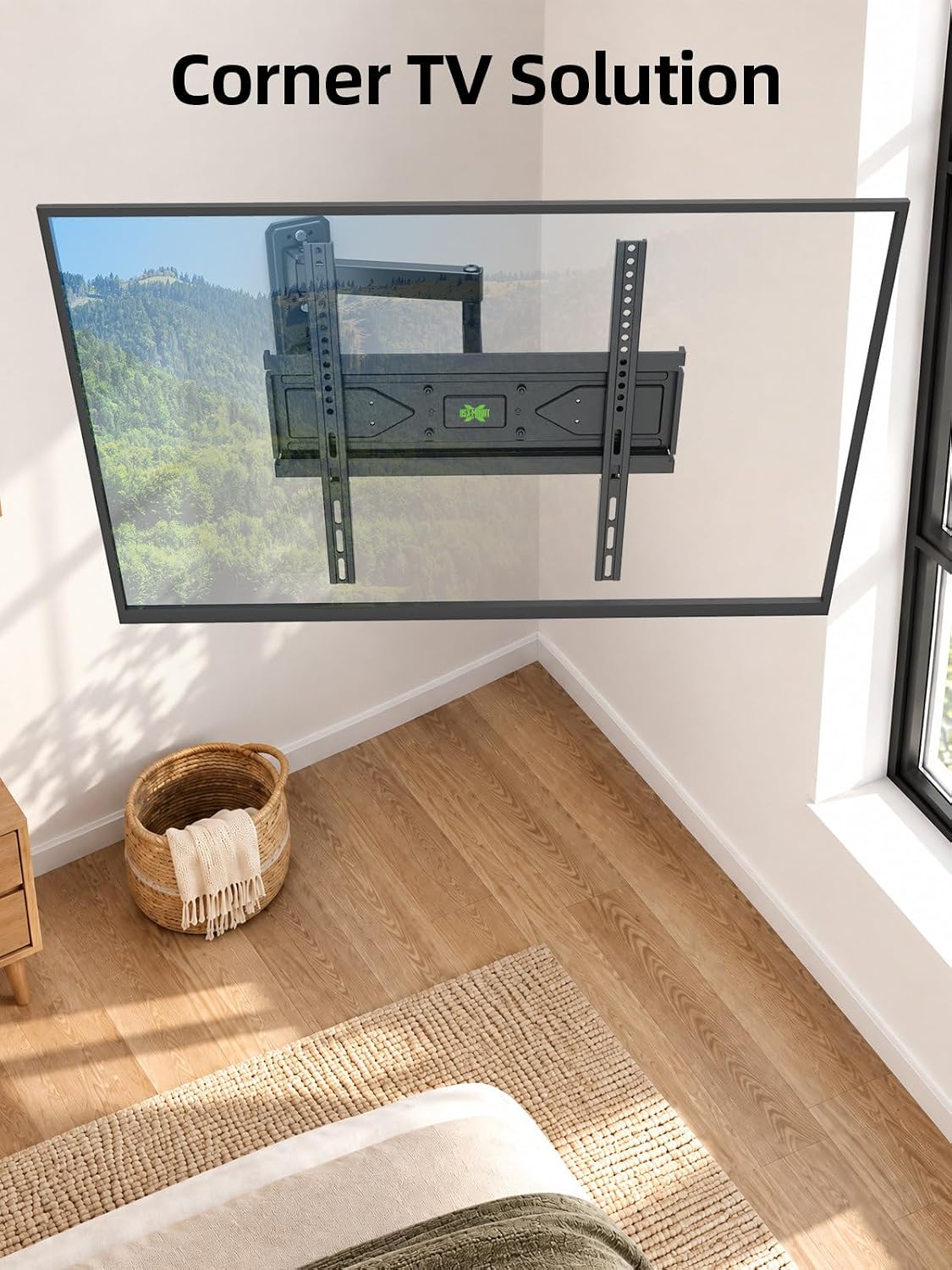

Once the TV is mounted, use the swivel and tilt adjustments to direct the screen towards your usual seating position and reduce glare. The levelling adjustment is useful for a final alignment, and the included cable strap helps organize the cables along the mount. The arm’s range can also make corner installations more practical by allowing the screen to turn towards the room.

Final verdict

The USX MOUNT XMM904 brings useful positioning flexibility to compatible 26–60-inch TVs, with a long extension, wide swivel range, tilt and post-install levelling. It’s a practical fit for viewers who want to direct the screen towards different seating areas or make better use of a corner, while keeping the option to retract the TV closer to the wall.
