Partsam LED trailer lights, 6.3-inch

What matters most

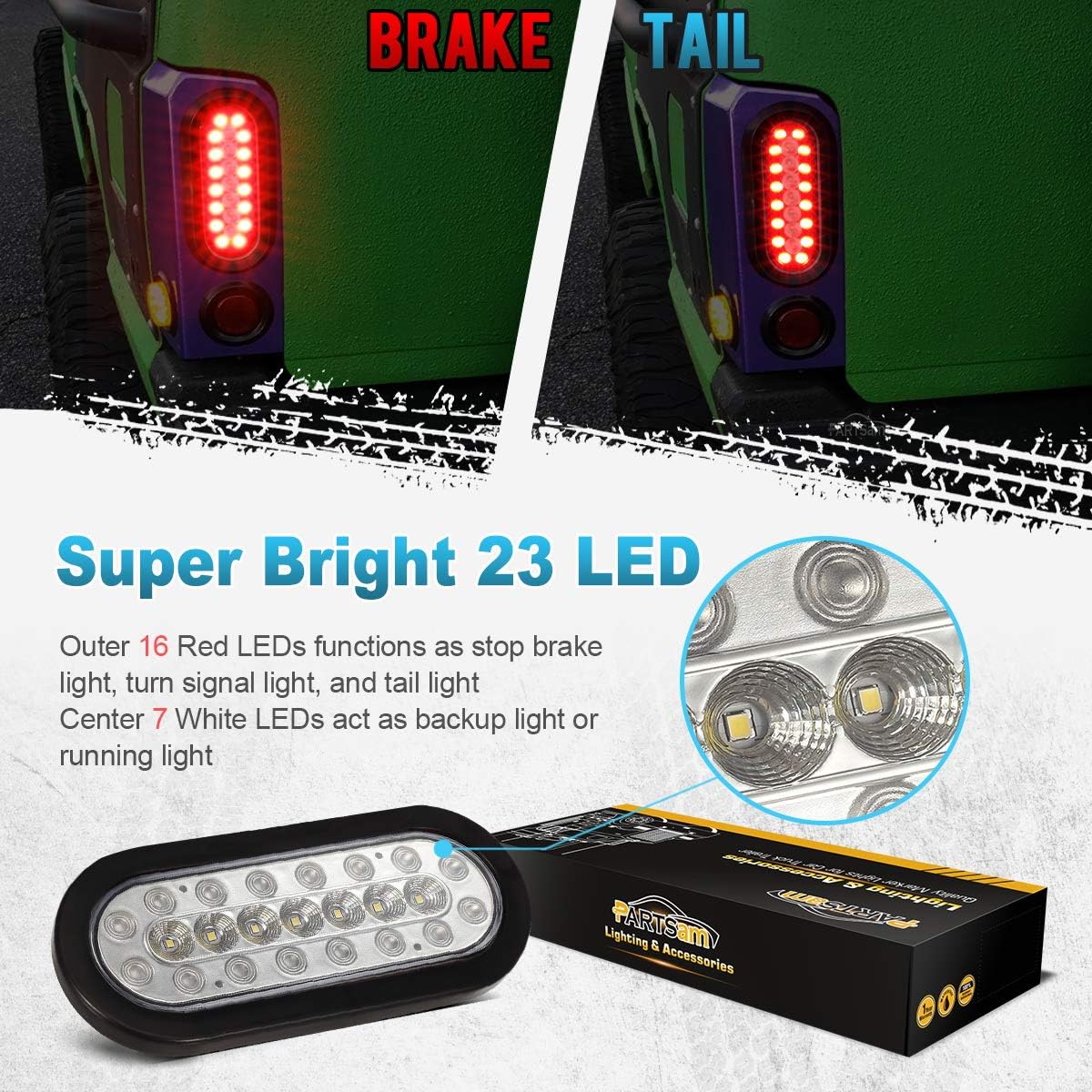

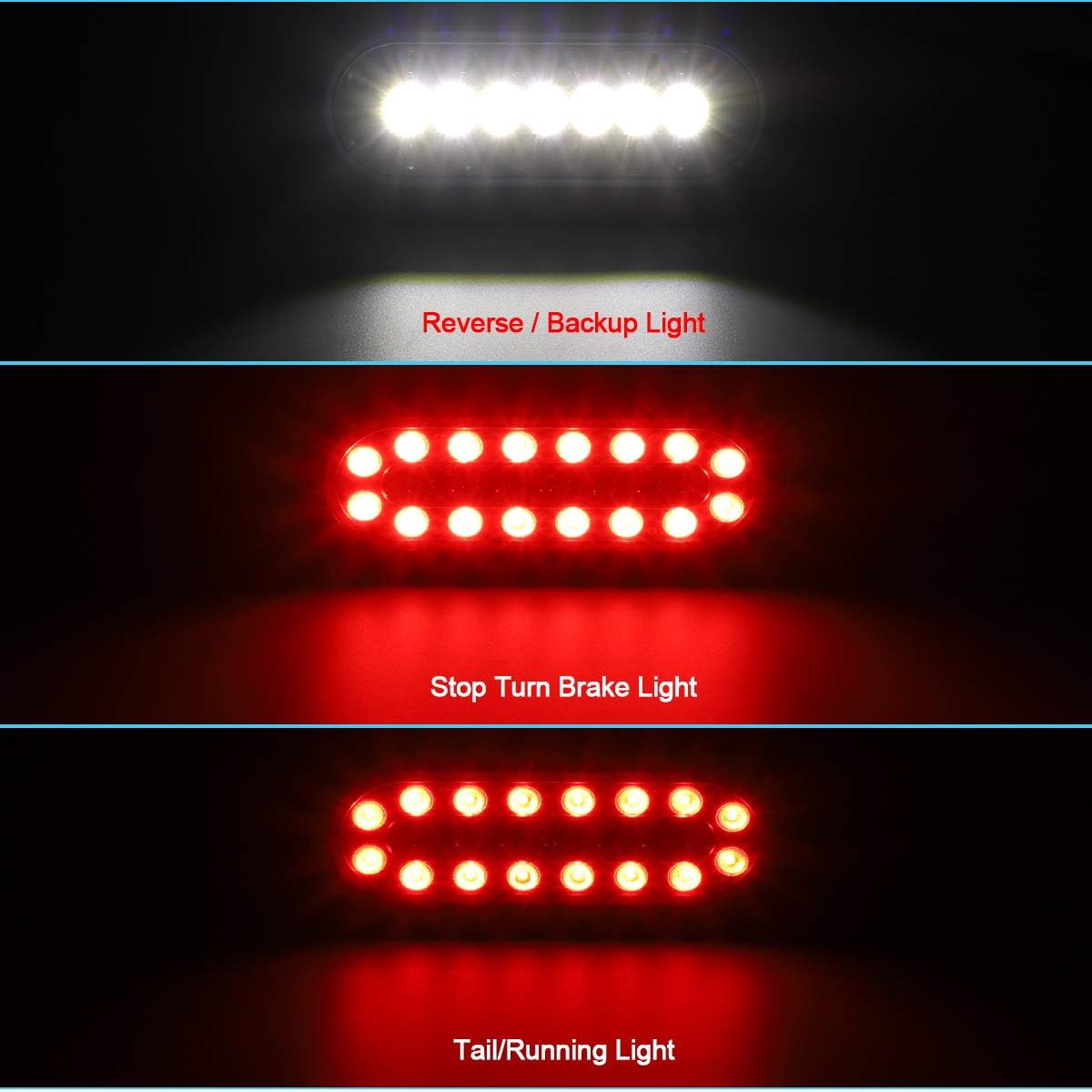

The clear-lens layout separates red rear lighting from white reverse lighting, so this two-light set covers several trailer signals without relying on a single-colour lamp. Each oval light has 23 LEDs: 16 red LEDs in the outer ring and seven white LEDs in the centre. The outer ring has high- and low-beam modes and handles stop, turn and tail-light functions, the white centre is for reverse lighting.

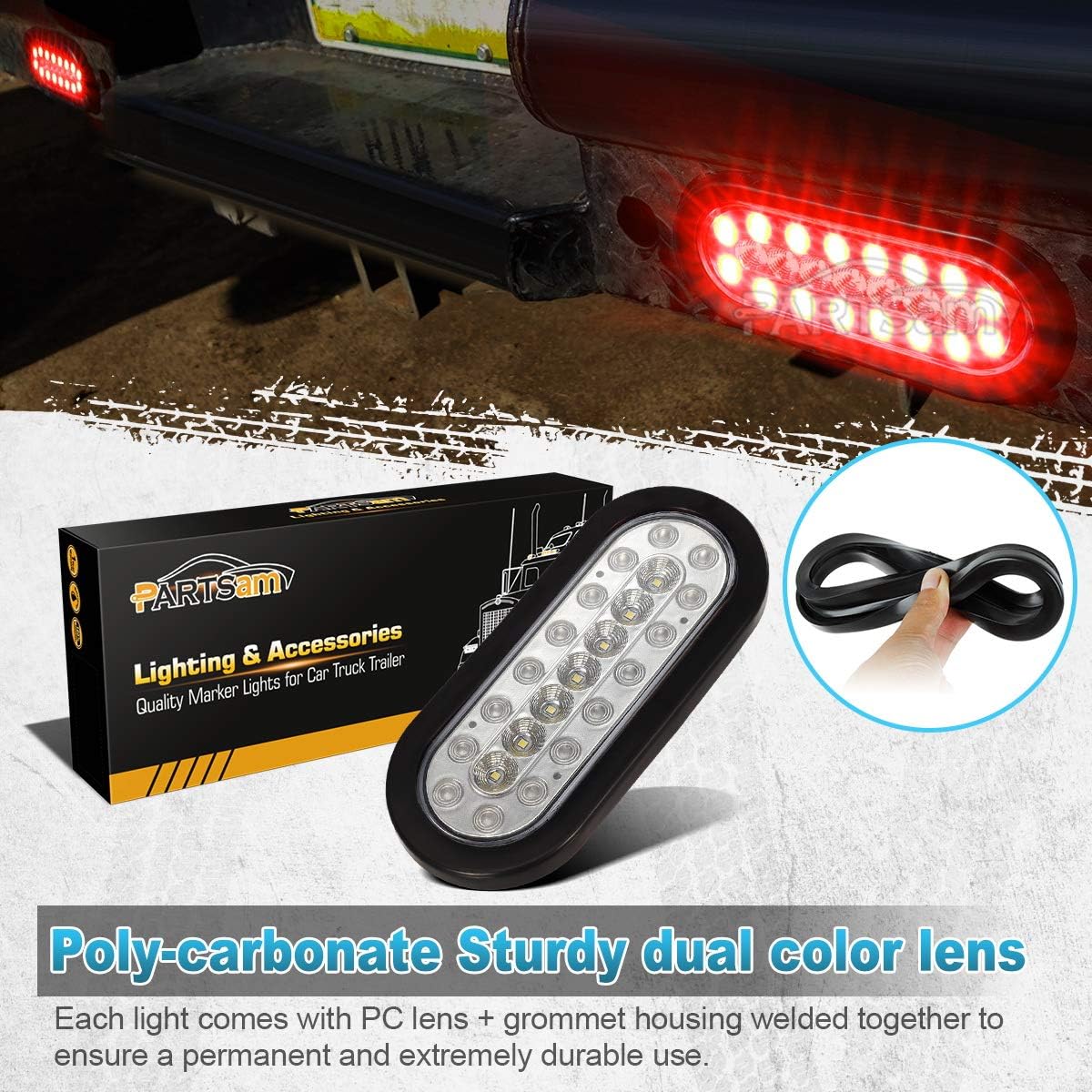

Both lights use a recessed mount with rubber grommets and are rated IP65. That gives the set a broad role as a replacement for older trailer lights, provided the opening and wiring suit your installation.

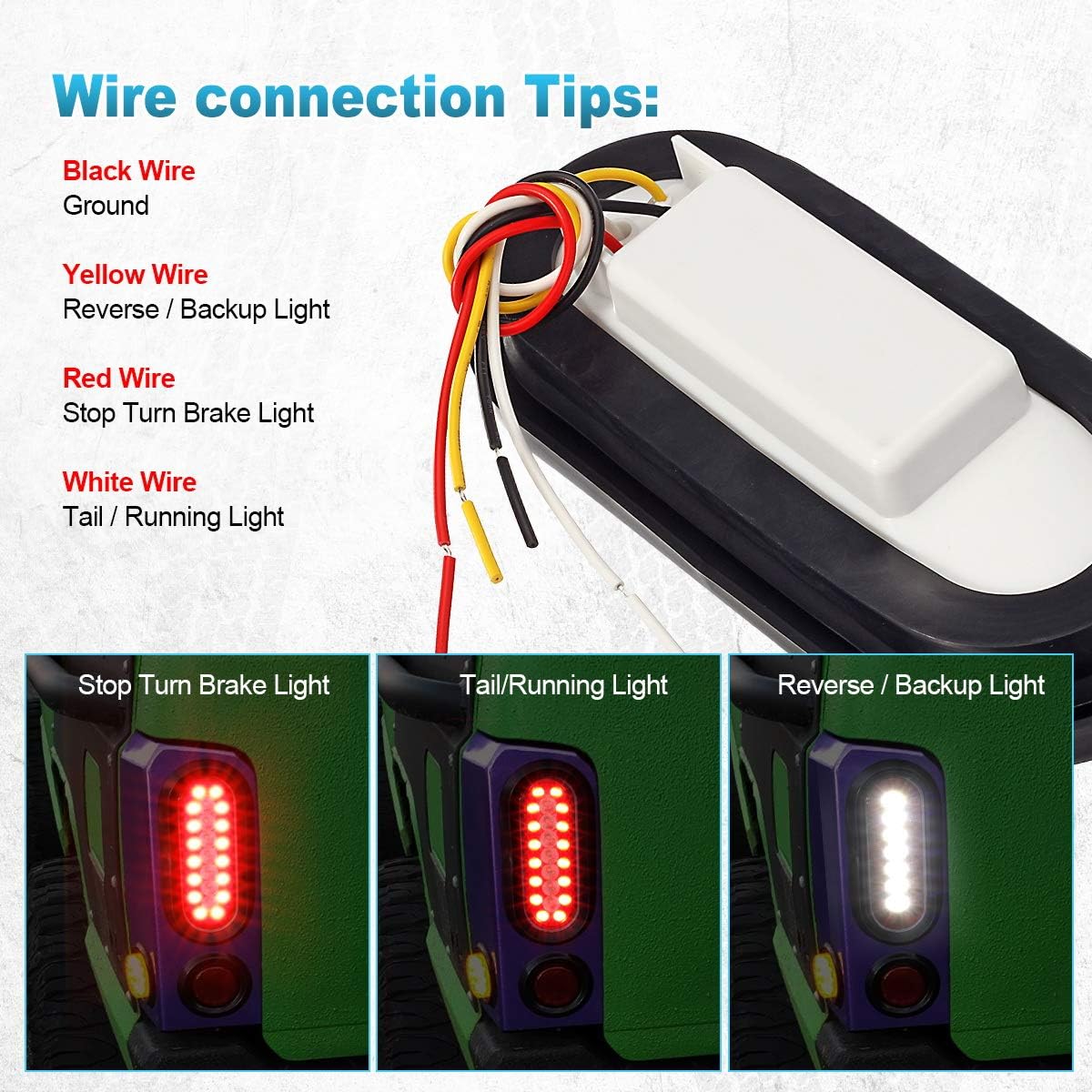

The connection is hardwired with four wires: black for ground, red for stop/turn/brake, yellow for reverse and white for running/tail lights. It is listed for DC 12–24V power sources.

Best use cases

These are intended for trailers and other vehicles where you want stop, turn, tail and reverse functions in one oval fixture. The product listing names trucks, RVs, campers, UTVs, boats and caravans among possible applications, but the dimensions and electrical setup still matter more than the vehicle label.

For a practical example, when reversing a trailer into a driveway, the white centre LEDs provide the reverse-light function while the red outer ring handles rear signalling. The inner faceted reflector is designed to direct light output, though no brightness measurement is provided here.

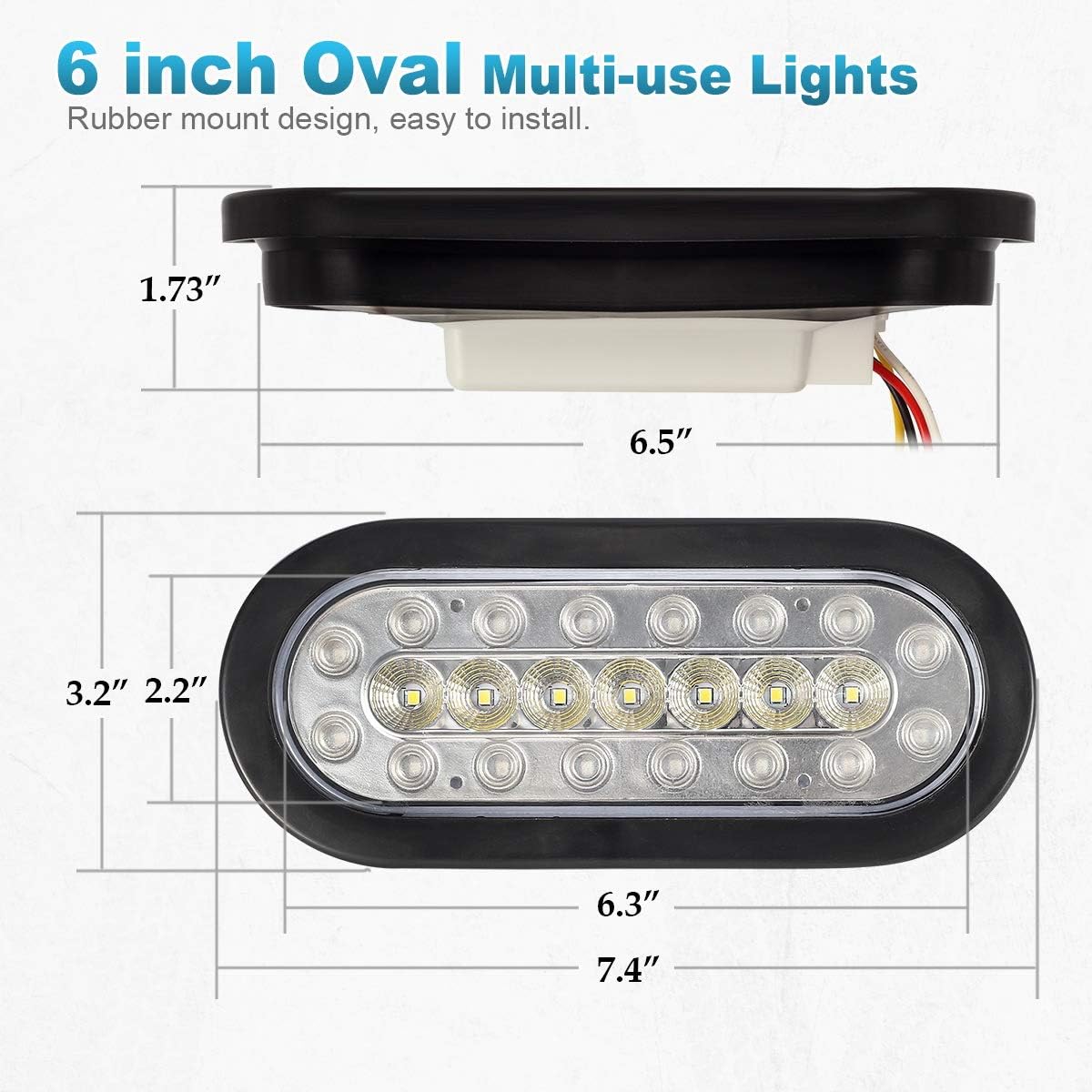

Keep in mind that the stated drill-hole size is 6.5 inches, while the inner diameter is 6.3 inches and the outer diameter is 7.4 inches. The opening and available space need to match the recessed grommet mount. May interest you if you’re replacing a pair of multi-function oval trailer lights, it won’t suit you if your setup needs a different cut-out or a plug-in connection rather than four hardwired leads.

Tips for day-to-day use

Before fitting, compare the existing opening with the listed dimensions and identify each vehicle wire against the light’s colour-coded functions. Don’t assume the trailer’s wiring uses the same colours: the supplied wire colours describe the light leads, not the vehicle-side connections. Secure the grommets in the intended recessed position, then test the stop, turn, running and reverse functions once connected.

The package includes two lights, so it is suited to replacing a pair rather than buying a single fixture. If you only need one lamp, the second may be unnecessary. The clear lens and red-and-white LEDs also mean this is a specific multi-function arrangement, not a like-for-like choice for every single-colour oval light.

Buying questions

What functions do the lights provide?

The red outer LEDs serve stop, turn and tail-light functions, while the white centre LEDs provide reverse lighting. The outer ring is described as having high- and low-beam modes.

What size opening is specified?

The stated drill hole is 6.5 inches. The inner diameter is 6.3 inches, and the outer diameter is 7.4 inches, so check the mounting space as well as the cut-out.

What is included in the set?

The package includes two oval lights with rubber grommets. They use a four-wire hardwired connection for ground, stop/turn/brake, reverse and running/tail lights.

Is it worth it?

This Partsam set makes sense when you need two recessed oval trailer lights that combine red rear signals with white reverse lighting, and your vehicle has a compatible DC 12–24V supply. Its multi-function layout can replace several rear-light roles in one fixture, rather than choosing a simpler single-colour lamp. The trade-off is a more specific installation: the cut-out dimensions and four-wire connections have to work for your setup. Choose it for that combination of functions, look elsewhere if your opening or wiring calls for a different format.
