Heavy-Duty Toggle Switches 12V

What matters most

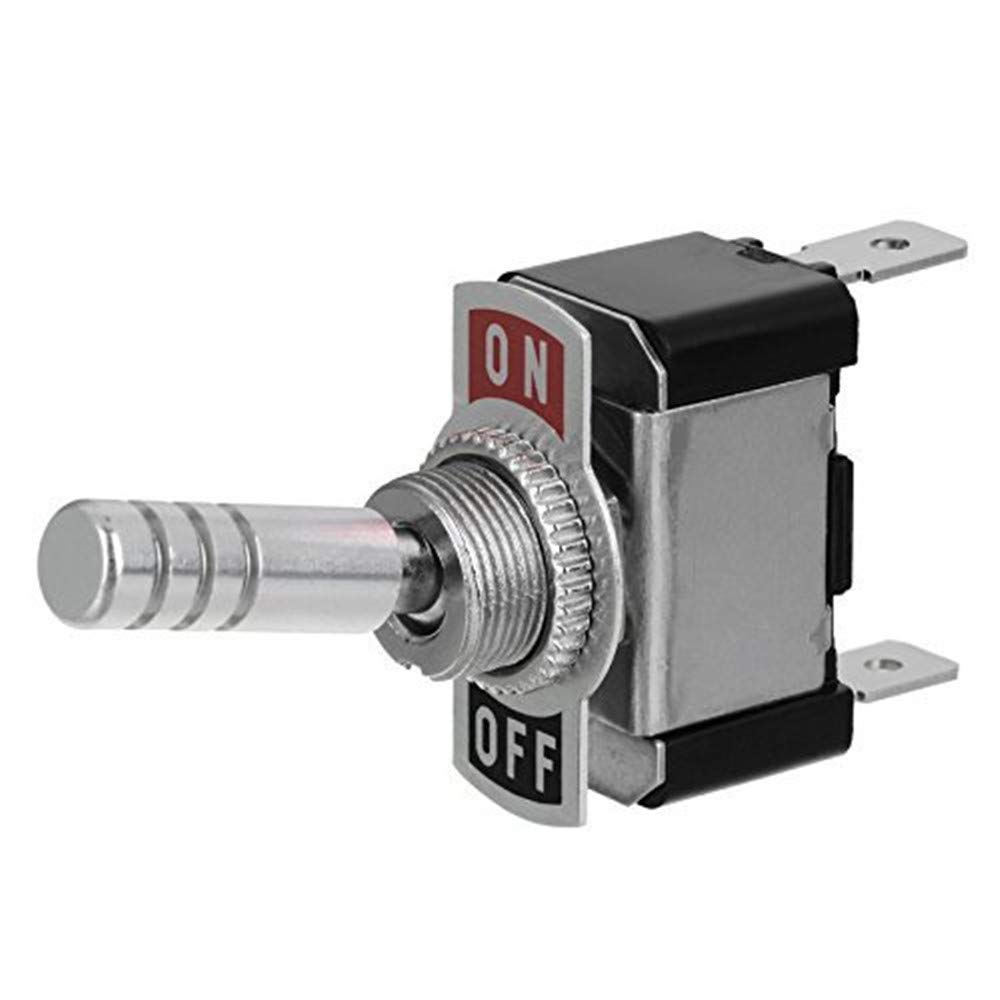

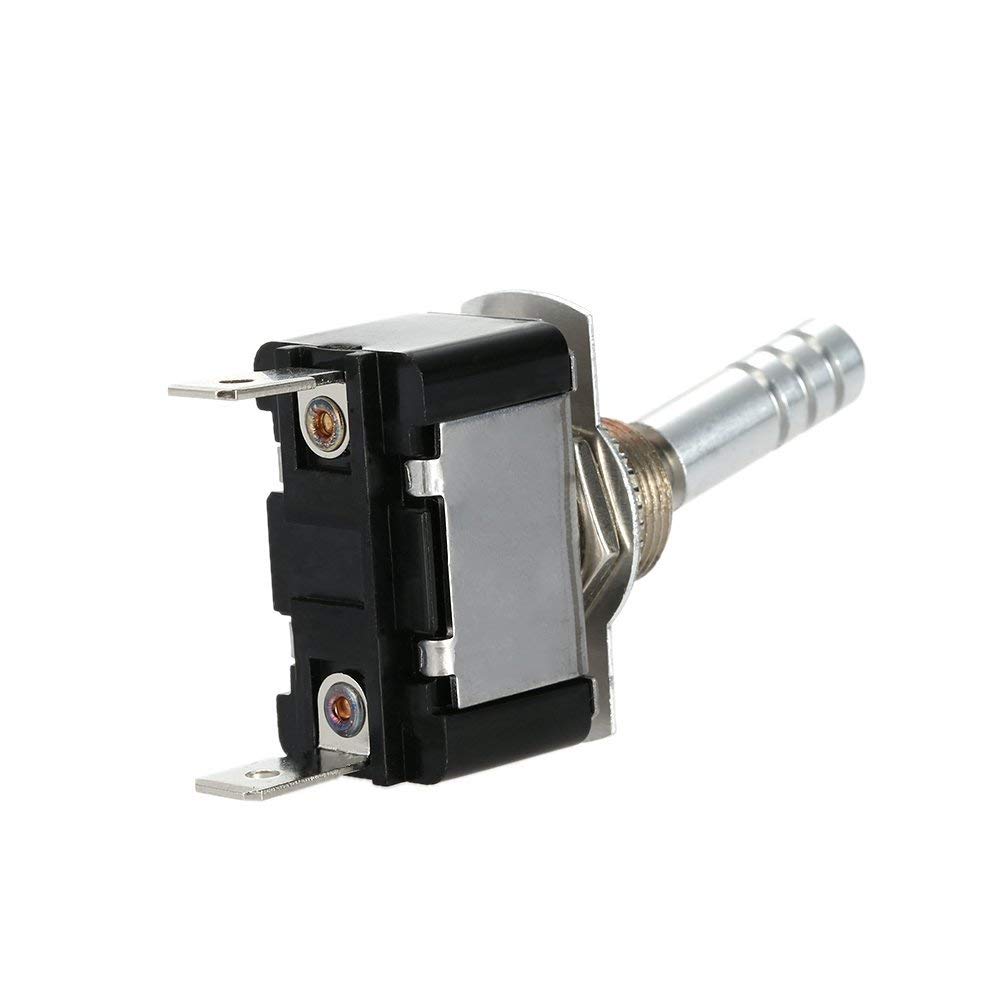

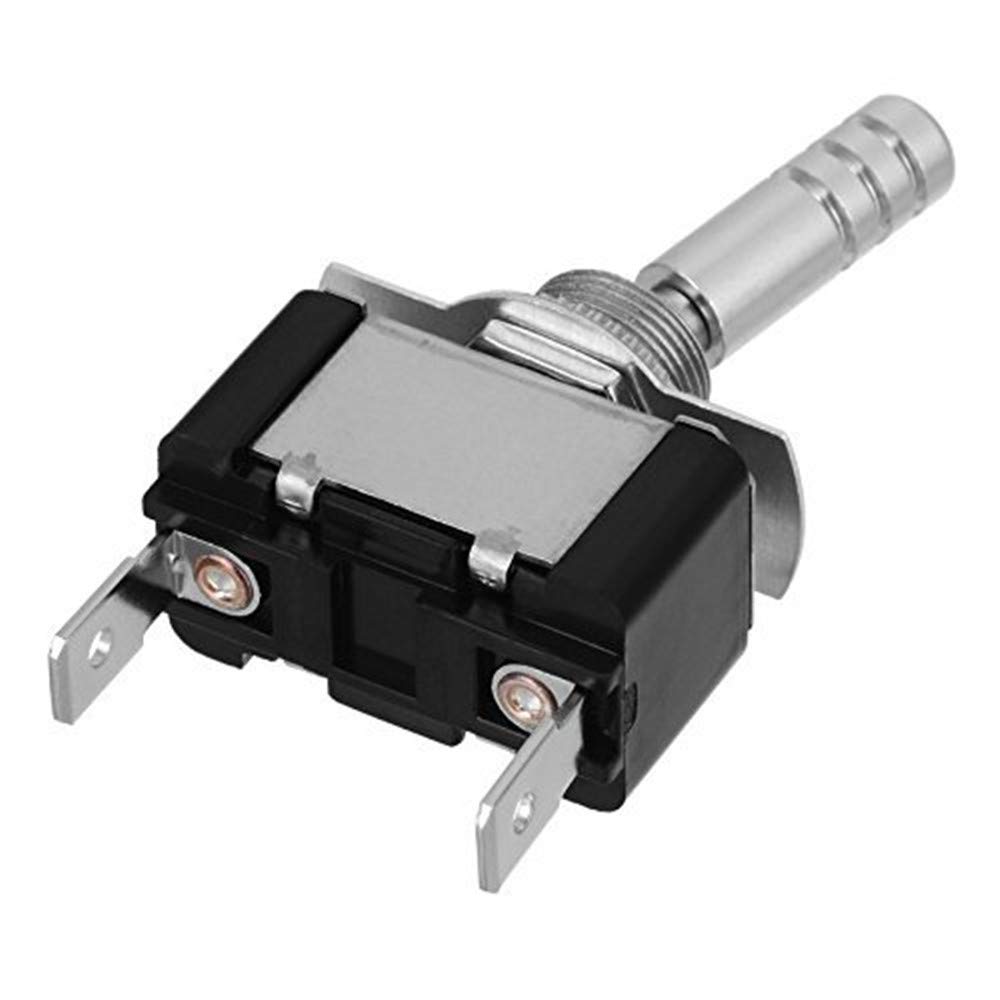

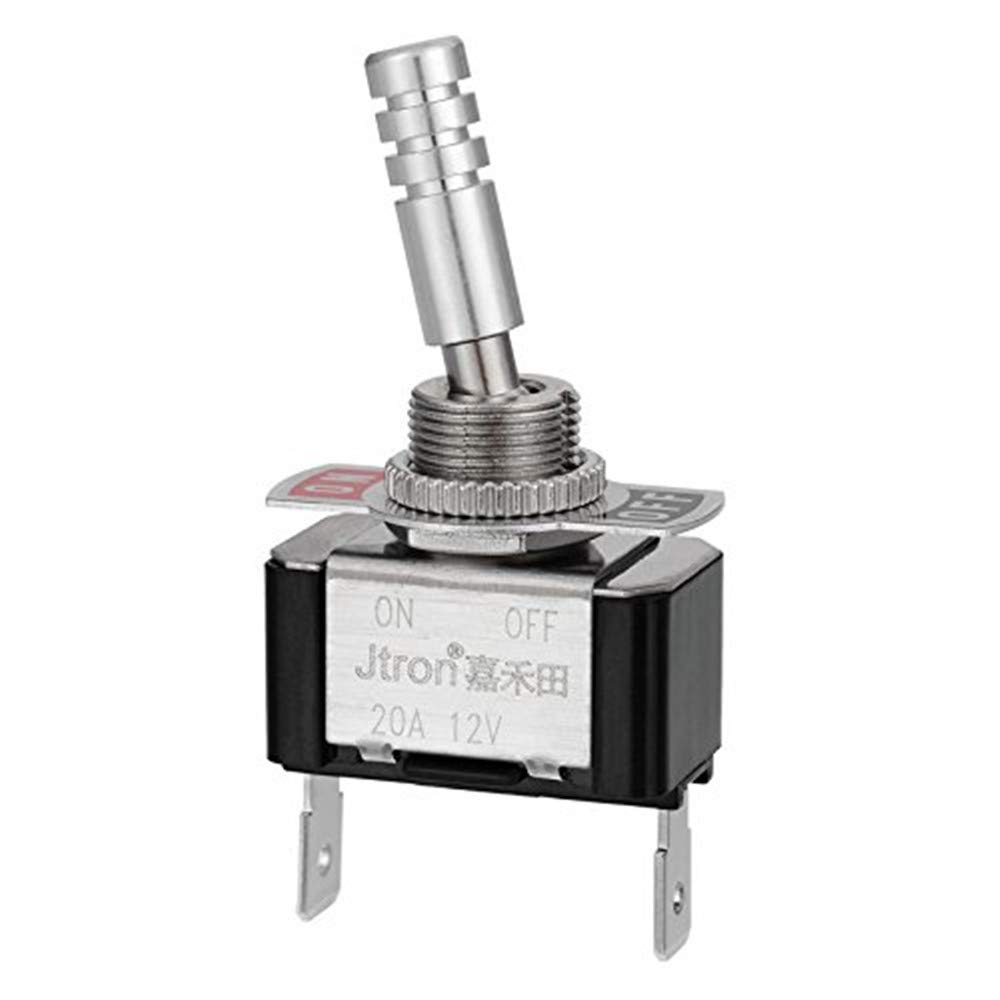

A battery cut-off switch needs to be straightforward to operate, but the electrical rating still has to suit the circuit. These heavy-duty rocker toggle switches are rated for 20A at 12V DC and use a 2P SPST ON-OFF mechanism for basic power control.

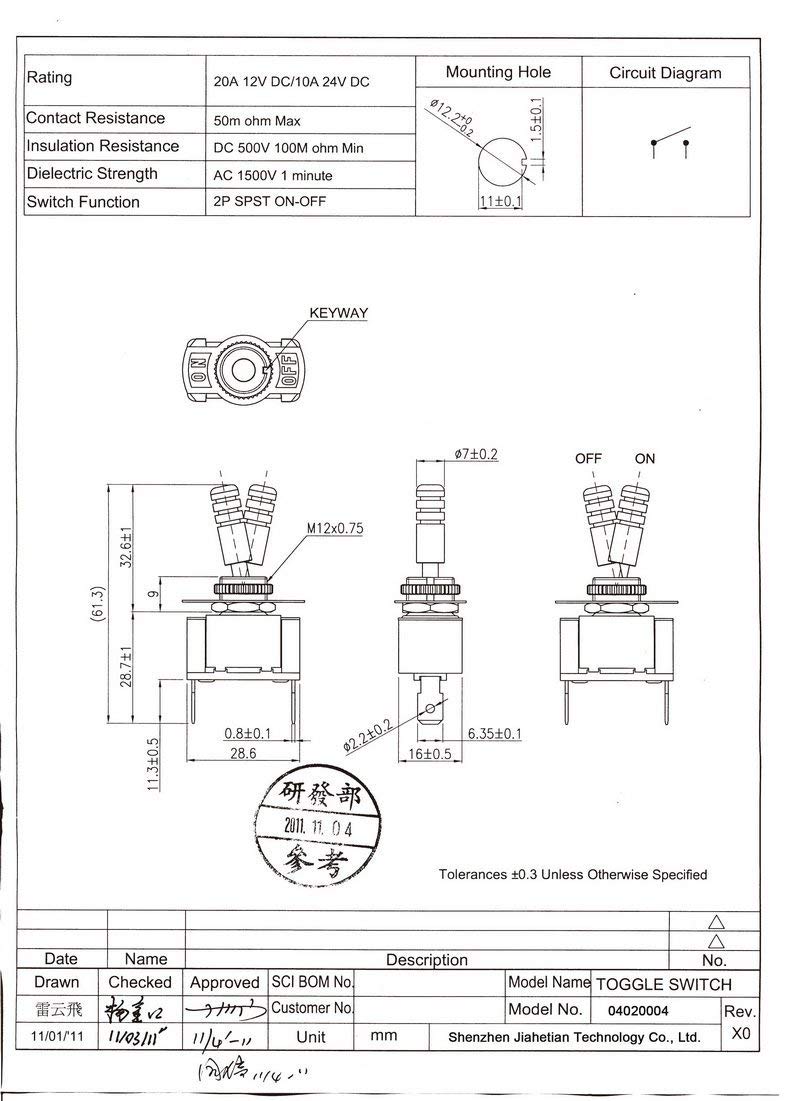

The construction combines PA66 and aluminium alloy. The listed dimensions are 2.56 in x 1.10 in x 0.63 in, with a weight of 0.81 oz, which gives you a practical sense of the space to allow for installation. Contact resistance is listed at 50 mΩ maximum, and insulation resistance at DC500V is 100 MΩ minimum.

Keep in mind that the 20A, 12V DC rating is the key selection limit here, the listing doesn’t provide details about wiring, terminals or a mounting cut-out. Make sure the switch’s electrical rating and fit suit your project before choosing it.

Best use cases

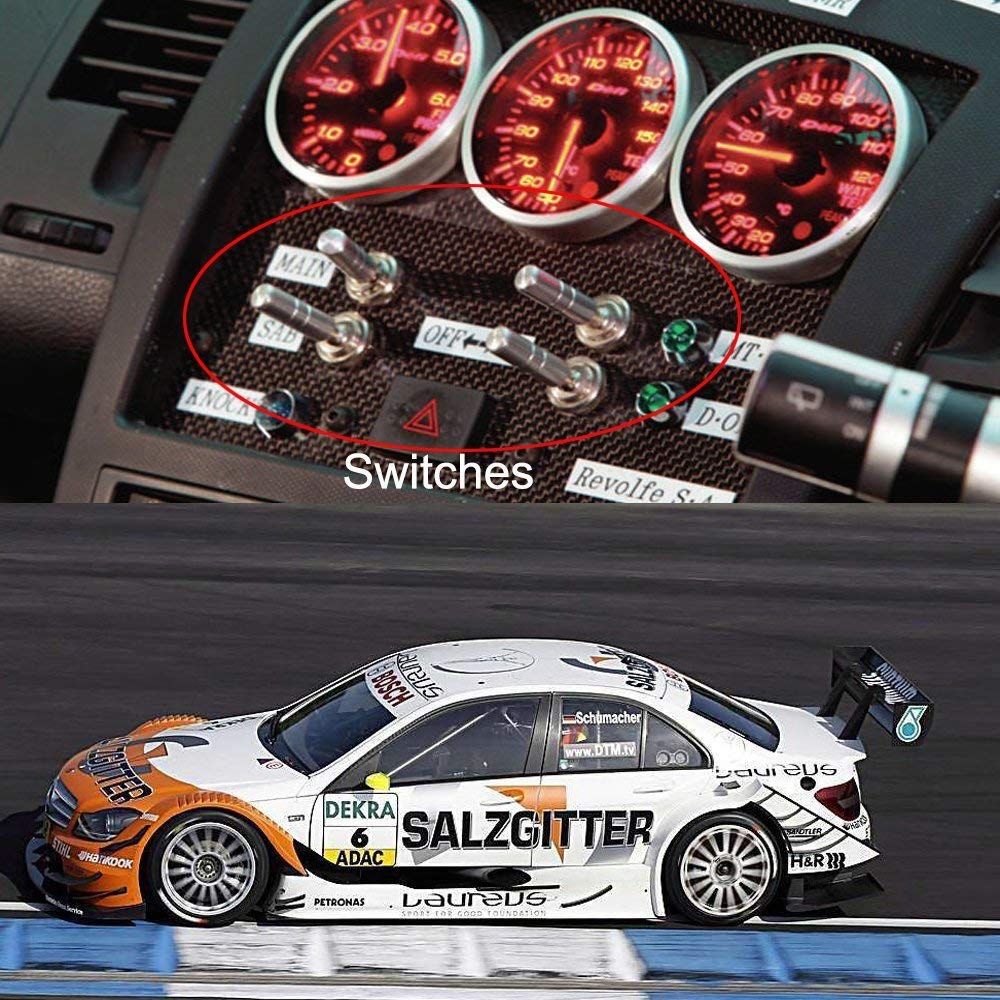

These switches are intended for battery cut-off and power-kill applications, including vehicle DIY projects, trucks and other electronic products. For example, you might use one as an accessible ON-OFF control in a DIY vehicle setup, rather than relying on a less direct way to disconnect power. Its 2P SPST function is for simple switching, not a description of a more complex control system.

Te encaja si you need a compact, manually operated switch for a 12V DC application within the stated 20A rating. Quizá no encaja si your project needs a higher current rating, a specified mounting style or more detailed installation guidance, those details aren’t included here.

Tips for day-to-day use

Before installation, compare the switch’s dimensions with the space available and confirm that your circuit stays within its listed rating. The compact size may help where room is limited, but the product information doesn’t specify the panel opening or connection method, so don’t assume it will fit a particular dashboard or enclosure without checking those requirements elsewhere.

Once installed, the ON-OFF toggle gives a clear manual way to control power. For a project where switching needs to happen automatically or through a more specialised circuit, a basic toggle may not be the right approach. The listing also doesn’t state a weatherproof rating, so outdoor exposure shouldn’t be assumed.

Before you decide

Is this switch for 12V DC systems? It is listed for 12V DC operation, with a 20A electrical rating.

What does 2P SPST ON-OFF mean here? It identifies the switch function as a simple two-pole, single-throw ON-OFF mechanism for power control.

What materials are used? The stated materials are PA66 and aluminium alloy. The listing does not give further details about mounting or terminal design.

Is it worth it?

This is a focused option for a straightforward battery cut-off or power-control job where the 12V DC and 20A rating fits and the compact dimensions work for your installation. Its listed materials and simple ON-OFF function make the intended use easy to understand. The trade-off is limited installation detail: if you need a confirmed panel fit, specific connections or a higher electrical rating, choose a switch with those requirements clearly documented instead.
