Eagles battery connector plugs, 50 A

Technical details

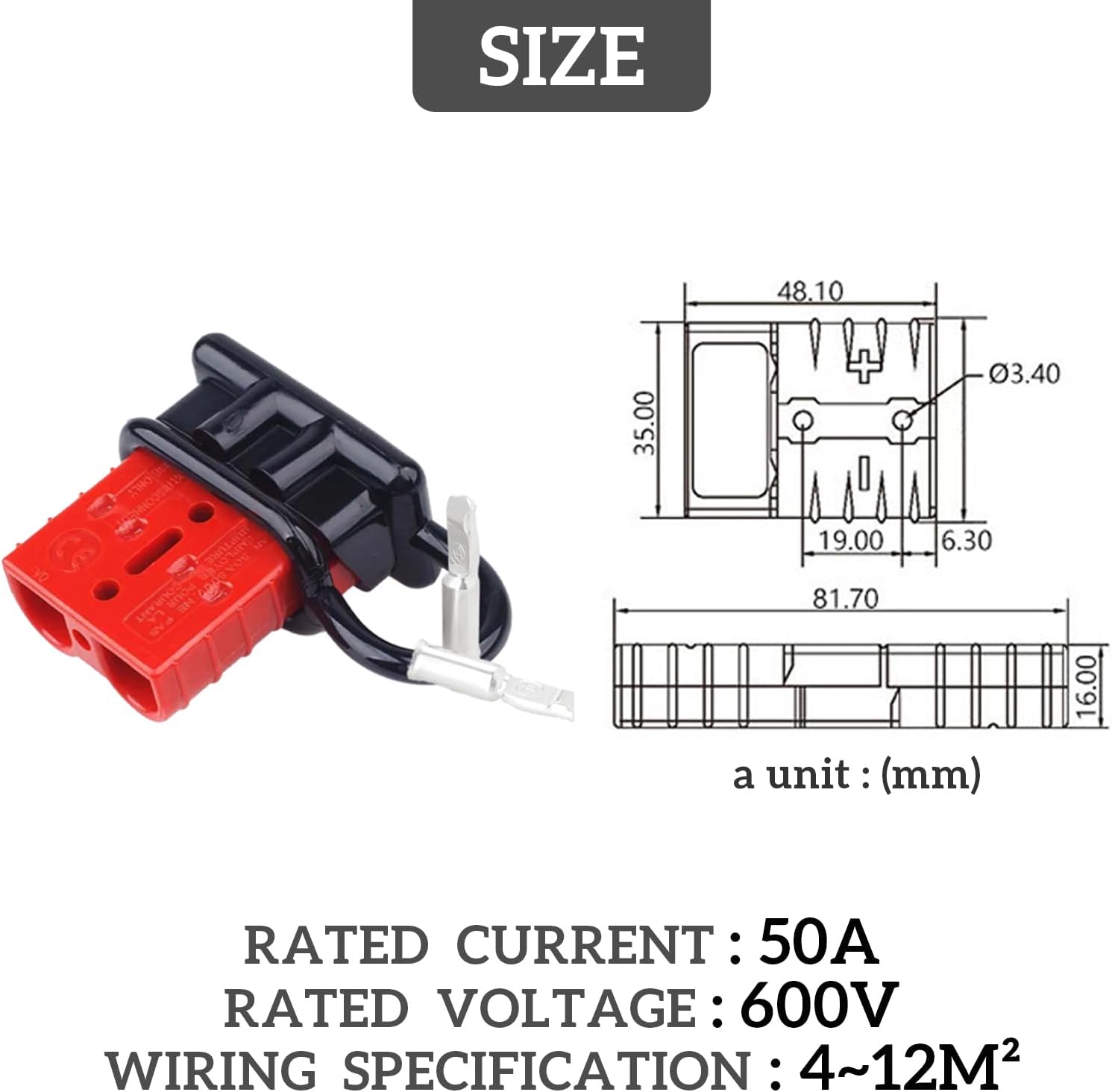

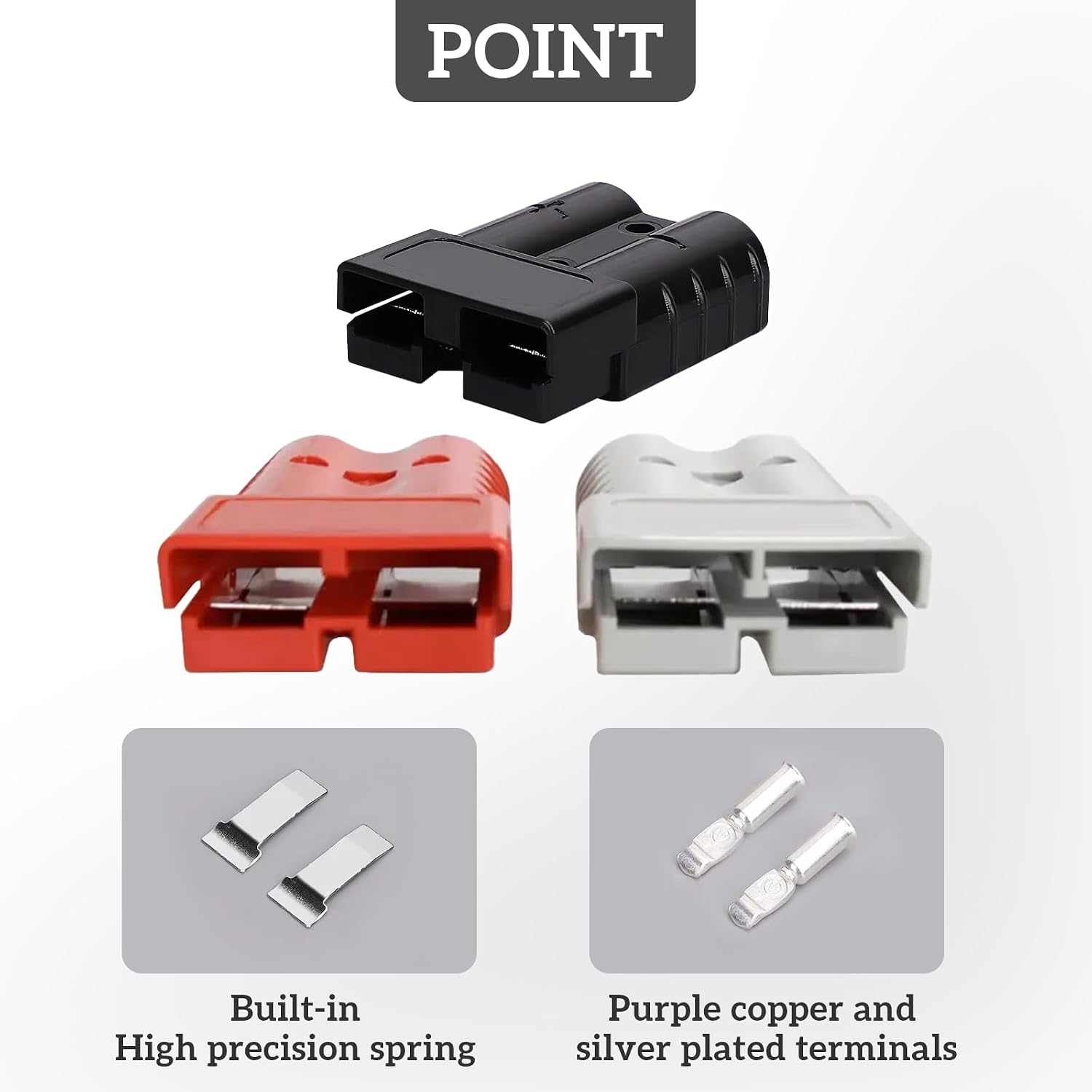

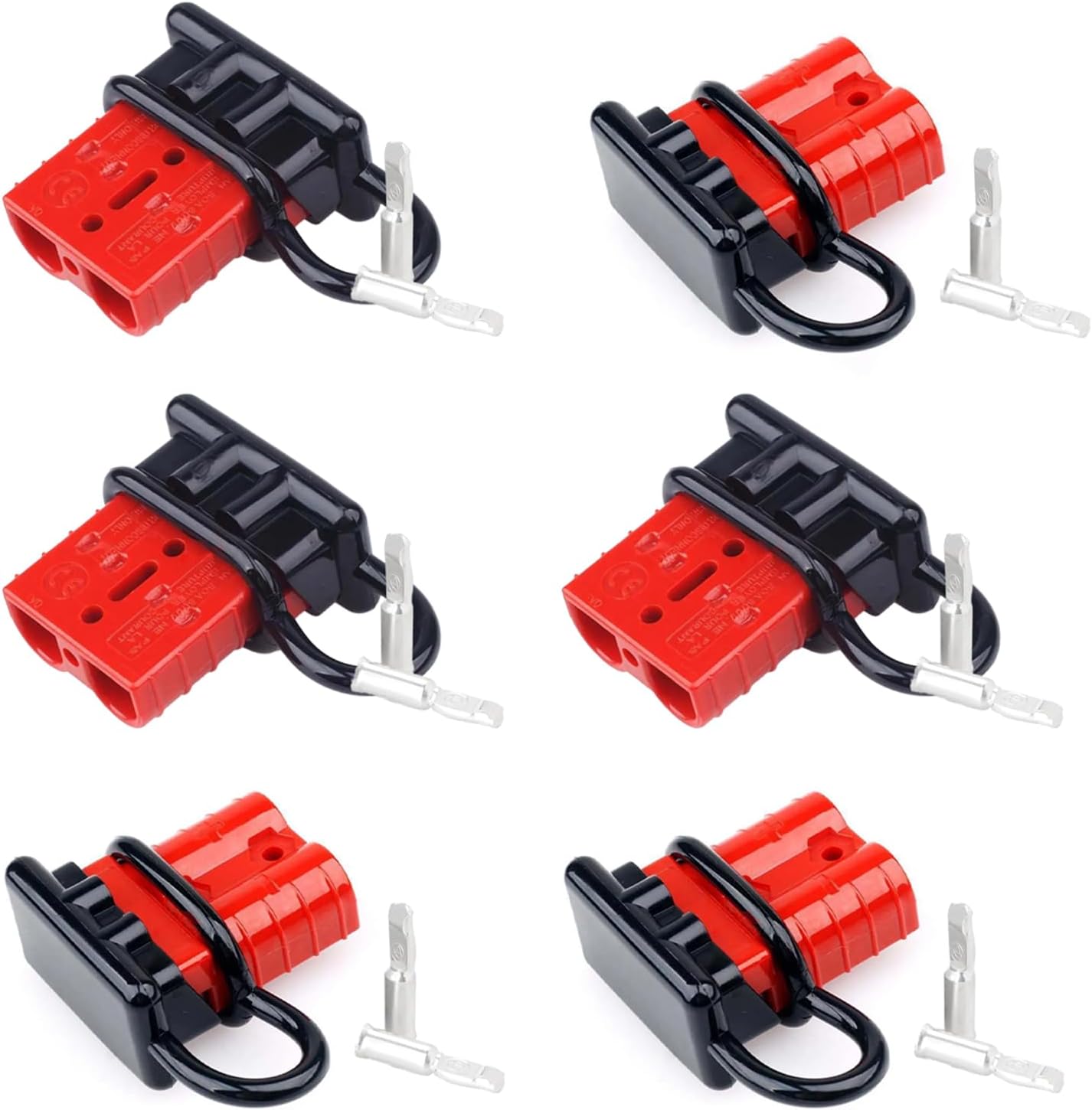

Some battery connections are meant to stay in place, these plugs are intended for setups where you want to disconnect and reconnect a high-current lead more easily. The six red connector plugs come with 12 silver-plated copper terminals and six boot caps. Their stated rating is 50 amps and 600 volts maximum, with a listed operating temperature range of -20°C to 105°C. Each connector measures 1.38 x 1.89 x 0.63 inches.

The terminals can be crimped or soldered to the cable. The listed wire range is 7 to 12 AWG, with terminal choice determining the fit. That makes this a parts kit for assembling a connection, rather than a ready-made cable with a specified length or attached battery clamps.

Compatibility

The plugs are described for winches, towing systems, jumper cables, remote battery chargers, power inverters, solar setups and trailers. They may also suit another application that needs a high-current quick disconnect, provided the cable size and electrical requirements are appropriate. The product name lists 7, 8, 10 and 12 AWG wires, the detailed description gives a 7–12 AWG range depending on terminal choice.

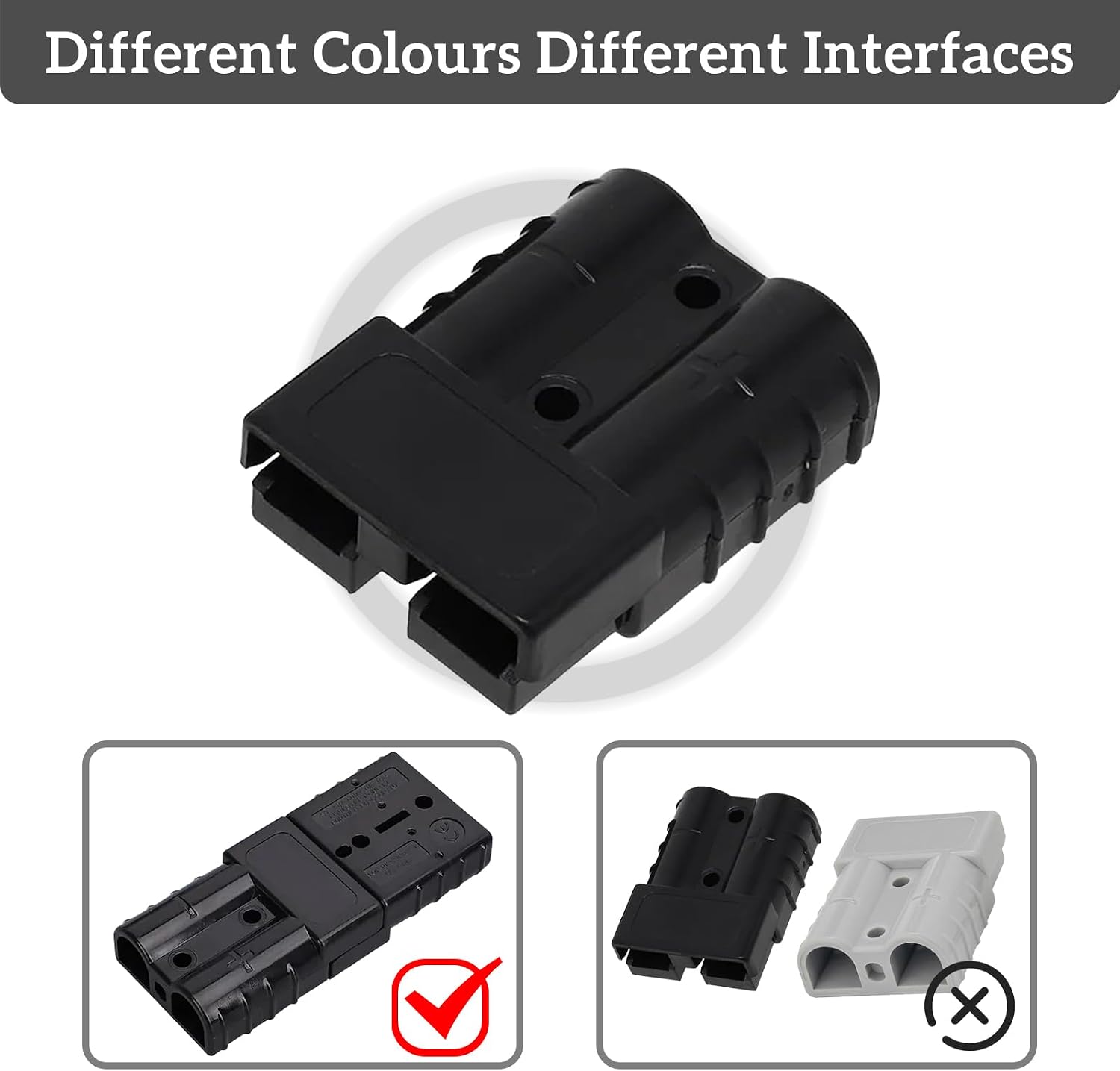

The housings are mechanically keyed, and matching connector halves join together. The listing says different colours are not compatible, so these red plugs are intended to connect with matching red plugs, not a different-colour version. There is no separate male and female version: each half has the same connector design. Both ends can be used on the power or load side, and the keyed shape is intended to prevent a reversed connection when joining them.

Usage tips

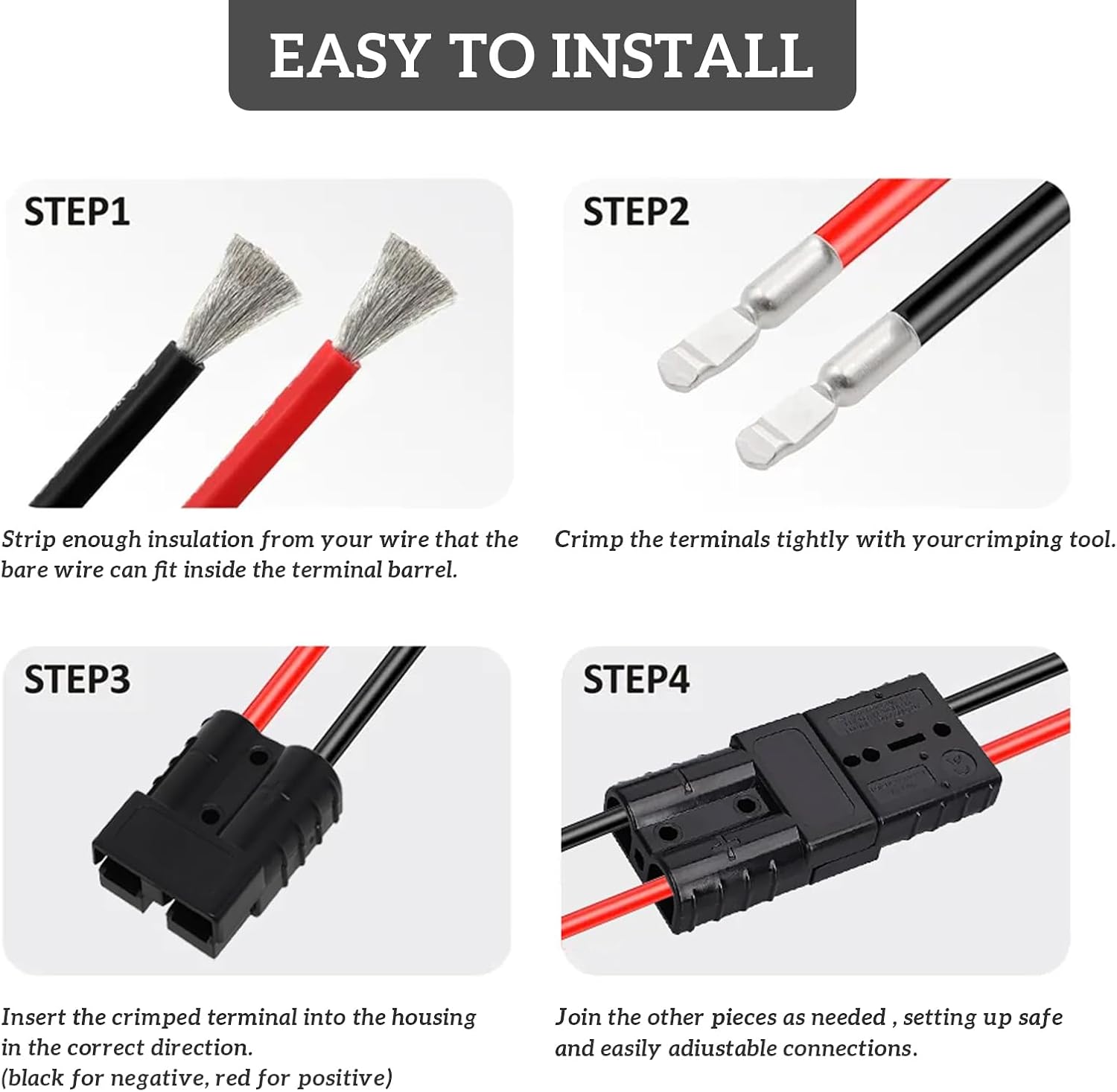

For a winch or trailer setup, the practical appeal is being able to separate the connection without repeatedly undoing a fixed cable joint. Select the terminal that suits the wire, then crimp or solder it as appropriate for your installation. The kit does not specify a preferred method or provide instructions for a particular vehicle or electrical system, so those details need to come from your application requirements.

It suits you if you need matching quick-disconnect plugs for a compatible cable and want the terminals and caps included. It may not be the best choice if you need finished leads, mounting hardware, or a connector confirmed for a particular vehicle, none of those are specified here. A permanently connected setup may also have little use for a disconnect plug.

Three practical questions

Can the terminals be soldered instead of crimped? Yes. The description states that the terminals can be crimped or soldered to the cables.

Do the two halves have different genders? No separate male and female versions are described. The halves are identical in design and mechanically keyed to mate together.

Can these connect to plugs in another colour? The listing says different colours are not compatible, so use matching red connector halves.

Before buying

Check the cable size against the terminal you plan to use, and make sure the 50-amp rating suits the load in your setup. The 600-volt maximum rating does not by itself confirm suitability for every installation, the product details do not identify a specific vehicle, wiring layout or application standard. The listing also does not state how the boot caps fit or provide installation steps. For a straightforward disconnect point on compatible wiring, the included plugs and terminals cover the core parts, for a complete, application-specific cable assembly, you will need more than this kit.
