BRSCHNITT diamond hole saw set, 5-piece

A clean hole through porcelain or glass can be tricky: a standard bit may not be suited to the hard, brittle surface, and the wrong approach can make the job harder. This BRSCHNITT diamond core drill set is designed for dry drilling across several hard materials, with five bit sizes for different hole diameters. The spiral groove is intended to clear chips, while wax inside the bits is there to help with cooling and lubrication. For a bathroom tile job, for instance, you could choose the bit that matches the fitting and work with a compatible drill, adding water may help extend bit life, even though the set is described for dry drilling.

How to use it

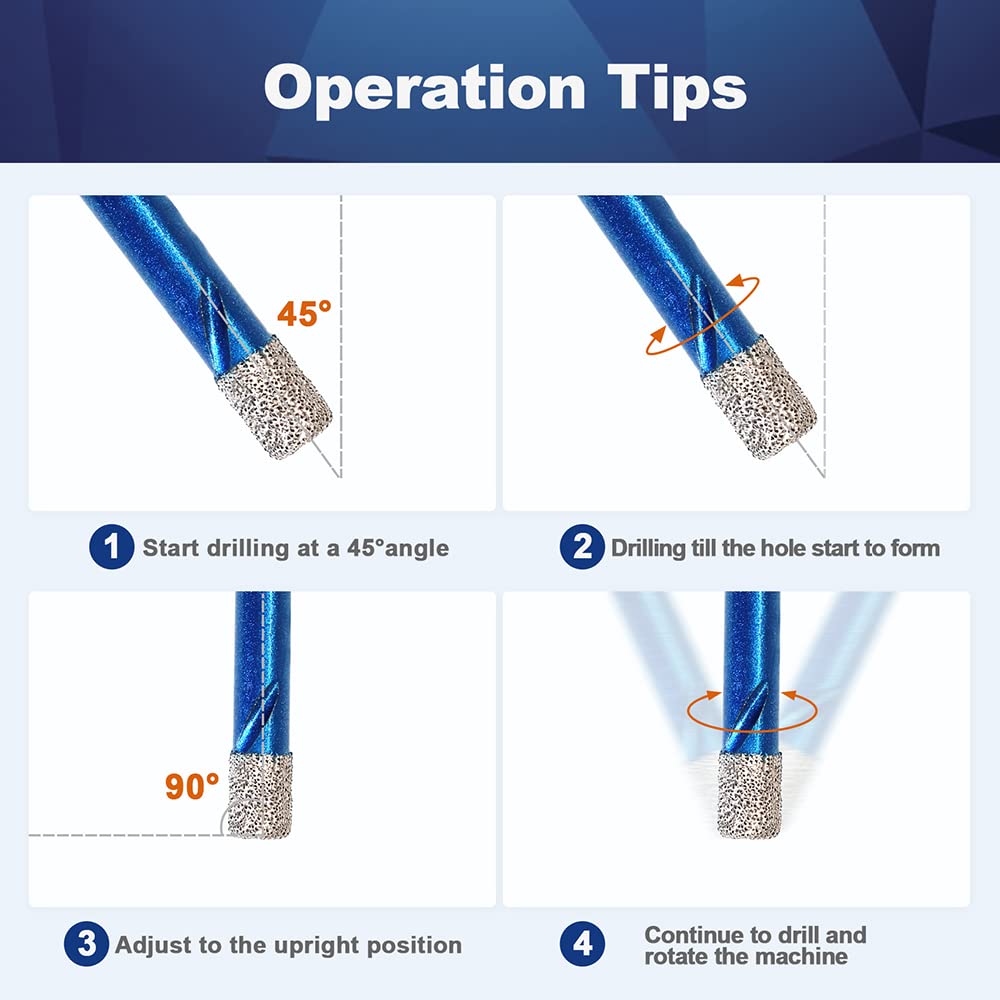

Choose the bit size that matches the hole you need, then use it with an electric drill, hand drill or bench drill. The listed materials include porcelain tile, ceramic, bathroom tile, granite, marble, masonry, concrete, glass and hard plastic. That range makes the set more versatile than buying a single-size bit for one specific task, though it does not establish that every material will cut at the same speed or with the same ease.

The product is described for dry drilling, and the spiral groove at the tip is intended to help remove chips as you work. Wax inside the bit is intended to assist with cooling and lubrication. Water can also help prolong the bits’ life, according to the product details. If using an angle grinder, a drill chuck is required, it is not listed as a direct fit without one. Are you drilling one hole or likely to need different diameters? The size range is useful when the answer is not known until you match a fitting or fastener to the job.

Pros

• Five sizes cover several hole diameters, from 1/4 inch to 3/5 inch.
• Listed for a broad mix of hard surfaces, including porcelain tile, stone, concrete, glass and hard plastic.

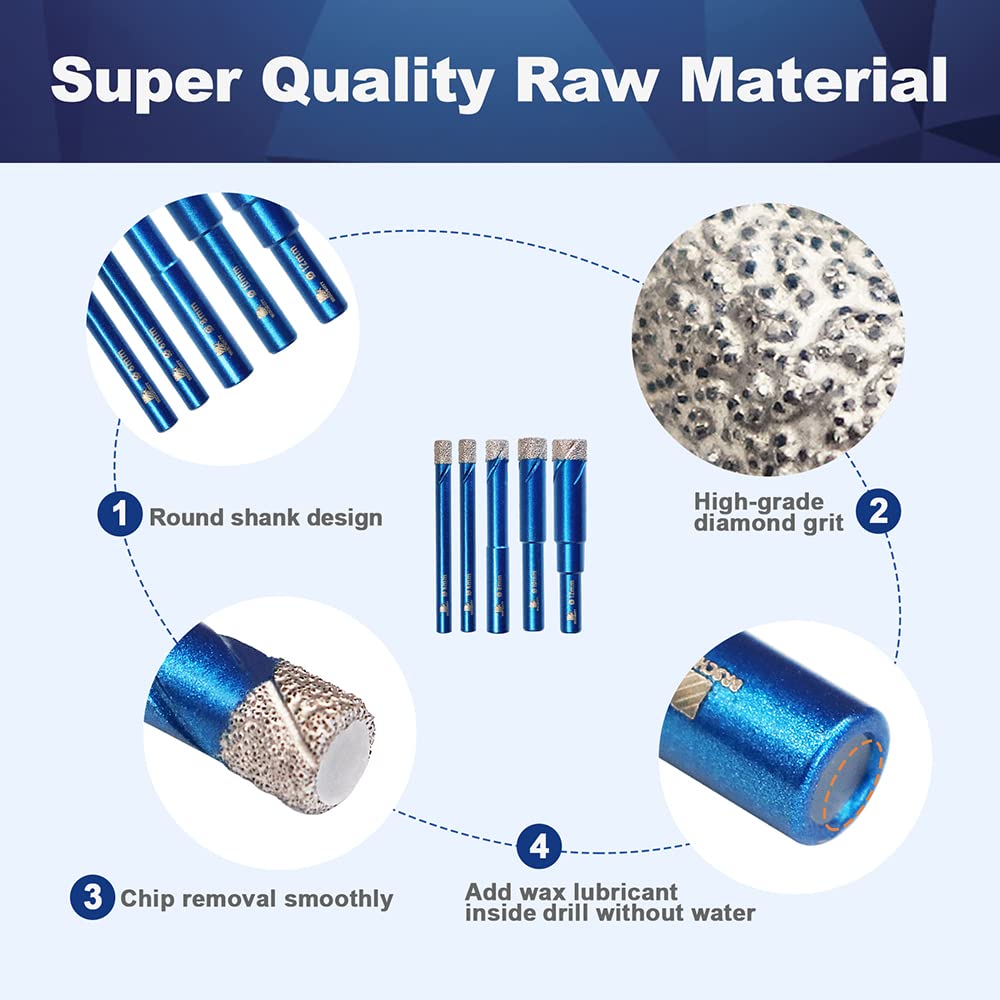

• Vacuum-brazed construction is intended to secure the diamond particles to the steel core, while the spiral groove supports chip removal.
• It makes sense if you want a set for varied drilling jobs rather than a single-purpose bit, and can use one of the listed drill types.

A practical limitation: although concrete is included among the stated applications, the product details do not specify drilling speed, depth limits or material thickness. For a demanding job, those missing details make it harder to predict how the bit will perform. Better to avoid it if you need a confirmed hole depth or a specified fit for a particular machine, the angle-grinder setup also requires an additional drill chuck.

Spec sheet

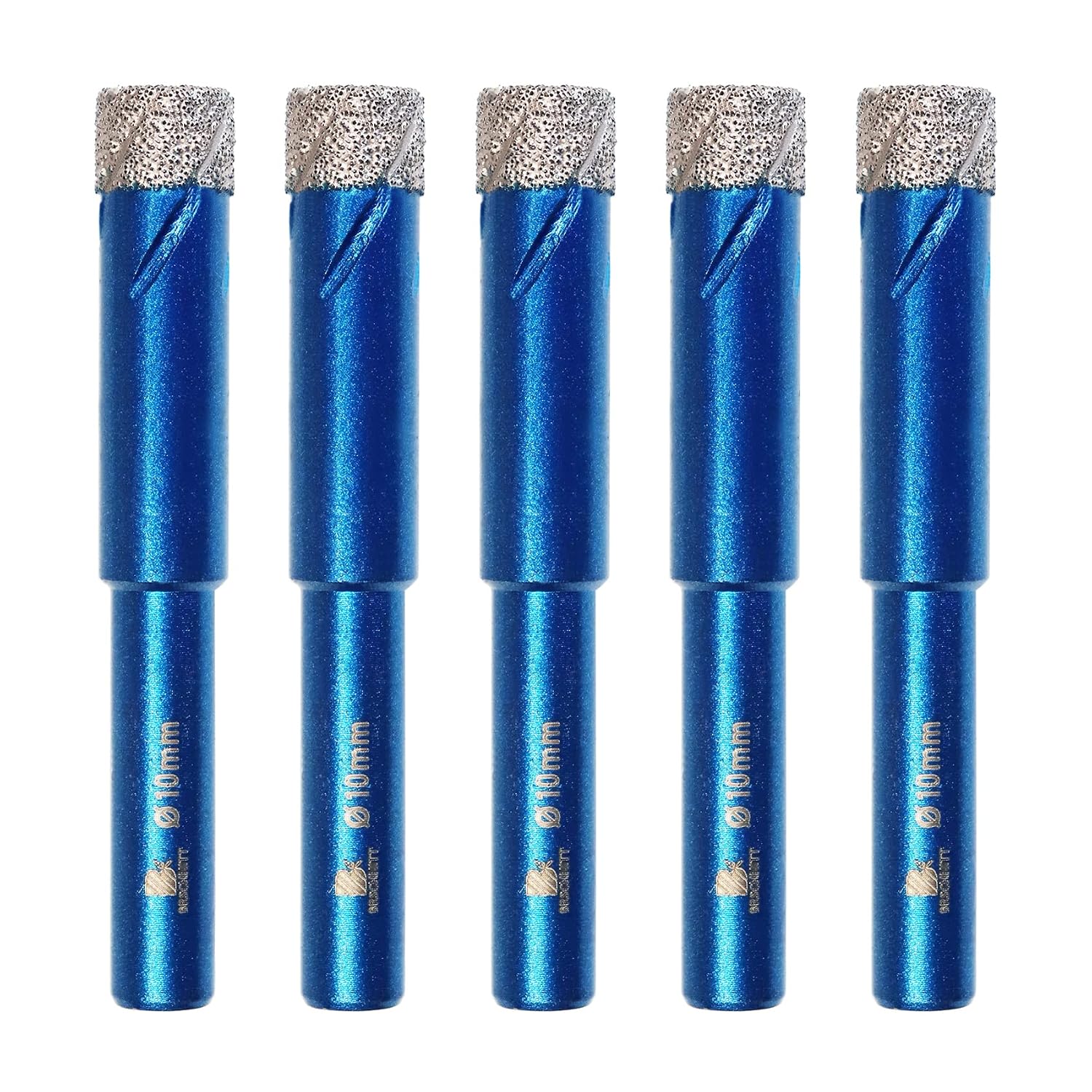

• Type: Diamond core drill bit set
• Format: 5-piece set

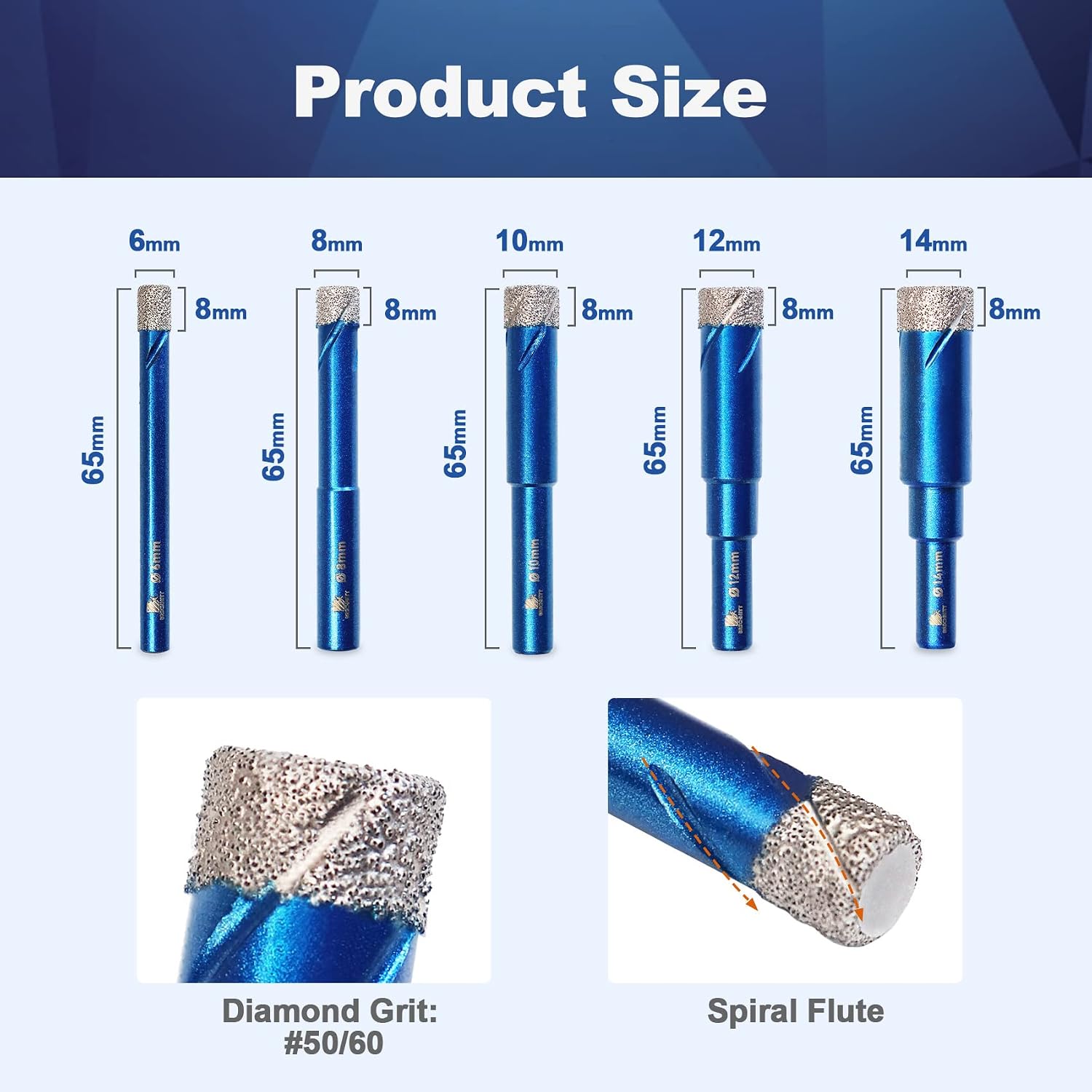

• Sizes: 1/4 inch (6 mm), 5/16 inch (8 mm), 3/8 inch (10 mm), 1/2 inch (12 mm) and 3/5 inch (14 mm)
• Diamond height: 8 mm
• Total length: 65 mm
• Diamond grit: #50/60
• Shank: Round
• Construction: Vacuum-brazed diamond grit with a steel core, wax inside the bit
• Stated drill types: Electric drill, hand drill and bench drill, angle grinder requires a drill chuck

What I’d decide

Given its design, this is a practical set to consider for occasional holes in tile, stone, glass or other listed materials when the five supplied sizes cover the job. The range of applications and the cooling details are useful, but they are not a substitute for a specified working depth or a confirmed result in a particular material. Choose it when flexibility across the listed diameters matters more than having detailed performance guidance. If the task is especially demanding, or depends on a precise depth or machine connection, a bit specified for that exact job would be the more cautious choice.
