BRSCHNITT Diamond Drill Bit, 6 mm
Product description
Hard tile can be awkward to drill without chipping or reaching for a bit that is not made for the material. This BRSCHNITT diamond drill bit set is intended for dry drilling 6 mm holes in hard surfaces.
The pack includes three bits, each with a hex shank. That gives you spares for repeat work, though it does not tell you how deep a finished hole can be.
Diamond grit, a spiral groove for clearing chips and wax inside the bit are the main design details. Water can help extend the bit’s life, according to the manufacturer.
Best use cases
These bits are aimed at making small holes in porcelain tile, ceramic and bathroom tile, as well as granite and marble. The listing also names masonry, concrete, glass and hard plastic, but material hardness and the drilling setup can affect the result. Treat those as intended uses rather than a guarantee that every surface will cut at the same pace.
Picture fitting a bathroom accessory and needing a neat hole through a tiled surface: a 6 mm core bit is relevant when that opening matches the fixing requirement. If the job calls for a larger opening, this set is the wrong size, the product details do not specify a maximum drilling depth.
Product specs
- Pack: 3 bits
- Bit diameter: 6 mm (1/4 inch)

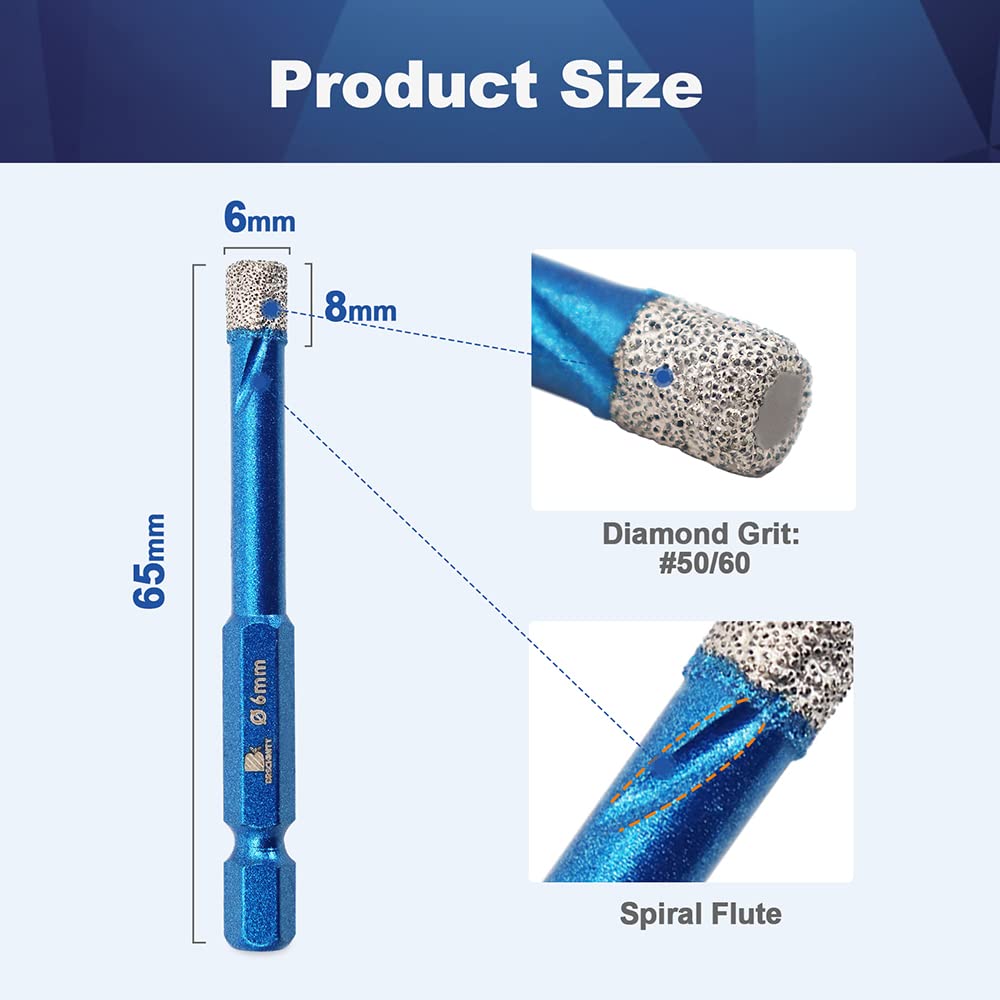

- Diamond height: 8 mm, total length: 65 mm
- Shank: hex, with a listed 6.5 mm quick-fit measurement
- Diamond grit: #50/60

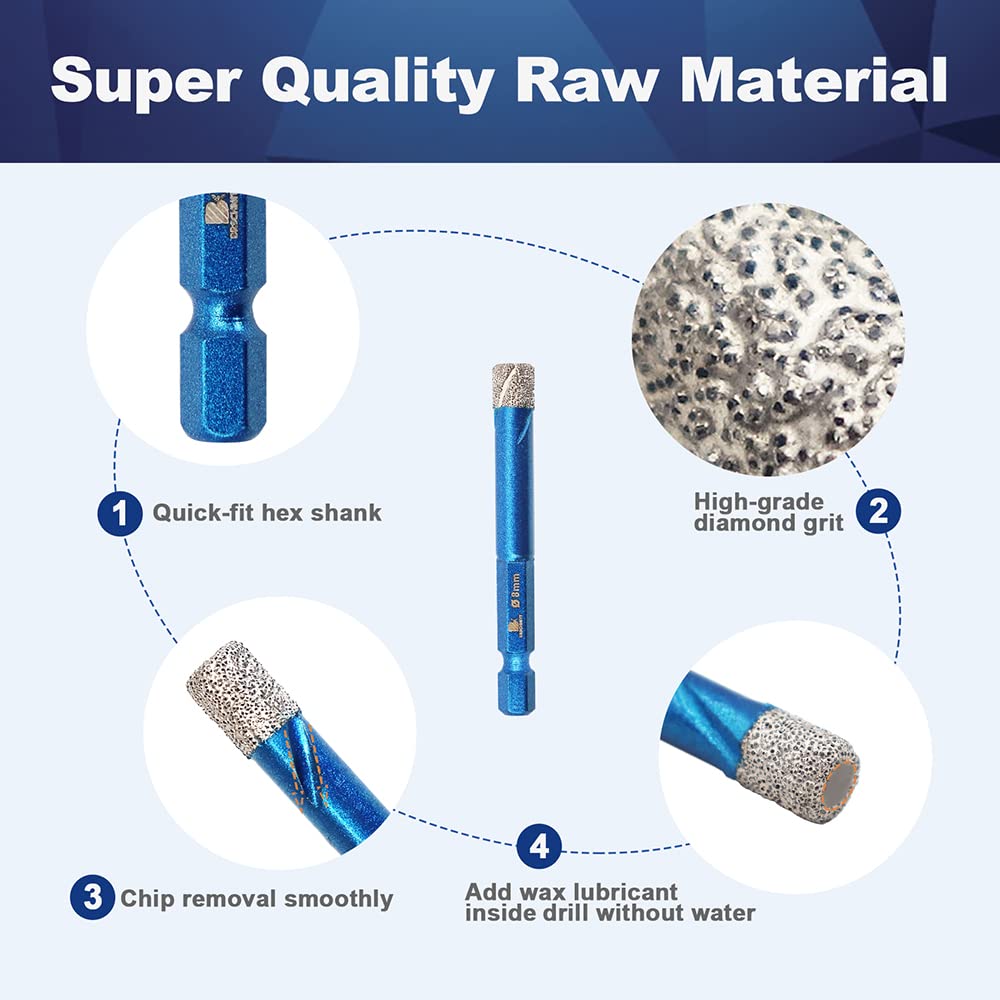

The maker describes vacuum-brazed diamond particles and a high-grade steel core. A spiral groove at the tip is intended to help remove chips, while wax inside the bit is described as aiding cooling and lubrication. The listed fit is for electric, hand and bench drills. For an angle grinder, the instructions specify installing an angle-grinder drill chuck first, so it is not a direct fit as listed.
Where it shines
A three-piece set is useful when a single bit may wear during several holes or when you want spares on hand. The hex shank and compatibility with several drill types offer more flexibility than buying a bit intended for only one named drill setup. For someone drilling occasional holes in tile or stone, that combination is practical, for frequent, demanding work, the listing gives no performance figures or expected bit life to compare with a more specialised setup.

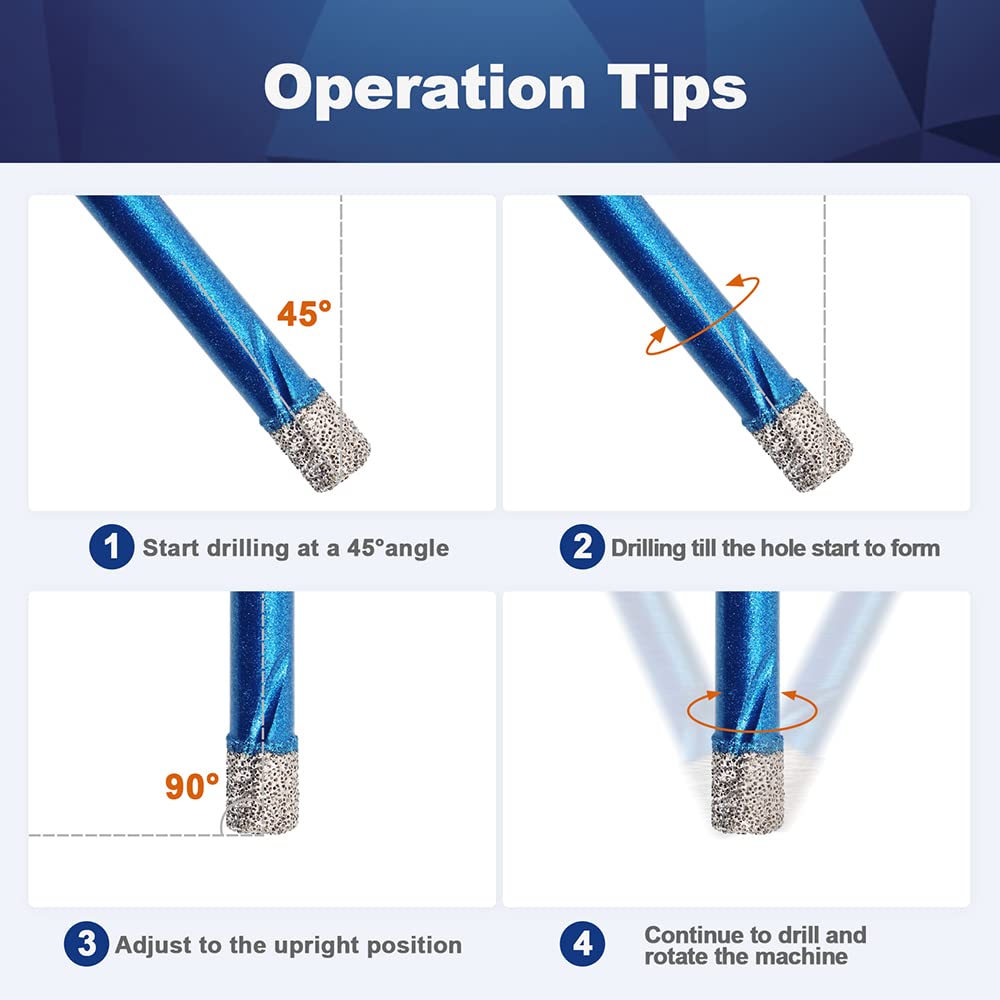

Would adding water suit a dry-drilling task? The product description says water could prolong the bit’s life, so the dry-drilling label does not rule out using it with water. It does not provide a specific technique or operating guidance, however. Keep in mind that actual results depend on the surface and how the drill is used.
It makes sense if you need 6 mm holes in hard tile or similar materials and want three bits in one pack. Best avoided if your project needs a different hole size, a stated drilling depth, or a direct angle-grinder connection without an added chuck.
Final decision
Choose this set when the 6 mm diameter matches the job and your drill can take the hex shank. The three-bit pack, diamond grit and chip-clearing groove are relevant for small tile and stone holes, while the wax and option to use water address cooling. If you need a larger opening or clearer guidance for a particular material, a bit with those details specified is the more sensible buy.
