BRSCHNITT Diamond Core Drill Bit Set, 2-inch

Highlights

If you need a clean round opening through a hard surface, a core bit is a more targeted choice than a general-purpose drill bit. This BRSCHNITT set is intended for dry drilling in materials including porcelain tile, ceramic, granite and marble.

The pack contains two bits, each 2 inches (50 mm) across, with a 10 mm diamond height and 65 mm total length. A triangle shank connects to the drill, while the spiral groove at the top is designed to help clear chips as you work.

The maker also lists masonry, concrete, glass and hard plastic among the intended materials. Es buena opción si you need this size of opening and want a diamond bit for several hard-surface jobs, it is less suited to work where a different hole diameter is required. Keep in mind that the listing does not specify a recommended drilling speed or a compatible drill-chuck range, so check your tool before starting.

How to use it

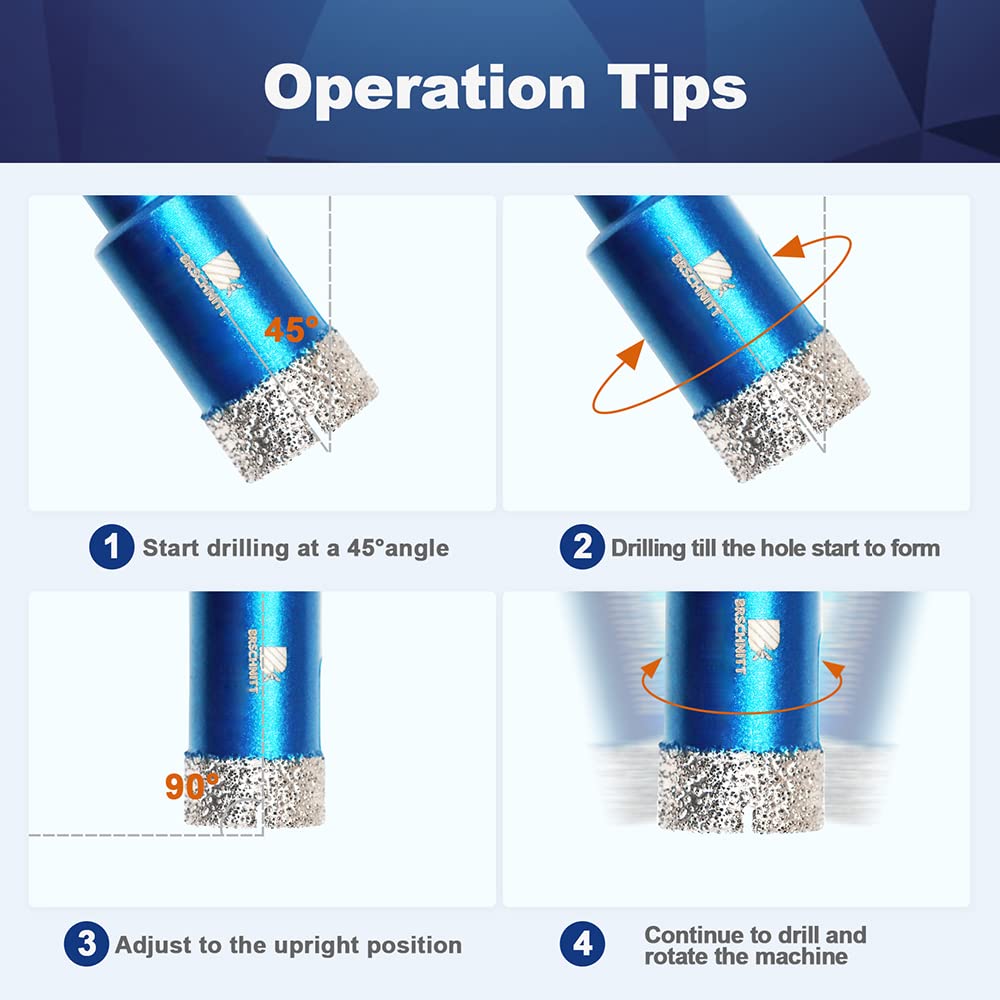

The set is listed for use with an electric drill, hand drill or bench drill. For an angle grinder, the instructions specify installing an angle-grinder drill chuck, do not assume the bit attaches directly without it. The triangle shank is a useful detail to check against the chuck you plan to use.

Although the bits are described for dry drilling, the listing says water can help prolong their service life. The bit also contains wax for cooling and lubrication, and its spiral groove is intended to help with chip removal. Follow the instructions for your drill and material, and work steadily rather than forcing the cut. A dry run through the setup—checking the marked hole position, shank fit and tool arrangement—can help avoid surprises once the bit meets the surface.

Practical tips

For a bathroom-tile job, picture marking the centre of the opening first, then keeping the drill controlled as the diamond edge begins to cut. The same general approach applies to stone, but the material list alone does not establish how quickly this bit will cut each surface. Start with a clear plan for the hole and make sure the workpiece is secure.

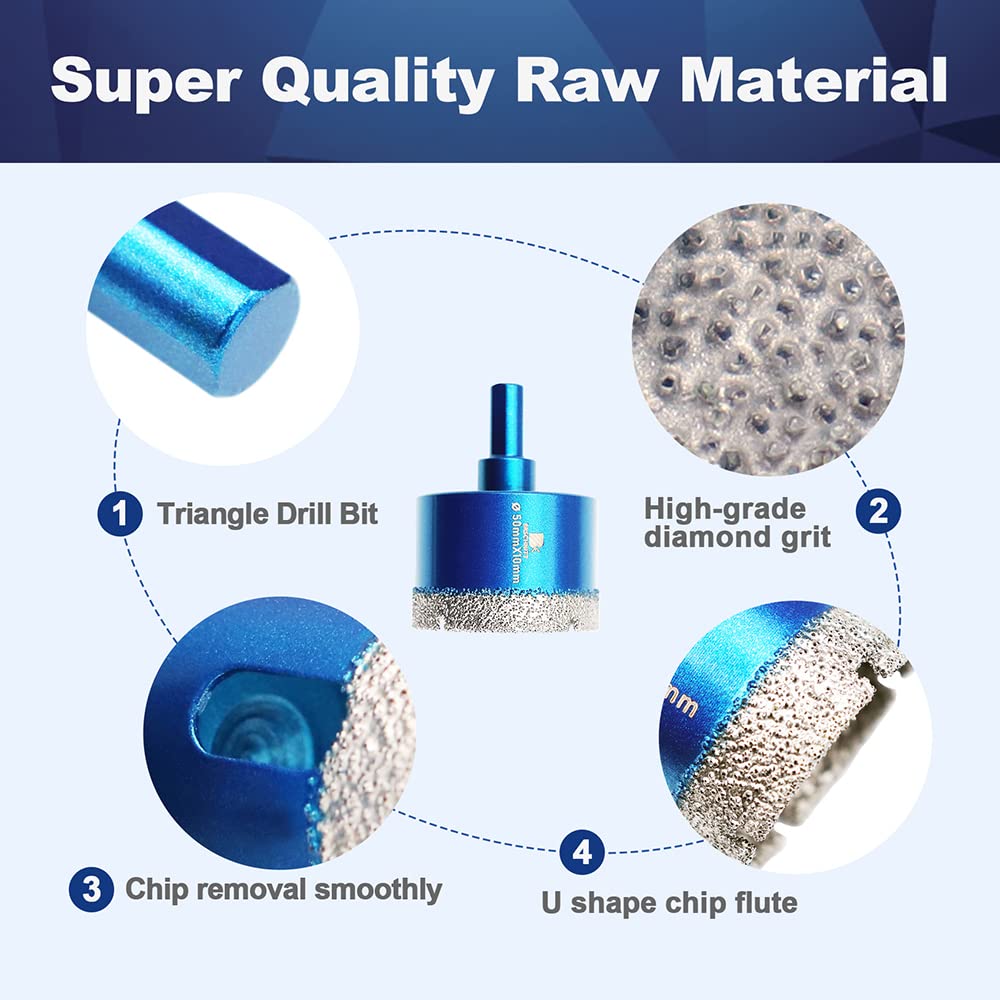

The vacuum-brazed diamond grit and steel body are presented as features intended to resist heat and friction. That construction may appeal if you expect to drill hard materials rather than make occasional holes in softer surfaces. Still, there is no stated maximum depth or guidance for every material, so this is not a substitute for a bit selected to a specific depth or specialist job. If repeated, high-demand drilling is your priority, look for a product with the relevant operating guidance for that workload.

For your situation

Choose this set when its 2-inch (50 mm) diameter matches the opening you need and the triangle shank suits your drill setup. Two bits are included, which may be useful when planning more than one hole or keeping a spare on hand. Compared with relying on a basic multipurpose bit, the diamond core format is aimed at creating a larger circular opening in hard tile and stone.

Quizá no encaja si you need another diameter, a stated drilling depth, or detailed speed guidance before buying. Those details are not provided here, and the listed material range should not be read as a guarantee of identical results across porcelain, concrete, glass and every other surface.

Before you decide

What size hole does it make? Each bit is listed as 2 inches (50 mm) in diameter. The stated total length is 65 mm.

Can it be used dry? Yes. It is described for dry drilling, and the listing notes that using water could prolong its life.

Which tools are listed? Electric drills, hand drills and bench drills are named. For an angle grinder, the listing says to install an angle-grinder drill chuck.
