ZMOON ZM201 Professional OBD2 Scanner (Enhanced Check Engine Code Reader + Clear/Reset) for Vehicles After 1996
Product description
If your check engine light keeps coming back and you don’t want to guess, the ZMOON ZM201 is built for one clear job: OBD2 engine diagnostics fast—without an app or extra setup. It’s plug-in, reads engine-related fault codes, and helps you interpret what’s going on before you book any repair.
That said, it’s not a “do everything” scan tool. It’s designed specifically for engine diagnostics, so if you’re hoping to tackle ABS/SRS/transmission problems in one go, you may be disappointed.
The essentials
The ZMOON ZM201 Professional OBD2 scanner is aimed at drivers and DIY owners who want clearer answers than “take it to the shop.” Over the paper, it’s compatible with vehicles after 1996 (US-based), 2002 (EU-based), or 2008 (Asia-based) that have a standard 16-pin OBD2 port. It supports multiple OBDII protocols, including KWP2000, ISO9141, J1850 VPW, J1850 PWM, and CAN—so for the right vehicle, it’s meant to read and clear engine trouble codes reliably.

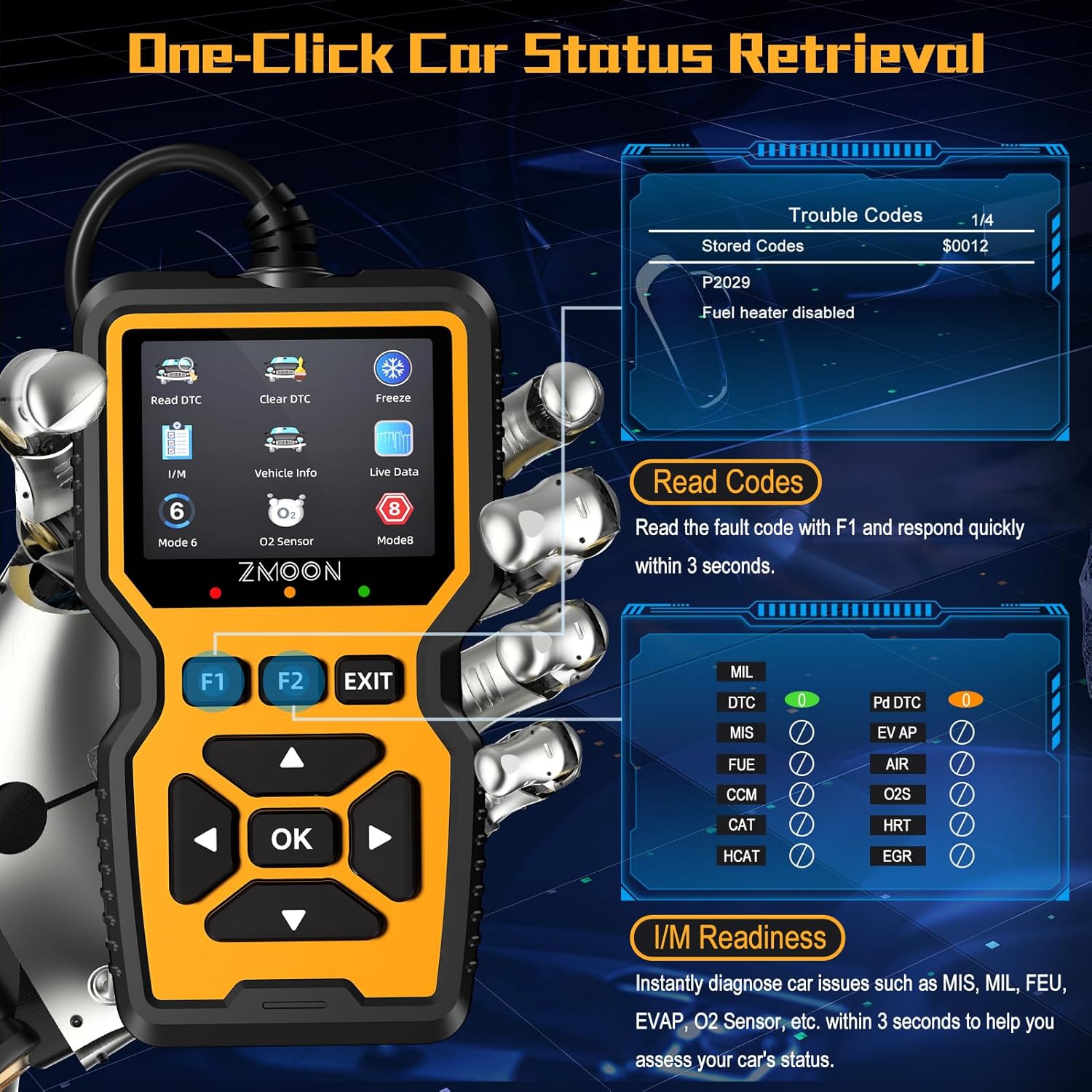

Once connected, it can quickly read and clear engine fault codes, turn off the check engine light (MIL), and show I/M readiness status that’s relevant for smog testing. It also retrieves VIN information, which can be handy when you’re trying to confirm vehicle details.
One more important nuance: it can reset temporary fault codes, but permanent fault codes generally require actual repair before they’ll clear. In other words, it can help you manage the process, but it can’t fix the underlying problem for you.
What you’ll notice day to day

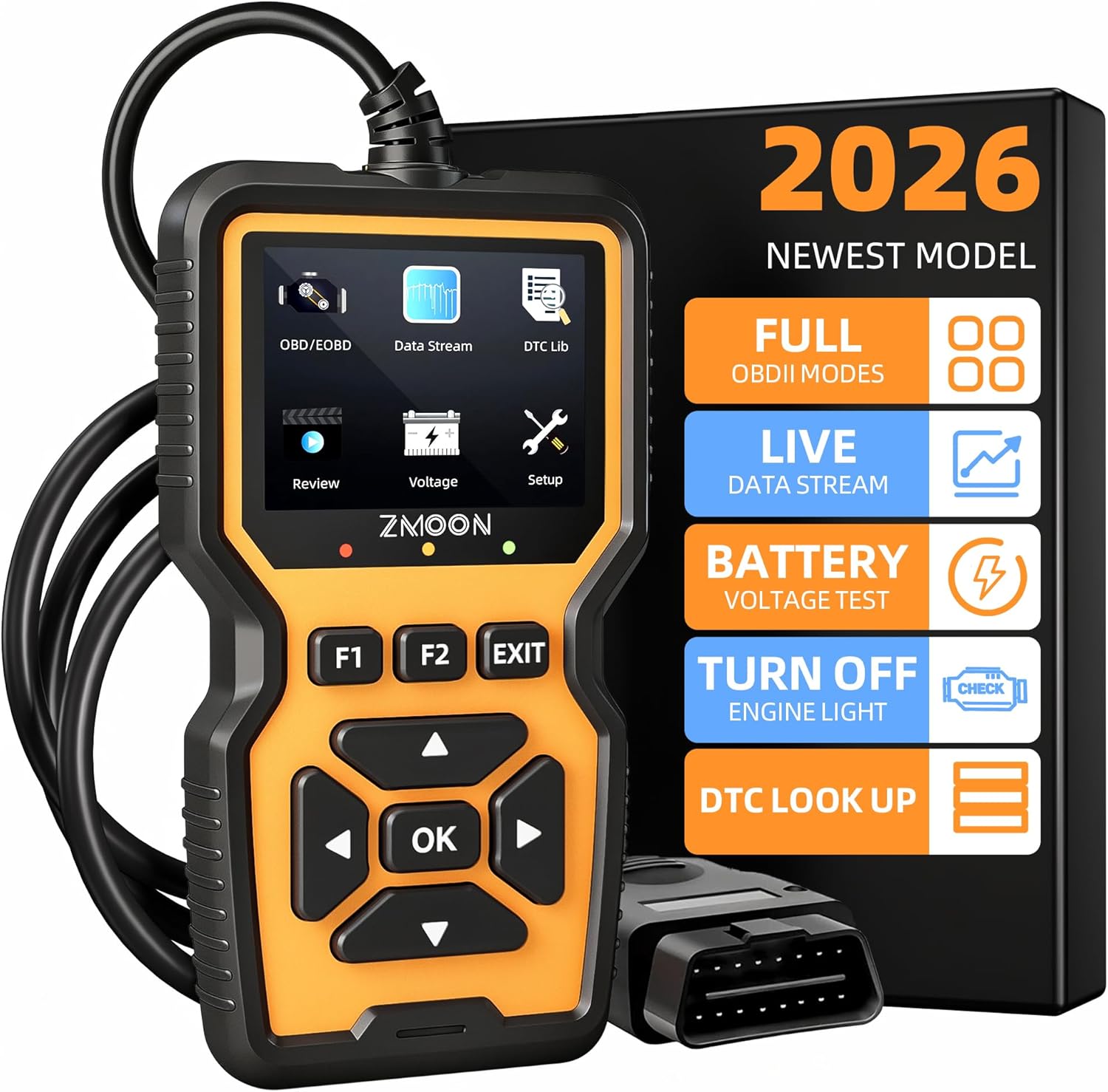

This scanner leans into usability. There’s a 2.8-inch color screen with adjustable brightness and light/dark modes, which matters when you’re working in daylight or under the dash. The UI is described as intuitive with shortcut keys and visual status indicators, so the learning curve should be relatively light.
No app is required, and the unit is powered directly from the OBD2 port—so you’re not dealing with charging or battery management. Over the practical flow, you plug it into the OBD2 port (typically below the steering wheel/near the instrument panel), turn the ignition ON, and get results within seconds.
A micro example: if your check engine light pops on right after a long drive, you can connect the ZM201, pull the code, and then view live data (with graph view) to see sensor behavior instead of only staring at a number.
Engine diagnostics depth (and its limits)

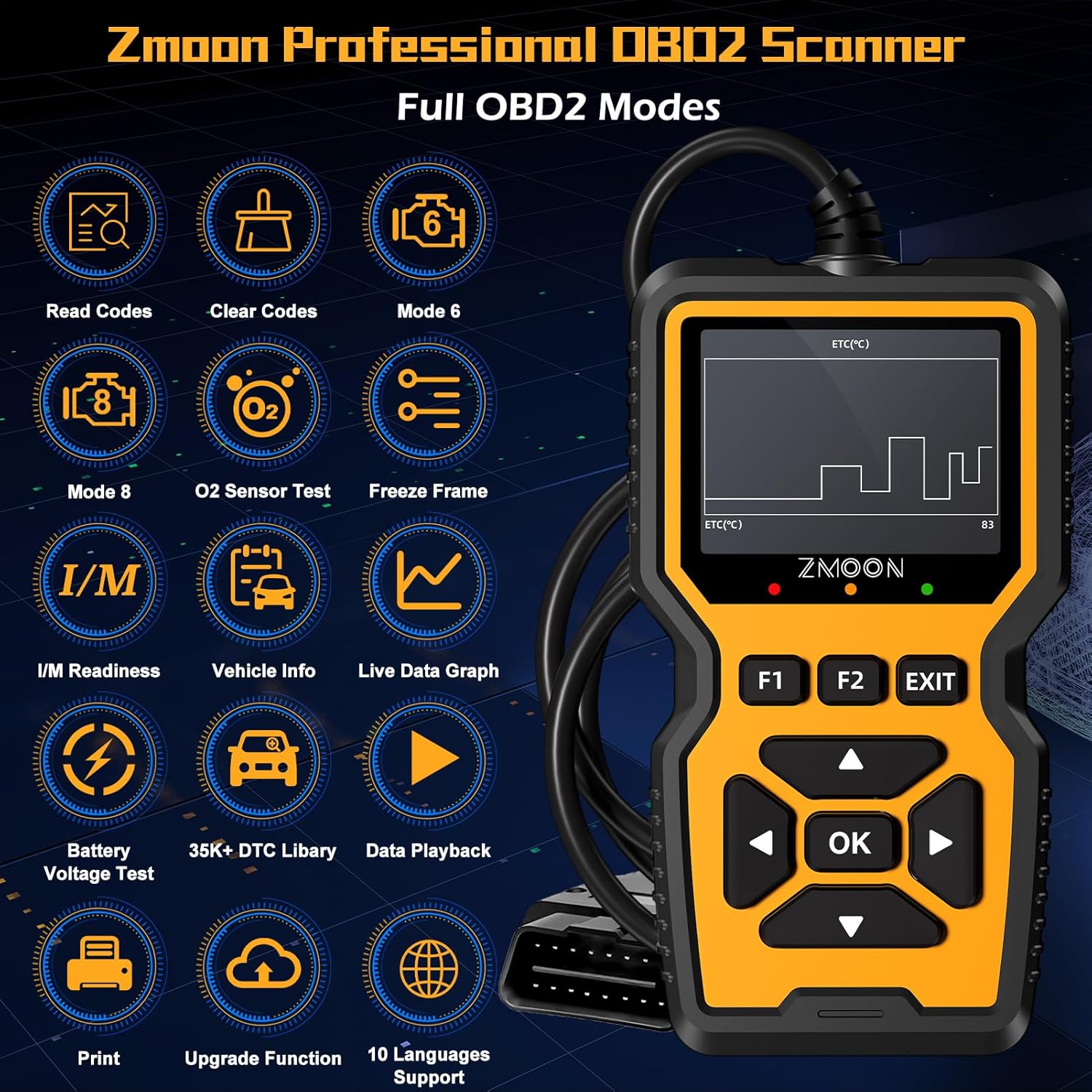

Where the ZM201 goes beyond basic code reading is in the diagnostic extras. It supports live data streaming with graph view, freeze frame data, O2 sensor test, onboard monitoring, and EVAP system checks. If you’ve ever had a code that doesn’t tell you enough, this is the kind of added context that can help you narrow down what’s worth checking.
Still, it’s important to be clear about boundaries. This tool is designed specifically for engine diagnostics only. It does NOT support ABS, SRS, transmission, or other advanced vehicle systems. If your “need” is actually brakes/airbags/gearbox-related, you’d be better off choosing a multi-system scanner that covers those modules.
Key specifications
- Supported vehicle compatibility: Works for vehicles after 1996 (US-based) / 2002 (EU-based) / 2008 (Asia-based) with a standard 16-pin OBD2 port
- Supported protocols: KWP2000, ISO9141, J1850 VPW, J1850 PWM, and CAN
- Display: 2.8-inch color screen with adjustable brightness and light/dark modes
- Power: Powered directly from the OBD2 port (no battery or charging required)

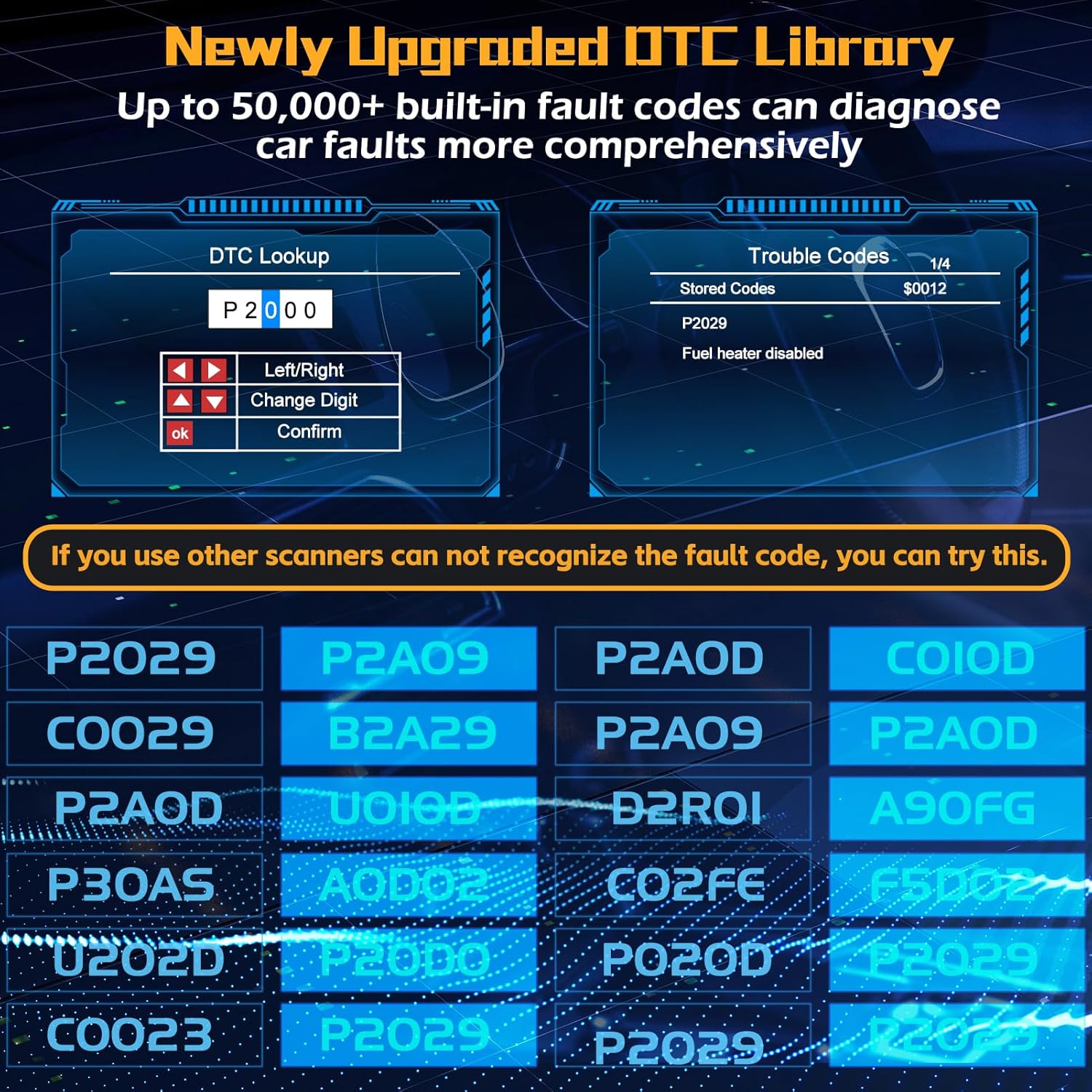

- Database size: Over 50,000 built-in DTC database
- Software updates: Lifetime software free-updates

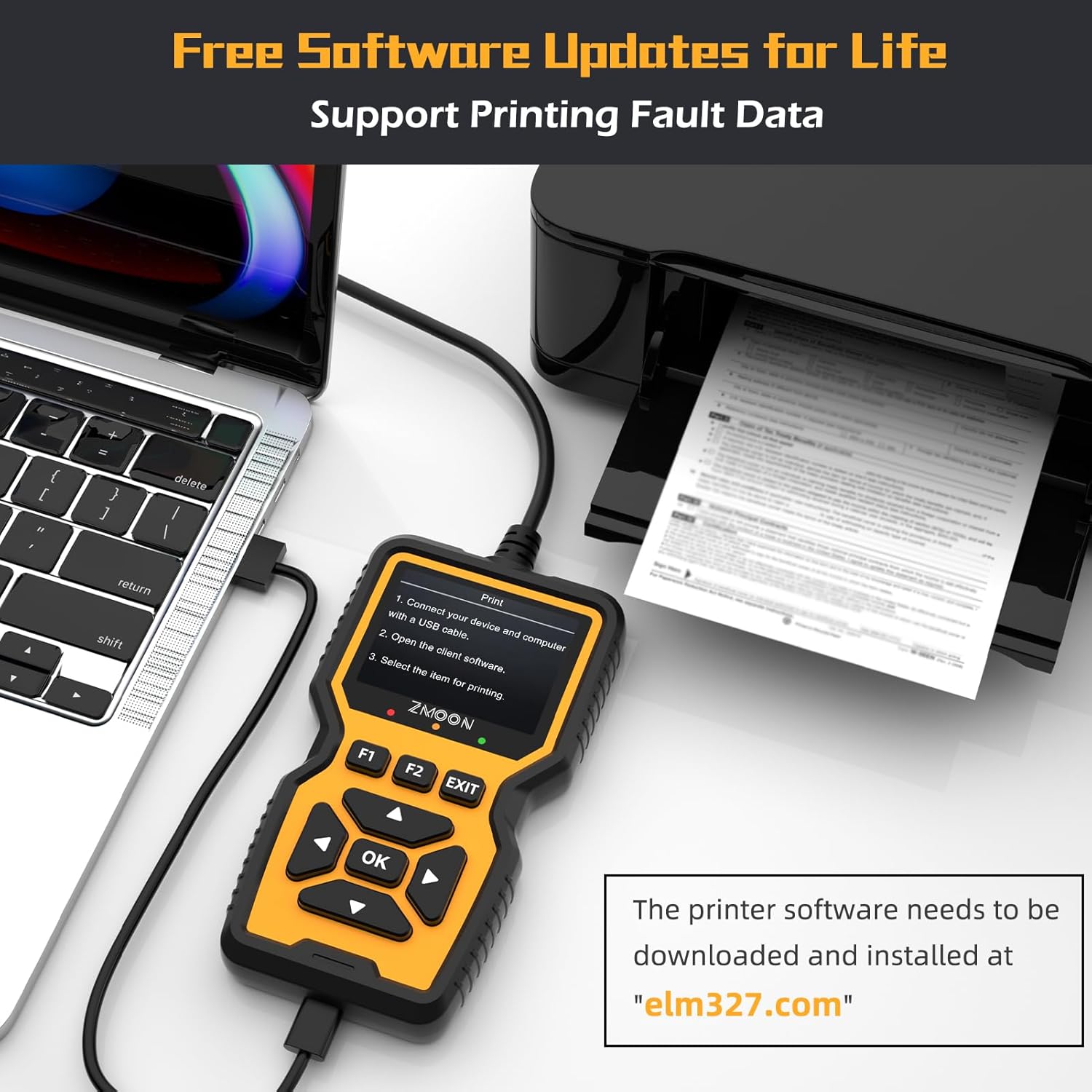

- Computer support: Optional PC connection for data review and printing, supports Windows XP/7/8/10, not Mac
What to consider before you buy
Compatibility is the first “check this first” item. The scanner is for vehicles with a standard 16-pin OBD2 port and within the stated model-year ranges by region. The safest move is to confirm your car’s OBD2 port layout and that it’s in the supported timeline before relying on the tool.
Also, think about your goal. If you’re using it to understand engine codes, clear temporary issues, and monitor sensors (live data, freeze frame, EVAP/O2 checks), it fits that purpose well. But if you’re expecting a single device for broader system troubleshooting, this is more of a focused engine reader than a comprehensive shop-grade diagnostic unit.
Care, support, and longevity angle
ZMOON notes that each unit is tested before shipment and supported by 7*24H brand support. It also mentions sustainability-minded materials (at least 50% recycled material) and safer chemicals. While those details don’t change performance, they’re a decent signal for long-term ownership.
Final verdict
Buy the ZMOON ZM201 Professional OBD2 Scanner if you want a straightforward way to read and clear check engine codes, view live data and freeze frame information, and handle basic engine diagnostics—especially if you do DIY maintenance and want to avoid unnecessary repair shop visits.
Skip it or think twice if your problem is likely tied to non-engine systems like ABS or SRS, since this scanner is engine-only by design. And keep expectations realistic: it can reset temporary faults and help with readiness checks, but permanent codes usually won’t clear without the underlying repair.
Mini FAQ
Does the ZM201 work without a battery or app?
Yes—it's powered directly from the OBD2 port, and the use case described doesn’t require an app.
Can it turn off the check engine light?
It can clear engine fault codes and turn off the MIL (check engine light) as described.
Will it reset permanent fault codes?
It can reset temporary fault codes. The description notes that permanent fault codes require repair before they can be reset.
What extra diagnostic data can it show?
It supports live data (graph view), freeze frame diagnostics, O2 sensor test, onboard monitoring, and EVAP system checks.
Does it support ABS or SRS?
No. It’s designed for engine diagnostics only and does not support ABS, SRS, or other advanced systems.
