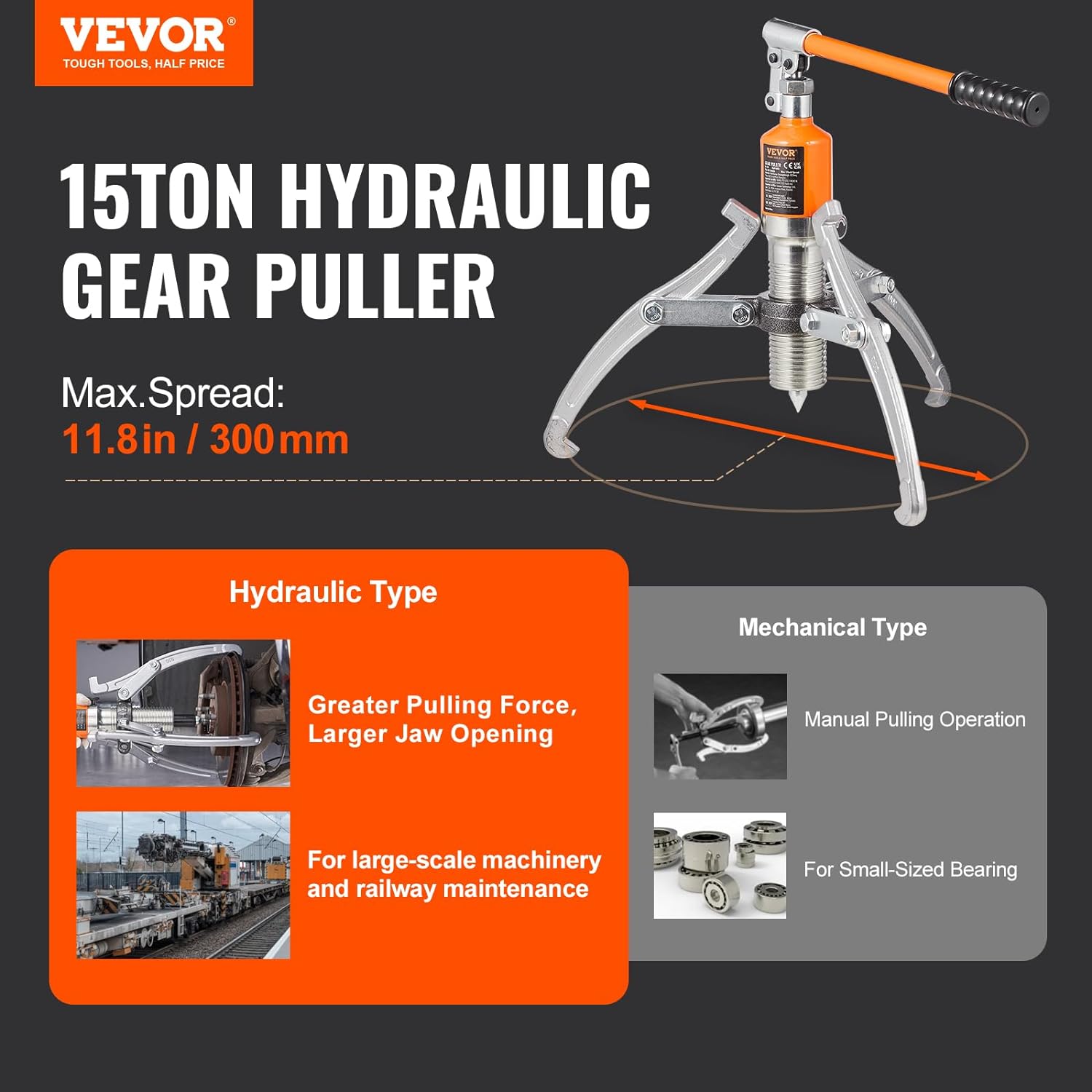

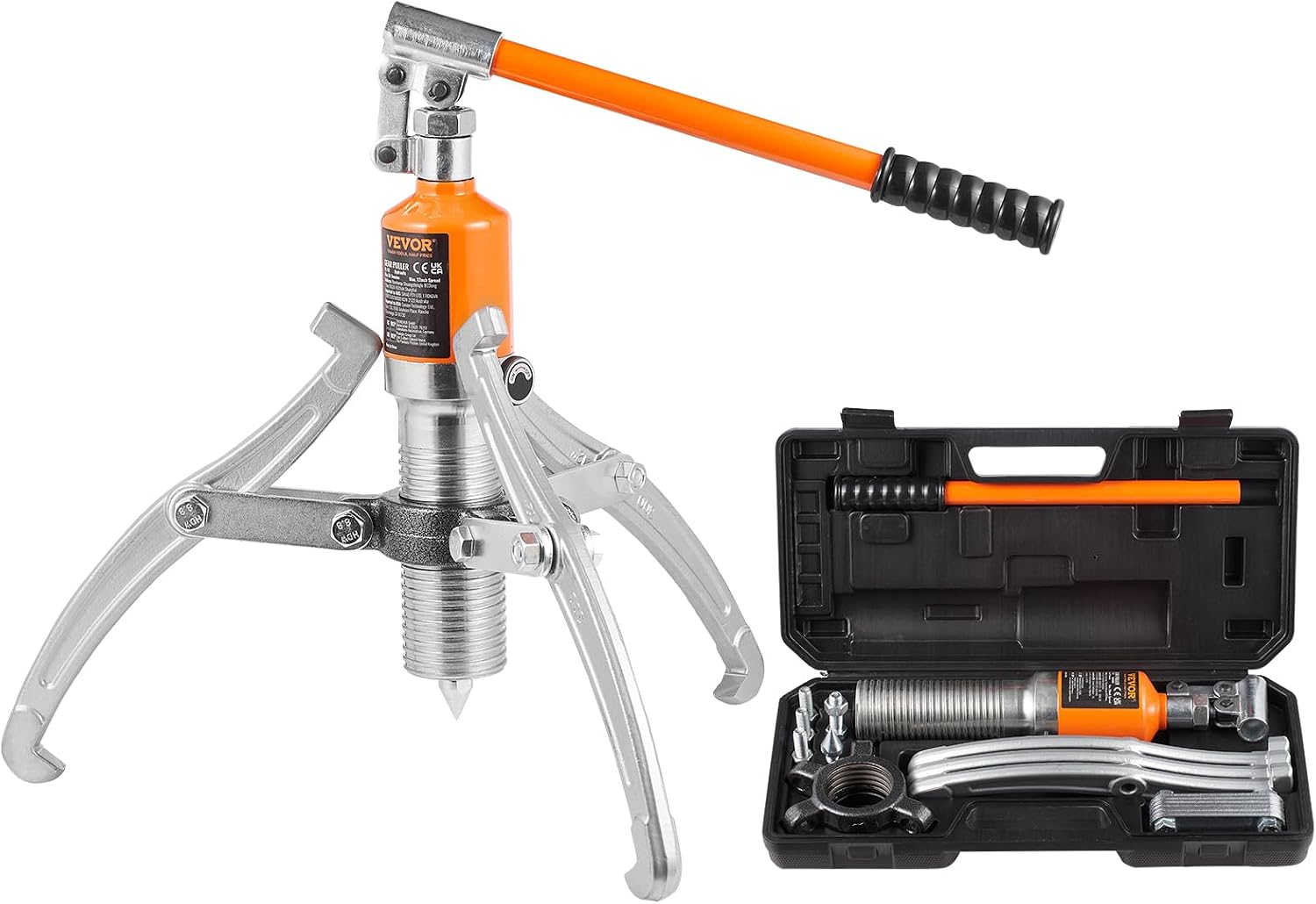

VEVOR 15 Ton Hydraulic Gear Puller
Product description

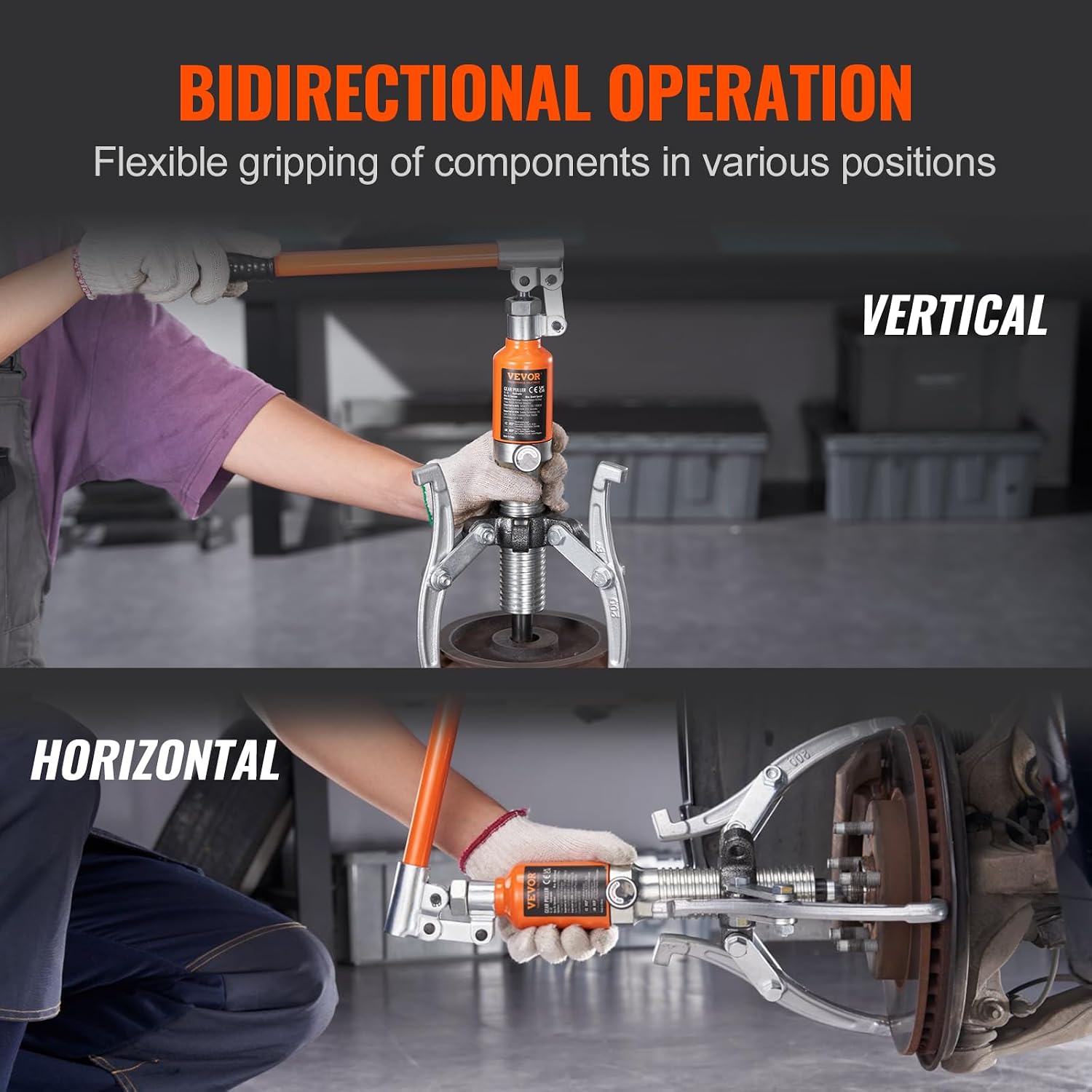

This hydraulic gear puller is built for heavy-duty disassembly tasks, combining a 15-ton hydraulic ram with adaptable 2- or 3-jaw configurations to remove bearings, gears, pulleys and hubs in workshops and field maintenance. It offers both vertical and horizontal operation to handle components facing different directions, making it useful for machinery repair, railway, ship and mining equipment service.
Key Points

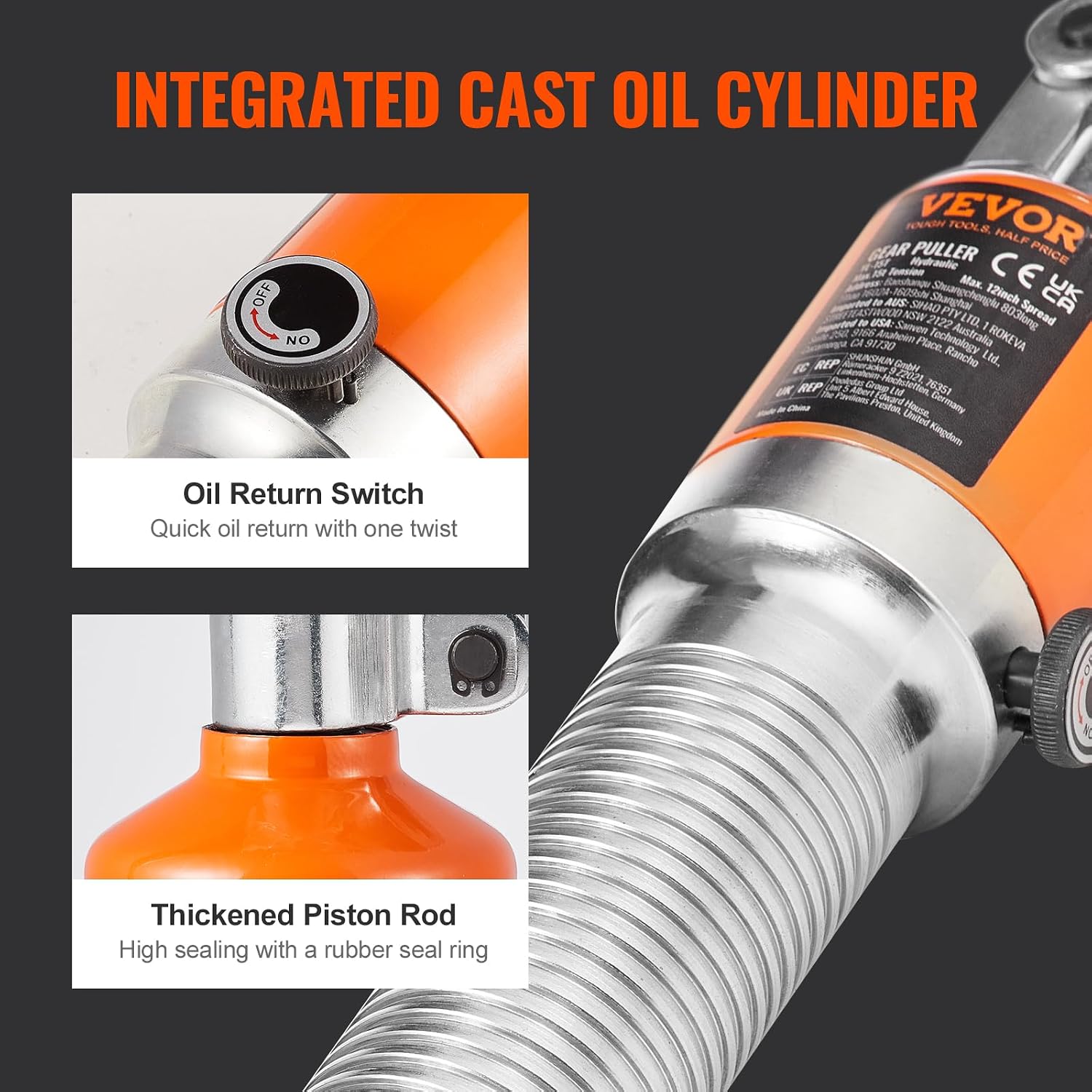

The puller delivers a maximum pulling capacity of 15 tons and accommodates a maximum pulling size of 12 inches (304.8 mm). Its integrated casting oil cylinder and oil cover reduce the risk of cracking and oil leakage, and the pump body is thickened with visible threads for higher torque and a maximum stroke of 2.2 inches (55 mm). The tool allows quick conversion between two-jaw and three-jaw setups so you can adapt grip and tension to the part being removed. 🛠️

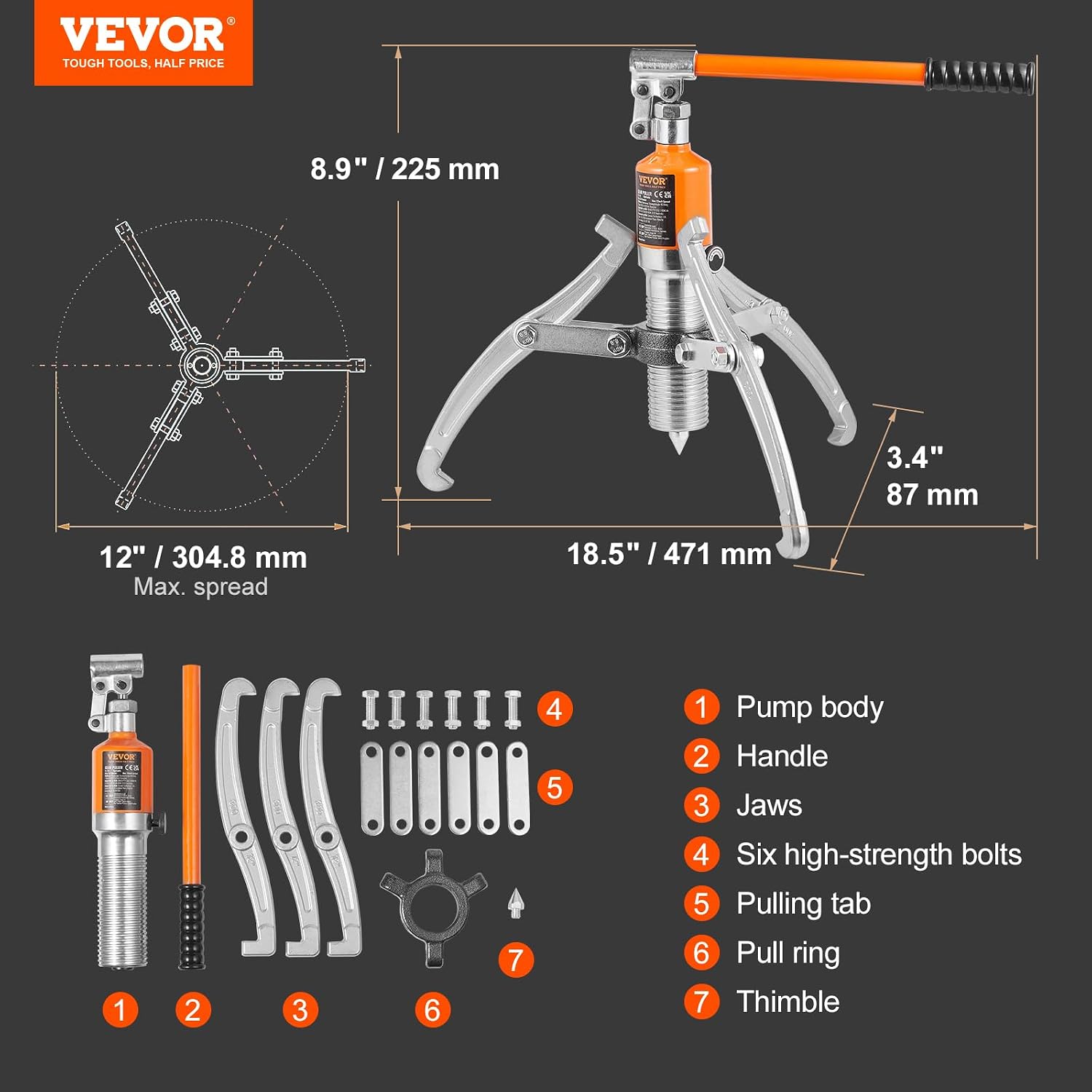

Technical Specifications
- Name: VEVOR Hydraulic Gear Puller
- Maximum capacity: 15 ton
- Maximum pull diameter: 12 in / 304.8 mm
- Maximum stroke: 2.2 in / 55 mm
- Jaw configuration: 2-jaw or 3-jaw convertible
- Operation: vertical and horizontal

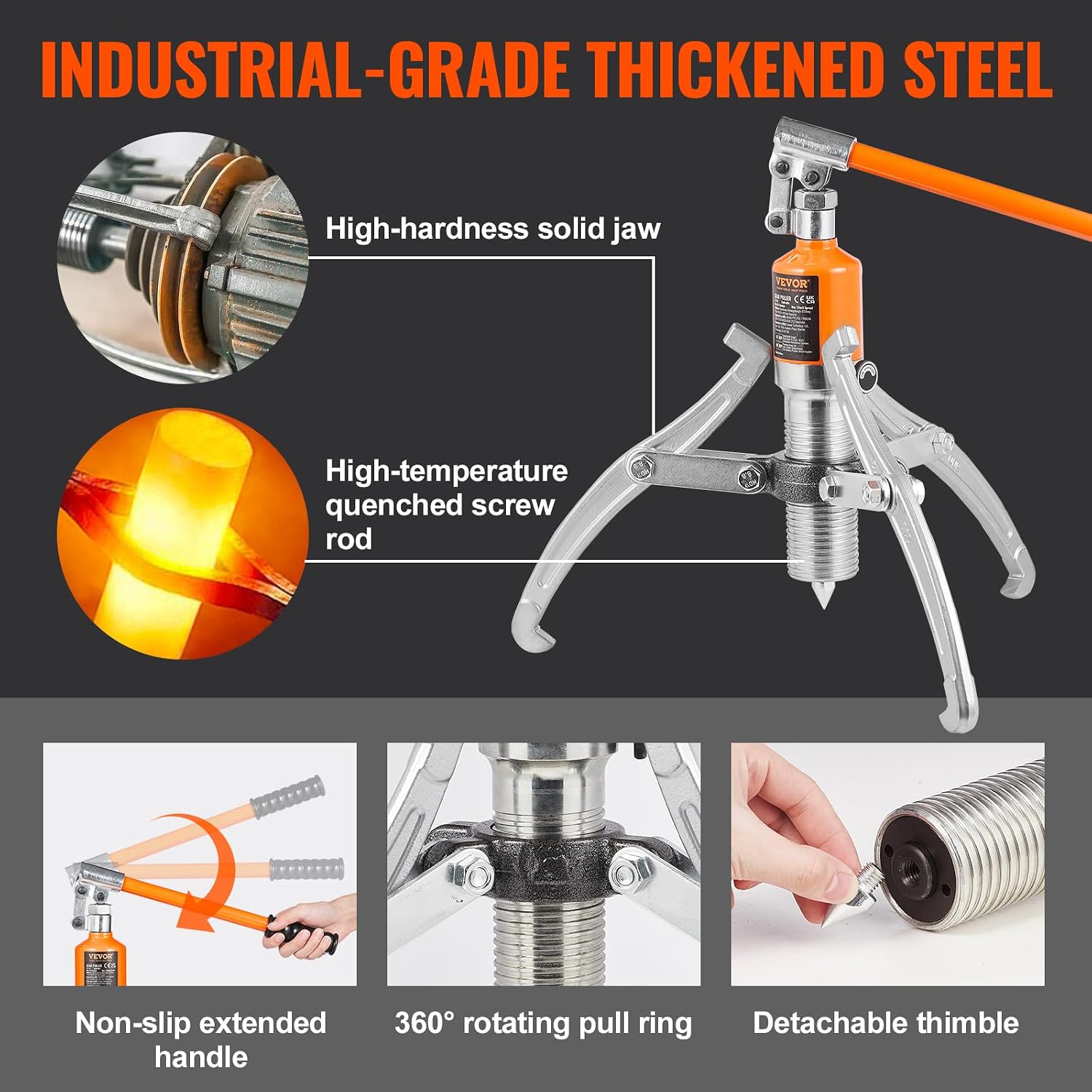

- Construction: industrial-grade steel with rust and corrosion resistant coating
Advantages

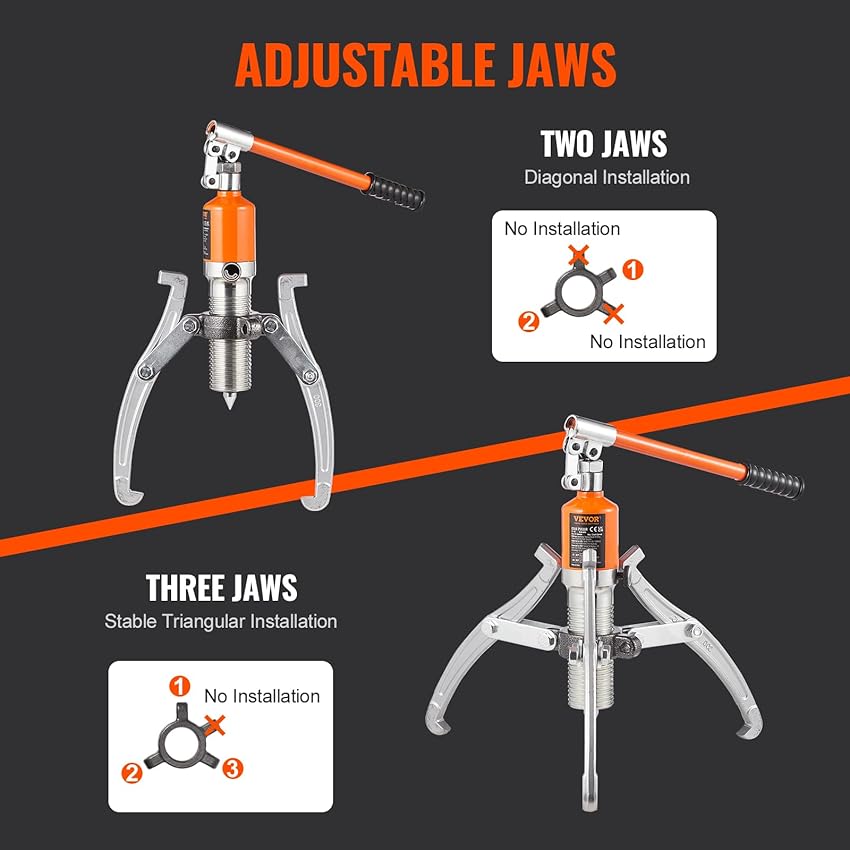

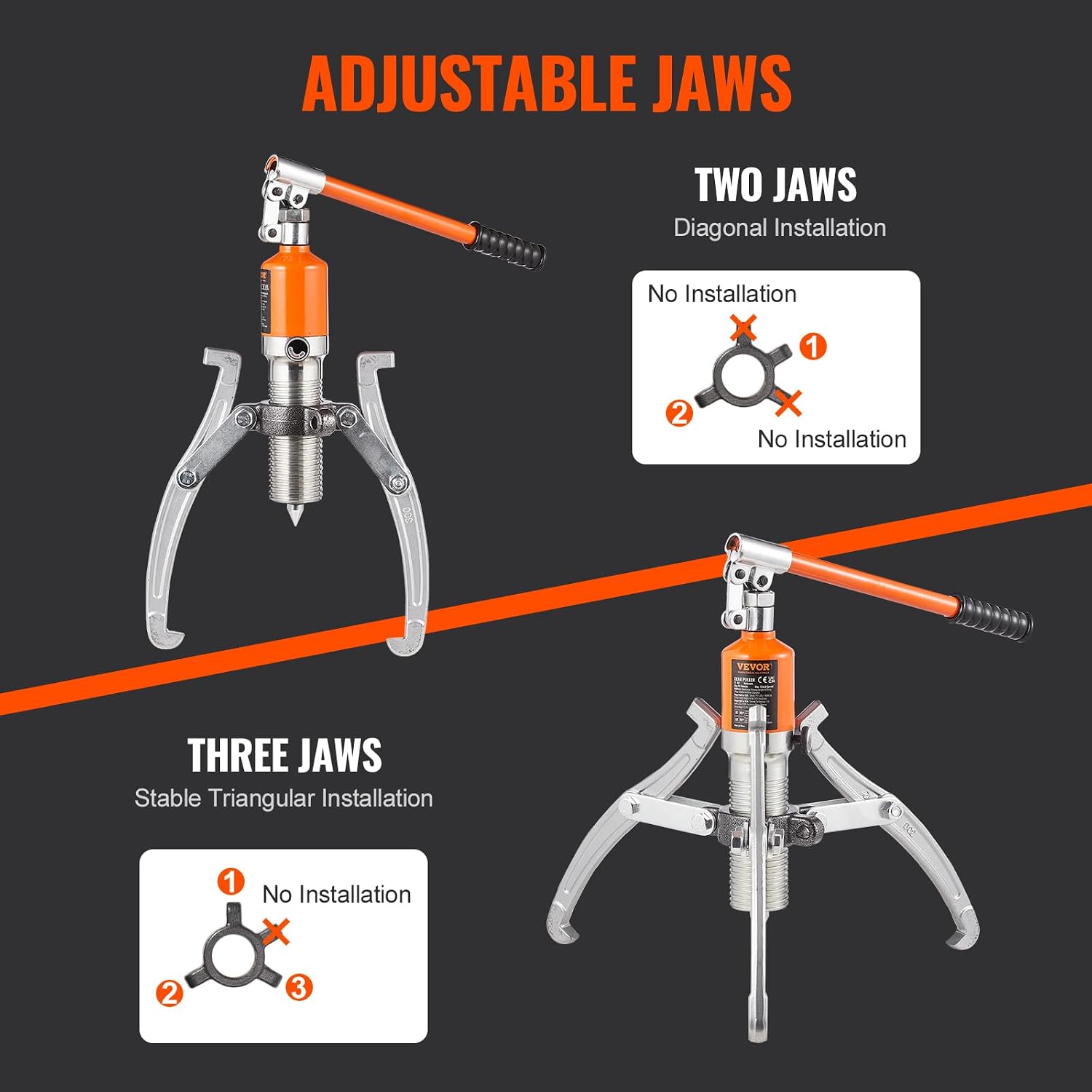

The two-jaw arrangement concentrates force for faster extraction of smaller bearings and gears, while the three-jaw triangular layout provides more uniform tension when tackling large, heavy components. The forged pump body has undergone high-temperature quenching to help prevent bending or deformation after repeated use. Additionally, the thicker pump and clear threads make it easier to position the ram close to the target, reducing unnecessary stroke and improving efficiency. ⚙️
Usage Recommendations
For safer operation, install the two claws diagonally when using the two-jaw mode to improve stability. Use the extended handle for leverage during horizontal pulls to reduce operator fatigue. Consider that heavy pulls require secure anchoring of the component and controlled, incremental pump strokes according to the manufacturer's guidelines to avoid sudden releases. 🔧.
