Vansdon BF-2000 Circuit Breaker Finder with LCD, GFCI and NCV Testing
Product description
Tech summary
The Vansdon BF-2000 brings circuit tracing, outlet checks, and GFCI testing together in one kit. Its LCD displays wiring information and voltage readings, while an auto-hold feature retains the latest outlet-test results after unplugging. Need to trace a circuit and check an outlet with the same set? The transmitter’s display and the receiver’s visual and audible alerts make both tasks part of one workflow.
- Type: Circuit breaker finder, outlet tester, and GFCI tester
- Model: BF-2000
- Test functions: NCV, GFCI trip test, and outlet wiring diagnosis for seven common faults
- Supported ranges: 90–150V for outlet testing, 90–120V AC for circuit tracing
- Safety rating: CAT II 300V
- Power: Battery powered
- Weight: 0.49 kg

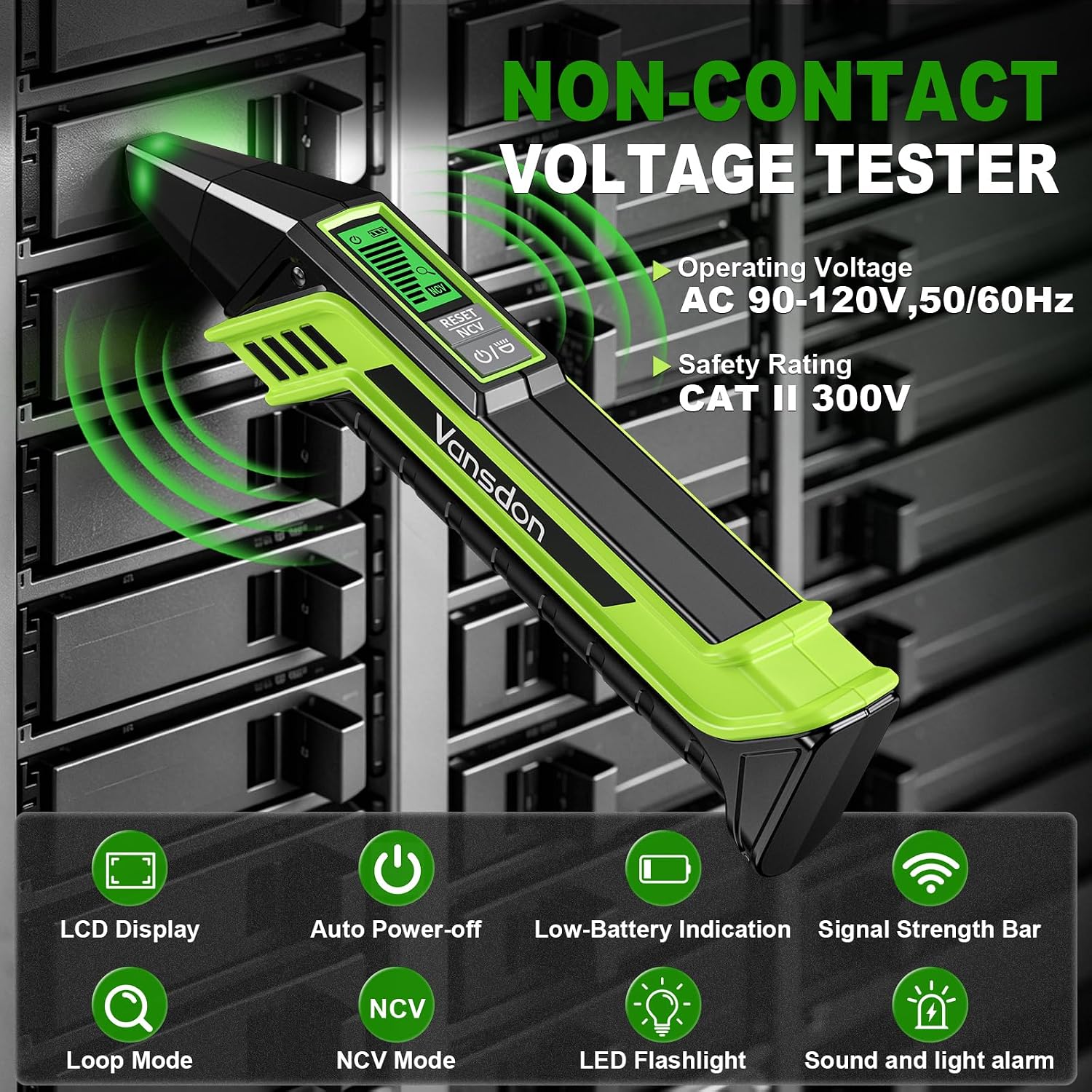

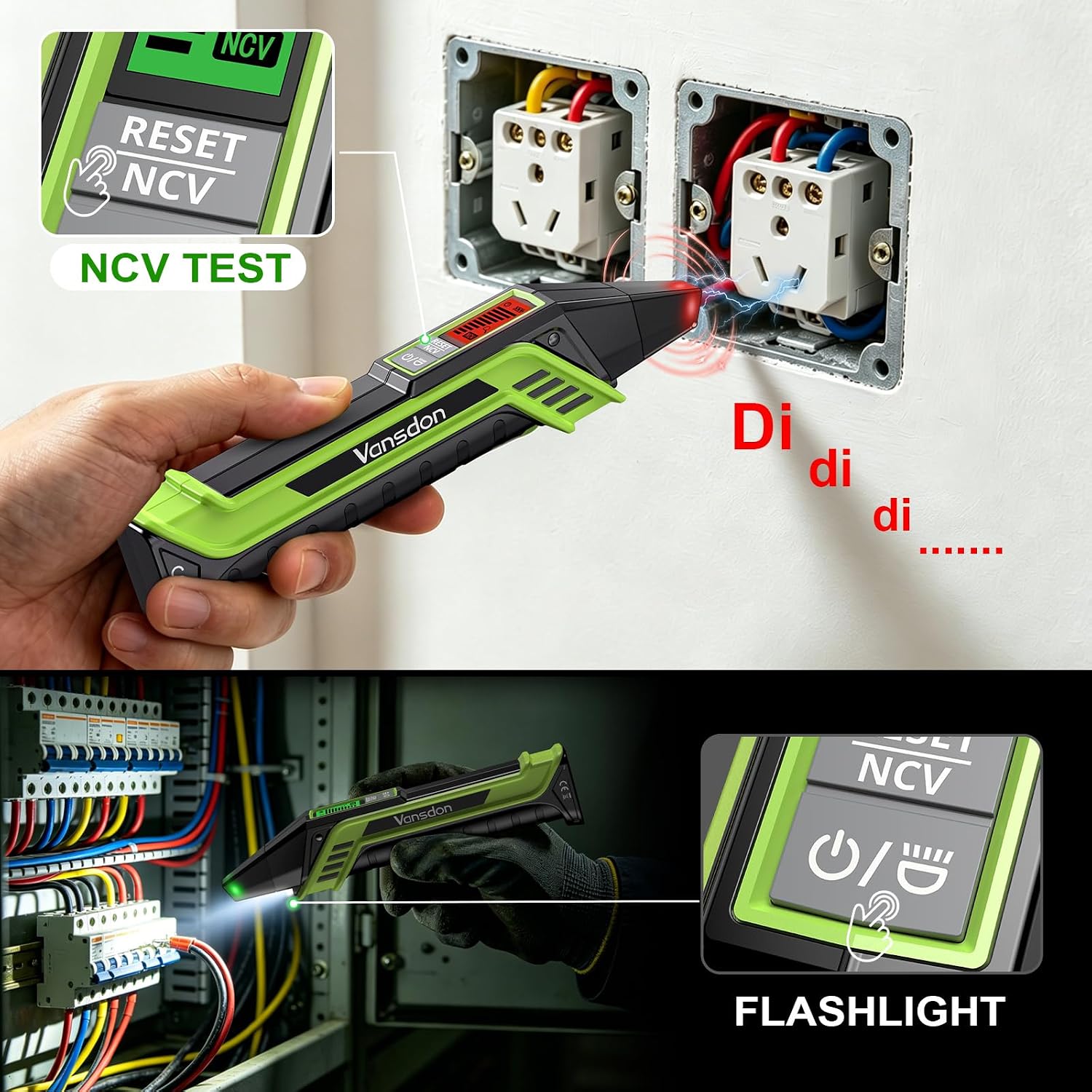

The receiver’s non-contact voltage test can check circuits without stripping wire insulation or removing equipment casings. Its analog bar graph, visual indicators, and buzzer help guide circuit tracing, while a built-in flashlight is useful when working around dim electrical panels. Compared with buying a separate locator and outlet tester, this combined kit offers several diagnostic functions in one setup.
Practical tips

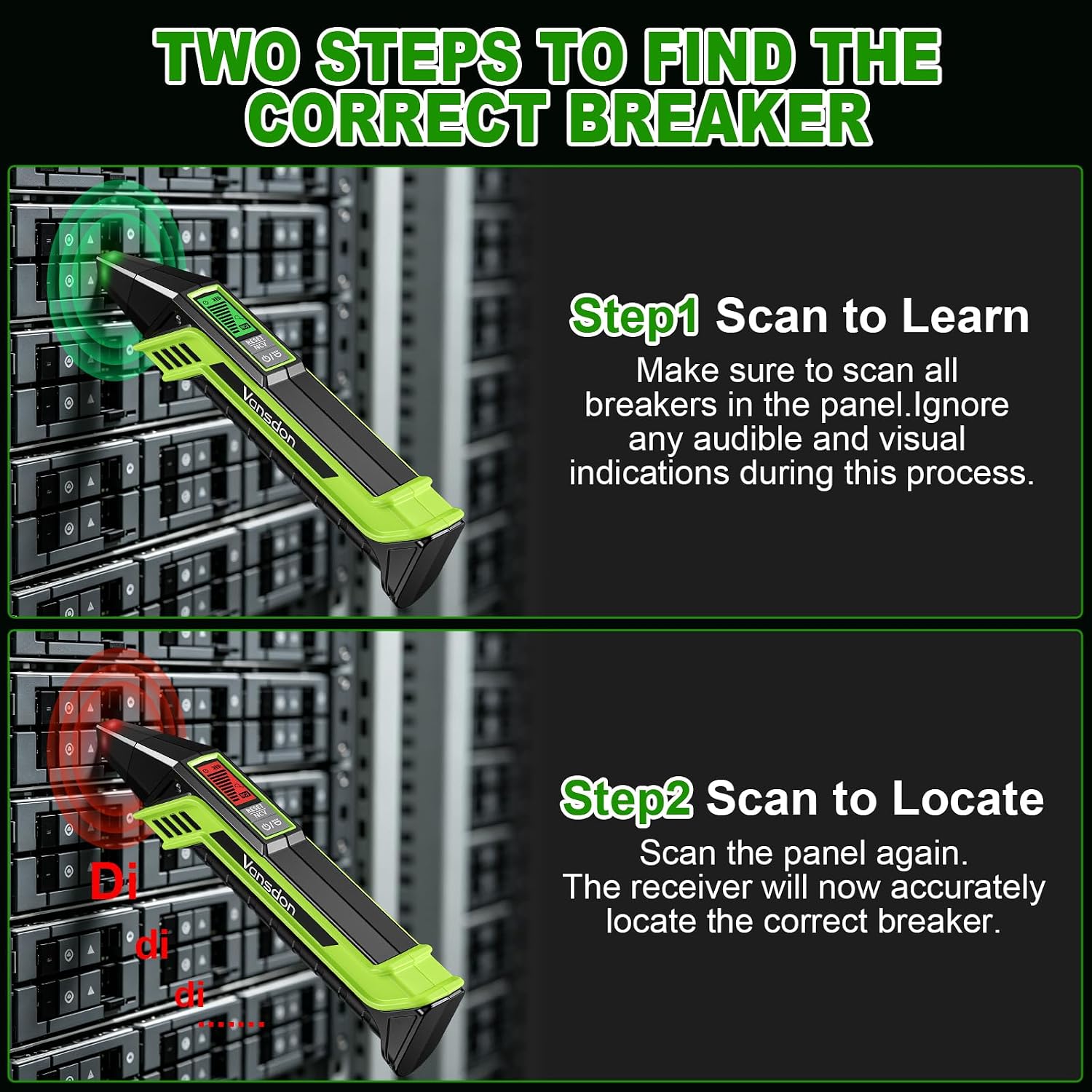

Use the outlet tester to read circuit status and check for common wiring faults, then use the GFCI trip-test function when testing a GFCI outlet. For circuit tracing, the transmitter and receiver work together on supported 90–120V AC circuits. Follow the receiver’s indicators and audible alarm as you locate the circuit, and use the flashlight to illuminate the panel or work area when needed.

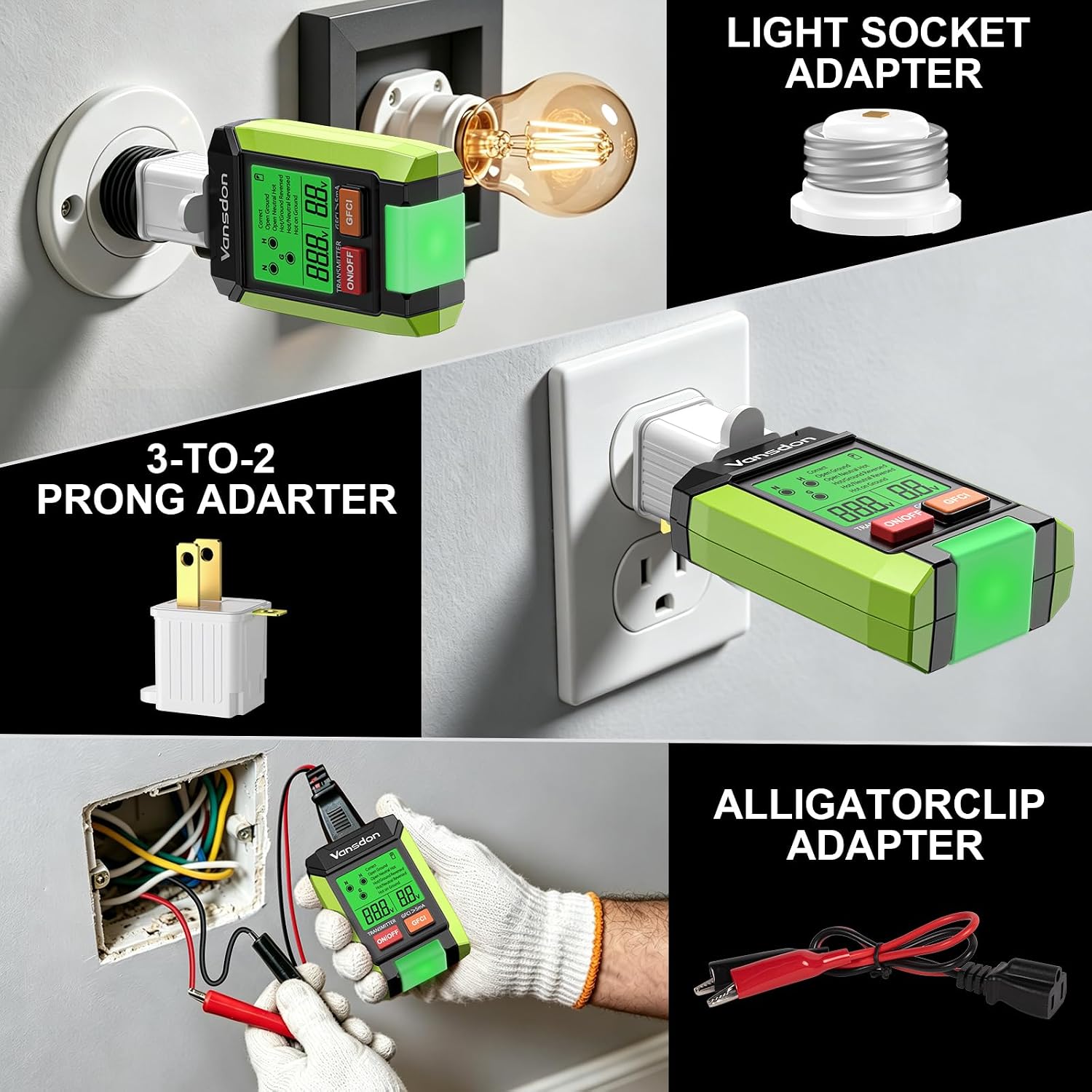

The included adapters extend the kit to different testing setups: the light-socket adapter is intended for lighting circuits, and the alligator-clip adapter can grip bare wires, including loose or concealed wires. The 3-to-2-prong ground adapter supports outlet testing in compatible setups. Keep the task within the tester’s stated voltage ranges and CAT II 300V rating.
Box contents

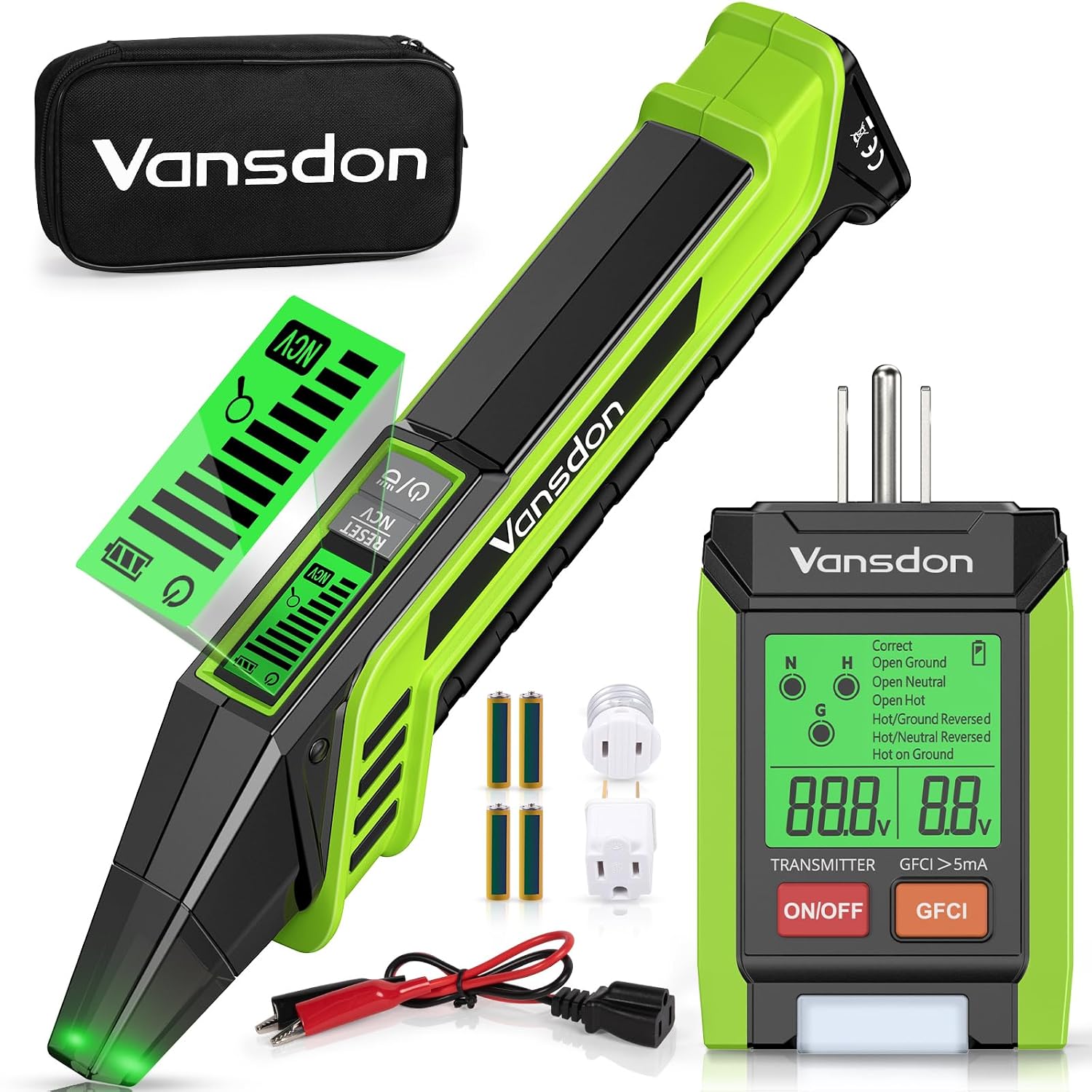

The set includes one transmitter, one receiver, a 3-to-2-prong ground adapter, a light-socket adapter, and an alligator-clip adapter. Four batteries and a carrying case are also included, so the components can be powered and stored together. The adapters make the kit useful for checking outlets as well as working with lighting circuits or bare wires.
Practical questions

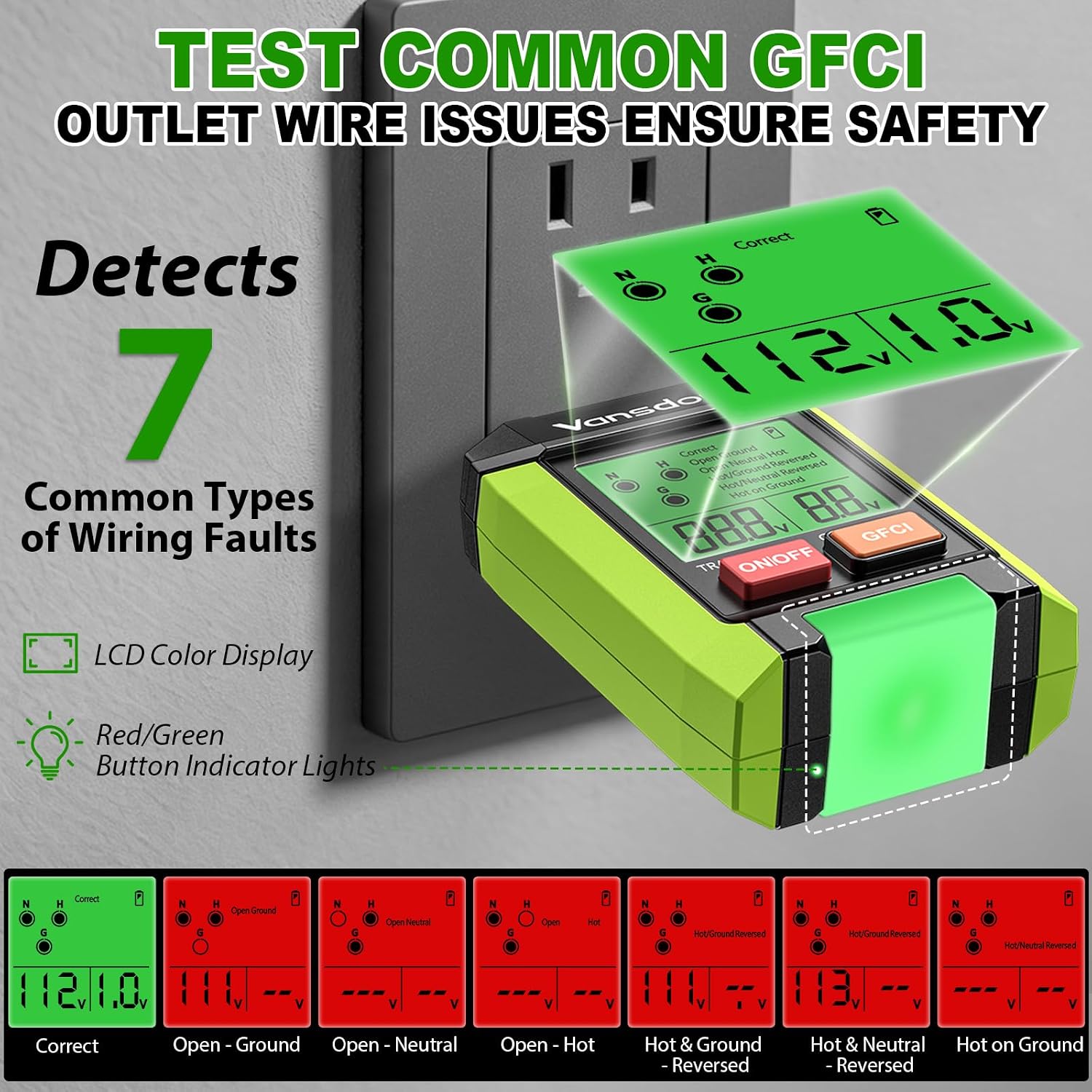

What does the LCD show? The transmitter’s large display presents wiring information and voltage readings. The outlet tester can diagnose seven common wiring faults, and its auto-hold feature retains the latest test results after the plug is removed.
Can the kit test GFCI outlets? Yes. The outlet tester includes a GFCI trip-test function for checking GFCI outlets.
What is the non-contact voltage test for? The receiver’s NCV function lets you test circuits without stripping wire insulation or removing equipment casings. Circuit tracing is specified for 90–120V AC circuits.
Is it worth it?
For home wiring checks and indoor commercial circuit maintenance, the BF-2000 combines outlet diagnosis, GFCI testing, and circuit locating with adapters for additional testing setups. Its LCD, receiver alerts, and built-in flashlight support practical work from outlet checks to tracing a circuit at a dim panel. A solid pick if you want one organized kit for these electrical testing tasks rather than a single-purpose outlet tester or locator.
