TOMLOV TM4K-AF Max 10.1" 4K Autofocus Microscope

This 10.1-inch digital microscope combines a large IPS display with 4K video capture and autofocus to speed up delicate tasks like micro soldering, coin inspection, and watch repair. It helps you see fine details clearly and saves time with hands-free focusing for repetitive inspection work.

Key Points

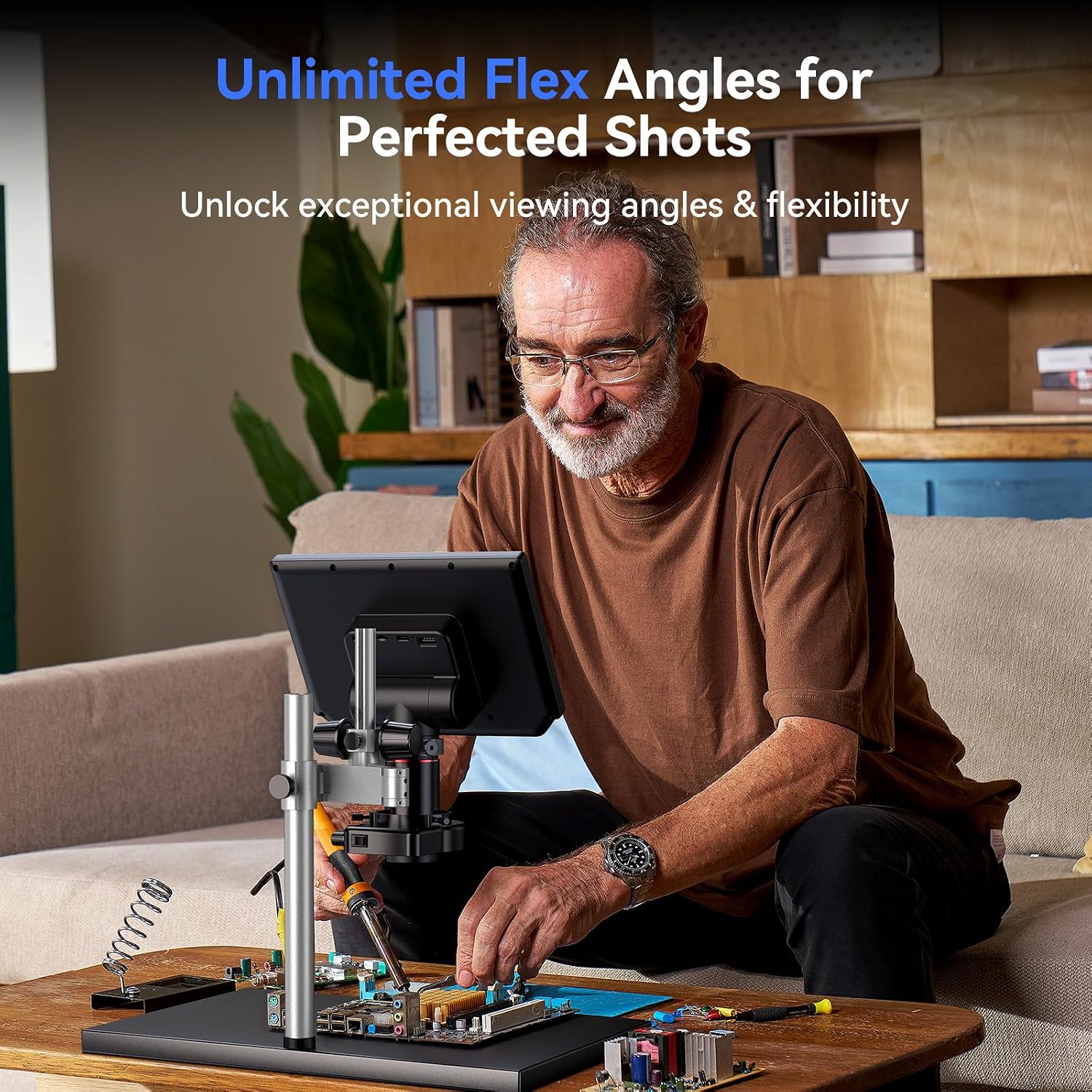

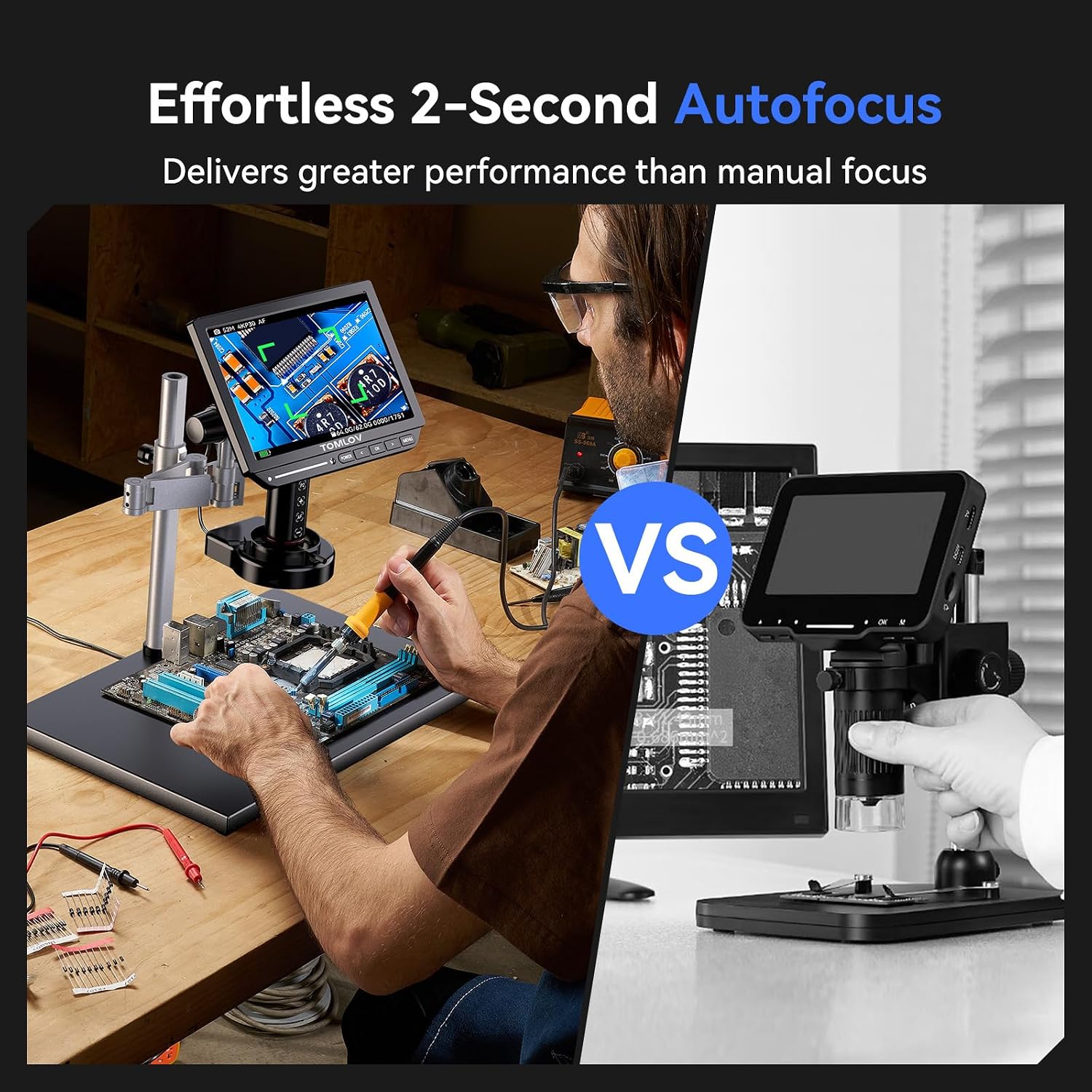

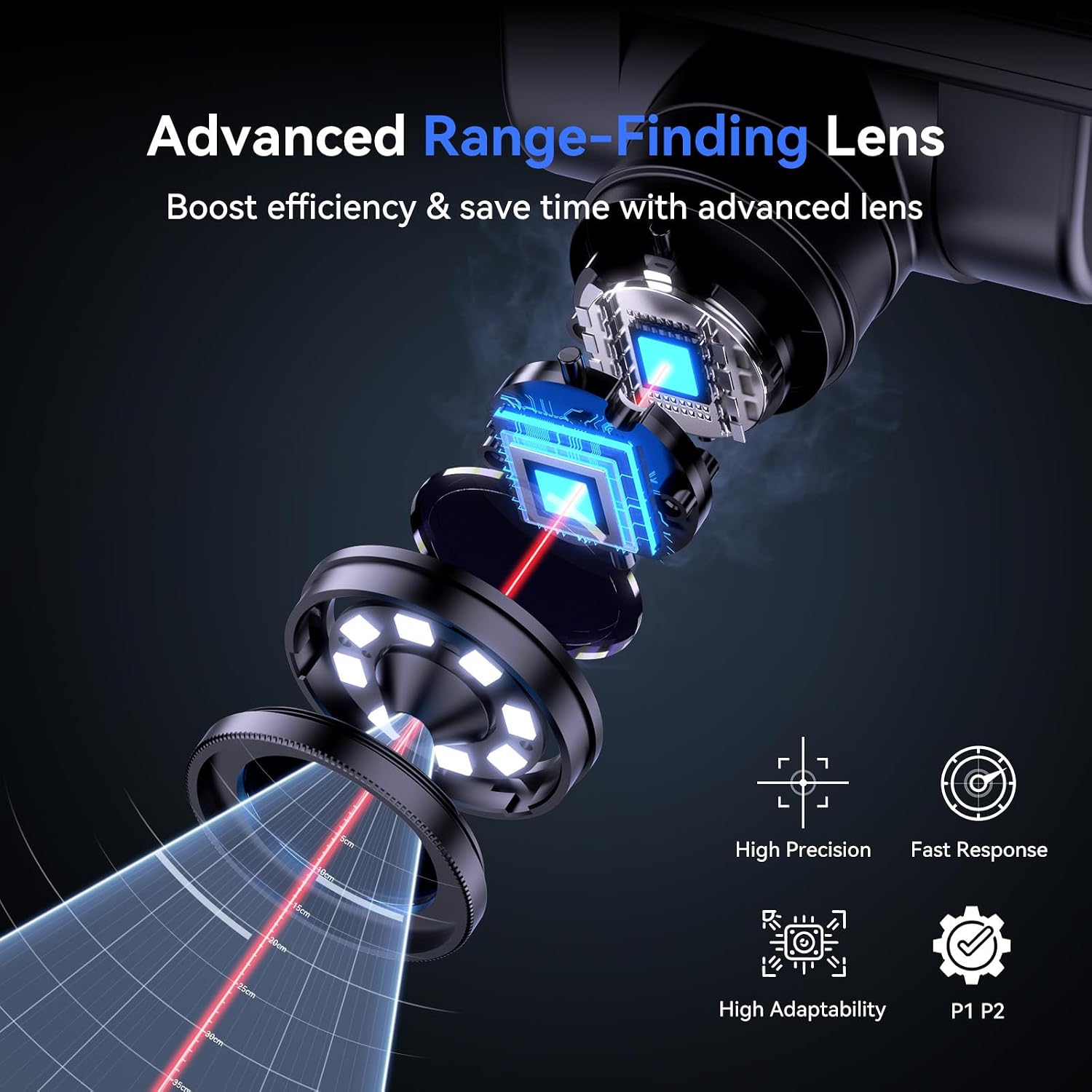

The microscope includes TOF distance detection and AI-assisted autofocus to maintain crisp focus automatically while you work, making it practical for electronics repair and close inspection tasks. A 360 degree rotatable spin flex arm and a 13 inch pillar with a 4 inch fine adjustment allow comfortable positioning for precise alignment during soldering or inspection. The built-in bright ring light provides even illumination across the field of view so small features and surface defects are easier to spot. 👀

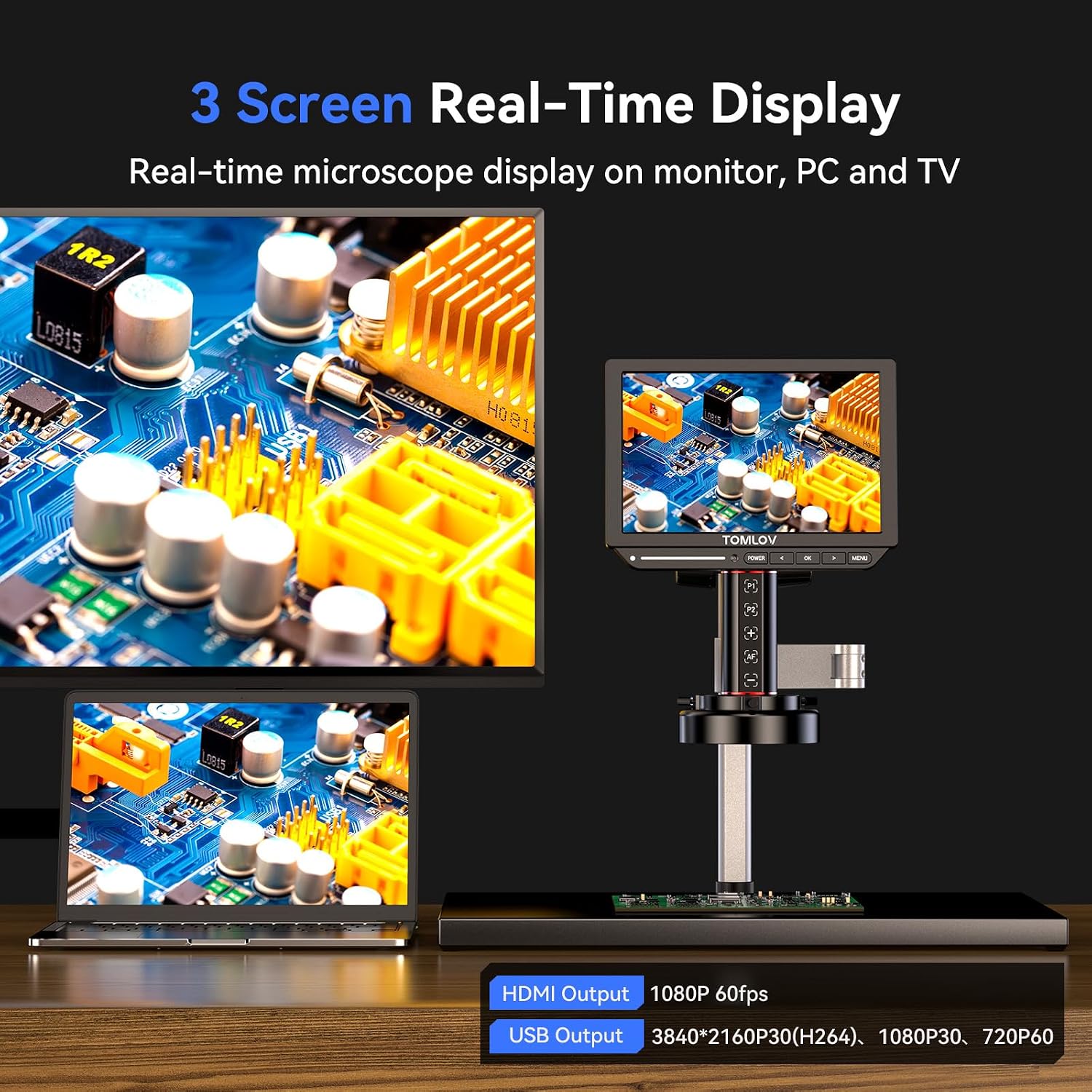

This model supports simultaneous HDMI and USB output for real-time viewing on multiple displays, which can be useful in classroom demonstrations or collaborative repair sessions. It also accepts a 64 GB SD card for local storage of photos and 4K video, letting you document work without a separate capture device. 📸

Technical Specifications

• Name: TOMLOV TM4K-AF Max

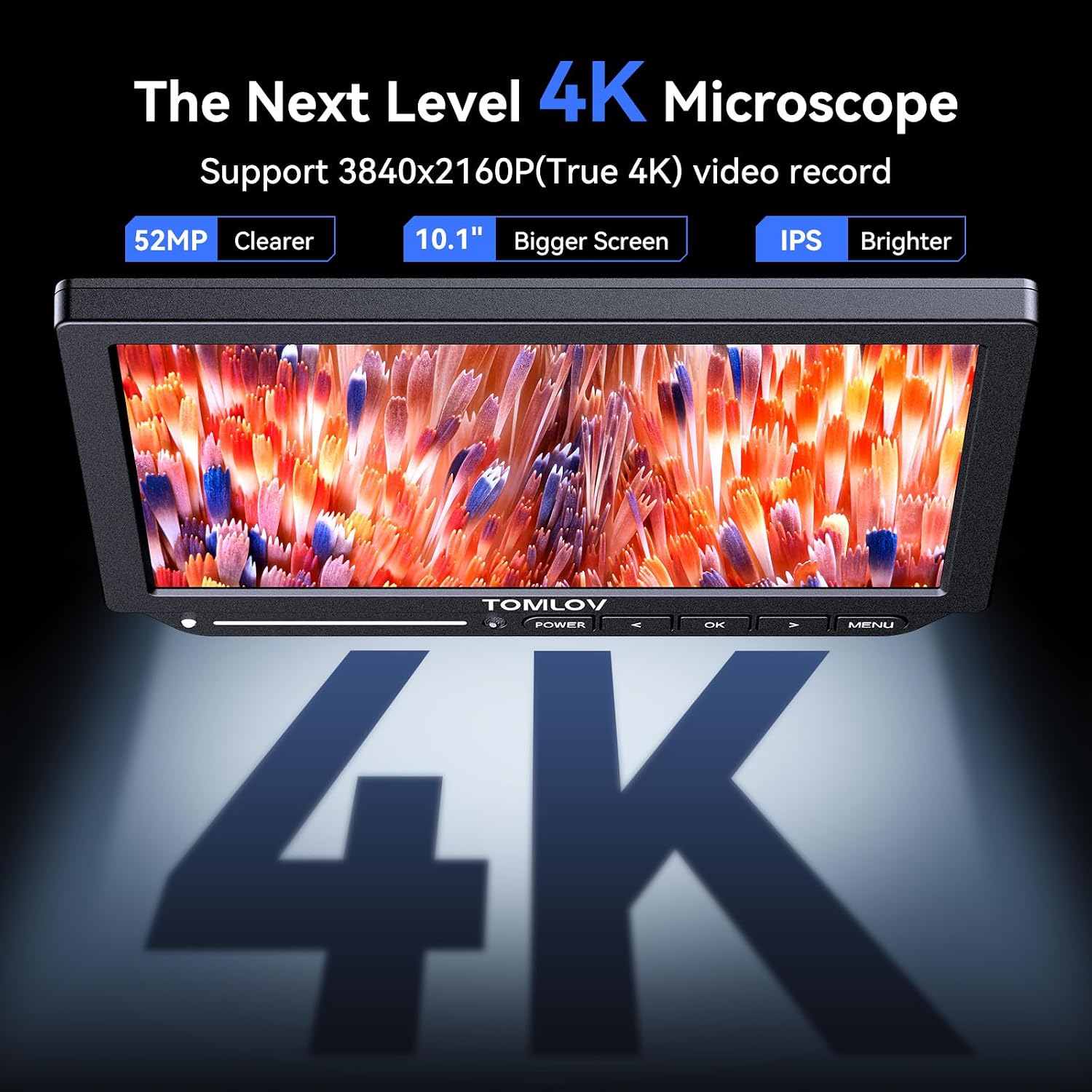

• Screen: 10.1" IPS, 1280 x 800 pixels
• Camera: 4K UHD video, 52 MP still image capability
• Storage: 64 GB SD card included
• Magnification: Digital zoom up to 2000x

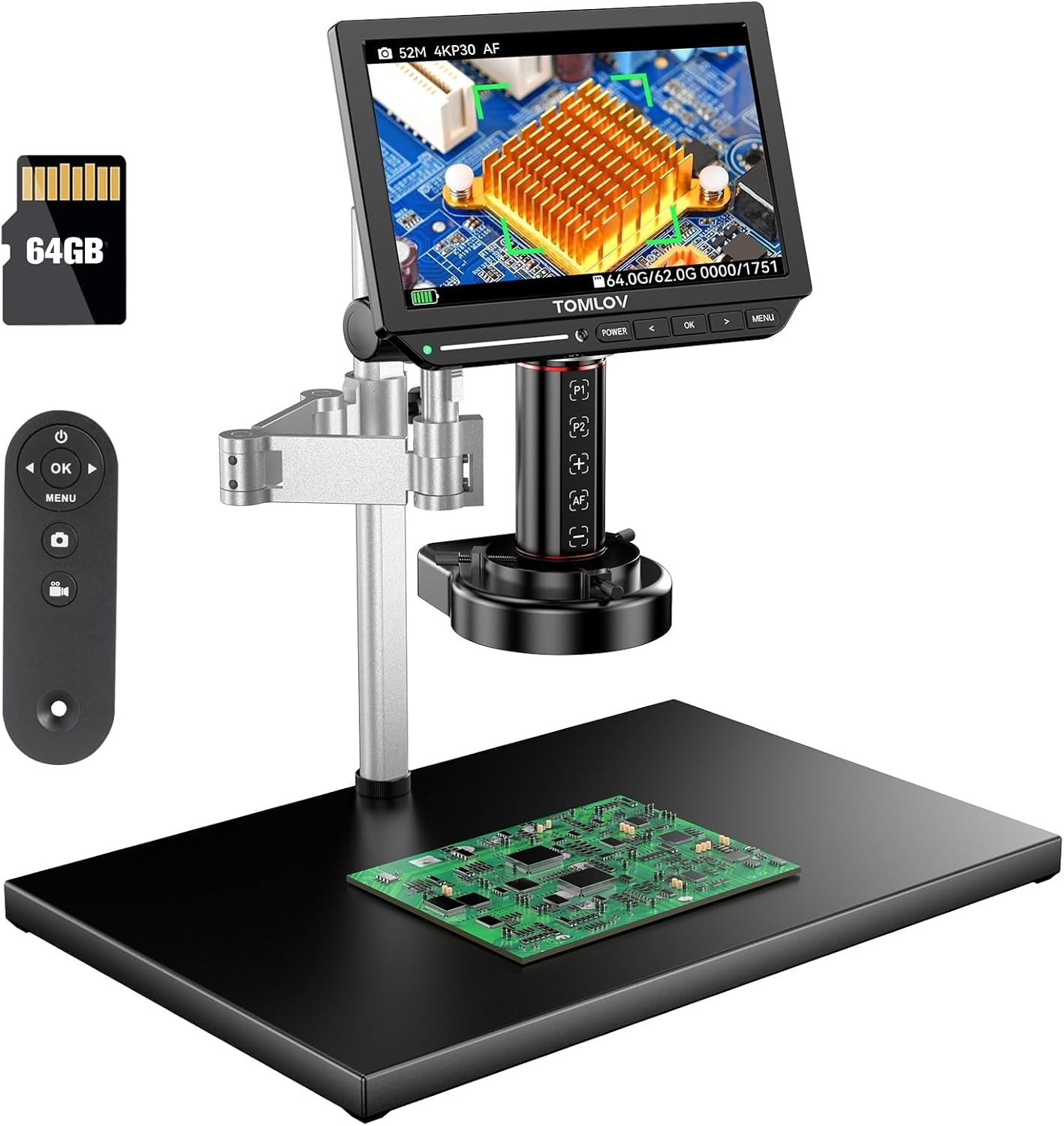

• Stand and adjustments: 13" pillar with 4" fine adjustment, 360° spin flex arm

Benefits

The touchscreen display and physical controls reduce the need to constantly move a PC around the bench, so you can focus on the task at hand. Color representation is given with high coverage numbers reported for sRGB and NTSC, which helps when distinguishing subtle differences in solder joints or surface finishes. The triple-display capability via HDMI and USB makes it easier to share views during instruction or inspection. One nuance to consider is that very high digital zooms depend on software interpolation, so extreme magnifications may show lower effective detail than optical magnification would. 🔍

Usage Recommendations

Position the spin flex arm so the lens is stable and the subject is centered on the 10.1 inch screen. Use the TOF and AI autofocus features to lock focus before fine soldering work, and rely on the ring light for even illumination to reduce shadows. For coin or small part documentation, record short 4K clips or capture 52 MP stills to preserve detail. When using the maximum digital zoom, expect trade offs between field of view and perceived sharpness, so adjust lighting and focus accordingly.
