TKDMR Heat-Shrink Tubing, 3:1 Ratio

Highlights

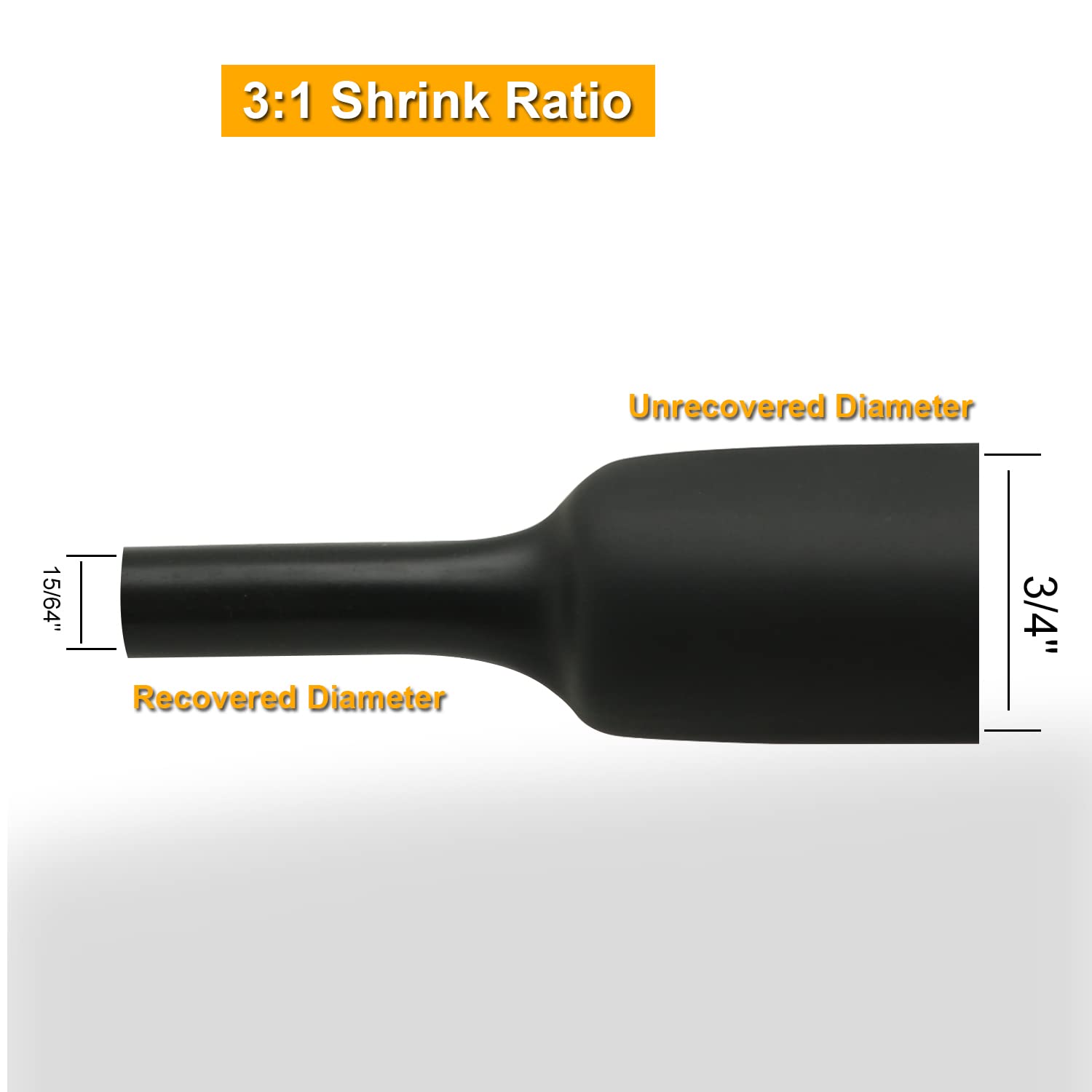

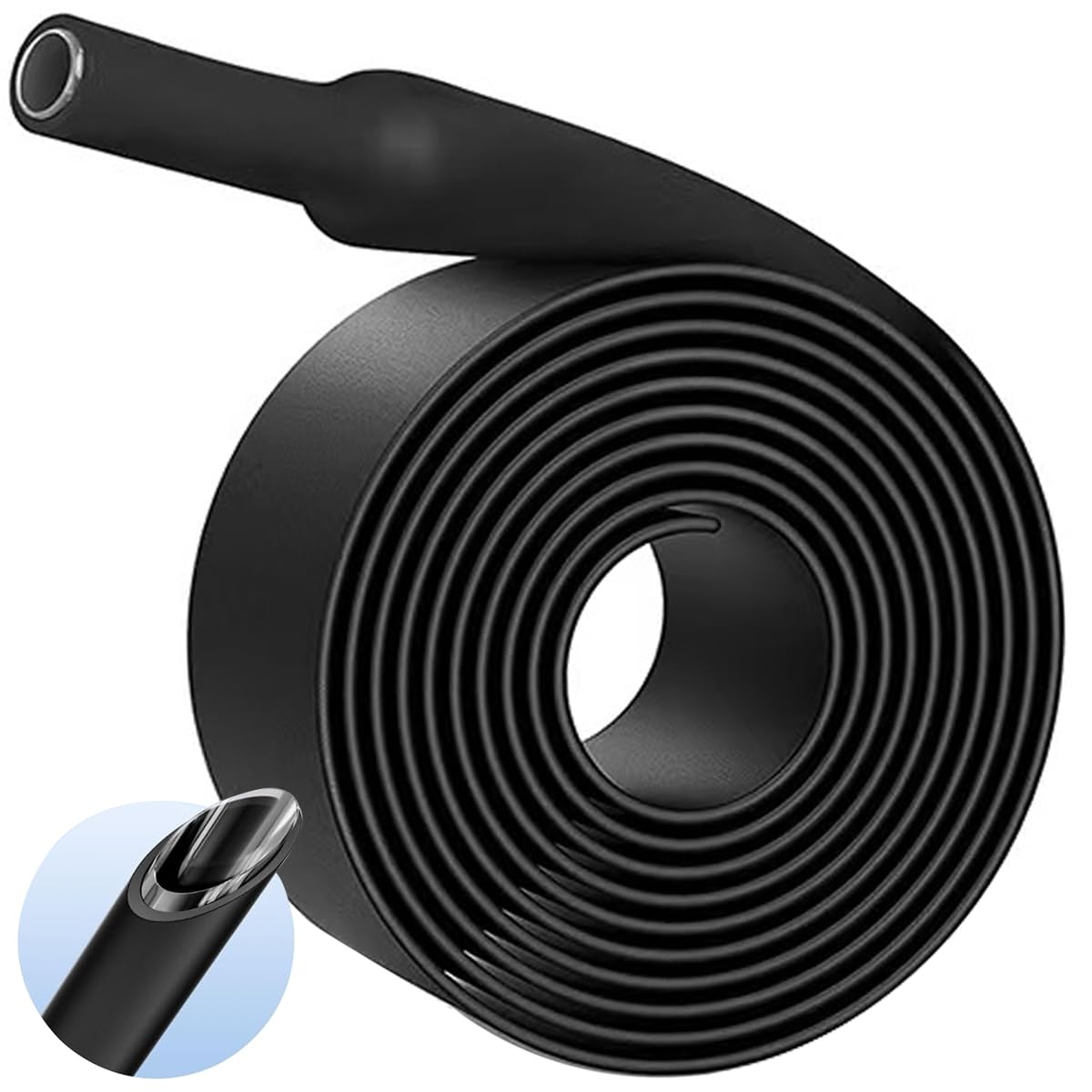

When a wire connection needs insulation and a tighter seal against moisture, adhesive-lined heat-shrink tubing can be more useful than a plain sleeve. TKDMR’s black tubing has a 3:1 shrink ratio, so it can reduce to one-third of its original diameter as it heats. Adhesive on the inner wall melts during shrinking and bonds to the surface, helping seal and insulate the covered area. The roll is 5 feet long, and its stated 3/4-inch diameter is the size before shrinking.

That format is intended for wire and cable connections, solder joints, electronics, and marine applications, among other uses. The product listing gives a shrink temperature of 125°C and a withstand voltage of 600V, those figures are product details, not a substitute for checking whether the tubing suits a particular electrical job. The listing also describes it as flame retardant, but does not provide a specific rating or test standard.

How to use it

Cut a piece to the length you need, slide it over the connection, position it, then apply heat with a hot air gun until the tubing shrinks. As it tightens, the inner adhesive melts and adheres to the covered surface. For a small wire splice, that means the sleeve can cover the join rather than simply sit loosely around it.

Keep in mind that the listed diameter is measured before shrinking, so the starting size needs to fit over the wire or bundle before heat is applied. The 3:1 ratio gives it more room to contract than tubing with a 2:1 ratio, but it still needs to start at a size that can slide into position. A hot air gun is part of the stated process, this is not a peel-and-stick repair sleeve.

Practical tips

Measure the outside diameter of the section the tubing needs to cover, including any connector or splice, and compare it with the unshrunk tube size. Leave enough length to cover the whole connection and its exposed edges. If you are working on several joins, cut each piece before fitting it so the sleeves are ready to slide into place.

The adhesive lining is the main reason to choose this over basic, unlined heat-shrink: it is intended to improve the seal around the covered area and help guard against moisture and corrosion. It suits you if you want that added adhesive layer for a wire connection, a marine project, or a DIY repair. It might not be a great match if you need a specific certified electrical or flame-rating specification, since the listing does not identify one.

Practical doubts

What does the 3:1 ratio mean? The tubing can shrink to one-third of its original diameter, according to the product details.

Does the tubing have adhesive inside? Yes. Its inner adhesive is described as melting during heating and bonding to the covered surface.

Can it be used on boat wiring? Marine and ship applications are listed, but the product details do not specify a particular installation or certification. Match the tubing size to the connection and application.

When it makes sense

This is a practical choice when a standard sleeve seems too loose for the connection and you want adhesive lining to help seal the covered area. Its 5-foot roll and 3/4-inch pre-shrink diameter give you a defined size to work with, while the 3:1 ratio allows substantial contraction. For a simple indoor wire cover where an adhesive seal is unnecessary, unlined tubing may be the more straightforward option. Choose this roll when its starting diameter fits your connection and the added adhesive layer is useful, look elsewhere if the job requires a documented electrical or flame-safety rating that is not provided here.
