Renogy 100A MPPT Solar Charge Controller

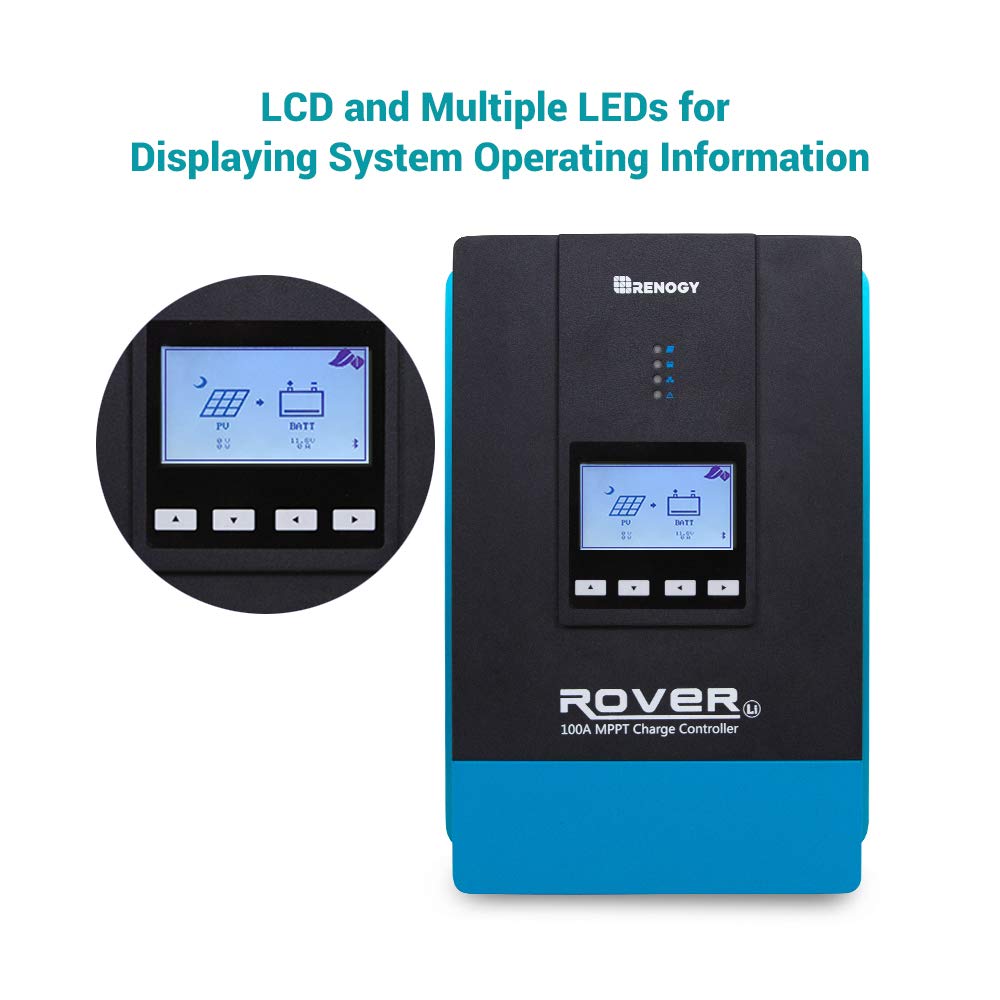

A dependable MPPT solar charge controller is the heart of a well managed off grid battery system, and the Renogy 100A model is built to help you harvest steadier power from your panels while keeping battery charging controlled. It supports multiple DC input and battery configurations, includes an LCD display for day to day visibility, and uses automatic detection so you do not have to guess your system settings. With rugged design and protection features, it is a strong option when you need confidence in RV, marine, or remote installations where conditions can change fast. 🏕️⚡

If you run a larger solar array or you want more control than a basic controller, this unit is designed to scale. It provides real time monitoring options and stores operational data, which can help you evaluate performance and keep your setup running efficiently over time. According to the manufacturer, it is engineered for reliable performance across a wide operating temperature range, and its MPPT approach is intended to improve energy harvest even when clouds or shade affect your panels. 🌤️

Key features

The biggest day to day advantage is smarter charging control through MPPT technology. MPPT stands for Maximum Power Point Tracking, and the controller is designed to continuously work the system toward better panel output under changing conditions. According to the manufacturer, it targets MPPT efficiency up to 99.9%, which can translate into more usable energy reaching your batteries instead of being wasted as heat or inefficiency. In practice, that matters most when sunlight is variable, such as mornings, late afternoon, or partial shade.

This Renogy solar charge controller also leans into usability. It automatically identifies whether your system is 12V, 24V, 36V, or 48V, so there is no manual system voltage configuration step. It also includes self diagnostics and temperature compensation, helping the controller adjust charging behavior as conditions shift. For battery health, that combination can reduce the risk of charging issues that shorten battery life.

Charging compatibility is another practical strength. According to the provided information, the controller supports multiple battery types including AGM, gel, sealed, flooded, and lithium batteries. It also includes adaptive multi stage charging for lead acid and 2 stage charging for lithium, with support mentioned for LiFePO4. If you are standardizing your setup or upgrading from one battery chemistry to another, this flexibility can reduce the amount of rework.

Tech specs

• Name: Renogy 100A 12V/24V/36V/48V DC Input MPPT Solar Charge Controller
• Type: MPPT solar charge controller
• Color: Black
• Capacity: 100A
• System voltage detection: 12V, 24V, 36V, 48V
• Waterproof rating: IP32

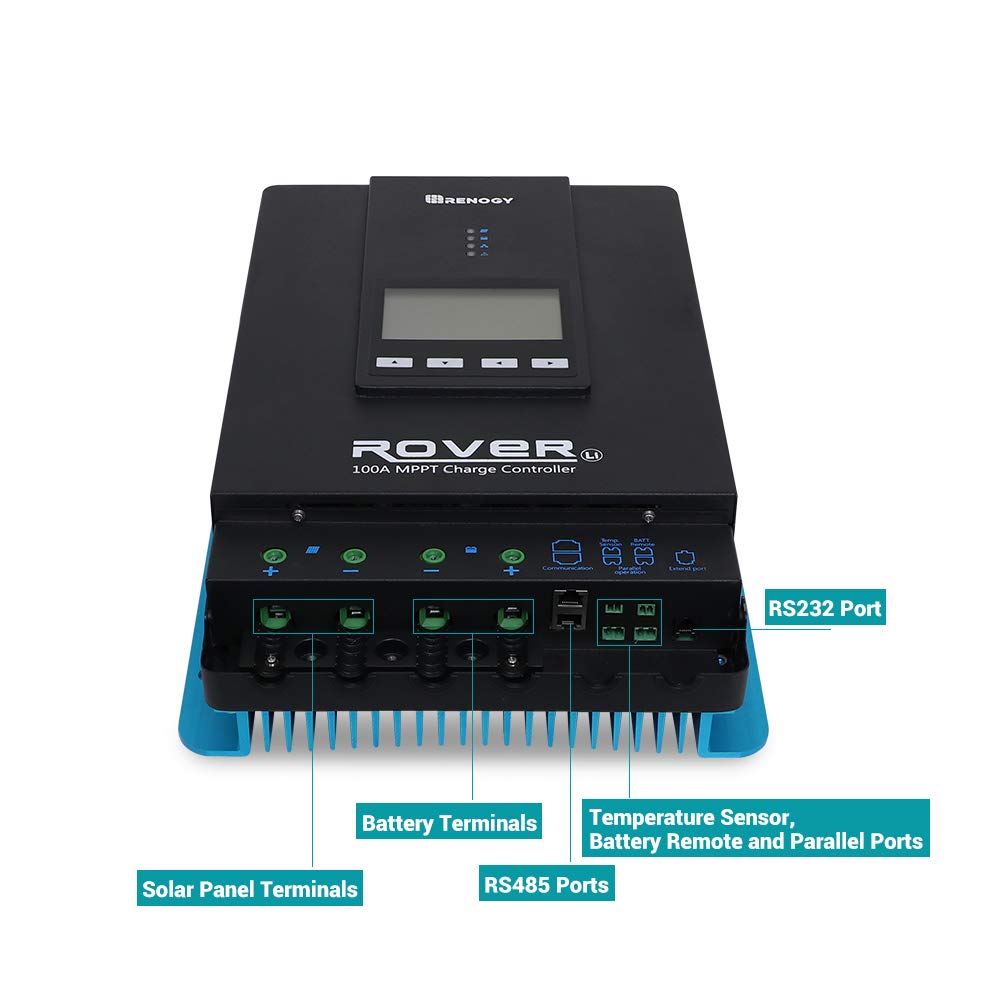

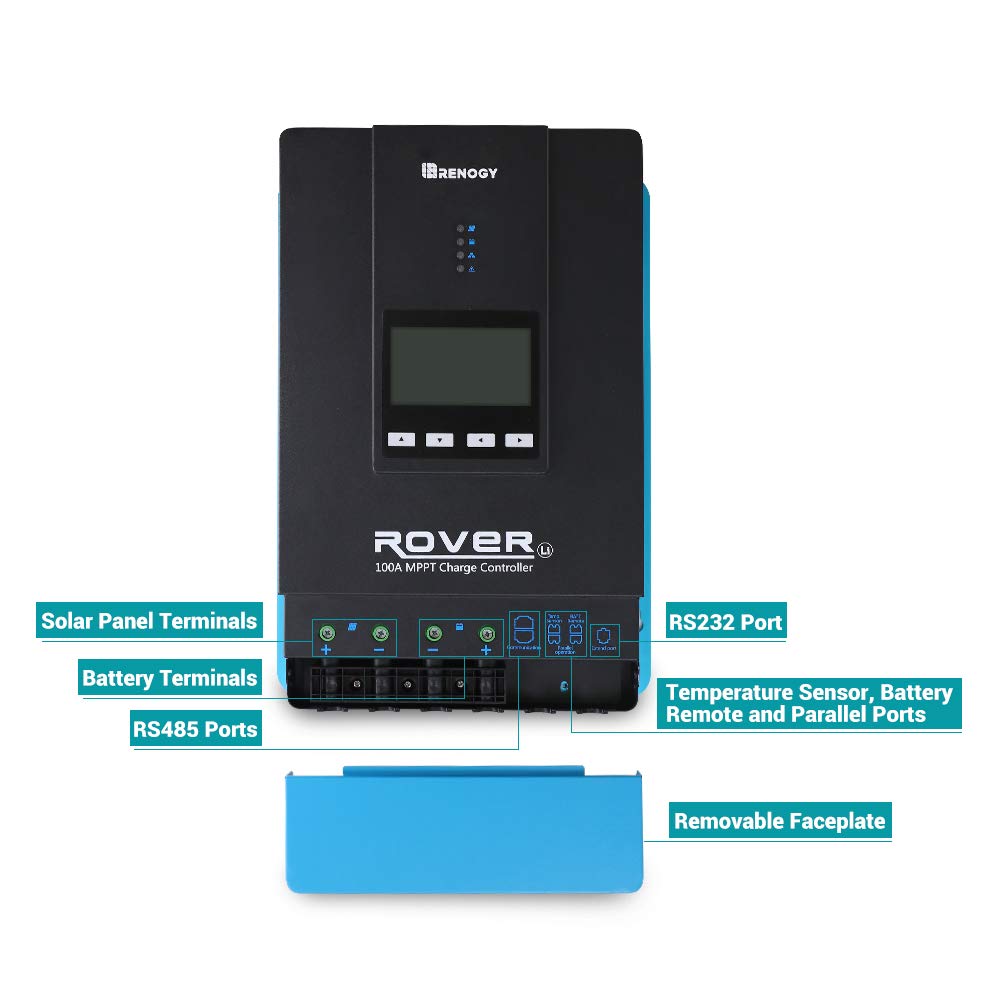

• Communication and expansion: 485 parallel ports, RS485, RS232

Pros

You’ll appreciate how many layers of control and protection are built in. The controller includes protections aimed at preventing reverse polarity, and it also targets overload and short circuit conditions. According to the description, it includes TVS lightning protection as well, which is especially relevant for outdoor RV, marine, and off grid setups where electrical surges can happen. 🛡️

Another advantage is better visibility into what the system is doing. The controller supports monitoring through a Bluetooth workflow with the Renogy DC Home app, and the provided note indicates the BT 2 Bluetooth module is sold separately. It also stores operational data, which can help you understand how your array performs and how the controller behaves over time. For larger installs, the ability to track system performance remotely can make troubleshooting less guesswork.

Scalability is also part of the design. The information mentions 485 parallel ports for multi controller setups, which can help you build larger systems as your energy needs grow. There are also options for communication and expansion using RS485 or RS232, which can be useful when integrating into an organized off grid power plan. If you prioritize scaling and monitoring alongside safe charging, this is a practical direction to take.

You should also keep a specific limitation in mind. Some app based monitoring accessories are not included, since the Bluetooth module is sold separately. That is an easy detail to account for during planning, especially if you want the quickest path to remote visibility.

It makes sense if you want a controller that combines multi voltage auto detection, multi battery chemistry support, and protection features in one unit for RV, marine, and off grid systems.

What matters most

Worth considering if your goal is dependable energy harvesting and controlled battery charging without manual configuration. It suits you if you want MPPT based performance for changing sunlight and you value charging behavior that includes temperature compensation and self diagnostics. It also helps if you plan to run common battery types such as AGM, gel, sealed, flooded, or lithium including LiFePO4, and you want charging profiles aligned to the chemistry. 🌿

If you are building a larger array or you care about monitoring and system expansion, this controller can fit into that plan with its parallel and communication capabilities. It might not be a great match if you only need a very basic charge controller and you do not plan to take advantage of system voltage detection, data storage, or communication features. For most users managing a serious solar battery setup, though, the combination of efficiency, monitoring options, and safety protections can be exactly what you need to keep power flowing steadily.
