Puriwood Stair Tread Template Tool Aluminum Alloy

Uneven stair edges often start with measurements that are hard to transfer consistently from one step to the next. The Puriwood stair tread template tool is designed to help map angles, depth, and length, then mark those measurements for stair treads, risers, and similar layout work. Its adjustable arms and pivot points let you match the shape of a step instead of relying on a straight measurement alone. That can be useful when fitting replacement treads or laying out several stairs, where small differences in the walls or edges can affect the fit.

What matters most

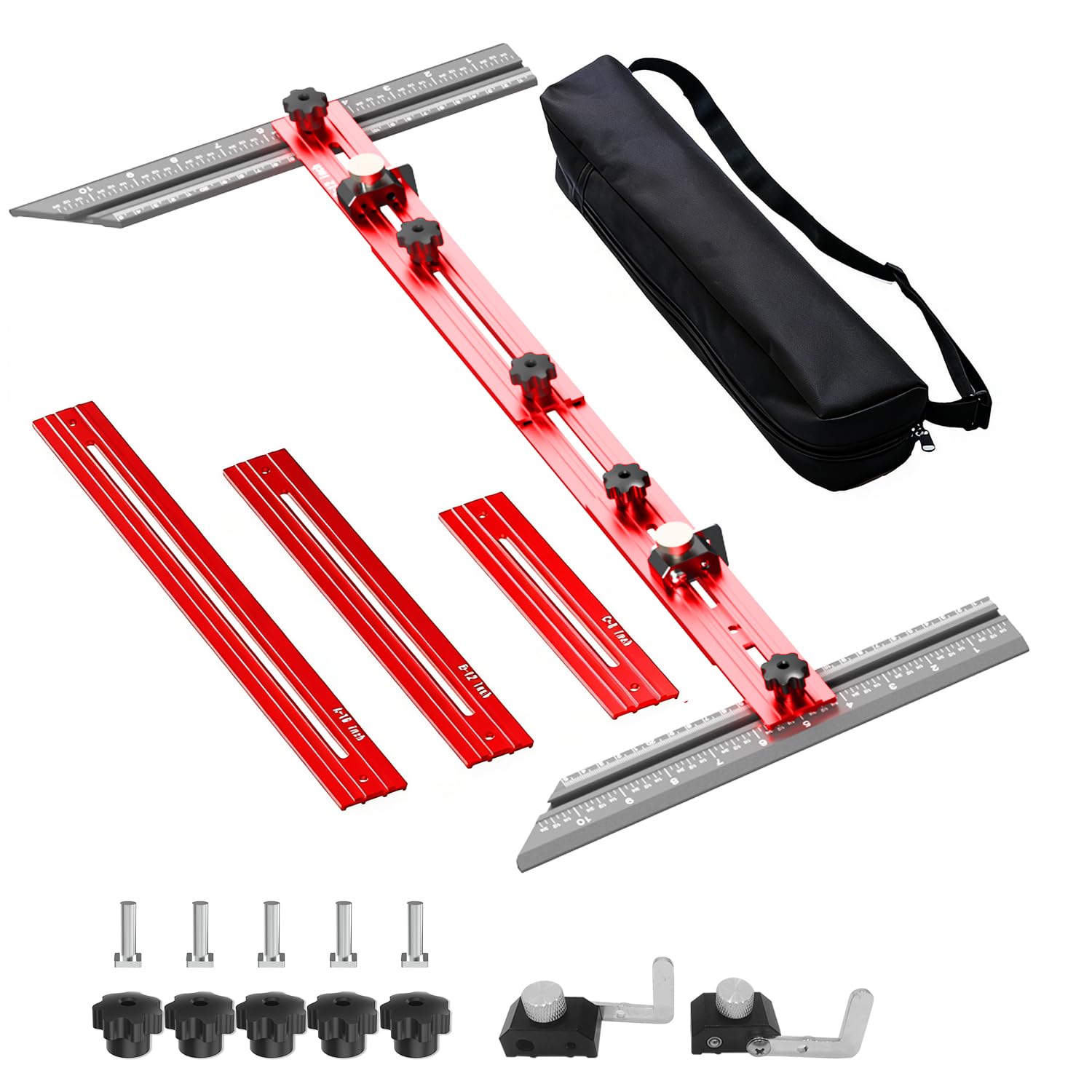

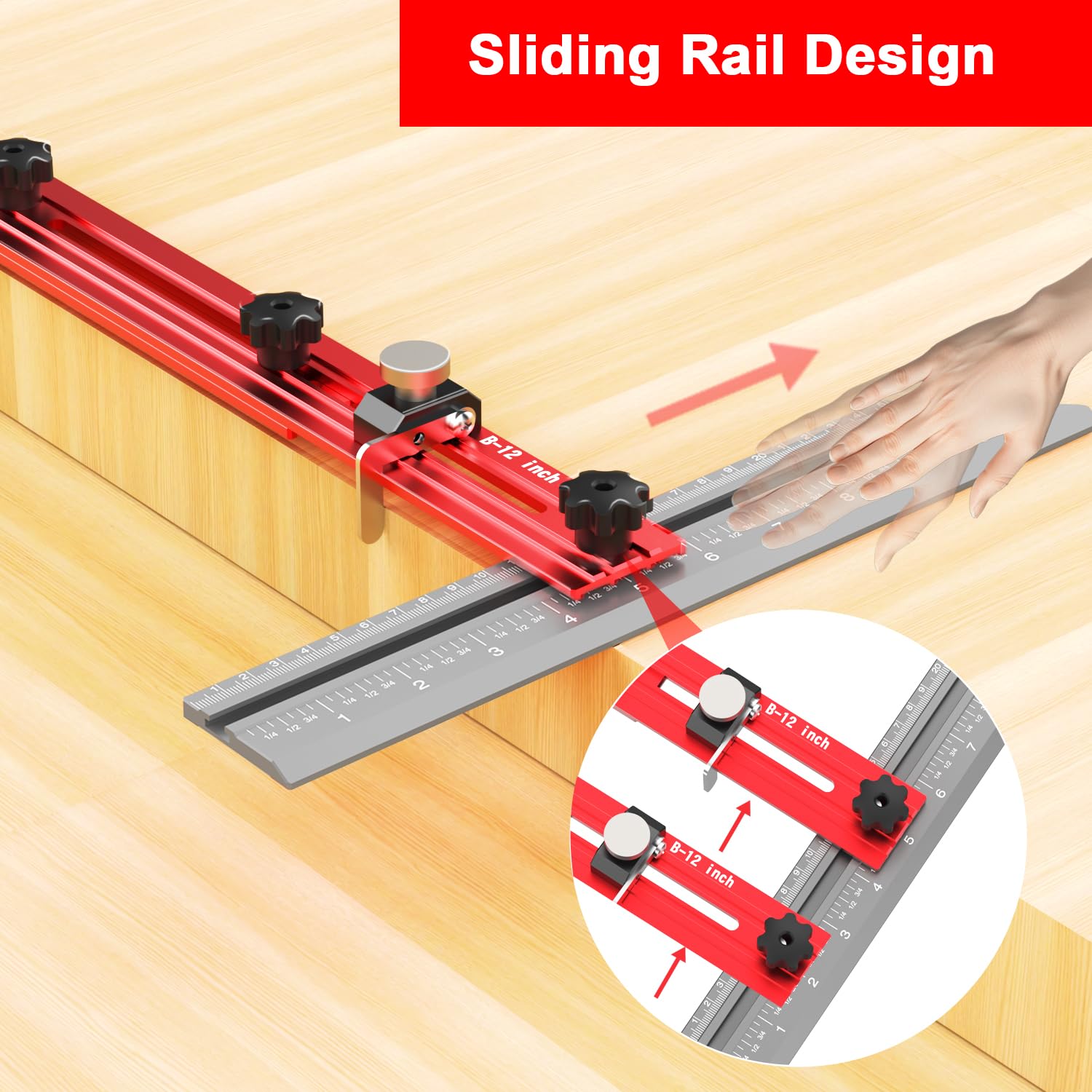

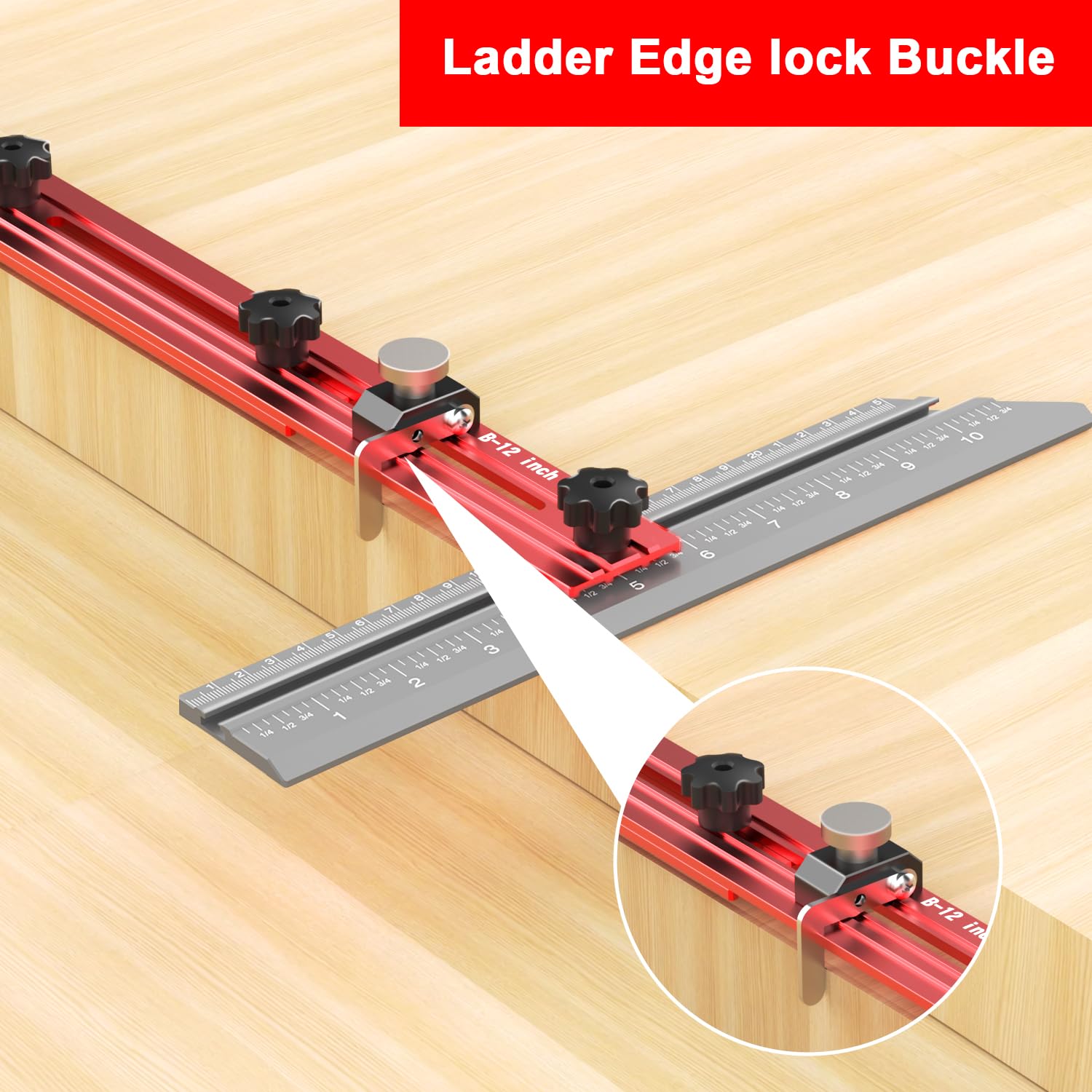

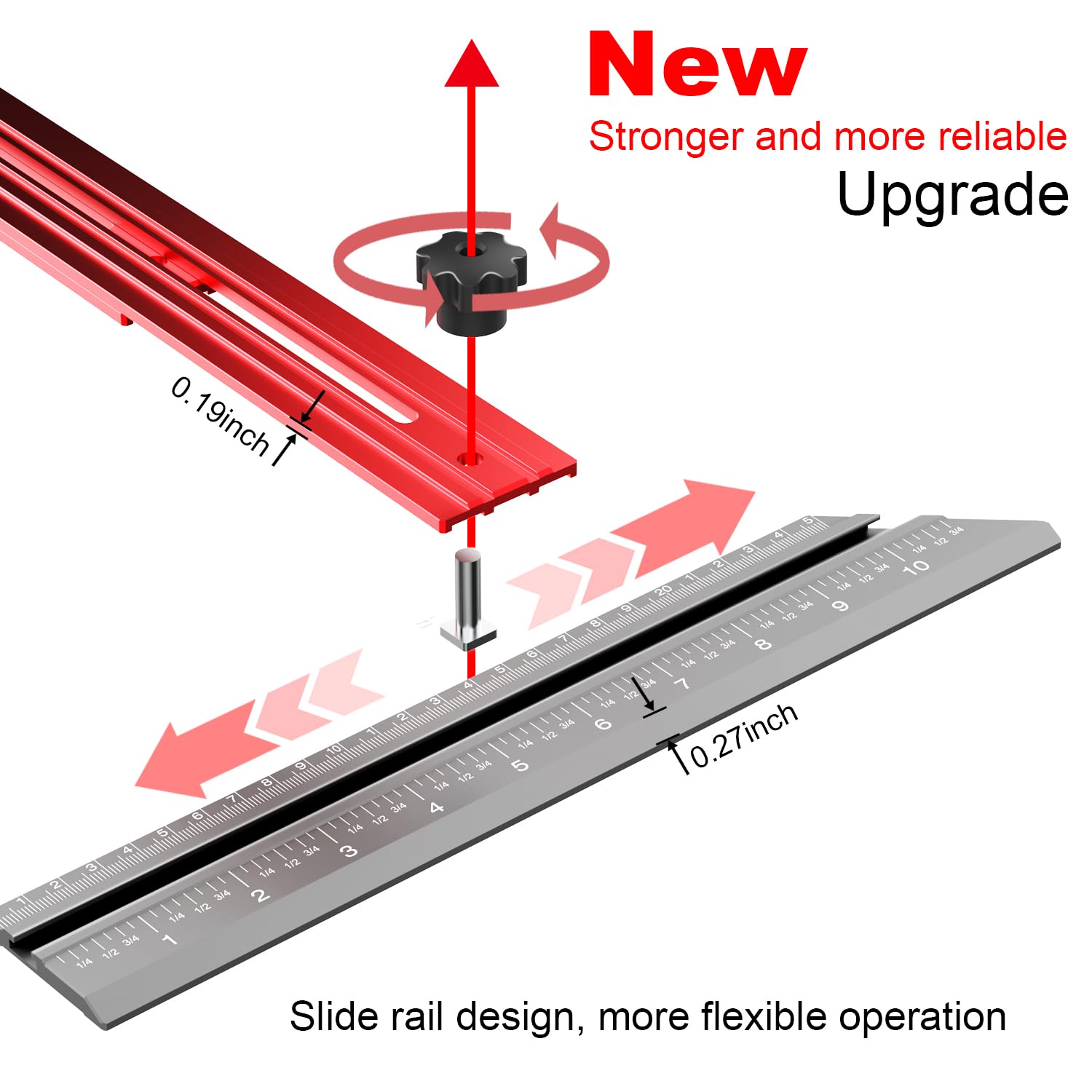

This is an adjustable measuring and scribing jig, not just a ruler. The listing gives an adjustment span of 11.5 to 60 inches, with three interchangeable arms measuring 8.27, 12.20, and 16.14 inches. The arms can be combined, and locking knobs hold the chosen layout while you transfer it to your material. The scale is laser-etched, and the tool is made from CNC-machined aluminum alloy with an anodized finish.

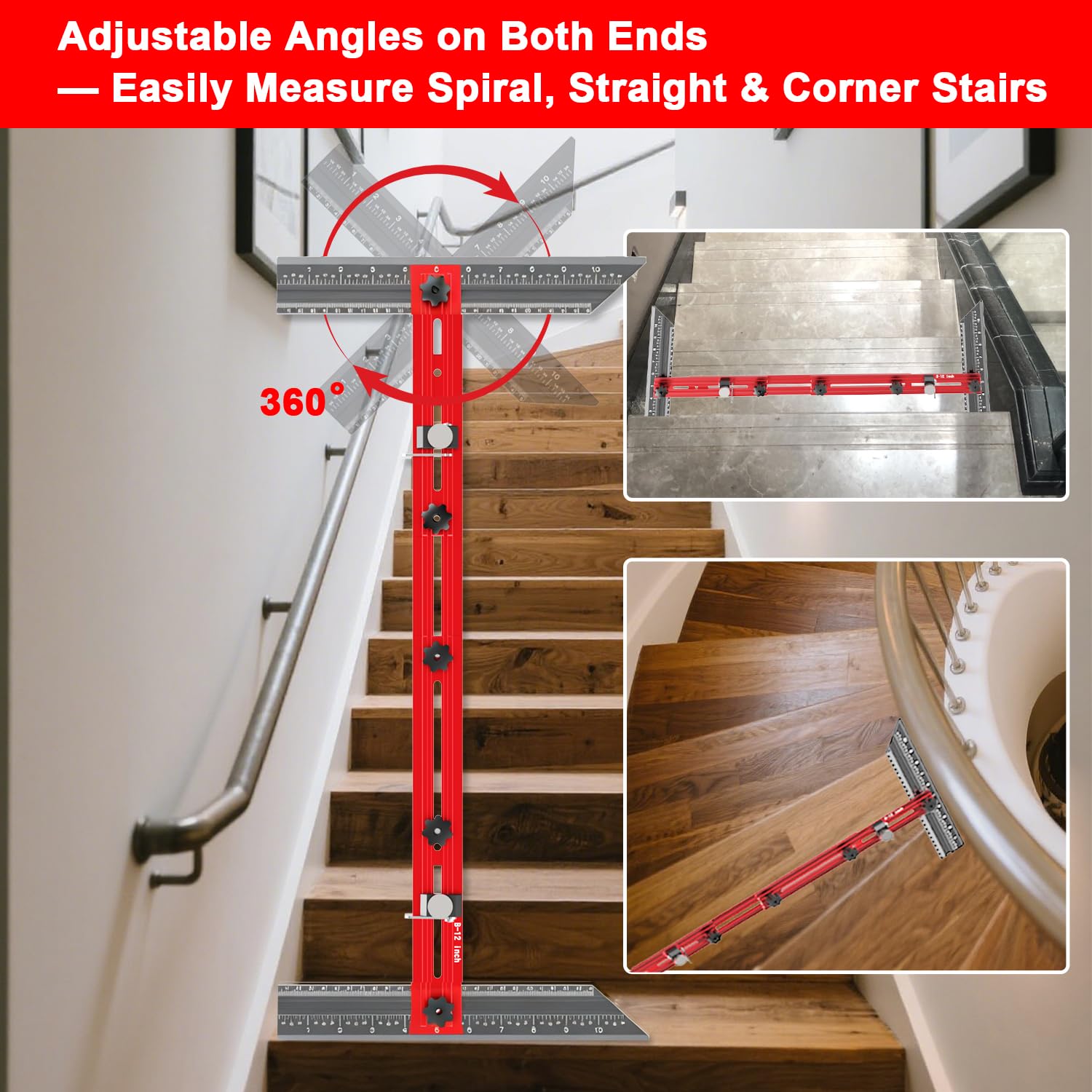

The practical advantage is being able to capture a stair’s angle and depth along with its length, then use that layout when marking a tread or riser. For example, you can position the jig against a stair, set the pivots to follow its edges, lock them, and carry the outline to the piece you’re fitting. Compared with measuring each edge separately and recreating the angles by hand, a template-style tool gives you a more direct way to transfer the shape. Keep in mind that its stated span tops out at 60 inches, so it won’t cover a measurement beyond that range in one setup.

How to use it

Set the arms and pivot points to match the stair or surface you’re measuring, then tighten the locking knobs before moving the tool to mark the corresponding layout. The adjustable design is intended for stairs, risers, partitions, shelves, and windowsills, so it may also be useful for other projects that need an angle or outline transferred. The included Oxford cloth bag keeps the tool and its parts together for storage or transport. The listing doesn’t provide a maintenance routine, so there’s no specific cleaning or adjustment schedule to weigh into the decision.

Practical tips

Take the measurement where the tread or riser will actually sit, rather than assuming every step has the same shape. If you’re working on a run of stairs, use the jig to capture each step before cutting, the product is intended to help duplicate measurements, but the fit still depends on matching the tool to the individual opening. Its marked scale can help with setup, while the pivoting layout is what makes it more useful than a basic tape measure for angled edges.

The product is presented as portable and lightweight, with the storage bag helping keep interchangeable arms from getting separated between jobs. The description does not give a weight or a measurement-accuracy tolerance, so anyone choosing a layout tool for a specification-controlled job should account for that missing detail rather than assume a stated precision level. It makes sense if you want one adjustable tool for measuring and marking varied stair layouts, You may want to skip it if your project needs a span beyond its listed range or a tool with documented accuracy specifications.

Questions before you buy

Can it measure both stair treads and risers? The listing describes it for measuring and marking stairs, treads, and risers, including angle, depth, and length.

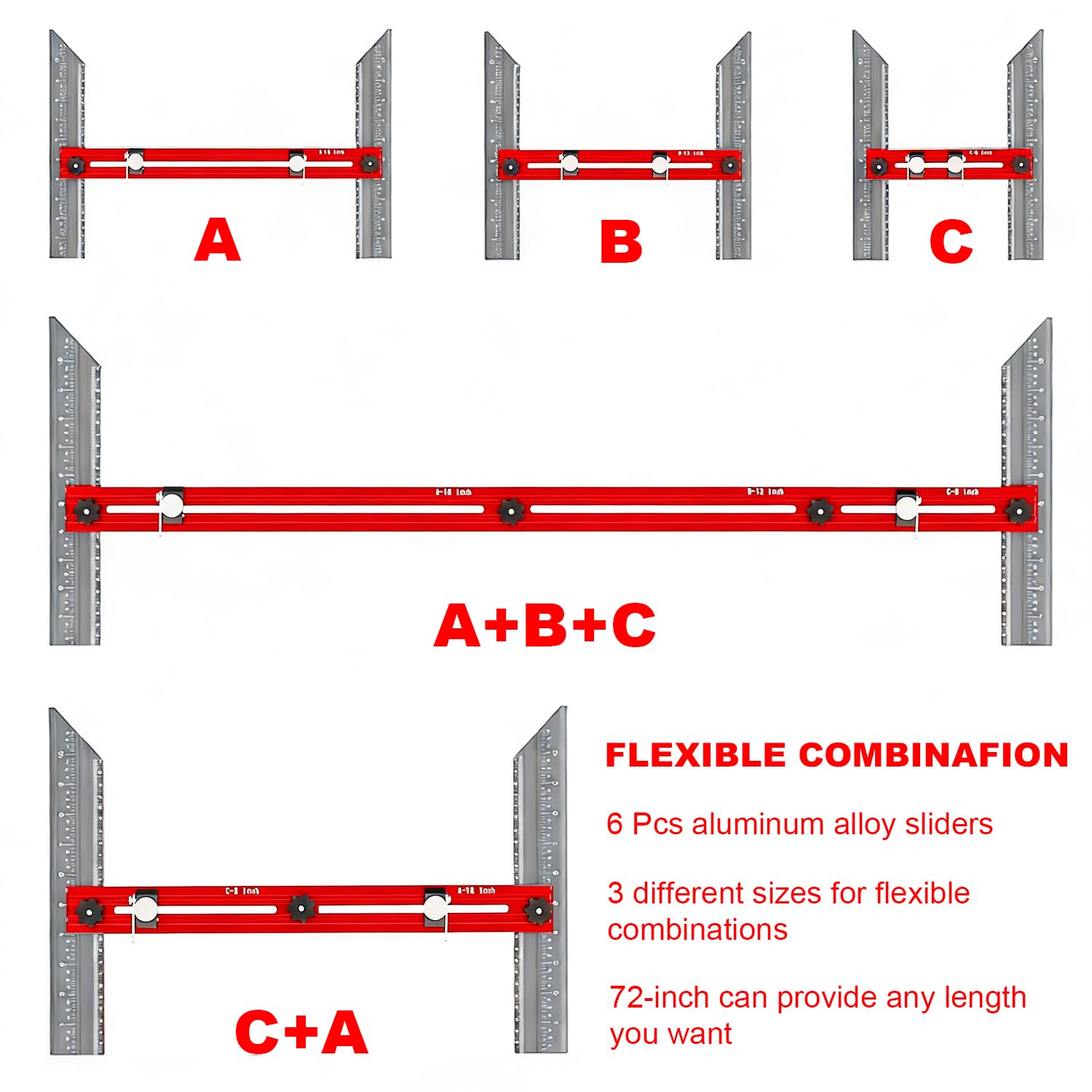

What is the maximum stated span? The listed adjustment range is 11.5 to 60 inches. Three arms are included, and the description says they can be combined to reach the maximum span.

What is it made from, and how is it stored? It uses CNC-machined aluminum alloy with an anodized finish and comes with an Oxford cloth storage bag.

When it makes sense

Choose this Puriwood jig when your stair or trim project calls for transferring angles and dimensions, especially when a straight ruler or separate measurements would make the layout harder to reproduce. Its adjustable arms and locking pivots offer a more adaptable approach than a fixed-size template, while the stated 60-inch upper span sets a clear boundary. The listing also doesn’t specify a precision tolerance, so for work where that number is essential, look for a tool whose accuracy is documented.
