Pipishell PILF8 TV wall mount 100 lbs
Price evolution
Product description
This full-motion TV wall mount brings flexible viewing and sturdy support for most 37–84 inch flat and curved screens. With smooth swivel and tilt range you can reduce glare and tune the angle from different seating positions, and it helps free floor space for a cleaner living room setup. The mount is meant for standard 16 inch wood studs or masonry, so installation fits common wall types and layouts.
What to know

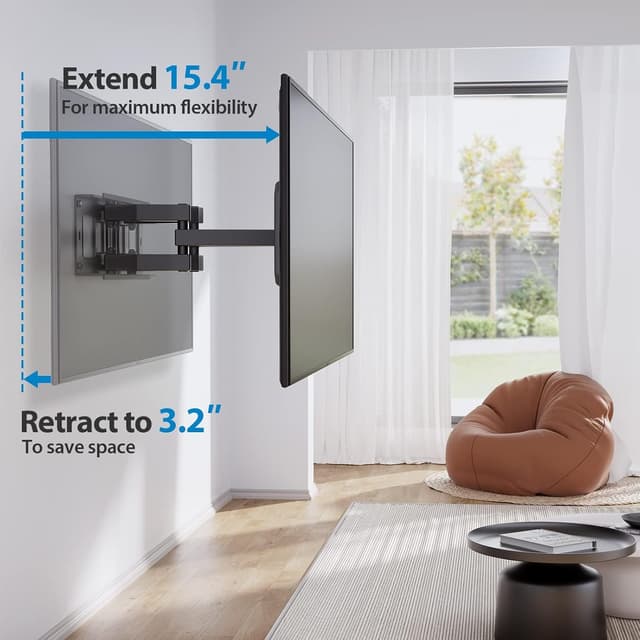

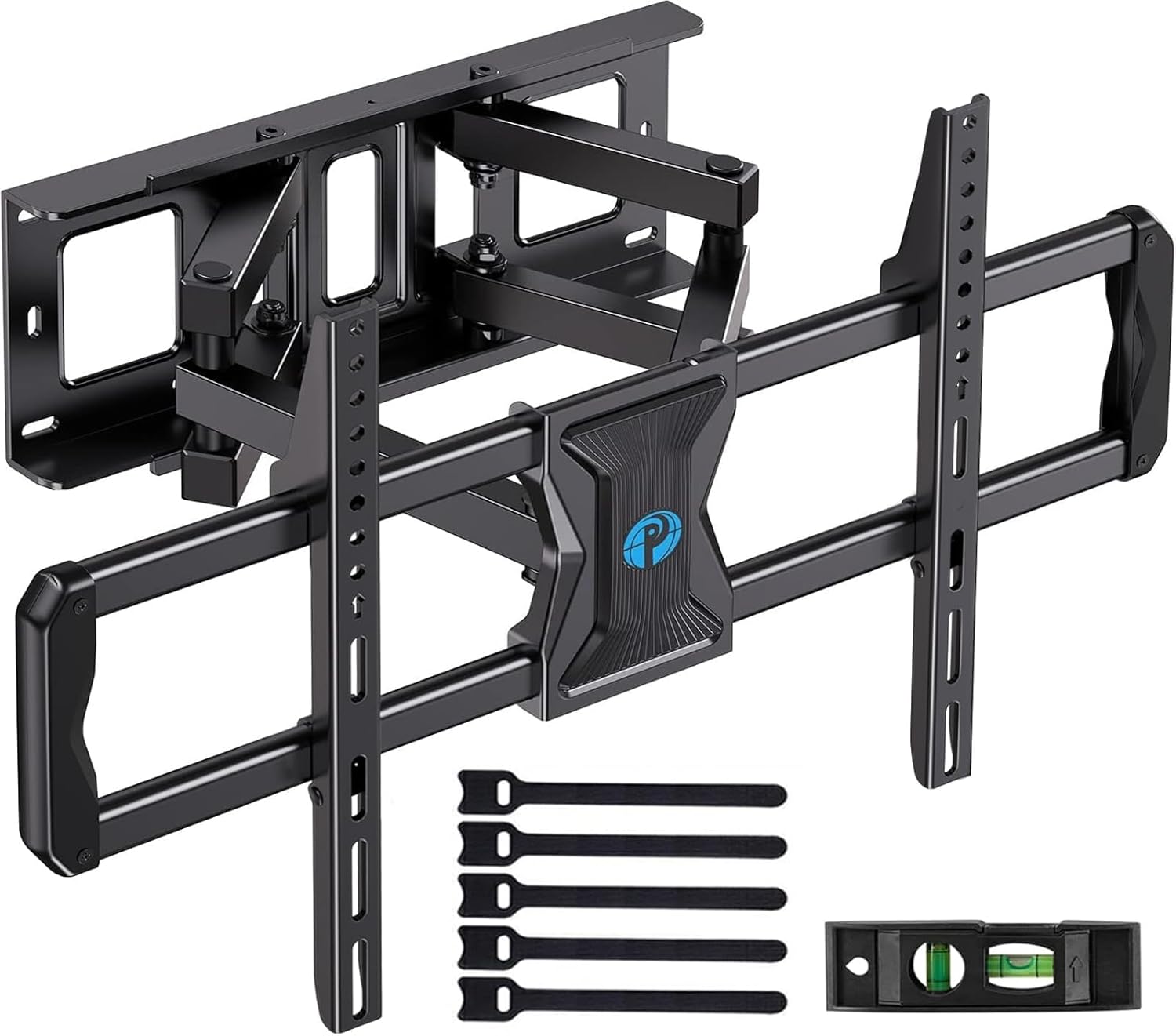

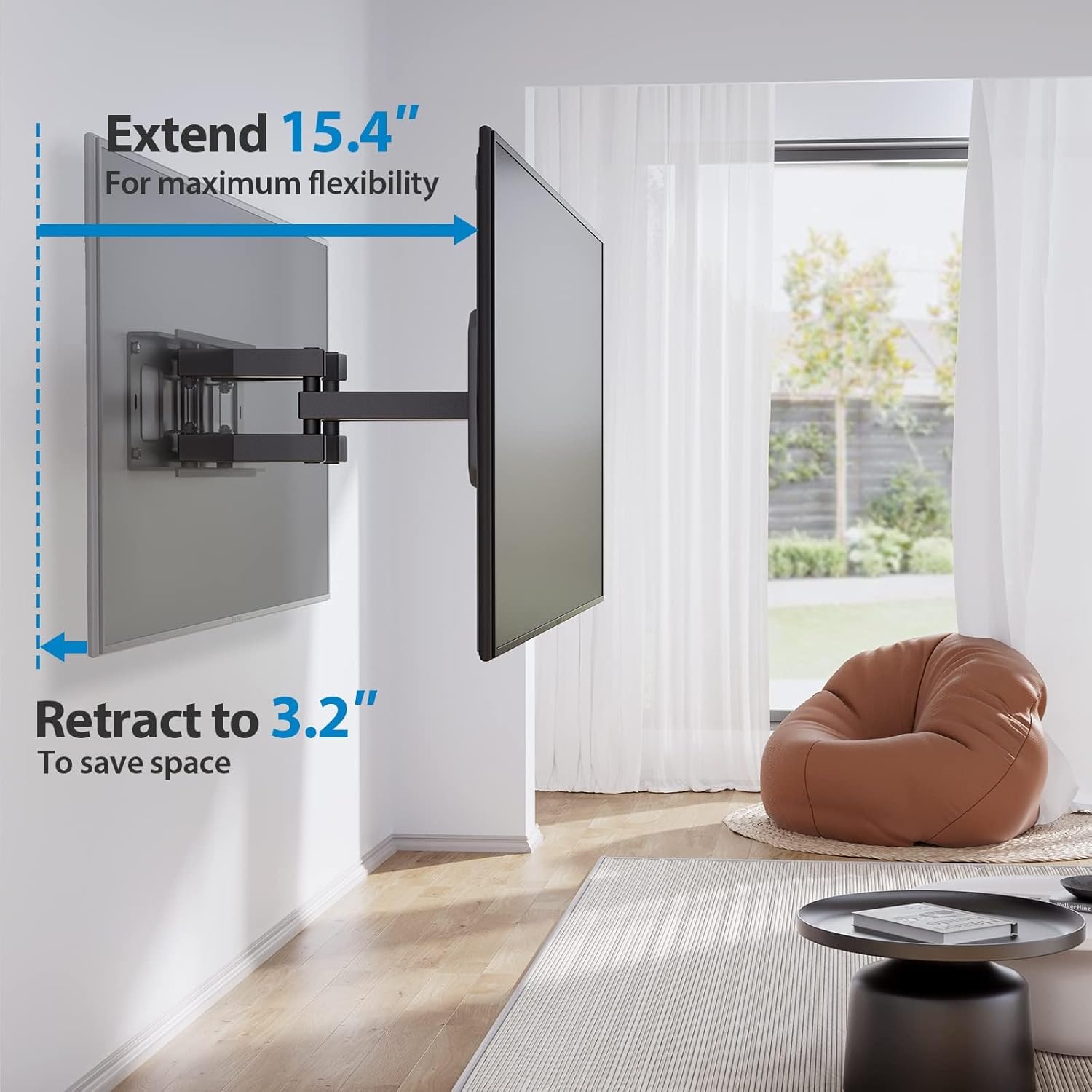

The Pipishell bracket offers a balance of reach and compactness, extending to 15.4 inches to bring the screen closer and retracting to 3.2 inches to sit nearly flush when not in use. Pipishell PILF8 includes cable management straps to route wires along the arms for a neater look, and anti-drop end caps plus security screws for added stability. Note that it supports VESA patterns up to 600 x 400mm and TVs up to 100 lbs according to the manufacturer, so verify your TV measurements before ordering. 🔧
Tech specs
- Name: Pipishell PILF8
- Compatible TV size: 37–84 inch
- Maximum weight: 100 lbs

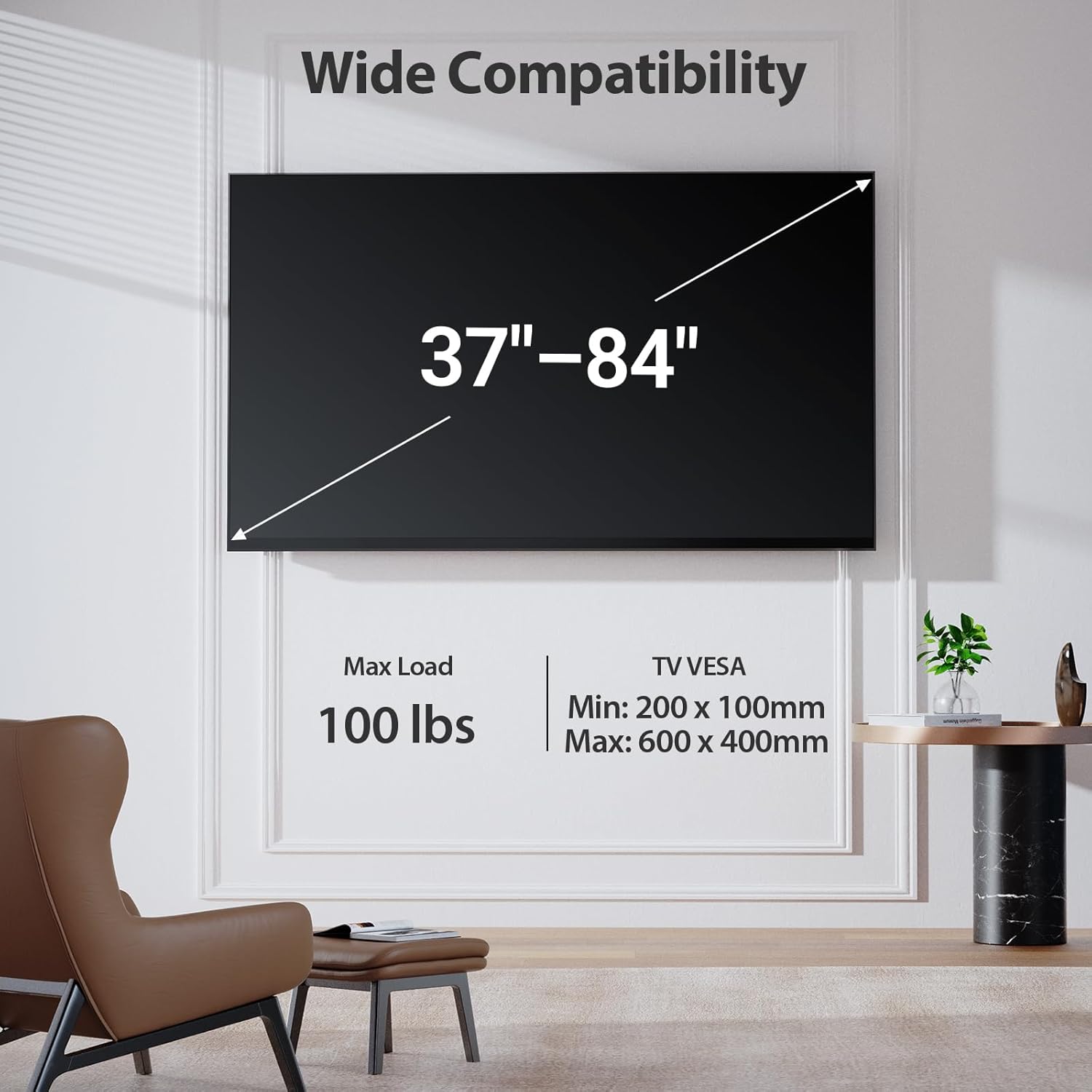

- VESA: 200 x 100mm to 600 x 400mm
- Extension from wall: 3.2" to 15.4"

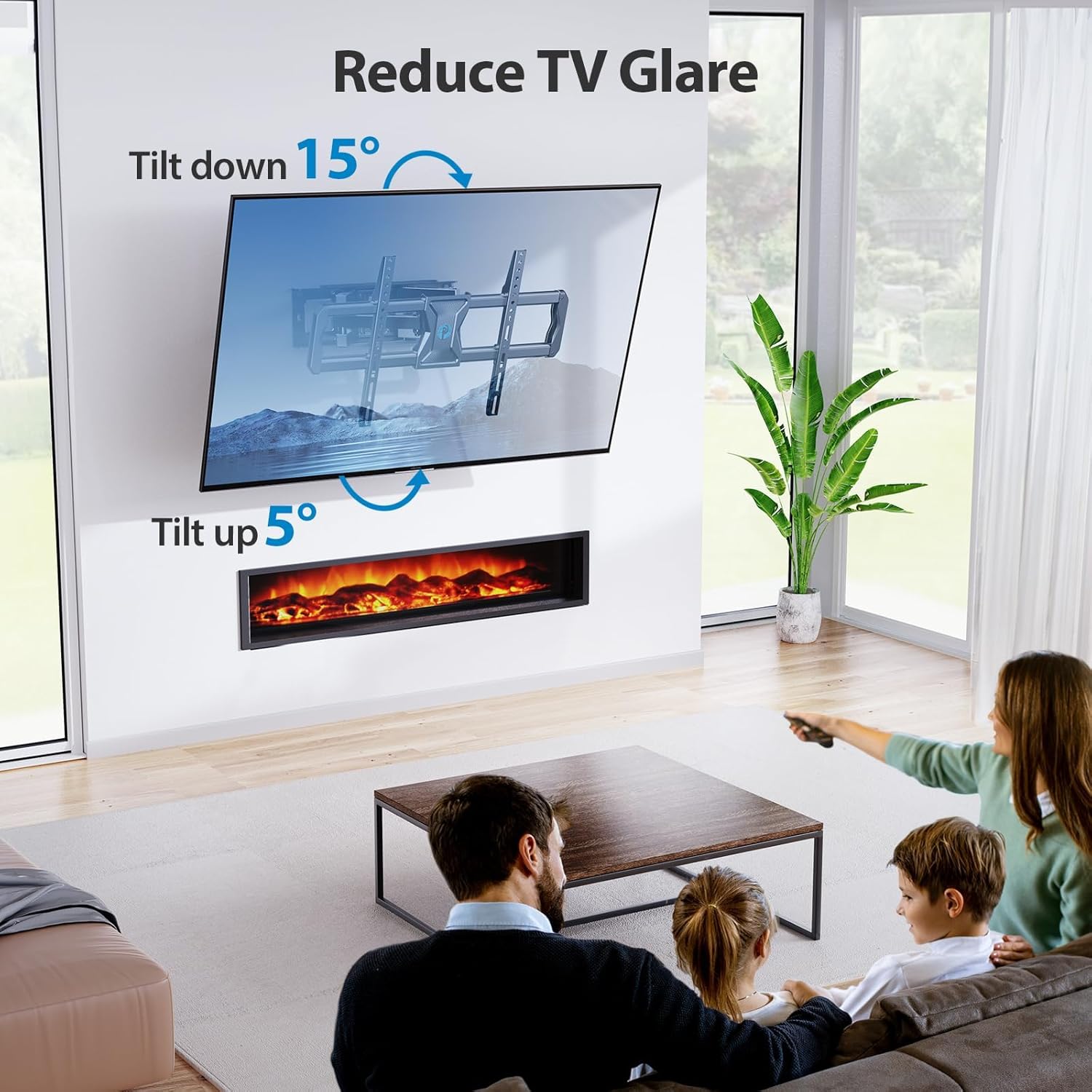

- Tilt range: +5°/-15°

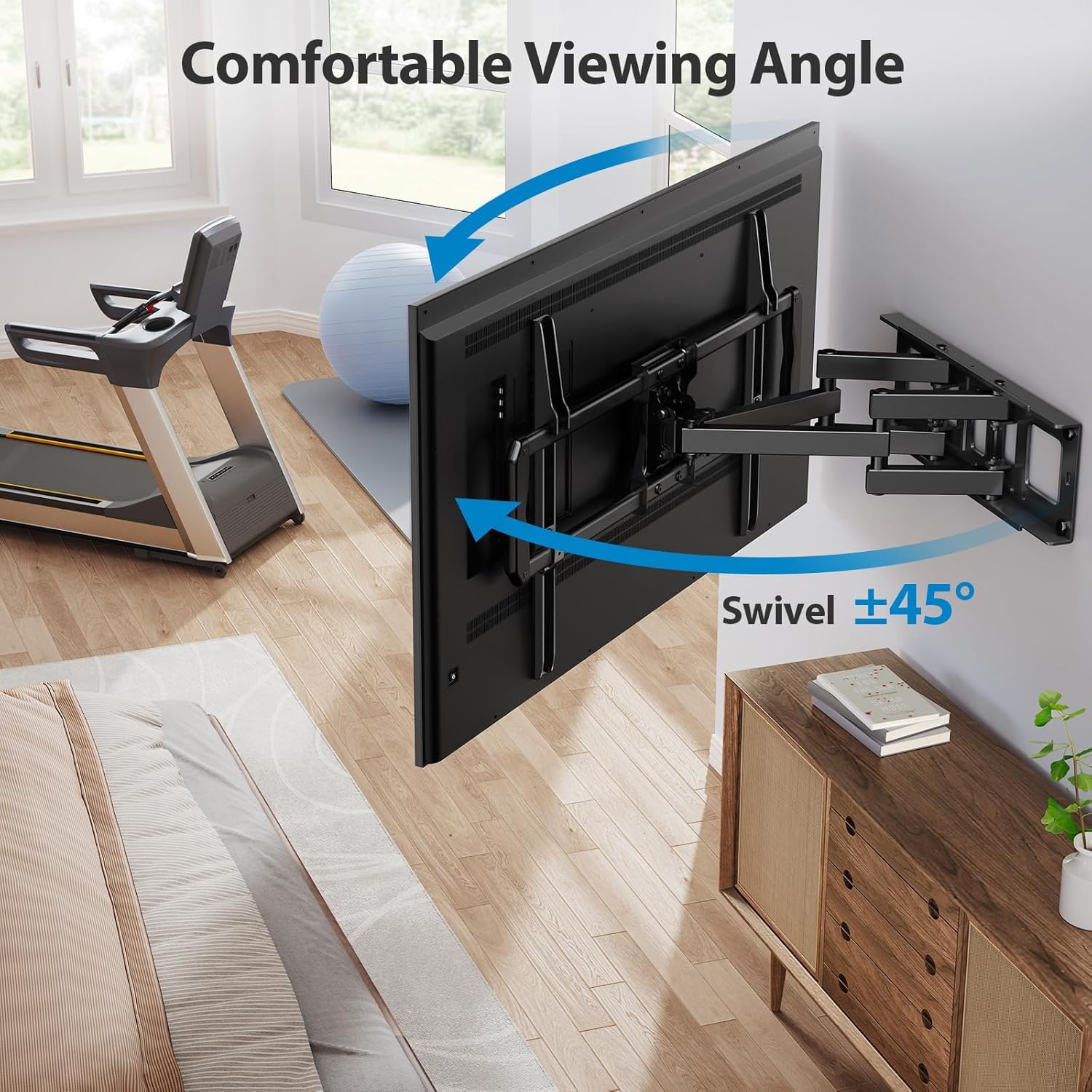

- Swivel range: +/-45°
Usage tips

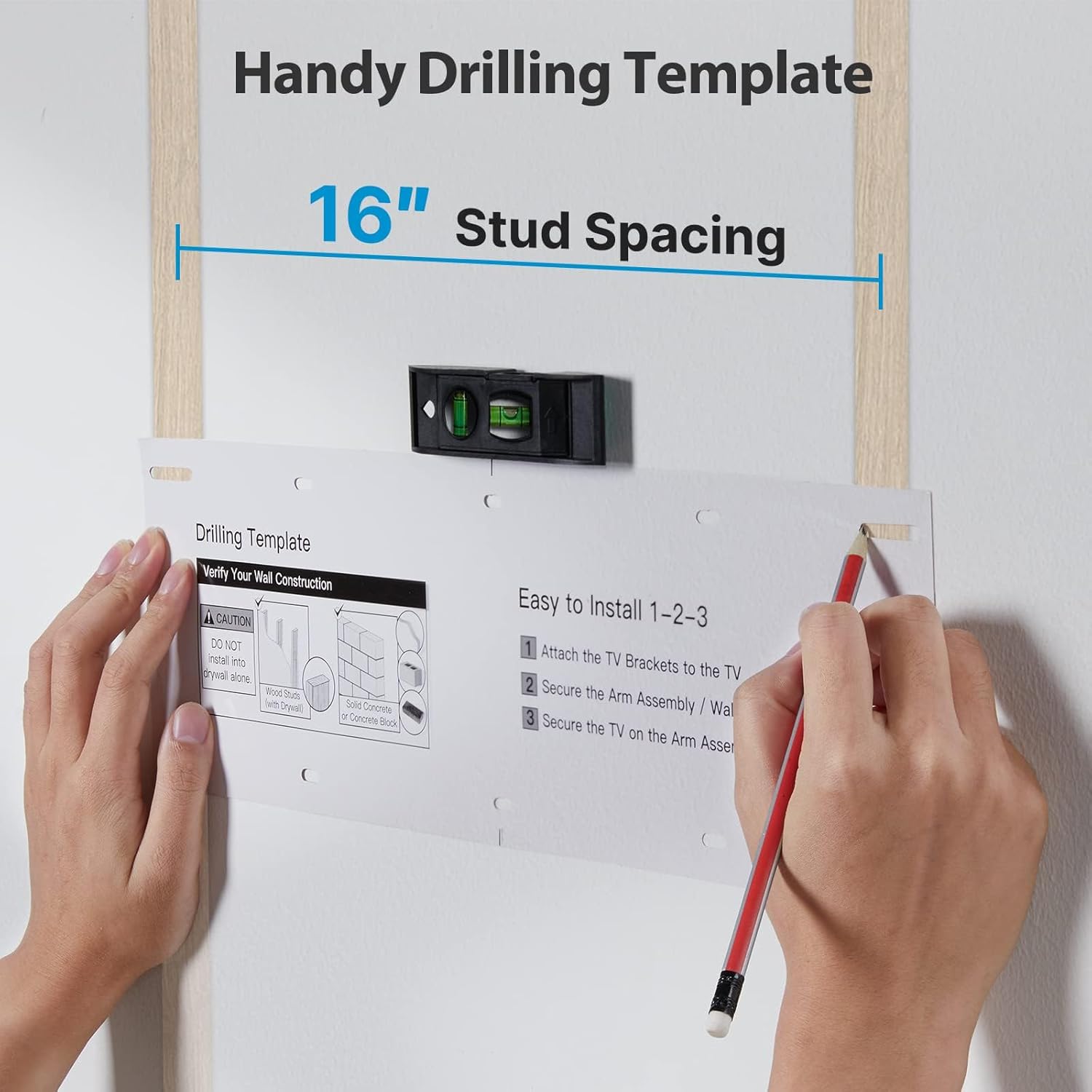

Start by checking your TV's VESA pattern and weight label, then mark stud centers or confirm masonry locations. The included drilling template and hardware simplify alignment, and using two people to lift the screen makes hanging the set easier. If your home uses 24 inch stud spacing search for the alternate Pipishell model compatible with that layout, otherwise the supplied parts are set for 16 inch studs. 🧰
Benefits

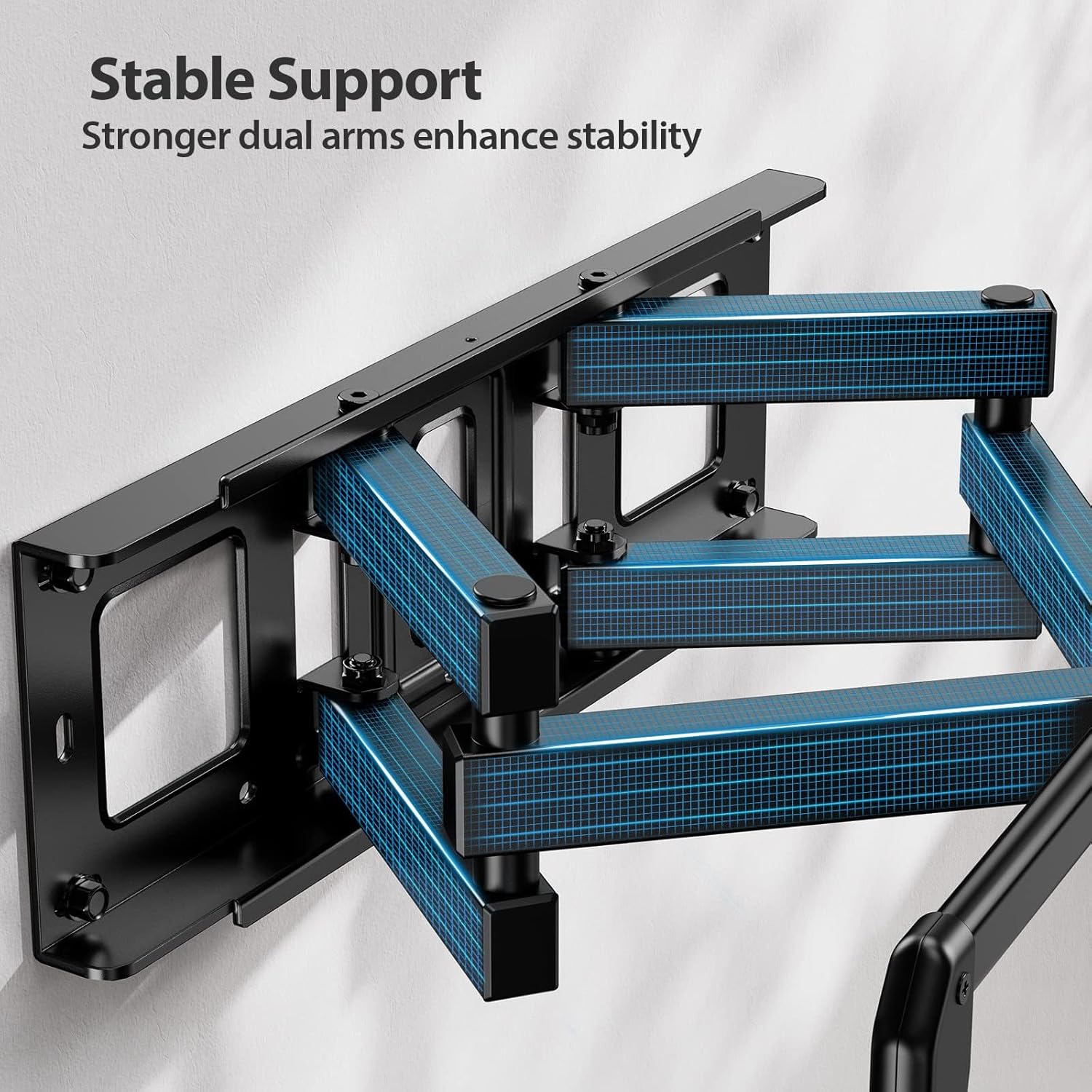

The articulating arms allow quick angle changes for different activities like gaming or movie nights, and the +/-3° post-install leveling helps get a straight picture without re-drilling. Built from heavy-duty steel with reinforced plates, the bracket aims to minimize wobble even when the screen is extended. Keep in mind that exact fit depends on your TV's mounting holes and wall construction, so double check measurements before installation. 📐
