8 Pcs Pergola Bracket Kit 1.6"x3.6" 🛠

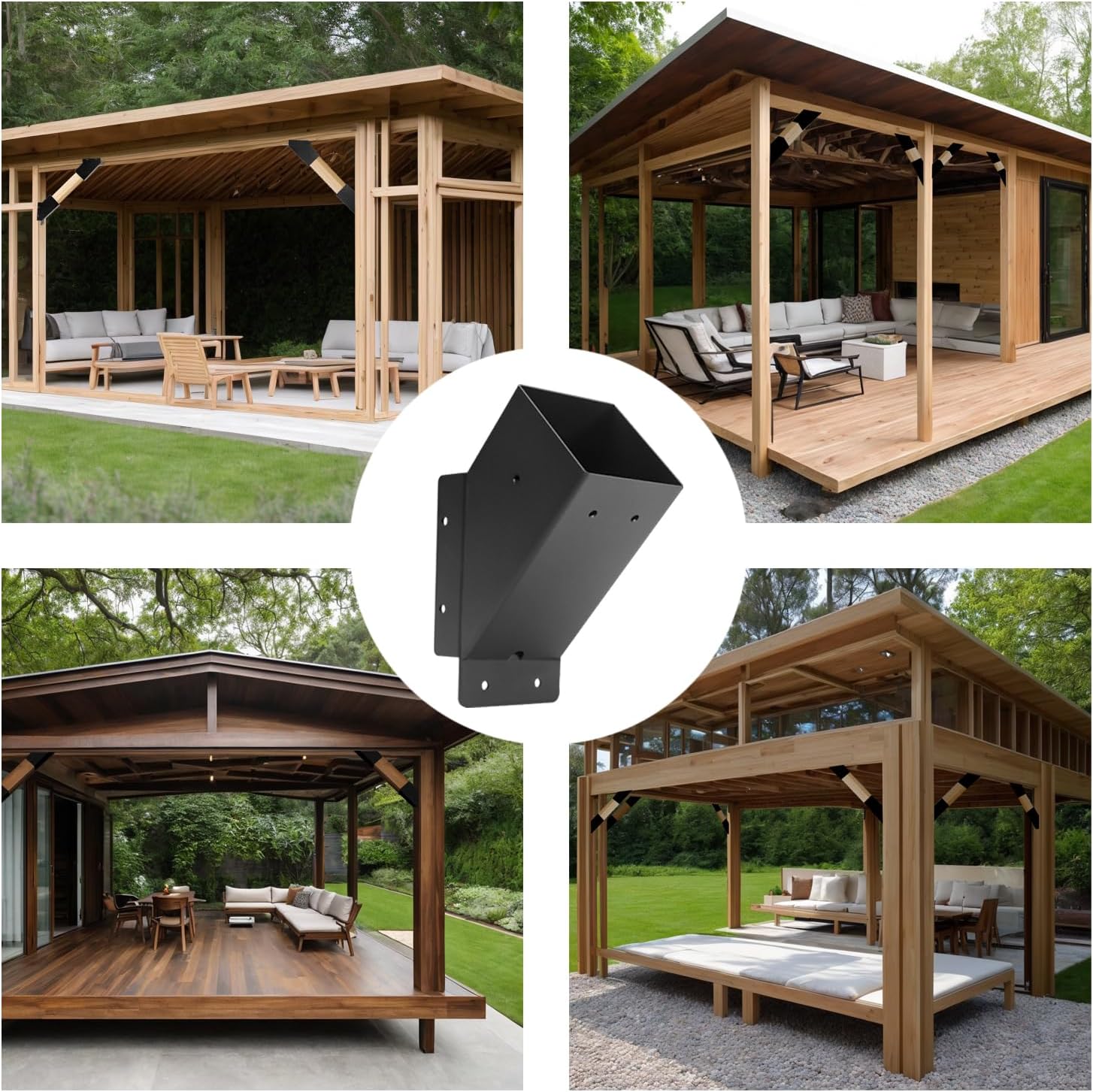

This reinforced pergola bracket kit is built to strengthen outdoor structures like pergolas, gazebos, patios and tree houses while accepting common 2x4 lumber. It offers a 45 degree support angle for added lateral stability and is finished for outdoor use, making it a practical choice when you need stronger corner and beam connections. 🌿

Key Points

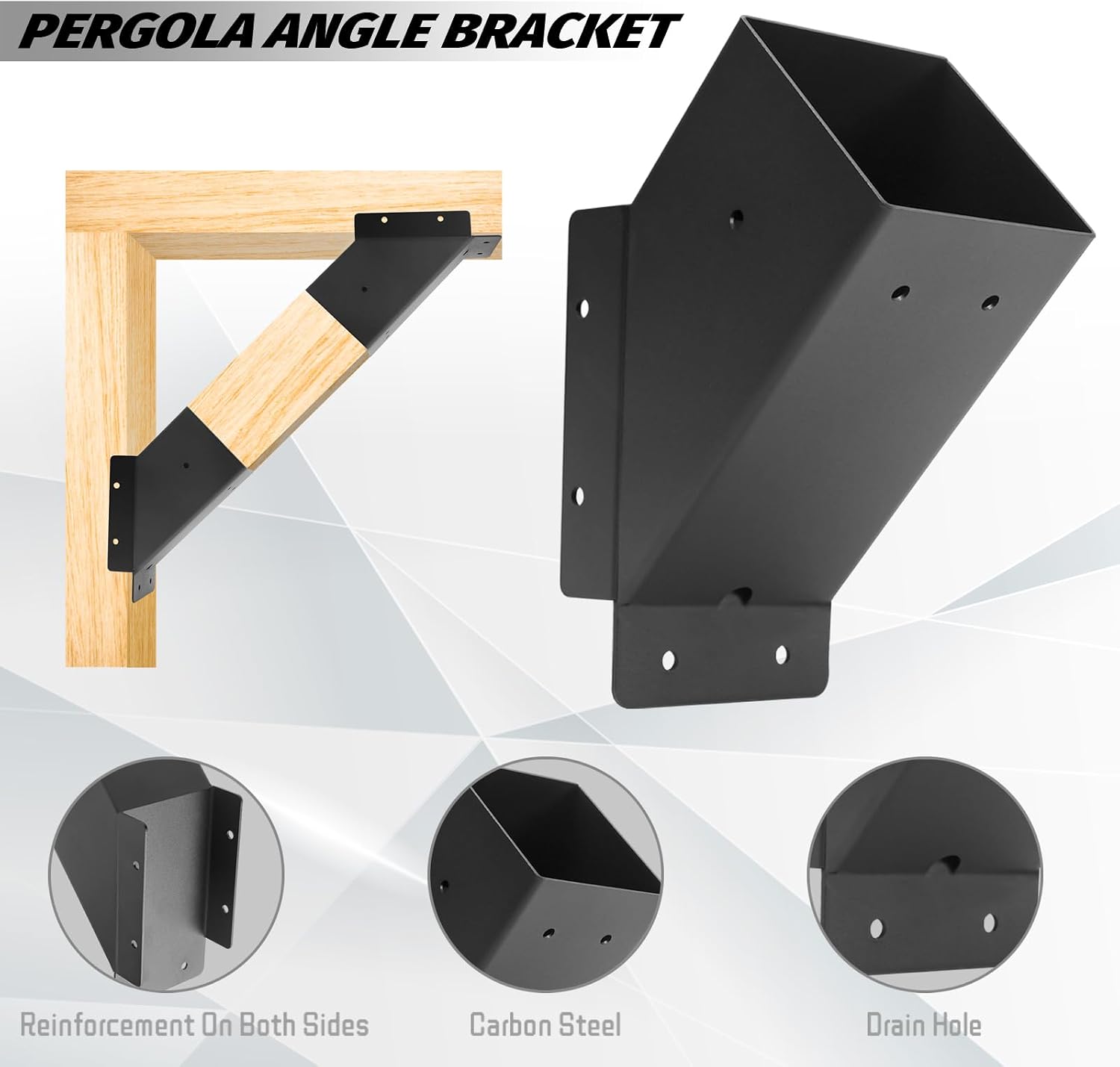

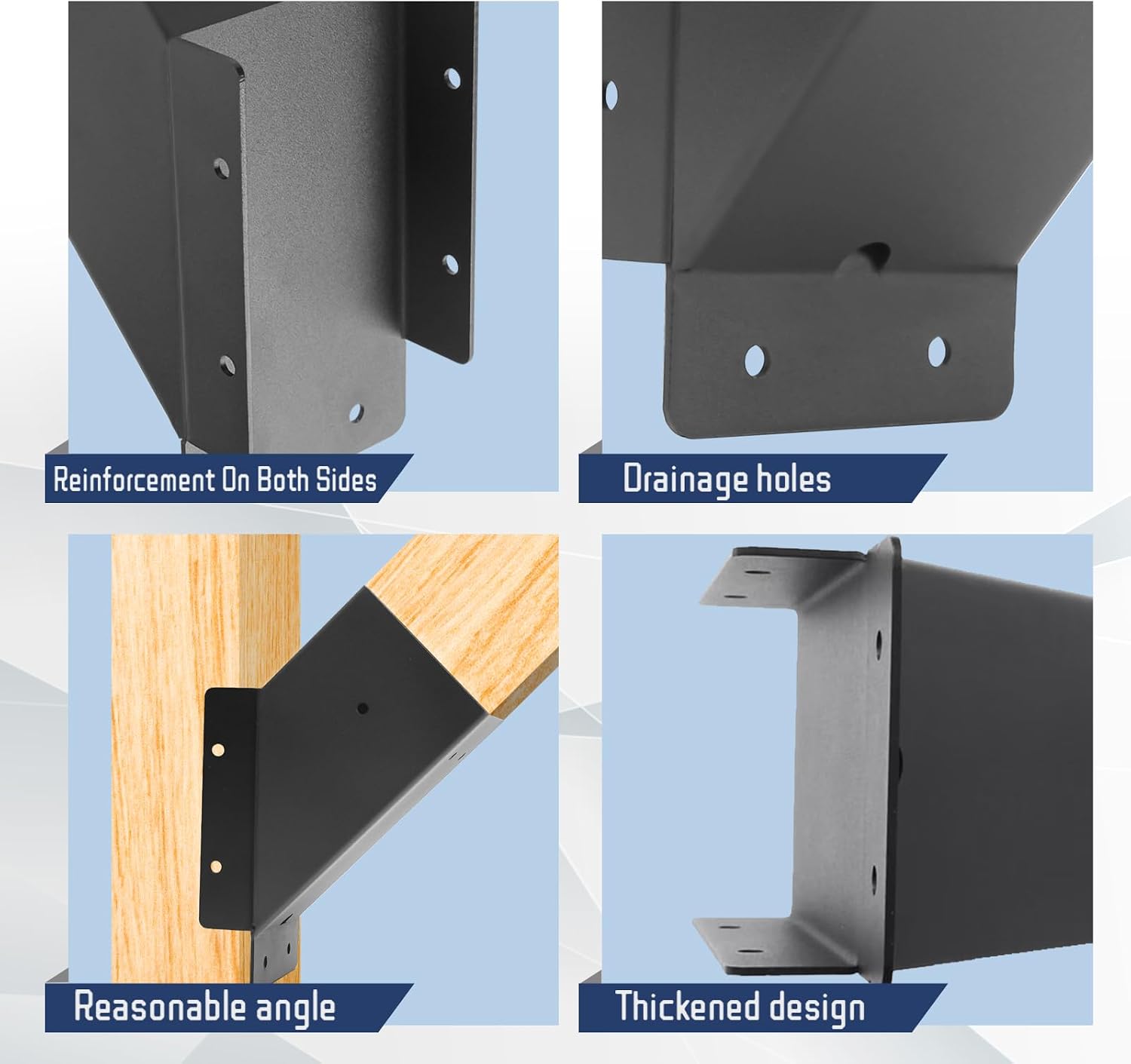

The kit includes eight reinforced corner brackets and all the fasteners needed to attach beams and posts quickly. The brackets are designed with a 45 degree incline and two ear-style reinforcement points on each side to increase rigidity under load. TAYORY 8 Pcs Pergola Bracket Kit is intended to work with nominal 2x4 lumber and can be mounted on wider posts where extra anchoring is needed. The powder finish helps resist weathering and reduces visible corrosion over time. ⚙️

Technical Specifications

• Name: TAYORY 8 Pcs Pergola Bracket Kit
• Material: Carbon steel with welding process
• Finish: powder-coated black
• Actual bracket opening: 1.6" x 3.6"

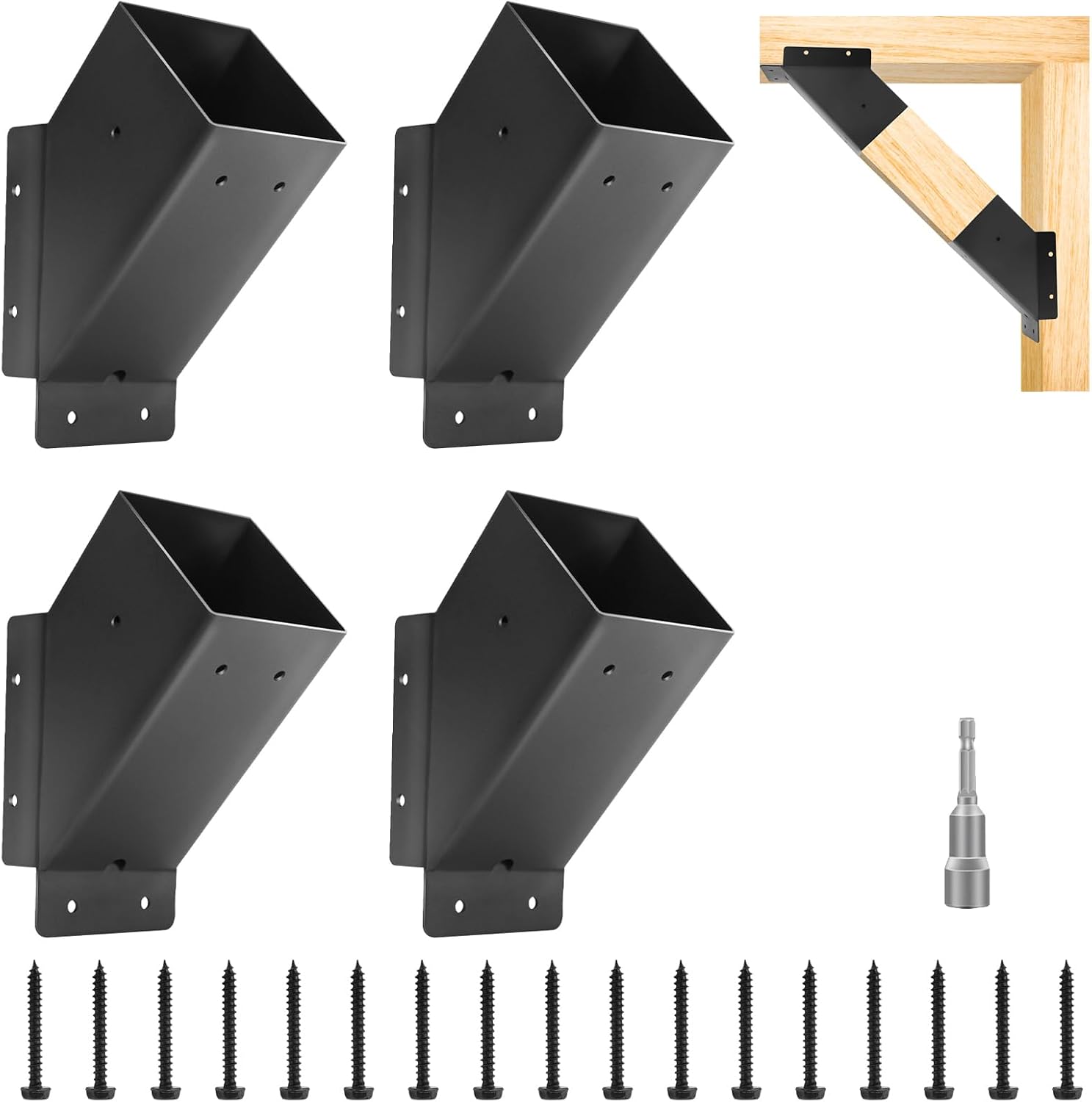

• Kit contents: 8 brackets, 80 self-tapping hex screws, 1 hex key

Usage Recommendations

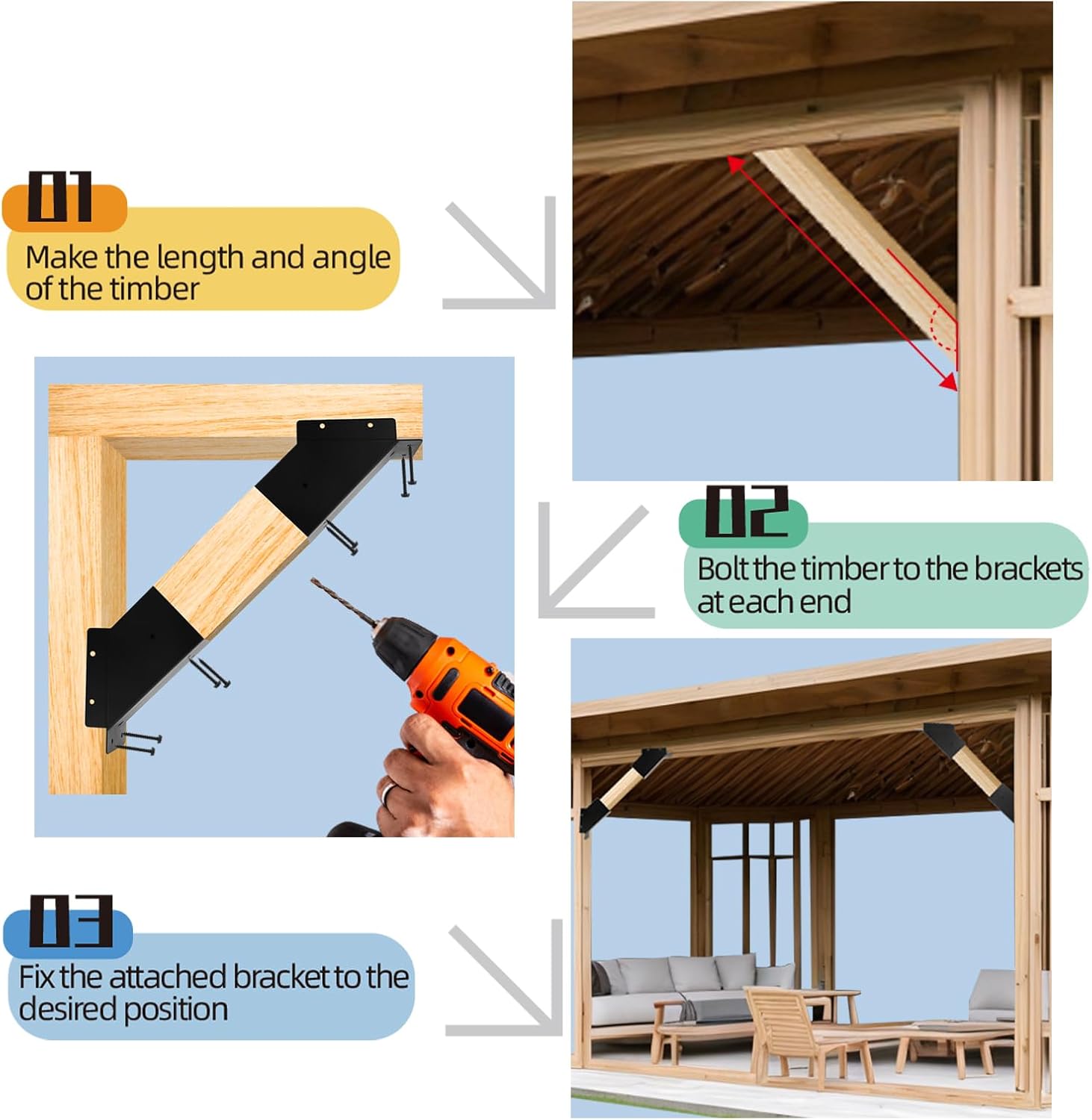

Cut the lumber to the desired length and angle, insert the beam ends into the bracket openings, and secure the bracket to both beam and post using the included self-tapping hex screws. For best results align the bracket so the reinforcement ears bear against the beam faces. If you plan to use treated or green lumber, allow it to dry or use compatible fasteners that resist corrosion. The design works well for adding diagonal support where wind uplift or lateral forces are a concern, and it can be applied to sheds and small outbuildings as well.

Positive Aspects

The 45 degree reinforcement geometry improves load distribution at corners and where rafters meet posts. The kit supplies a large quantity of screws which can save time sourcing hardware separately. Because the brackets are made from carbon steel with a welded construction there is a sturdy feel during installation and less deformation under tightening torque. The finish reduces visible rust through typical outdoor exposure according to the manufacturer, though extreme coastal or chemical environments may accelerate wear.

Practical Tips

Use fasteners of appropriate length for the combined thickness of bracket and timber to ensure full thread engagement. Pre-drilling pilot holes in very dense hardwoods can reduce splitting and make screw installation smoother. Consider using exterior-grade caulk around screw heads in areas with frequent moisture to prolong the appearance of the finish. If you need larger post compatibilities check the actual bracket opening dimensions before purchasing to confirm a proper fit.
