Orion Motor Tech 1/3 hp 4 cfm AC vacuum pump kit

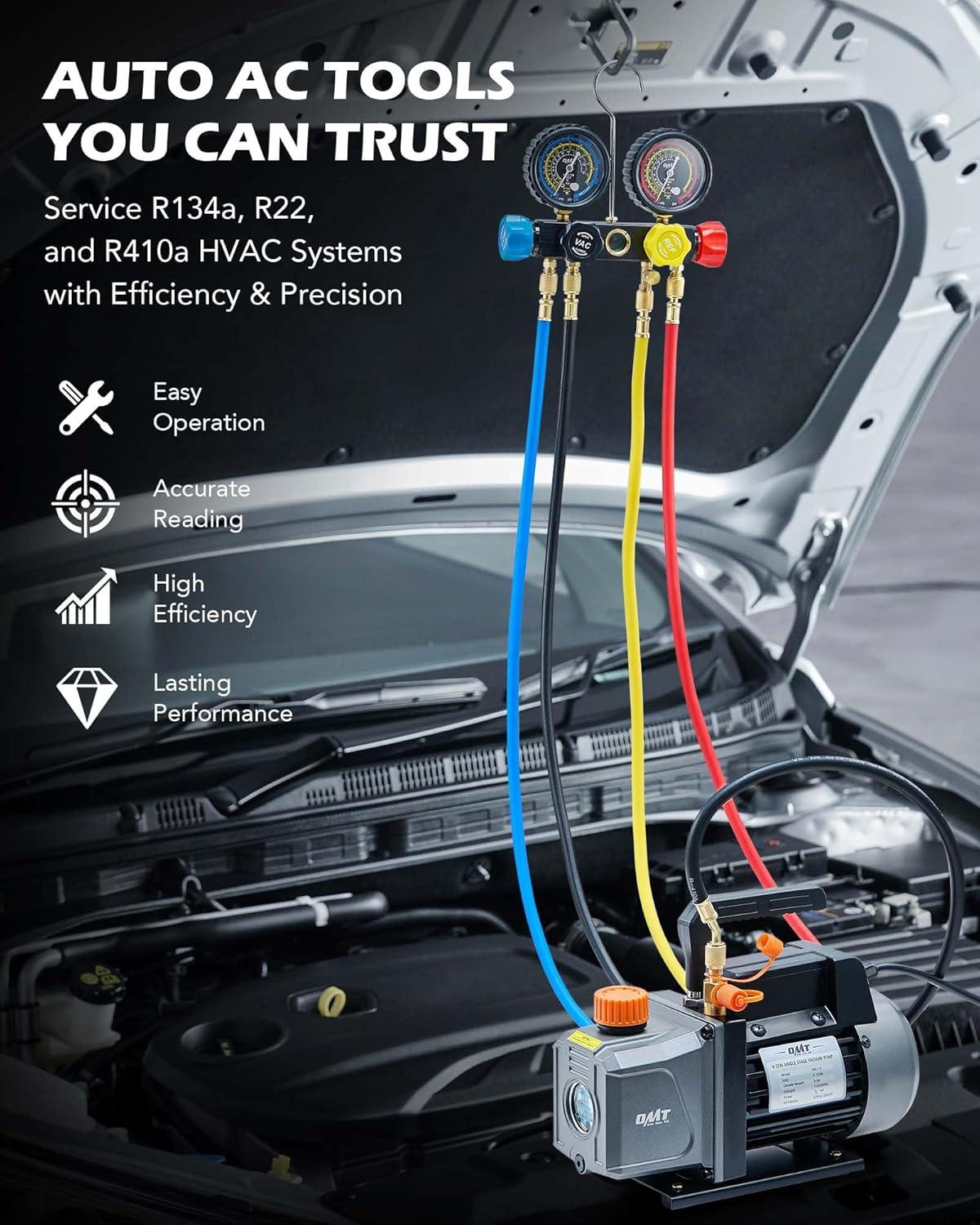

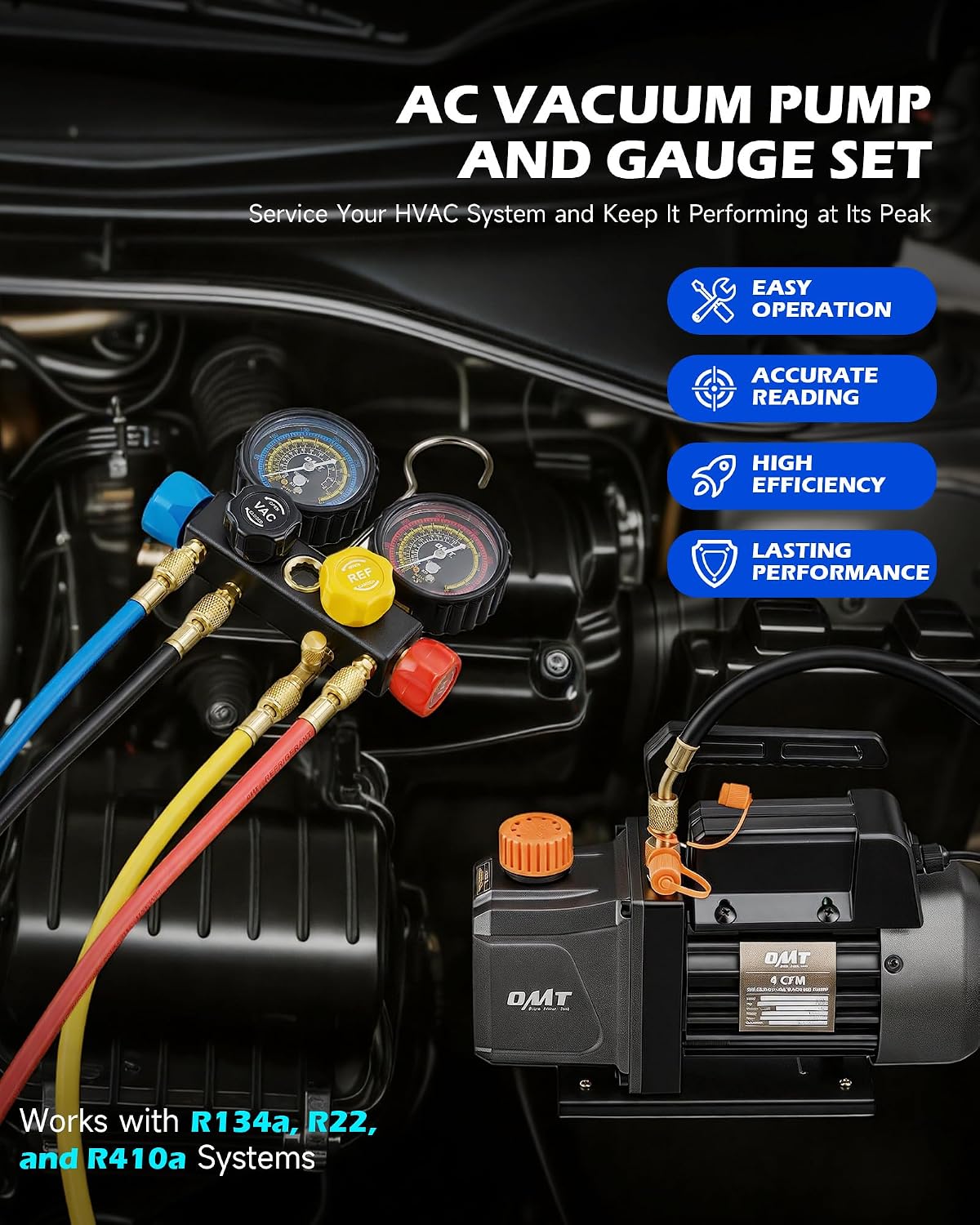

This AC vacuum pump and manifold gauge kit brings together tools for evacuating and servicing automotive and small HVAC systems, combining a compact 1/3 hp vacuum pump with a 4-way manifold gauge, leak detector, and essential accessories to handle refrigerants like R134a, R22, and R410a. It is aimed at technicians and knowledgeable DIYers who need a portable kit for evacuation, refrigerant charging, and basic diagnostics, while keeping components organized for transport.

Key Points

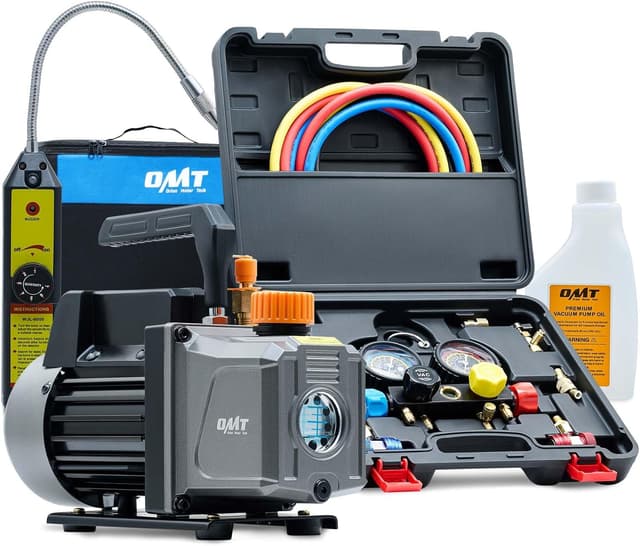

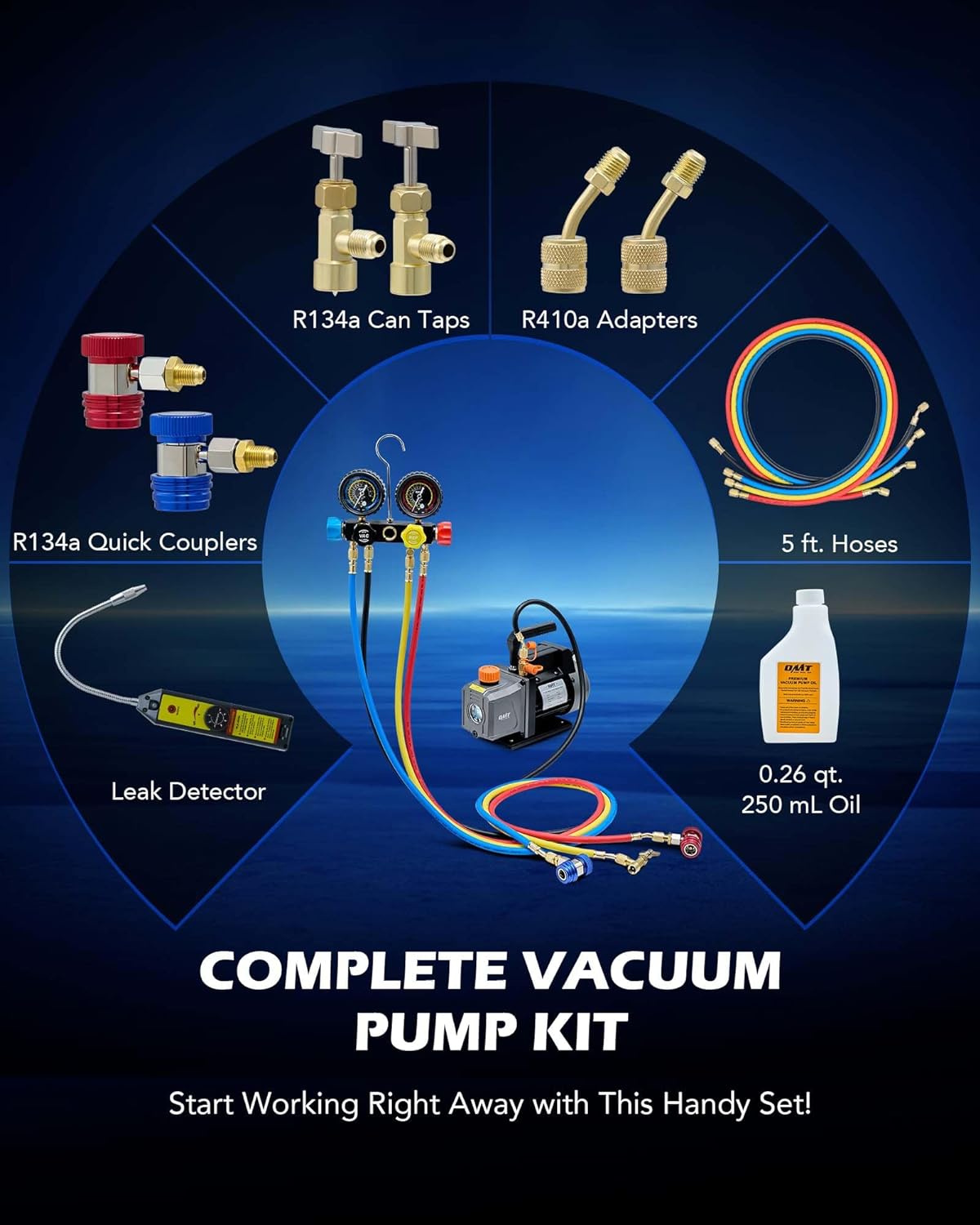

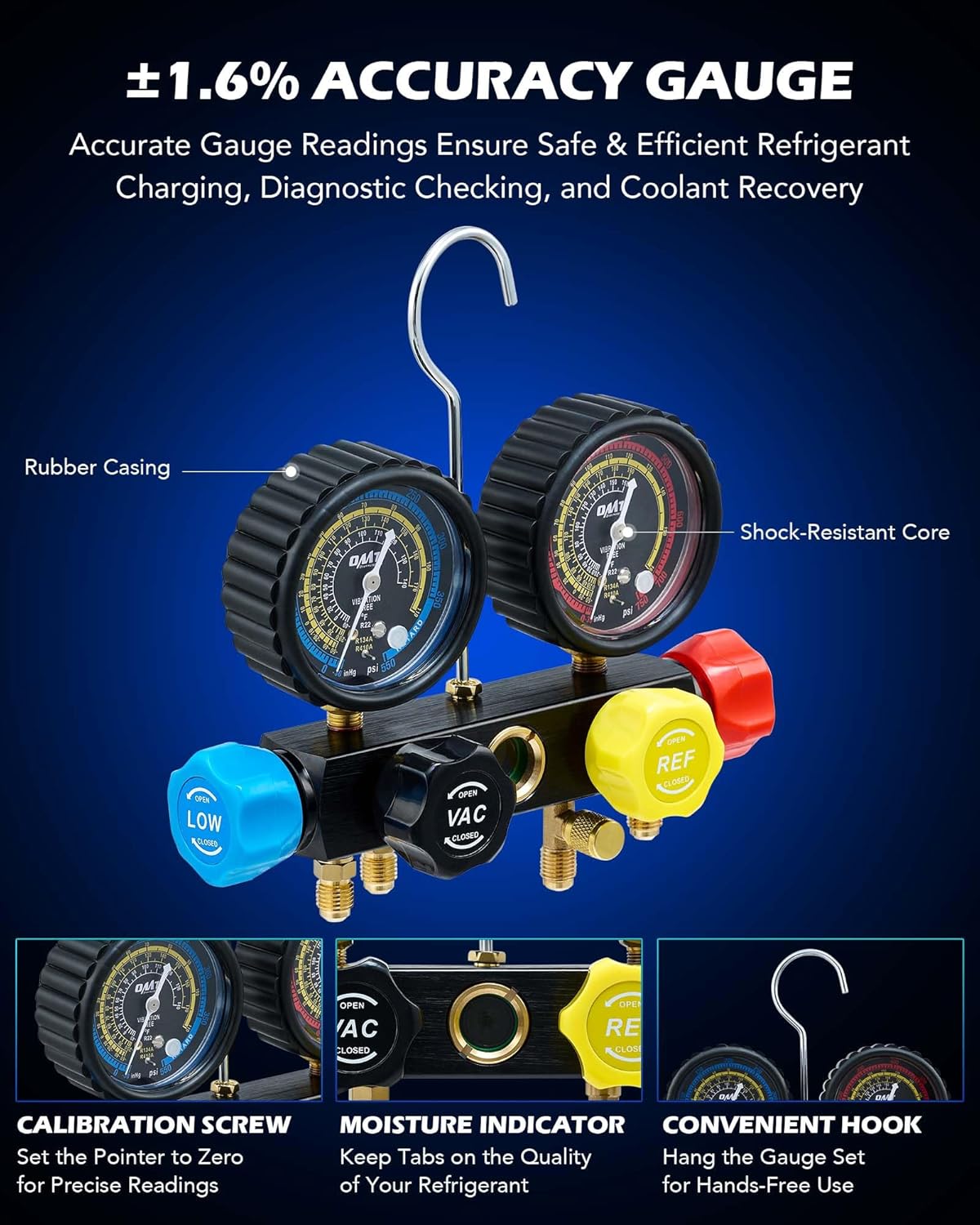

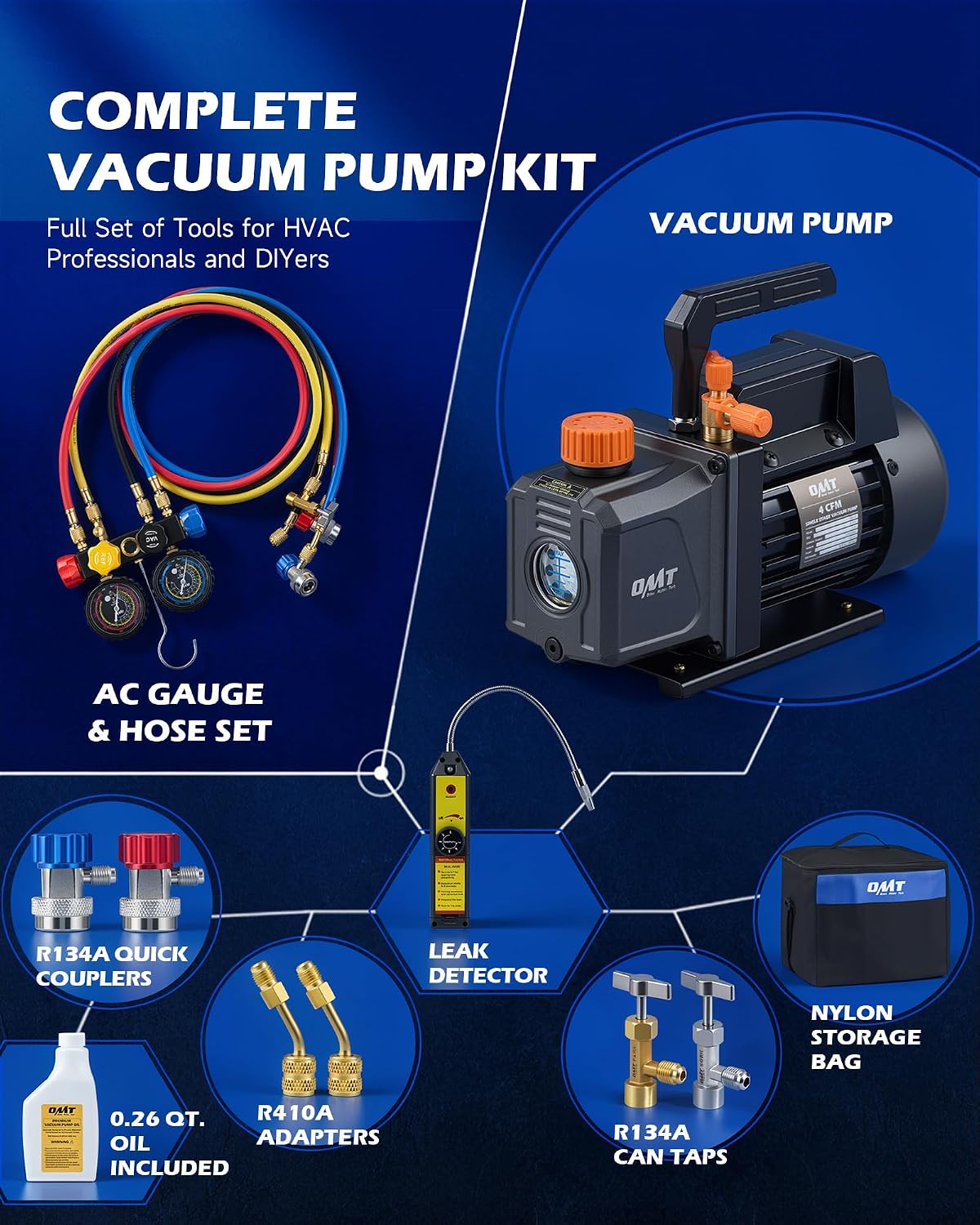

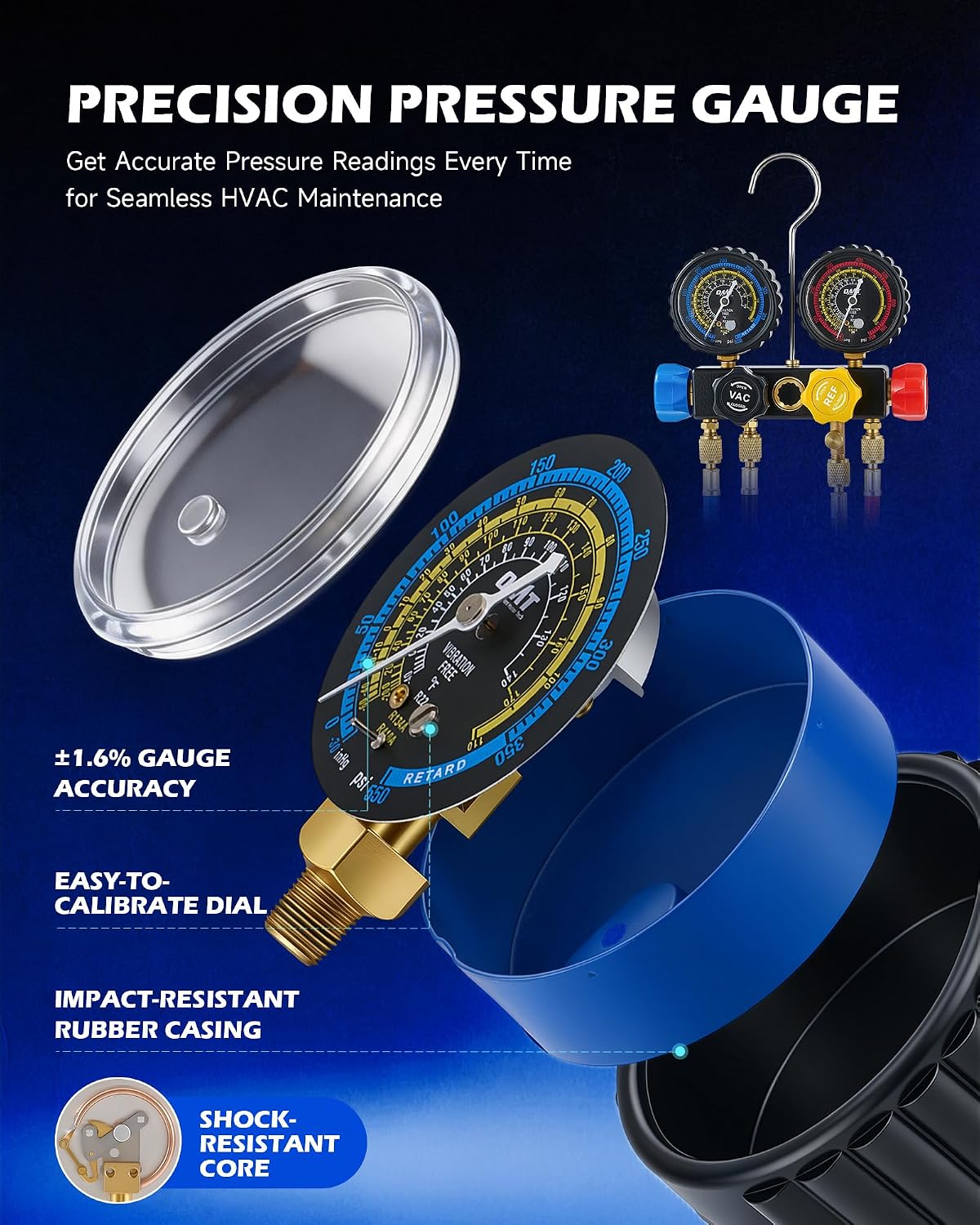

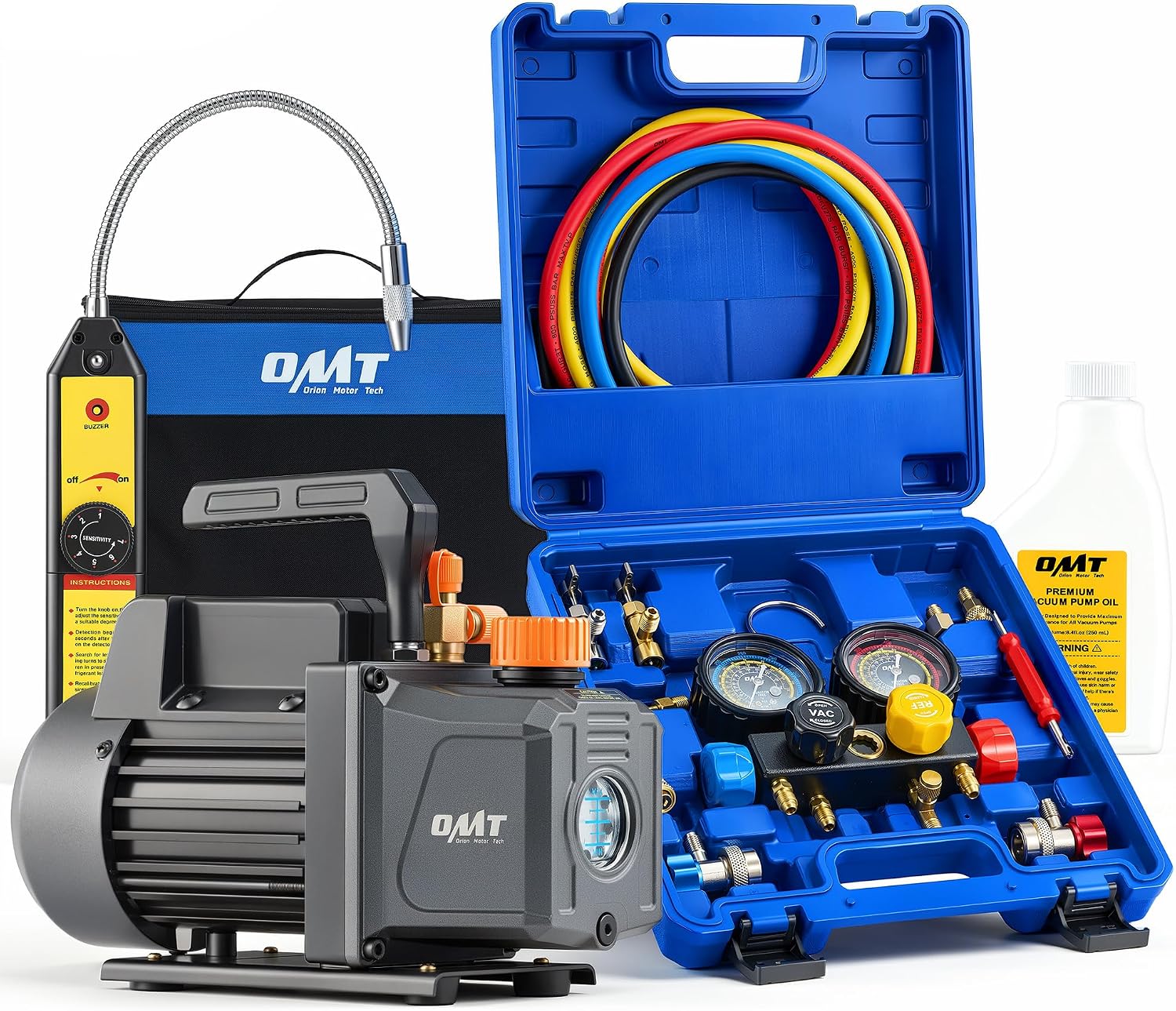

The kit includes a 1/3 hp vacuum pump rated at 4 cubic feet per minute, a four-way manifold gauge set with color-coded hoses, a leak detector, R134a can taps and quick couplers, an R410a adapter, vacuum oil, and a sturdy carrying case with a storage bag. According to the manufacturer, the pump housing is reinforced aluminum to help dissipate heat and resist corrosion, and brass safety caps help prevent oil leakage during transport. The manifold gauge claims a calibration accuracy of ±1.6 percent which supports more precise monitoring of system pressures.

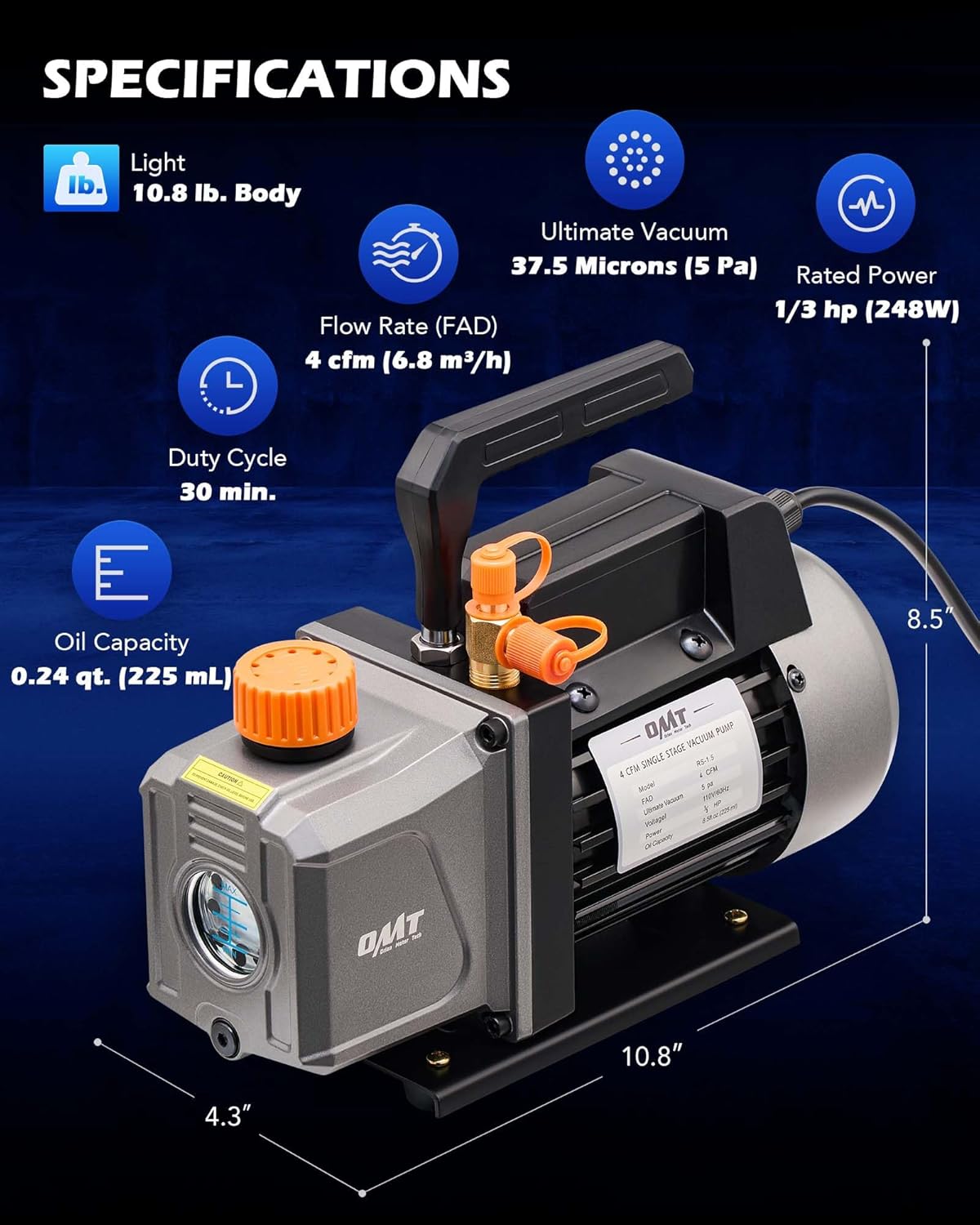

Technical Specifications

• Name: Orion Motor Tech AC Vacuum Pump and Gauge Set

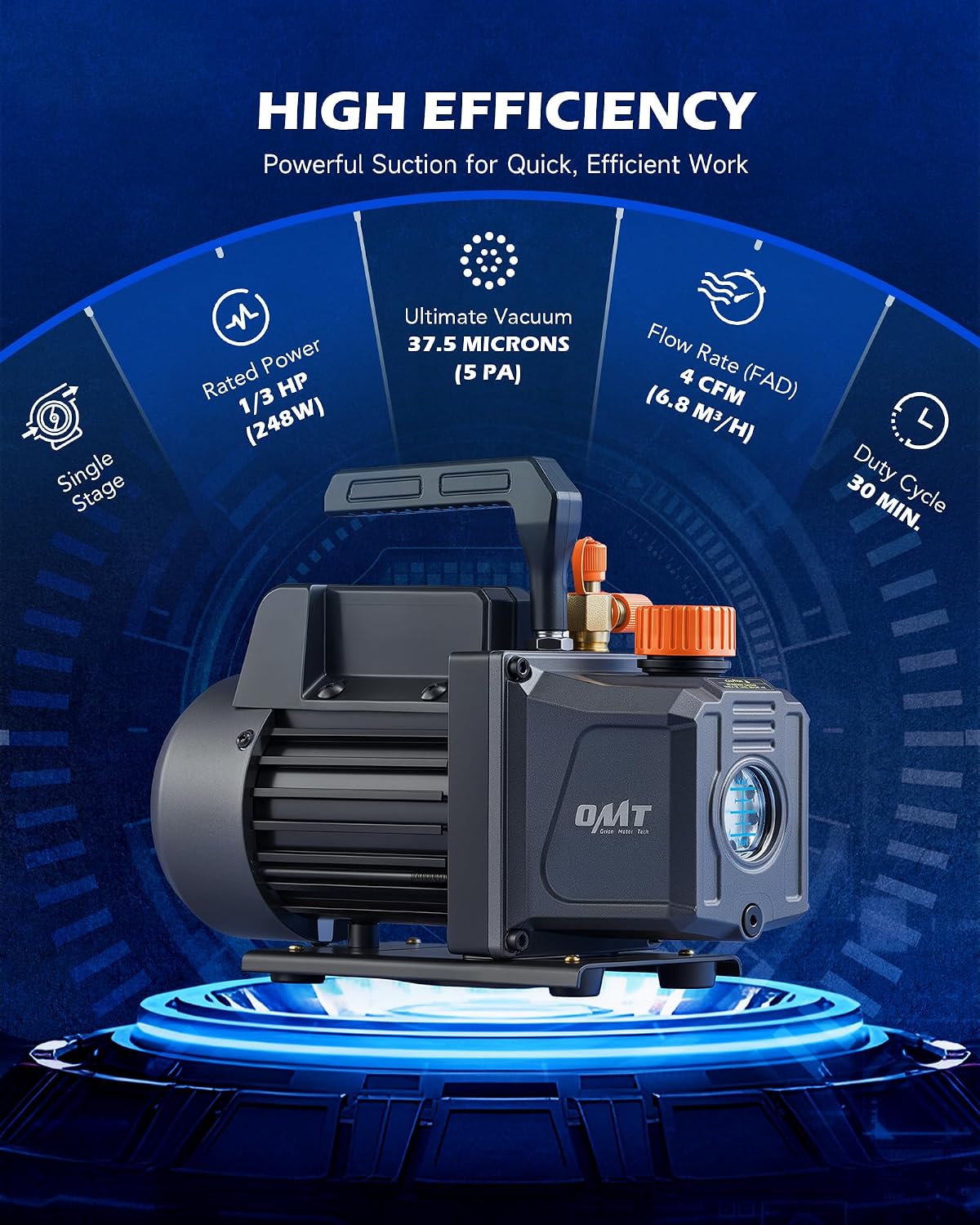

• Motor power: 1/3 hp
• Pump flow: 4 cfm

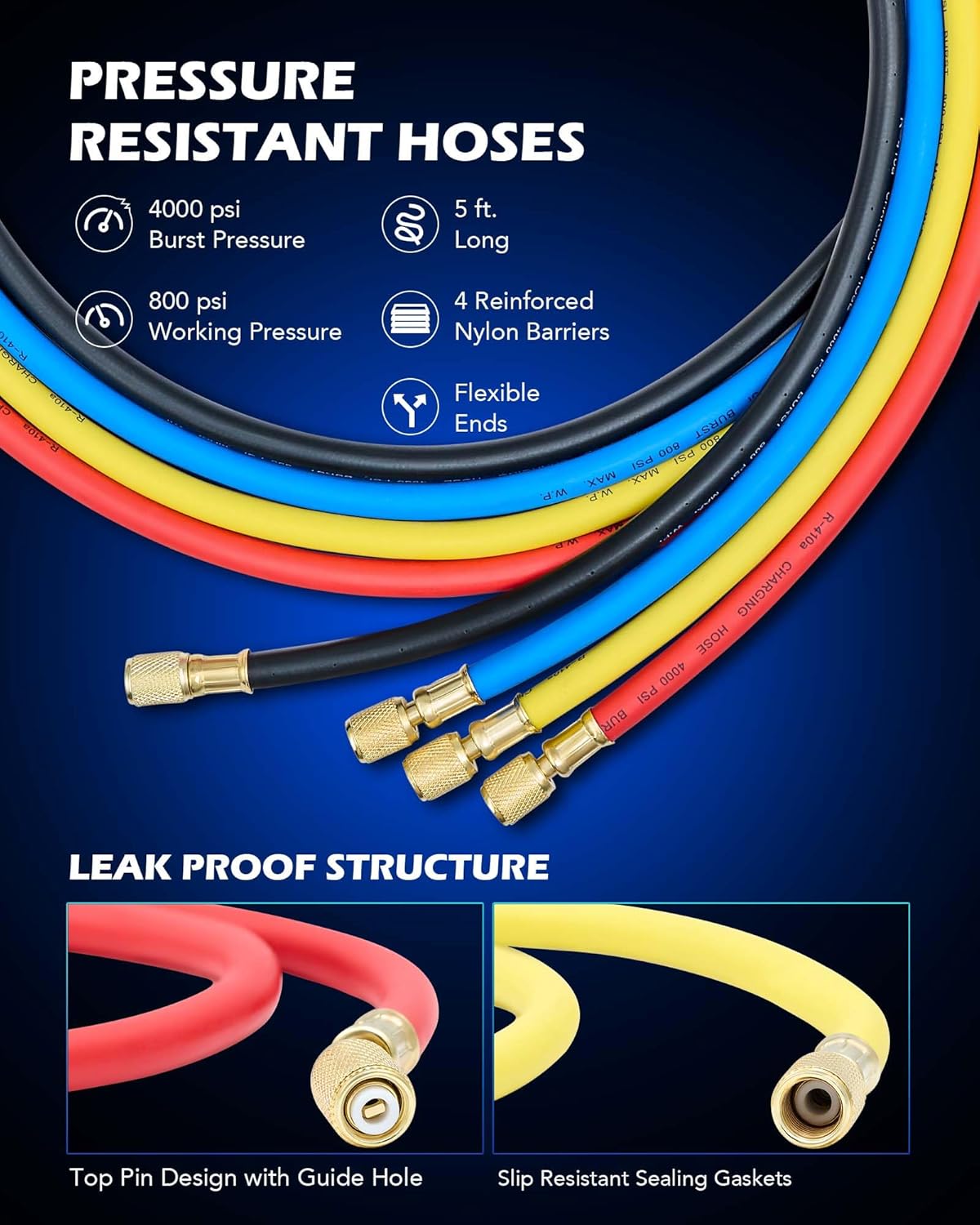

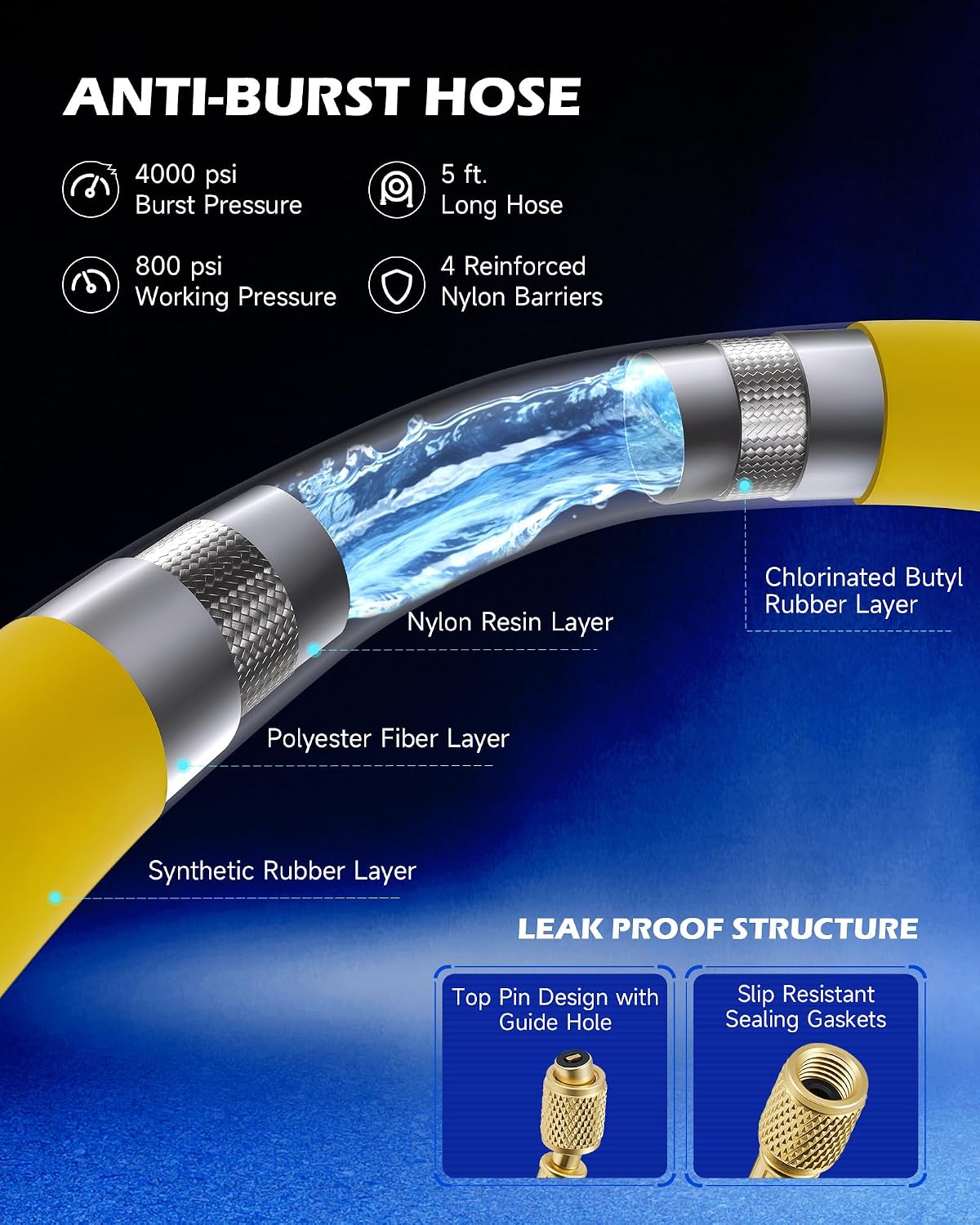

• Hose pressure rating: up to 800 psi working, 4000 psi burst (manufacturer specification)
• Vacuum oil included: 0.26 qt

Usage Recommendations

Start by connecting the color-coded hoses to the corresponding service ports and the manifold to the pump. Use the sight glass on the pump to monitor oil level, and open the pump’s drain valve for quick oil changes when needed. The built-in cooling fan on the pump helps manage temperature during extended runs, so allow airflow around the unit while operating. For systems using R410a, attach the supplied adapter and ensure couplings are fully seated before evacuating or charging.

Positive Aspects

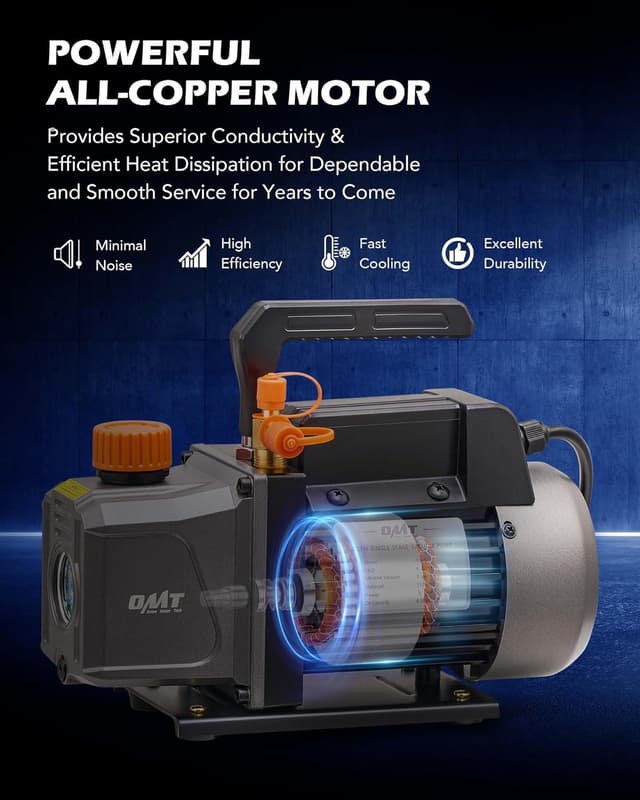

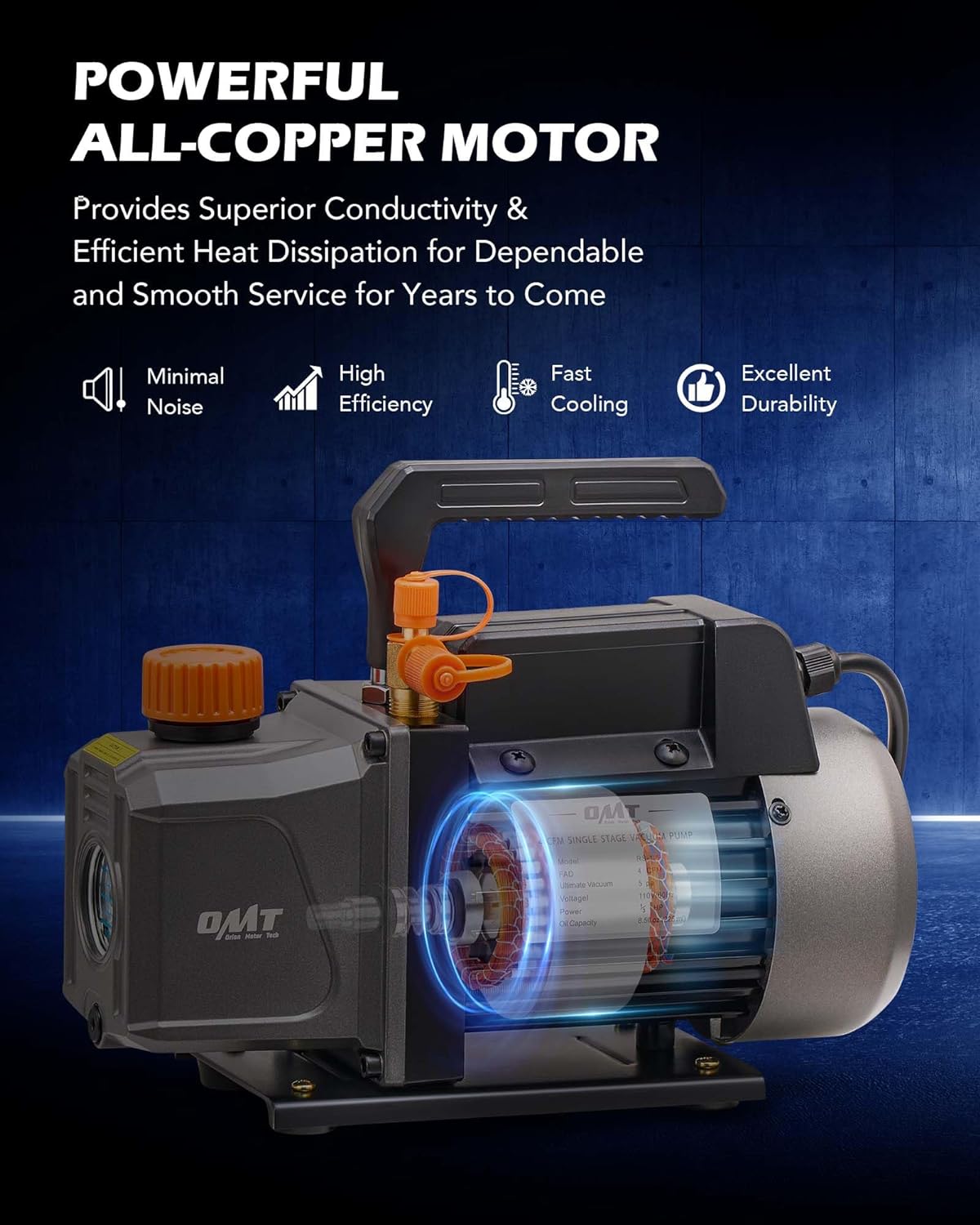

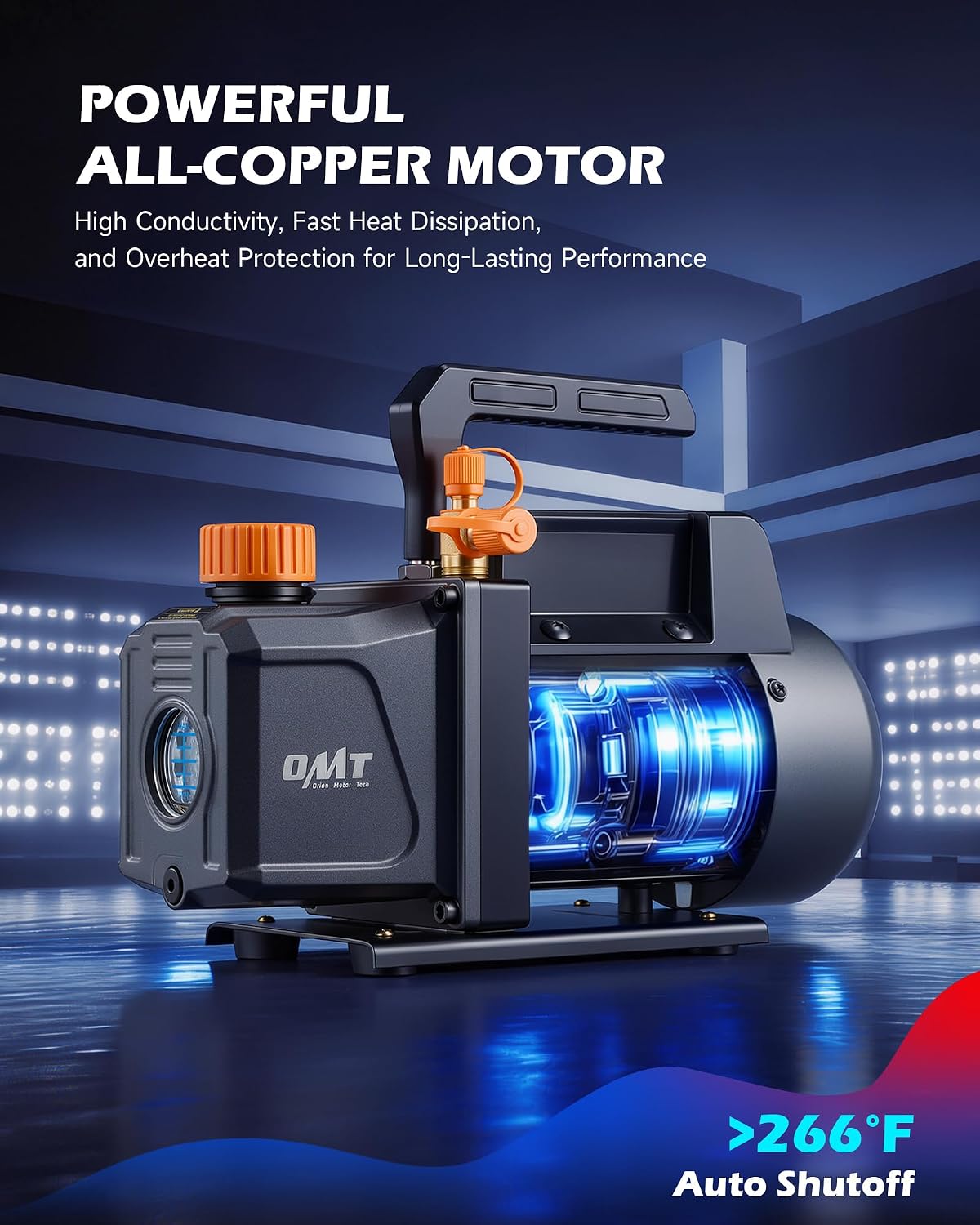

The kit’s combination of a copper-wound motor and reinforced aluminum casing aims to deliver steady evacuation performance and better heat management under repeated use. Color-coded, four-layer reinforced hoses simplify connections and reduce wear from daily shop pressures. The inclusion of can taps, quick couplers, and a basic leak detector means fewer trips to gather missing tools, and the case helps keep the set organized for mobile work. Consider that while the pump performs well for many automotive and small HVAC tasks, users working on larger commercial systems may need higher capacity equipment.
