Orion Motor Tech AC Manifold Gauge Set for R134a, R12, R22 & R502

What it is

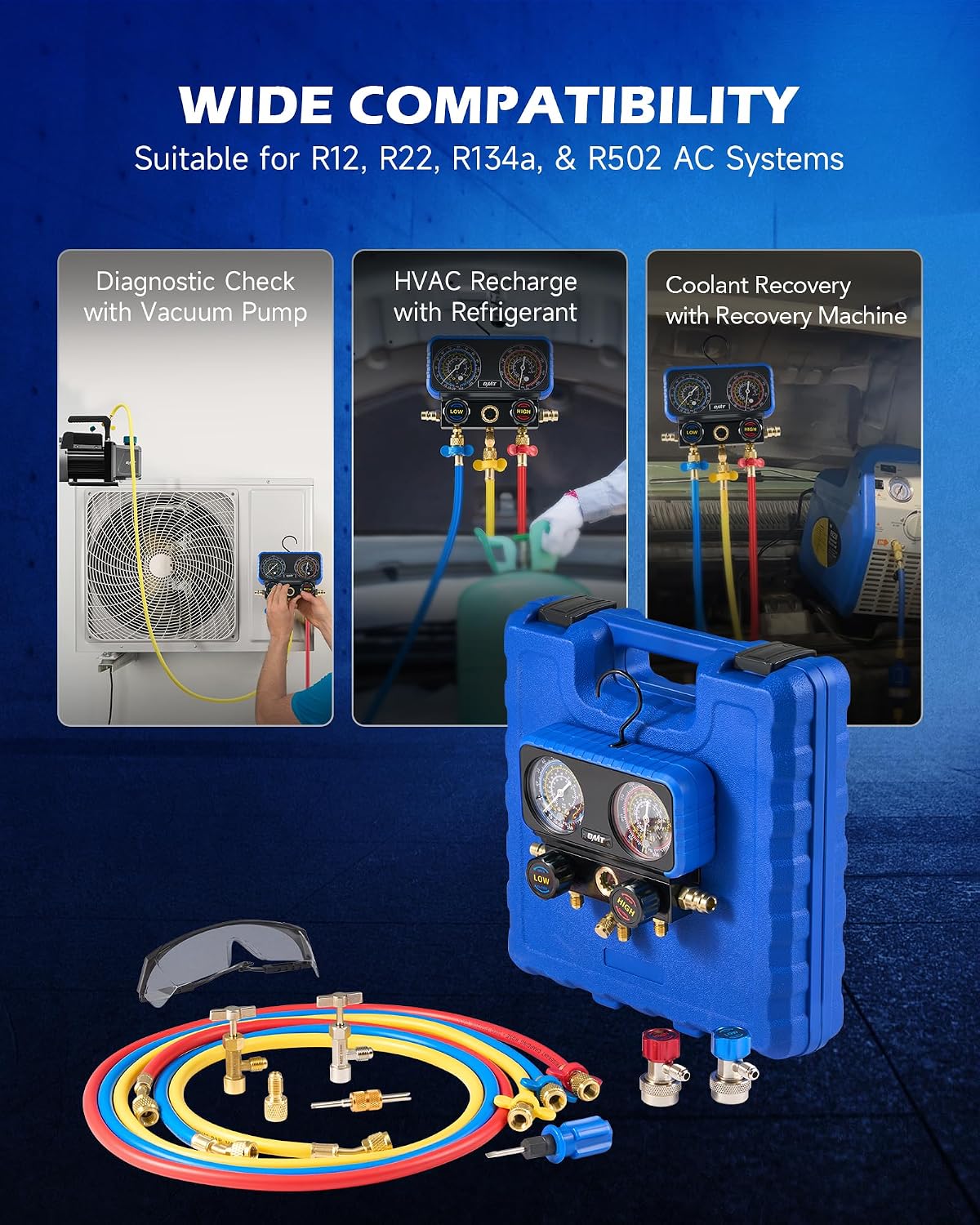

This Orion Motor Tech AC Manifold Gauge Set is a professional-style diagnostic and servicing toolkit for automotive air conditioning systems. Built to check pressure, diagnose leaks, top off refrigerant, and support evacuation and recharges, it aims to be a reliable companion in a home garage or professional shop. It’s designed to work with common refrigerants such as R134a, R12, R22, and R502, with 5' hoses, tank adapters, adjustable couplers, and a can tap that helps complete the service workflow. On paper, the kit emphasizes durability and accuracy, essential for ensuring you don’t miss a low-pressure warning or overfill an A/C system.

What matters most

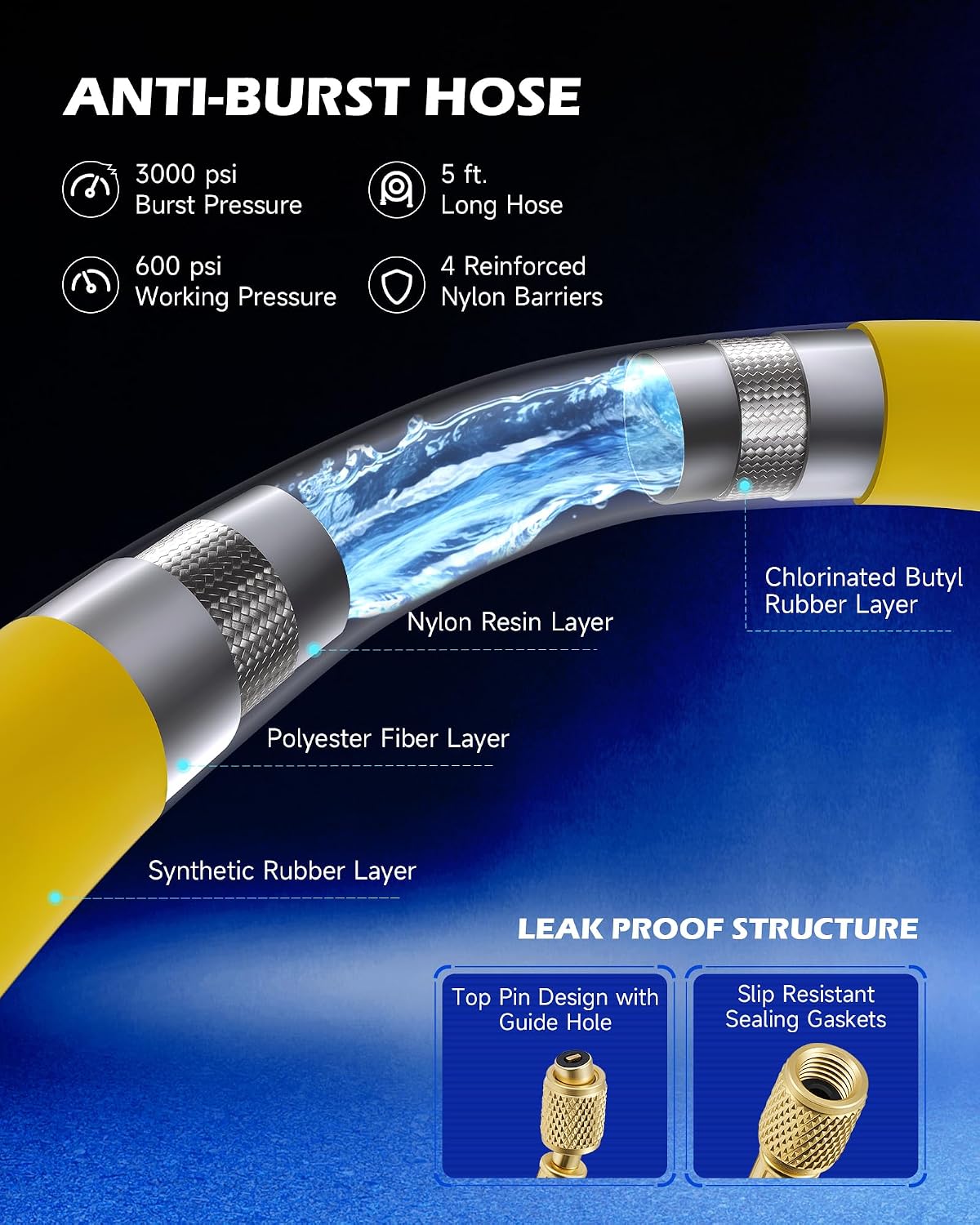

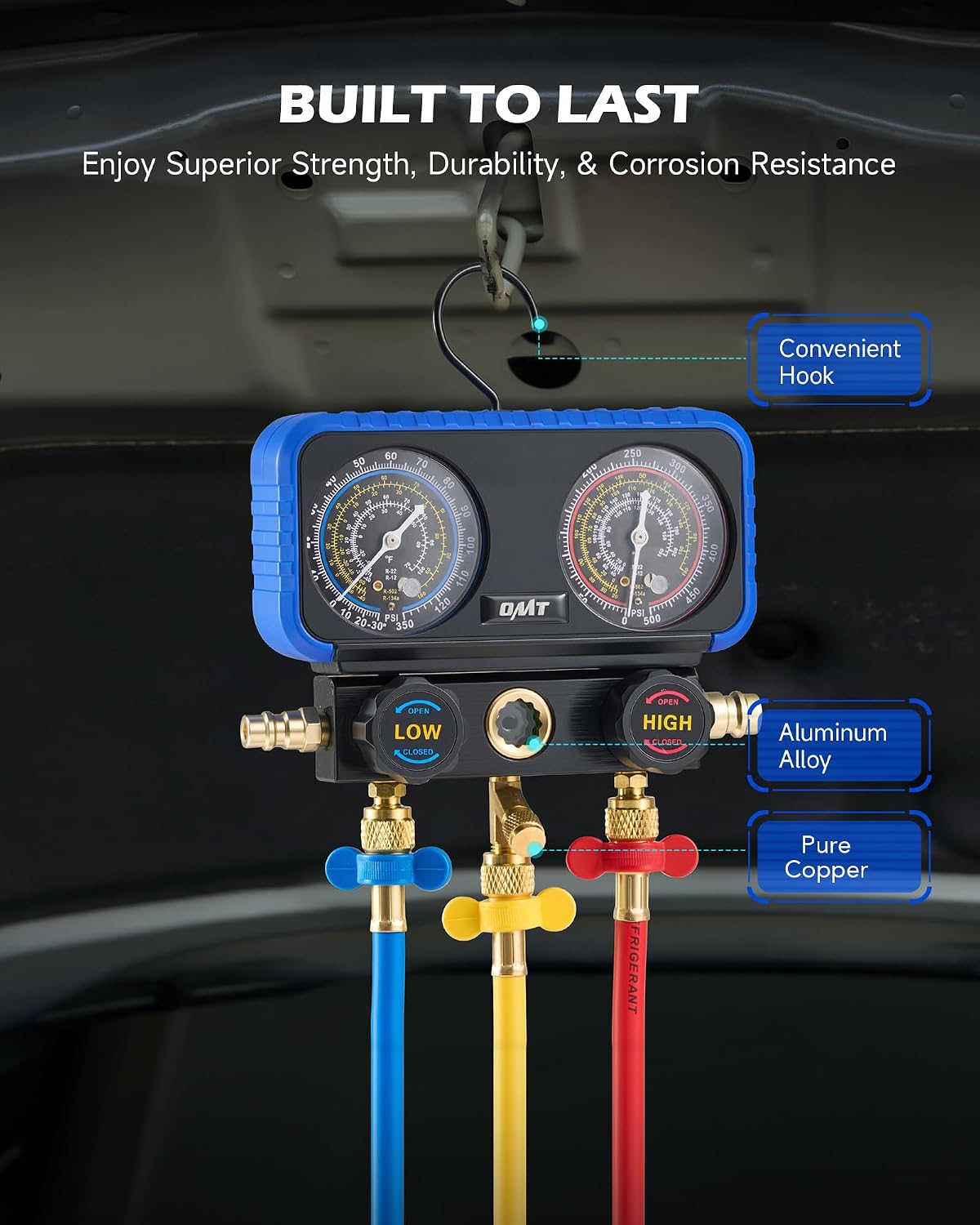

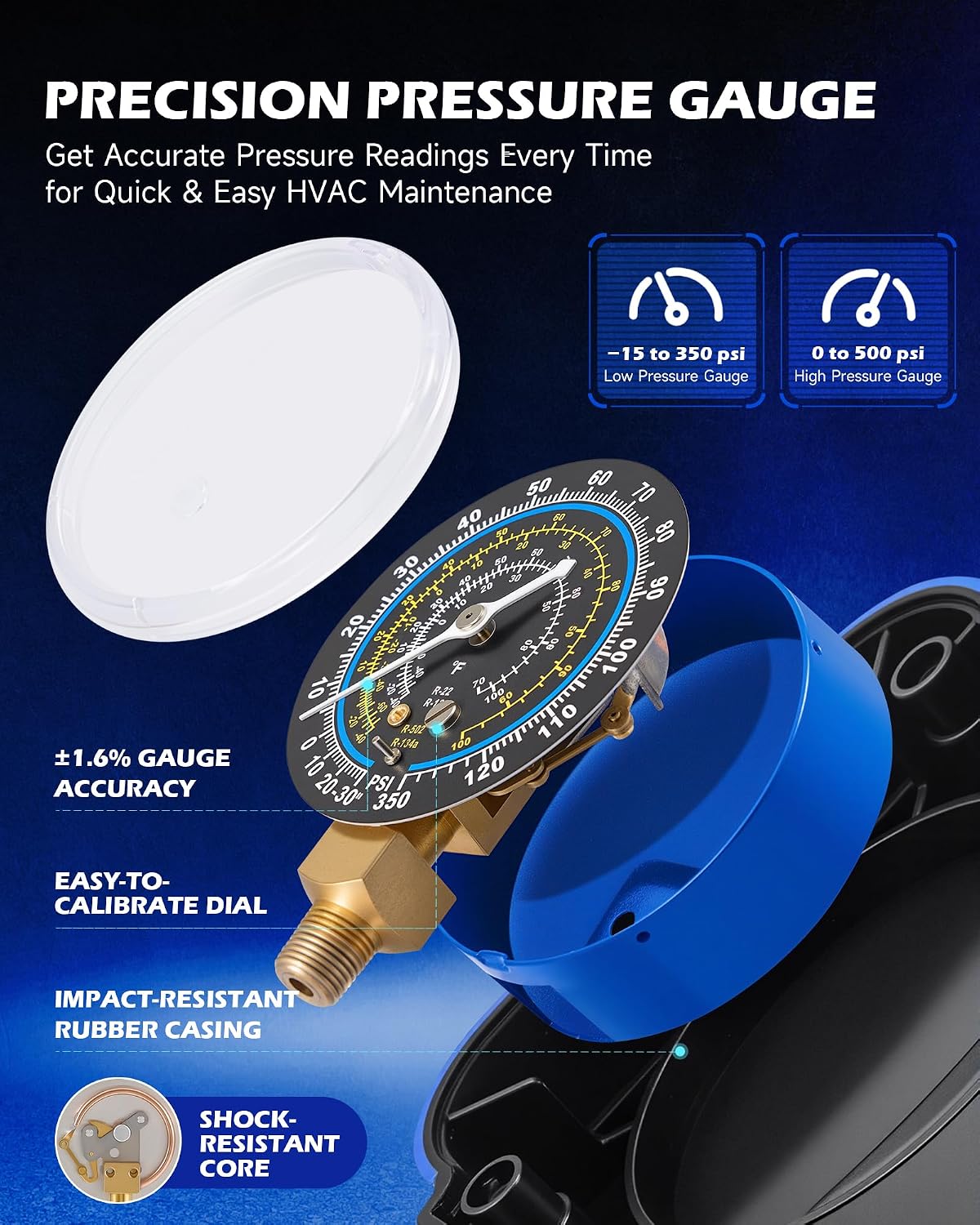

The kit uses sturdy construction—brass, aluminum, ABS and rubber—to stand up to repeated use. Large Fahrenheit-dial gauges with thick rubber covers are intended to be easy to read and protected against bumps. The hoses claim a working pressure around 600 PSI with a burst rating near 3000 PSI, which matters for reliability under typical service pressures. A complete calibration of components, including 1/4 inch female flare fittings and a depressor, is included to facilitate straightforward connections.

Tech specs

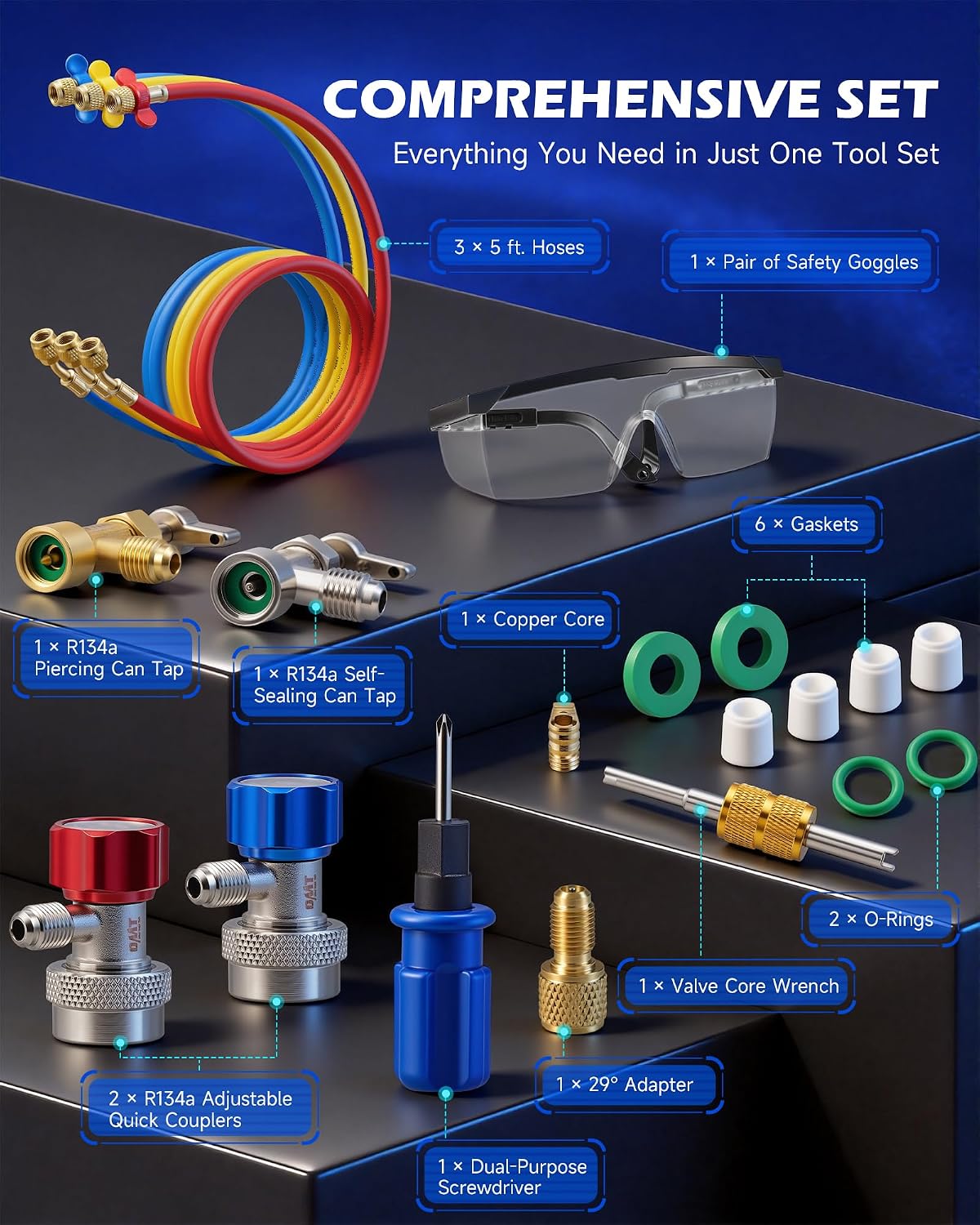

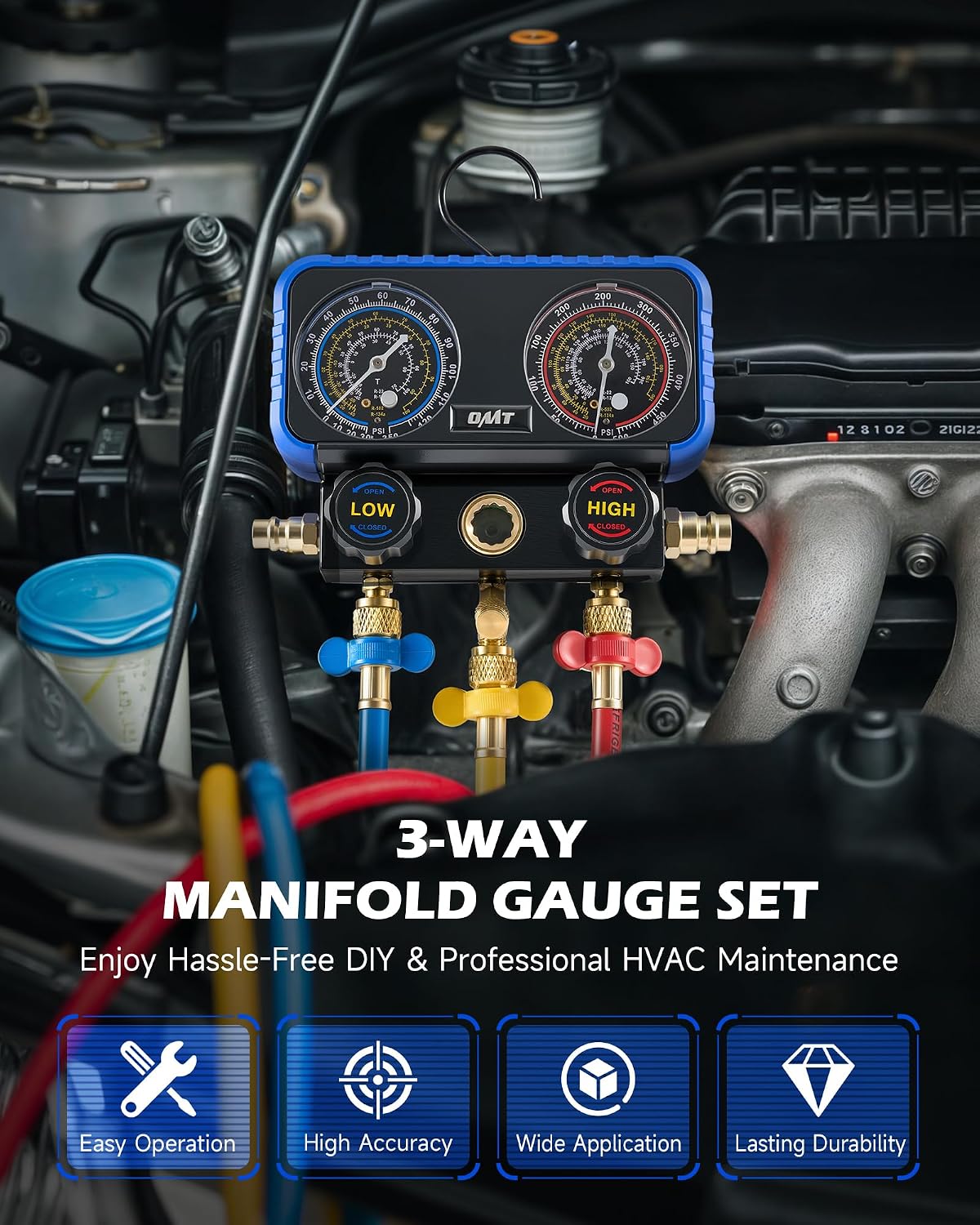

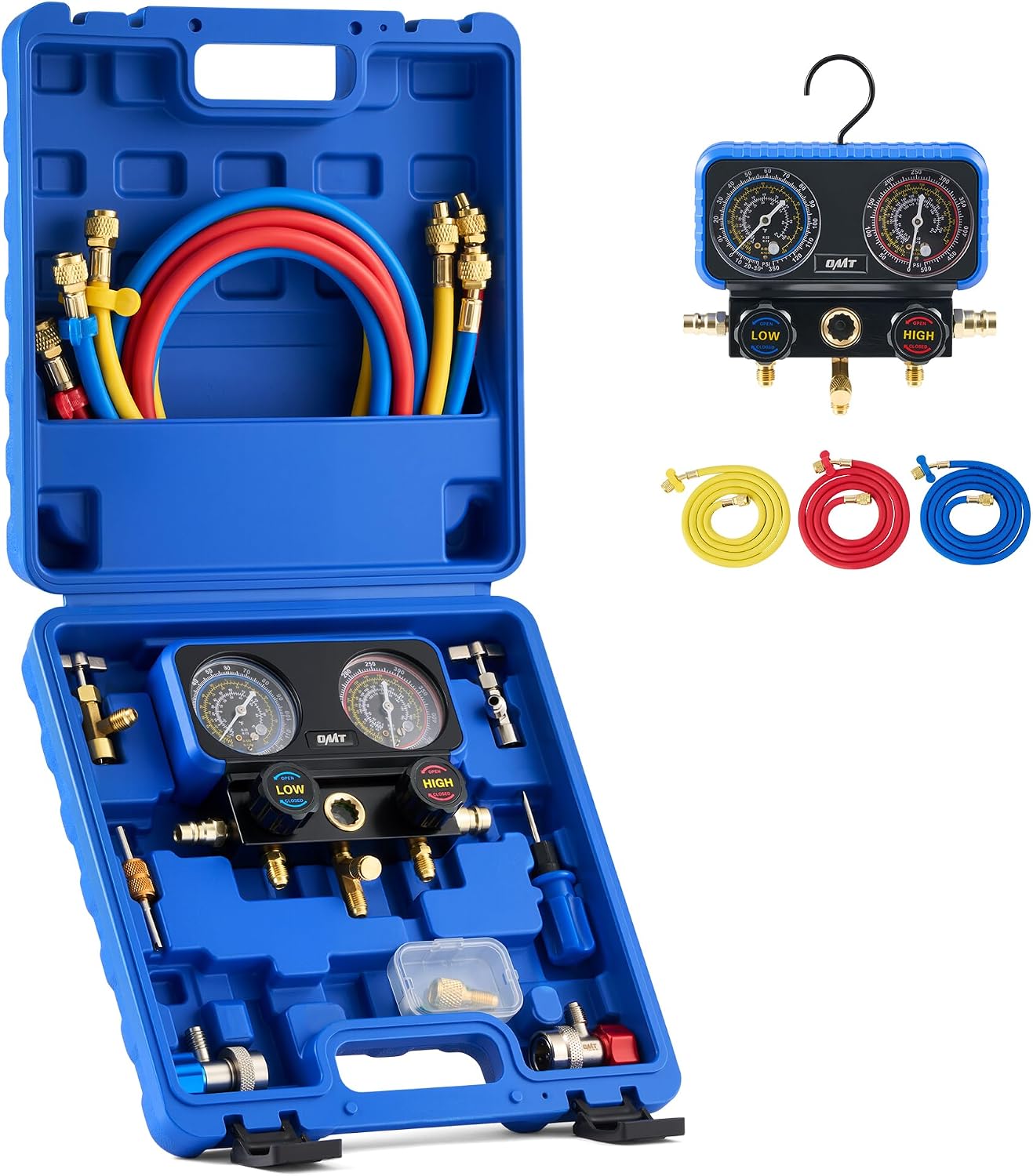

What you get includes a traditional 3-way manifold design, 5' hoses, standard flare fittings, a tank adapter set, adjustable couplers, and a can tap. The kit adds protective gear for safety: nitrile-coated gloves and shatter-proof eye protection. Materials are a mix of brass, aluminum, ABS, and rubber, chosen to withstand shop conditions and moderate wear. Note: the description emphasizes “upgraded XL gauge dials” and protection features, but exact model numbers or exact dimensions beyond the 5' hoses are not specified in the provided details.

Pros

• Comprehensive set for multi-refrigerant systems, including older and newer refrigerants.
• Large, legible dial faces with protective rubber housings can aid quick readings in busy shop environments.
• Extra-strength hoses with robust coating may offer longer life and improved flexibility.
• Includes safety gear to support basic eye and hand protection during service.
• Durable construction across brass, aluminum and other components suggests resilience in routine use.

Cons

• The available data don’t specify precise gauge ranges, discharge pressures, or calibration tolerances, so you’ll want to verify that the ranges suit your typical service scenarios.
• The description doesn’t provide explicit compatibility details for every rare vehicle refrigerant scenario, so check if your specific application falls within the listed refrigerants.
• As with many manifold sets, real-world accuracy depends on proper connection, seal integrity, and correct can tapping technique, user Skill matters.

Usage tips

• Before use, inspect hoses for cracks or wear and confirm flare fittings seal properly to avoid leaks.
• When tapping a can, follow step-by-step instructions included with the kit to minimize overfilling or air introduction into the system.
• Use the protective gloves and eye protection supplied to reduce risk during fluid handling and pressurization checks.
• For older vehicles with R12 or R502, ensure the refrigerant handling procedures align with local regulations and equipment capabilities.

Who it’s for

This set is suited for DIY enthusiasts who want a dedicated tool for home garage A/C work and for professional shops performing routine diagnostic and service tasks on common automotive systems. It’s particularly appealing if you regularly service vehicles that use multiple refrigerants and you value a robust, tactile gauge readout with durable hoses.

When it makes sense to buy

If your projects involve R134a and older refrigerants, and you need a compact, all-in-one gauge solution with can-tap capability, this kit can streamline the workflow—especially when you want to handle pressure checks, evacuation, and recharge with a single toolset. It’s reasonable to consider this set if you prioritize a sturdy build and readable gauges over ultra-lightweight convenience.

What to check before buying

• Confirm that the gauge ranges and connections match the refrigerants you service most often.
• Verify that the included adapters and can-tap are compatible with your service tank fittings and local safety requirements.
• Consider whether you need additional hoses or adapters not listed in the provided description.

Practical example

Imagine you’re diagnosing a stubborn leak on an older R12-equipped car. With the manifold gauge set, you can observe pressure readings in real time, identify abnormal pressure relationships between high and low sides, and confirm whether the system holds vacuum during evacuation before recharging. The 5' hoses let you maneuver around the engine bay without tugging on the device, and the included safety gear makes a quick job feel safer.

Final verdict

Is it worth it?

Worth considering if you frequently service a range of refrigerants and want a durable, all-in-one gauge kit with safety accessories. It may not be the best pick if you only work with one modern refrigerant or if you require highly precise, calibrated data with explicit spec ranges not disclosed here. For many users, this set offers a practical balance of reliability, ease of use, and broad compatibility for routine A/C work.

FAQ

• Do the gauges support digital readouts or only analog dials? The description highlights analog dial faces with large Fahrenheit units.
• Are there limitations for high-mileage vehicles? The materials and build suggest durability, but exact wear limits aren’t specified in the data.
• Is the kit suitable for home garage use? Yes, it’s described as a must-have for home garages and mechanic shops, with protective gear included for safety.
