If you’re diagnosing automotive air conditioning, a reliable manifold gauge set is essential. The Orion Motor Tech AC Gauges offer a 3-way system with color-coded hoses and dual can taps (puncture-style and self-sealing) to support R134a, R12, R22, and R502 refrigerants. On paper, this kit aims to balance durability with everyday usability, making it a practical option for both DIY enthusiasts and professional HVAC maintenance. It’s not a miracle tool, but it gives you a way to measure high and low side pressure, evacuate, and refill coolant with a single kit.
What it is

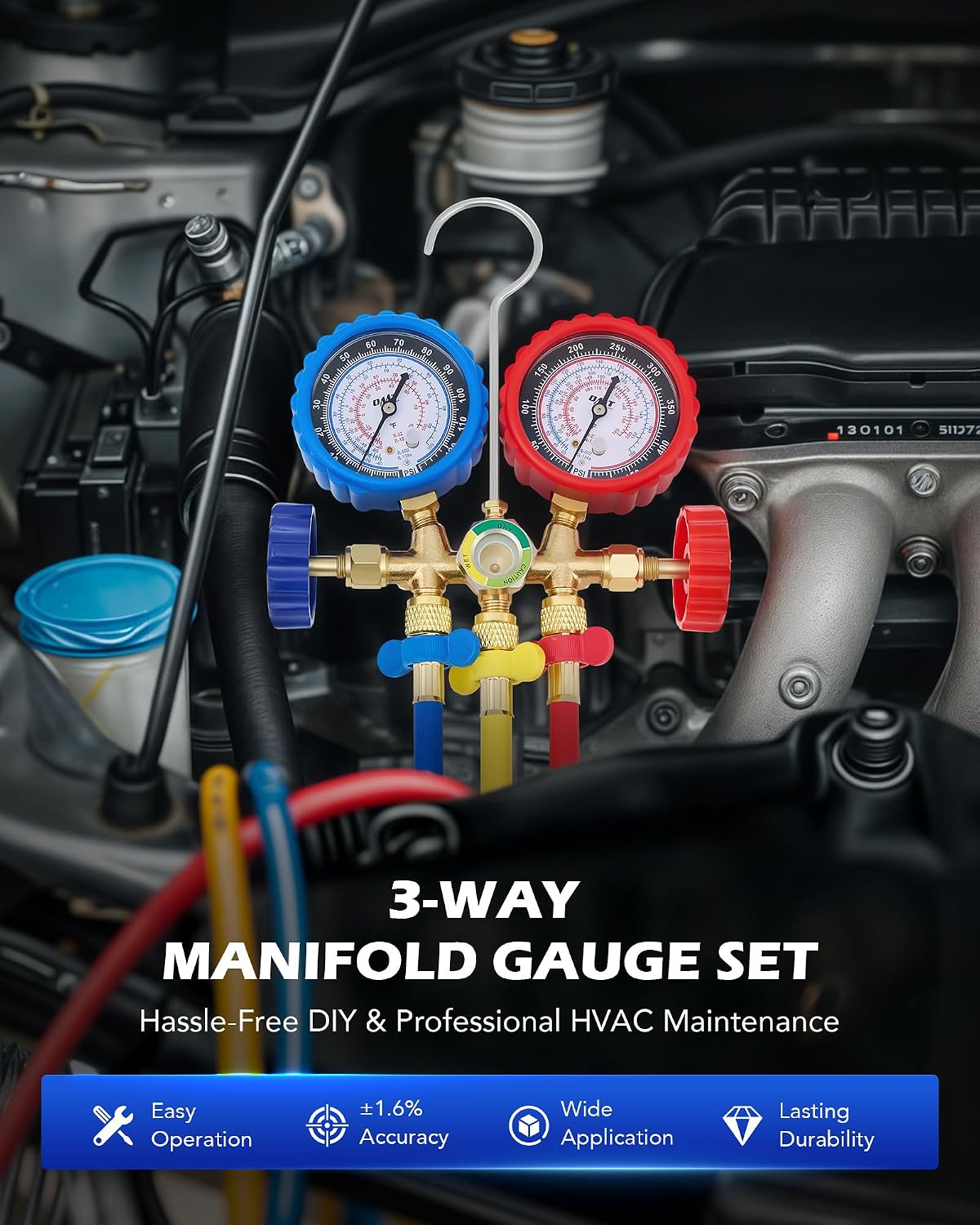

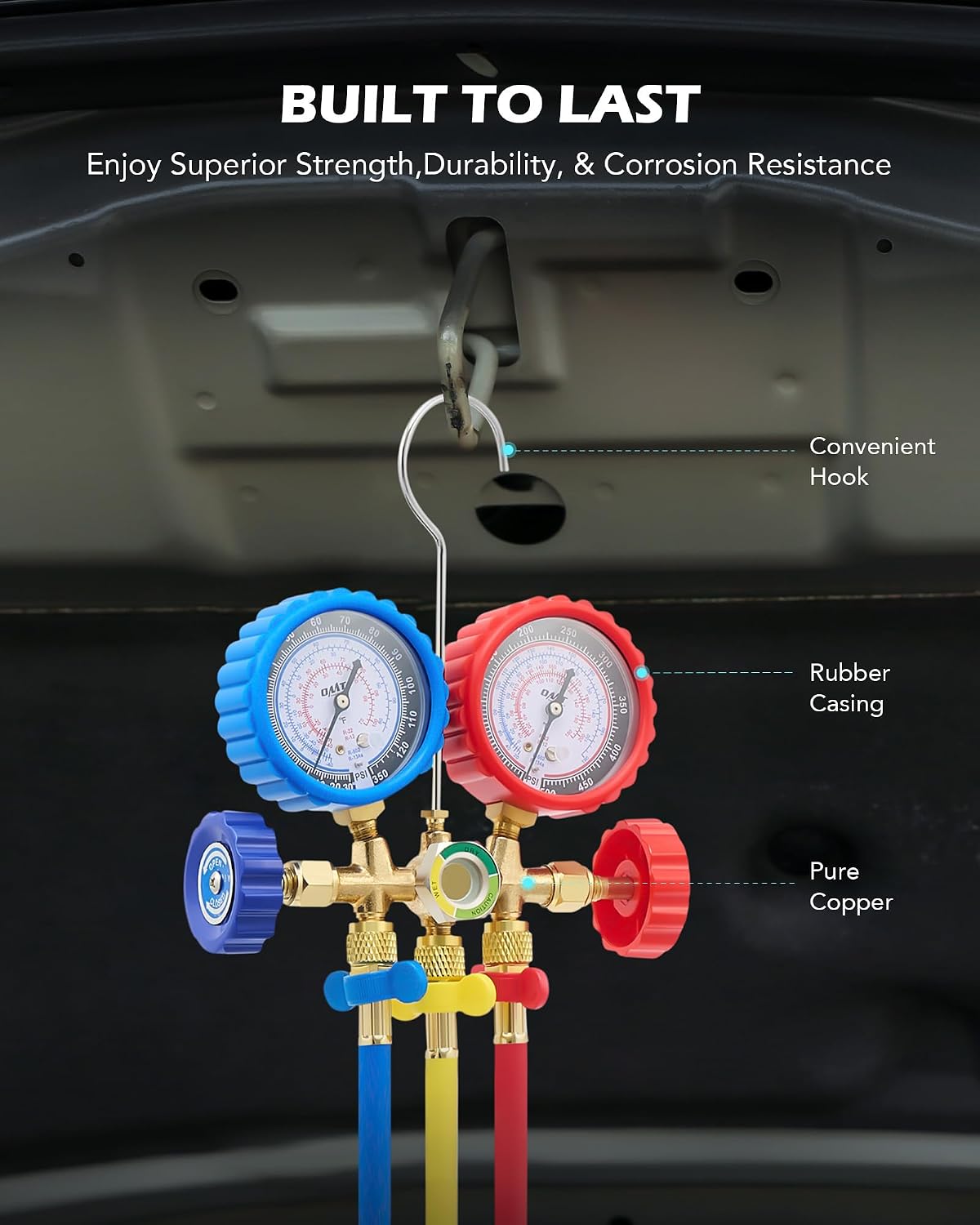

This is a complete gauge set designed for automotive A/C work. It includes a three-port manifold gauge, three color-coded hoses (blue for low pressure, red for high, yellow for charging), two adjustable 1/4" quick couplers, and adapters including a 1/4" to 1/2" Acme. The system supports both puncture-style and self-sealing can taps, enabling use with a wide range of refrigerant canisters. The gauges themselves are hybrid anti-shock, featuring a 68 mm dial with an oil-filled core for wear resistance and a dry dial for performance in winter conditions. If you prioritize a single kit that covers common refrigerants and a typical shop workflow, this set lines up with that goal.
How it helps you today
For someone who needs to measure pressures, evacuate, and top off coolant, this kit provides a one-stop solution. The color-coded hoses help prevent mix-ups in busy environments, and the two can taps reduce friction when switching between new and old canisters. If you’re working with R134a, R12, R22, or R502, you’ll appreciate having a ready-made setup that doesn’t require swapping parts mid-job. That said, the value hinges on your workflow: if your routine frequently involves a different refrigerant or one that isn’t listed, you’ll want to confirm compatibility before committing.
What stands out, and what’s not
The standout feature here is the kit’s all-in-one design: three hoses, two adapters, and dual tapping options, plus the dual-mode pressure gauges. The anti-shock gauge design is another plus for daily use, potentially reducing wear during transport or frequent clamping. On the flip side, there’s no mention of integrated vacuum pumps or advanced digital readouts, so if you rely on precise digital logging or more granular data, this set may feel basic. Also, the description doesn’t specify warranty duration or the exact material quality of the hoses beyond their reinforced construction, so assess whether the build meets your durability expectations.
Who it’s for
This kit suits DIYers who want a comprehensive starter set without juggling multiple components, as well as professional technicians who need a portable, repeatable workflow for standard refrigerants. It’s especially appealing if you frequently work with R134a systems and want a familiar three-hose setup with visible color cues. If your shop routinely handles newer refrigerants or needs high-precision digital measurements, you may want to factor in those needs before buying.
Who it isn’t for
If you’re after a high-end, feature-rich gauge with digital readouts, or if you frequently work with niche or newer refrigerants not listed here, this kit might fall short. Also, if your priority is maximizing a compact, ultra-lightweight tool for on-the-go service, the included hoses and taps could feel a bit bulky for some setups.
When to buy it
Consider this kit when you want a complete, conventional AC gauge set ready for standard automotive refrigerants, with a workflow that includes measuring pressures and charging. It’s a sensible pick if you value color-coding for quick identification and if you appreciate the option of both puncture-style and self-sealing taps. If you don’t need both tapping methods or if you’ll rarely work with R12/R502, you may still find the core kit useful, but weigh whether you’ll actually use every component.
What to review before you buy
- Confirm refrigerants you plan to work with are within the supported list (R134a, R12, R22, R502).
- Consider whether you need both puncture-style and self-sealing taps, assess how this fits your typical canister inventory.

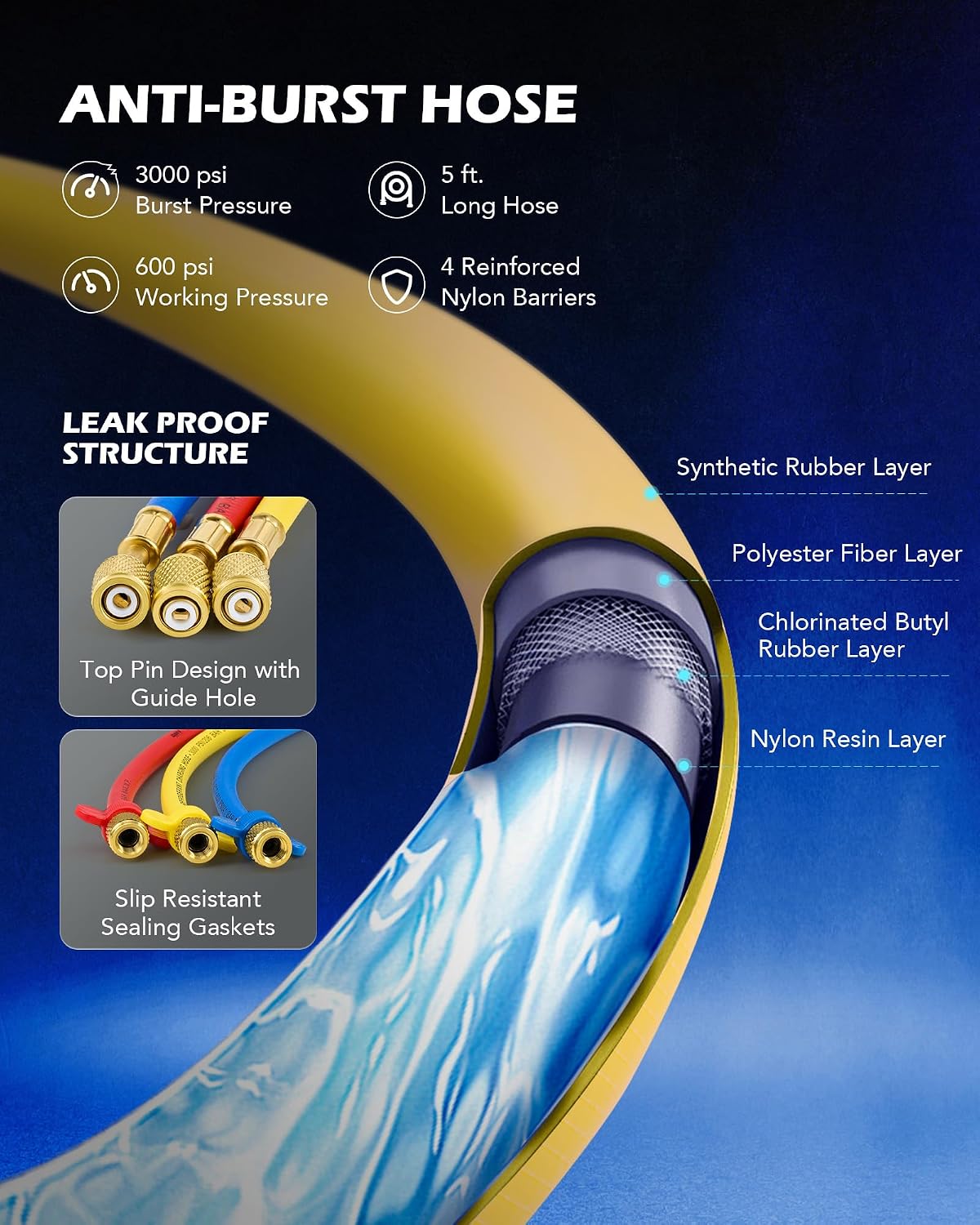

- Check hose pressure ratings (up to 600 psi working, 3000 psi burst) to ensure they meet your typical service requirements.
- Look for warranty or replacement parts availability for hoses, taps, and adapters.

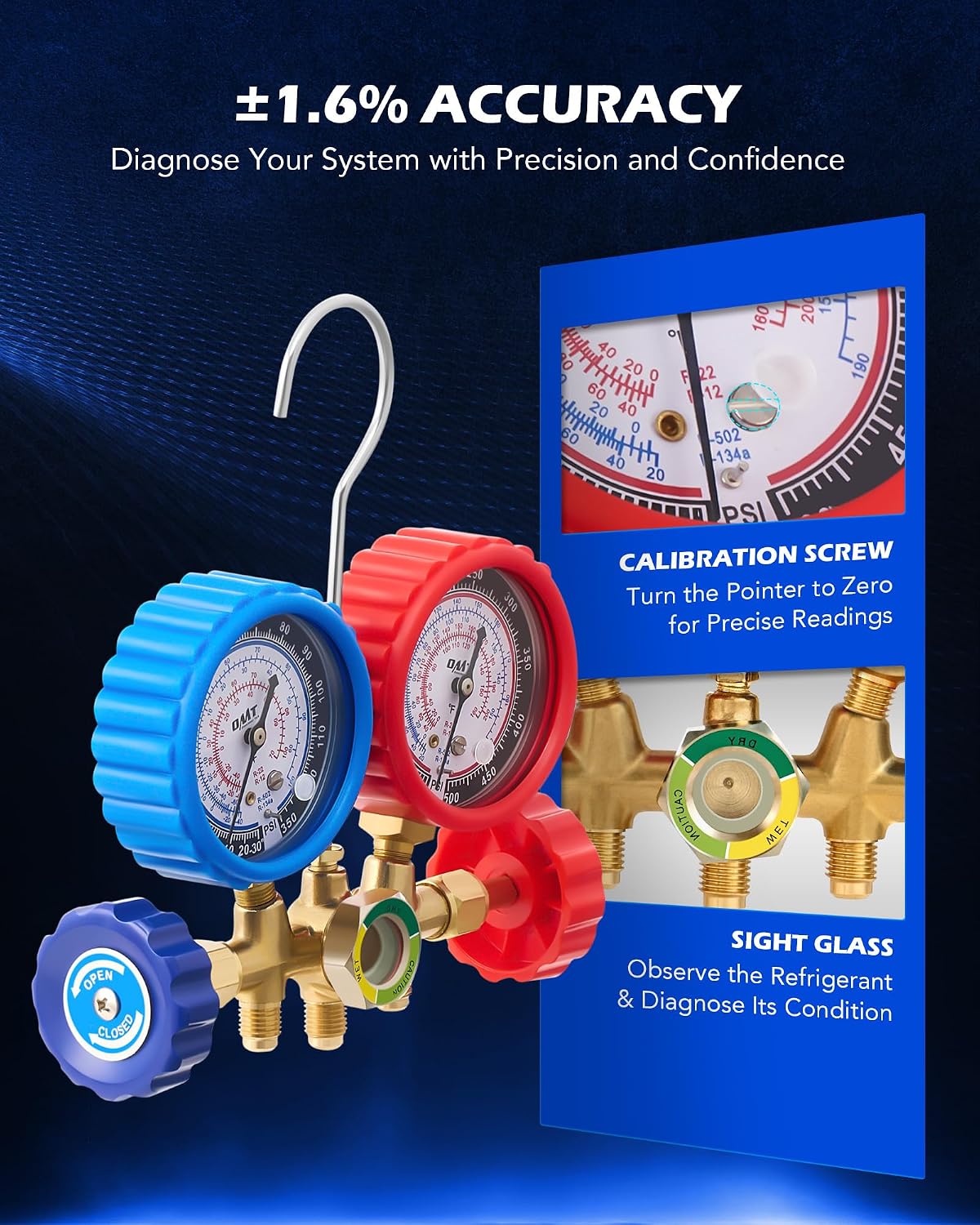

- Think about how important a dry vs. oil-filled gauge is for your climate and typical maintenance tasks.
Practical usage snapshot
Imagine you’re servicing a mid‑size vehicle with a tired AC system. You connect the blue low‑side hose, the red high‑side hose, and the yellow charging line. With the dual taps handy, you can open a fresh can, puncture it, and start charging while watching the gauges. The three-way layout keeps the workflow straightforward, and the color coding reduces the chance of misconnections during a tight, time‑pressured job.
Tech specs in brief
- Gauge type: Hybrid anti-shock 68 mm dial
- Hoses: 3 color-coded (Blue/Low, Red/High, Yellow/Charging), reinforced layering
- Pressure range: Daily use up to 600 psi, burst 3000 psi

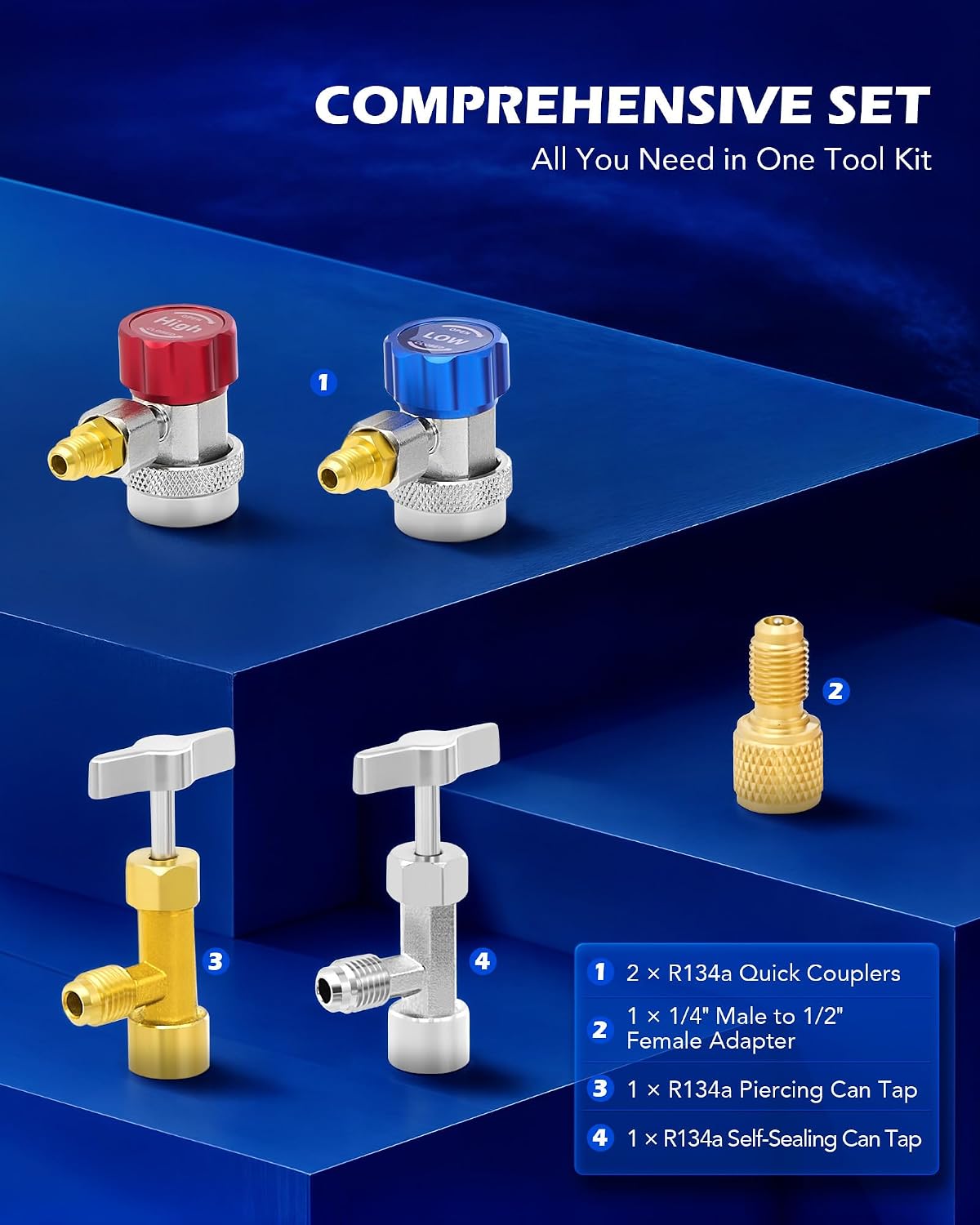

- Connections: 1/4" quick couplers (two adjustable), 1/4" to 1/2" Acme adapter
- Taps: Puncture-style and self-sealing can taps

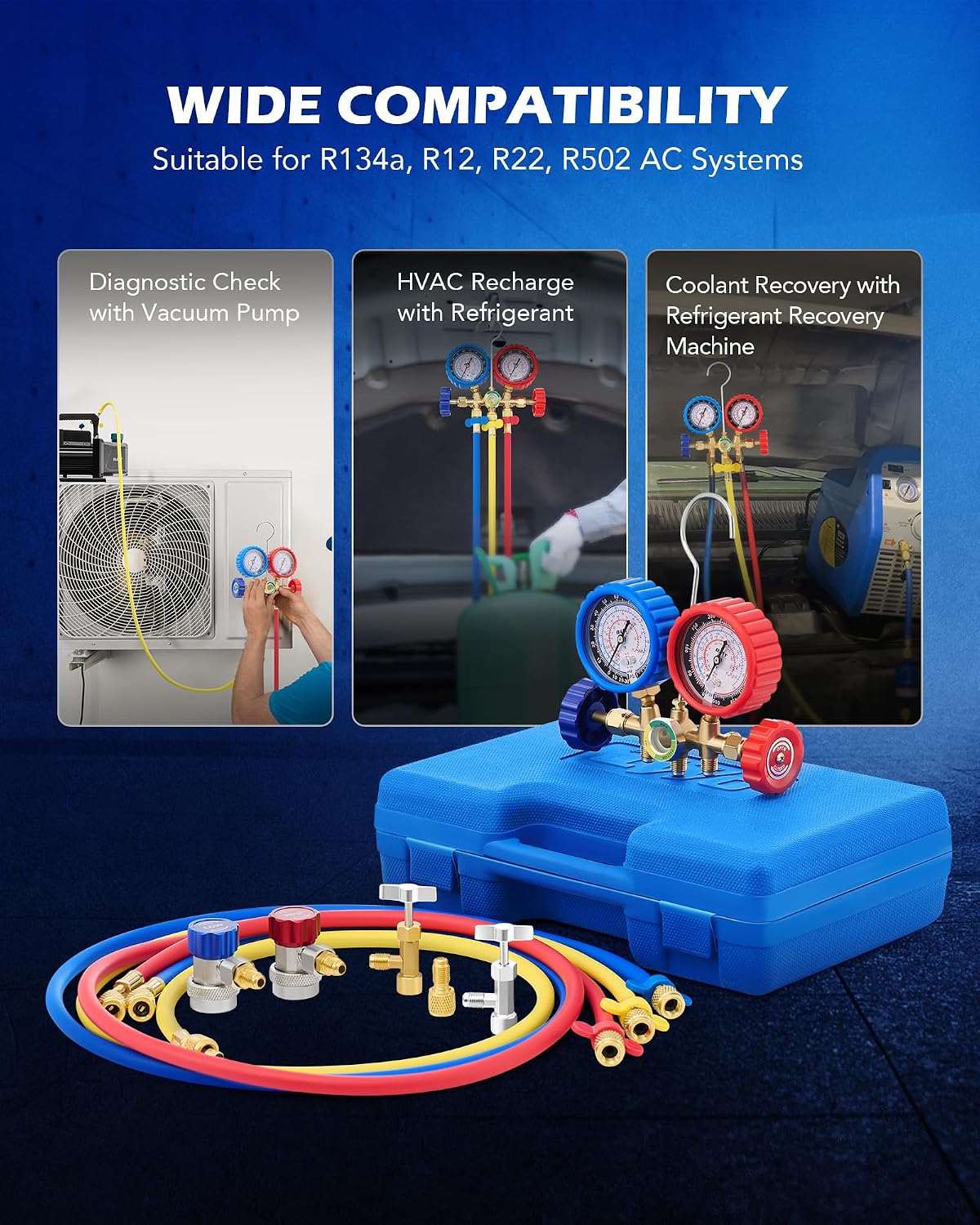

- Refrigerants supported: R134a, R12, R22, R502
- Applications: Automotive A/C installation, service, evacuation, and recharge
Final verdict
Is it worth it? It’s a solid pick if you want a complete, conventional AC gauge set that covers common refrigerants and includes flexibility with two tapping methods. It won’t replace specialized digital analyzers or high-end, feature-rich kits, but for everyday maintenance and DIY jobs, it offers a practical balance of functionality and value. If your needs are more advanced or you require digital readouts, this may not be the best fit. For most users focusing on standard refrigerants and reliable measurements, this Orion kit can be a dependable workhorse.
What’s included

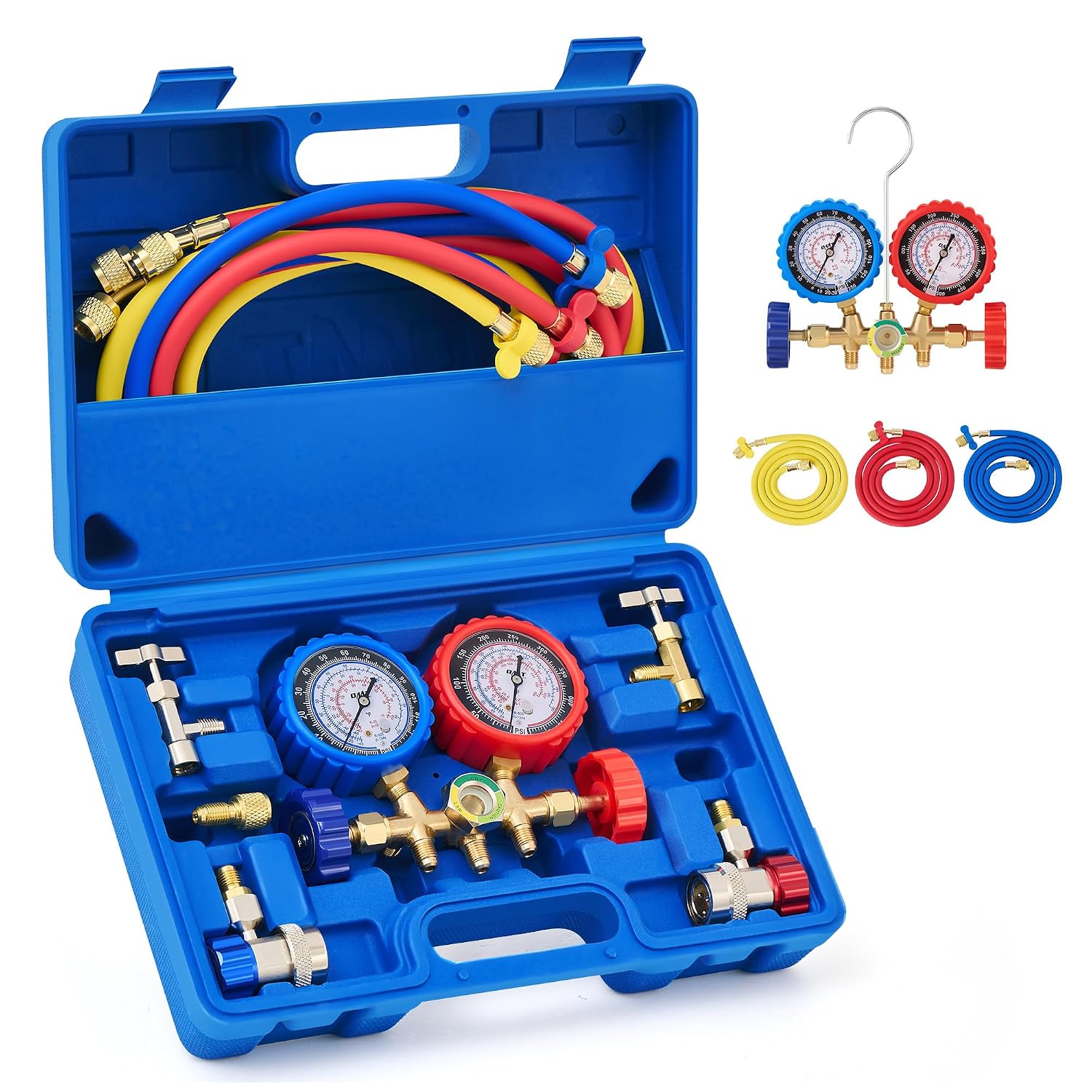

In the box you’ll find the 3-way manifold gauge, three color-coded hoses, two quick couplers (adjustable), the Acme adapter, and both puncture-style and self-sealing can taps, along with all necessary fittings to get started.
FAQ
- Does it work with modern R134a systems? Yes, the set lists R134a among supported refrigerants.
- Are there digital gauges included? No, this set uses analog gauges (68 mm) with color-coded hoses.
- Can I use it with non‑auto refrigeration projects? The kit is designed for automotive A/C, using it for other refrigerants or appliances isn’t specified and may require different adaptations.
