Orion Motor Tech 16-piece Puller Kit

This internal puller kit is built to extract blind bearings, races and seals with less fuss and less damage. The Orion Motor Tech blind bearing puller set helps remove pressed in bearings from wheel hubs, axles and housings, and it works well for shop technicians and home mechanics who need a reliable tool for recurring jobs. The set is useful when space is limited and the bearing sits flush inside a hub, and it speeds up removal compared with improvised methods. The phrase blind bearing puller set appears here to match search intent for that tool.

Key features

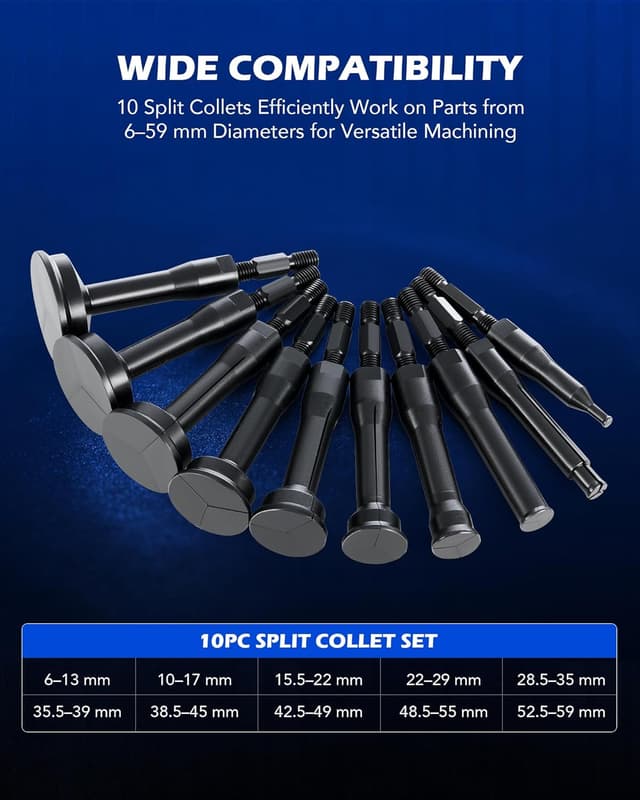

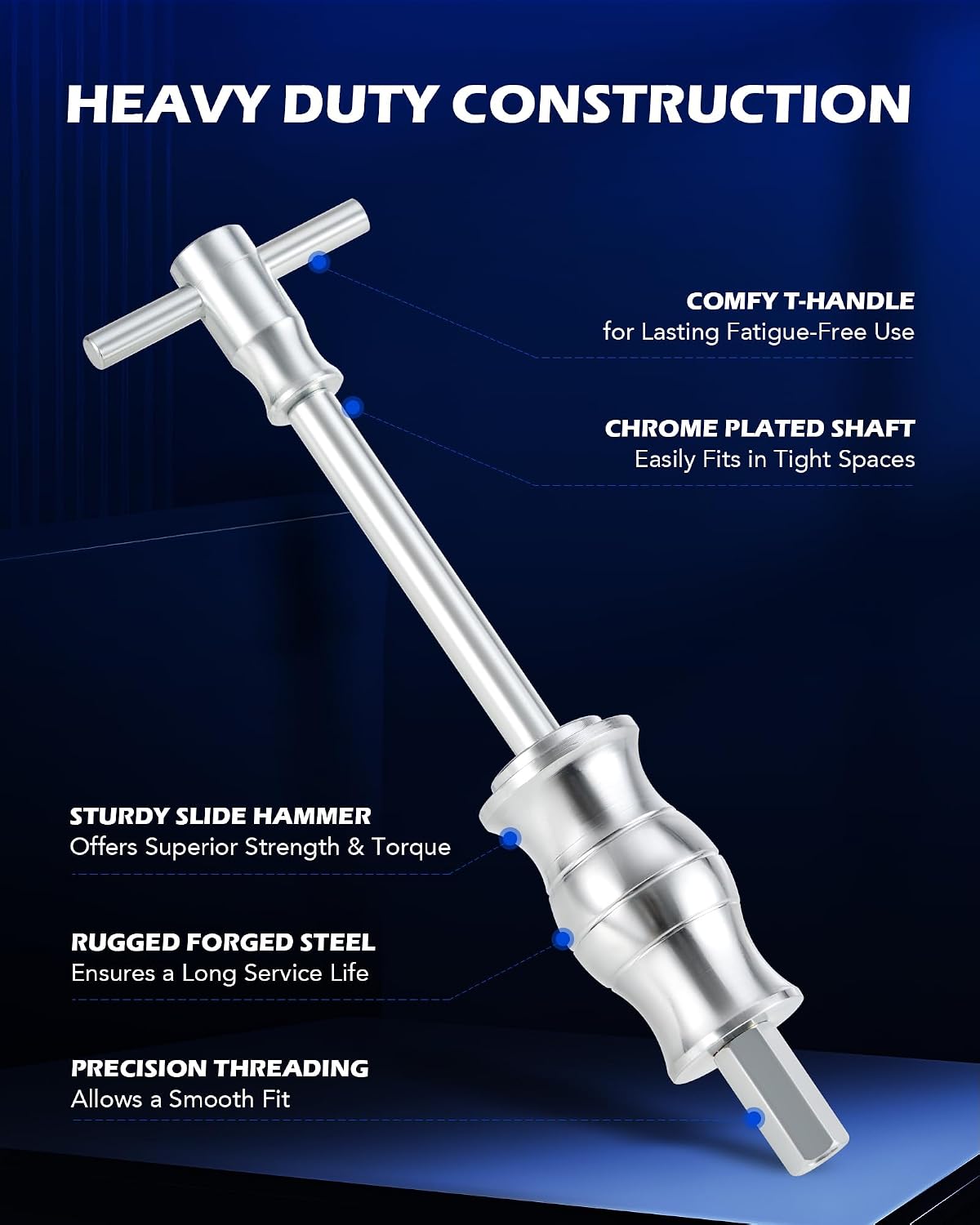

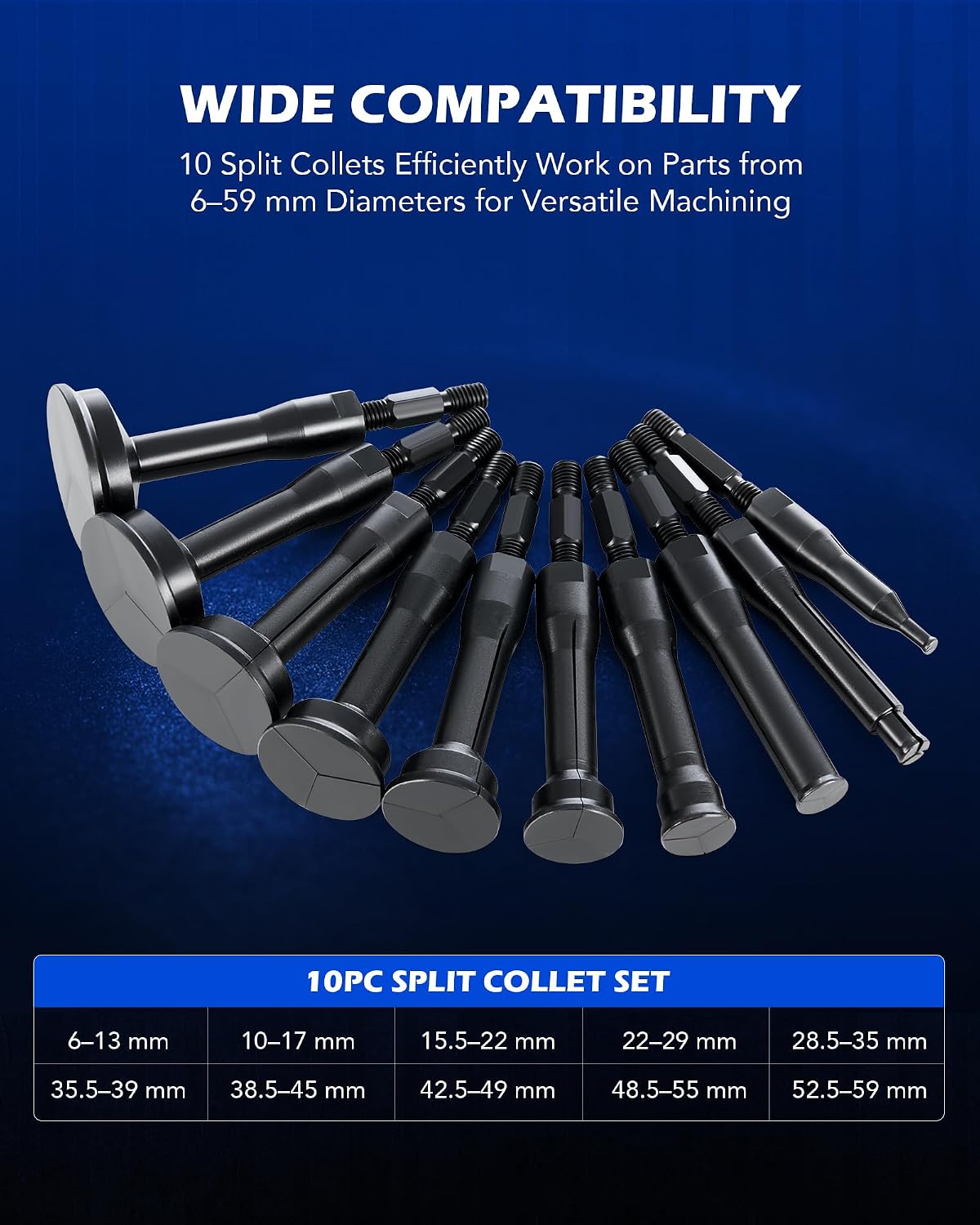

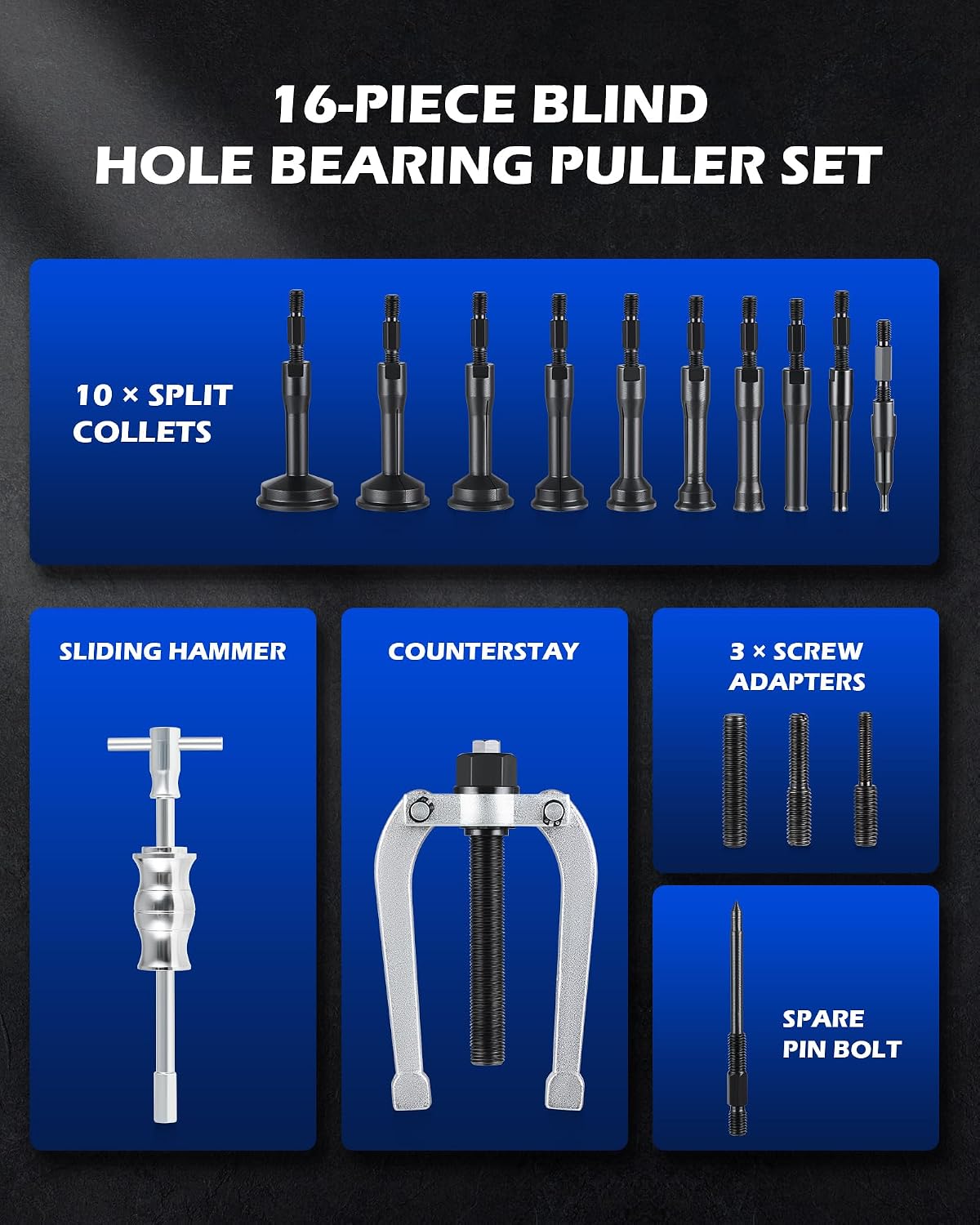

The kit centers on a slide hammer and an adjustable counterstay that together provide controlled impact and steady extraction. It includes three screw adapters and a spare pin bolt for different attachment needs. Ten split collets expand to grip inner races from 1/4 to 2-1/3 inch or 6 to 59 mm diameter, so one kit covers a wide range of common sizes. A custom blow-molded case keeps components organized and protects them from corrosion during storage. For tougher stuck parts the chromoly collets bite in and hold, reducing slippage and the risk of part damage 😎.

Technical details

• Name: Orion Motor Tech Blind Hole Collet Bearing Race and Seal Puller Extractor Kit

• Pieces: 16 piece set

• Collet range: 1/4 to 2-1/3 inch (6-59 mm)

• Material: AISI 1045 medium carbon steel for main tools

• Case: Blow-molded storage case

How to use it

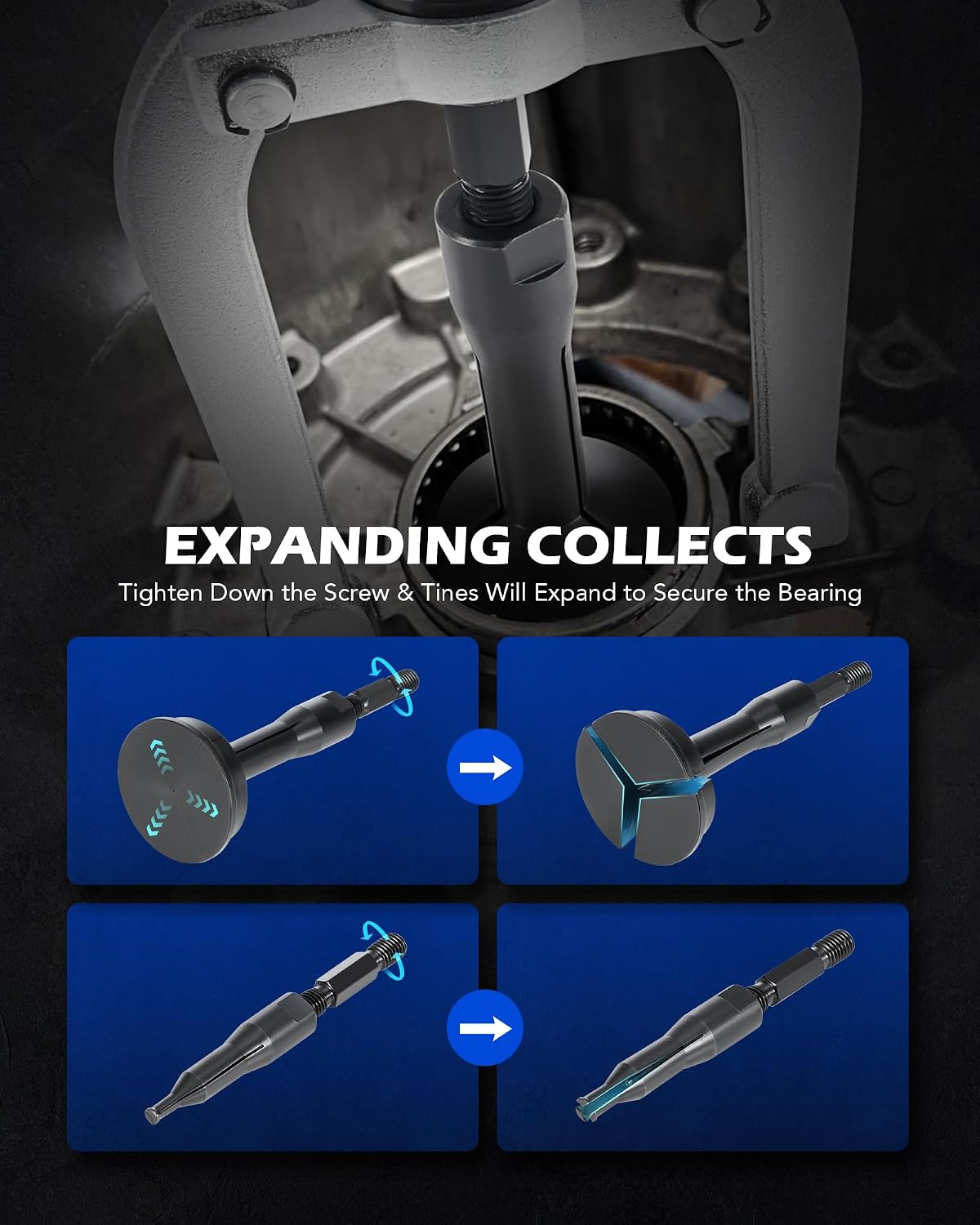

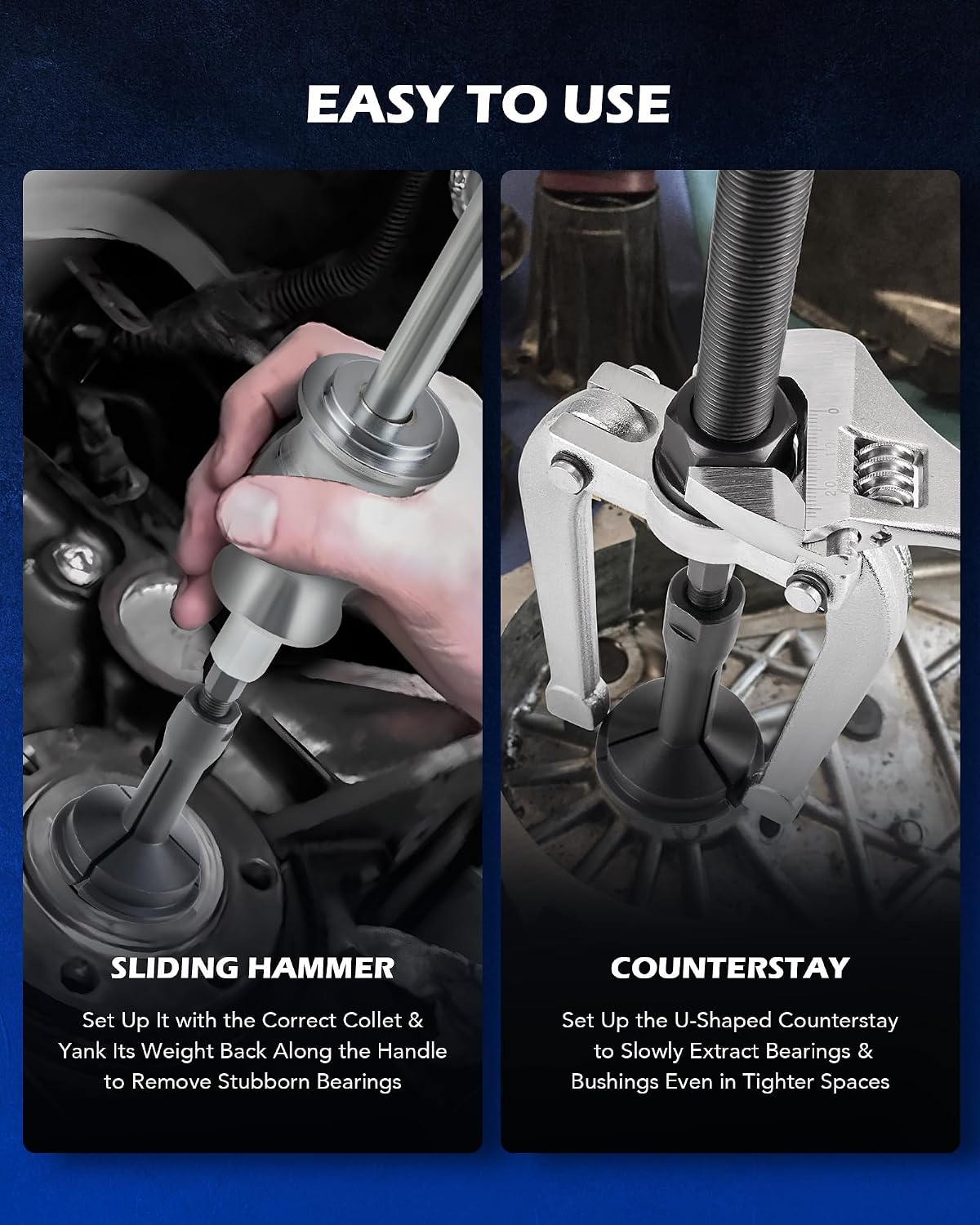

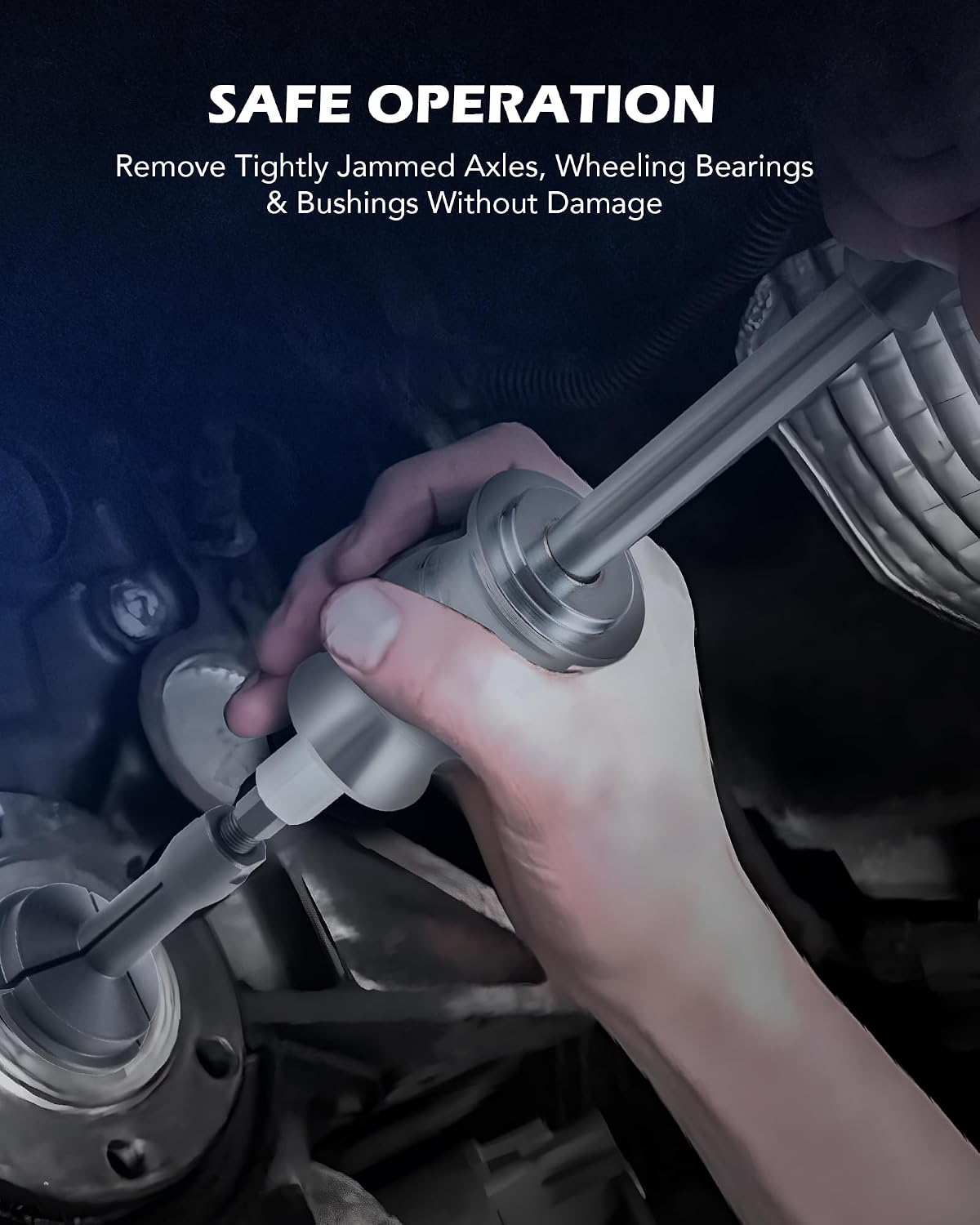

Choose the collet that fits the inner race, then insert and expand it so it grips firmly. Attach the slide hammer and deliver short pulls at first, increasing force if needed, to avoid sudden part ejection. For delicate or tightly seated bearings use the counterstay and tighten slowly to control extraction and reduce risk of bending or scoring the housing. Keep components clean and lightly oiled after use to prevent rust and ensure smooth assembly next time 🔧. Note that heavy corrosion or welded parts may require heat or penetrating oil first according to the manufacturer's guidance, and extreme force can deform softer housings.

Benefits

This kit combines durability and versatility in one package. The use of AISI 1045 steel on primary pieces and chromoly collets where grip matters gives a balance between toughness and precision. The 16-piece set reduces trips to the toolbox and limits improvisation that can damage bearings. Portability is aided by the blow-molded case, which also helps prevent lost pieces when working on a vehicle on the road or in a cramped bay. Expect a practical toolset that emphasizes controlled extraction and part preservation during removal 🛠️. The description above references specifications provided by the manufacturer and does not invent additional technical data.
