Nilight Magnetic LED Trailer Towing Light Kit 24ft 🚚

This magnetic LED trailer towing light kit delivers visible rear lighting for trailers and small tow rigs, combining stop, tail, turn signal and license plate illumination in a portable setup that plugs into a standard 7-pin connector. It is designed for 12V, 5-wire vehicle systems and helps maintain legal rear lighting for RVs, pickups, boats and flatbeds during towing or temporary use.

Key Points

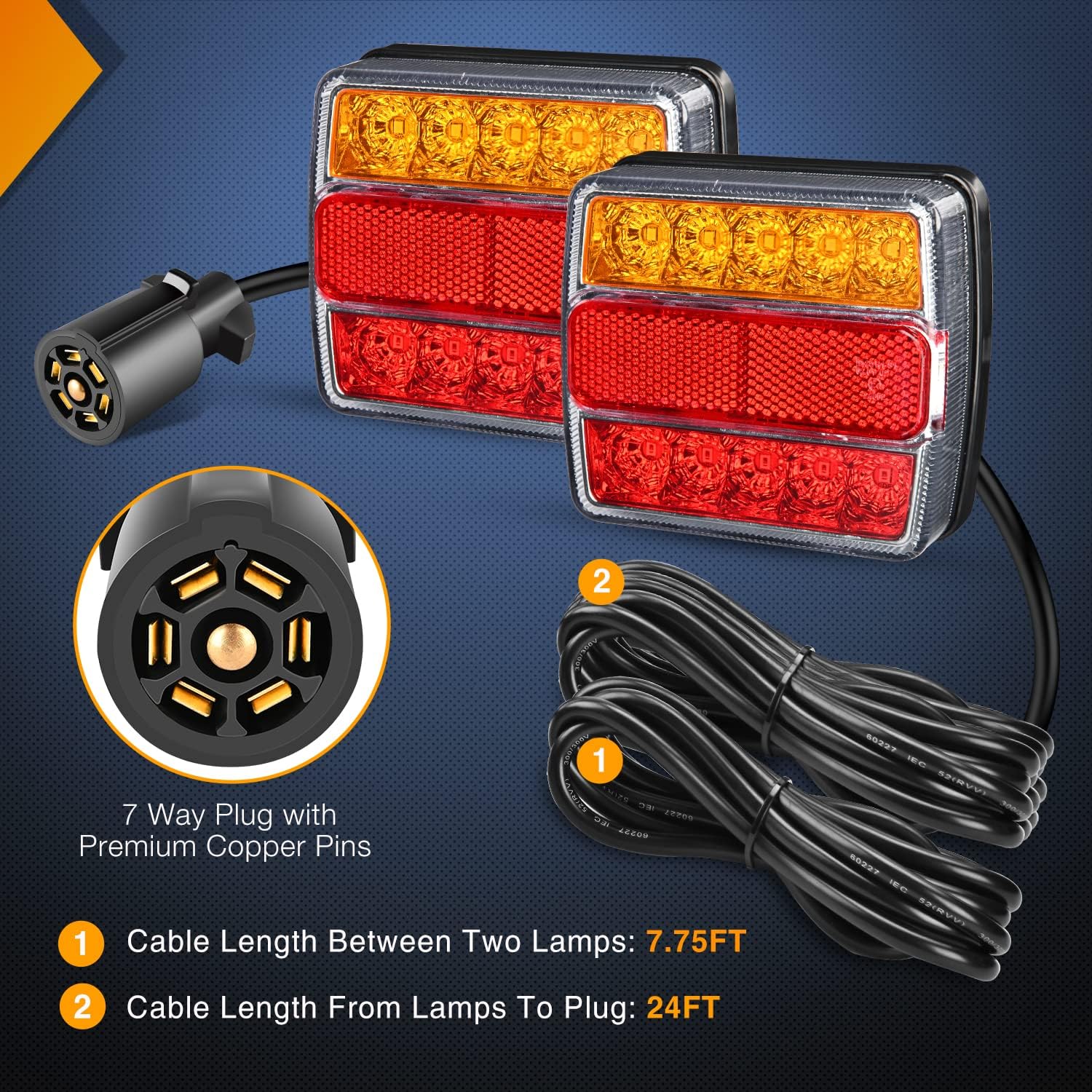

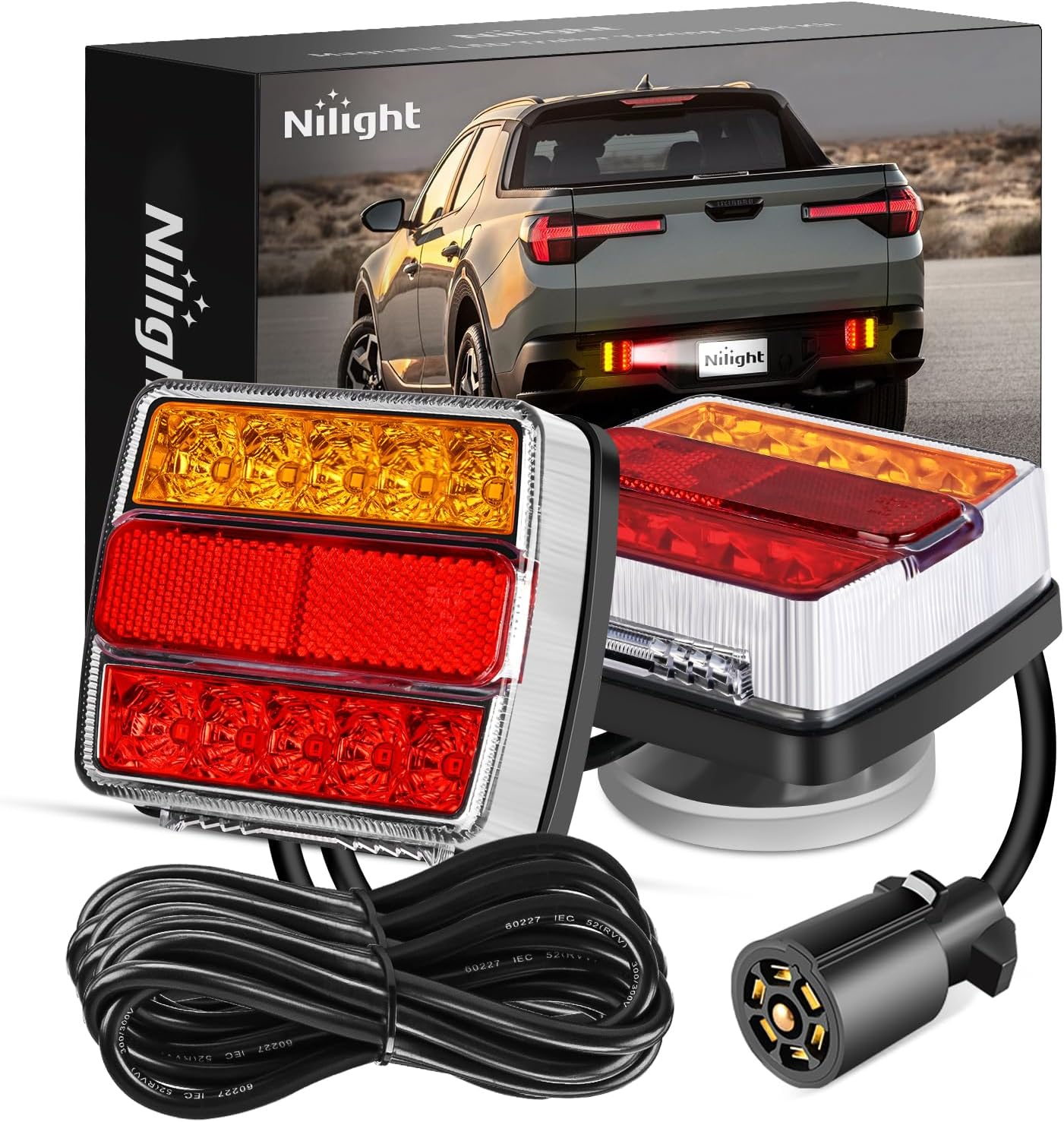

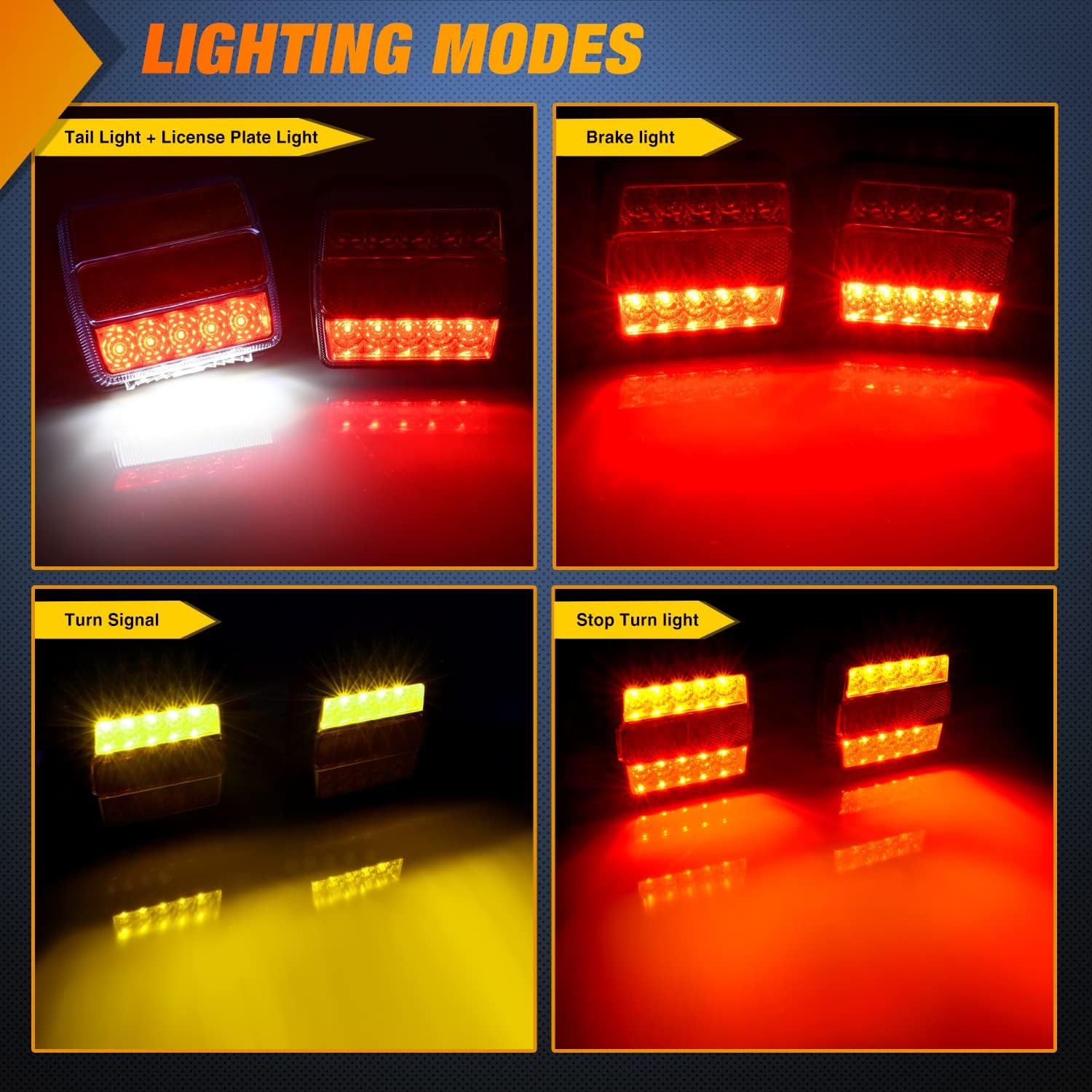

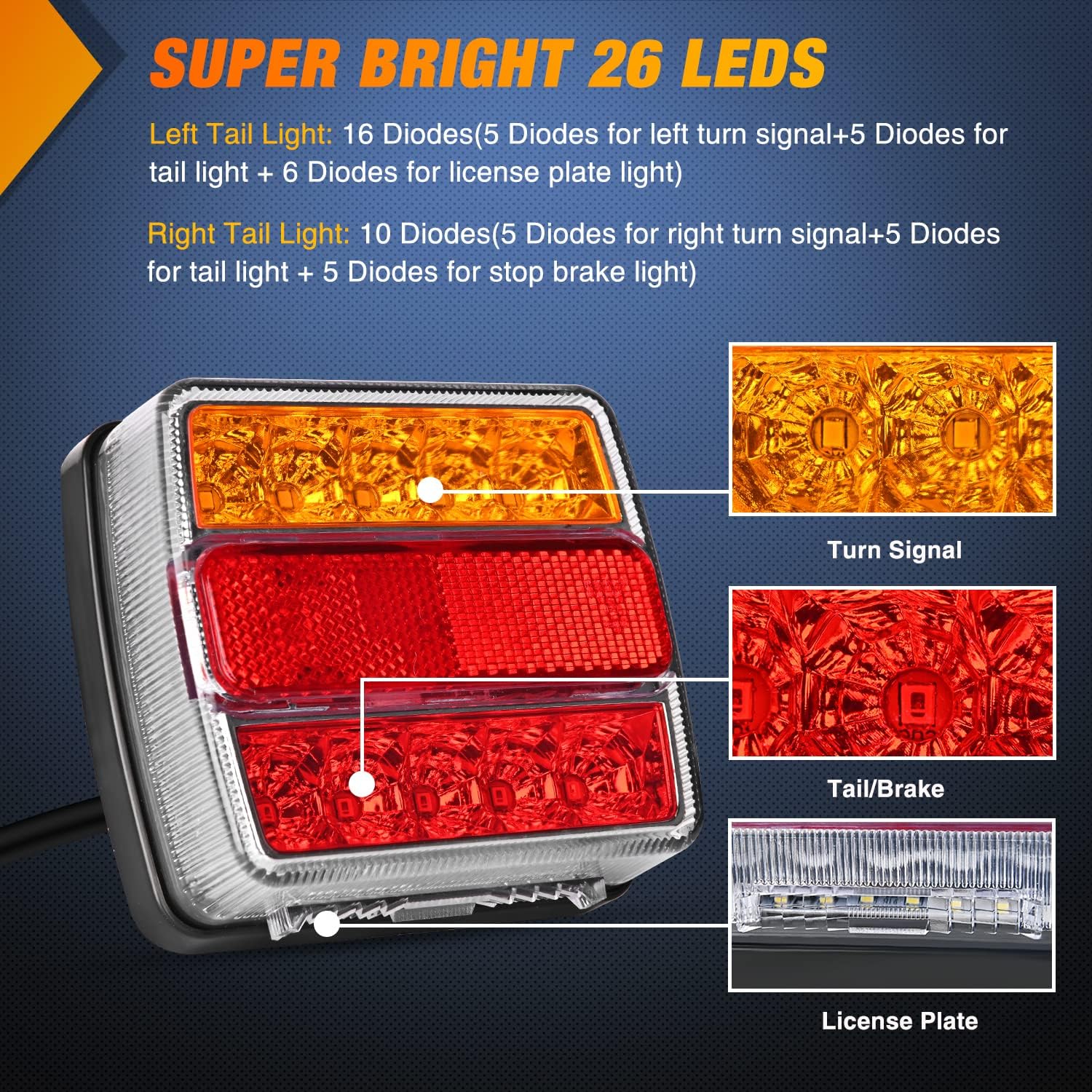

The kit includes two magnetic LED lamps and a 24 ft cable with a standard 7-pin plug for quick connection to a towing vehicle. Each light offers multiple functions: stop/brake, tail/position, turn signal and reflector. The left lamp also integrates dedicated diodes for the license plate illumination. The magnets allow fast mounting and removal, which is convenient for short-term towing or situations where permanent wiring is not available. Note that this product is intended for 5-wire systems only and will not behave correctly on 4-wire vehicles according to the manufacturer.

Technical Specifications

• Name: Nilight Magnetic LED Trailer Towing Light Kit
• Cable length: - 24 ft
• Voltage: - 12V
• System compatibility: - 5-wire tail light systems only
• Protection rating: - IP68 waterproof and submersible

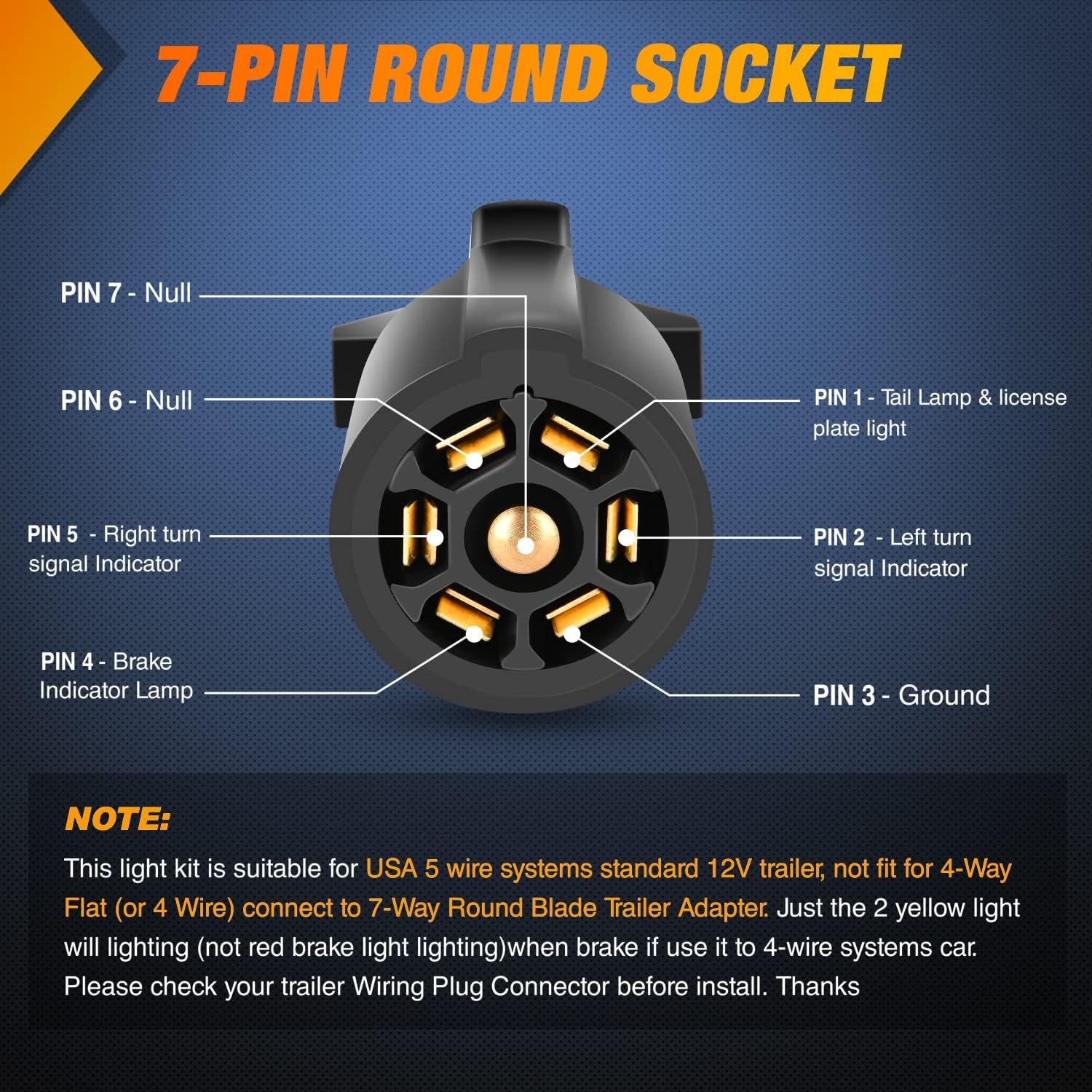

• Connector: - Standard 7-pin plug

Benefits

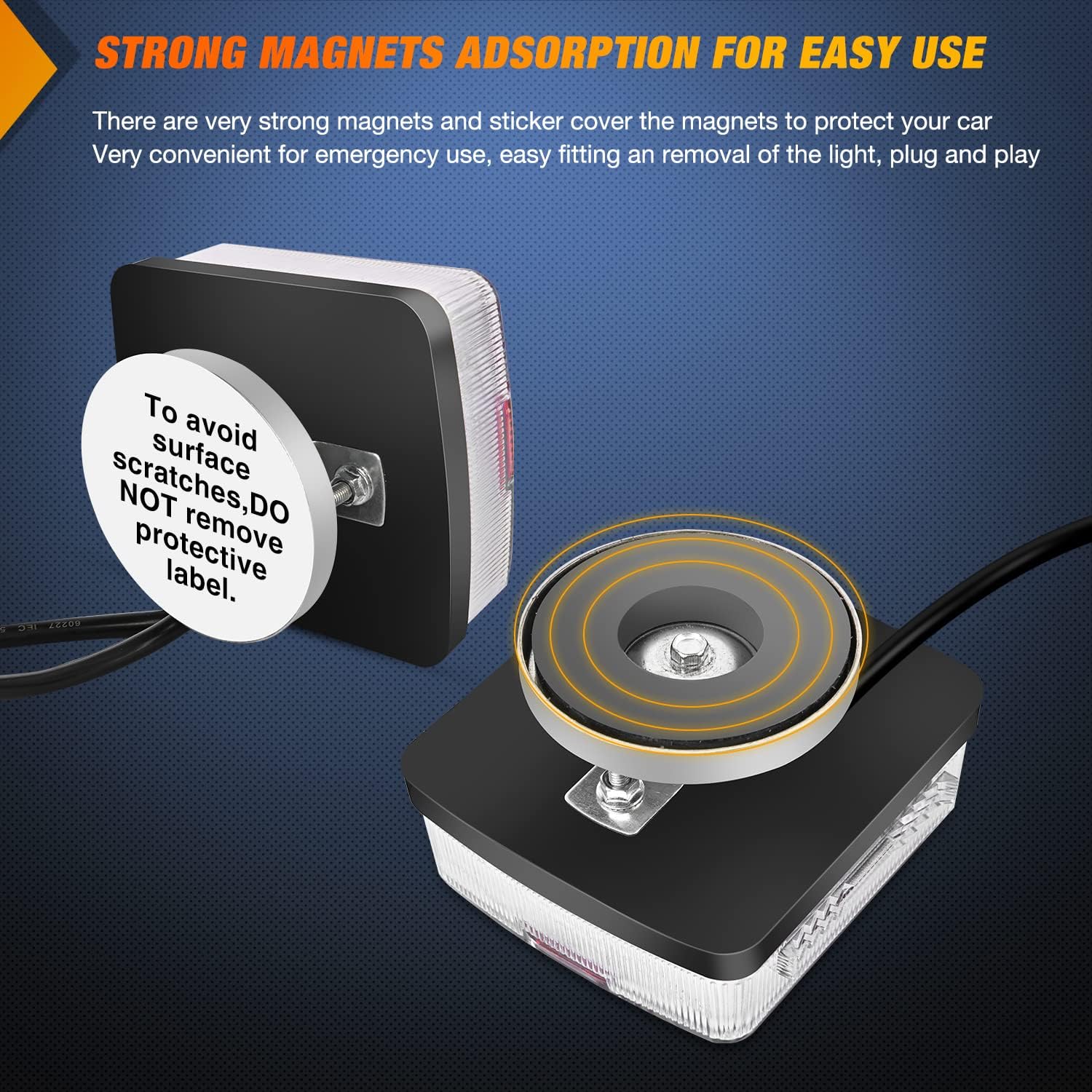

These LEDs offer brighter output while drawing less current than typical incandescent bulbs, which helps with visibility and battery load. The sealed circuit board and fully waterproof construction mean the lights can withstand wet conditions and occasional submersion without shorting. Because the lamps are magnetic, they will stay in place on most metal surfaces over bumpy roads while remaining easy to remove when no longer needed. For users who frequently hitch different trailers or need a temporary lighting solution, the portability and multi-function design save time.

Usage Recommendations

Before installation, confirm your trailer and tow vehicle use a 5-wire tail light system so the colors and functions operate correctly. Route the 24 ft cable securely along the trailer frame and attach the magnetic lamps at the recommended rear positions to ensure clear visibility. Keep the 7-pin connector clean and free of corrosion to maintain reliable electrical contact. Consider that backup lights are not included in this kit, so separate provisions are required if reverse illumination is needed.
