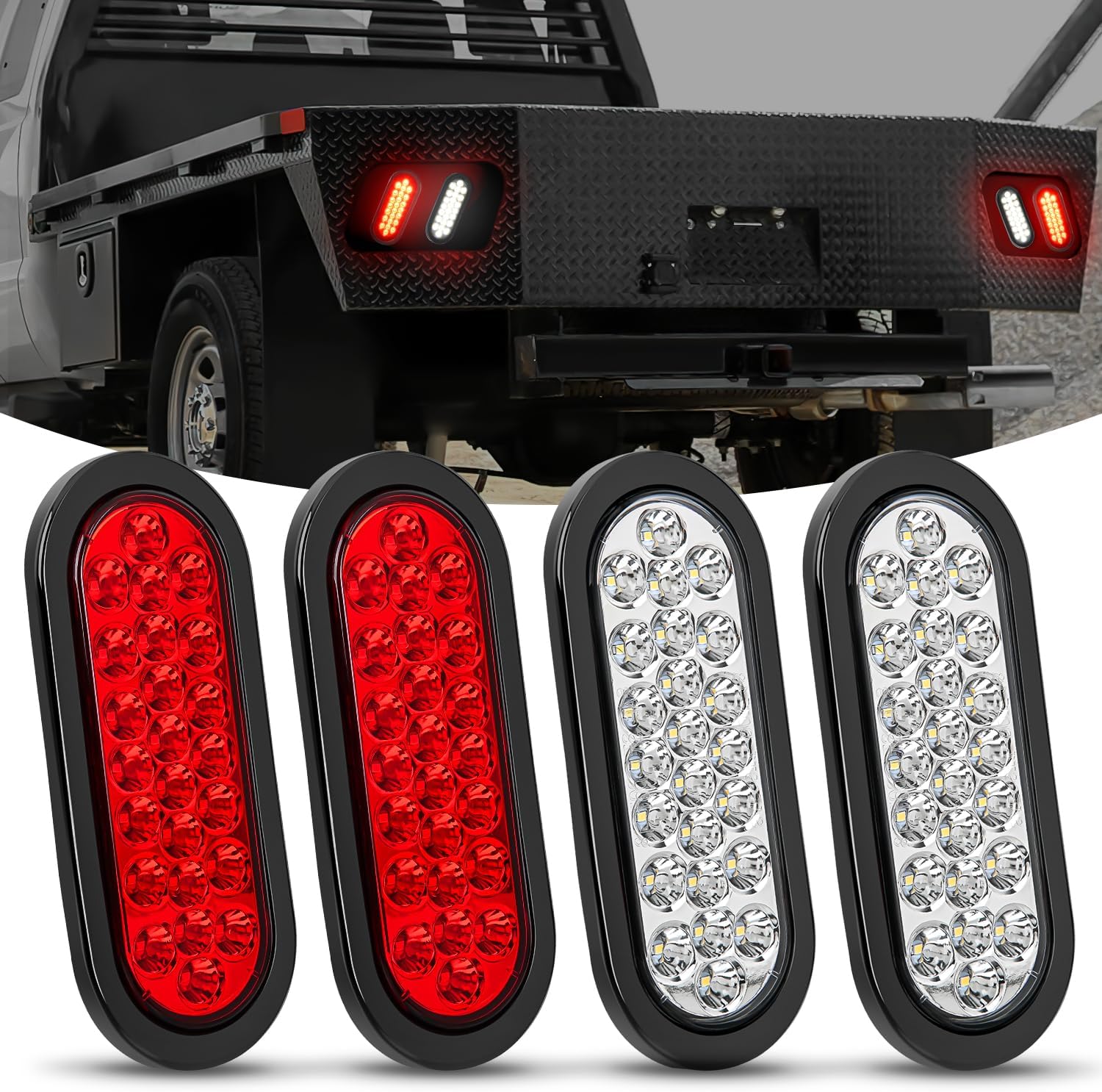

Nilight 6-Inch Oval Trailer Tail Light (4-Pack) White/Red with 24 LEDs, IP67 Waterproof for 12V Trucks, ATV/UTV, RV
Product description
If you’re trying to replace trailer lights without turning the job into a weekend mystery, Nilight’s 6-inch oval tail lights are built around a simple goal: clear, reliable rear visibility. On paper, these combine brake/turn/reverse functions with a dedicated tail-light level, so drivers behind should see more than “just one glow.”
That said, tail light quality depends on more than the housing. It also comes down to correct wiring and making sure the mounting hole and grommets are installed cleanly. If that part isn’t your strong suit, you may find the install a bit fiddly.
The essentials
This is a 4-piece set of Nilight oval trailer tail lights in a white/red style, designed for 12V DC vehicles. The lighting layout uses 24 SMD LEDs per light and supports multiple signals: high-brightness modes for brake/turn signal/reverse, plus a lower-brightness mode for tail lighting.

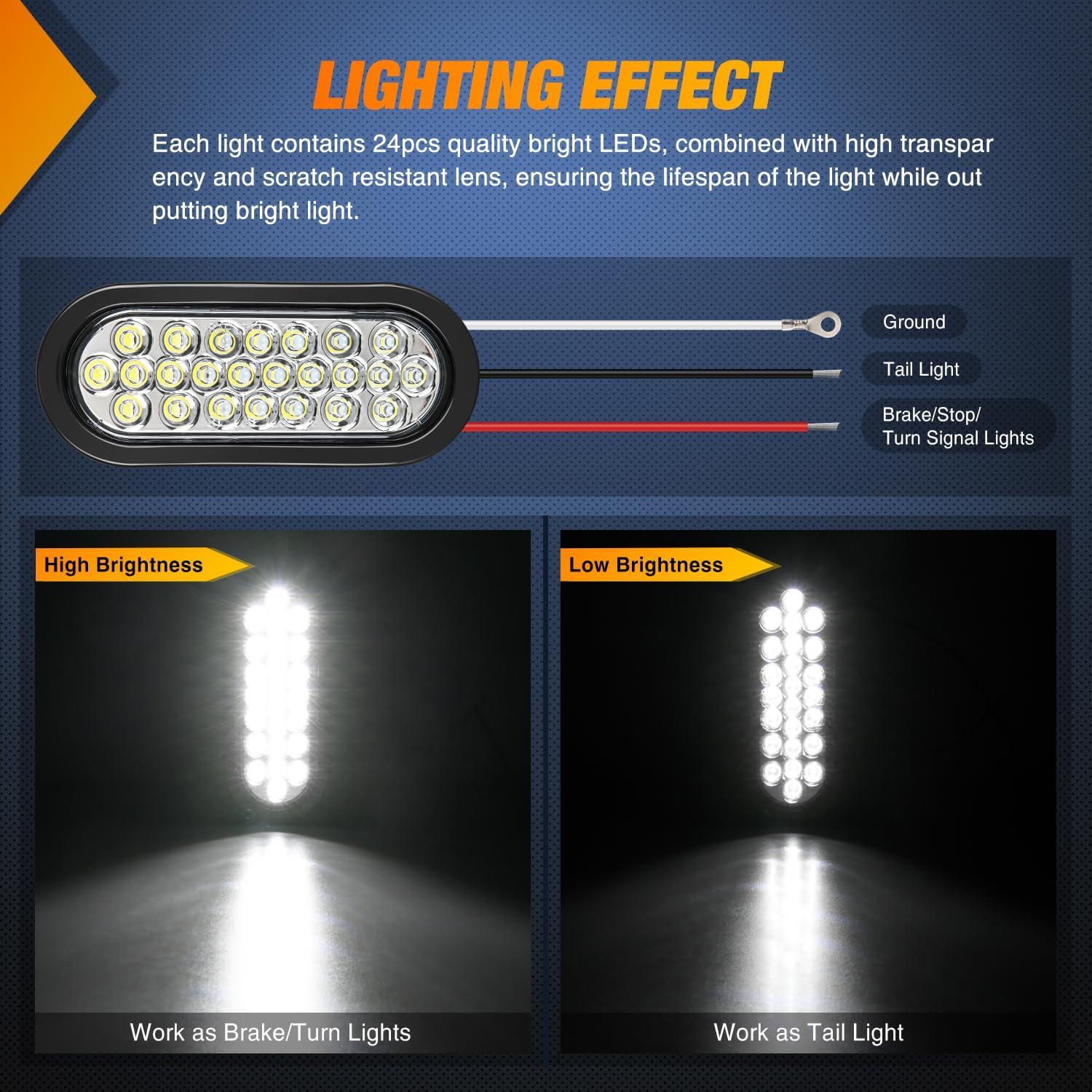

A key detail here is the “two levels of brightness” approach. In real-world traffic, that difference matters because brake and turn signals usually need stronger emphasis than steady running lights. The clear brightness transitions are intended to make it easier for vehicles behind you to understand what’s happening.
Key takeaways (what matters most)
What you’ll likely notice day to day is how the lights communicate intent. Brake/turn/reverse are treated as high-brightness outputs, while the tail-light function runs at lower brightness. Over time, that can reduce the “is it braking or just lit?” confusion.

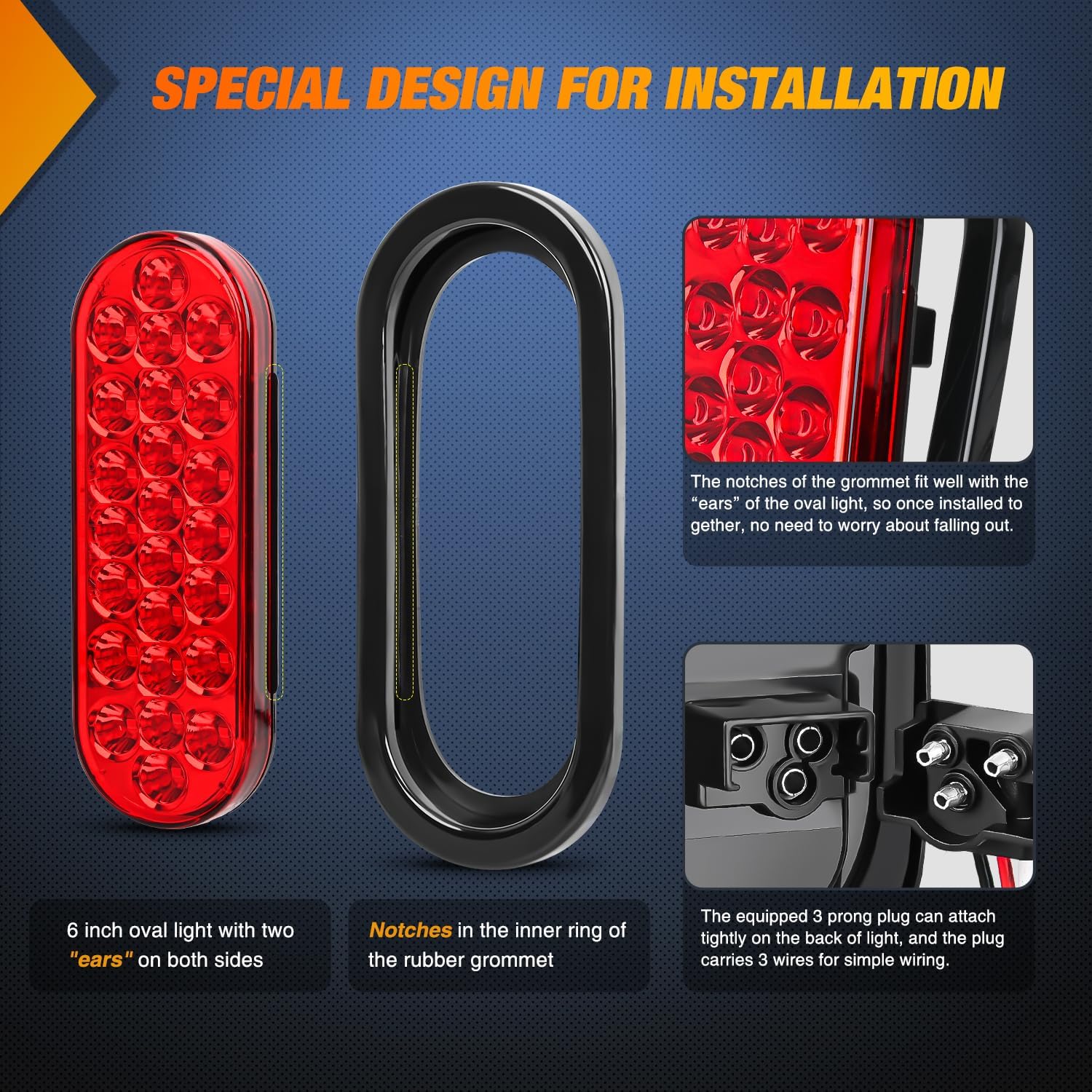

Another thing worth paying attention to is the build approach. The design includes an anti-loosening concept with side “ears” and upgraded notches on the inside of the grommet, aiming to keep the light and grommet tightly connected. It’s also paired with a 3-prong plug/socket connection meant to reduce the risk of something working loose.
Tech specs
- Type: Oval trailer tail light (white/red)
- LEDs: 24 SMD LEDs per light
- Functions: Brake/turn signal, reverse/back up, and tail light
- Brightness behavior: Two brightness levels (high for brake/turn/reverse, low for tail)
- Mount style: Flush mount with grommets

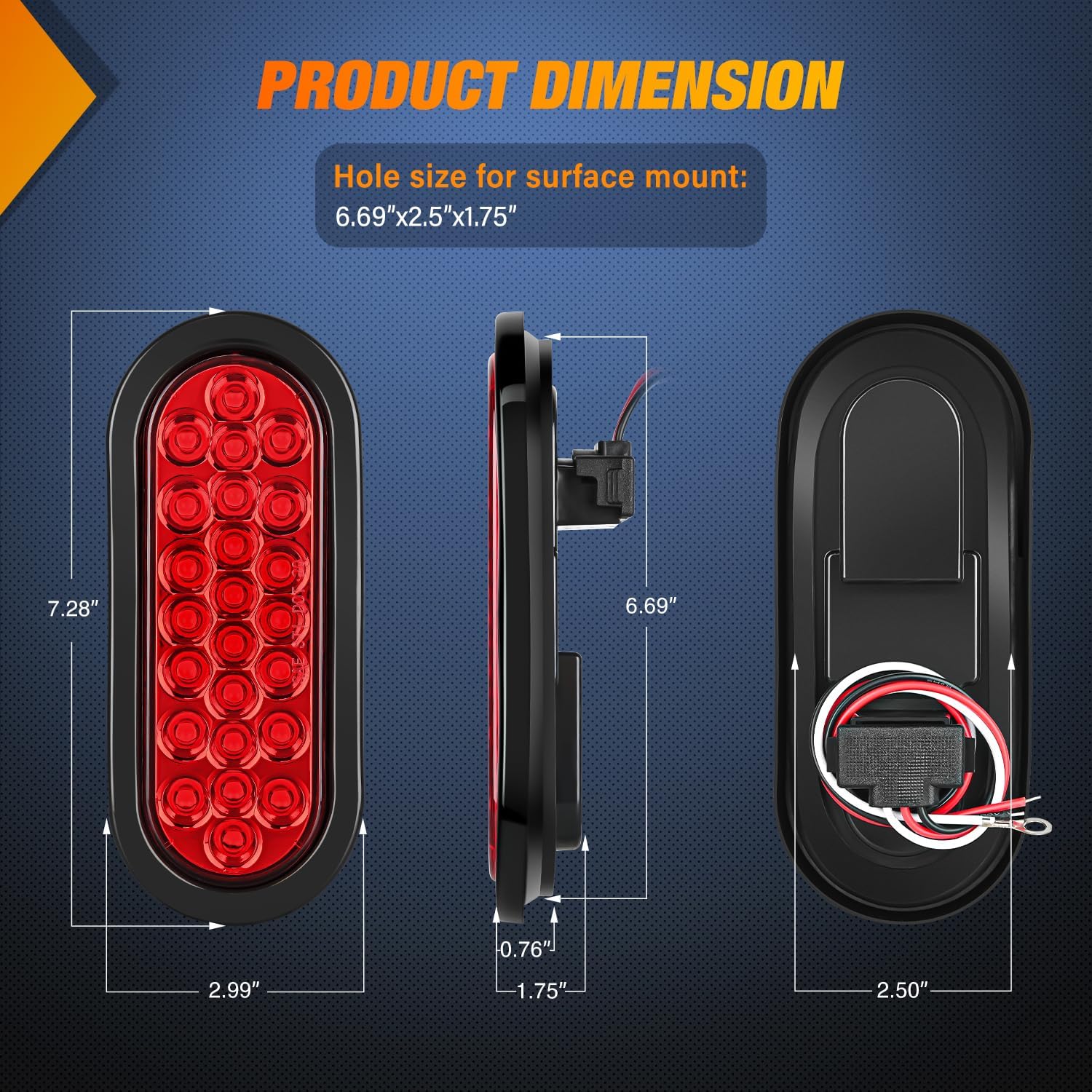

- Mount hole size: 6.69” x 2.5” x 1.75”
- Waterproof rating: IP67
- Intended power: 12V DC
- Ingress protection approach: Sealed design using ultrasonic + lens + housing, plug-in connection helps hinder water entry
What you’ll notice in use
Here’s a practical example: you tap the brakes on a trailer at dusk. The high-brightness brake/turn output is meant to visually stand out, while your tail-light level handles the steady “running” look. Then when you reverse, the reverse light function kicks in as a separate high-brightness mode, which should make backing up more readable to people behind you.
None of this replaces safe driving, but if your current lights look dim or all do the same thing, this multi-signal setup is aimed at making your trailer’s actions easier to track.
One limitation to keep in mind: the listing describes the effect “with lenses,” meaning the final visibility will still depend on alignment, mounting angle, and whether the lens/gasket area stays clean.
Where it shines (and where it doesn’t)

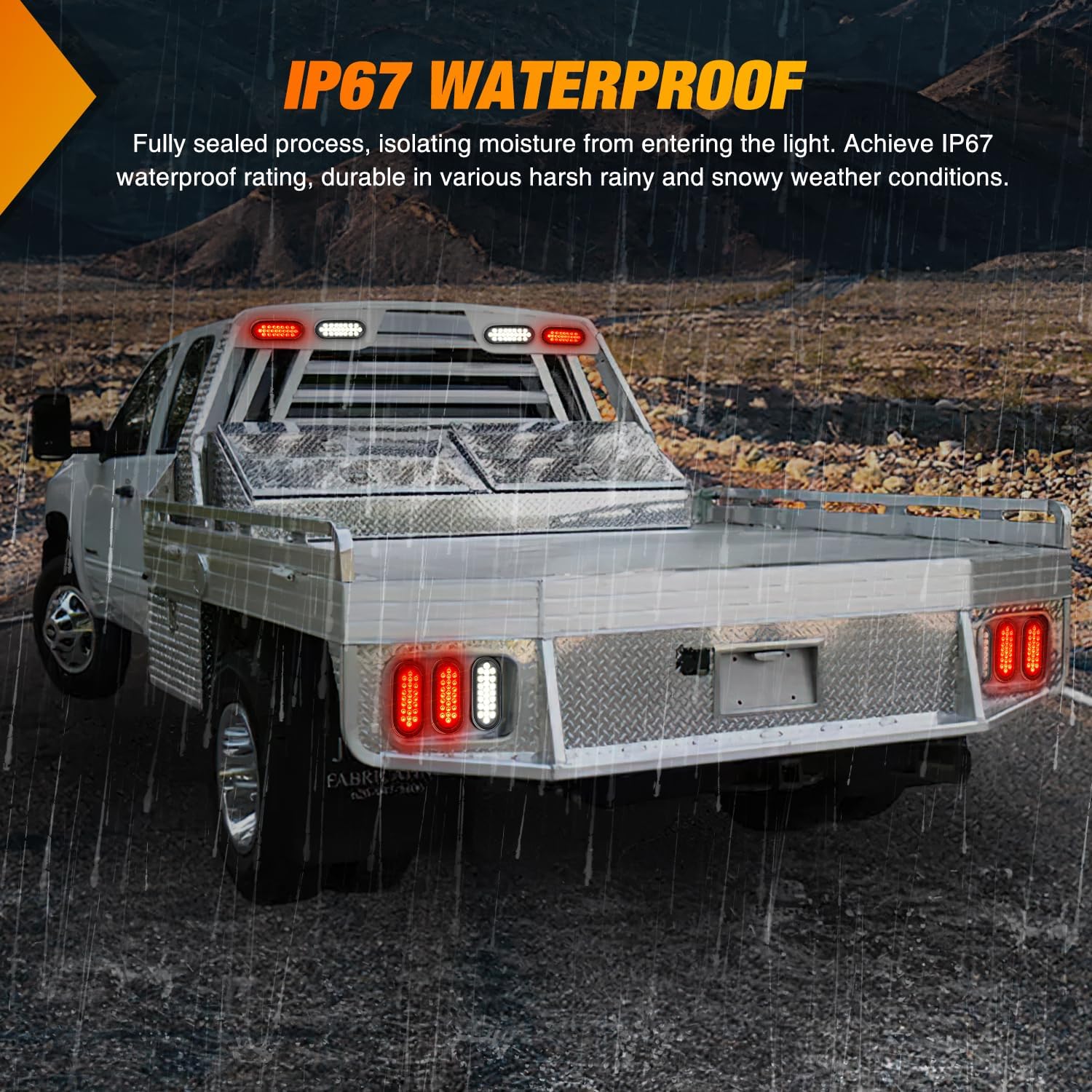

This set is a solid fit if you have a 12V setup and you want a multi-function trailer tail-light replacement in a flush-mount style. It’s also positioned for people who drive in harsher conditions, since the lights are described as IP67 waterproof and intended to be used in severe weather.
It may not suit you as well if: - You don’t have room or the ability to cut the specified mount hole size. - You prefer a plug-and-play experience without any wiring steps (the install still calls for routing/connectivity with the 3-prong plug and wiring the 3 wires lead). - Your priority is not sealed/weather-focused performance, in that case, simpler options might be easier and cheaper to live with.
Installation and fit considerations

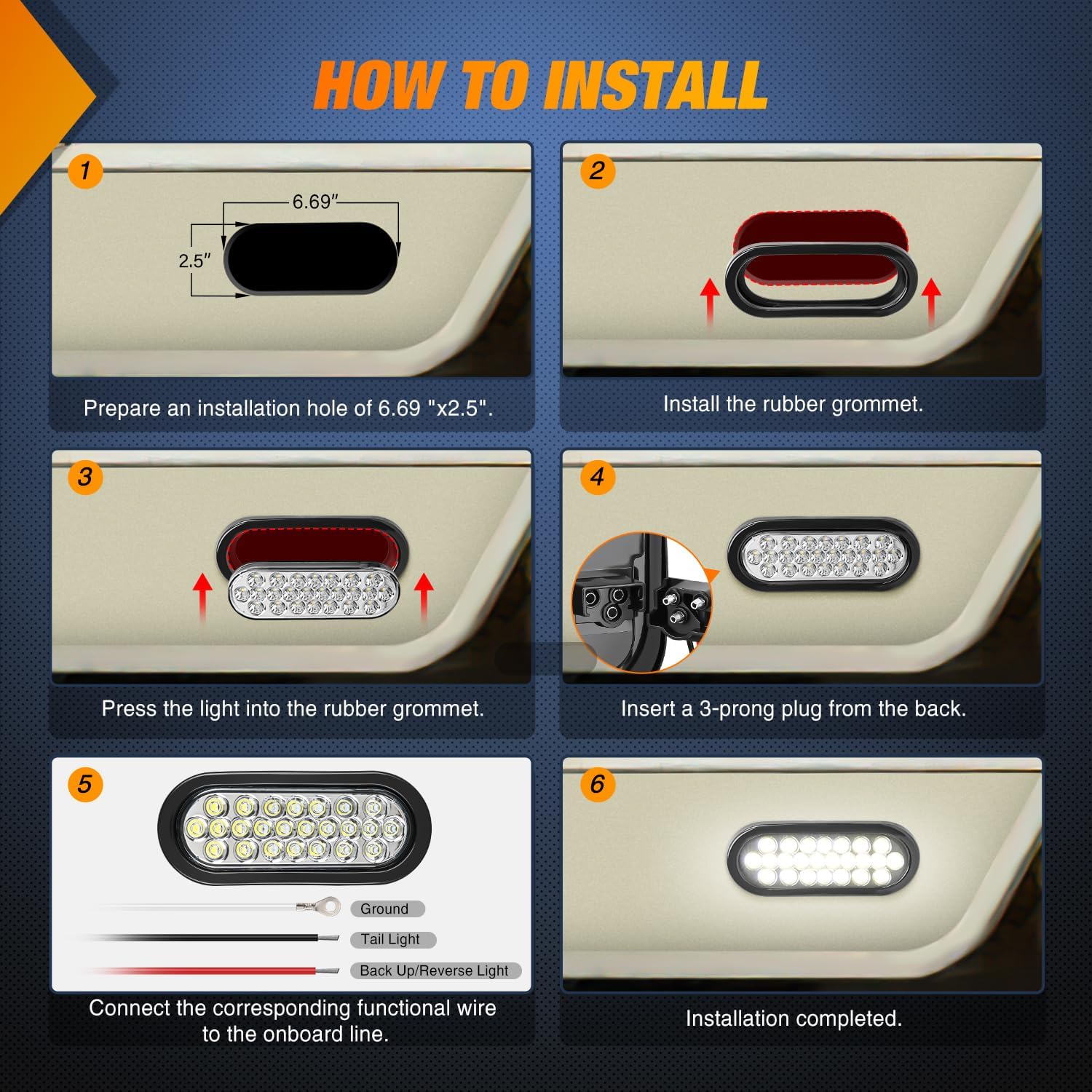

The mounting approach is fairly straightforward, but it requires doing each step in the right order. The general flow is to prepare a suitable hole, install the grommets and lights in sequence, then attach the 3-prong plug and connect the 3 wire leads.
Because the design leans on a tight seal, you’ll want to take your time with the grommet installation and the fit around the hole. If something is slightly off, the waterproof promise (IP67) is harder to achieve in practice.

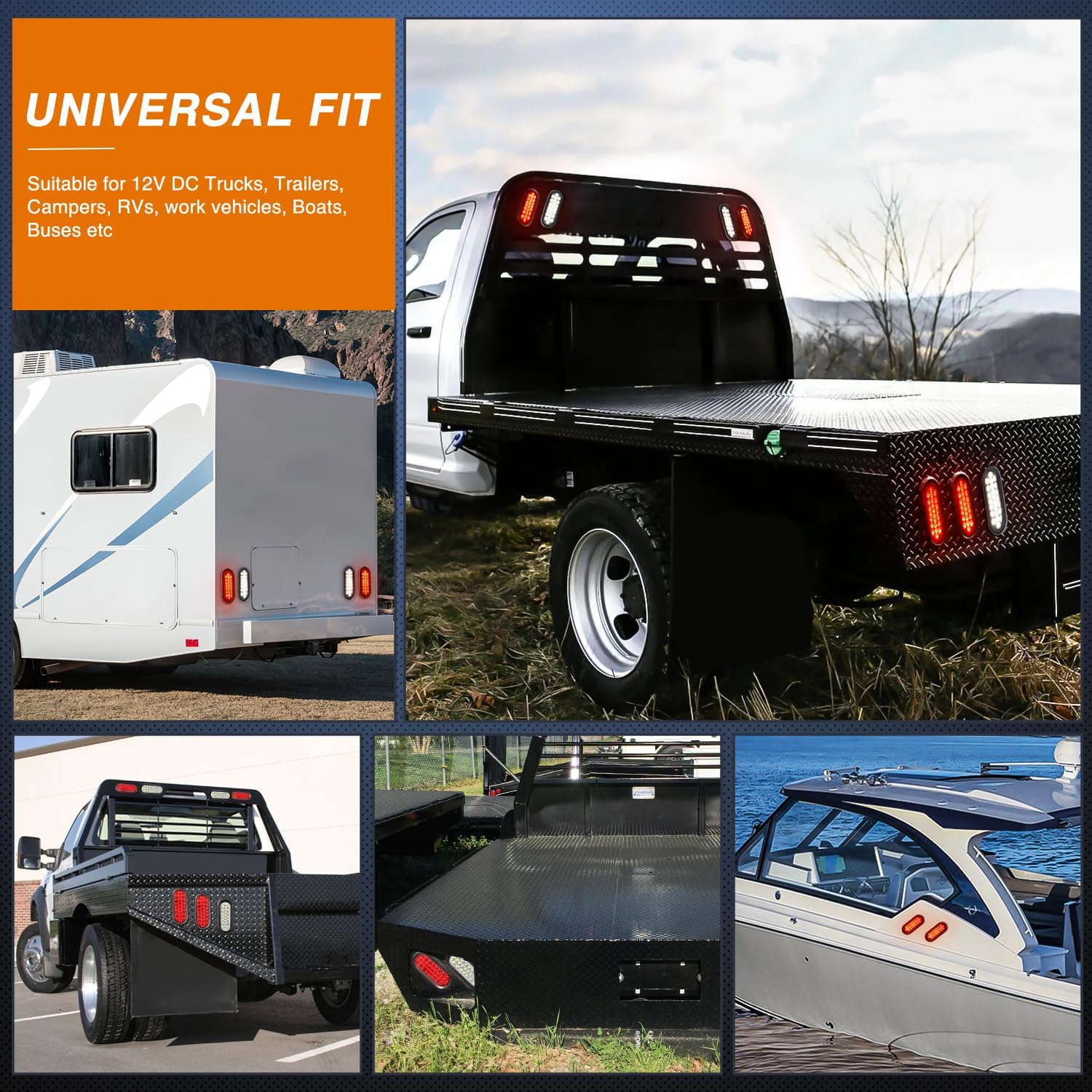

Also, this listing points to broad vehicle use cases—12V trucks, trailers, tractors, semi-trailers, horse trailers, travel trailers, dump trucks, special vehicles, boats, and more like ATV/UTV and RV campers. The key question is whether your current setup expects this kind of flush-mount oval light and whether your wiring matches the intended functions.
In the box
The product name indicates a 4-piece set of oval trailer tail lights.
When it makes sense?
Buy these Nilight 6-inch oval trailer tail lights if you need a 4-pack replacement for a 12V vehicle and you want multi-function signaling (brake/turn/reverse plus tail lighting) with two brightness levels, backed by an IP67 waterproof sealing design.
Skip them if your mount hole size can’t match the listed 6.69” x 2.5” x 1.75” requirement, if you’re not comfortable with the described flush-mount + grommet install and wiring, or if you only need a basic single-function rear light.
If your current lights are hard to read or don’t clearly differentiate between running light and active signals, this is the kind of upgrade that tends to feel worth it—provided the install is done carefully.
Quick FAQ
What do the two brightness levels mean?
The listing describes high brightness for brake/turn signal/reverse light and low brightness for the tail light, which is intended to make your actions easier to interpret.
Are these lights waterproof?
They’re described as IP67 waterproof, with a sealed design using lens and housing and additional help from the plug-in connection to hinder water entry.
What vehicles are they meant for?
The description lists compatibility for 12V DC trucks and a wide range of trailers and specialty vehicles (including ATV/UTV and RV camper use cases), but you still need to confirm your wiring and mounting needs.
Do they require a flush mount hole?
Yes. The install is described as flush mount, and the mount hole size is listed as 6.69” x 2.5” x 1.75”.
Do I need to wire them?
The install steps reference connecting the 3 wire leads after attaching the 3-prong plug, so you should expect some wiring work.
