Nilight 5-Pack DPDT 6-Pin Heavy-Duty Rocker Toggle Switch (with waterproof boot caps)
Product description
The essentials

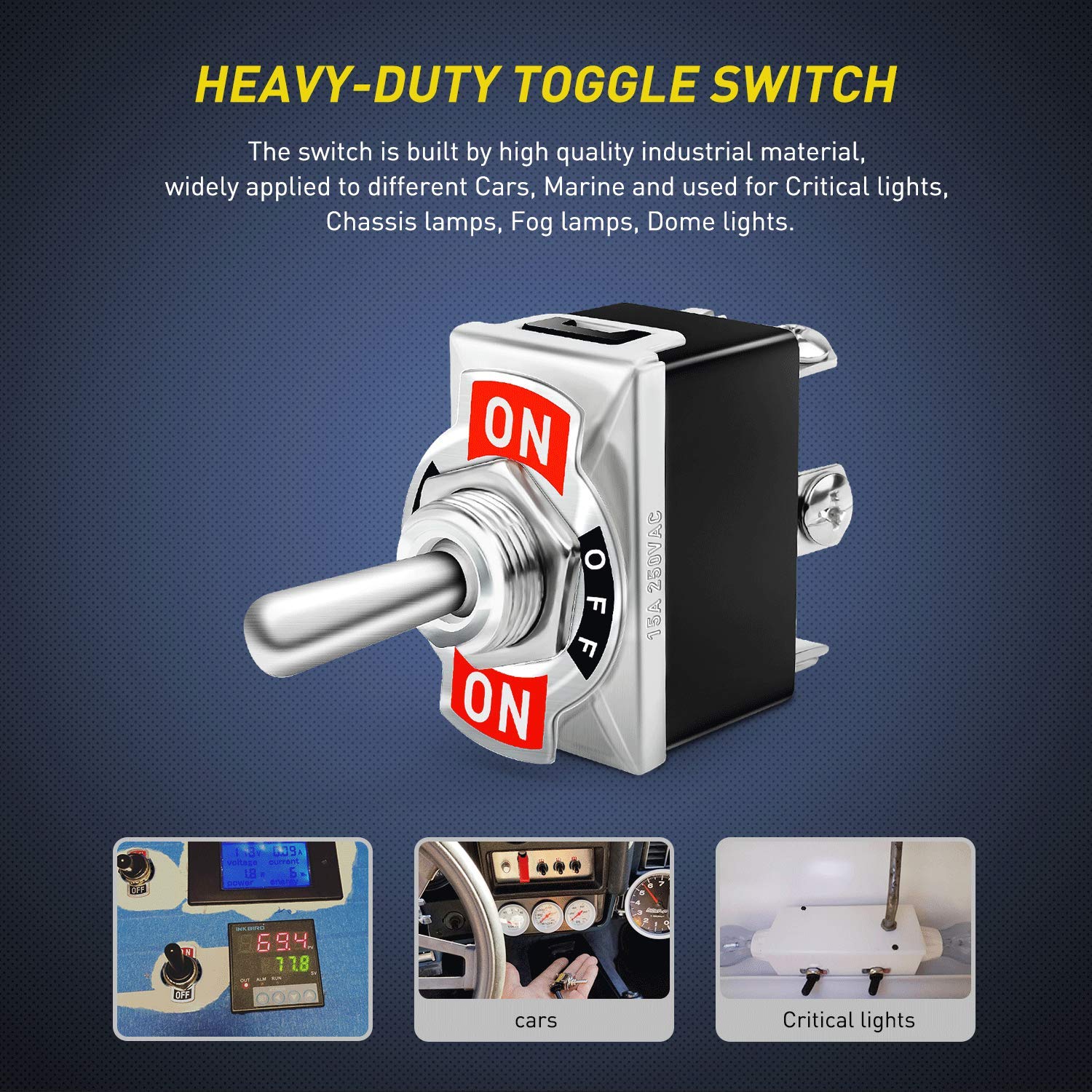

If you’re wiring up equipment that sees real-world mess—bumpy surfaces, moisture risk, frequent use—Nilight’s 5-pack of DPDT 6-pin rocker toggle switches is built for that kind of job. On paper, the mix of a metal/plastic body plus a waterproof rubber boot cap cover is the point: you get a switch that’s designed to sit in a panel and keep the terminals protected when things get wet.
It’s not a “smart” switch, and it’s not pretending to be something it isn’t. This is a straightforward, heavy-duty ON/OFF/ON rocker toggle meant for projects where reliability and serviceability matter. The 5-pack also makes it easier to plan a multi-switch panel without grabbing single replacements later.
What it is (and what it’s for)
This Nilight set includes 5 rocker toggle switches with a DPDT connector type and a 6-terminal pin layout (ON/Off/ON). That usually fits situations where you need more control than a basic single-pole switch, and where you want a clean, panel-style install.
A practical example: imagine you’re building or updating a dashboard-style control panel for a vehicle or outdoor setup. You cut a mounting hole in the panel, wire the terminals using the included screw contacts (or solder if you prefer), and use the waterproof boot cap to help protect the switch area. Once installed, the rocker action is the kind of thing you can operate repeatedly without babying it.
Where it stands out
The strongest “buy it for this” reasons here are:

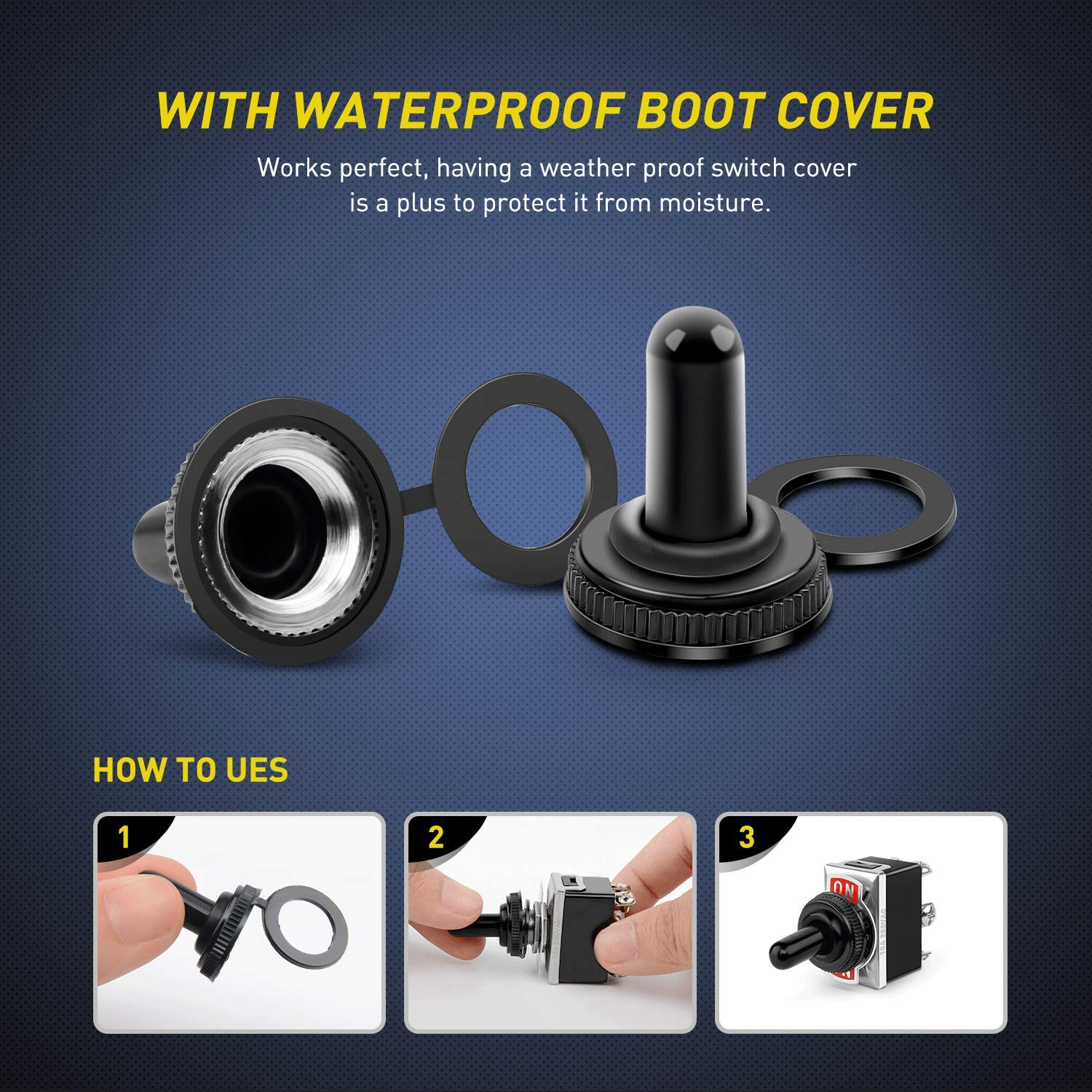

- Water resistance with the boot cap cover: the waterproof rubber cap and boot-style protection are included, not an afterthought.
- Service-friendly wiring: each terminal has a machine screw for quick connections, and the terminals are also described as easy to solder.
- Built for frequent cycling: the listing states a mechanical life of more than 50,000 cycles and an electrical life of more than 10,000 cycles. That’s meaningful if you expect regular toggling, not once-in-a-while hobby use.
- Panel fit is defined: a 1/2" mounting hole and an O12mm mounting hole diameter are provided, which helps you confirm compatibility before committing.
What to consider before buying
This switch set gives you a lot, but it won’t be the right match for every plan.
First, the specs are clear enough to help you choose safely, but you still need to confirm your circuit requirements. The listing includes power ratings of 15A 250VAC and 20A 125VAC. If your project’s wiring falls outside what you intended to run on that side of the line, you’ll want to double-check before installing.
Second, the “delicate appearance” and “chic” look are mentioned alongside strong construction. That’s nice for a clean panel, but if you’re expecting rugged industrial-grade enclosures and sealing for extreme immersion, you’ll want to treat the waterproof boot cap as protection for the switch area—not a guarantee for every harsh environment.
Tech specs

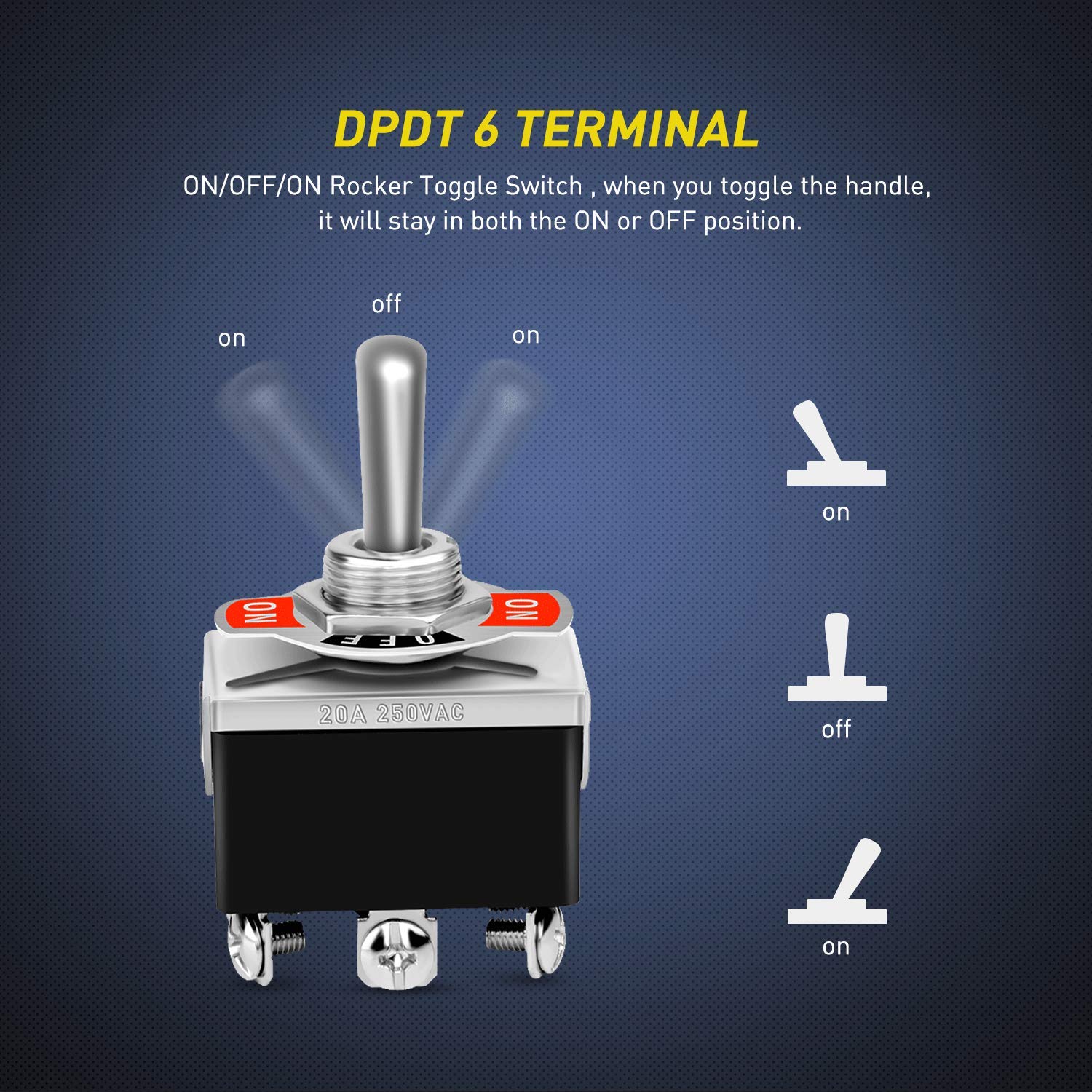

- Type: DPDT, 6 terminal pin on/off/on
- Power rating: 15A 250VAC / 20A 125VAC

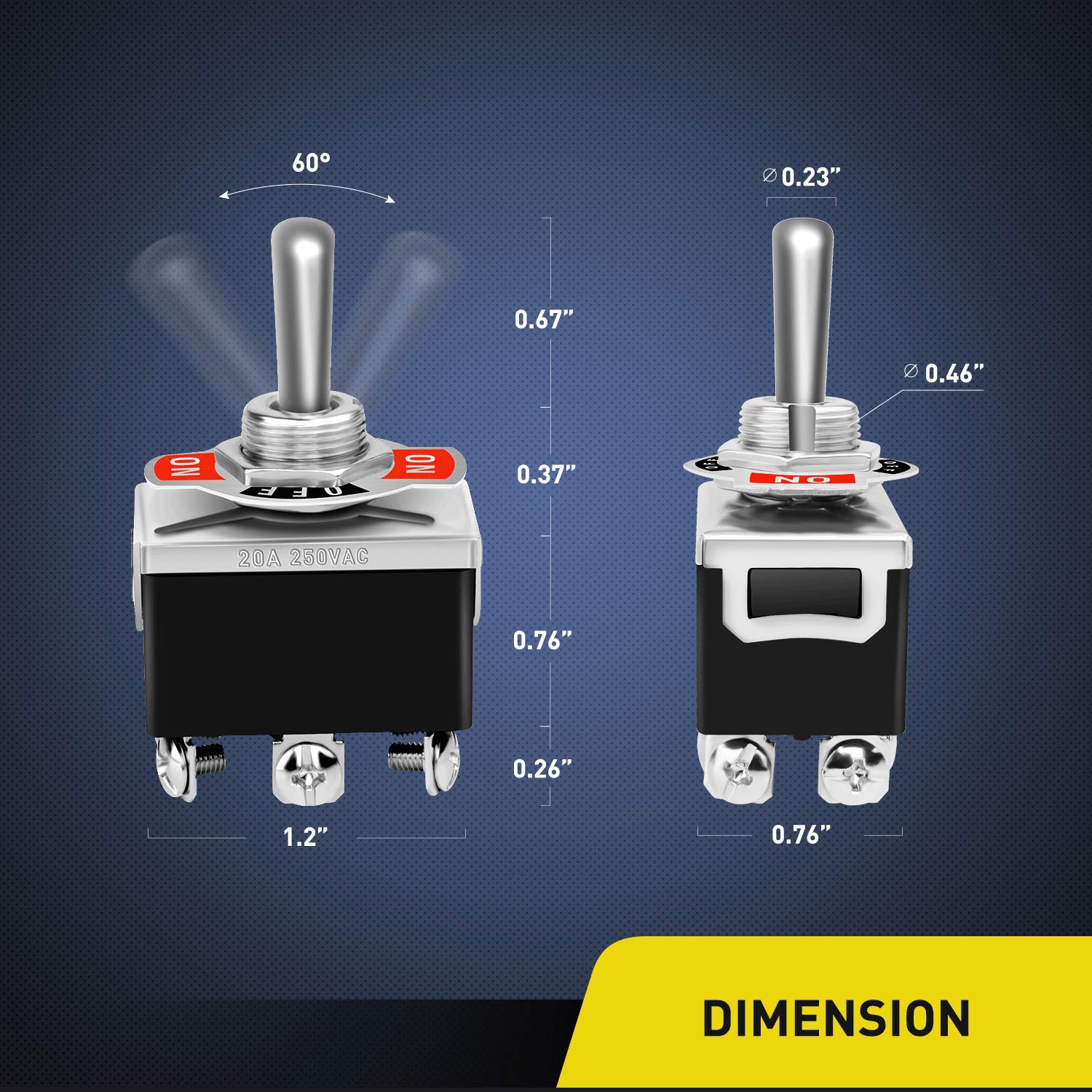

- Mounting hole: 1/2" (O12mm)
- Material: plastic and metal
- Mechanical life: more than 50,000 cycles
- Electrical life: more than 10,000 cycles
Who it suits (and who should skip it)
It makes sense if you’re building a control setup where you want a clean rocker switch panel, reliable repeated actuation, and included waterproof boot cap protection. It’s also a smart buy if you expect to install multiple toggles and prefer buying a matched set.
You may want to skip it if your project doesn’t need a DPDT ON/Off/ON configuration, or if you can’t match the mounting hole size. Also, if your use case demands a level of sealing beyond what a boot cap can reasonably cover, you may be better off looking at a different enclosure approach.
In the box
- 5 toggle switches
- 5 waterproof boot cap covers
Should you buy it?
Buy the Nilight 5-pack if you’re wiring a multi-switch panel and you want a DPDT 6-pin ON/Off/ON rocker with screw terminals, a defined mounting hole size, and included waterproof rubber boot caps—especially for projects where moisture risk and frequent toggling are both real.
Don’t buy it if you’re unsure about circuit compatibility with the stated AC power ratings, you don’t need DPDT/ON-OFF-ON switching, or your panel can’t accommodate the 1/2" (O12mm) mounting hole.
If you’re choosing between a basic switch and something that’s at least designed around protected installation and longer cycling life, this one has a clear reason to exist.
Quick FAQ
Can I wire these using screws or solder?
The listing says each terminal has a machine screw for quick connections and that it’s also easy to be soldered, so you can choose based on your wiring style.
What mounting hole size do I need?
It specifies a 1/2" mounting hole and O12mm diameter. Double-check your panel before cutting.
Is it really waterproof?
It includes a waterproof rubber cap/boot cover. That should help with moisture around the switch area, but you still should consider your environment and how exposed the setup will be.

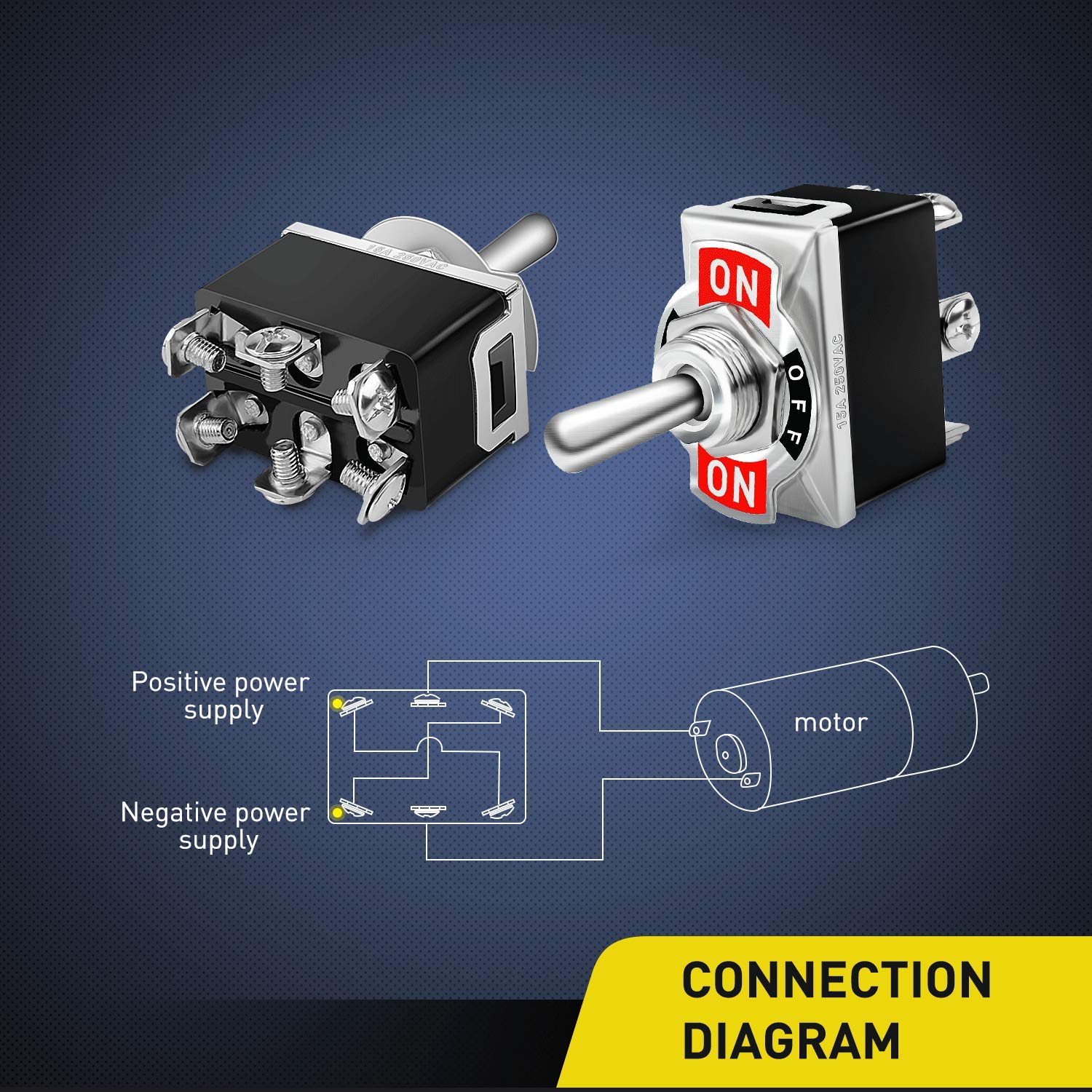

What is DPDT ON/Off/ON used for?
DPDT indicates a double-pole setup, and ON/Off/ON means the center position breaks one path while connecting another depending on how you wire it. You’ll want to match the switching logic to your circuit design.
