NAOEVO Automotive Wire 20 AWG

A stiff wire can make tight bends and compact DIY layouts frustrating, especially when a project needs several circuits kept distinct. This NAOEVO 20 AWG silicone wire set provides six colors on separate spools, with stranded tinned-copper conductors and flexible insulation for routing around automotive, LED, and electronics projects. The silicone jacket is rated from -60°C to 200°C, and the kit includes colored cable ties for basic organization. Its stated current rating is 5A, so matching the wire to the load matters more than the broad list of possible uses suggests.

Getting the most from it

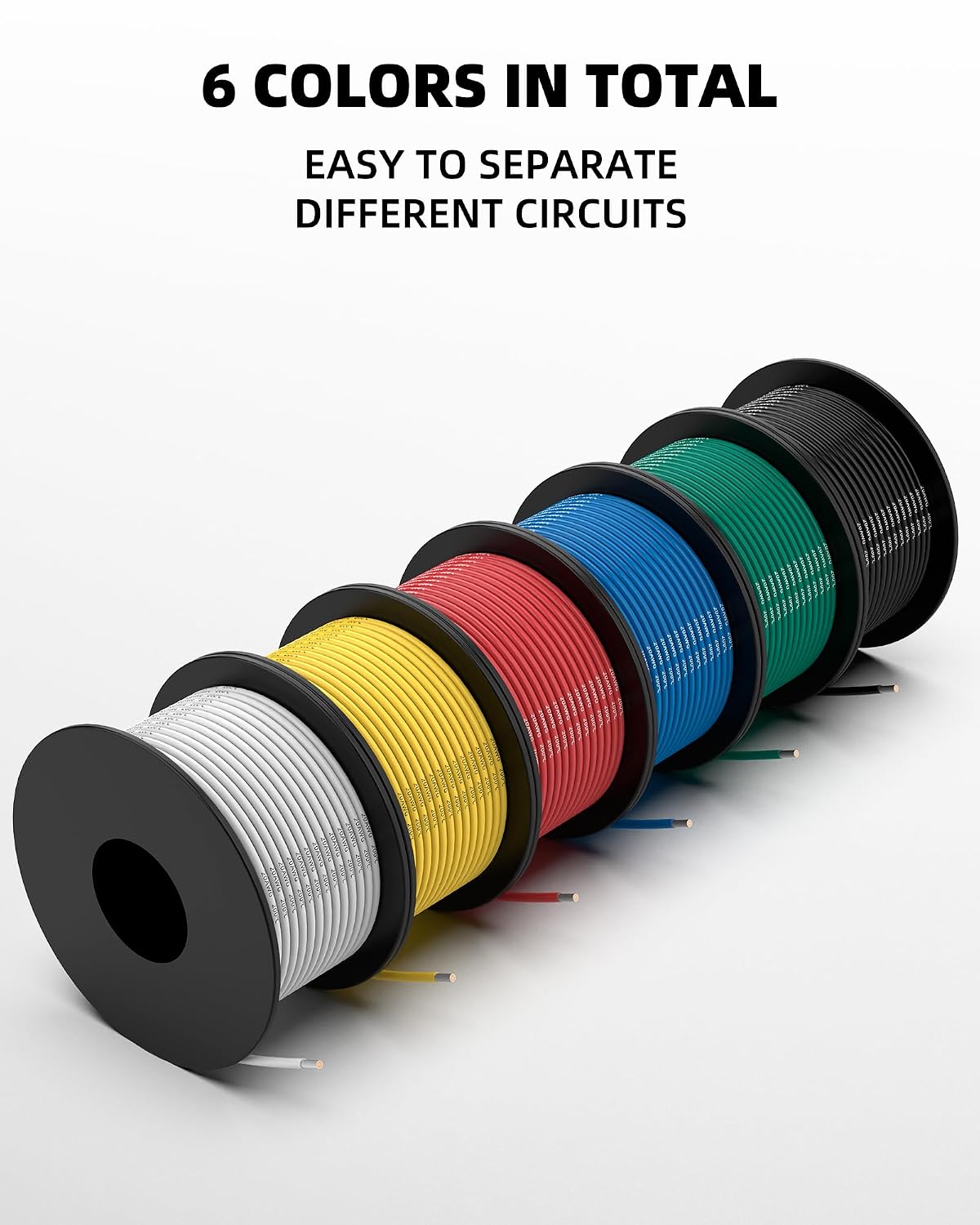

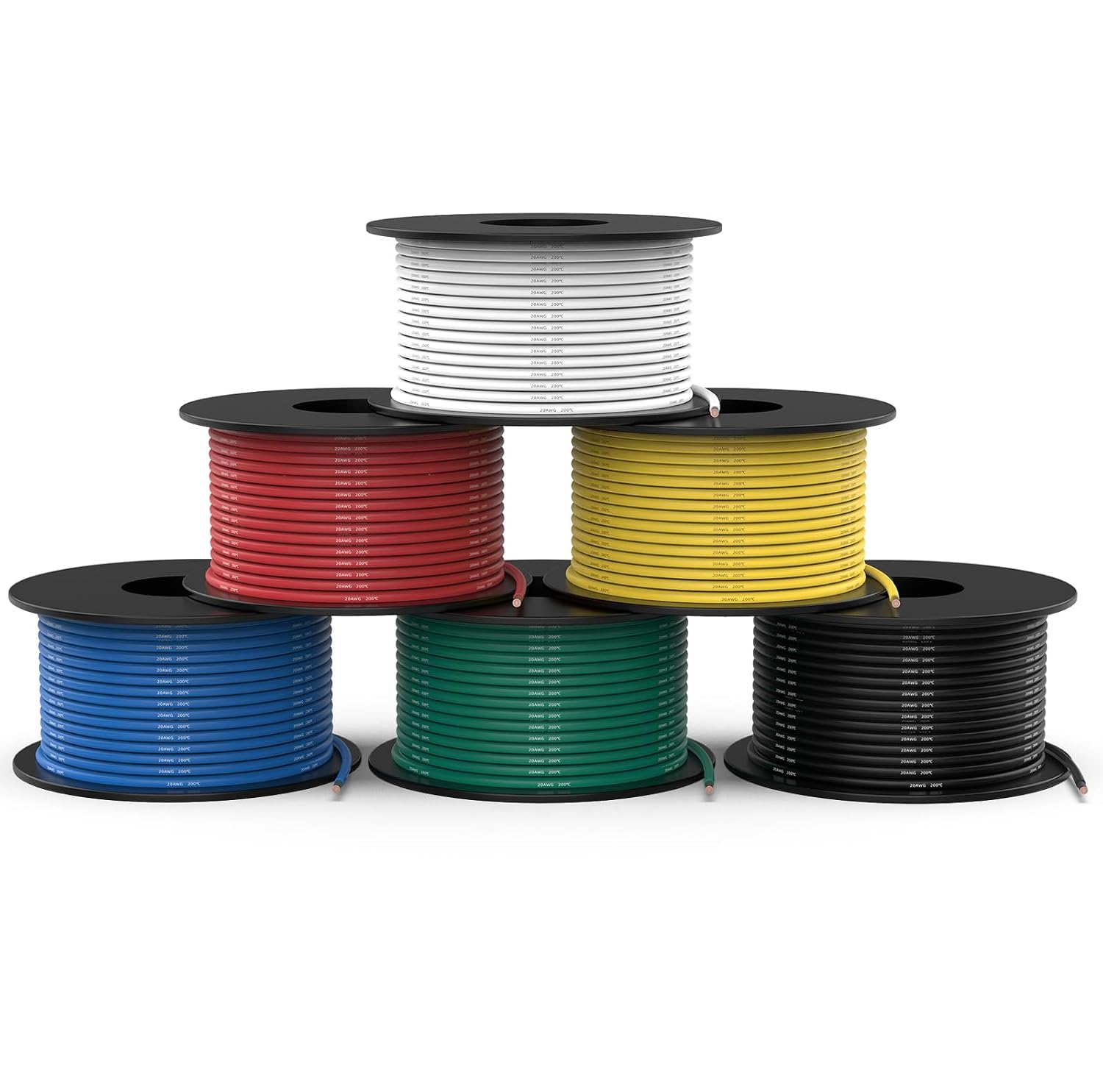

The set contains 300 feet total: six 50-foot spools in red, black, white, blue, green, and yellow. That layout is useful when you want to mark positive and ground lines, separate signals, or keep multiple runs distinguishable while building a project. For example, on a small LED setup, you can route a red lead and a black return through the same enclosure, then use the other colors for separate connections instead of labeling every end as you go. Colored cable ties are included to help bundle or identify wire during installation.

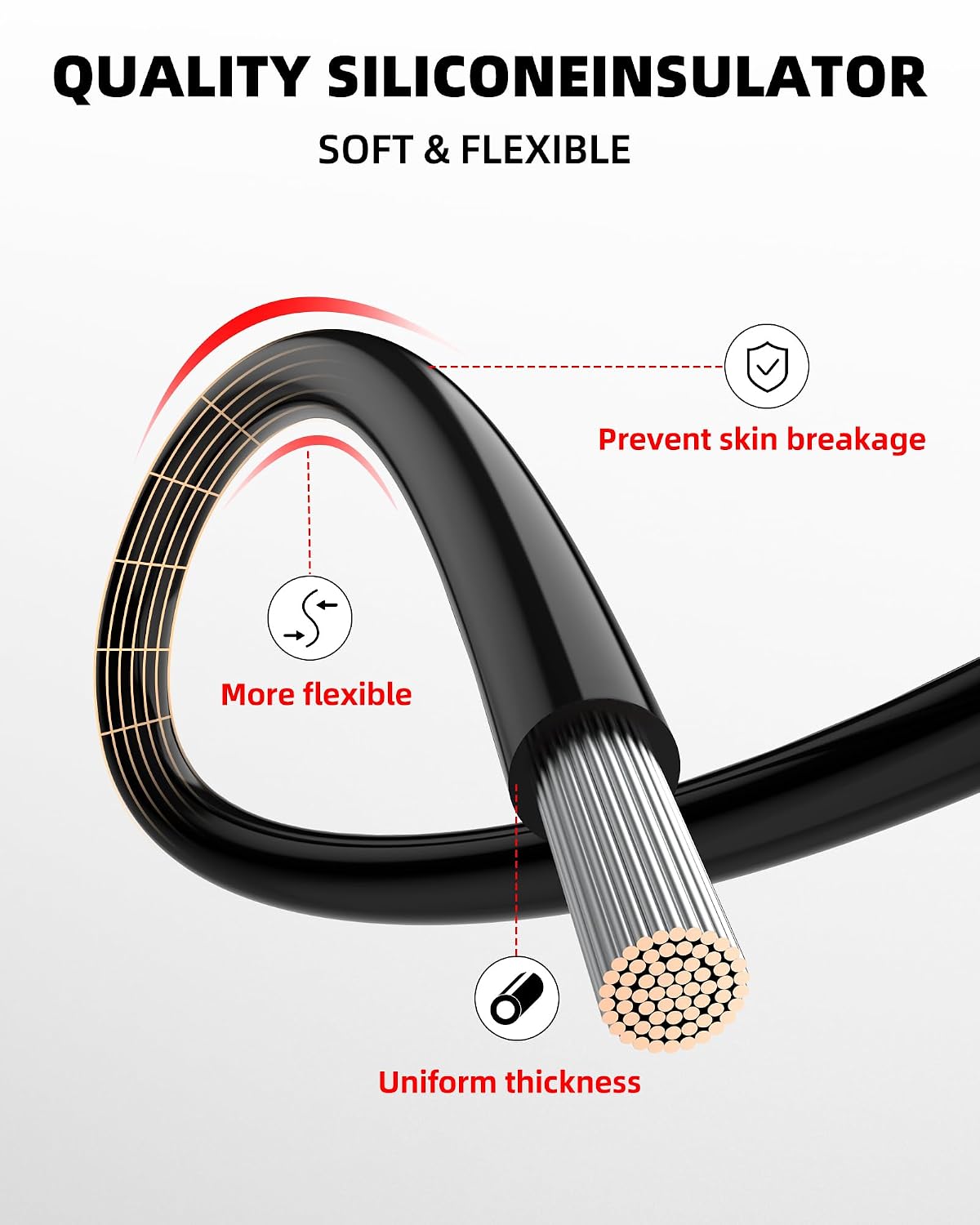

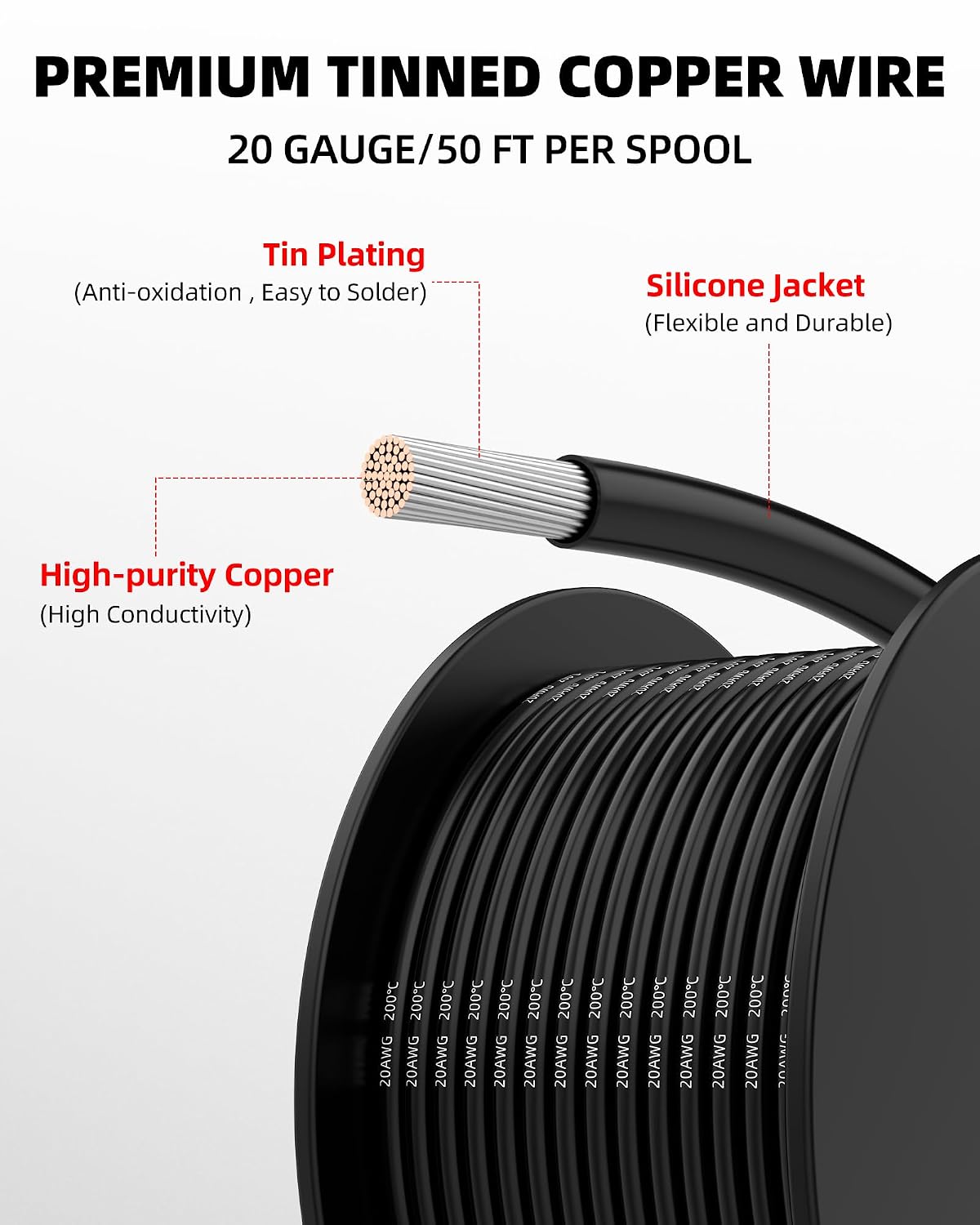

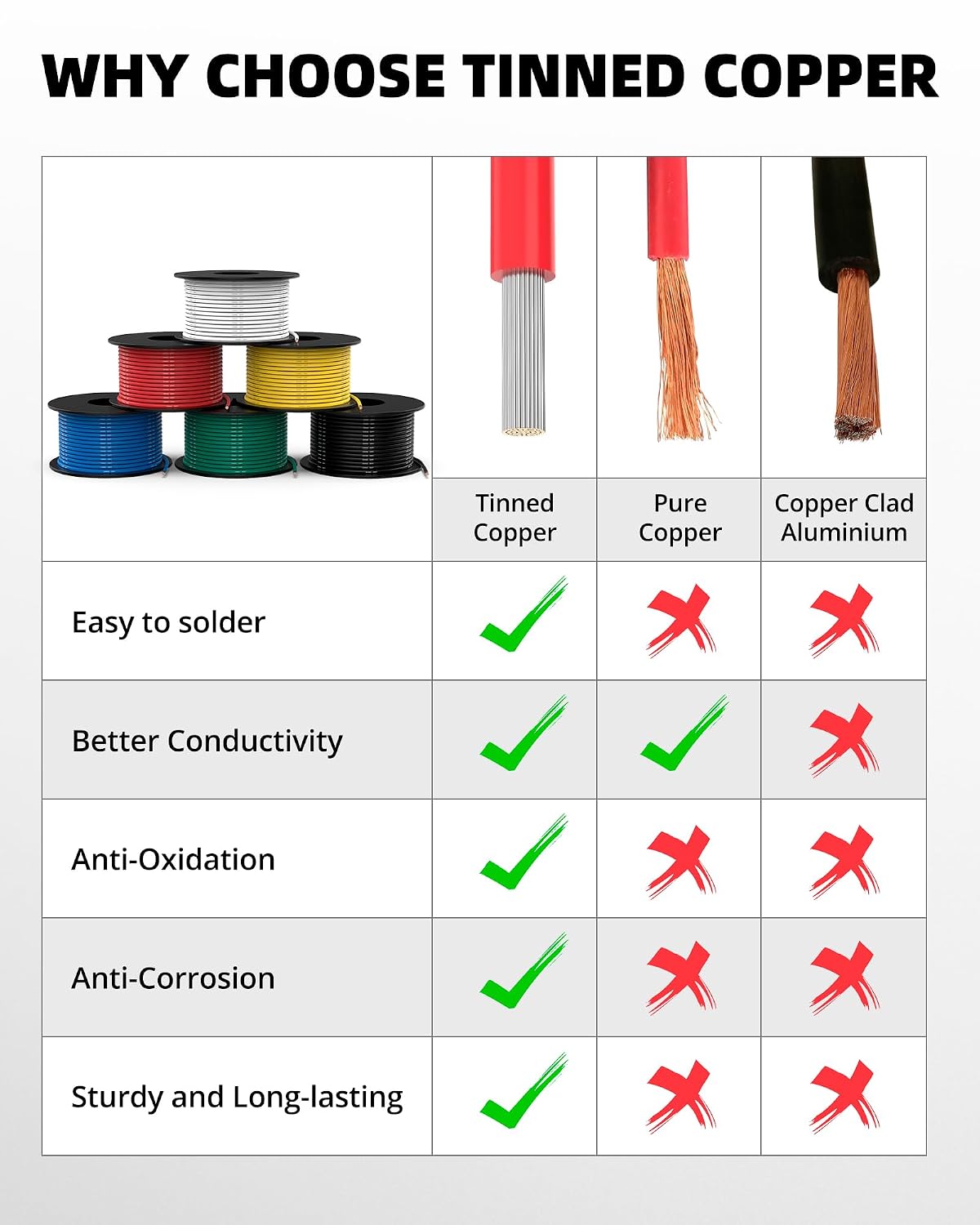

Each 20 AWG conductor is made from 100 strands of 0.08 mm tinned copper. The fine strands and silicone insulation are intended to make the wire easier to bend than a stiffer, solid-core option, while the tin plating is described as helping with corrosion resistance and soldering. The listed outside diameter is 1.8 mm, a useful detail when planning a pass-through or enclosure route. If a fit is tight, allow for the insulation rather than sizing an opening to the conductor alone.

Why it’s worth it

The practical appeal is flexibility plus color choice, not a promise that one wire suits every circuit. Silicone stays flexible at low temperatures and is rated for operation up to 200°C, while the tinned stranded conductor is suited to projects where soldering is part of the work. The wire is also rated at 600V and 5A, those figures should be treated as limits to design around, not as a reason to skip checking the requirements of a particular circuit.

Worth considering if you need several lengths of flexible hookup wire for automotive wiring, LEDs, breadboards, robots, or other DIY electronics and want color-coded spools ready to use. If you prioritize easy routing and clear color separation, this set has a more practical setup than buying a single-color roll. If you prefer a simpler, lower-cost approach for a fixed, low-temperature run, ordinary PVC-insulated wire may be enough, silicone’s flexibility is the more relevant advantage here.

Worth noting

The listed 5A rating is a concrete limit, and the product details do not establish that this wire is suitable for every automotive circuit or load. Check the project's current needs and routing conditions before using it, especially for longer runs, without that measurement, the 5A figure alone cannot confirm that a setup is appropriate. The description also does not specify connector types or include installation hardware beyond the colored cable ties, so plan for those separately if your build requires them.

It may not suit you if your circuit needs more than the stated 5A rating, or if you need a particular connector, finished harness, or confirmed fit for a specific vehicle. The set supplies wire, not a preassembled wiring solution.

When it makes sense

Choose this kit when a project calls for flexible 20 AWG wire, several color options, and enough material across separate spools to organize multiple runs. Its temperature rating and silicone jacket make it relevant where bending or heat exposure is part of the plan, while the tinned stranded copper fits builds involving soldered connections. For a demanding circuit, a vehicle-specific replacement, or any application that needs a rating above 5A, select wire based on the full electrical requirements instead. The key buying decision is whether the flexible insulation and color-coded supply solve a real routing problem, if not, a simpler wire set may do the job with fewer extras.
