Mounting Dream Advanced Tilt TV Wall Mount 120 lbs
Product description

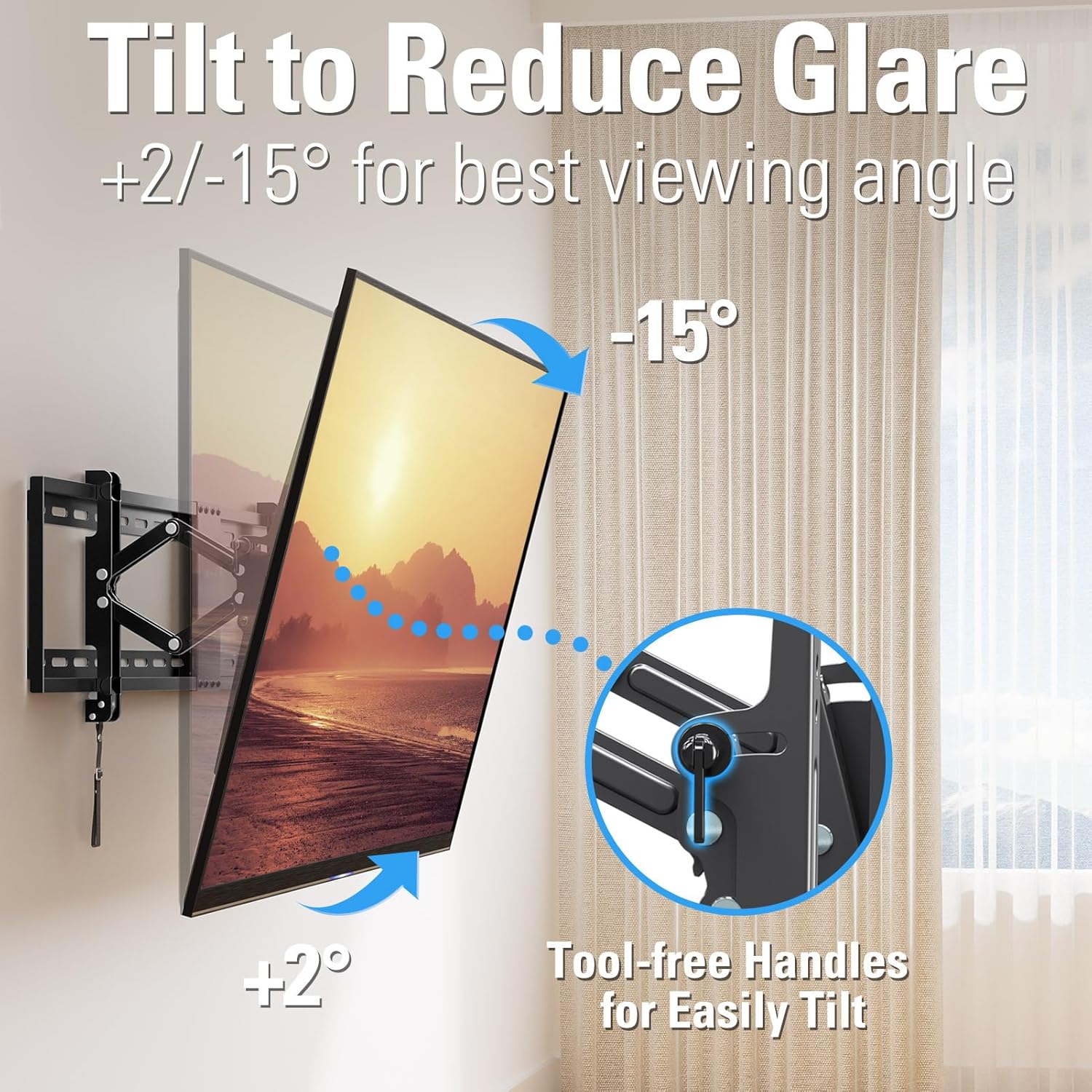

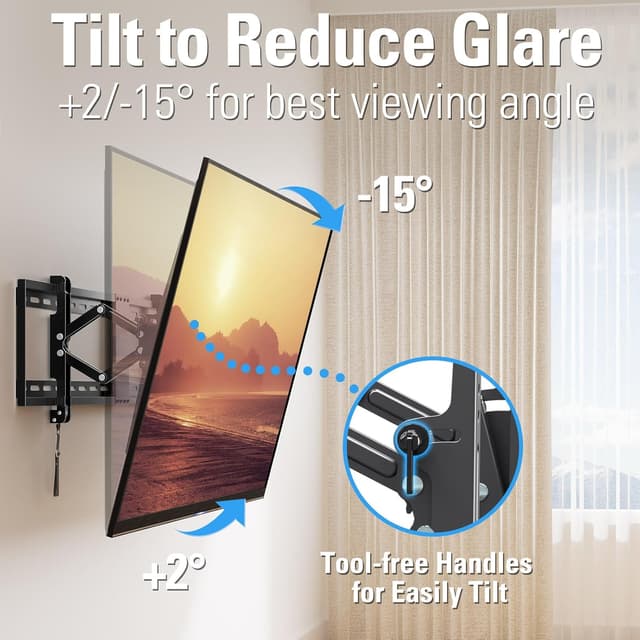

This premium tilt TV wall mount brings sturdy, adjustable support for flat and curved screens from 42 to 90 inches, making it easier to position a living room or home theater set while keeping cables accessible. It extends up to 7 inches for maintenance and tilts +2/-15° to reduce glare, and it supports televisions up to 120 pounds with a maximum VESA of 800 x 400 mm.
Key Points

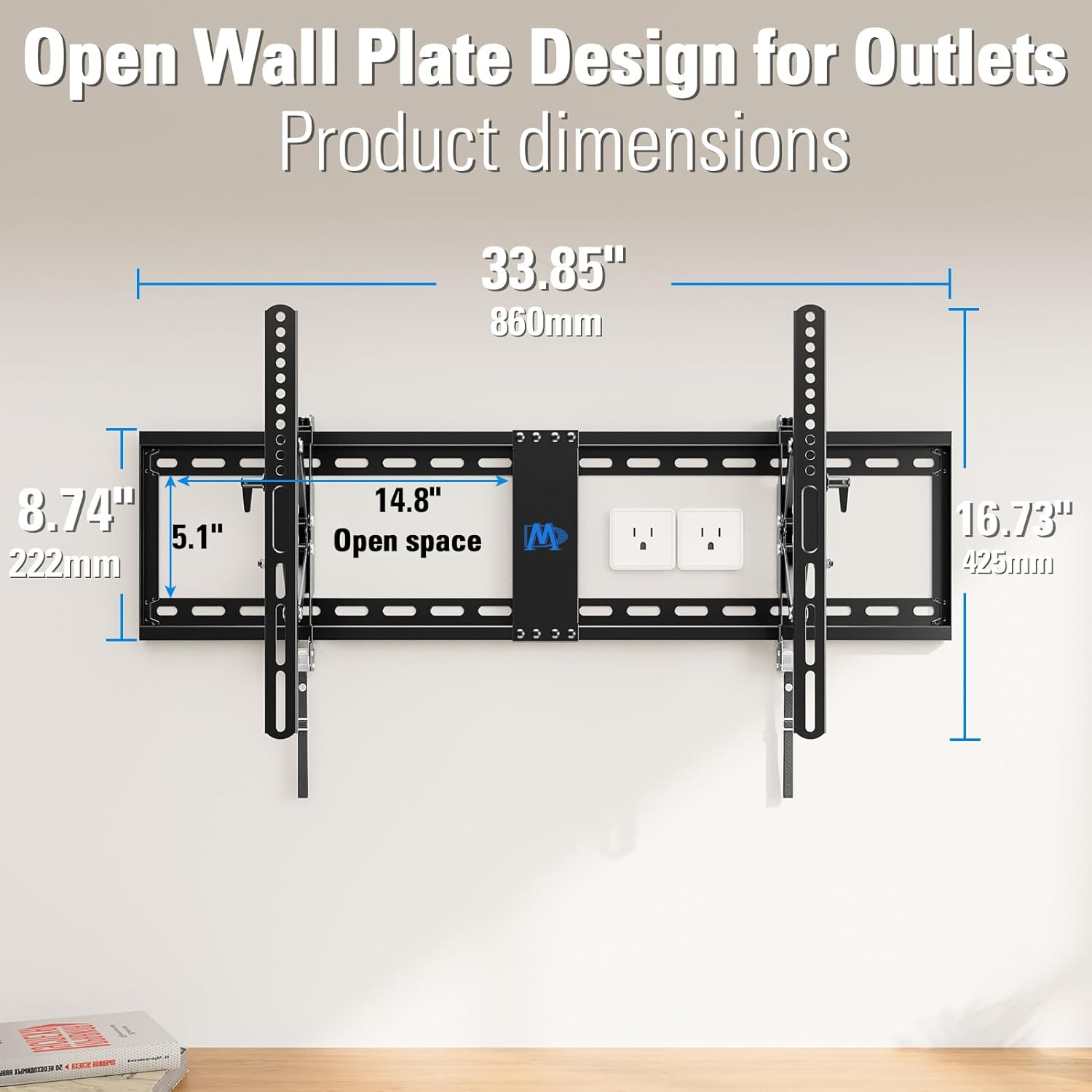

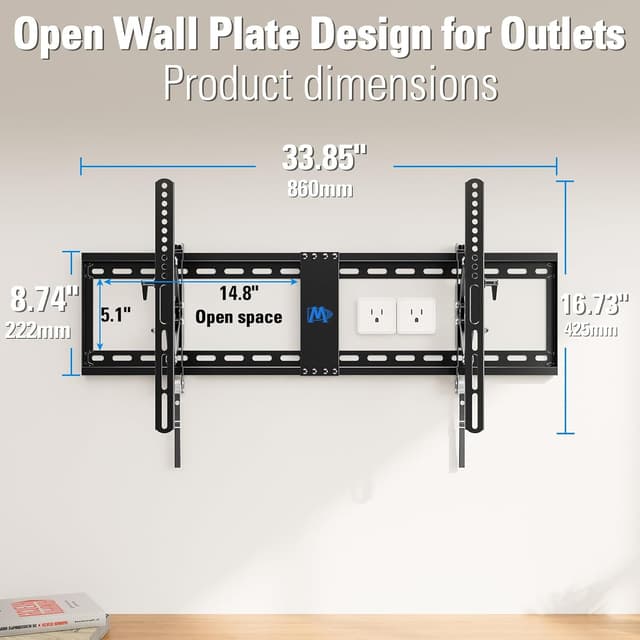

The bracket is compatible with common stud spacings of 16 inch, 24 inch, and 32 inch, and the open wall plate design allows mounting over outlets for neater cable runs. It retracts to about 2.6 inches from the wall when not extended, saving space in tighter rooms. Installation is intended to be straightforward thanks to pre-labeled hardware bags and a drilling template included in the package. Consider that drywall-only installation without anchoring to studs is not recommended.
Technical Specifications
- Name: Mounting Dream Advanced Tilt TV Wall Mount
- Screen compatibility: 42–90 inches
- Maximum weight capacity: 120 lbs
- Maximum VESA: 800 x 400 mm

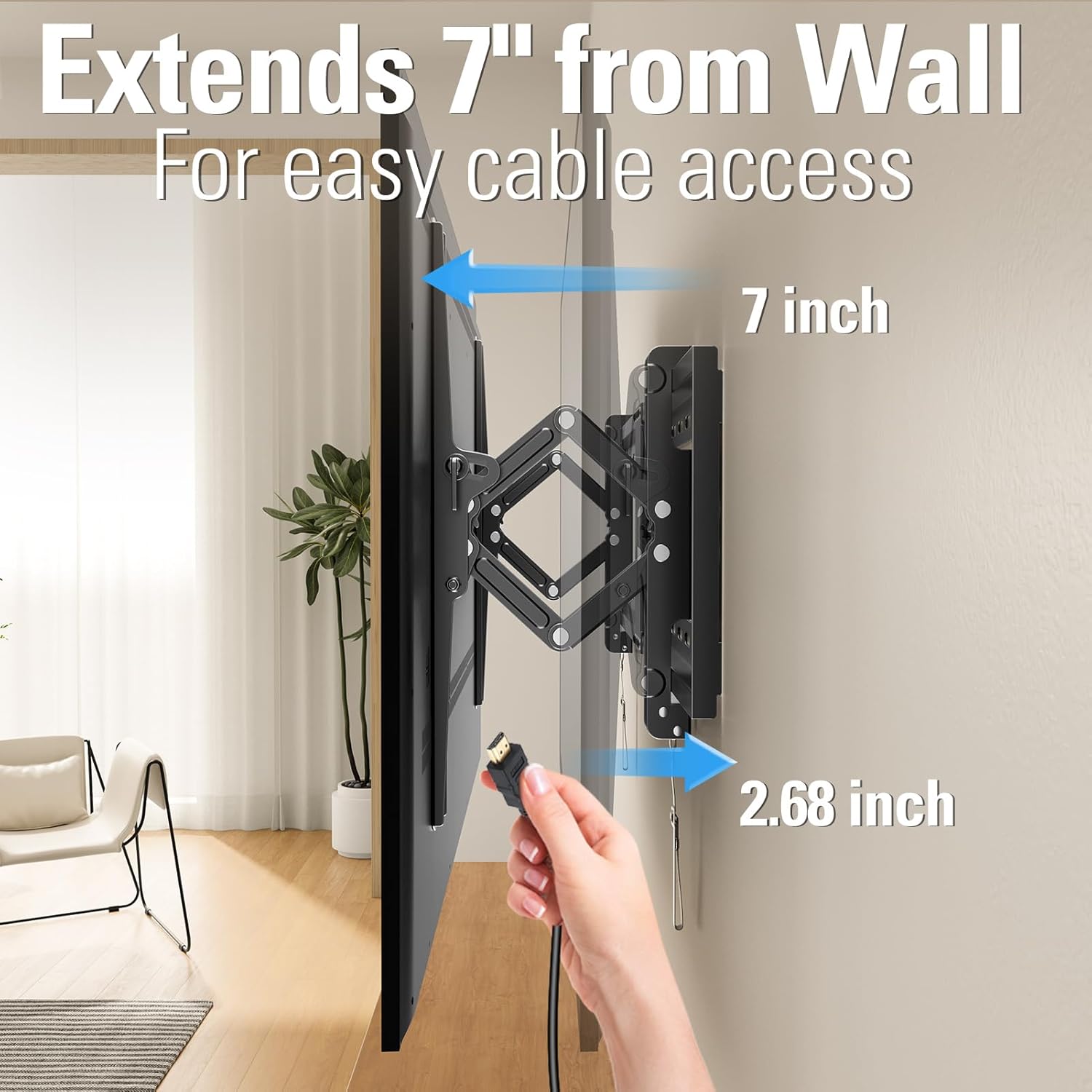

- Extension: up to 7 inches, retracted depth approximately 2.6 inches
Usage Recommendations

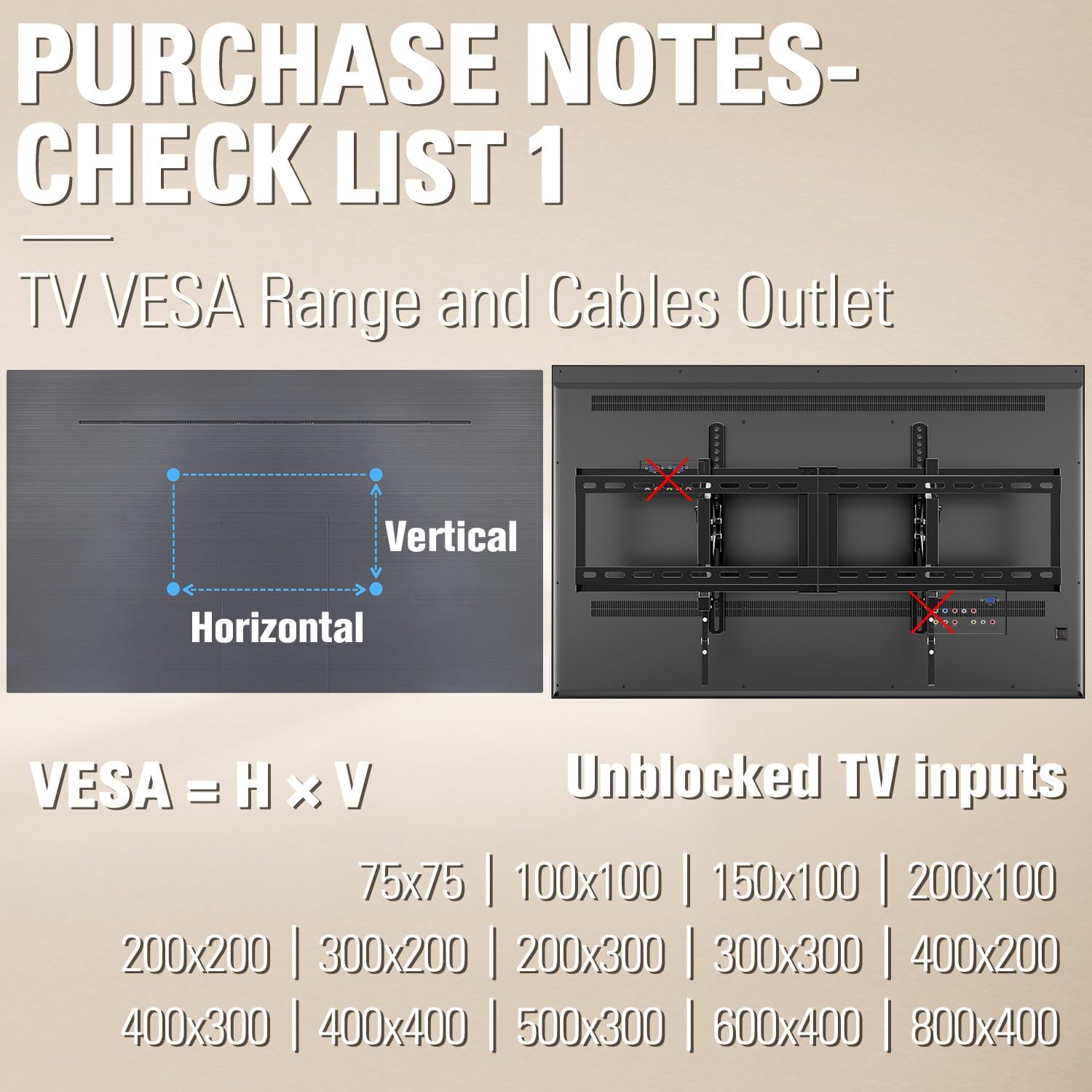

Before beginning installation, verify your TV’s VESA pattern and total weight to ensure compatibility. For wood-stud walls, align with the provided stud spacing options and use the included lag bolts. For concrete or masonry walls, request the concrete anchors and follow the drilling guide provided. Tilt adjustments are tool-free using the integrated handles, which helps fine-tune viewing angle in seconds.
The Best of This Model

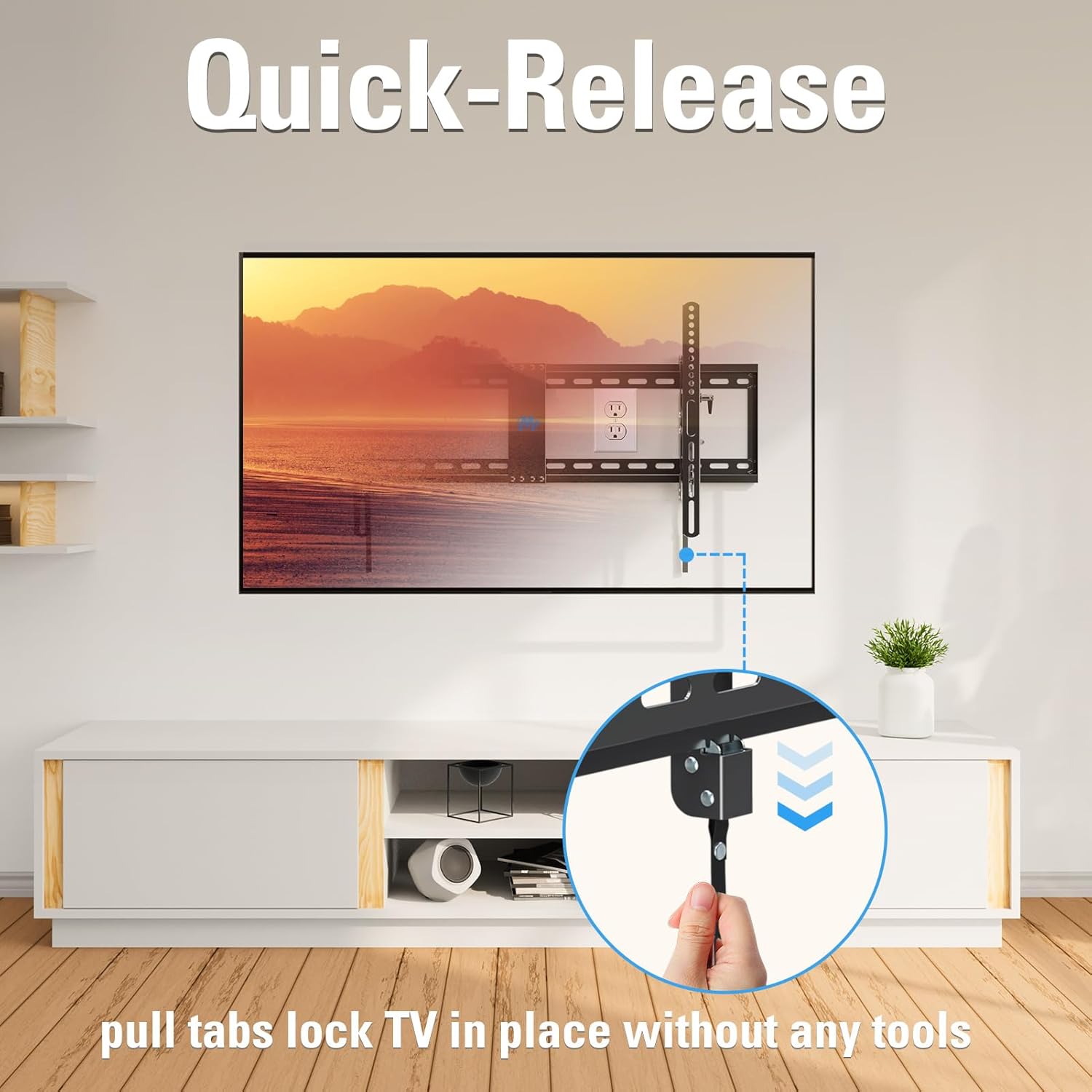

This Mounting Dream wall bracket features robotic-welded steel construction that, according to the manufacturer, has undergone safety testing for 4K OLED and QLED televisions. The pull cord mechanism helps lock and release the TV during mounting, simplifying the final steps. A minor limitation to keep in mind is that very heavy accessories attached to the TV, such as full-size soundbars, may require checking combined load and clearance before installation.
