Junction Box Enclosure 5.1 x 3.1 x 2.8 Inches

Key specifications

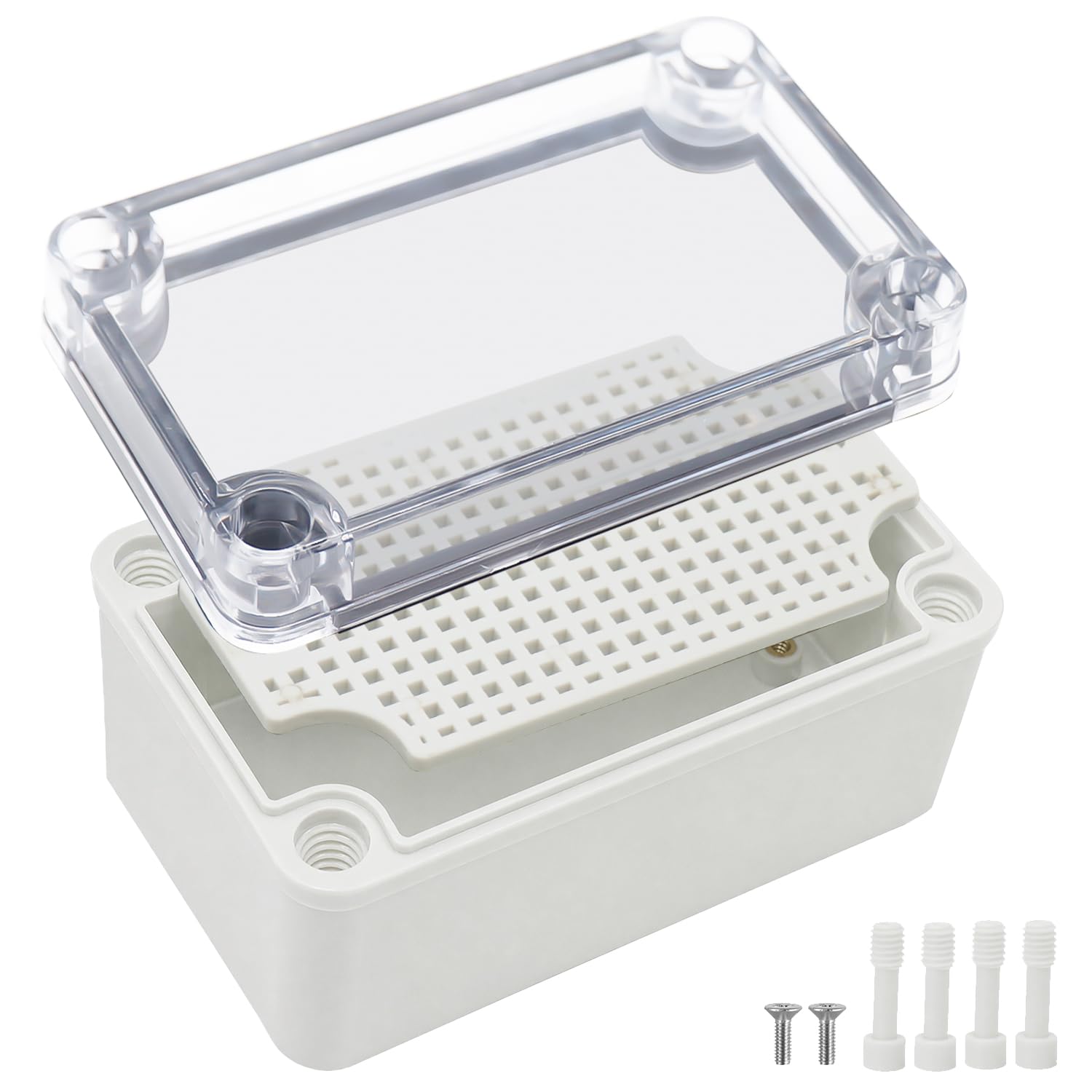

For an outdoor electronics project that needs more protection than an open mounting plate can offer, this enclosure adds a gasketed, lockable housing. It has a clear cover, an included mounting plate, and an IP67 rating for protection against water and dust. The body is industrial-grade ABS, described as lightweight and sturdy.

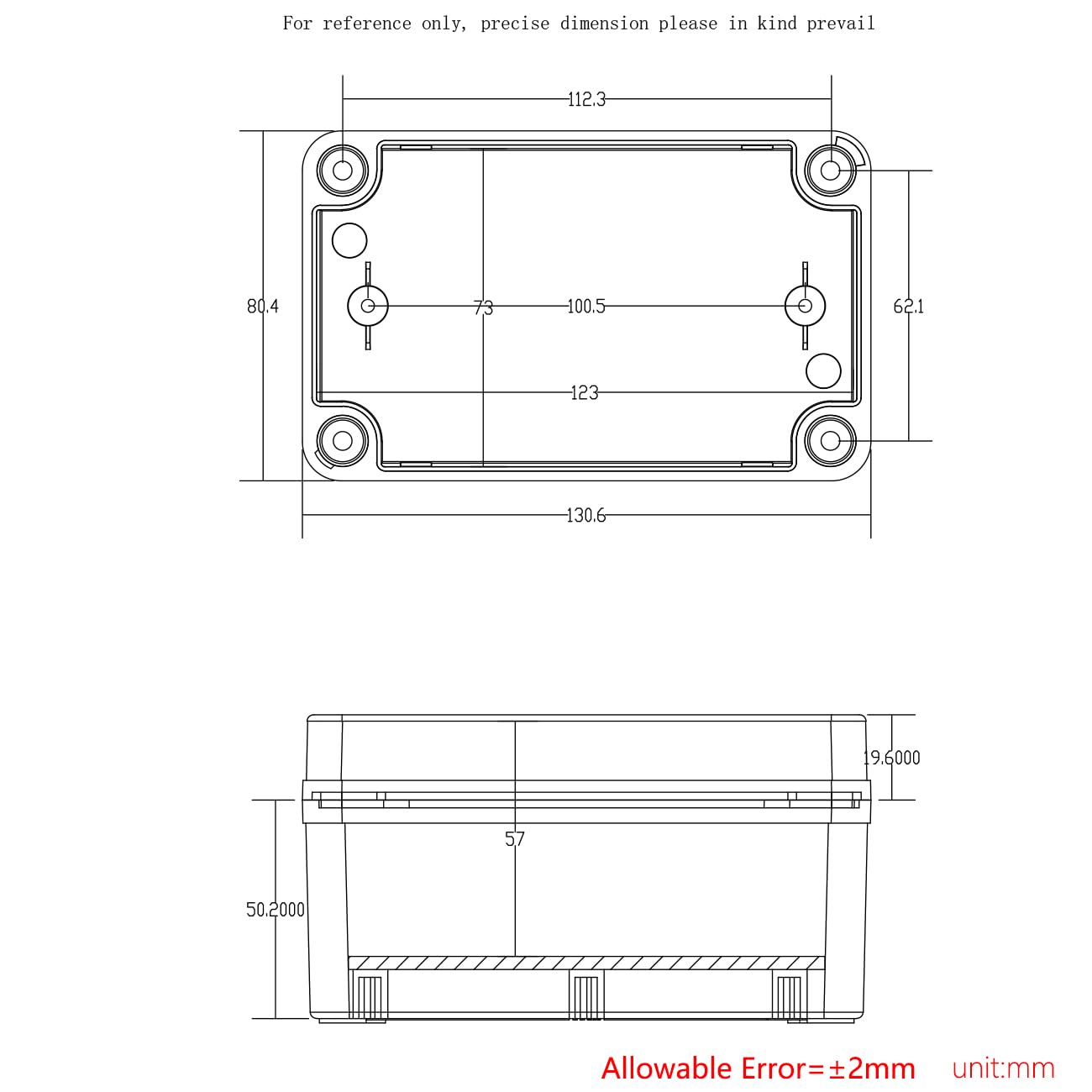

Its outer dimensions are 5.1 x 3.1 x 2.8 inches (130 x 80 x 70 mm). The gasket comes preinstalled, and the enclosure is designed for wall mounting. The clear cover lets you see the project inside without opening the box, which can be handy when checking a controller or other electronics at a glance.

Who it’s for

This box may suit small outdoor electronics projects, such as an Arduino enclosure, a power supply unit, or a temperature controller. Picture a controller mounted on a wall where you want to check its status through the cover instead of opening the housing every time. It suits you if you need a compact enclosure with a visible interior and plan to use the mounting plate.

You may want to skip it if your project needs more room than the stated outer dimensions allow, or if you need a ready-made arrangement of cable entries. The description says holes can be drilled for a project, but does not specify cable glands or predrilled openings. Drilling also means the finished seal depends on how those openings are made and protected.

Everyday use

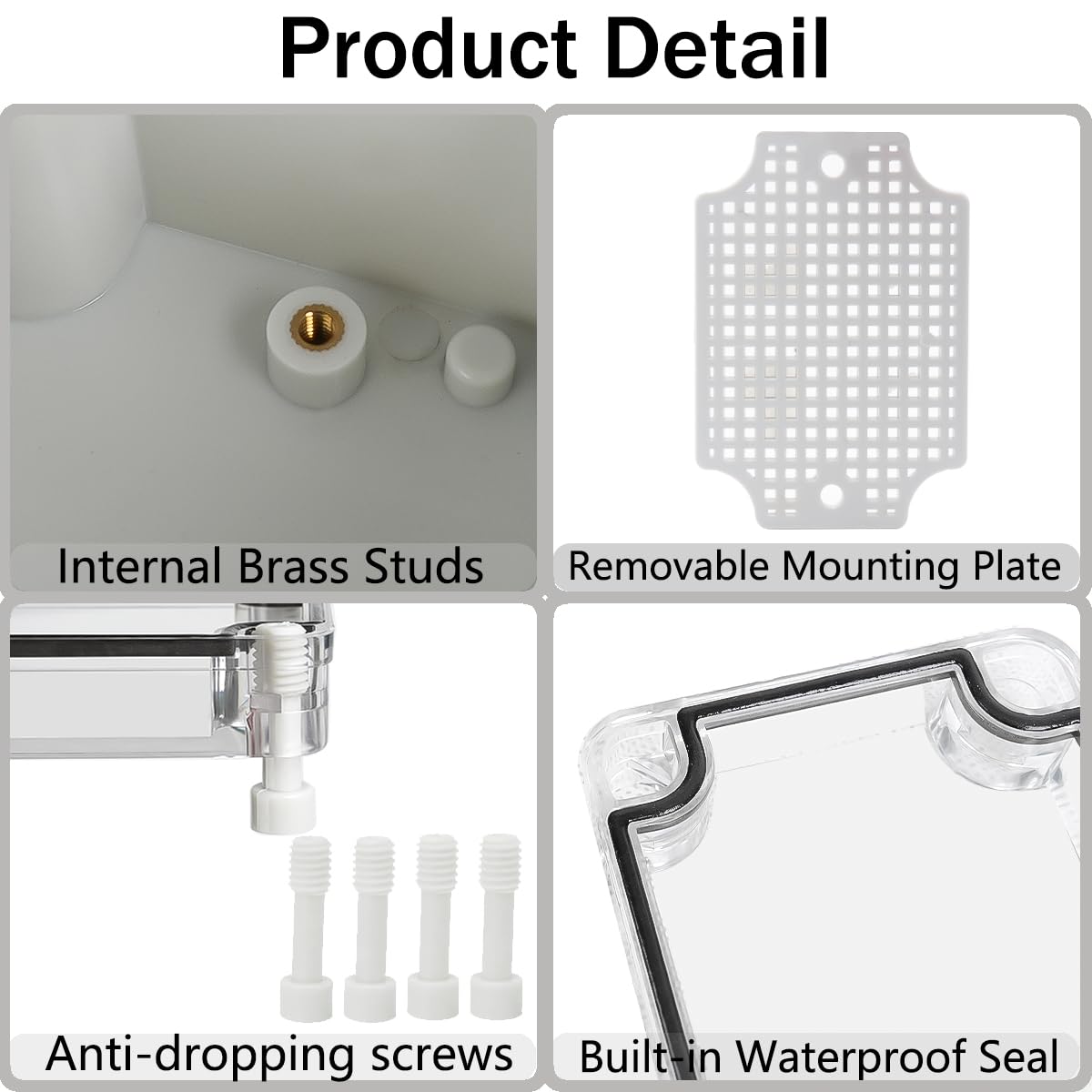

The main practical difference from a basic open box is the added cover and preinstalled gasket, intended to help shield the contents from rain, splashing water, dust, snow, and oil. The lockable design is intended to discourage unauthorized opening, though the description does not say that a lock is included. For a simple indoor project, a less protective enclosure may be enough, this one makes more sense when weather exposure and a view of the electronics both matter.

The stated IP67 rating is a useful buying detail, but the product information does not explain installation conditions or how drilled openings affect protection. Treat the enclosure size as a firm fit constraint, and plan the layout before mounting components.

Before you decide

Does it have a clear cover? Yes. The clear cover makes the contents more visible without opening the enclosure.

Can you customize it for a project? The description says holes can be drilled in the ABS box. It does not list included cable-entry hardware.

Is a mounting plate included? The product name specifies a mounting plate, and the enclosure is described as suitable for wall mounting.

Is it worth it?

This enclosure is worth considering when a small electronics project needs a covered, wall-mountable housing, and being able to see inside is useful. Its ABS body, preinstalled gasket, and stated IP67 rating address practical outdoor-protection needs, while the compact dimensions keep it aimed at smaller builds rather than installations needing generous space. The main trade-off is customization: you may need to drill openings yourself, and the listing does not spell out how to preserve the seal after doing so. Choose it when its size and clear-cover layout fit your project, look for a larger or preconfigured enclosure if you need more internal room or built-in cable access.
