haisstronica HS 520-Piece Heat Shrink Wire Connectors, 22–10 AWG

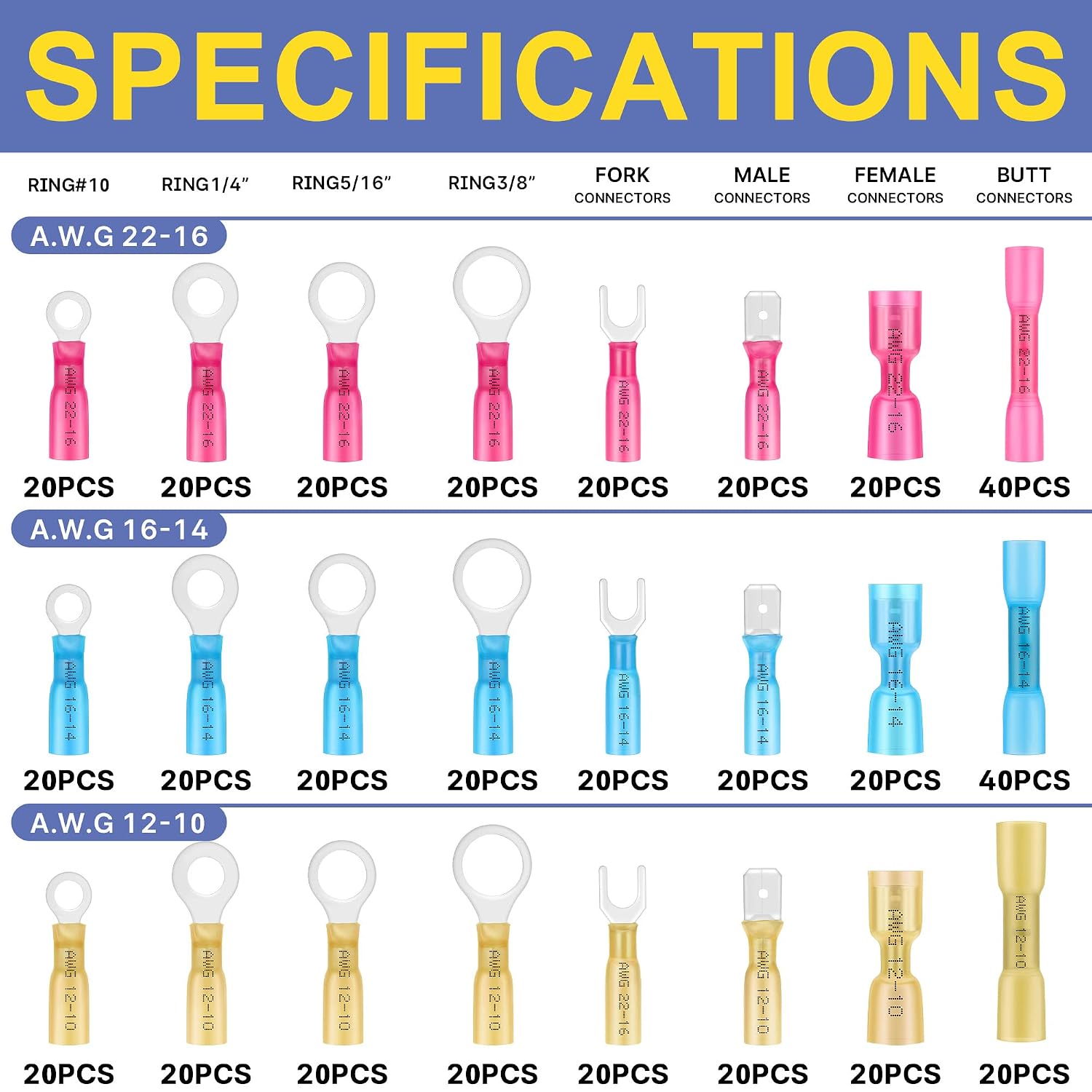

A 520-piece assortment covers 22–10 AWG wire sizes, with red, blue, and yellow connectors across 24 sizes. The color-coded selection makes it easier to identify the right style and size for a wiring task.

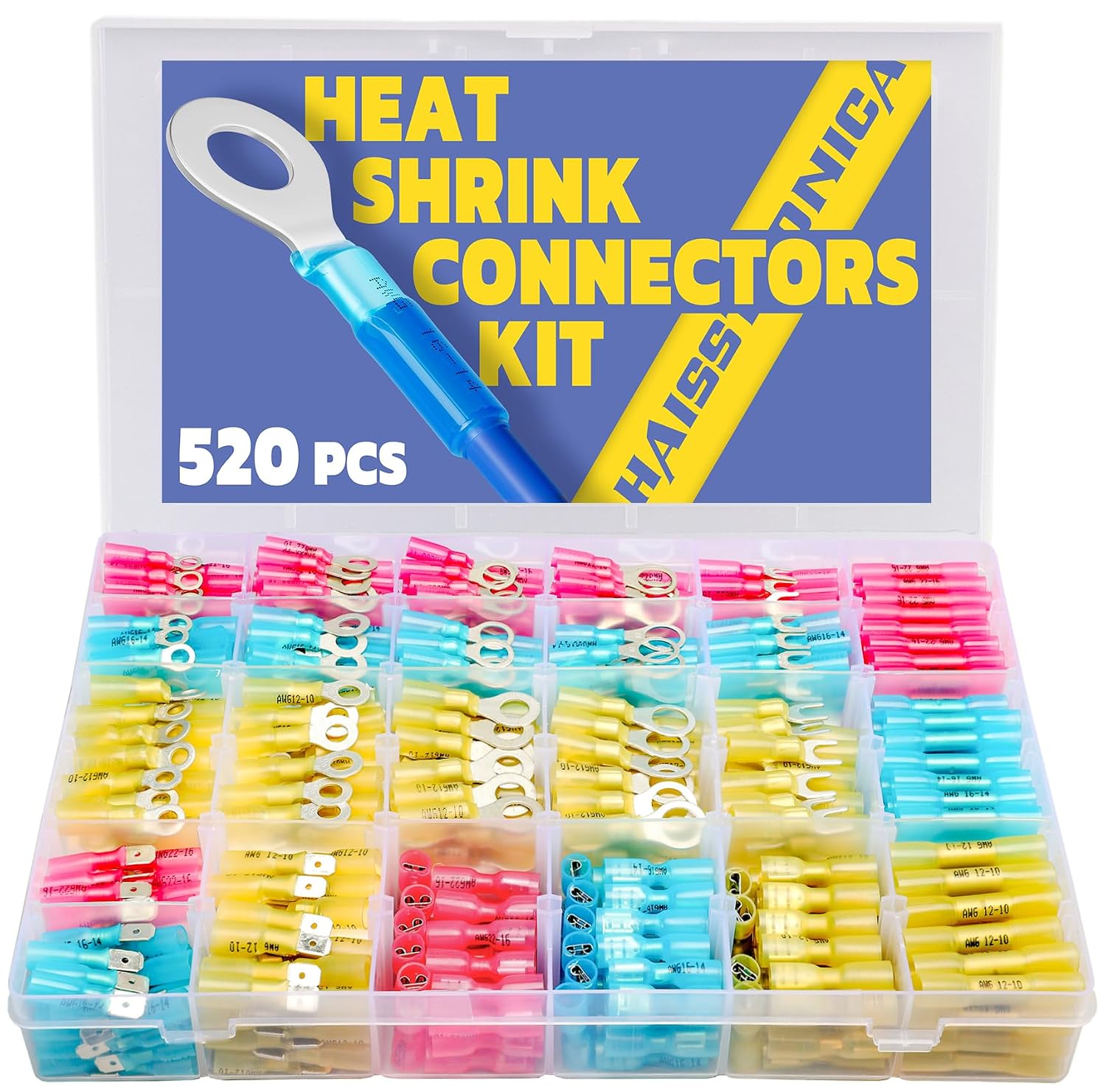

Choose from butt, ring, fork, and spade terminals for wire splices, stud connections, and quick-disconnect repairs. A divided storage case keeps the different connectors separated and accessible.

For a project that needs several connection styles, this assortment puts them together in one case. It suits automotive and boat accessory wiring tasks where the connection type can vary from one wire to the next.

What to know

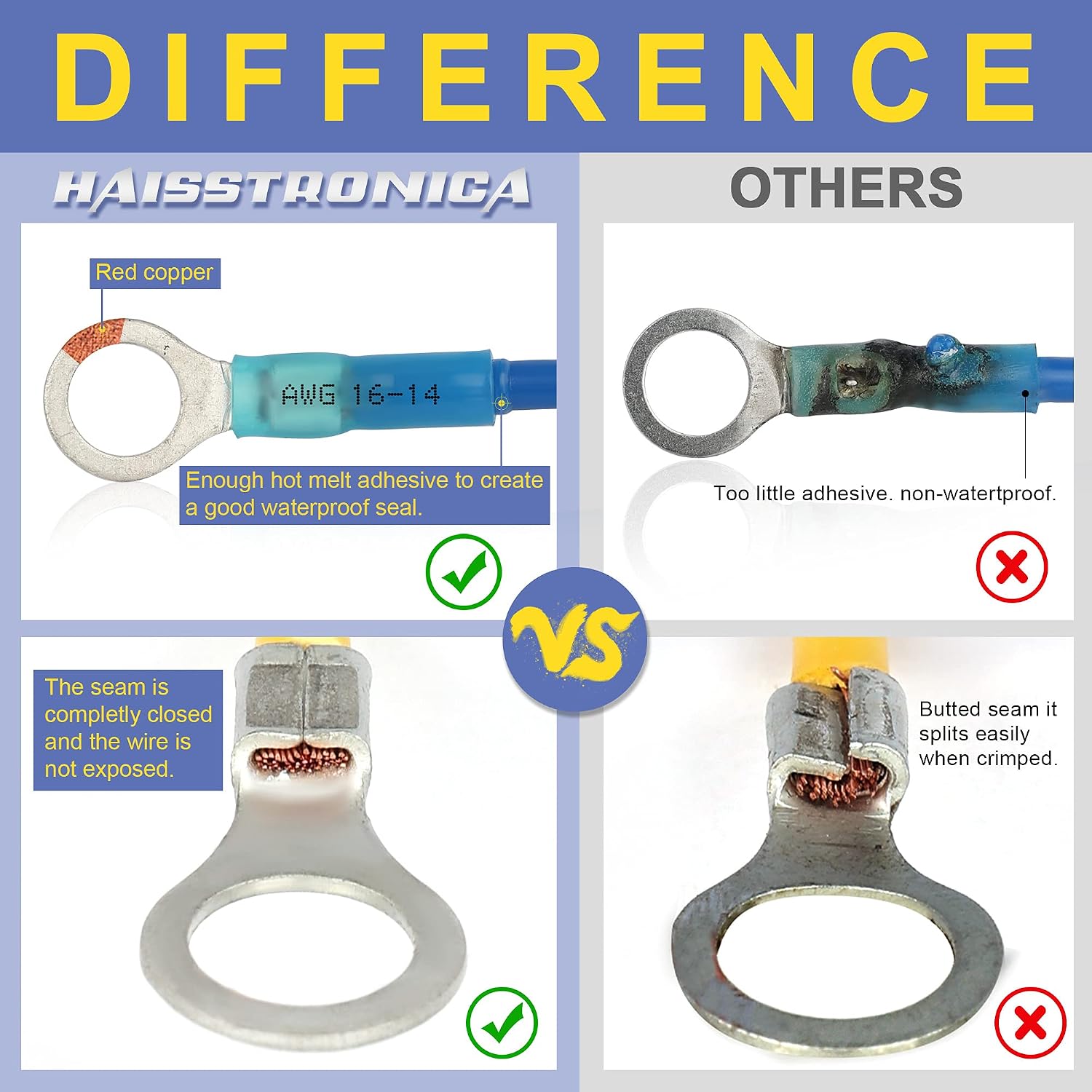

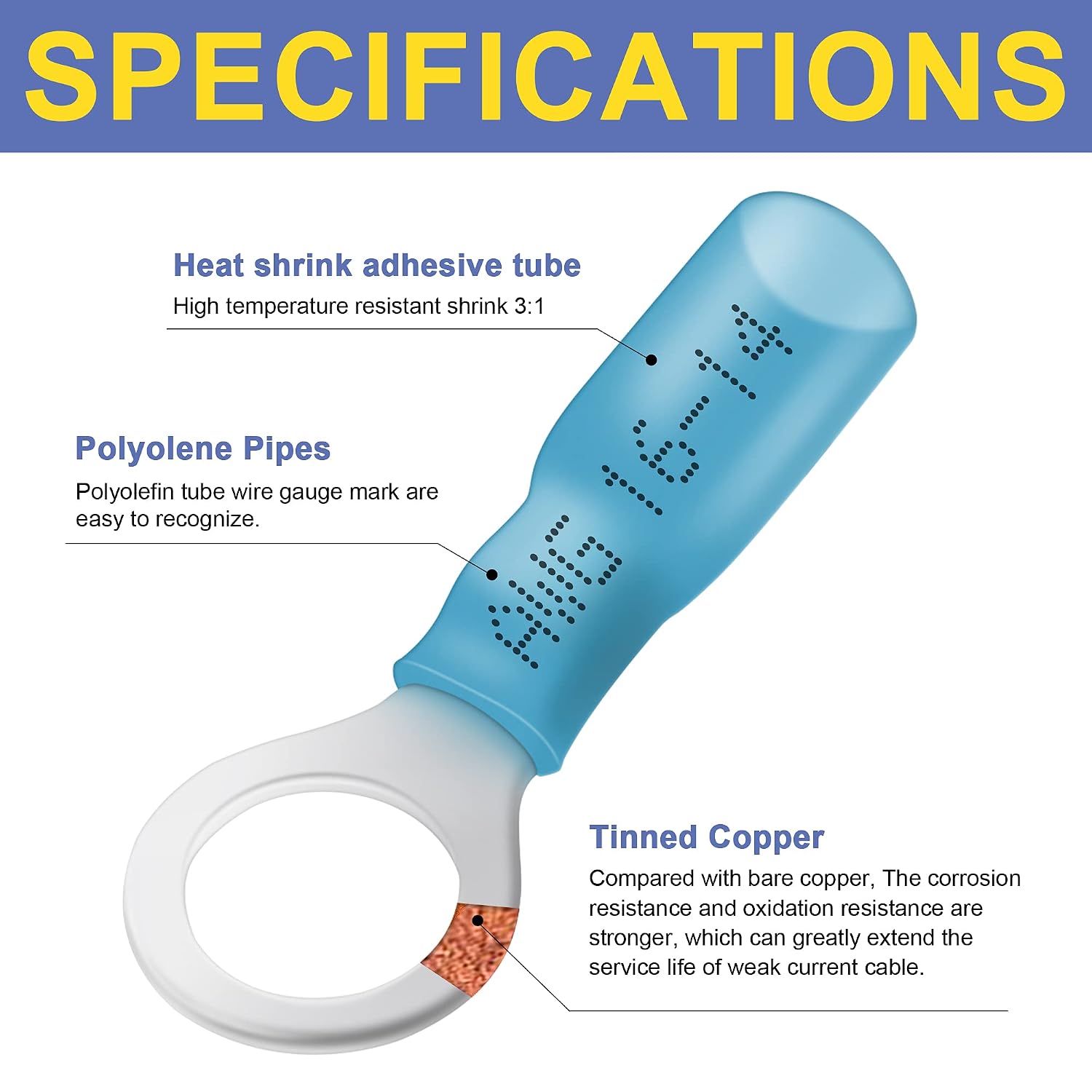

The connectors use copper contacts with tin plating and nylon insulation. Their heat-shrink tubing has a 3:1 shrink ratio and an adhesive-lined, dual-wall design: as the tubing contracts, the inner adhesive melts to help seal around the wire against moisture and dust. This construction is useful for wiring projects where a crimp connection also needs a protective outer seal.

The four terminal styles serve different purposes. Butt connectors join wires end to end, ring and fork terminals attach to stud connections, and spade connectors support quick-disconnect wiring. That range is practical when a project involves both wire splices and accessory connections. If you mainly need one terminal style, a single-style assortment is a more focused approach, this kit is designed for work that calls for several types and sizes.

The longer crimp barrels provide additional crimping area, and the color-coded markings help distinguish connector sizes. Buyers appreciate the assortment, organized case, and heat-shrink sealing, feedback on crimping is mixed, with some describing secure crimps and others wishing for more crimping area. Matching the connector to the wire size and making a proper crimp are important parts of the connection.

How to use it

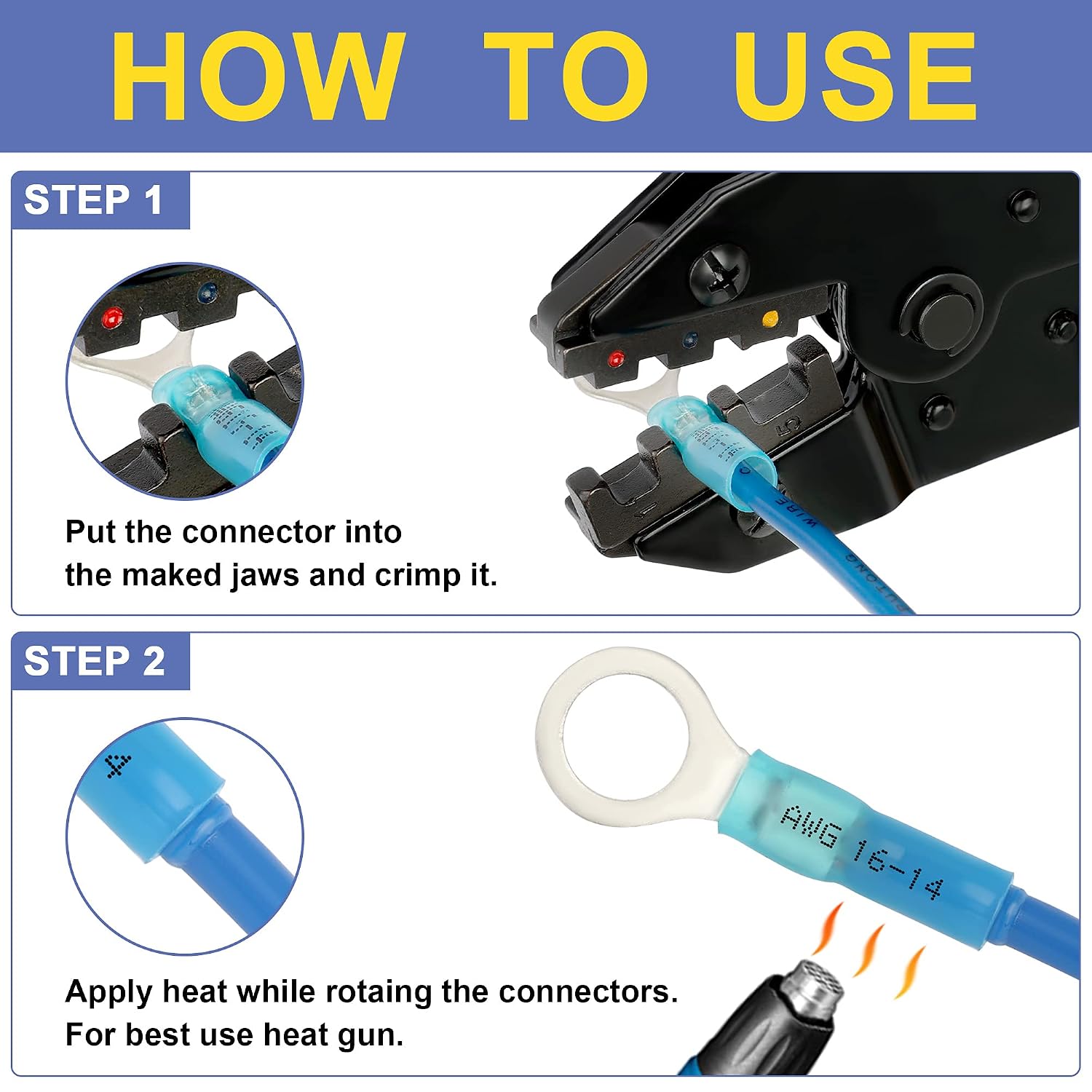

Select the terminal style for the connection and a size suited to the wire, then crimp it in place. Apply heat so the tubing shrinks around the wire and the adhesive lining melts to form the seal. For example, a boat accessory wiring job can call for a butt connector to join wire sections and a ring or fork terminal at a stud connection, the assortment keeps those options together rather than requiring a separate kit for each terminal style.

The case’s divided layout helps keep unused sizes sorted between tasks, while the three color choices make the assortment easier to scan when selecting a connector. For automotive accessory repairs, the mix of splice and terminal types also makes it possible to choose the connection format that fits each point in the wiring run.

Everyday use

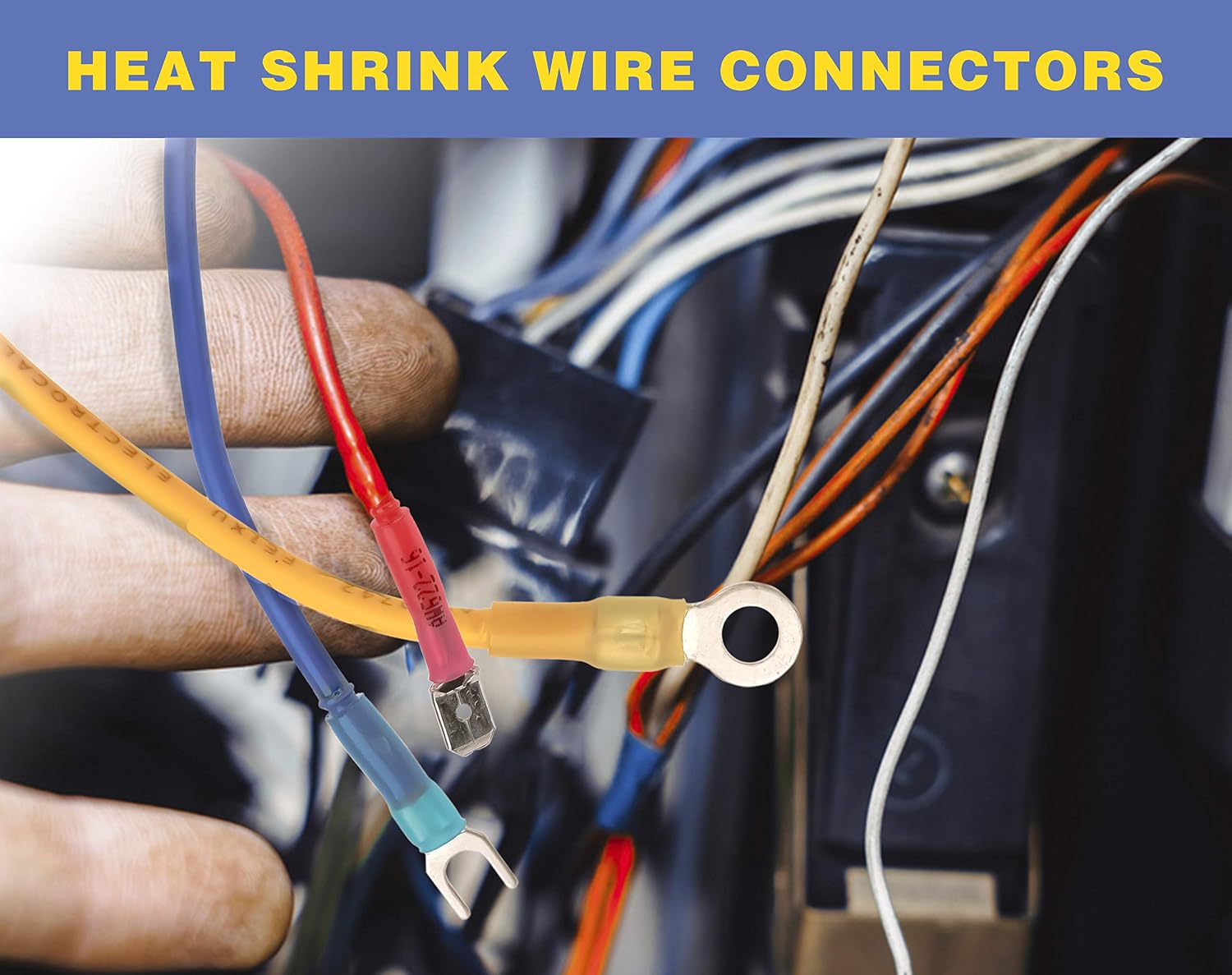

This set is suited to automotive and marine accessory wiring, workshop repairs, and other projects that use 22–10 AWG wire. Its combination of sizes and terminal styles is useful when a job involves different wire connections, rather than repeating the same splice throughout. The adhesive-lined heat shrink adds a sealing step to the crimping process, and the case keeps the assortment organized for the next task.

Final verdict

Choose the haisstronica assortment for wiring projects that benefit from having butt, ring, fork, and spade terminals in multiple sizes in one organized case. Its 22–10 AWG range, color-coded selection, and adhesive-lined heat shrink make it a practical fit for varied automotive and boat accessory connections.
