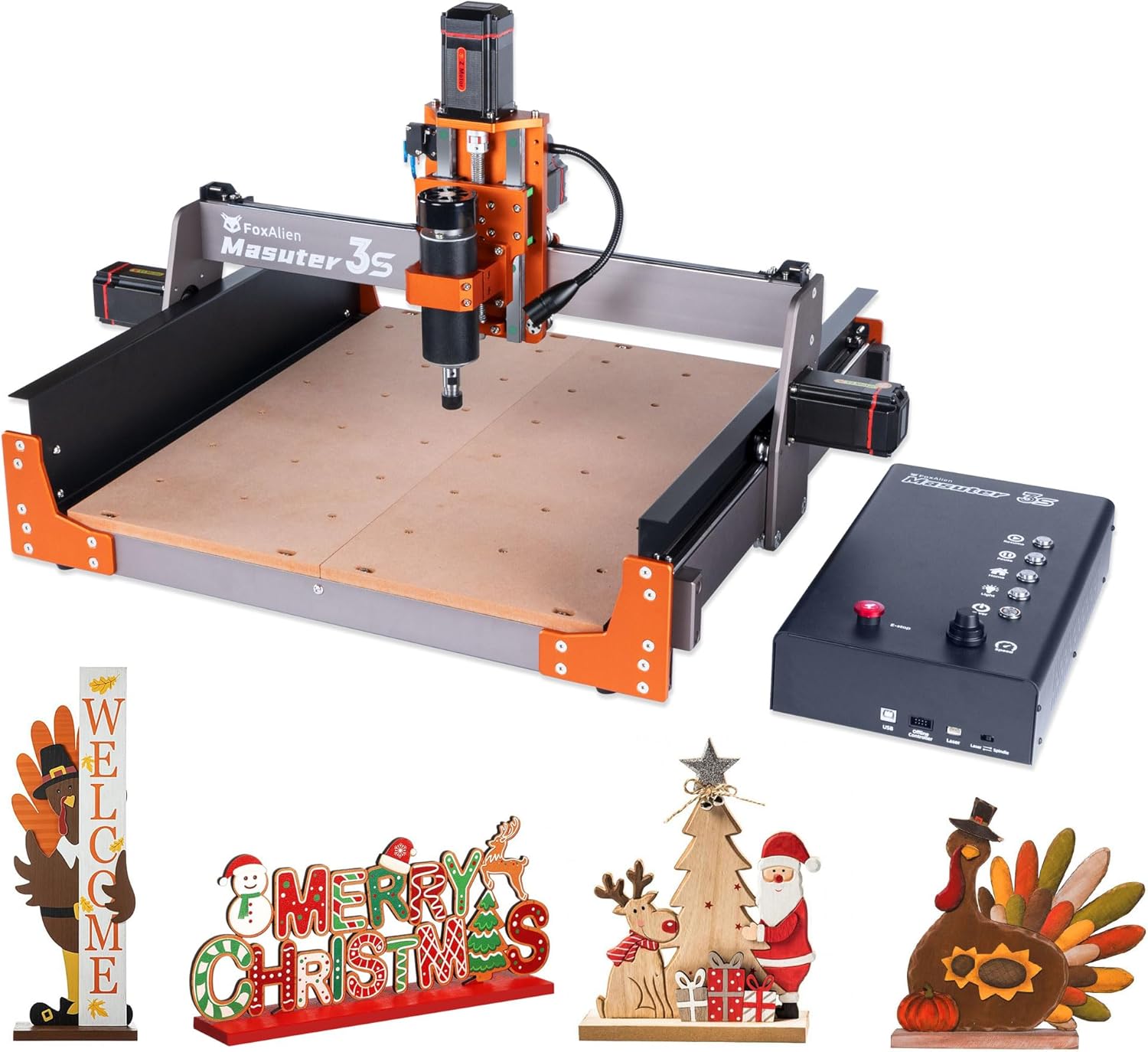

FoxAlien Masuter 3S CNC Router Machine 400W spindle

This CNC router pairs a rigid extrusion frame with closed-loop NEMA 23 stepper motors to tackle detailed engraving and light milling on wood, acrylic, and soft aluminum. It is built for makers and small workshops that need repeatable accuracy and smoother motion at higher feed rates.

Key Points

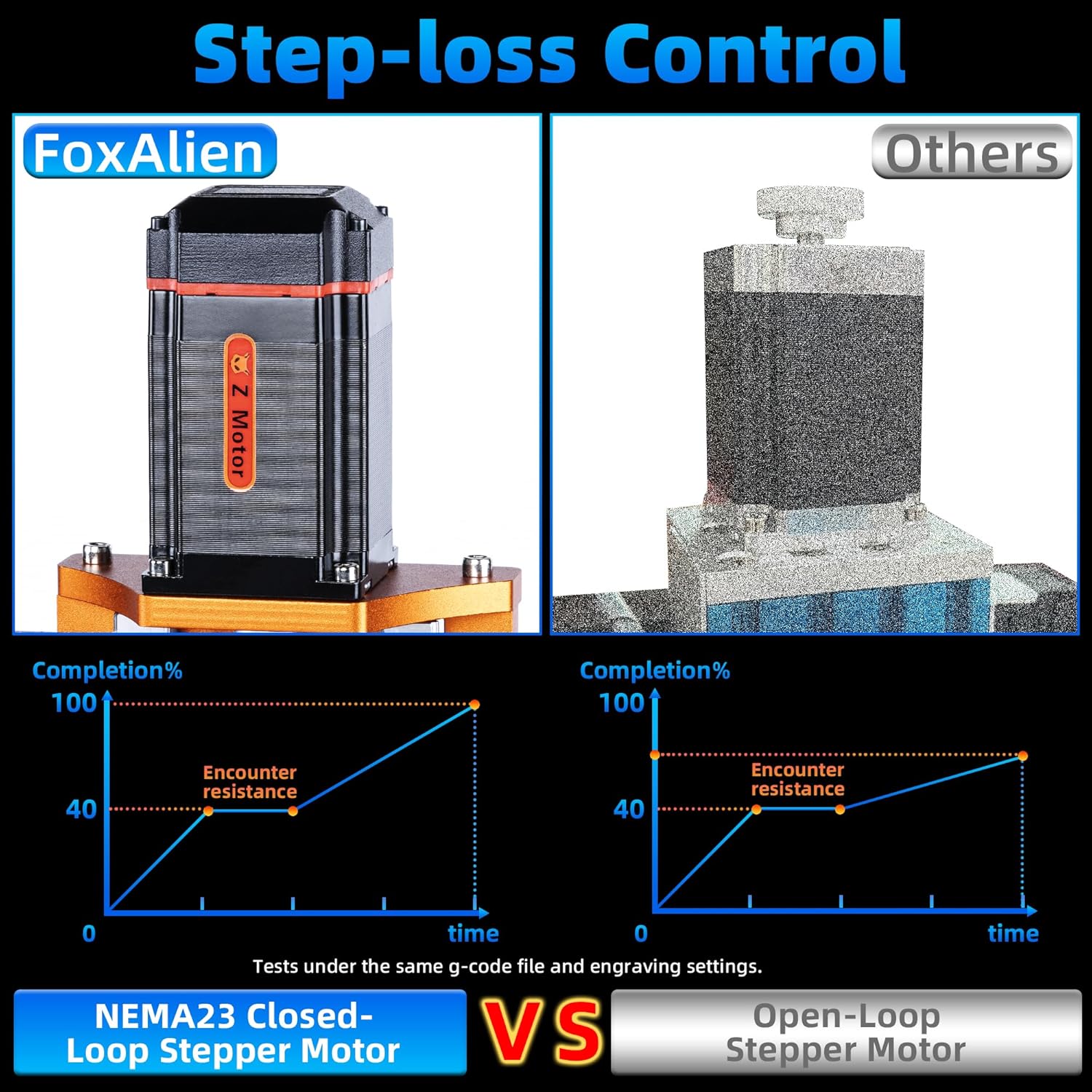

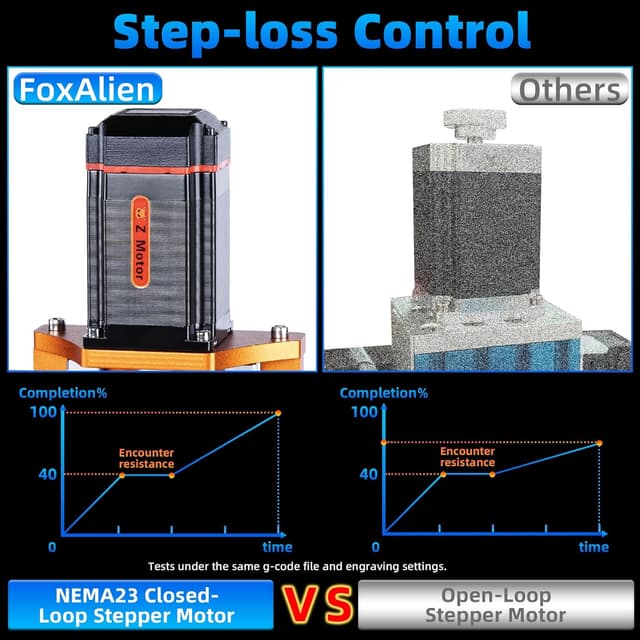

The machine features closed-loop NEMA 23 motors that reduce missed steps and help maintain positional accuracy even under variable cutting loads. Its extruded 23 x 60 mm frame and added base supports increase rigidity for consistent results across longer runs, and the dual HG-15 linear rails on the Z axis reduce wobble for finer detail. 🔧

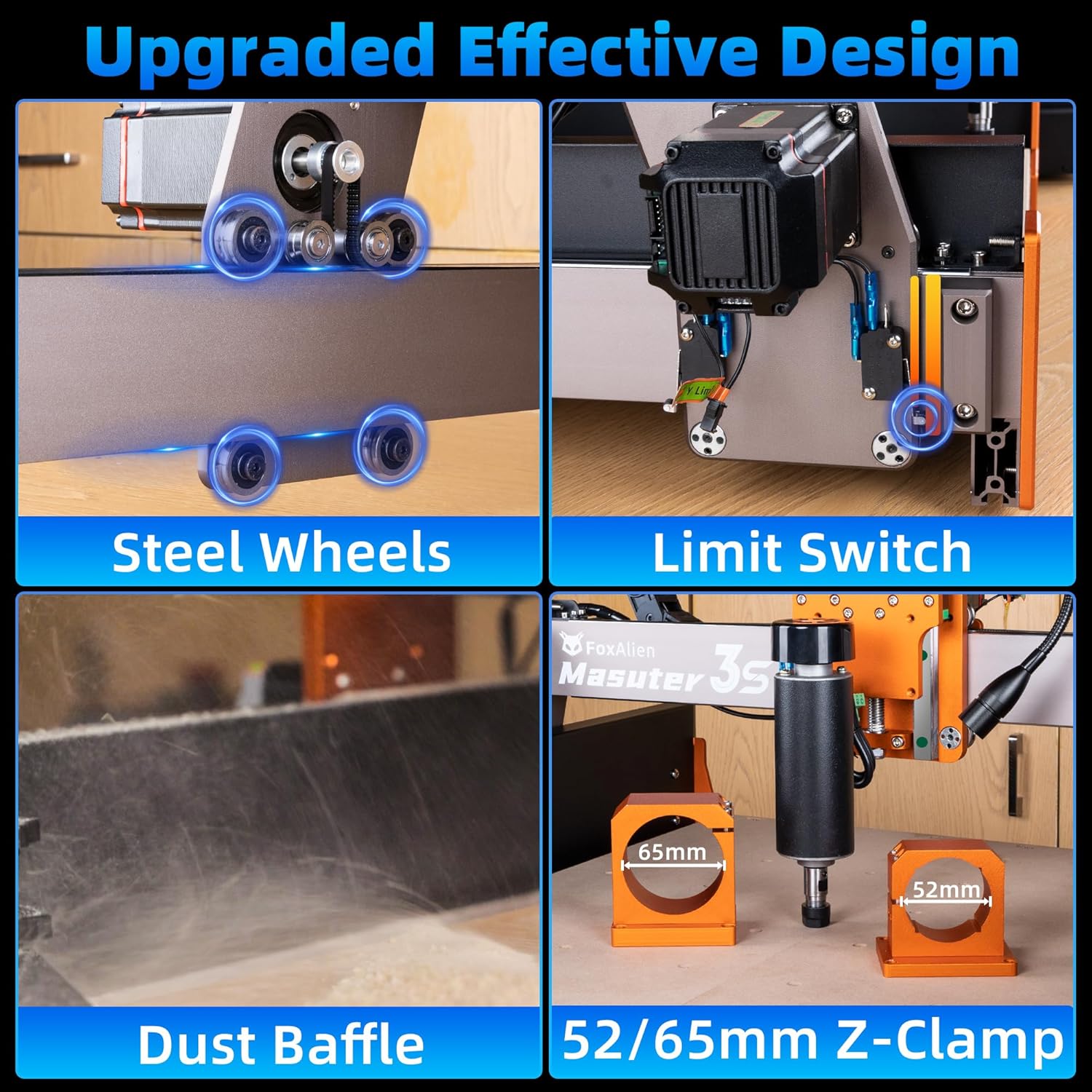

A 400W spindle provides enough power to engrave and cut softer metals like aluminum while remaining compact and relatively quiet compared to larger router spindles. The spindle package includes an additional 65 mm clamp for users who want a sturdier upgrade. ⚙️

Control is simplified with a redesigned, dust-resistant control box that includes direct access buttons for common functions. The unit can reach movement speeds up to 10000 mm/min according to the manufacturer, which helps shorten job times on less demanding passes.

The Best of This Model

The Masuter 3S balances stiffness and speed in a compact footprint. For projects that mix detailed carving and occasional light sheet milling, the combination of a T12 Z screw, dual linear rails, and improved pulley wheels yields smoother operation and reduced noise. Consider that the working envelope is 400 x 400 x 95 mm, so it is well suited to small to medium-sized parts and signmaking rather than very large-format production. 🪵

Technical Specifications

• Name: FoxAlien Masuter 3S
• Motors: NEMA 23 closed-loop stepper motors, torque 2.2 Nm
• Spindle: 400W spindle, includes extra 65 mm clamp
• Working area: 400 x 400 x 95 mm (15.75" x 15.75" x 3.74")

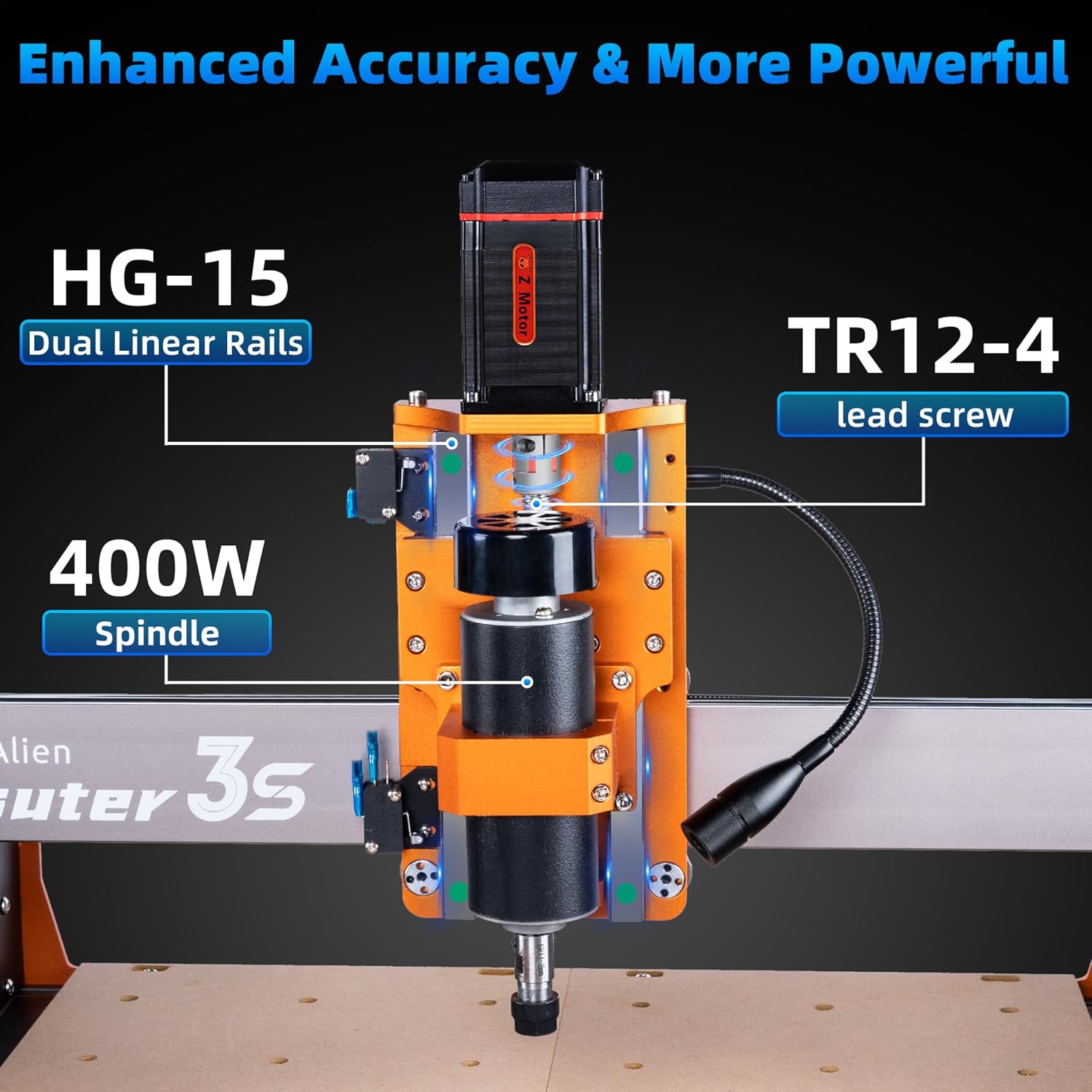

• Z axis: dual HG-15 linear rails with T12 lead screw

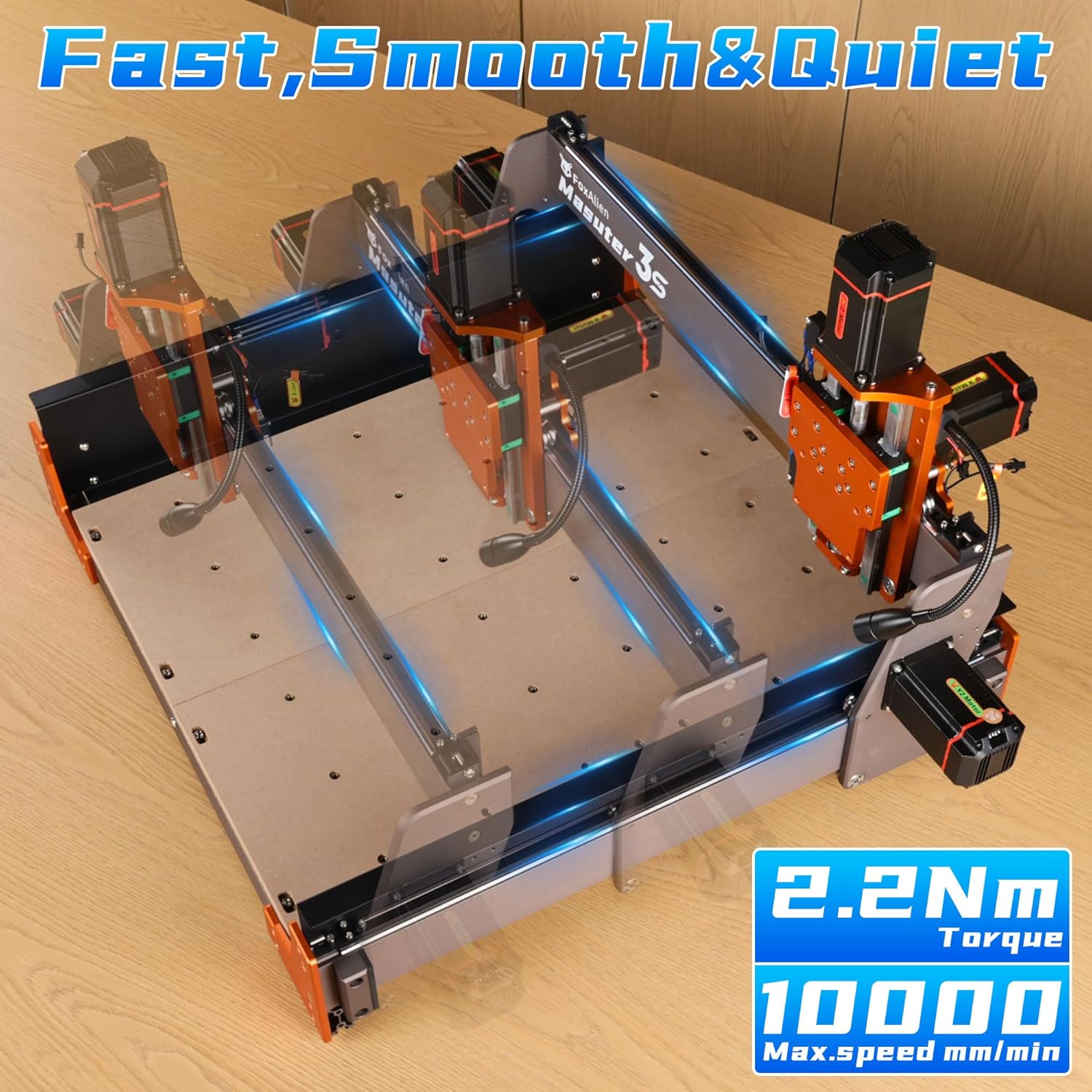

• Max feed rate: up to 10000 mm/min (manufacturer specification)

Usage Recommendations

Set feeds and speeds conservatively when cutting aluminum and make multiple light passes rather than a single deep cut to minimize tool wear and heat buildup. For best accuracy on fine engraving, use the dual Z rails and a firm clamping setup to reduce vibration. The control box is easier to keep clean thanks to its dust-resistant design, however routine maintenance of the spindle and rails will prolong consistent accuracy. Consider adding the optional X-axis extension kit if your projects require a larger working area, and note that while this machine handles soft metals, it may not suit heavy-duty milling of hardened steel.
