Elitech LMG-10Plus 2-Way Digital Manifold for HVAC Refrigerant Pressure & Superheat/Subcooling
Product description
What it is and why it exists
The Elitech LMG-10Plus is a 2-way digital manifold made for HVAC work where you need refrigerant pressure readings and temperature-based calculations. On paper, it’s aimed at technicians who regularly check superheat and subcooling, and who also want a more guided way to interpret readings rather than relying purely on manual math.
It’s also designed to be practical in the field: compact, portable, and built around temperature compensation. If you’re troubleshooting performance or verifying charge conditions, this kind of setup can save time and reduce guesswork—assuming you already know how you’re going to take the measurements.
Key takeaways before you buy
What stands out most here is the combination of pressure + temperature measurement support. The unit includes two temperature clamps, supports temperature compensation, and can auto-calculate overheating and supercooling. You also get unit flexibility on the display, with five pressure units (psi, kg/cm2, kPa, MPa, bar) and two temperature units (°F/°C).
That “digital + calculation” angle is the whole point. Instead of juggling multiple steps mid-job, you can focus on collecting the readings in the right places—then letting the tool handle the calculations.
Still, a quick reality check: it’s positioned as an affordable, functional tool. That doesn’t mean it’s flawless for every scenario, and if you’re expecting high-end lab-style precision or extremely advanced features beyond what’s described, you may feel it’s more mid-range than premium.
What you’ll notice in everyday use

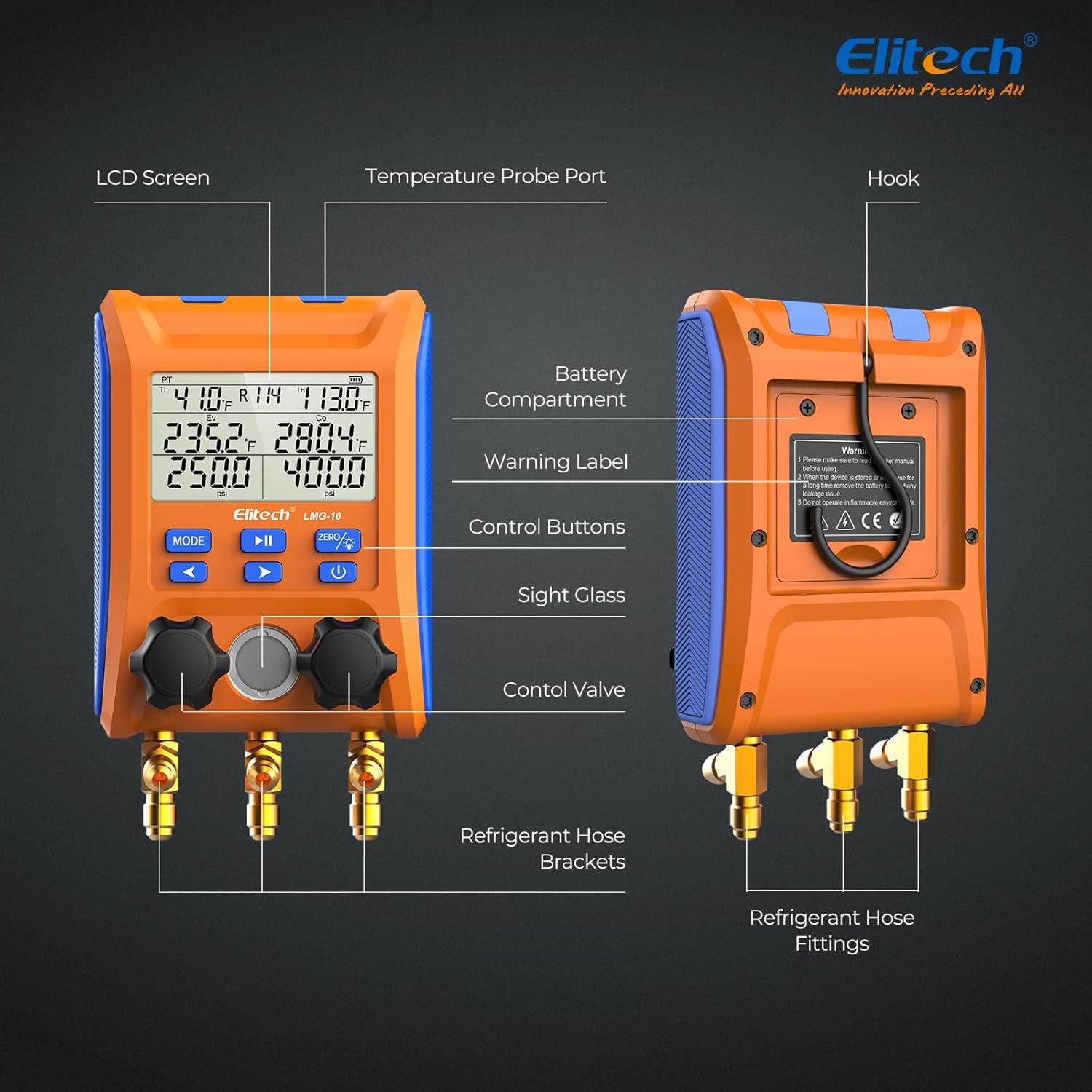

The design is straightforward: a large display, auto-off, and a hanging hook on the back for easy storage or access. Power use is also addressed with ultra-low power consumption and a claimed 200-hour battery life, plus a replaceable battery.
In a typical workflow, it can look like this: you connect the manifold for pressure measurement, clip the included temp clamps where you normally measure line temperature, then watch the display while the temperature compensation and calculations run. For service calls where you’re trying to confirm whether a system is correctly charged (superheat/subcooling checks), that sequence tends to be the difference between “checking once” and “checking with confidence.”
Where it shines (and the likely limits)

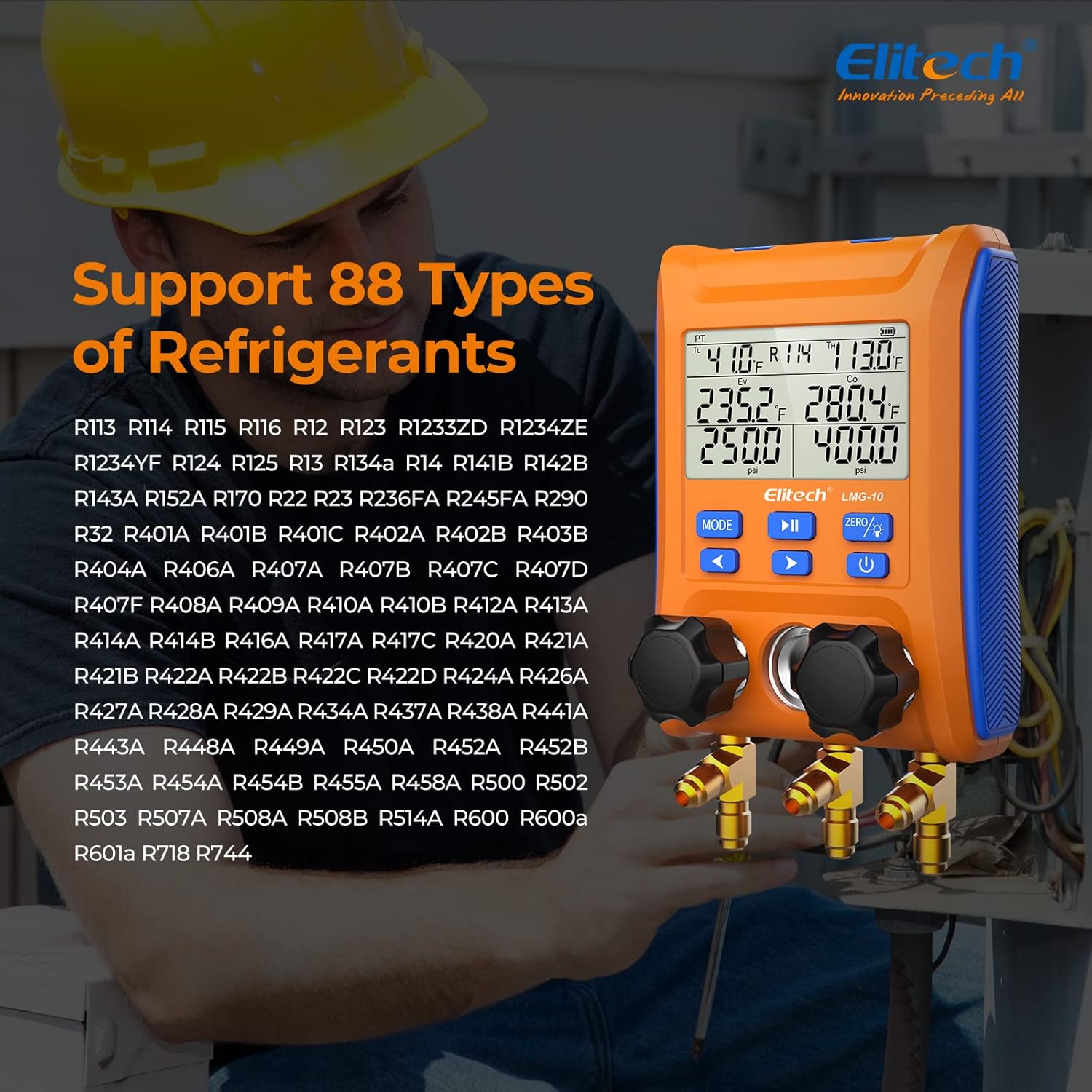

This unit looks like a good match if you regularly service systems across many refrigerants and want one tool that can handle variety. It supports 88 refrigerants, which matters if your route includes different equipment types and you don’t want to swap adapters or tools as often.
It also supports vacuum leak testing and monitoring of pressure holding. If you do evacuation/testing workflows, the “pressure holding and vacuum leakage test” focus is a relevant detail.
The potential limitation is simply that, without additional info, you’ll want to confirm your exact setup needs before committing. For example, the description mentions an R410A adapter and temperature compensation, but it doesn’t spell out every connection detail you might expect (hose compatibility, coupling type, or specific use constraints). If your shop has very specific fittings or measurement habits, it’s smart to double-check compatibility.
Tech specs
- Type: 2-Way Digital Manifold (HVAC refrigerant pressure gauge for superheat/subcooling)
- Refrigerant support: 88 refrigerants

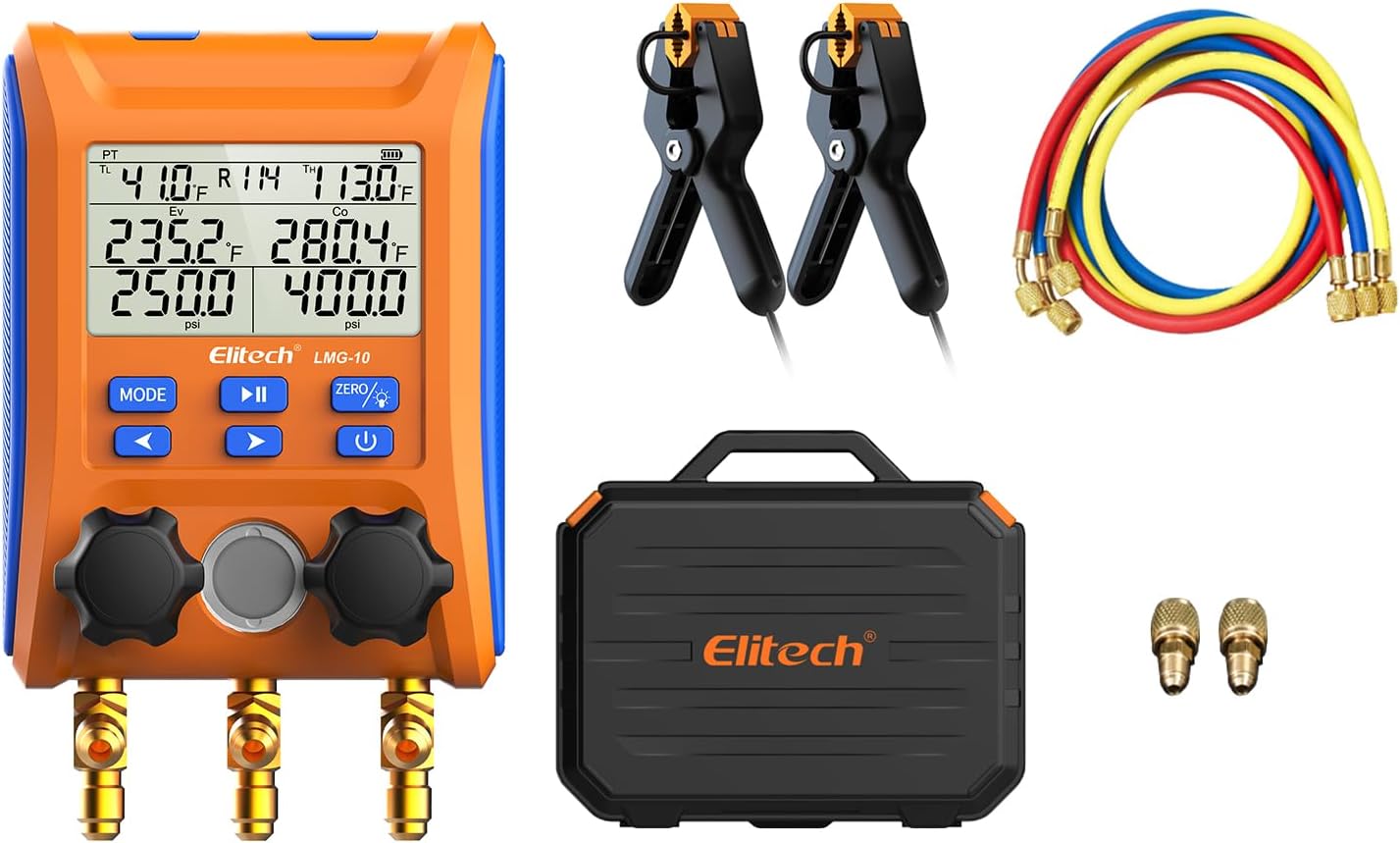

- Temp measurement: includes 2 temperature clamps
- Calculations: auto calculation of overheating and supercooling
- Temperature compensation: supported
- Pressure units: psi, kg/cm2, kPa, MPa, bar
- Temperature units: °F, °C
- Battery: ultra-low power, replaceable battery
- Battery life: up to 200 hours (claimed)
- Power features: auto-off
- Refrigerant adapter mentioned: R410A adapter
Should you buy it?
Worth considering if you want an affordable yet functional digital manifold that helps you run superheat/subcooling checks with temperature compensation, includes temp clamps, and supports 88 refrigerants. It’s especially a sensible pick if you do HVAC service work that includes pressure holding and vacuum leak testing, and you value a large display plus battery life that supports day-to-day use.
You may want to skip it if you need specifics not covered in the description—like very particular hose/fitting compatibility—or if you’re looking for a tool positioned as top-tier/high-end beyond what’s outlined here.
If you’re the kind of technician who already knows how to take measurements correctly, this is the “digital help” style of tool that can make the job faster and more consistent. If you’re still learning the workflow, it can still help, but make sure you understand where and how to place the temperature clamps so the compensated readings actually reflect the system.
Quick FAQ
How does it help with superheat and subcooling?
The tool is designed to auto-calculate overheating and supercooling and supports temperature compensation, so the readings are meant to be interpreted using temperature + pressure together.
Does it include temperature sensors/clamps?
Yes. The description says it includes two temperature clamps, which are part of the workflow for temperature compensation.
Can it work with different refrigerants?
It supports 88 types of refrigerants, and the description also mentions an R410A adapter.
What units can it display?
It lists five pressure units (psi, kg/cm2, kPa, MPa, bar) and two temperature units (°F/°C).
Is the battery replaceable?
Yes. The battery is described as replaceable, with ultra-low power consumption and a claimed 200-hour battery life.
