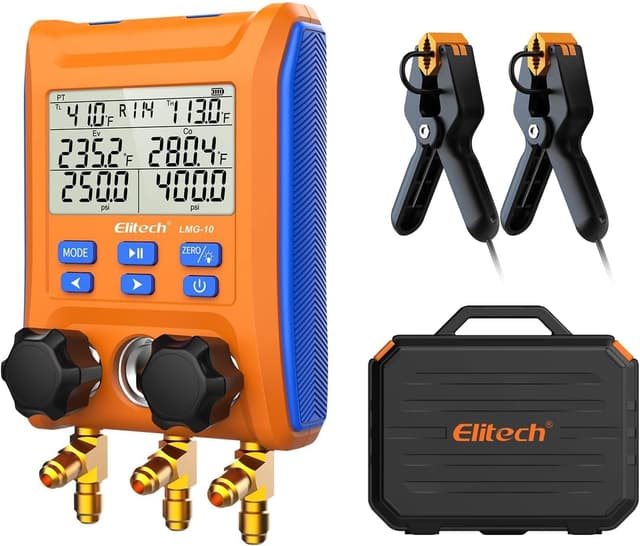

Elitech Digital Manifold Gauge LMG-10 (2-Way Valve) for HVAC/R Service

The essentials

If you do HVAC/R diagnostics, you already know the pain of doing superheat/subcool math by hand. Elitech’s Digital Manifold Gauge LMG-10 is built to reduce that step. On paper, it aims to read high/low side pressure and temperature, then work out superheat and subcool automatically so you can focus on what you actually need to decide—whether the system is healthy or behaving like it has a leak, charge issue, or another problem.

That “automatic” part matters, but it’s also worth being realistic: the unit’s vacuum values are based on an algorithm, so the more you care about extreme accuracy in a vacuum test, the more you’ll want to double-check your process and consider whether you’d need a different approach for your most critical work.

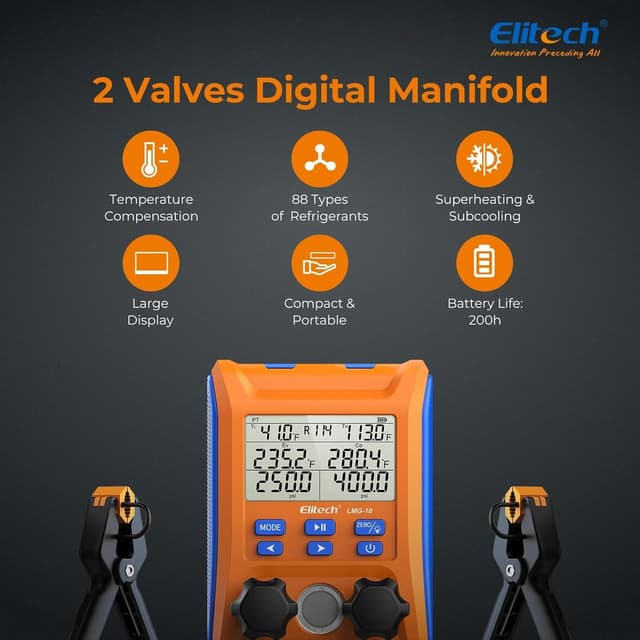

Key features that affect real service work

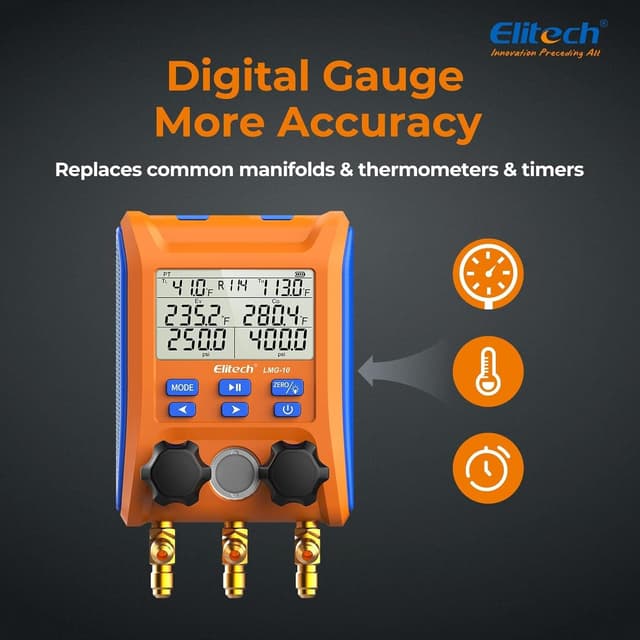

This gauge is designed around measurements that are typically central to HVAC troubleshooting: high/low pressure, temperatures from the manifold side, and the derived values tied to evaporator conditions. Elitech says it uses highly sensitive sensors to determine pressure and temperature on both sides, and it also calculates evaporating and saturation temperature for selected refrigerants.

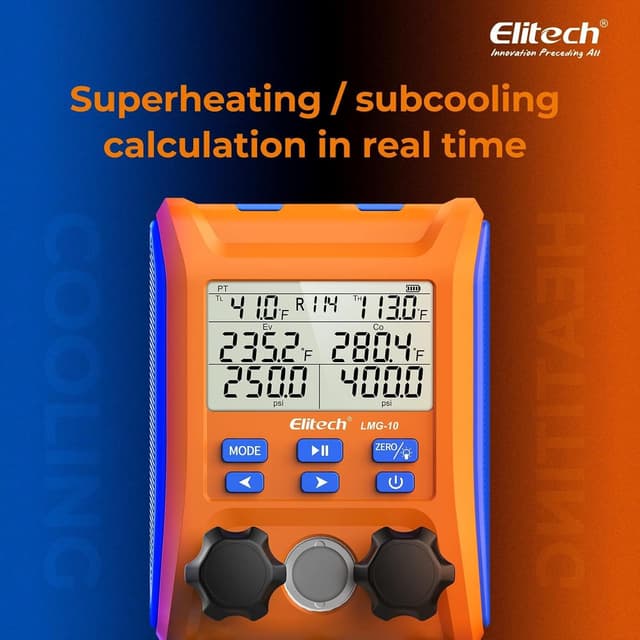

Where it can help day-to-day is in fewer manual calculations. Instead of juggling multiple readings and equations, you get an LCD display and automated superheat/subcool measurements in real time.

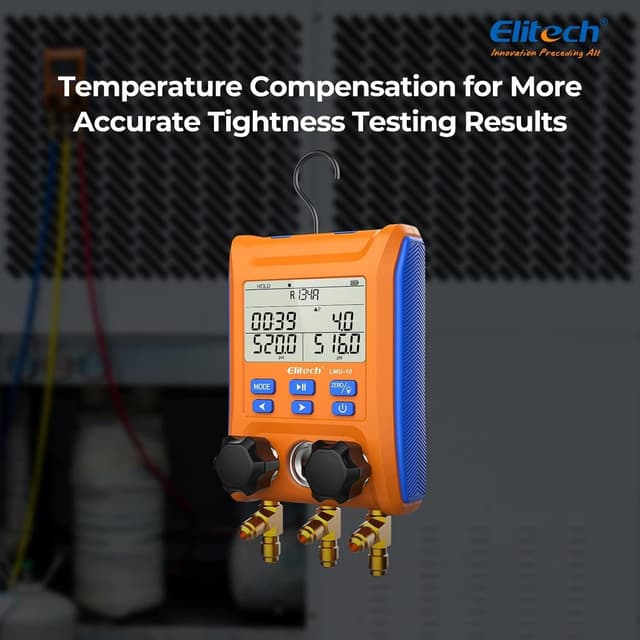

A second detail to like (especially when conditions change) is the temperature compensation idea. The goal is to reduce pressure shifts caused by ambient temperature, which can otherwise throw off calculations. Is it perfect in every field scenario? No measurement setup is magic, but reducing avoidable error is a sensible direction.

The manifold side also includes a pressure test approach meant to help determine whether there’s a leak during testing.

What stands out about the design

The LMG-10 is positioned for “hostile environments,” with a robust housing intended to be impact-resistant. If you’re using tools that get carried around, set down on dirty surfaces, and live in service vehicles, that durability focus can be more meaningful than you’d think.

Functionally, it’s a 2-way valve instrument with three connections, and it includes a hanging hook for convenient storage/positioning. That small practical touch is the kind of thing you notice when you’re working under time pressure.

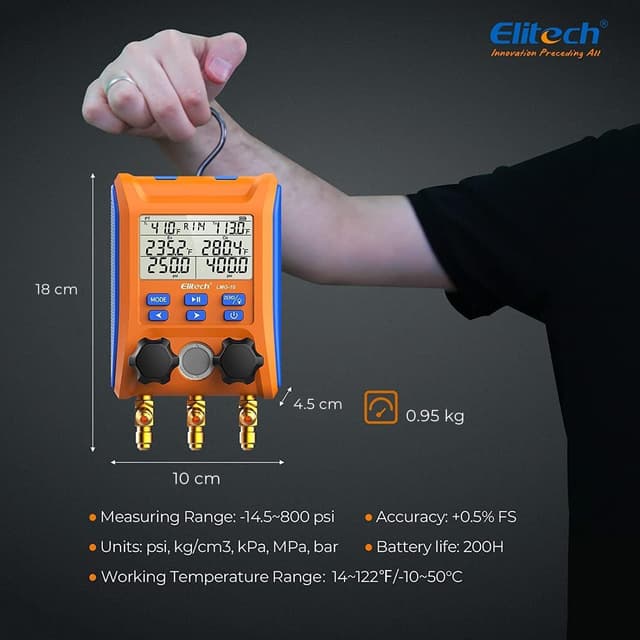

Key specifications

• Type: Digital manifold gauge with 2-way valve
• Display: Large LCD screen

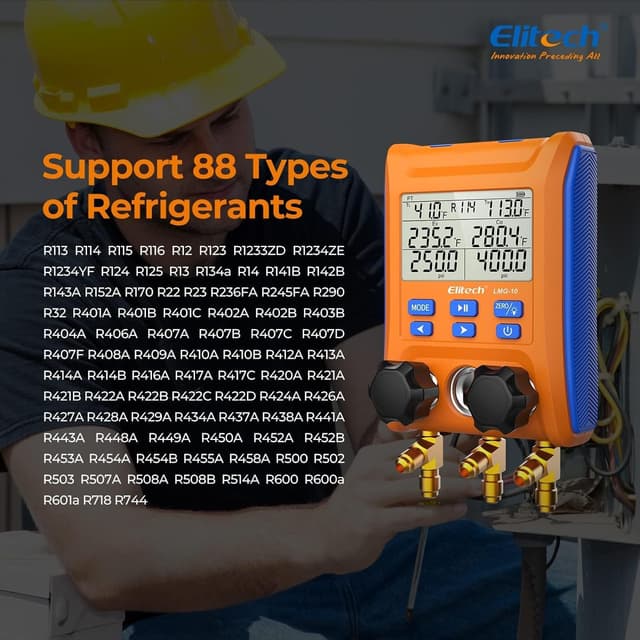

• Refrigerant temperature databases: 88 types of evaporating temperature/pressure data built in
• Valve configuration: 2-way valve block with three connections

Who it’s for—and when it may not be the best match

It makes the most sense if you do frequent HVAC/R service or troubleshooting where superheat and subcool readings drive your decisions. If you’re tired of manual calculations and want real-time results with a workflow that’s quicker to repeat system after system, the LMG-10’s approach aligns with that.

It might not suit you as well if your work is extremely sensitive to vacuum value precision and you already rely on vacuum testing methods that don’t use algorithm-based vacuum values. Elitech even notes that for greater accuracy, you may want to look at their VGW series—so if vacuum accuracy is your main priority, it’s a point to consider before committing.

Also, if you rarely service refrigeration systems where these calculations matter, you may find a more basic gauge approach is all you need.

Getting the most from it (practical service examples)

Imagine you’re checking an indoor unit after a service call. You connect the gauge, select the refrigerant, and monitor high/low pressure plus temperatures. As you stabilize the system, the gauge calculates superheat and subcool in real time. Instead of doing the math yourself while trying to keep notes straight, you can watch for trends—like whether readings settle where they should or stay off in a way that hints at a charge or restriction problem.

Or consider leak suspicion. During a pressure test, the idea is that you’ll be able to determine whether pressure holds or changes, which can help you narrow down where to focus next.

Final verdict

Is it worth it?

Buy the Elitech Digital Manifold Gauge LMG-10 if you want a service-focused digital manifold that helps automate superheat and subcool calculations, reduces manual work, and uses temperature compensation to limit environmental error.

Skip it if vacuum-test accuracy is your highest priority or if your workflow doesn’t revolve around refrigerant-side pressure/temperature diagnostics where evaporating/saturation temperature inputs matter.

For many HVAC/R technicians, this sits in the “more than basic, built for daily work” category—stronger on convenience and workflow than on claims of lab-level perfection.

Mini FAQ

Does it calculate superheat and subcool automatically?

Yes. The gauge is described as measuring in real time and automatically calculating superheat and subcool to avoid manual calculations.

Are the vacuum readings purely measured?

Not exactly. Elitech states that vacuum values are based on an algorithm, and recommends their VGW series for greater precision.

What refrigerants does it support?

It includes 88 types of temperature database for evaporating temperature and refrigerant pressure, but the exact list isn’t provided in the information here—so it’s smart to verify your refrigerant needs before buying.

Can it help with leak detection?

It includes a pressure test approach intended to help determine whether there’s a leak during a test.
