Product description

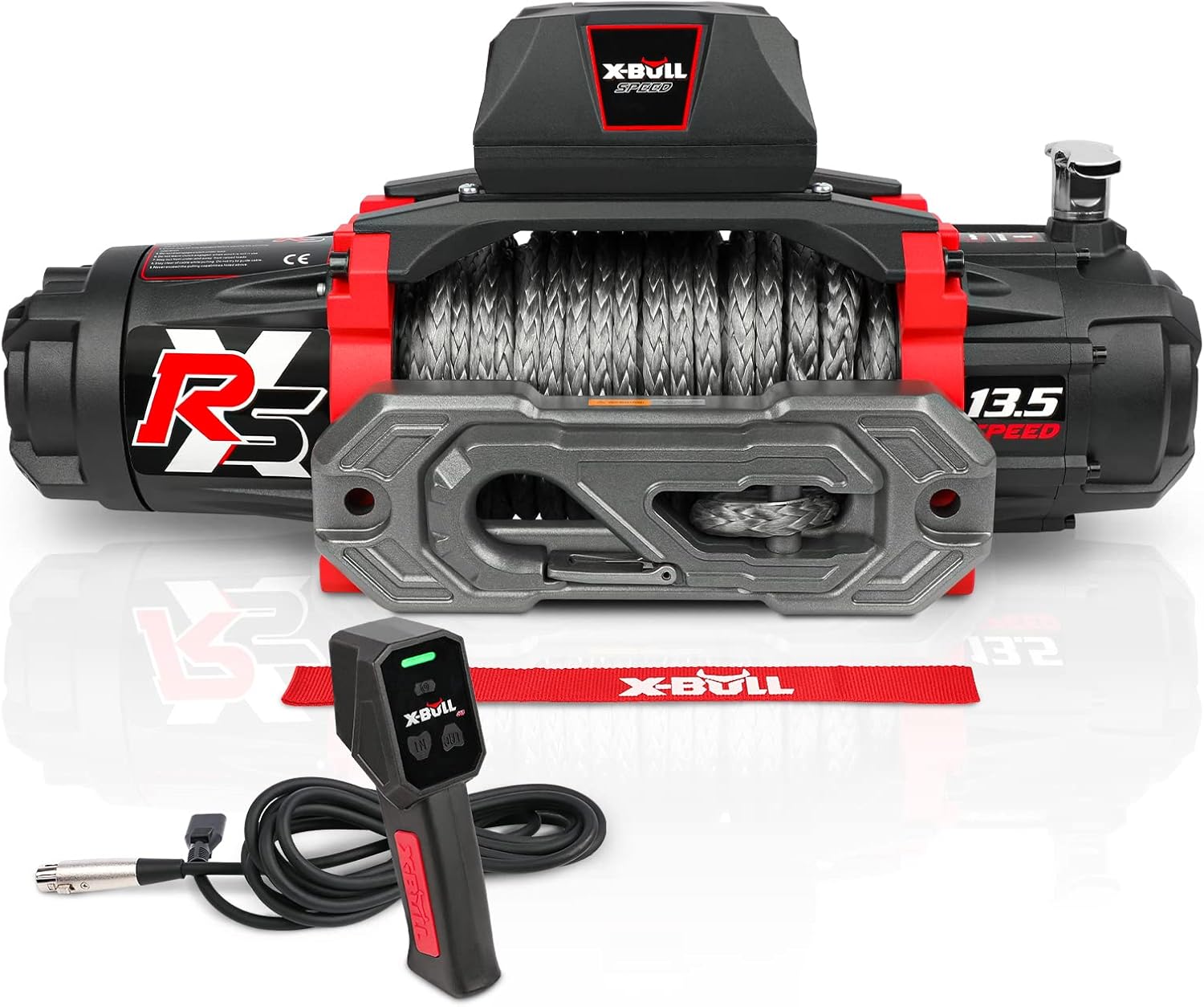

This electric winch from X-BULL handles heavy recovery and towing tasks with a focus on durability and user control. It offers a 13,500 lb rated pulling capacity and a synthetic rope for lighter handling during off-road recoveries and truck towing, making it practical for trail work and emergency pulls.
Key Points
The winch includes both wired and wireless controls so you can operate it from the cab or a short distance away. The 2-in-1 wireless remote system works up to about 35 m and the handheld remote is rated IP66 for water resistance according to the manufacturer. The housing and gearbox design improve heat dissipation, which helps maintain performance during extended use. Consider that a separate mounting plate is required and is not included with the product.
Technical Specifications
- Name: X-BULL Winch 13500 XRS Series
- Load capacity: 13,500 lb (rated)
- Rope: synthetic rope Ø10 mm x 28 m
- Power: 12V DC
- Remote range: up to 35 m, wireless remote rated IP66
- Gear system: 3-stage planetary gear with free-spool clutch
- Water resistance: control rated IP66, overall unit described as water resistant by manufacturer
Benefits
The synthetic rope reduces weight on the drum and is easier to handle than steel cable, while offering resistance to abrasion and the elements. The three-stage planetary gearbox provides strong traction under load and a practical balance between pulling force and line speed. Heat-managing gearbox design helps the unit sustain longer runs when recovering vehicles on extended missions.
Usage Recommendations
Mount the winch on a secure, vehicle-specific plate that matches the 12V electrical system and the winch’s bolt pattern. Use a snatch block to multiply pulling power and to reduce strain on the winch during heavy pulls. Place a heavy blanket or a winch dampener over the rope when under tension to help reduce snapback in case of failure. If any uncertainty arises during installation or operation, contact X-BULL support as noted by the manufacturer.
