BGSX-LS61 Photoelectric Sensor with NPN Output

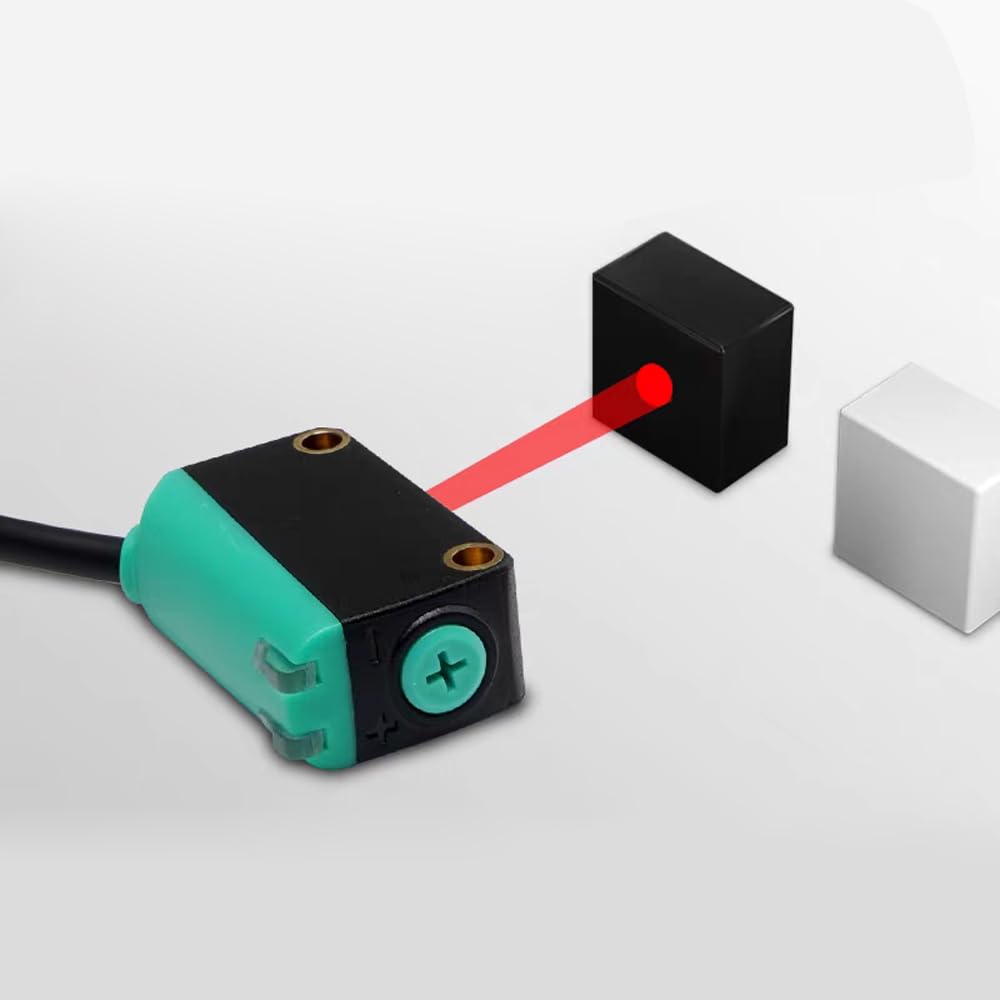

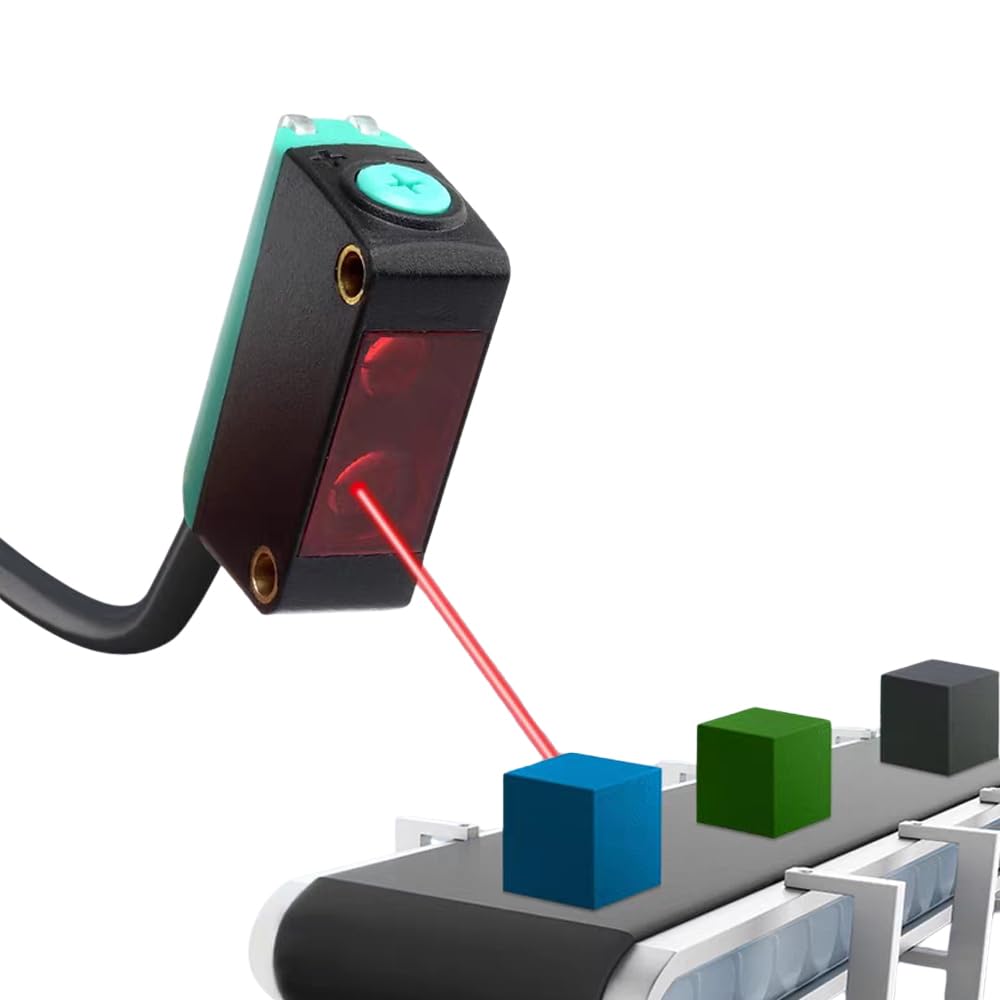

When an object needs to be detected without relying on contact, inconsistent readings from a changing background can complicate a fixed automation task. The BGSX-LS61 is a diffuse-reflection photoelectric sensor with background suppression, designed to detect objects while reducing the effect of background color. Its adjustable sensing distance and NPN output make it relevant for setups that need a straightforward detection signal. For example, it could be positioned beside a conveyor to signal when a part passes a chosen detection point, provided its range and electrical requirements match the installation.

Best use cases

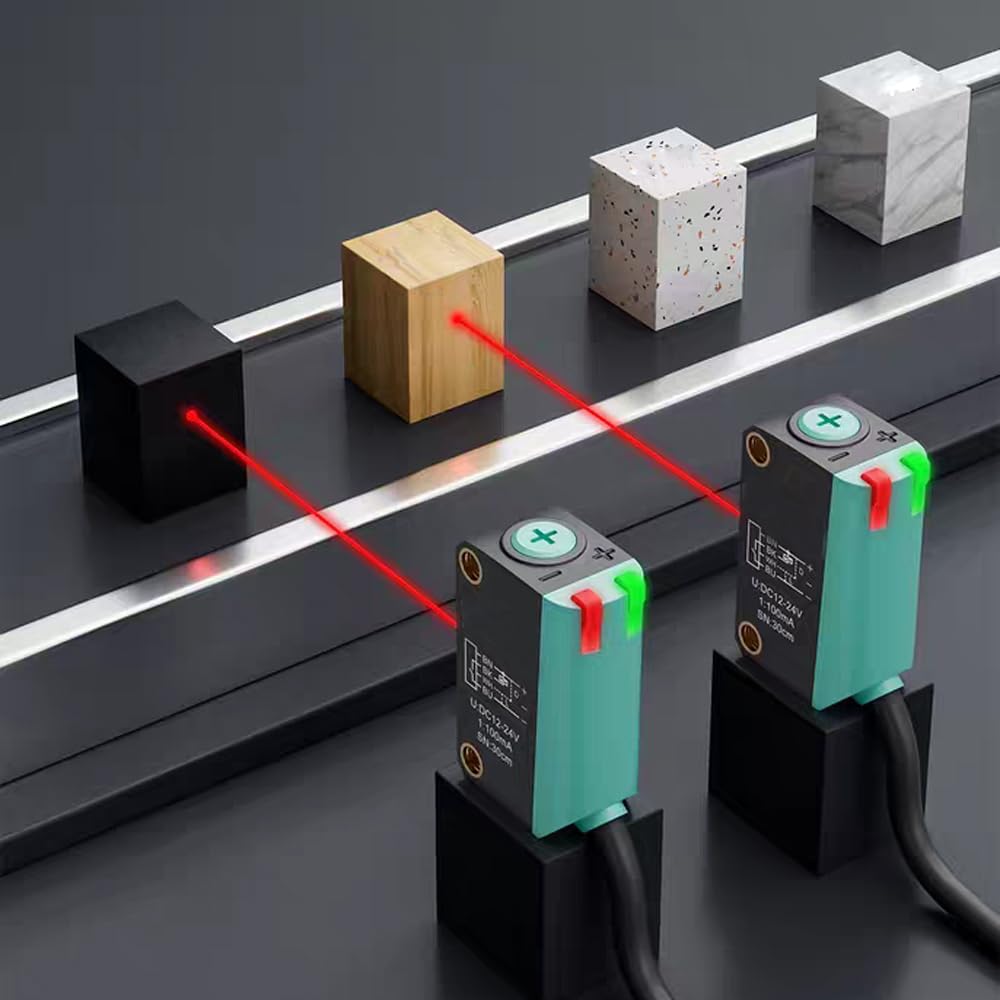

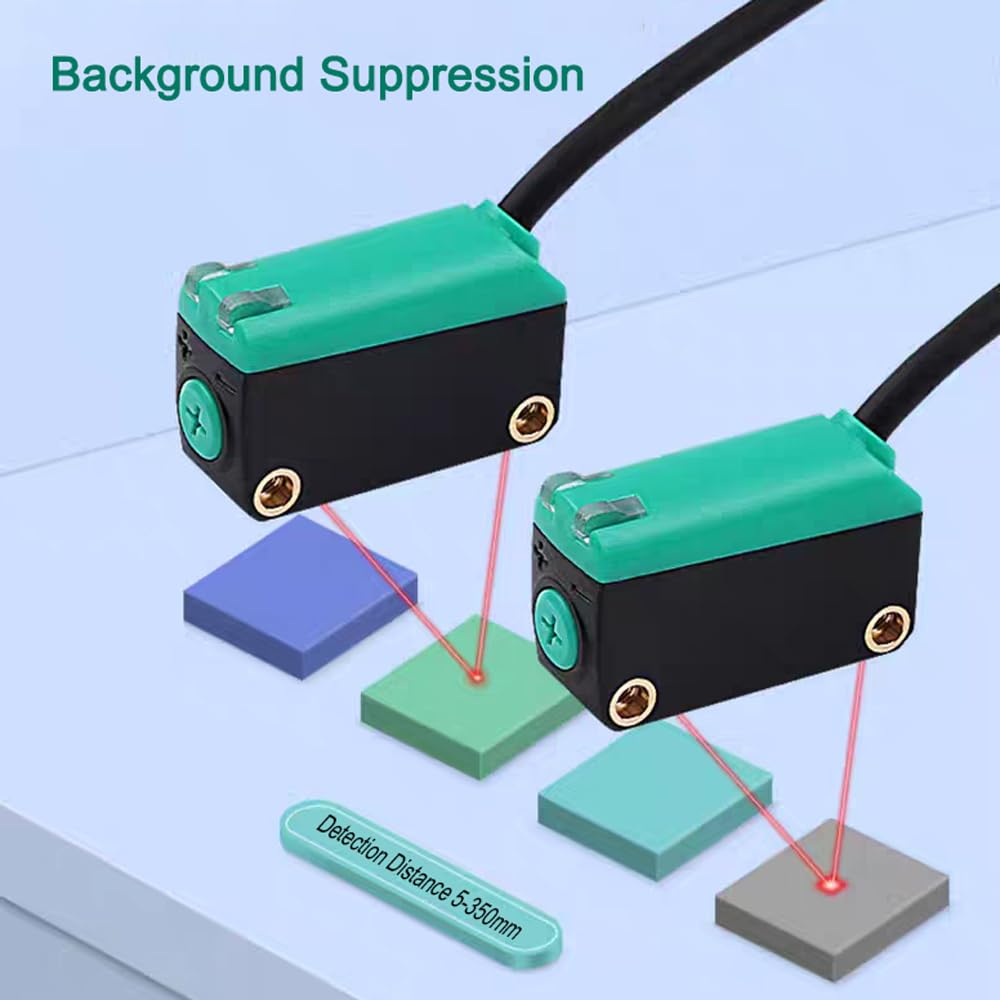

This sensor is aimed at industrial automation applications where a nearby object needs to trigger a signal. The stated sensing range makes it a candidate for relatively short-range detection, it is not presented as a long-distance sensor. Background suppression is intended to help when the surface behind an object might otherwise interfere with detection. According to the maker, the design is less affected by background color and can detect different objects more consistently.

The practical appeal is simple: mount the sensor near the detection point, adjust the sensing distance, and use its NPN output in a compatible control setup. It’s a great fit if you need a compact-style diffuse sensor for a defined detection task and can work with an NPN signal. If your application needs a different output type or a precisely established operating range, the available details leave important questions open.

Product specs

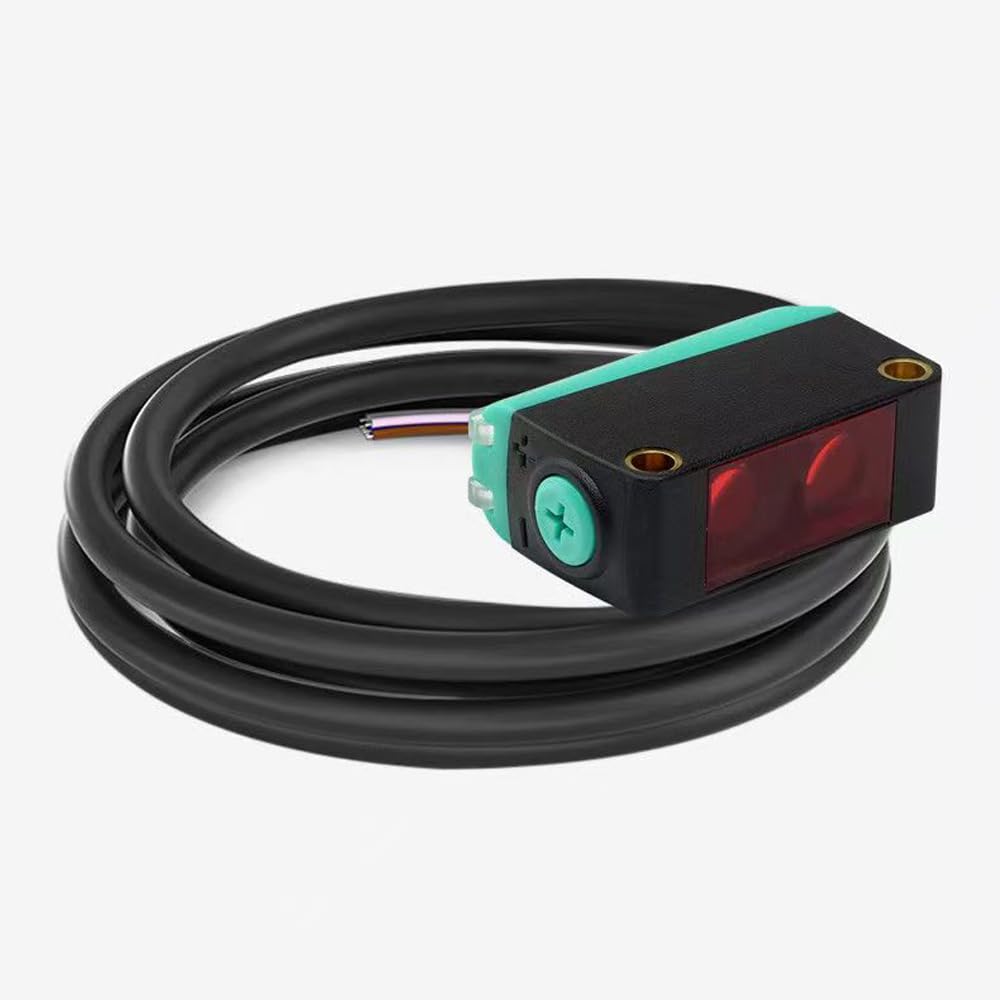

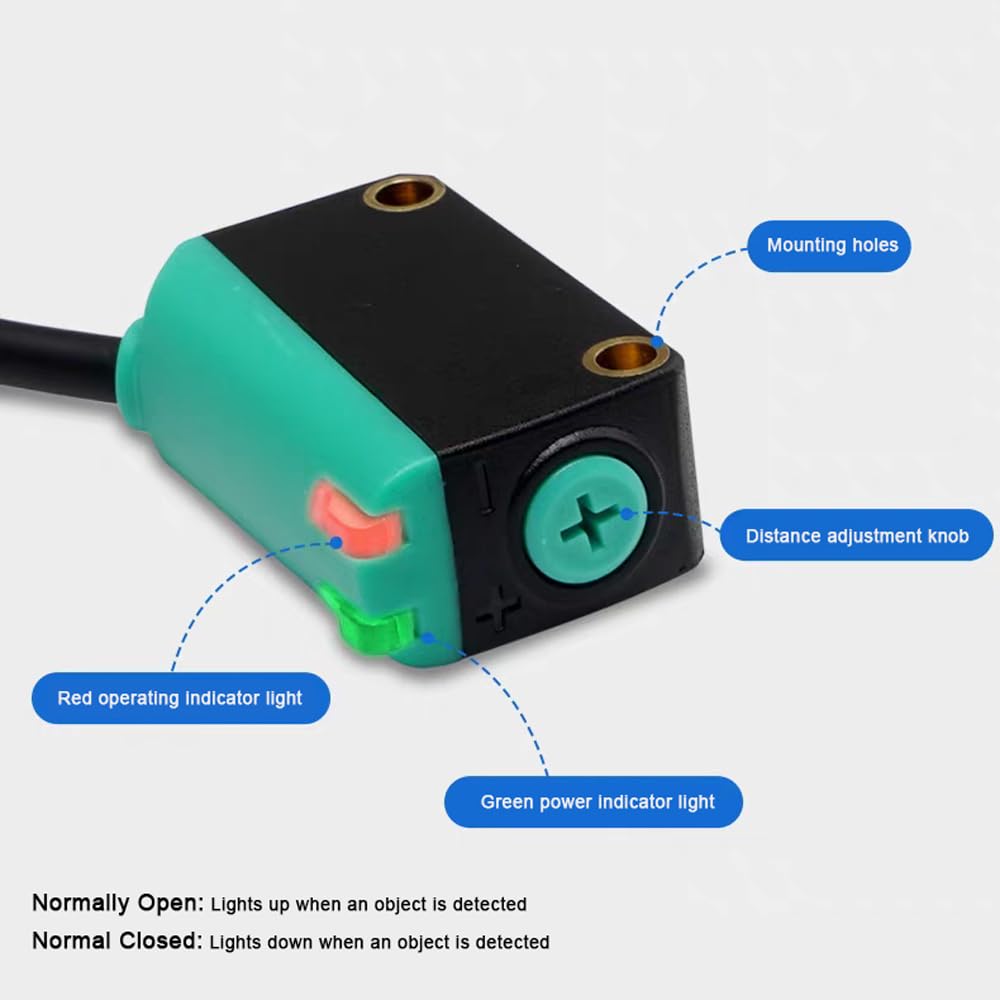

The housing is described as PBT, and the sensor has a 2-meter flexible cable. The listed response time is less than 1 ms, which may suit fast object-detection tasks, while the sensing distance is adjustable. The output is NPN.

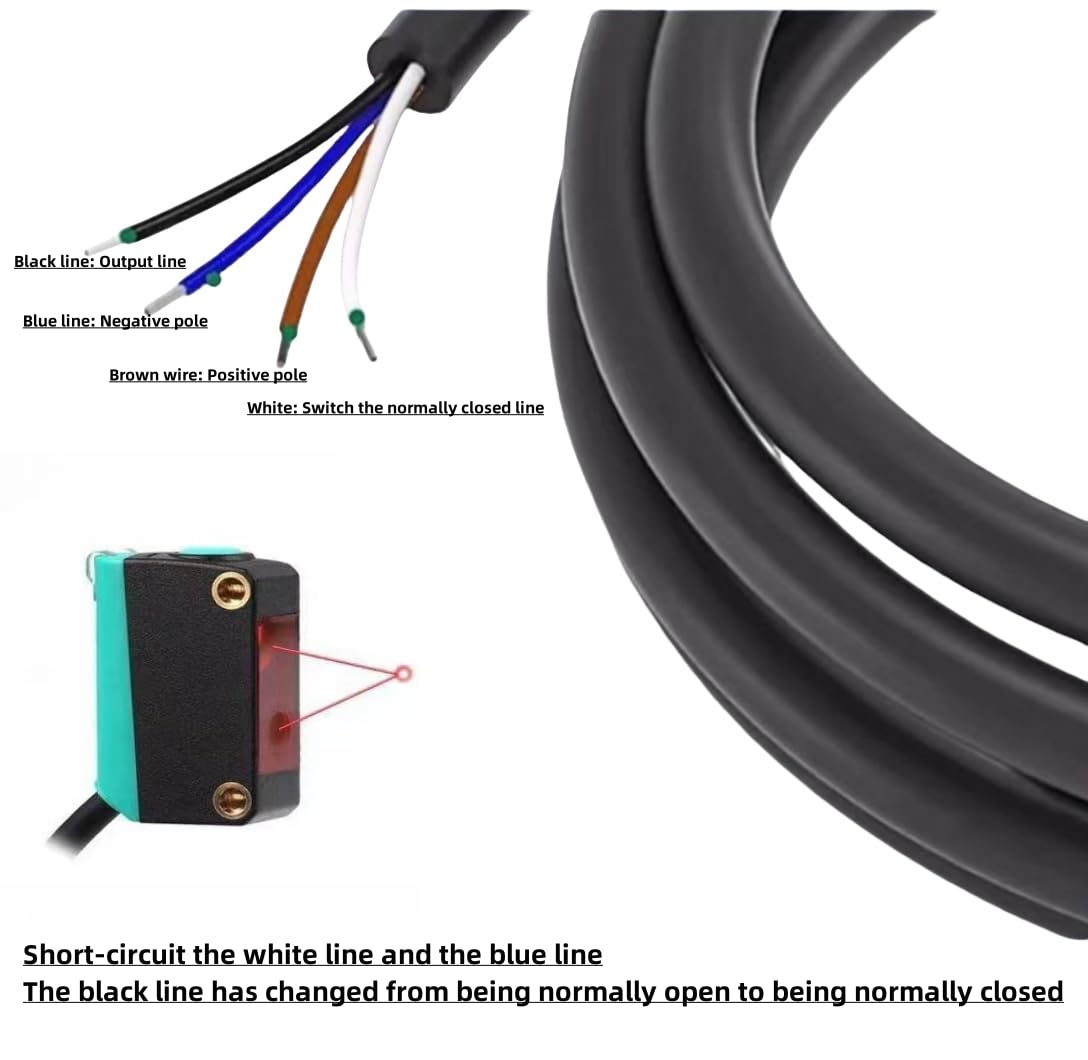

There are conflicting specifications in the supplied product details: the product name states a 5–400 mm sensing distance, while the description lists 5–350 mm. The voltage information also differs: one detail says DC 12–36V, while another gives DC 12–24V ±10%. These differences matter when matching the sensor to a controller and setting its position, confirm the exact range and supply requirements for the specific unit before designing around them. The listing does not provide further installation or wiring details, so those should not be assumed.

Where it shines

The main selling point is the combination of adjustable detection distance and background suppression, rather than extra operating modes or a long list of controls. In a fixed station, such as a point where a component needs to be detected before the next step, that focus can be useful. The PBT shell and cable are described as resistant to oxidation and scratching, and the cable is presented as durable. Those are relevant construction details, though they do not establish a specific environmental rating or service life.

How much does background suppression help if the sensor’s working distance is still uncertain? It can make the detection approach more suitable for varied backgrounds, but it cannot resolve the conflicting range figures. Compared with choosing a sensor primarily for a clearly documented distance or a different output configuration, this model makes more sense when its NPN output and short-range diffuse sensing match the task and you can verify the exact specifications.

When it makes sense

It may not suit you if the installation depends on an unambiguous sensing range or voltage specification and you cannot confirm those details before use. The listed response time and adjustable distance are useful indicators, but the product information does not establish detection performance for every object, mounting position, or operating environment.

Choose this sensor when you need diffuse photoelectric detection, an NPN output, and background suppression for a nearby target—and when the actual electrical and distance requirements have been confirmed. If your project calls for a different output type, a longer sensing distance, or fully consistent specifications in the product information, a sensor documented for those needs is the more sensible direction.
