Automatic Boat Bilge Pump 12V

When water collects in a boat’s bilge, a pump that can switch on as the level rises may reduce the need to keep checking and operating it by hand. This 12V automatic boat bilge pump is listed at up to 1,500 GPH and includes a built-in float switch, with a manual mode available for a different setup.

The key buying question is whether its automatic and manual modes match how you plan to wire and use the pump. The modes use different wire connections, and manual mode does not shut the pump off by itself.

Best use cases

The listing names fishing boats, cruisers, runabouts, yachts, skiffs, and dinghies as intended settings. It also mentions fish tanks, RVs, and portable showers, though the right fit depends on your setup and how you plan to route discharged water. The pump’s built-in float switch is the main practical draw for a bilge where you want it to start and stop in response to water level rather than relying only on a manual switch.

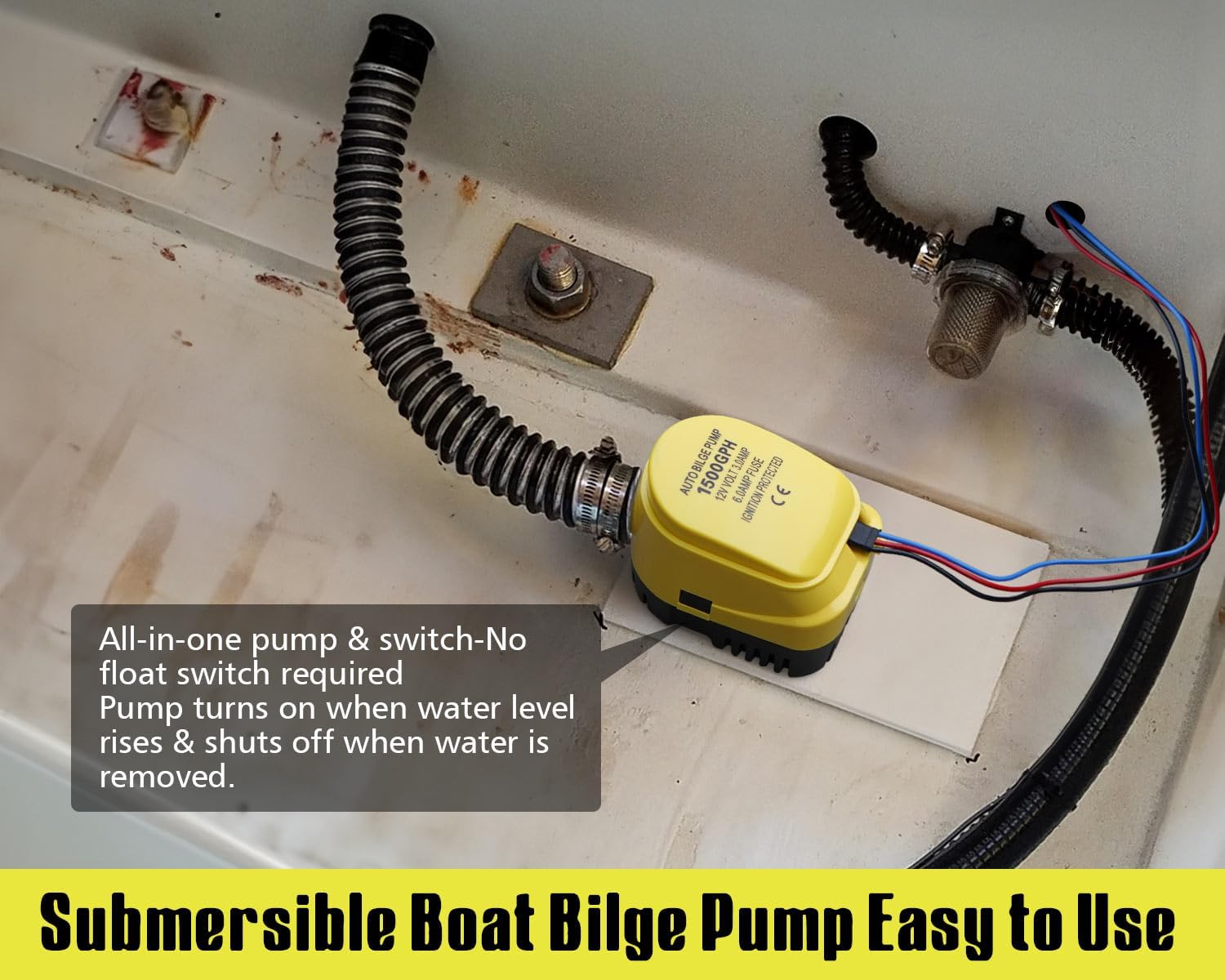

Picture water rising while a boat is sitting between outings: in automatic mode, the pump is designed to start when the level is above 1.4 inches and stop when it falls below 1 inch. That makes it a different approach from a basic pump that requires someone to turn it on each time. It’s a great fit if you want that float-controlled operation and can match the wiring and outlet to your installation.

Product specs

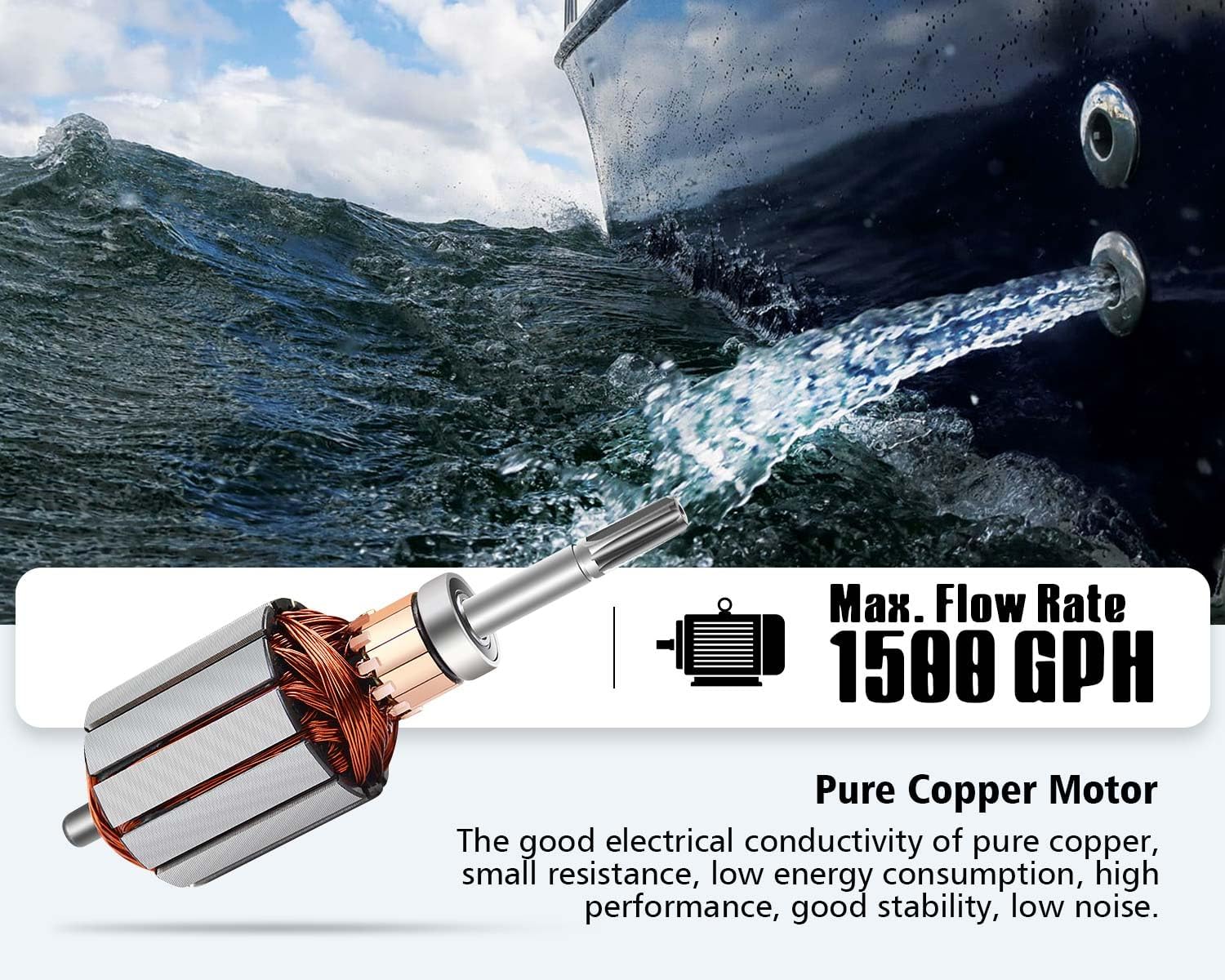

The pump runs on 12V and is rated at 3.5A, with a 1/10 HP motor and a listed flow rate of up to 1,500 gallons per hour. Its body is made from ABS, and the motor uses pure copper. The discharge outlet is 1-1/8 inches (29 mm), and one stainless steel clamp is included for connecting a discharge hose.

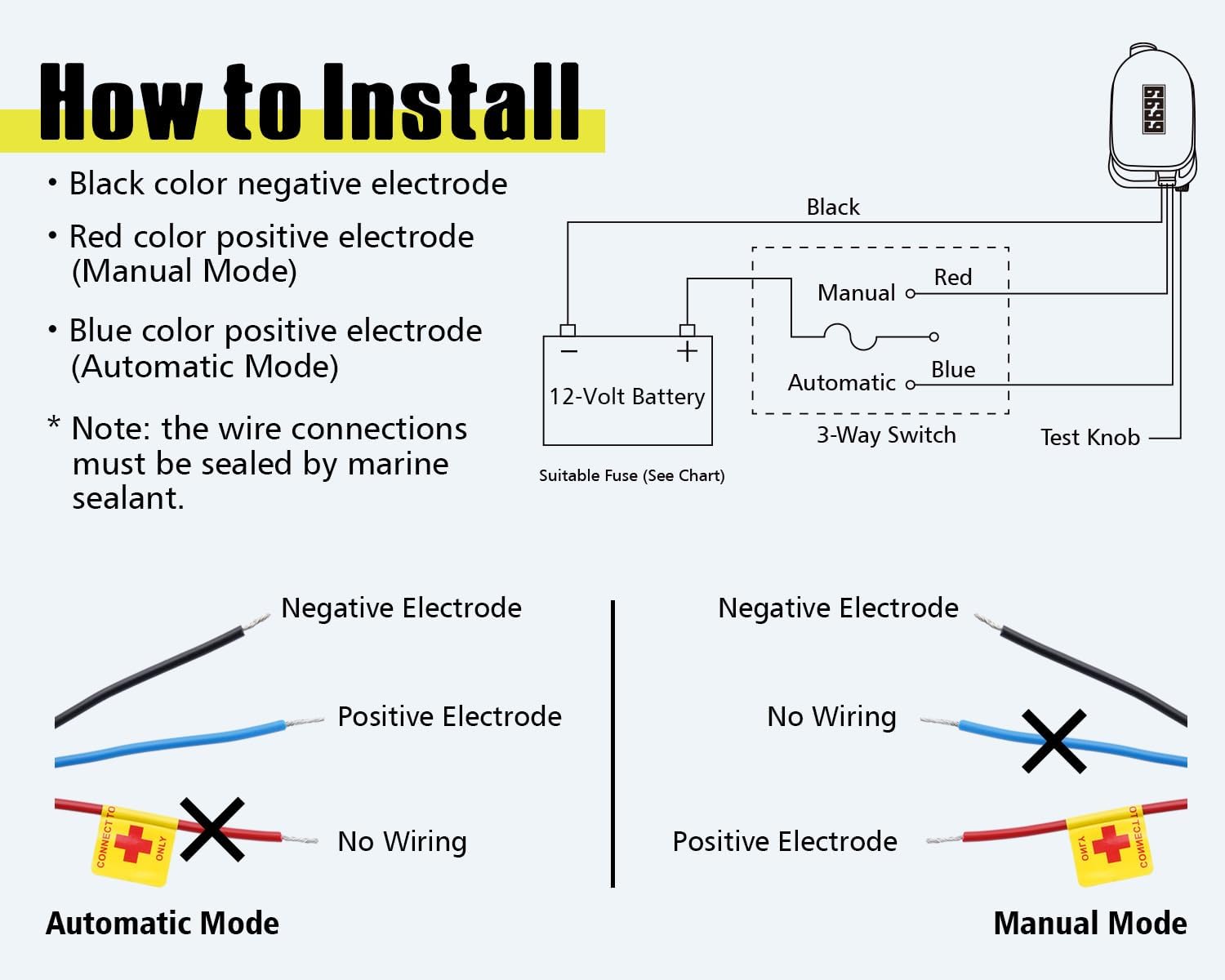

For automatic mode, the instructions specify black wire to negative, blue to positive, and red left unconnected. For manual mode, black goes to negative, red to positive, and blue remains unconnected. Those instructions matter: wiring it for manual operation means you must cut power yourself, so it is not the set-and-forget mode described for the float switch.

Where it shines

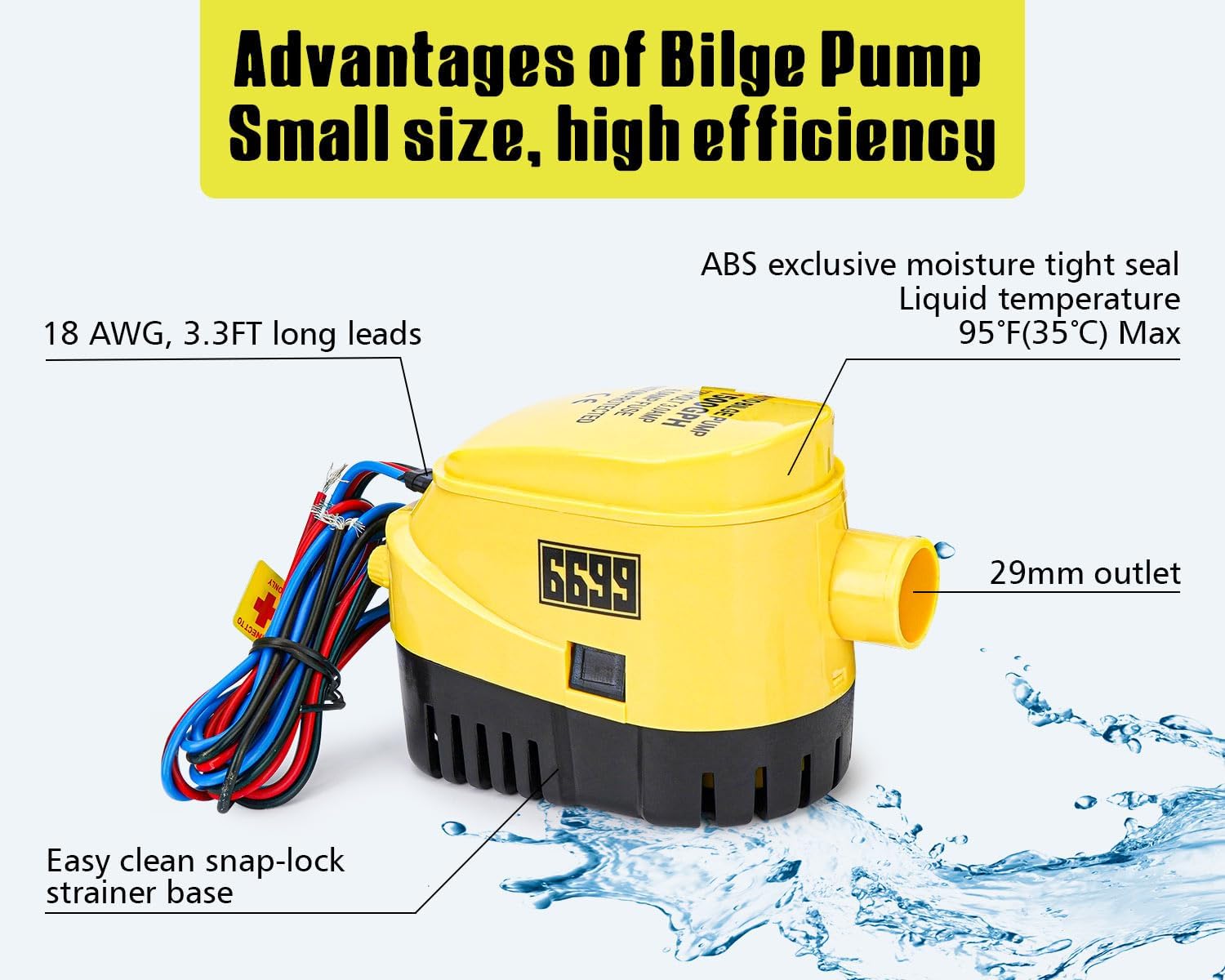

Its strongest case is combining a compact design with automatic start-and-stop behavior and a stated flow rate for routine water removal. The ABS body is described as having a moisture-tight seal, while the copper motor is presented as a low-resistance, low-current design. Those are manufacturer-provided details, not independent performance testing, so treat them as specifications rather than proof of how it will perform in your particular installation.

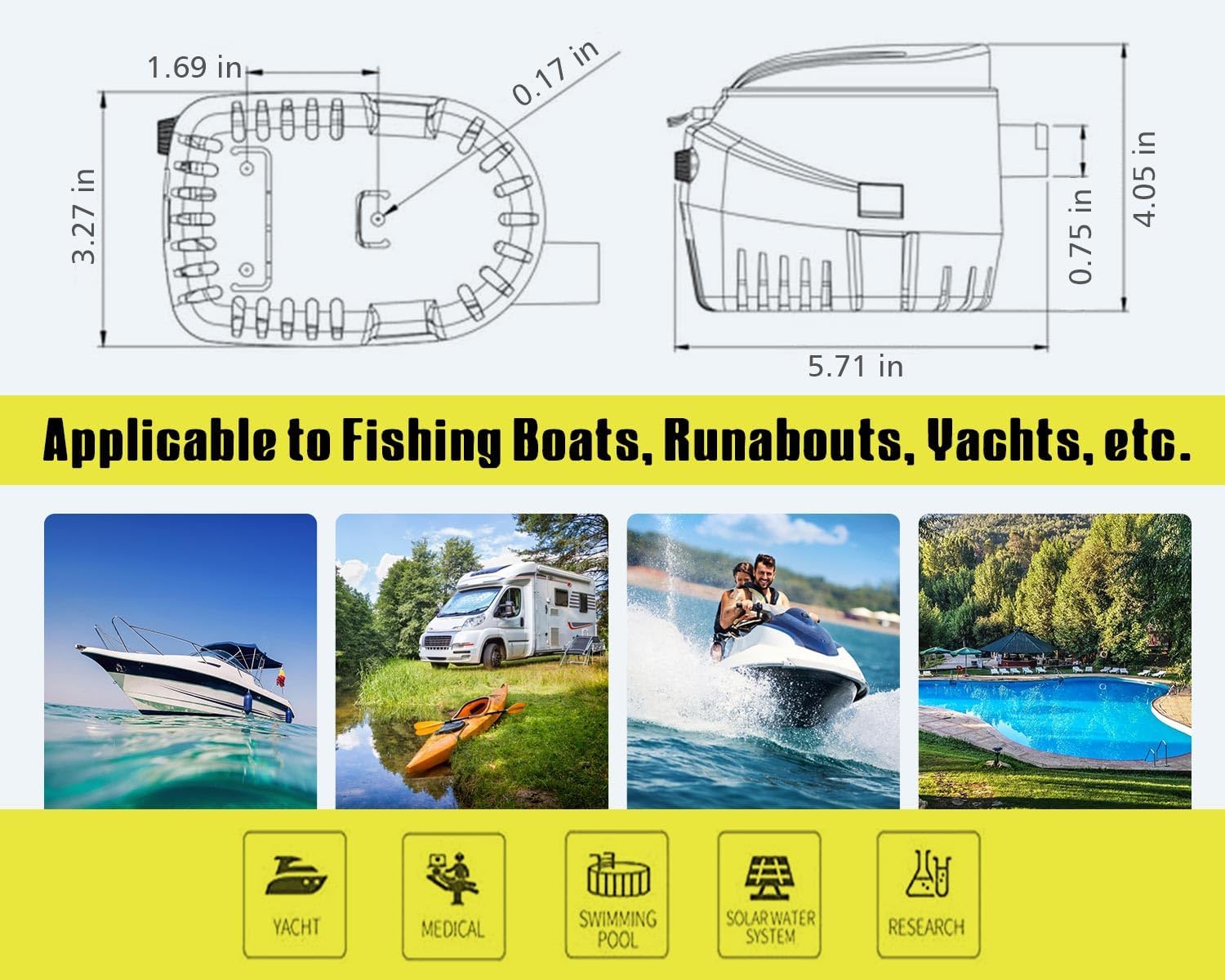

The outlet size is also a practical detail to compare with your discharge hose before choosing it. The included clamp helps with the connection, but the listing does not provide installation dimensions beyond the outlet diameter. It may not suit you if your setup requires a different outlet size or if you need manual mode to stop automatically.

When it makes sense

Choose this pump if its 12V supply, 1-1/8-inch outlet, and float-switch thresholds fit your boat or other intended setup. The automatic mode is the more hands-off choice, manual mode offers control over starting but requires you to disconnect power. If your priority is a pump with confirmed fit details for a specific space or hose, the limited dimensions in the listing leave some questions unanswered. For buyers whose setup matches the stated specs, the main reason to consider it is the combination of automatic bilge operation and a listed 1,500 GPH capacity—not an assumption that every installation will deliver that rate.
