200 watt Portable Solar Panel 20A PWM Controller ☀️

This foldable 200 watt portable solar panel is built for outdoor power on camping trips and RV adventures, offering higher conversion efficiency and a compact carry design to keep devices and 12V batteries topped up. It includes a 20A PWM controller and multiple connector options, which makes it a practical charger for power stations and battery systems while away from mains electricity.

Key Points

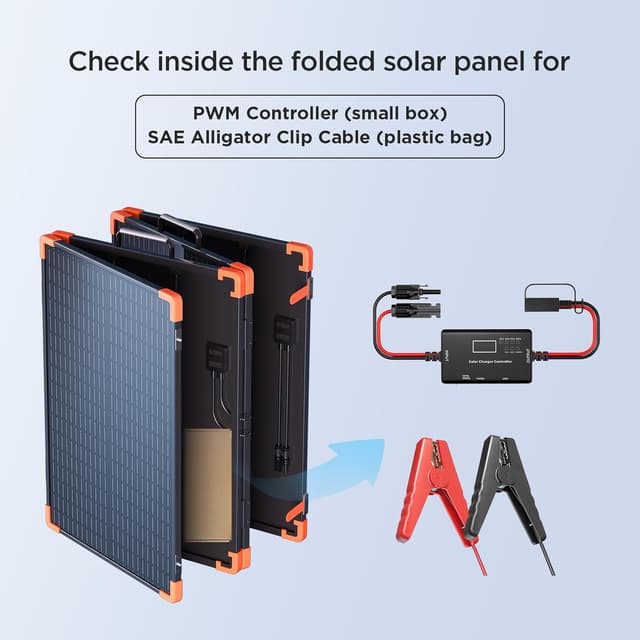

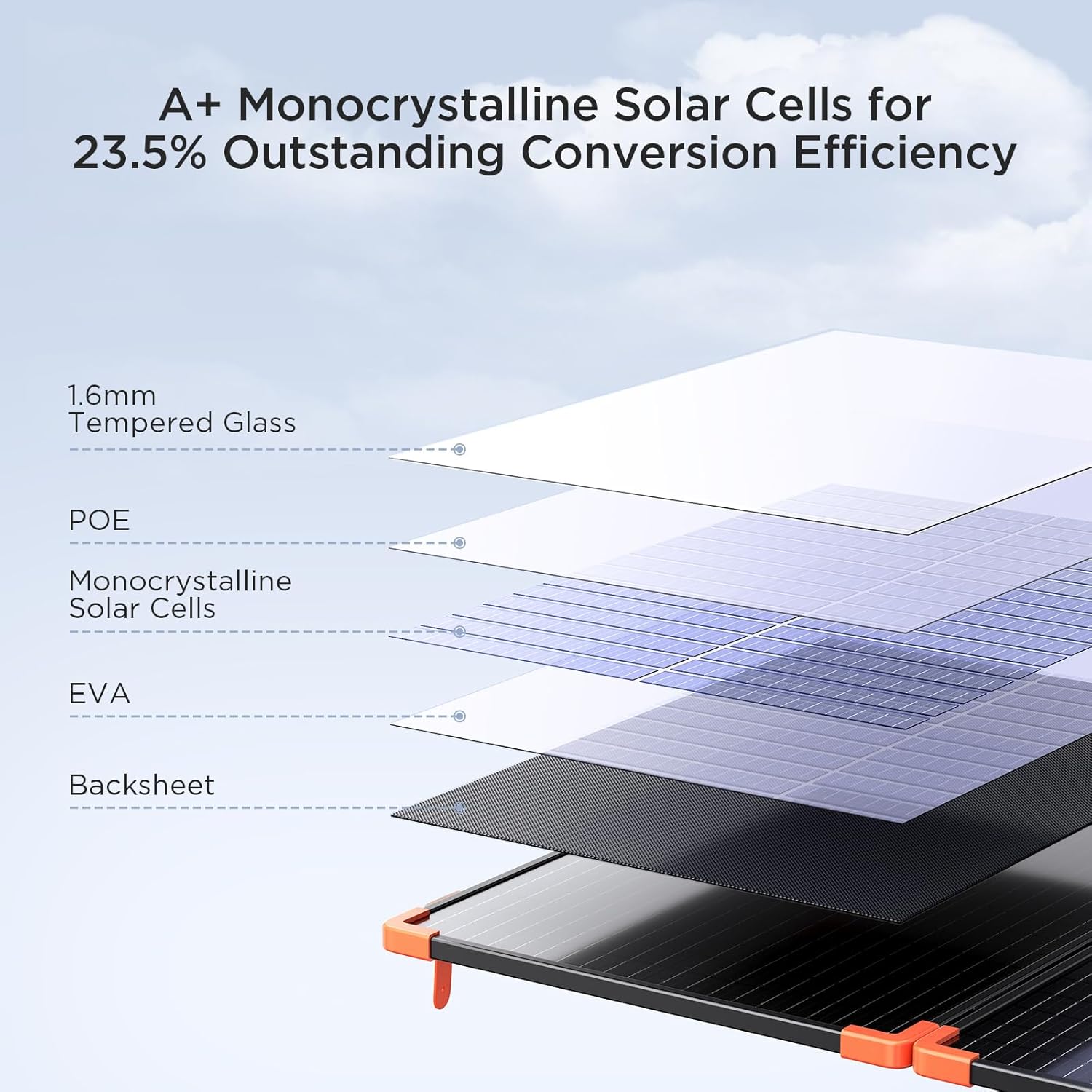

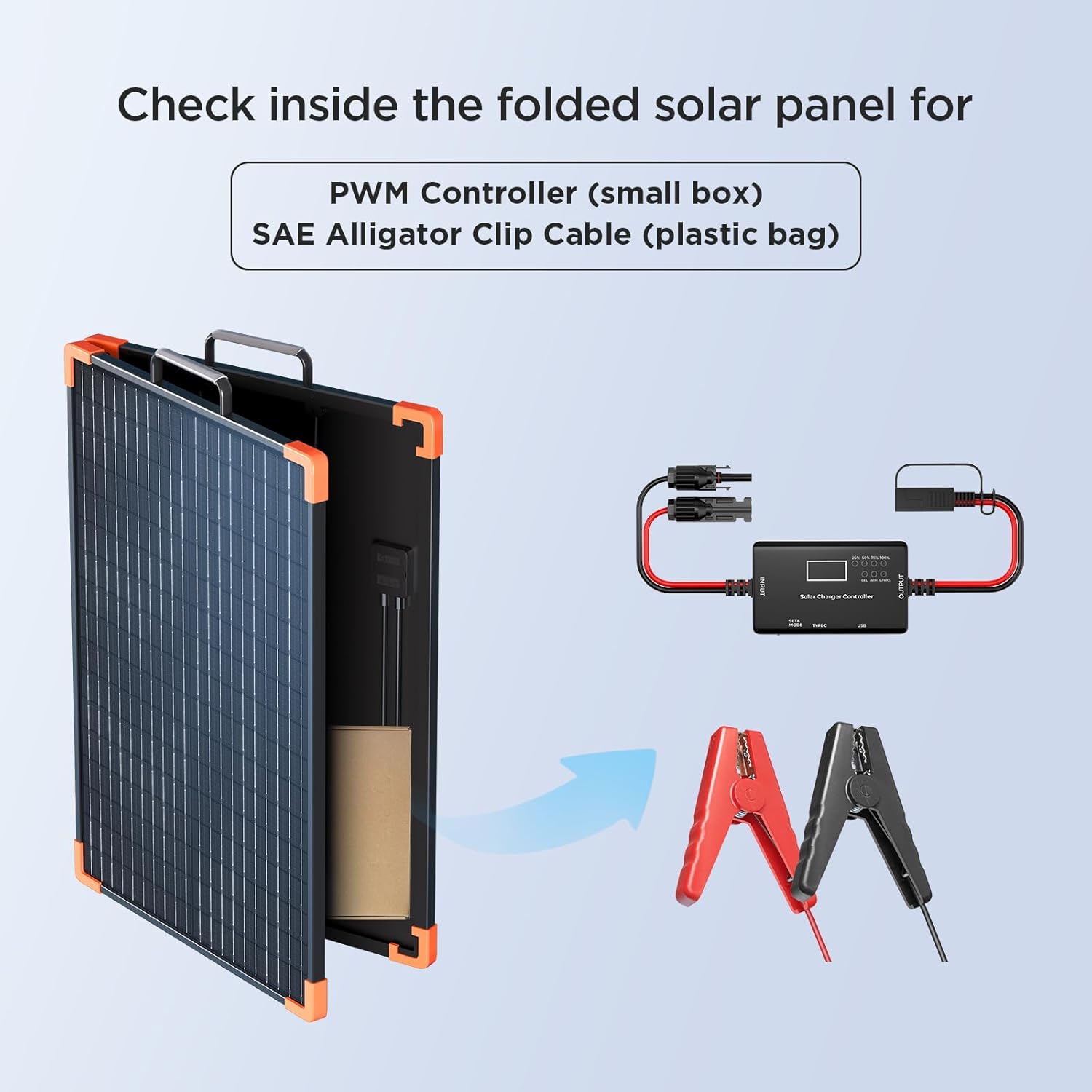

The panel uses A+ monocrystalline cells rated at up to 23.5% conversion efficiency according to the manufacturer, so it generates more power in varied light conditions compared with lower-grade modules. Folded, the unit measures 27 x 17.9 x 3.54 inches and weighs 20.6 lbs, making transport manageable for one person and easy to stow in an RV or car trunk. The kit ships with a range of accessories including a 5-in-1 solar cable, a 10-in-1 DC adapter set, an SAE alligator clip cable, and a storage bag to simplify setup and compatibility with many devices.

Technical Specifications

• Name: 200 watt Portable Solar Panel with 20A PWM Controller
• Power: - 200 W
• Cell type and efficiency: - A+ monocrystalline, 23.5% (manufacturer)
• Folded dimensions: - 27 x 17.9 x 3.54 inches
• Weight: - 20.6 lbs
• Controller: - 20A PWM charge controller included

Advantages

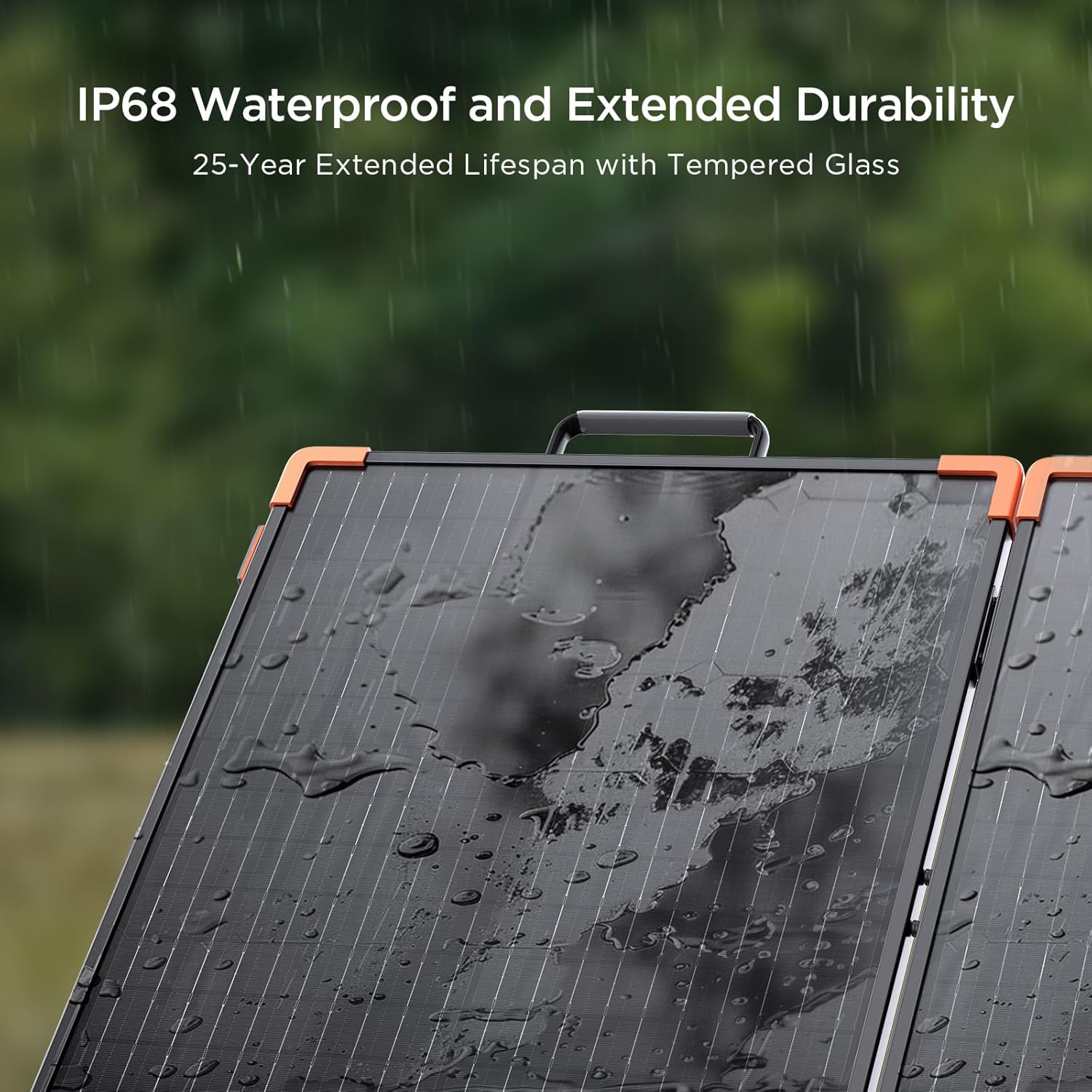

Durability is emphasized through a 1.6 mm tempered glass surface that offers increased impact resistance and greater scratch protection than typical ETFE or PET coverings. The design is rated IP68 for water resistance, which suggests the panel can handle wet outdoor environments, although the controller itself is not waterproof and should be kept dry. The integrated kickstands allow you to prop the panel toward the sun at approximately a 90-degree tilt for improved output during setup. Multiple protections are built into the PWM controller, including overcharge, reverse charging, short circuit, reverse polarity, and over-temperature safeguards, to help protect connected 12V batteries.

Usage Recommendations

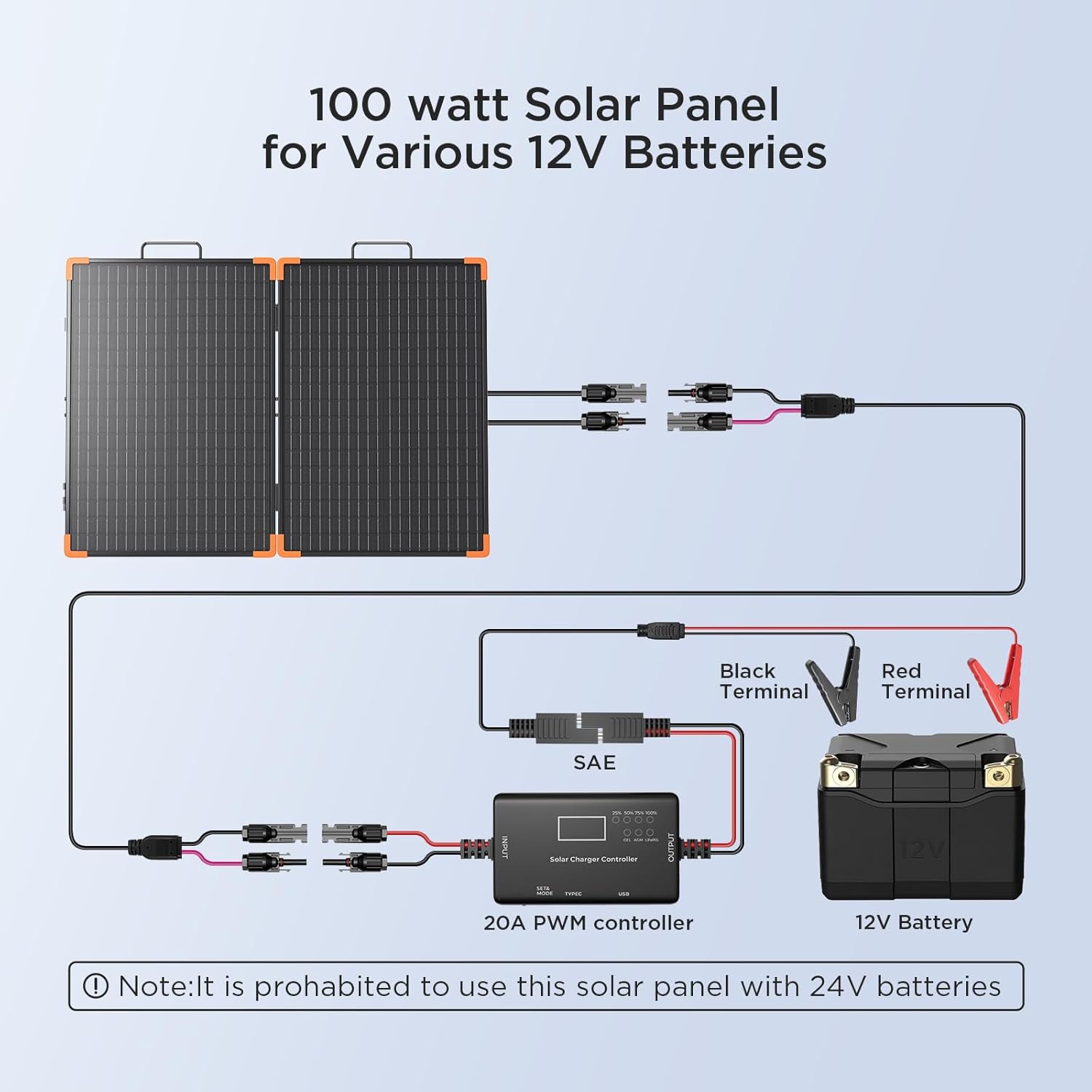

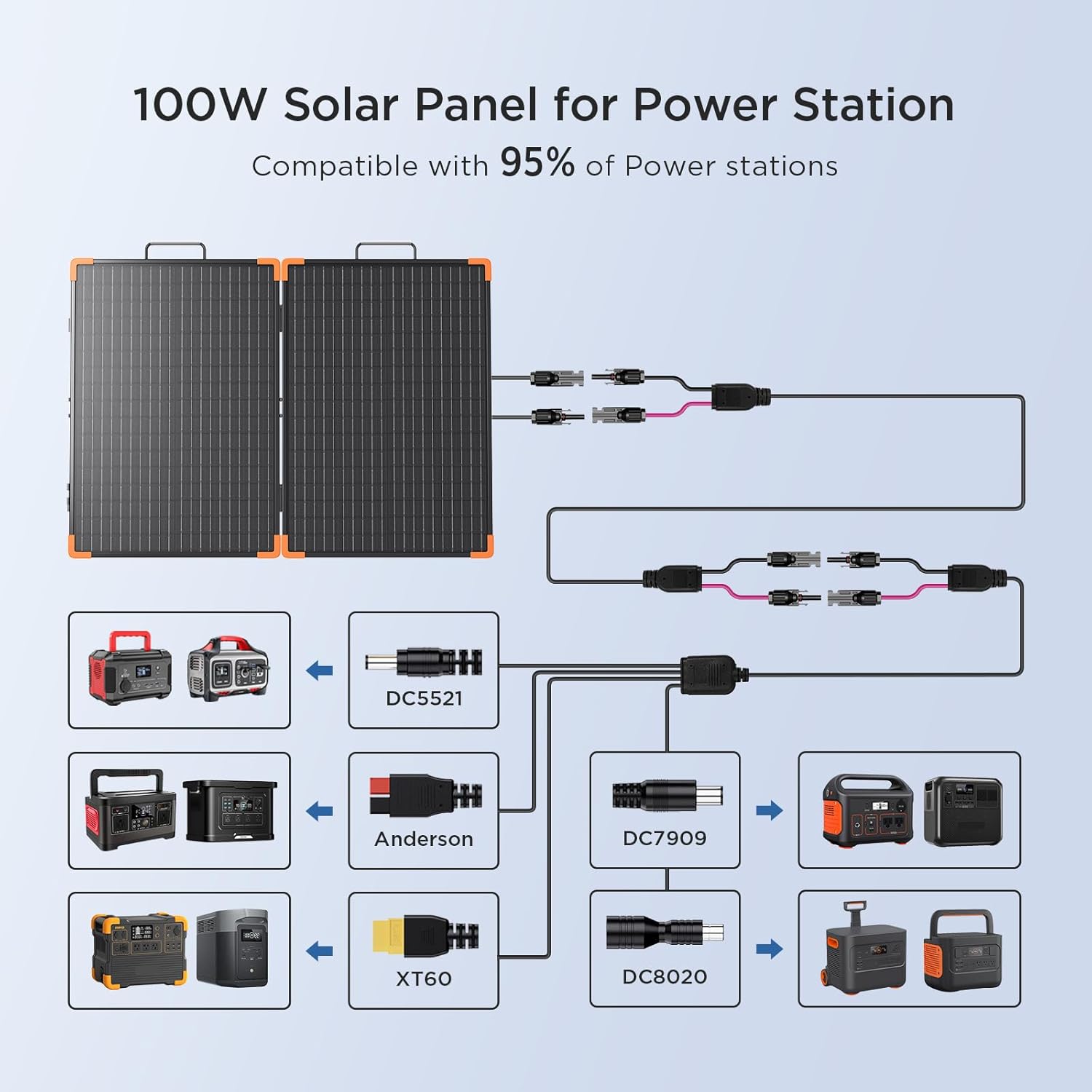

Unfold the panel on a flat, stable surface and adjust the four kickstands so the panel faces direct sunlight for the best production. Use the included 5-in-1 cable to connect to a compatible power station port, or employ the SAE alligator clip cable to charge a 12V battery directly. Keep the PWM controller out of rain and avoid submerging it. Consider positioning the panel where shadows from nearby trees or gear are minimal, because partial shading can significantly reduce output. For long-term storage, dry the panel thoroughly before folding and placing it in the supplied bag.

Note a nuance about longevity and performance: the manufacturer indicates the tempered glass construction retains around 80% output after 25 years. Also consider that PWM controllers are effective for many setups but may not offer the same charging speed or optimization as an MPPT controller for some power stations.
