YARCHONN USB Type‑C 6‑pin pigtail cable 30cm
Product description
This USB Type-C pigtail cable is a handy component for electronics hobbyists who need a short, serviceable connection for power and data when repairing or building small devices. The open-end 6-core design makes it straightforward to solder into place, and it supports up to 5A for charging and OTG functionality, according to the manufacturer.
Key Points
This cable is intended for DIY repair and custom wiring of USB-C devices such as mice, keyboards, LED lamps and other low-power peripherals. It features colour-coded leads to help identify power, ground and data lines, which simplifies quick replacements and modifications. For small projects where a full harness is unnecessary, the 30 cm length keeps cable runs neat without excess slack.

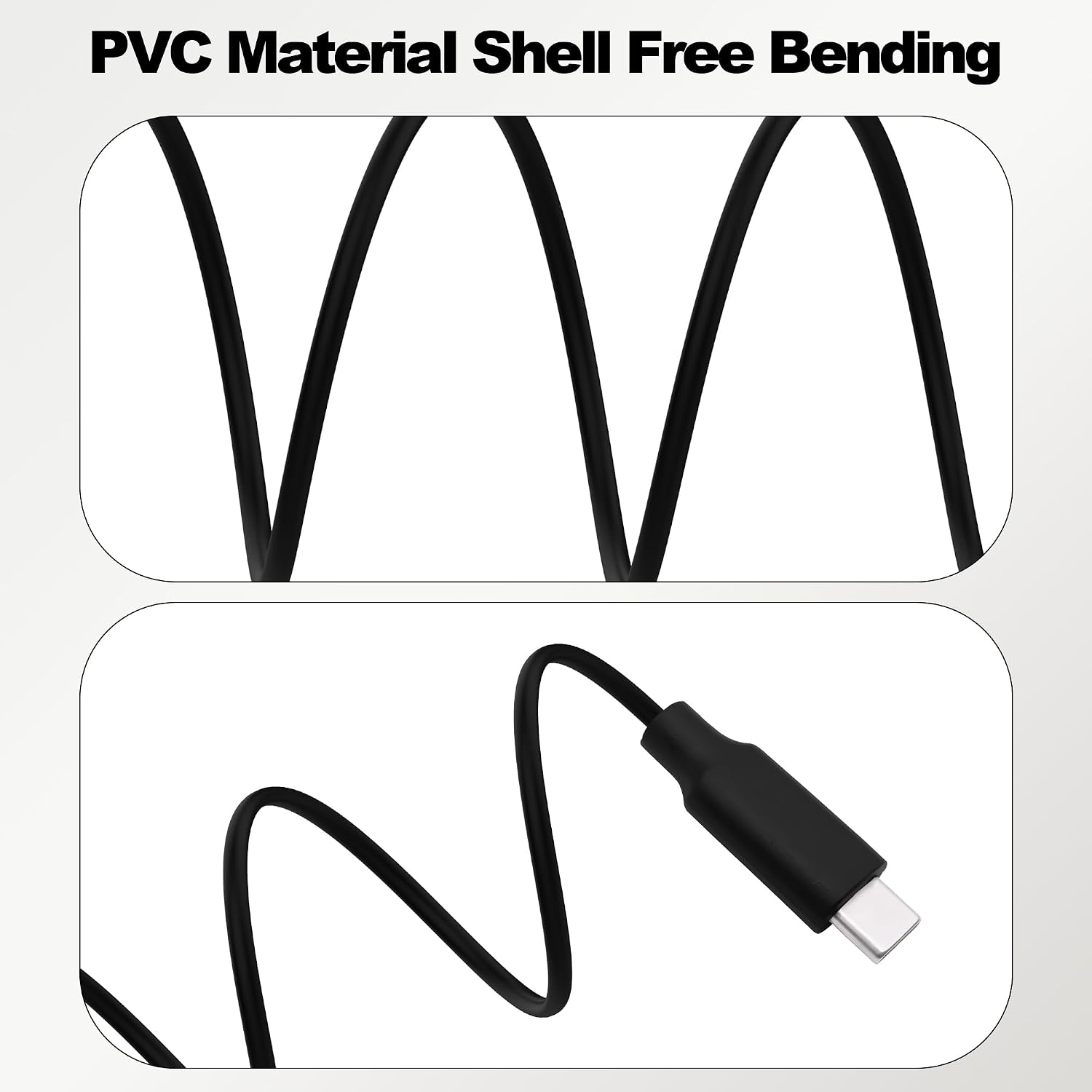

The flexible PVC jacket and tin-plated wire ends aim to improve handling during soldering and installation, and the plug is designed for repeated connections in test setups. Note that while the cable is suitable for many low-power peripherals, it may not be appropriate for heavy-duty or industrial applications.
Technical Specifications
- Name: YARCHONN USB Type-C 6 Pin Pigtail Cable

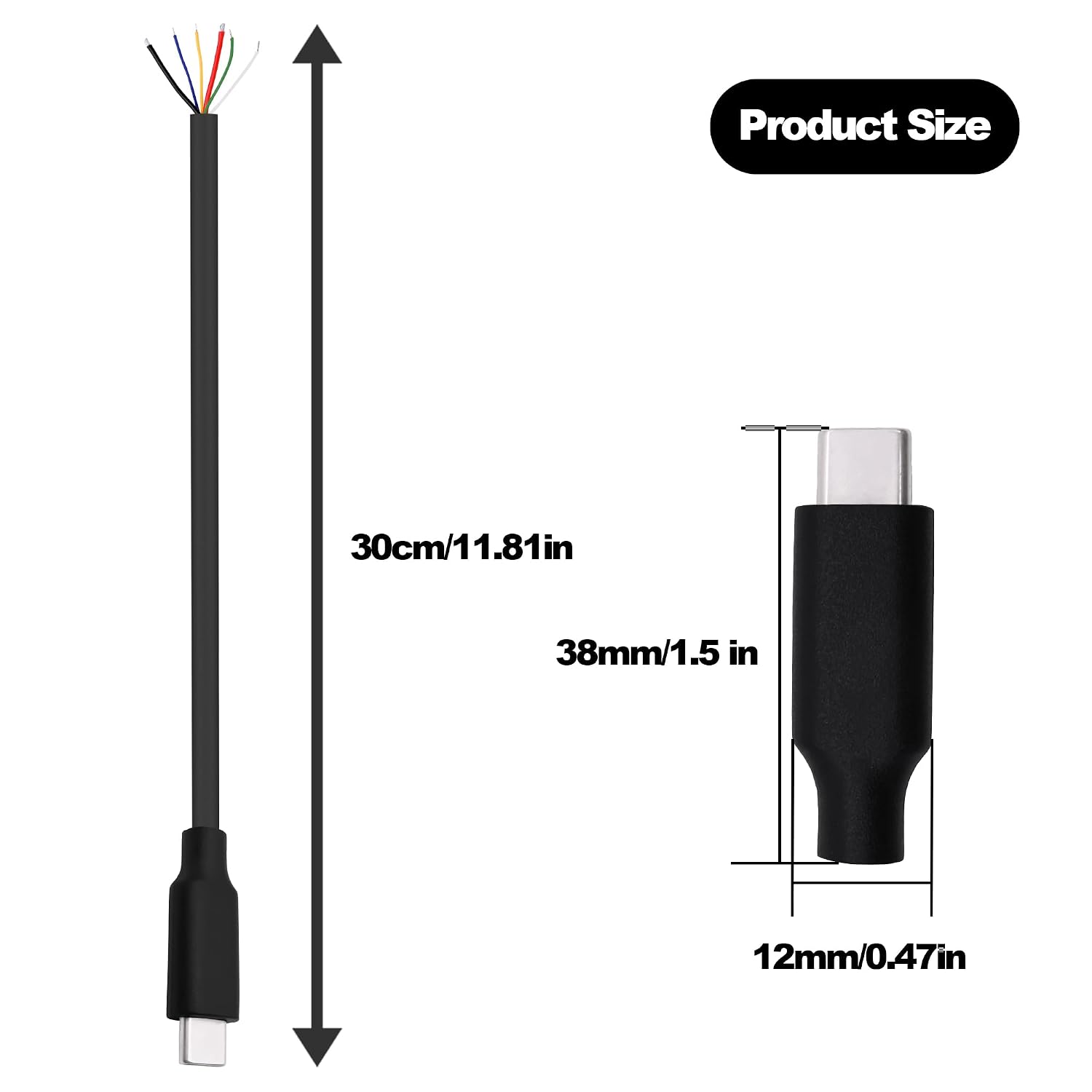

- Length: 30 cm / 11.8 in
- Conductors: 6 cores (power, ground, D-, D+, CC1, CC2)
- Current rating: 5A

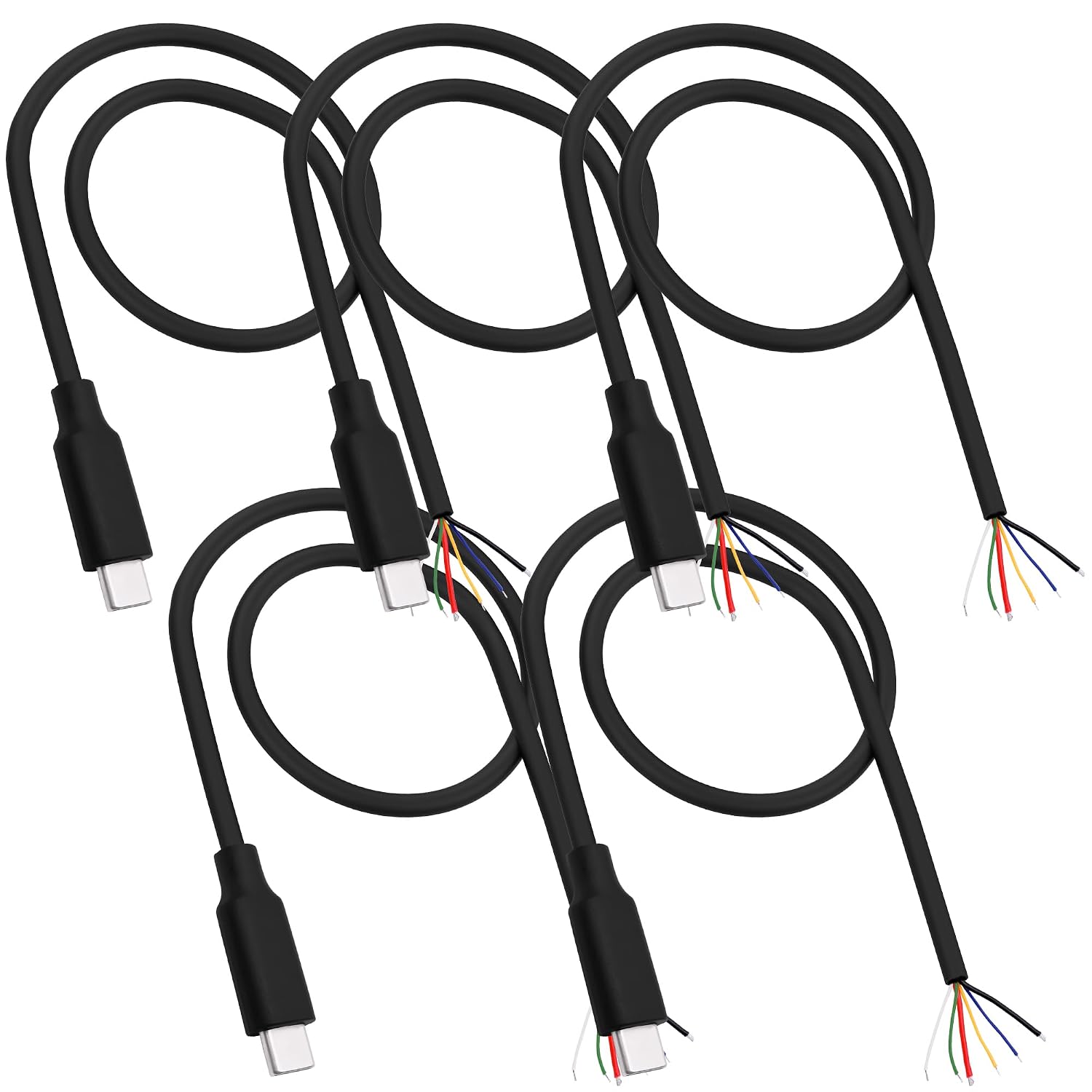

- Quantity: 5 pieces
Advantages

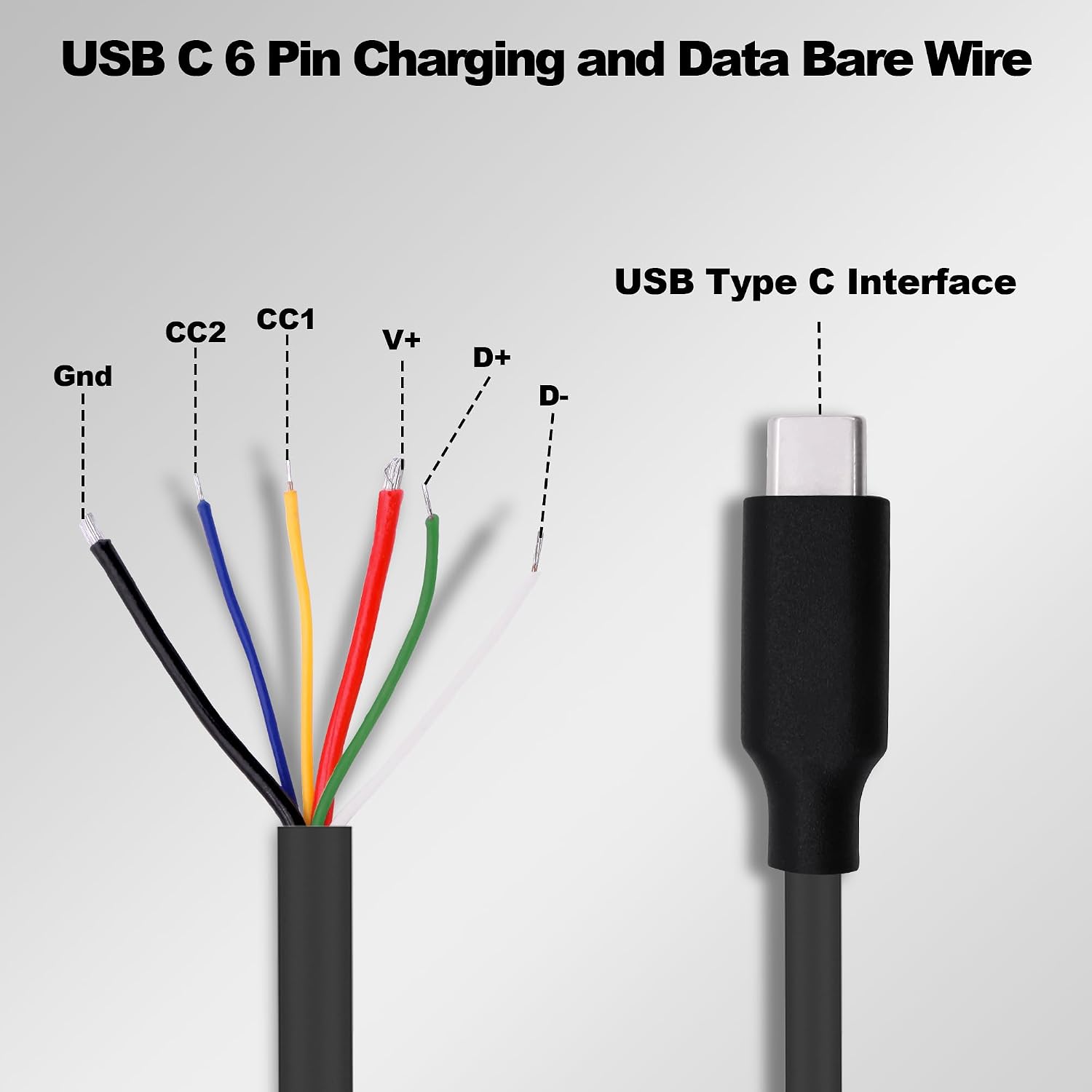

The open-end style reduces preparation time for repairs because the stripped, tin-plated wires are ready for soldering or terminal connections. This makes the cable useful in rapid prototyping or when replacing a damaged cable on a board-level assembly. The clear wire colour coding—red for positive, black for ground, white for D-, green for D+, yellow for CC1 and blue for CC2—helps avoid wiring mistakes and speeds up diagnostics. ⚙️
In practice, the manufacture of the conductors from pure copper improves electrical conductivity and can help maintain stable charging and data transfer under typical consumer loads. The PVC outer shell adds a degree of strain relief and durability, which is useful when manipulating the cable during multiple repair cycles. 🔧
Usage Recommendations
When connecting the bare ends, ensure you match the wire functions correctly and secure connections with appropriate soldering techniques or insulated terminals. For OTG use, consider the CC pin wiring to ensure the host device recognises the accessory. Keep the cable away from sharp edges and high-temperature sources during installation to preserve the PVC insulation.
Consider that the cable is supplied as a set of five identical leads. If you need different lengths or additional shielding for high-interference environments, a purpose-made shielded cable could be a better choice. Also, bear in mind that more demanding fast-charging protocols may require dedicated power negotiation hardware rather than just wiring.
