If you regularly crimp insulated terminals, you’ll know the difference a decent crimping tool makes straight away. The VCELINK GJ707 is a ratcheting wire crimping tool built for insulated electrical connectors, with a lockable, ratchet-style mechanism aimed at making hand pressure easier to manage.
It’s the sort of tool that’s less about “spec showmanship” and more about having the right die holes, in the right size range, so you can form a clean crimp without wrestling with the job.
The essentials

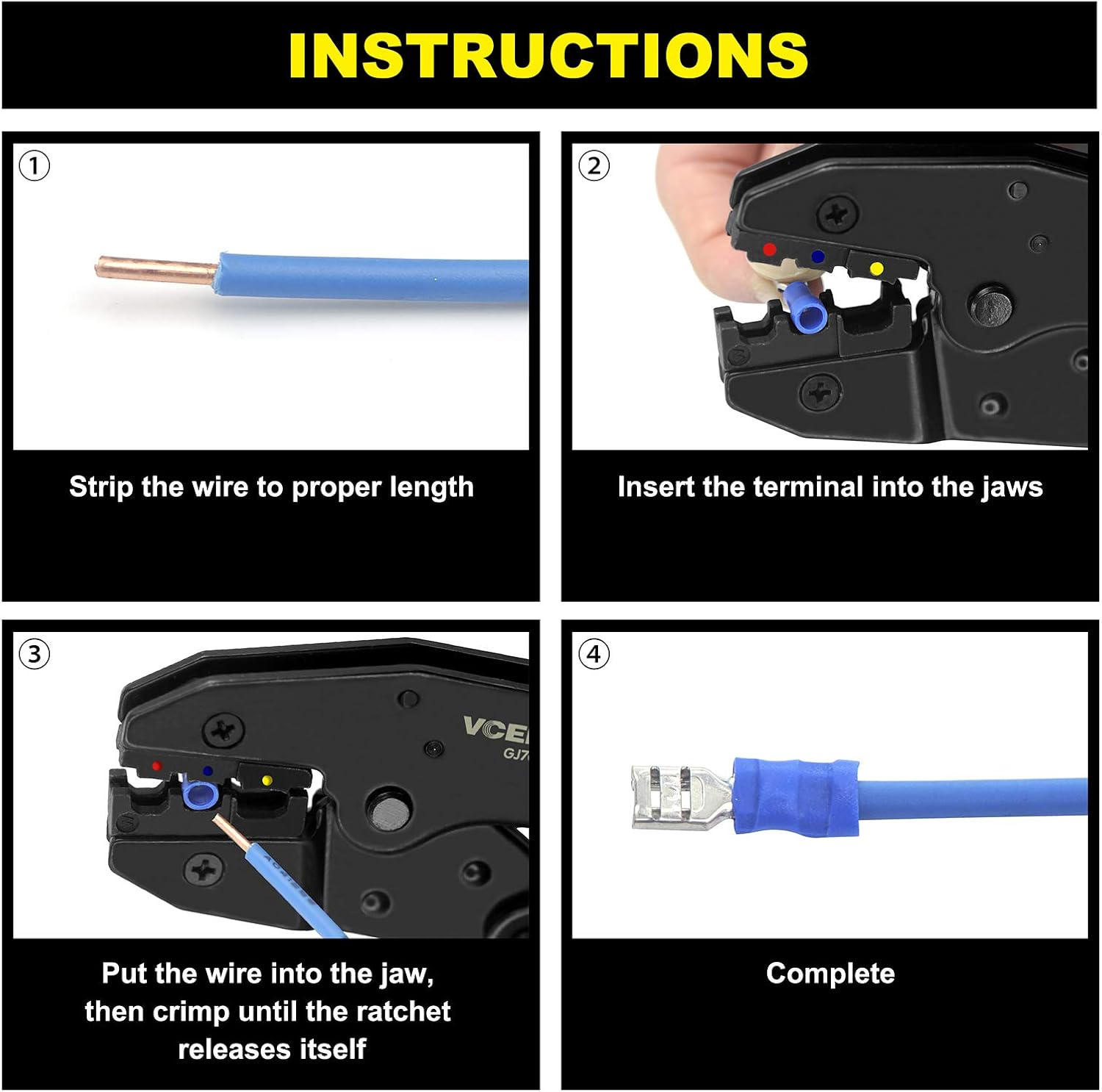

The GJ707 is designed for crimping insulated cable lugs and similar insulated terminal types. In practice, that means using it to press the terminal onto the cable so the connection is mechanically secure and ready for wiring work.

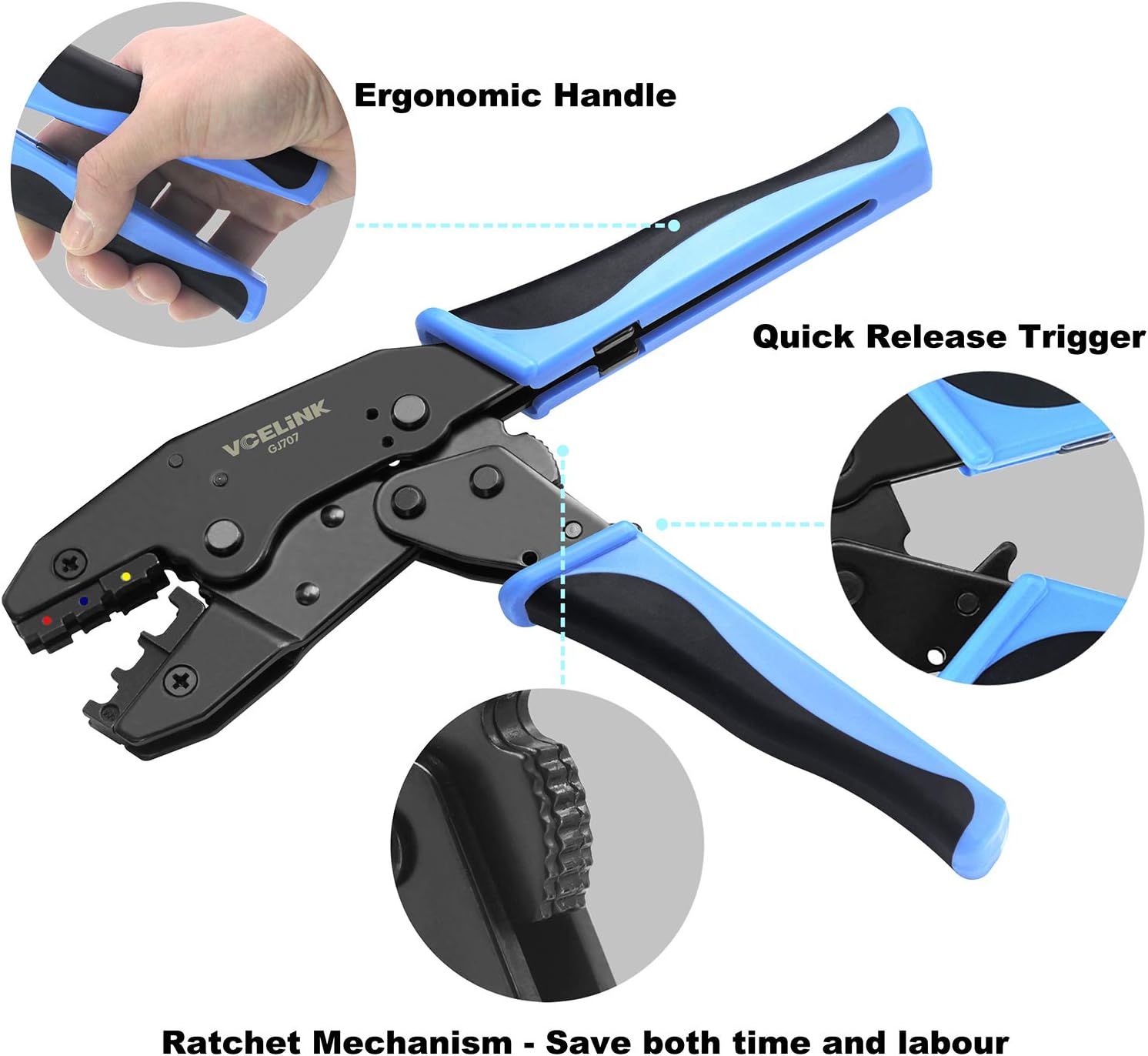

The headline feature is the ratcheting structure. The tool’s mechanism can help reduce the manual effort needed to reach a proper crimp, and it’s described as automatically unlocking to cut down the time spent on each crimp. That kind of behaviour is handy when you’re doing multiple crimps in a row.
Key features that affect real work

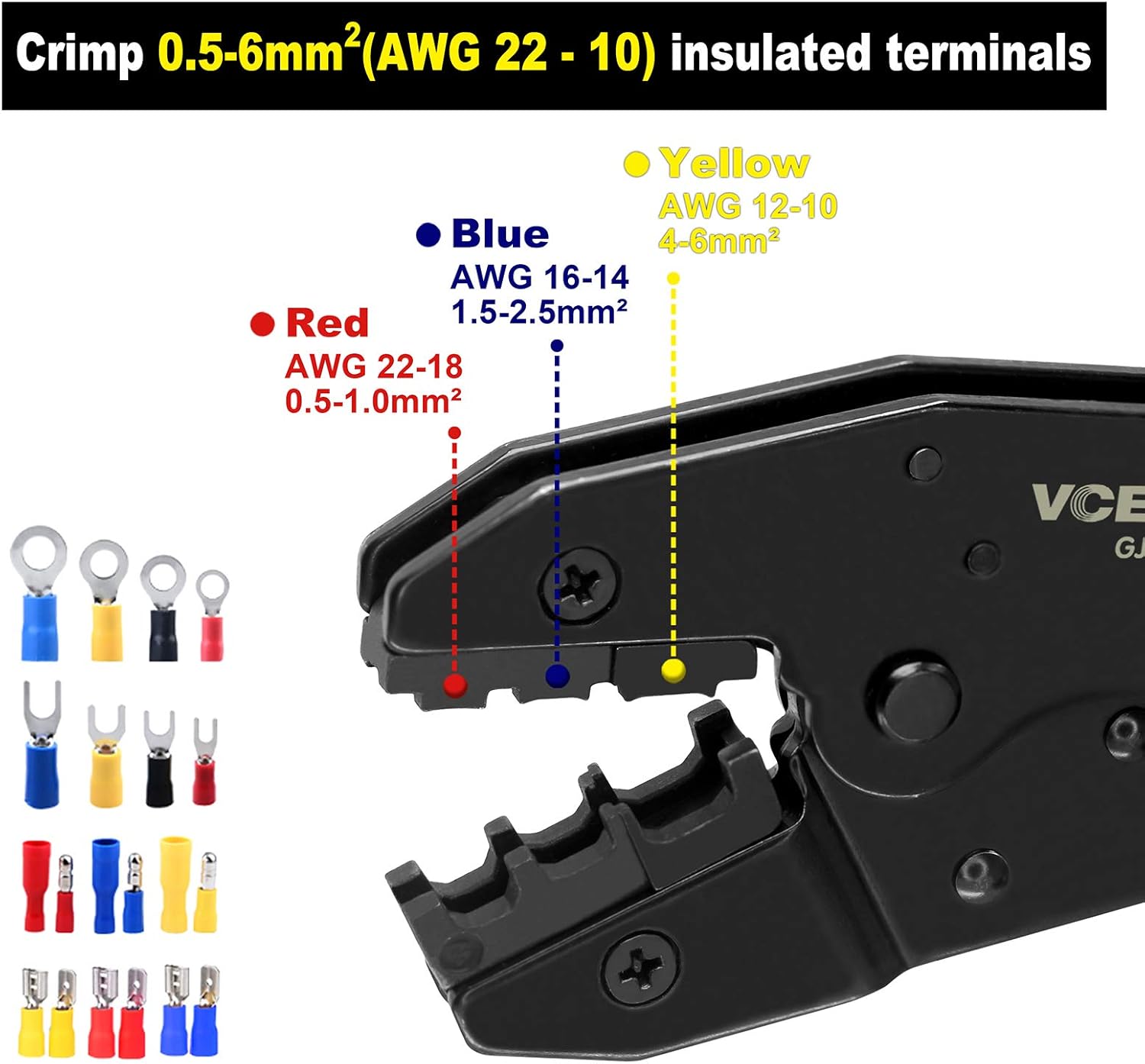

The crimping area uses high-precision crimp holes so the terminal can be pressed onto the cable without damaging the terminal itself. The tool also includes multiple crimp-size ranges marked by colour:
- Red for 0.5 mm² to 1 mm²
- Blue for 1.5 mm² to 2.5 mm²
- Yellow for 4 mm² to 6 mm²

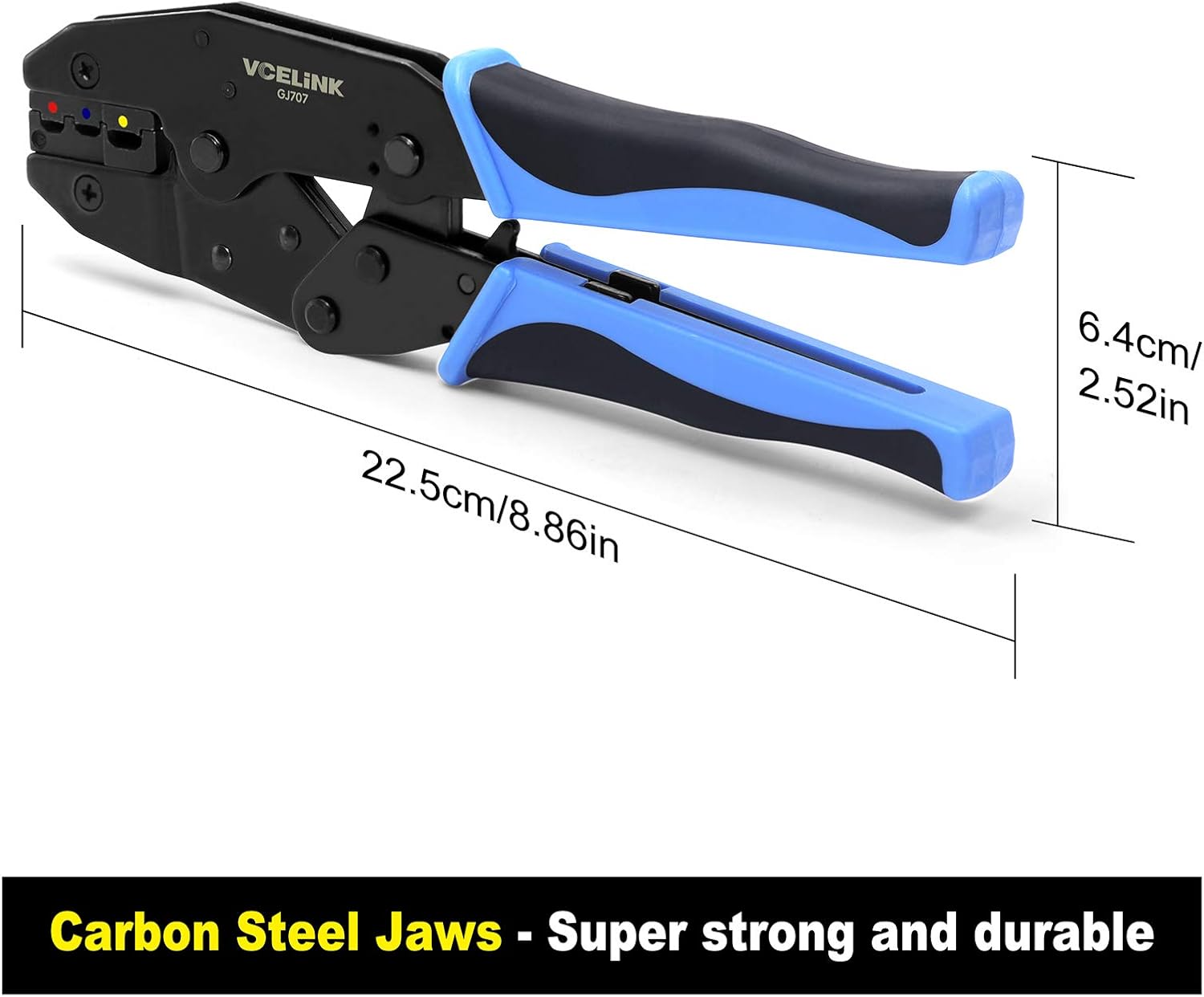

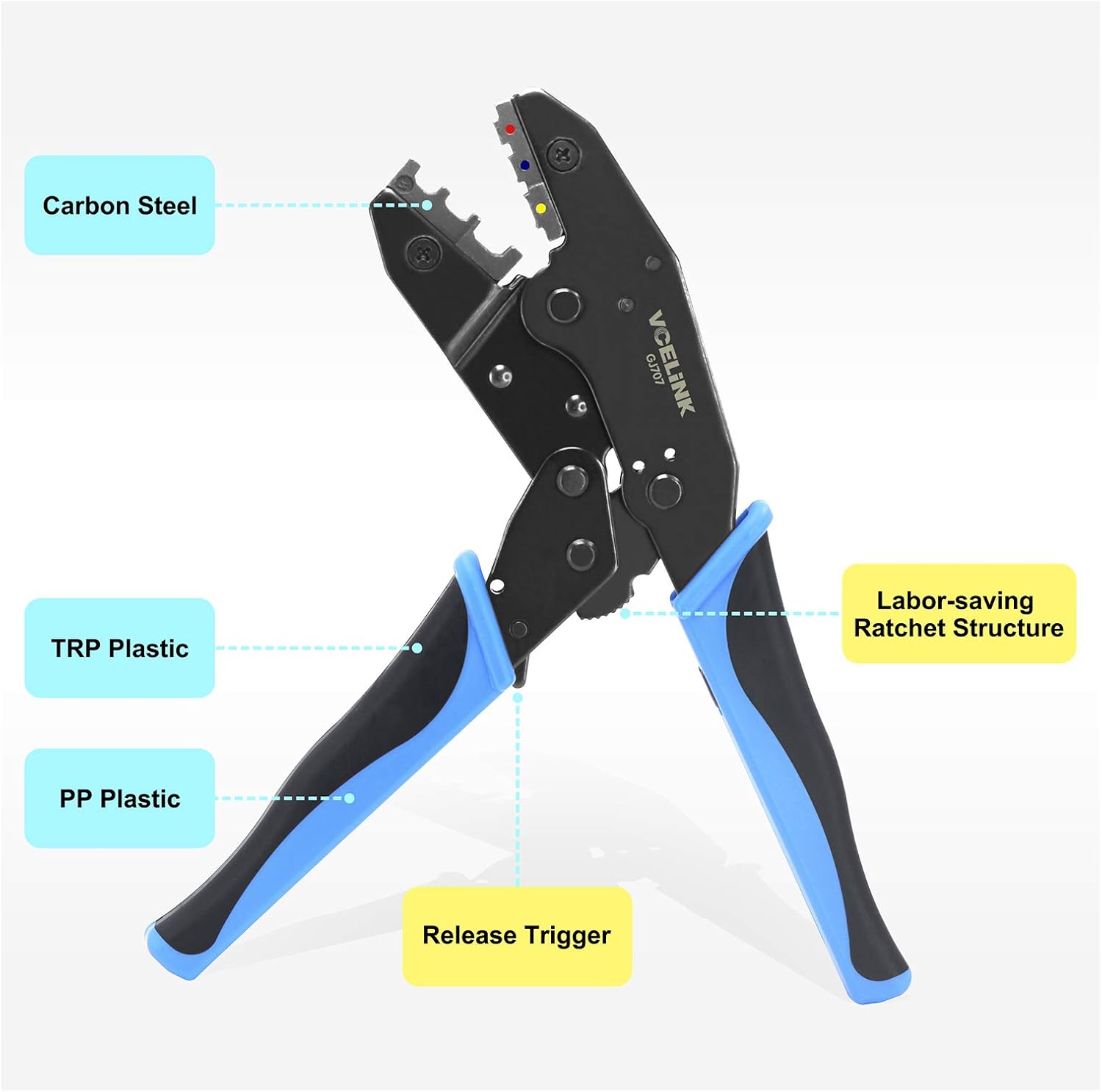

On the build side, the body is described as made from high-carbon steel, stated to resist deformation and bending. The handle is polypropylene, with an oil-resistant description, plus a hardened rubber component meant to protect against wear and oxidation.

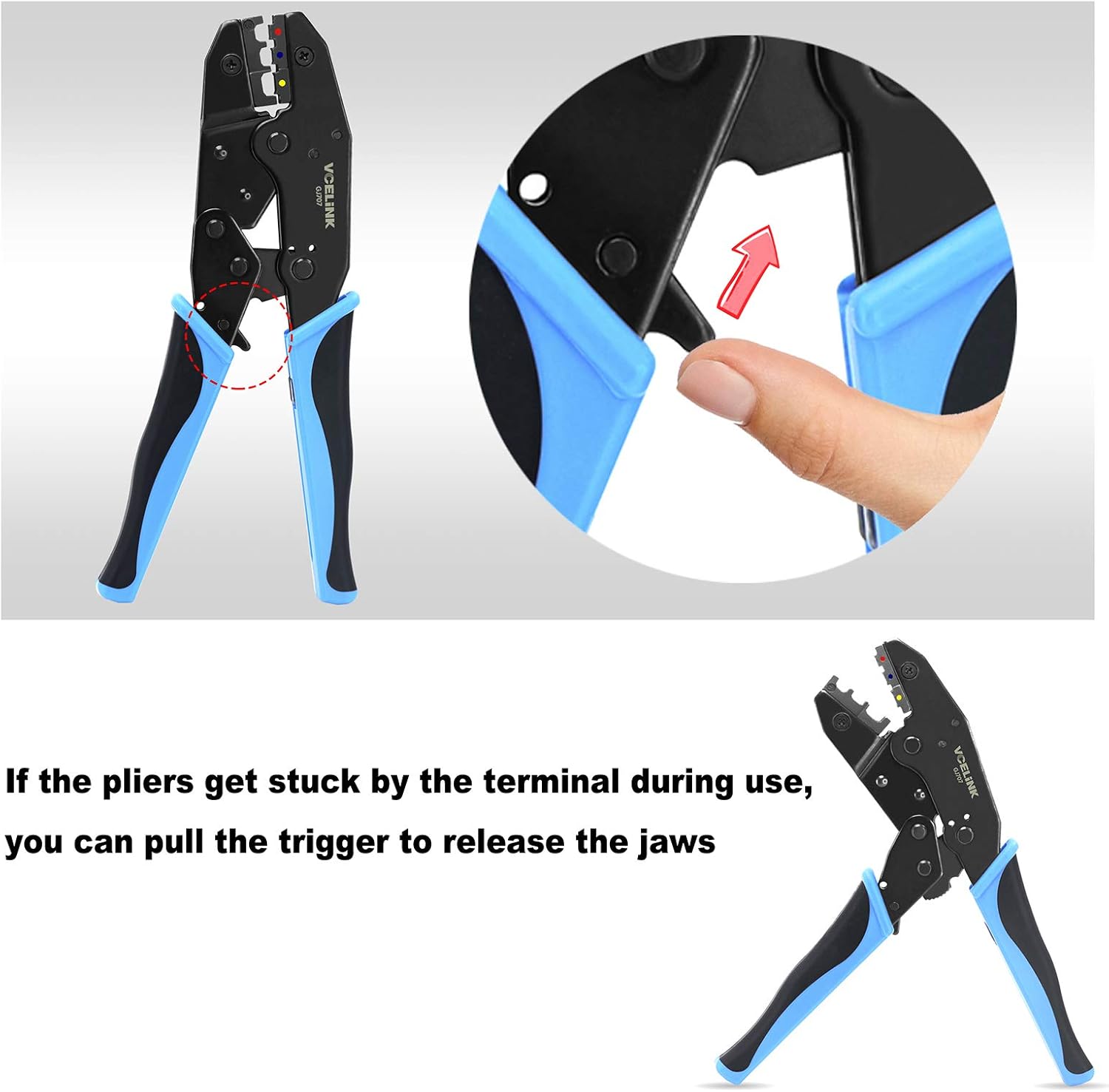

One practical detail: if the ratchet doesn’t advance, the description indicates you should unlock according to the lock and positioning device on the tool—so it’s not “set and forget”, but it gives you a route back when something doesn’t seat properly.
What to know before you buy
There are a few limitations worth considering, depending on what you do day to day. First, crimp accuracy still depends on using the correct die hole for your cable and terminal size. The tool offers colour-coded ranges, but if your cables or terminals don’t match those bands, the results may not be what you want.
Second, the product description focuses on insulated electrical connectors and crimping tasks. If your projects require other forms of connector work (or non-insulated terminals), you may find you need a different tool approach.
Finally, although the ratchet mechanism is aimed at reducing manual pressure, it won’t remove the need for proper positioning. A crimp tool can only help so much if the terminal sits crooked in the die.
For whom it makes sense
It’s a sensible pick if you’re planning frequent DIY wiring, workshop projects, or general electrical assembly where you want repeatable crimps without burning time. The ratcheting design especially suits people who prefer less “trial and error” with hand force when crimping a batch of connectors.
It also fits well if you care about durability in the parts that matter for alignment and shape—high-carbon steel for the crimping section is a reassuring spec on paper.
When it might not be for you
You may want to skip the GJ707 if you only crimp occasionally and you’re looking for the absolute simplest crimper with no ratchet behaviour to learn. Also, if your work consistently falls outside the stated insulated connector sizes (or you’re not using terminals that align with the red/blue/yellow ranges), it could be more hassle than it’s worth.
If your main priority is crimping a very narrow selection of sizes, you might also consider whether a smaller, more focused tool would be easier to live with—though that depends entirely on your typical cable widths.
Quick FAQ
What is the VCELINK GJ707 used for?
It’s for crimping insulated electrical connectors, such as insulated cable lugs and end sleeves/terminal types, by pressing the terminal onto the cable.
Does it have a ratchet mechanism?
Yes. The description says it has a ratcheting structure and can automatically unlock to shorten the locking time.
What cable ranges does it cover?
It’s described with colour-coded crimp ranges: red (0.5–1 mm²), blue (1.5–2.5 mm²), and yellow (4–6 mm²), alongside the product’s stated AWG range.
What happens if the ratchet won’t advance?
The tool description advises unlocking the crimp pliers according to the lock and positioning device on the tool.
How long is the warranty?
The listing mentions an 18-month warranty.
Is it worth it?
Buy the VCELINK GJ707 if you need a ratcheting crimping tool for insulated connectors and you can match your cables and terminals to the provided die ranges. The steel construction and the precision die holes are the sort of details that matter when you want fewer damaged terminals and more consistent crimps.
Don’t buy it if your projects mainly involve connector types outside insulated crimps, or if your typical cable sizes don’t align with the red/blue/yellow ranges. In those cases, a tool built around your exact connector situation will usually save you time and frustration.
