VCELINK Cat6 RJ45 connectors 23-26 AWG 4 pack

If you are building or updating an Ethernet setup, these tool-free RJ45 connectors help you finish cable ends without needing crimping equipment. Designed for Cat6 network cable, the VCELINK connectors support fast, stable data transfer for everyday networking and structured cabling work. With gold plated contacts and a modular, no-tool clamping process, they are a practical choice when you want neat terminations and consistent performance. 🧩

Key points

When you fit your own Ethernet cable ends, the small details matter, like reliable contact and repeatable termination steps. This 4 pack of VCELINK tool-free RJ45 connectors is made for Cat6 cable and supports a transmission rate of up to 1000 Mbps, with a frequency of 250 MHz, according to the manufacturer. The gold plated contacts are intended to resist oxidation and corrosion, which can support stable connections over time. If you are upgrading a home network, preparing office runs, or wiring a small data network, these connectors remove the need for a separate crimping tool. 🙂

It is also worth noting that this connector is compatible backwards with Cat5e and Cat5 standards, which can make it easier to plan cabling that meets your current and future needs. The cable size compatibility is specific, covering individual cable wires with an outer diameter of 0.4 mm to 1.2 mm, also stated as 23-26 AWG. You also need to match the cable sheath outer diameter range of 6 mm to 7.6 mm for best fit. For tidy, consistent wiring, the housing includes printed guidance for T568A and T568B order, so you can follow the correct pinout as you work. 🔧

Technical details

Here are the key specifications you can rely on when selecting the right cable and planning terminations.

• Name: VCELINK Tool-Free RJ45 Connectors Toolless Cat6 Modular Plug Gold Plated
• Type: RJ45 network cable connector
• Format: Tool-free modular plug, insert and clamp
• Compatibility: Backwards compatible with Cat5e and Cat5
• Transmission speed: Up to 1000 Mbps
• Frequency: 250 MHz
• Cable size support: 23-26 AWG individual wires, 0.4 mm to 1.2 mm outer diameter

Tech specs

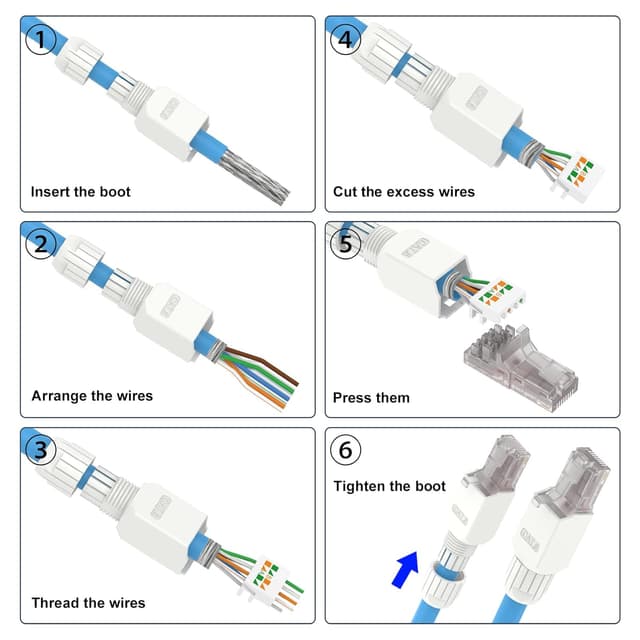

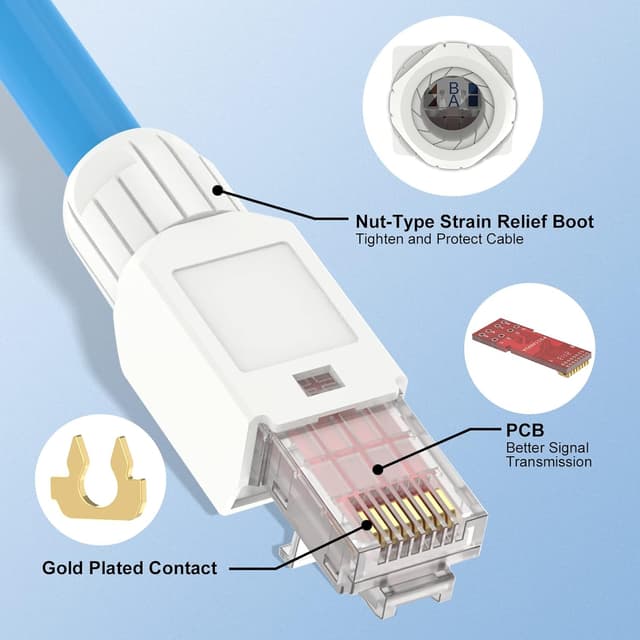

To help you judge fit and performance, the manufacturer also lists the electrical and physical expectations for the Cat6 connectors and the cable they accept. The contacts are gold plated, which the supplier highlights as a way to help with oxidation and corrosion resistance, supporting durable connectivity. Installation is designed to be straightforward, without a crimp tool, by inserting each conductor into the matching slot, trimming excess, then closing the fixing block. 📎

For the Ethernet standard wiring order, the support includes printed markings for T568A and T568B, so you do not have to guess the sequence during termination. These connectors are compatible with PoE and PoE+ technologies, meaning they can be used in setups that deliver power over Ethernet. They are also described as suitable for use with switches, routers, computers, and other network devices, which makes them versatile for both home and business cabling. 🏢

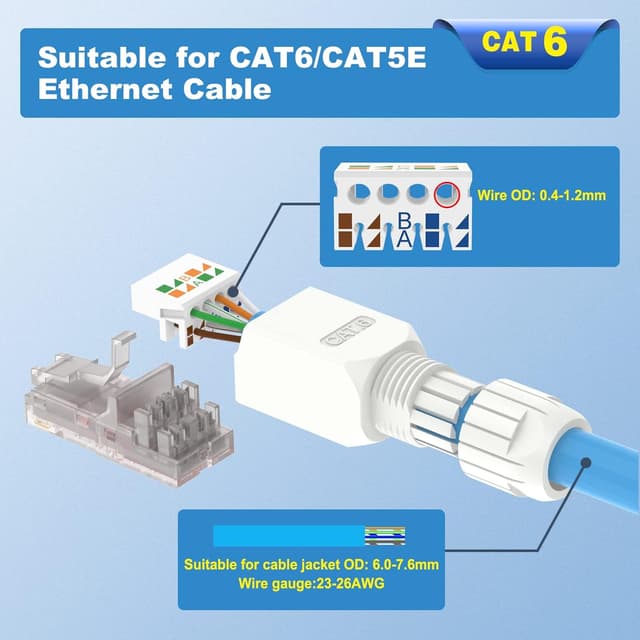

A small limitation to keep in mind is that you must match the cable sheath size, which is specified as an outer diameter between 6 mm and 7.6 mm. If your cable is outside that range, the connector may not clamp correctly, so checking the cable dimensions before starting saves time. Another practical point is that individual conductors should fall within the stated 23-26 AWG range, given as 0.4 mm to 1.2 mm outer diameter. When those conditions are met, the tool-free approach can be a clean way to produce consistent cable ends.

What’s included

This 4 pack includes 4 VCELINK tool-free RJ45 Cat6 connectors and 1 instruction manual. The supplier also states an 18 months warranty service, and that VAT invoices can be issued. If you are making your own network cables, tool-free Cat6 connectors like these can simplify the end preparation step and help you complete terminations with less equipment on hand.

It makes sense if you want reliable Cat6 Ethernet cable ends without crimping tools, and you are comfortable matching your cable and wiring order to the printed T568A and T568B guidance. It may not be a great match if your cable sheath size is outside 6 mm to 7.6 mm or your conductor gauge falls outside 23-26 AWG, because those ranges are part of the specified compatibility for this connector.
