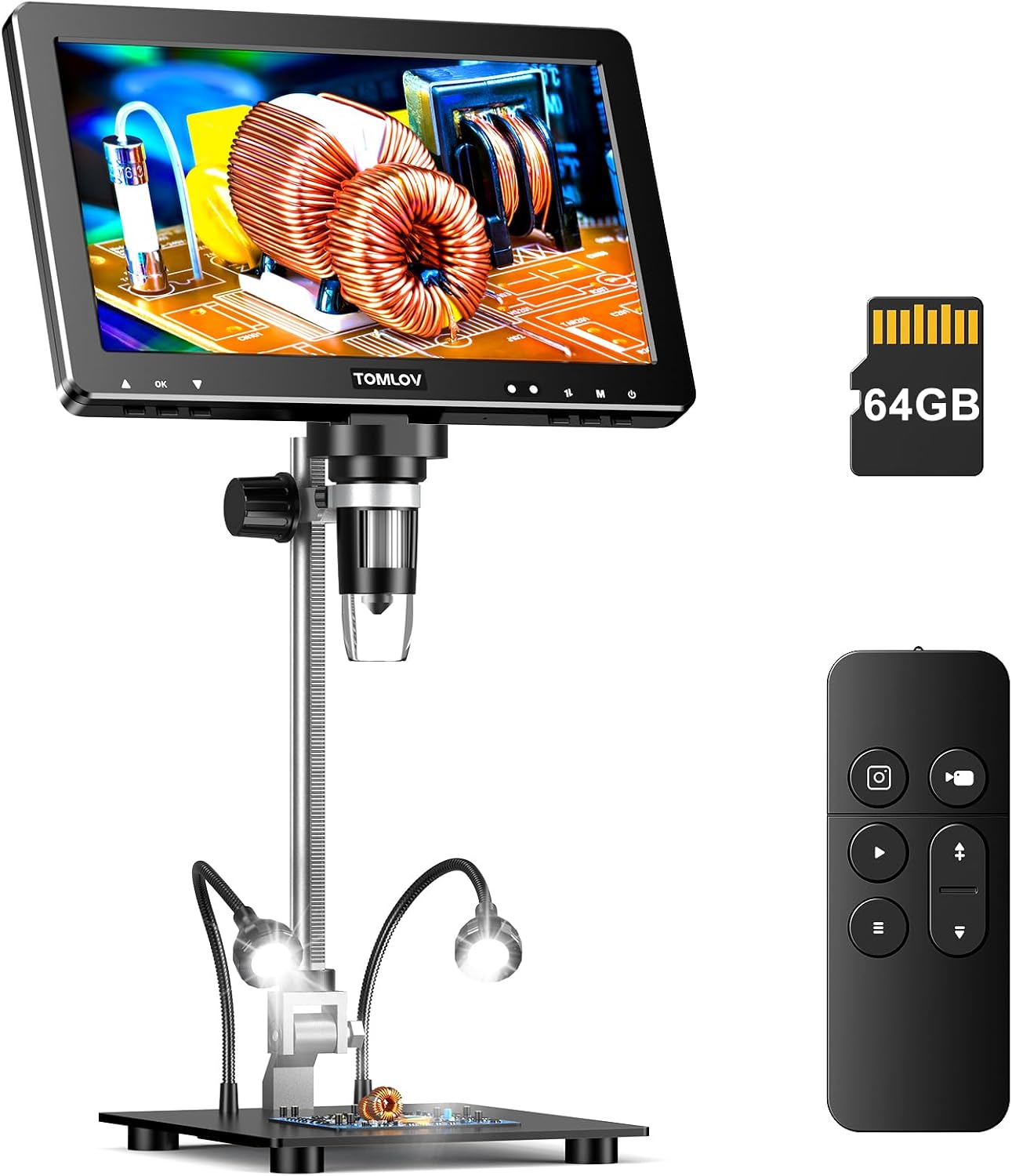

TOMLOV DM9 Max 10.1" digital microscope 20MP

This 10.1-inch digital microscope from TOMLOV brings a large HD IPS screen and wide magnification to collectors, hobbyists and small repair tasks, making detailed inspection simpler and more comfortable. It offers clear imaging for coins, watches, circuit boards and biological samples, with built-in storage for easy capture and later review.

Key Points

The unit combines a 10.1-inch IPS display with a 178-degree viewing angle for vivid colour and broad viewing. Magnification ranges from 5x up to 1500x, allowing close examination of tiny features on coins, stones, electronics and plant material. For documentation it records 1080p video and captures 20MP photos, and the package includes a 64GB SD card for immediate use. Connectivity is flexible with HDMI and USB-C outputs for linking to a PC, TV or projector, which is useful for demonstrations and group viewing. The included taller 12.6-inch stand and larger 7x8-inch base give a more stable work area for soldering or coin inspection.

Technical Specifications

• Name: TOMLOV DM9 Max 10.1" HDMI Digital Microscope

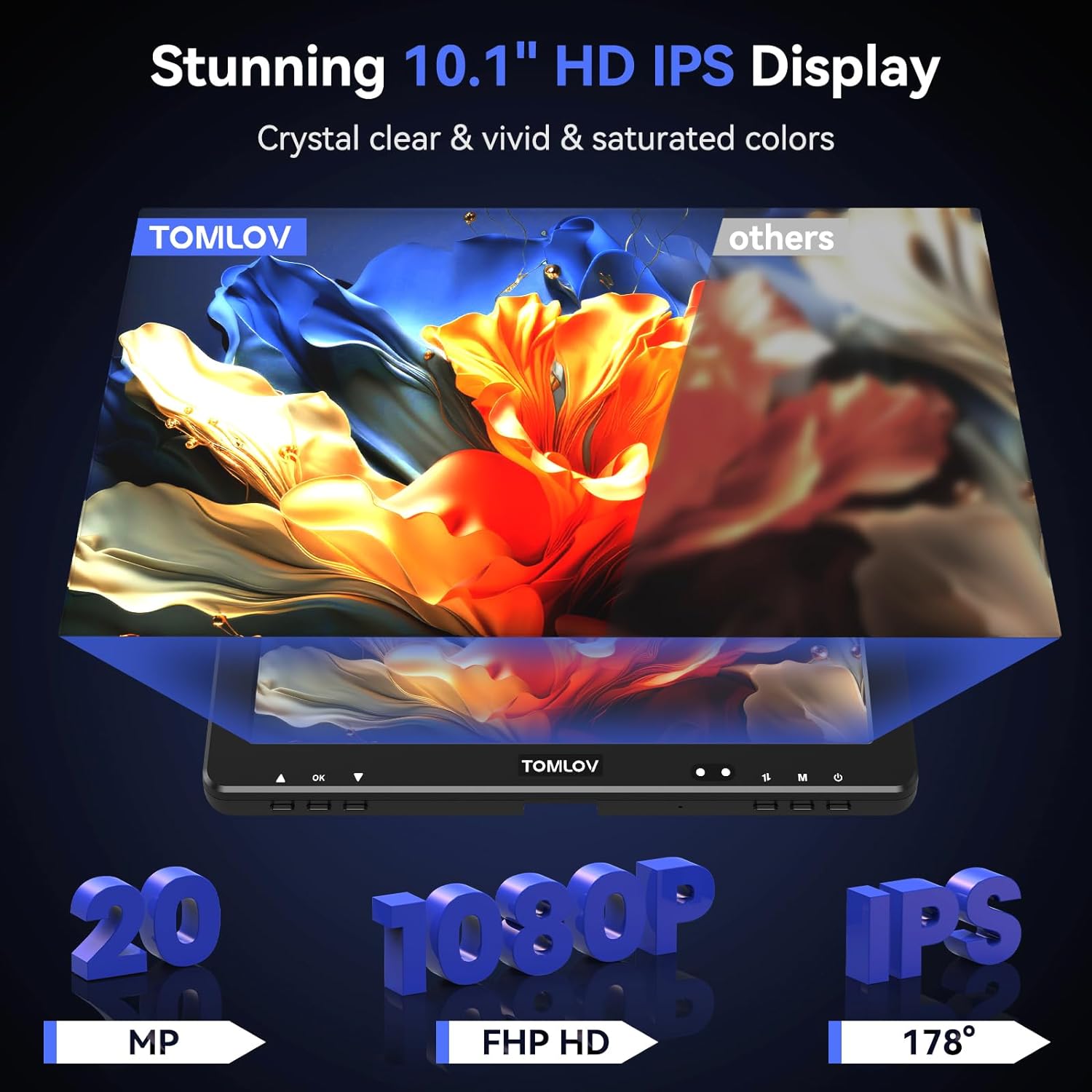

• Display: 10.1-inch HD IPS, 178-degree viewing angle

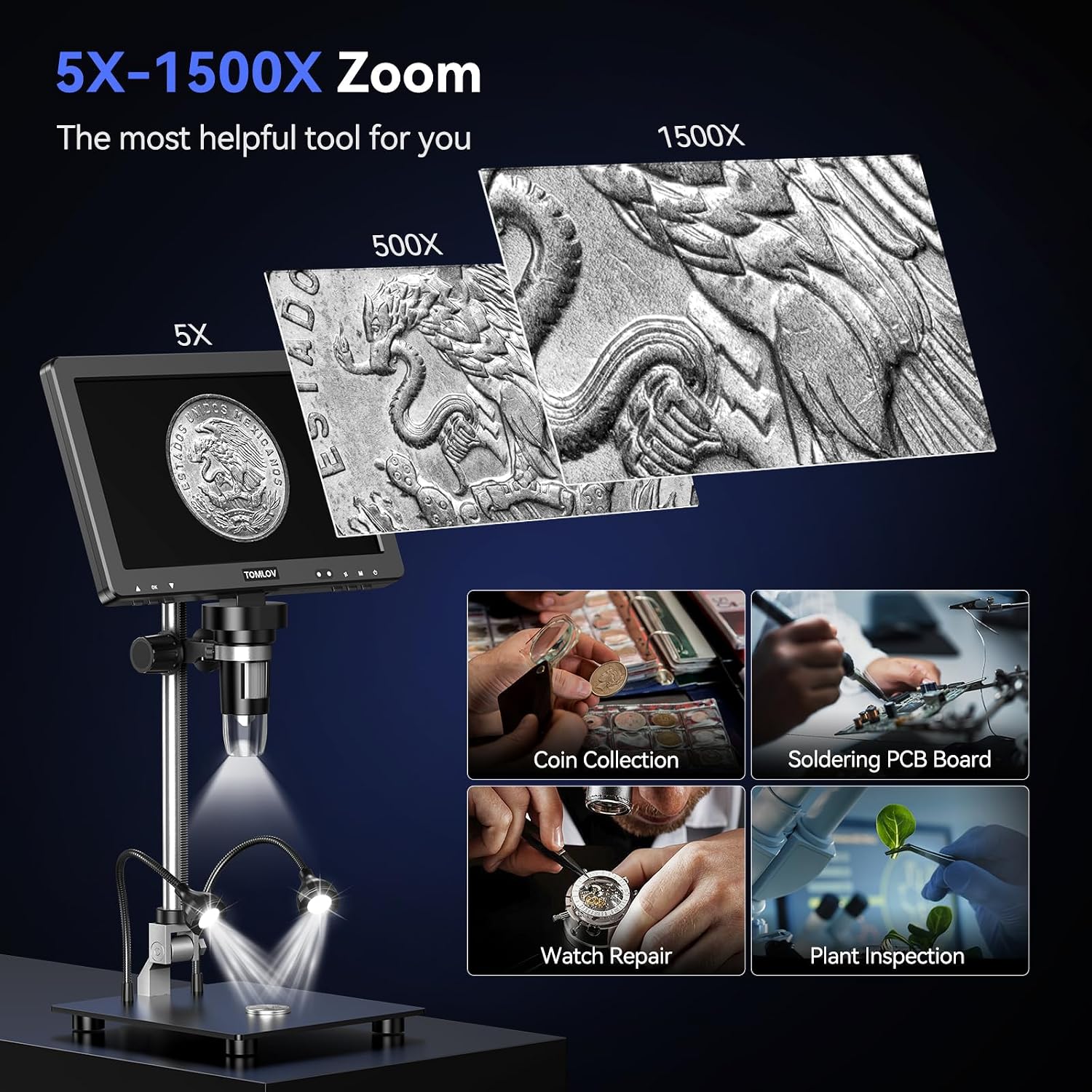

• Magnification: 5x–1500x zoom range
• Imaging: 20MP photos, 1080p video recording

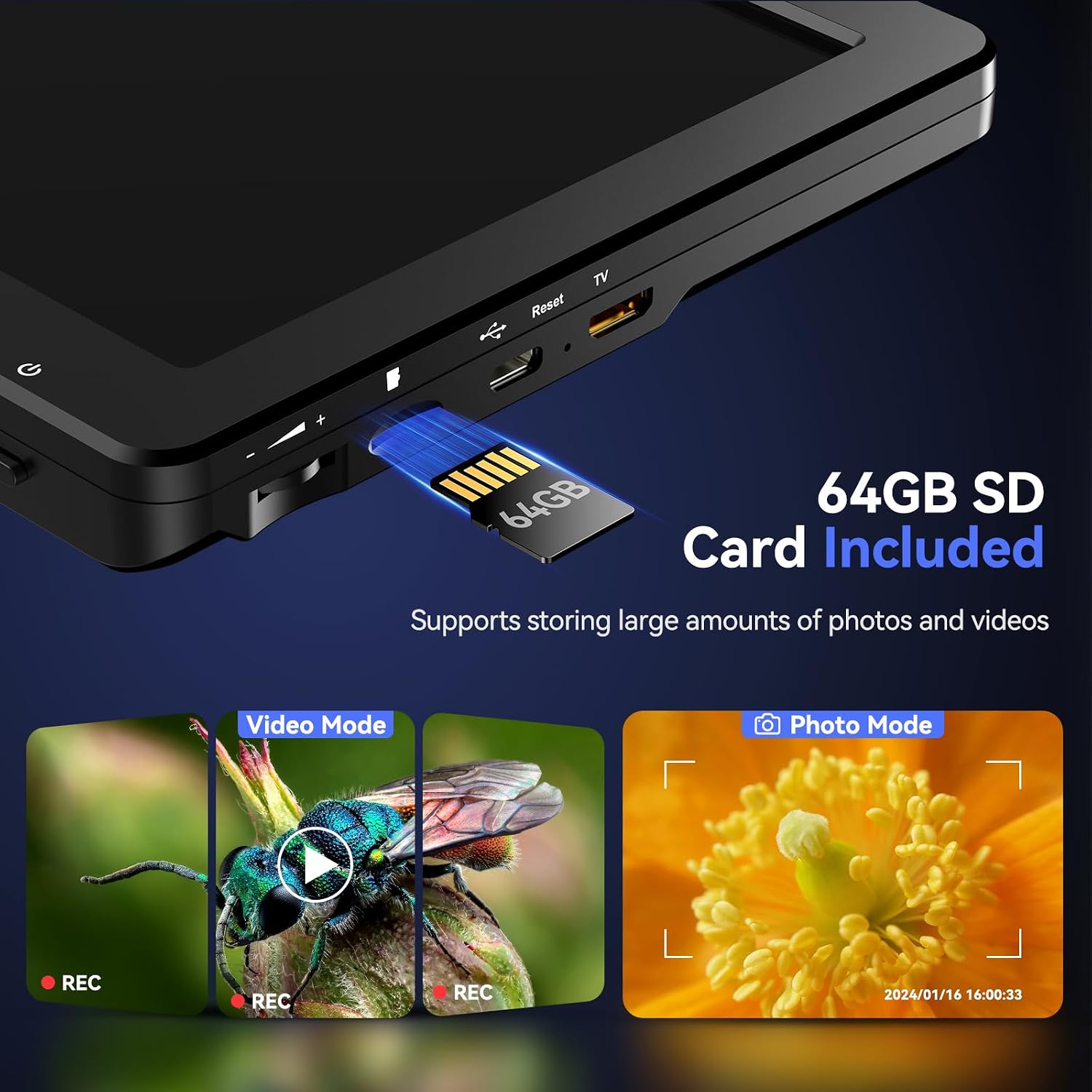

• Storage: 64GB SD card included

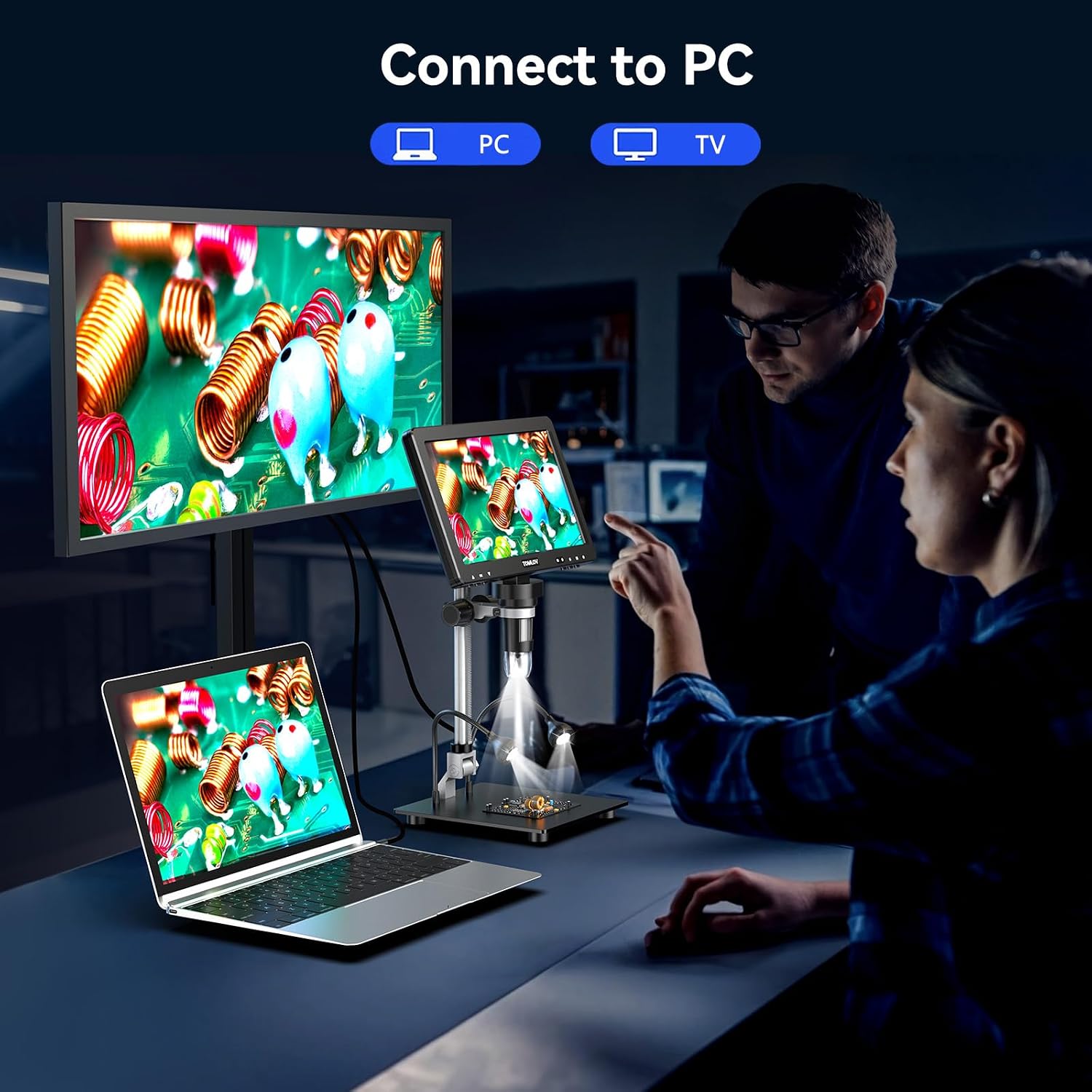

• Outputs: HDMI and USB-C for PC/TV/projector

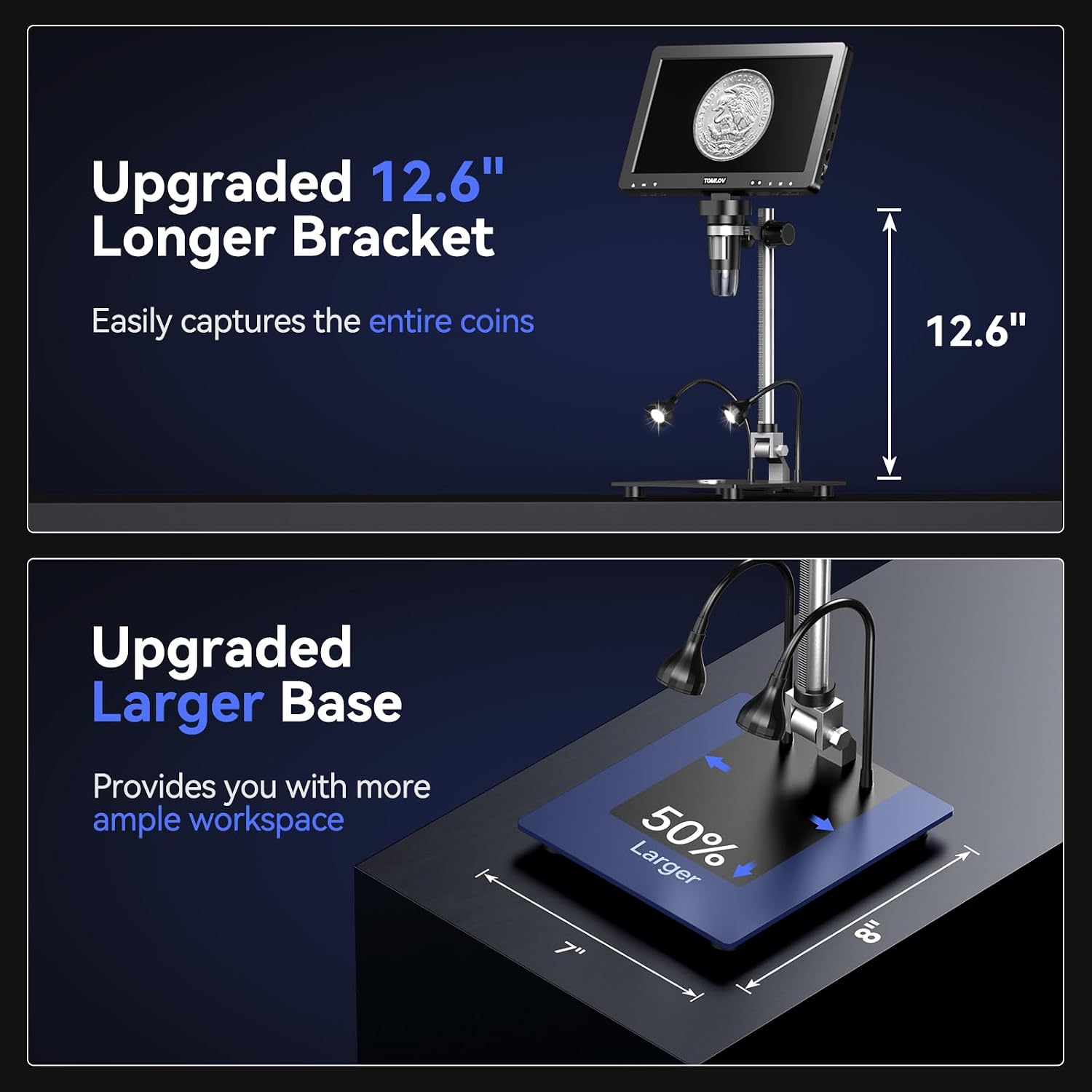

• Stand height: 12.6 inches; base size approximately 7 x 8 inches

Usage Recommendations

For coin and stamp examination place the object on the base and use the stand to set the focal distance, then adjust magnification slowly while monitoring the screen. For soldering and electronics work position the microscope so the camera faces the joint area and use the side gooseneck lights to reduce shadows and reveal fine details. When capturing video, the built-in microphone records audio with a noise reduction chip, however consider near-field audio limitations when recording in noisy environments.

The Best of This Model

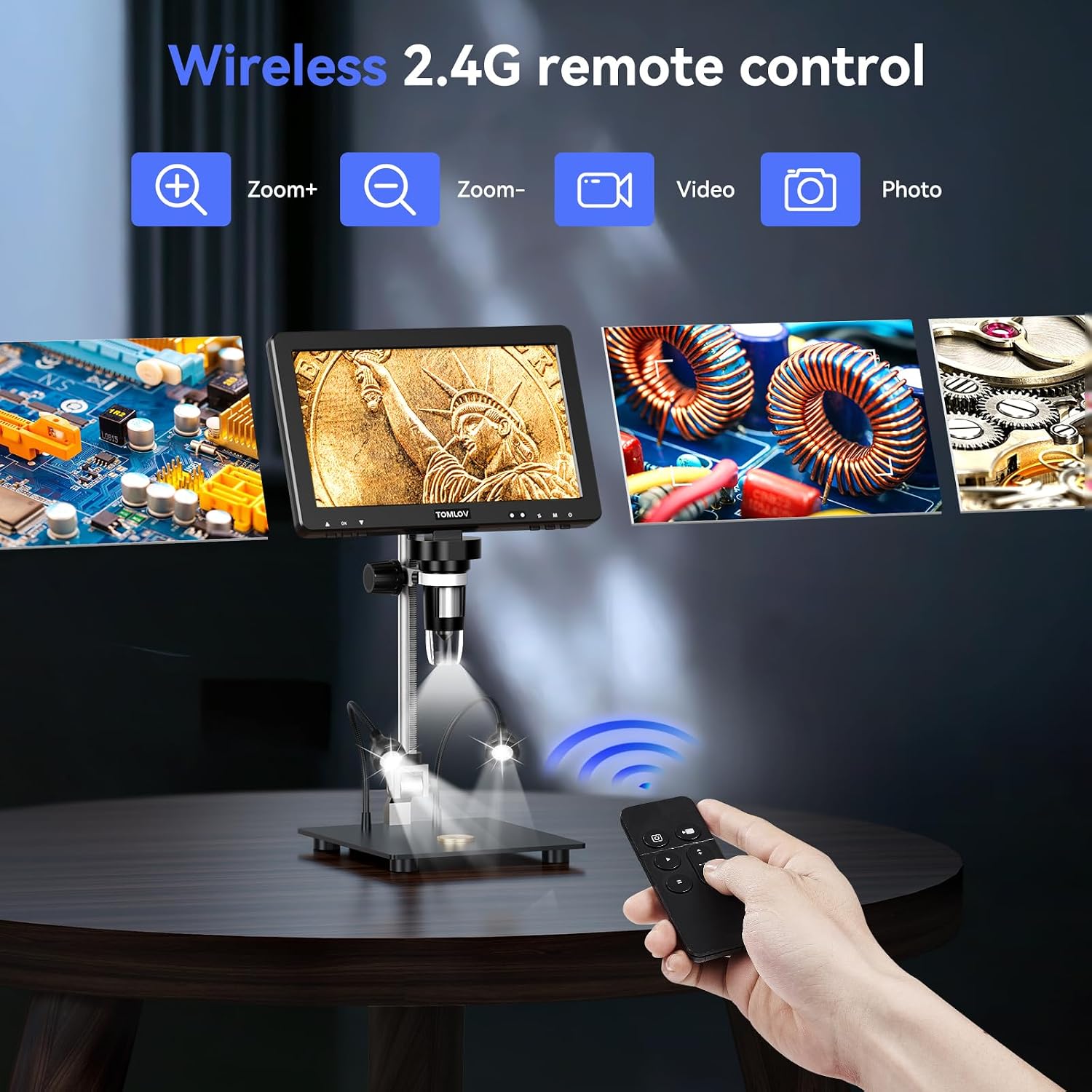

This model stands out for its combination of a large IPS screen and broad connectivity, which makes sharing observations straightforward. The remote control reduces screen shake during captures and the mix of eight adjustable LEDs plus two gooseneck side lights helps tune illumination for different surfaces. As a nuance, the maximum magnification may require steady setup and practice to obtain sharp images at the highest zoom levels, and colour rendering can vary depending on ambient light and LED settings.
