Ralcam Dual Lens Articulating Borescope 6.5mm Endoscope Camera 📷
Reviews
Product description

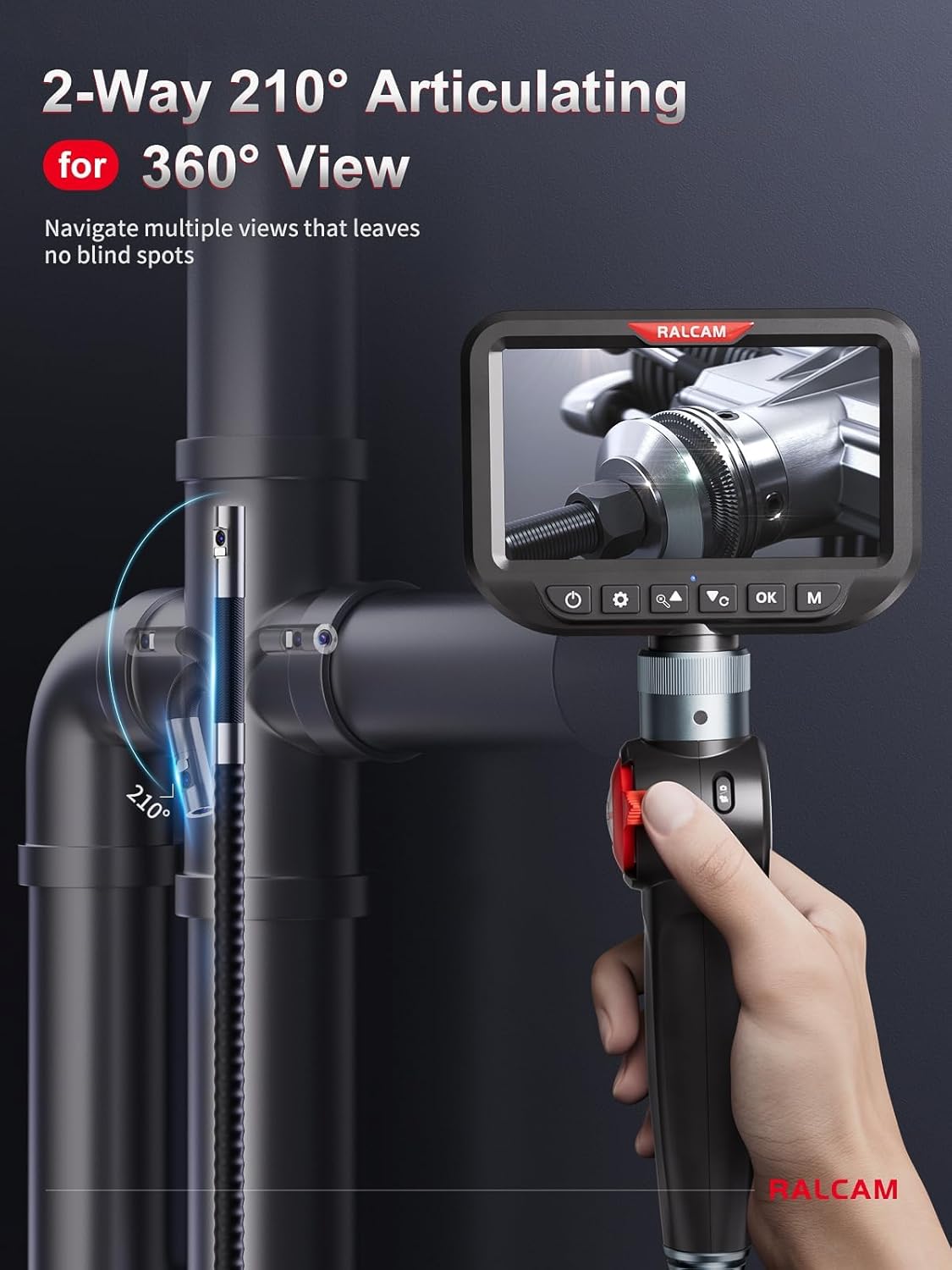

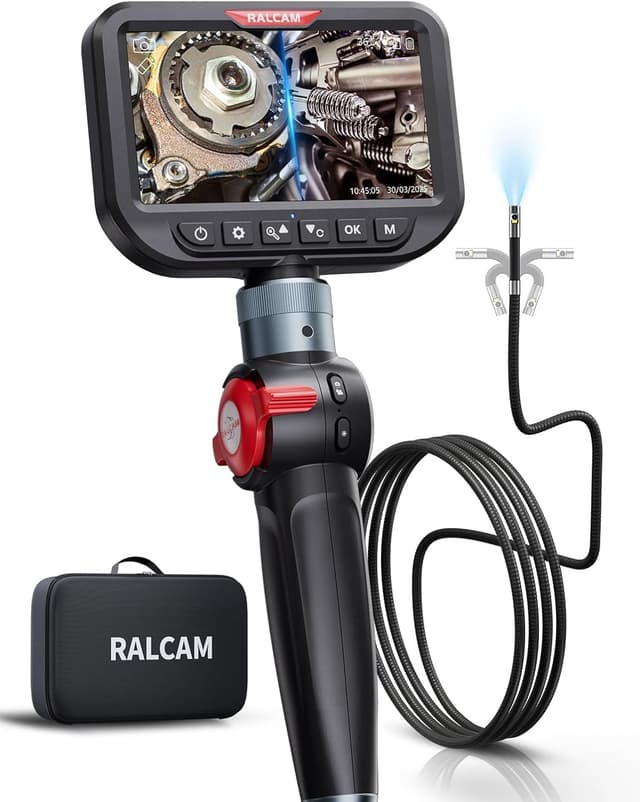

This dual‑lens articulating borescope from Ralcam brings simultaneous frontal and side viewing to narrow inspection tasks, helping you check engines, pipes and machinery without constantly retracting or rotating the probe. With a slim 6.5 mm camera head and a 5 foot semi‑rigid cable, it is aimed at technicians who need access to tight spaces while keeping inspection time down.
Key Points

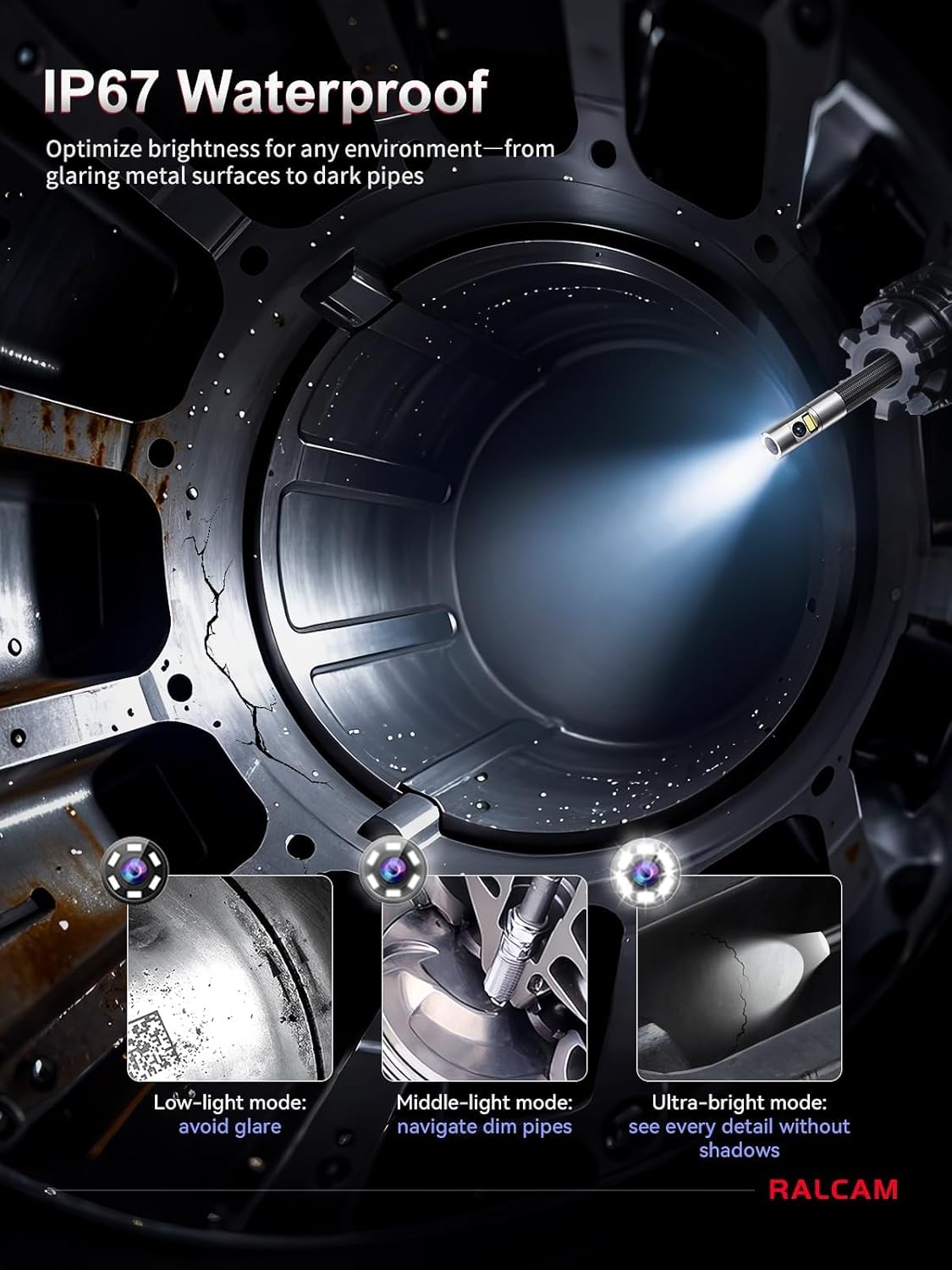

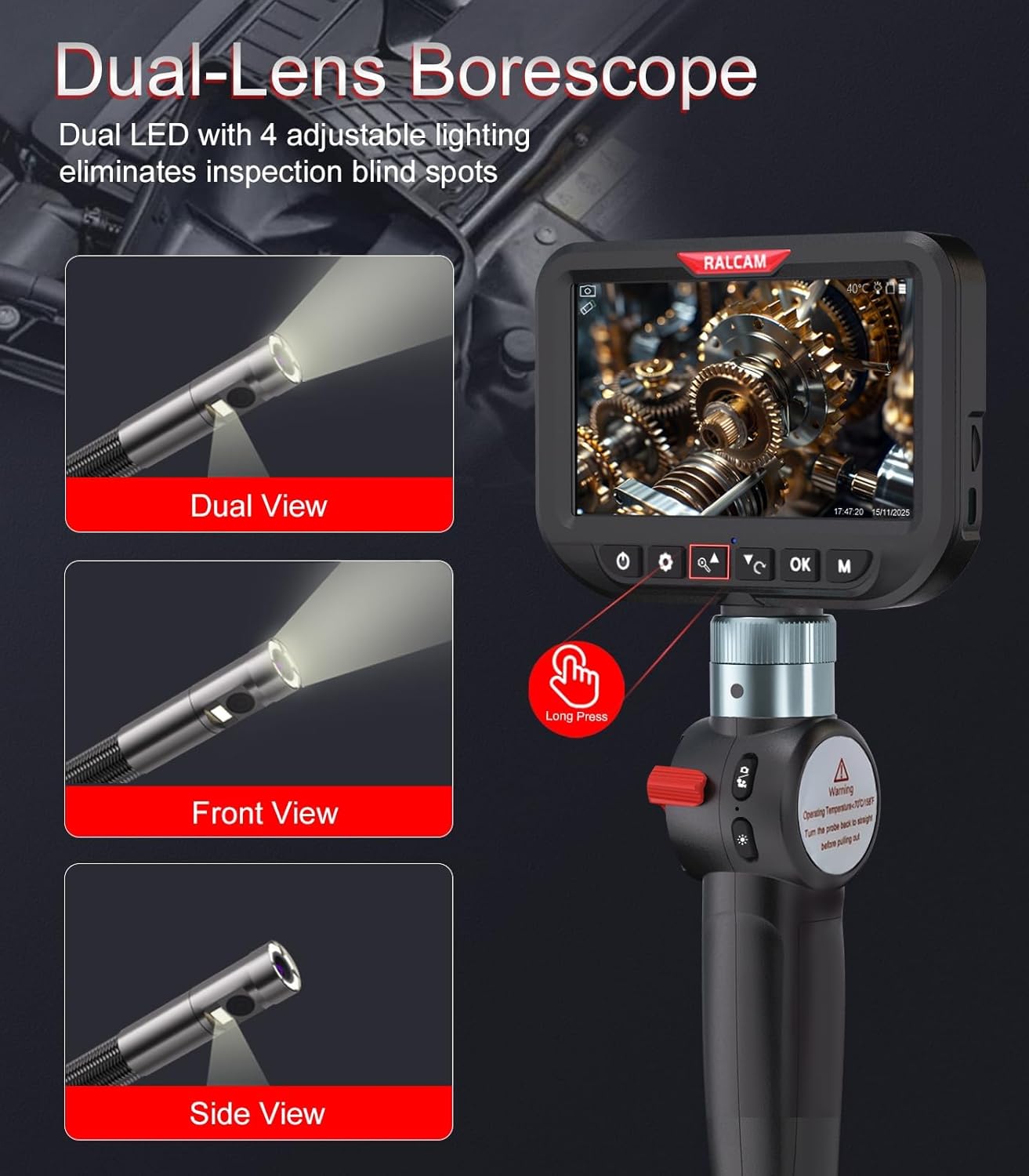

The borescope captures front and side angles at once, reducing the need to reposition the probe and saving inspection time according to the manufacturer. It includes a 5 inch IPS display for clear real‑time images and allows users to record photos and video for later review. The 6.5 mm probe is thin enough for cramped passages and the semi‑rigid snake cable holds its shape while bending to reach awkward points. Brightness is adjustable through multiple LEDs to adapt to poorly lit environments, and the unit has an IP67 rating for protection against dust and temporary immersion.
Technical Specifications
Name: Ralcam Dual Lens Articulating Borescope

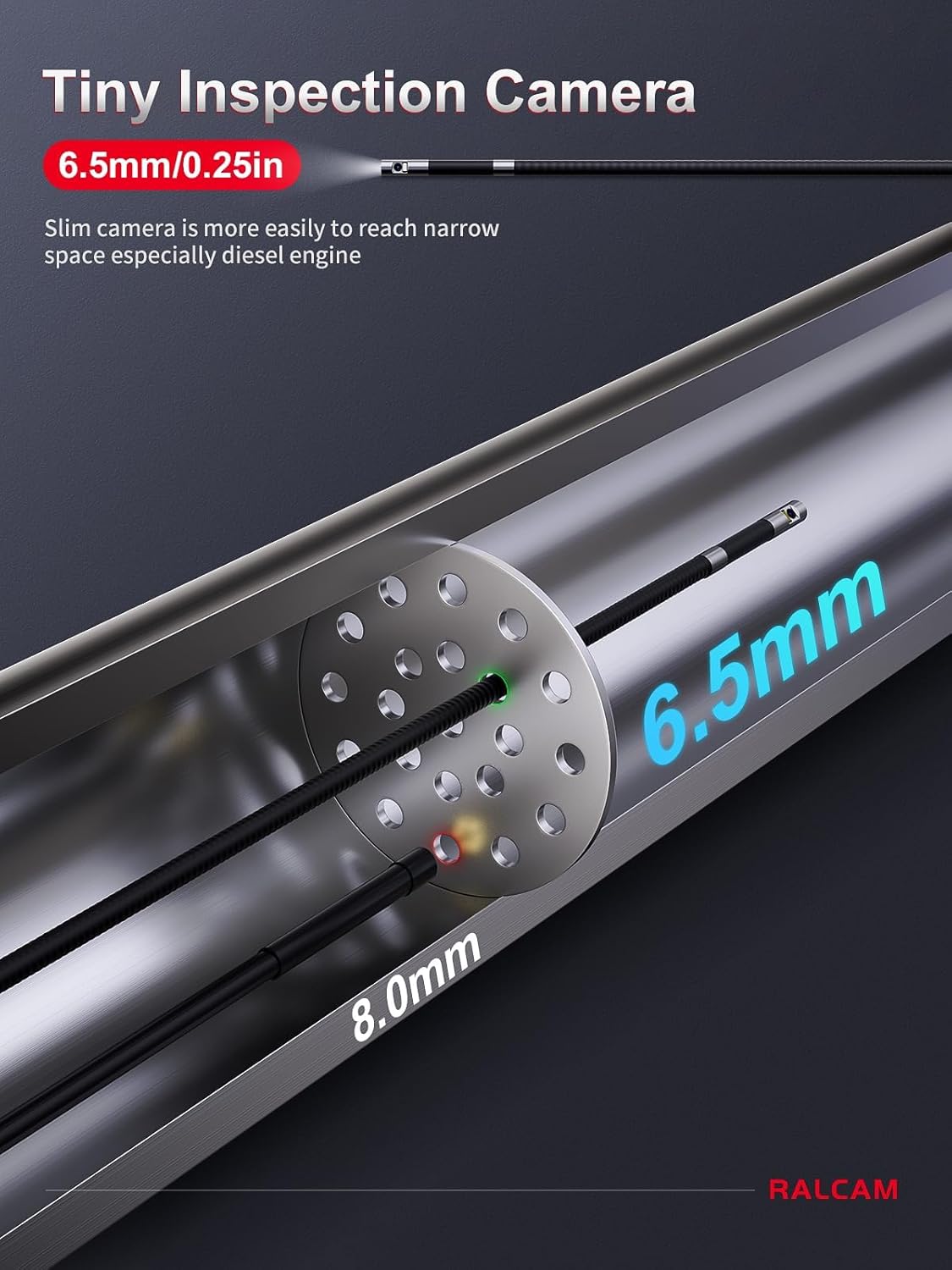

- Probe diameter: 6.5 mm

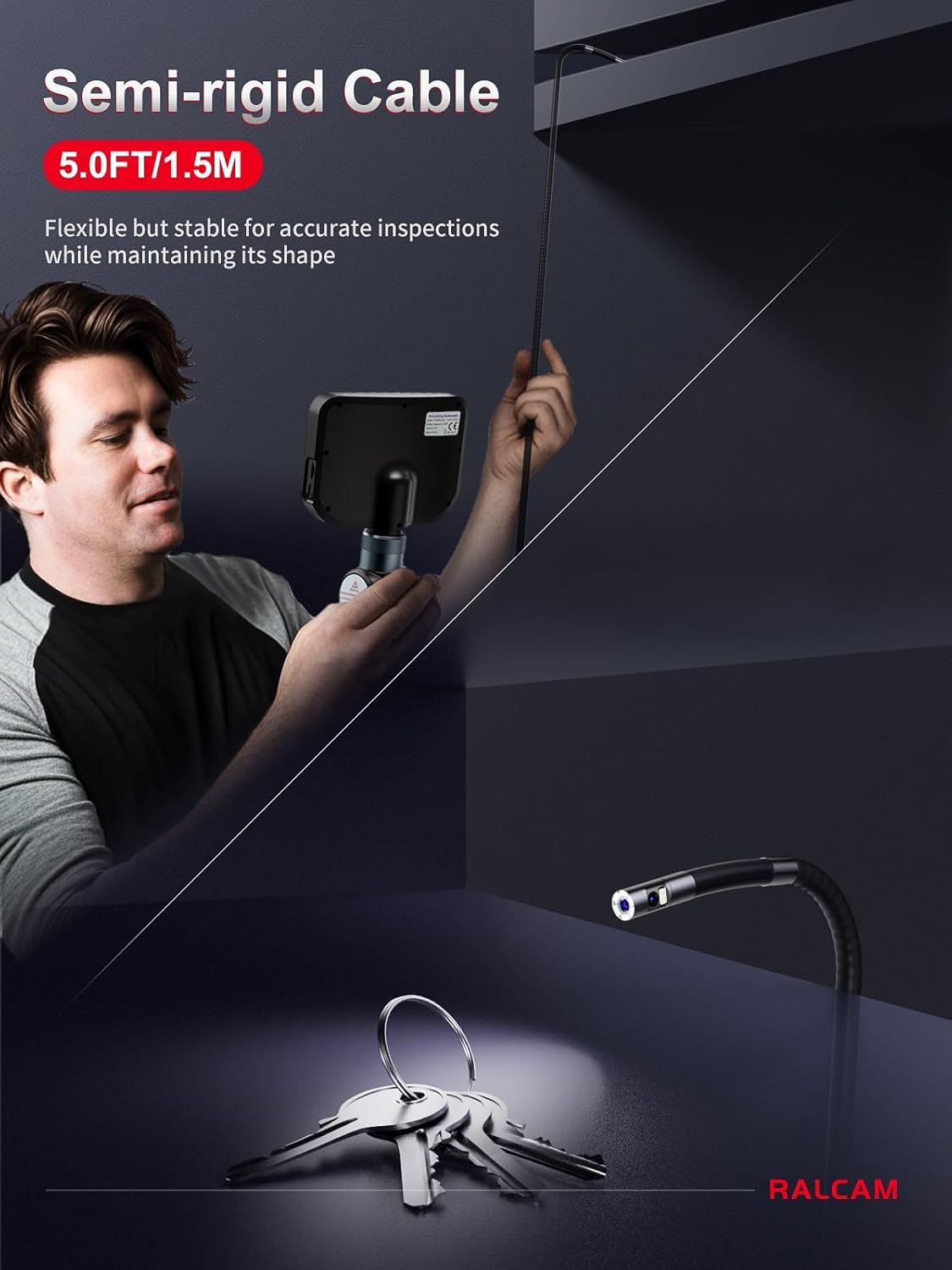

- Cable length: 5.0 ft (semi‑rigid snake cable)

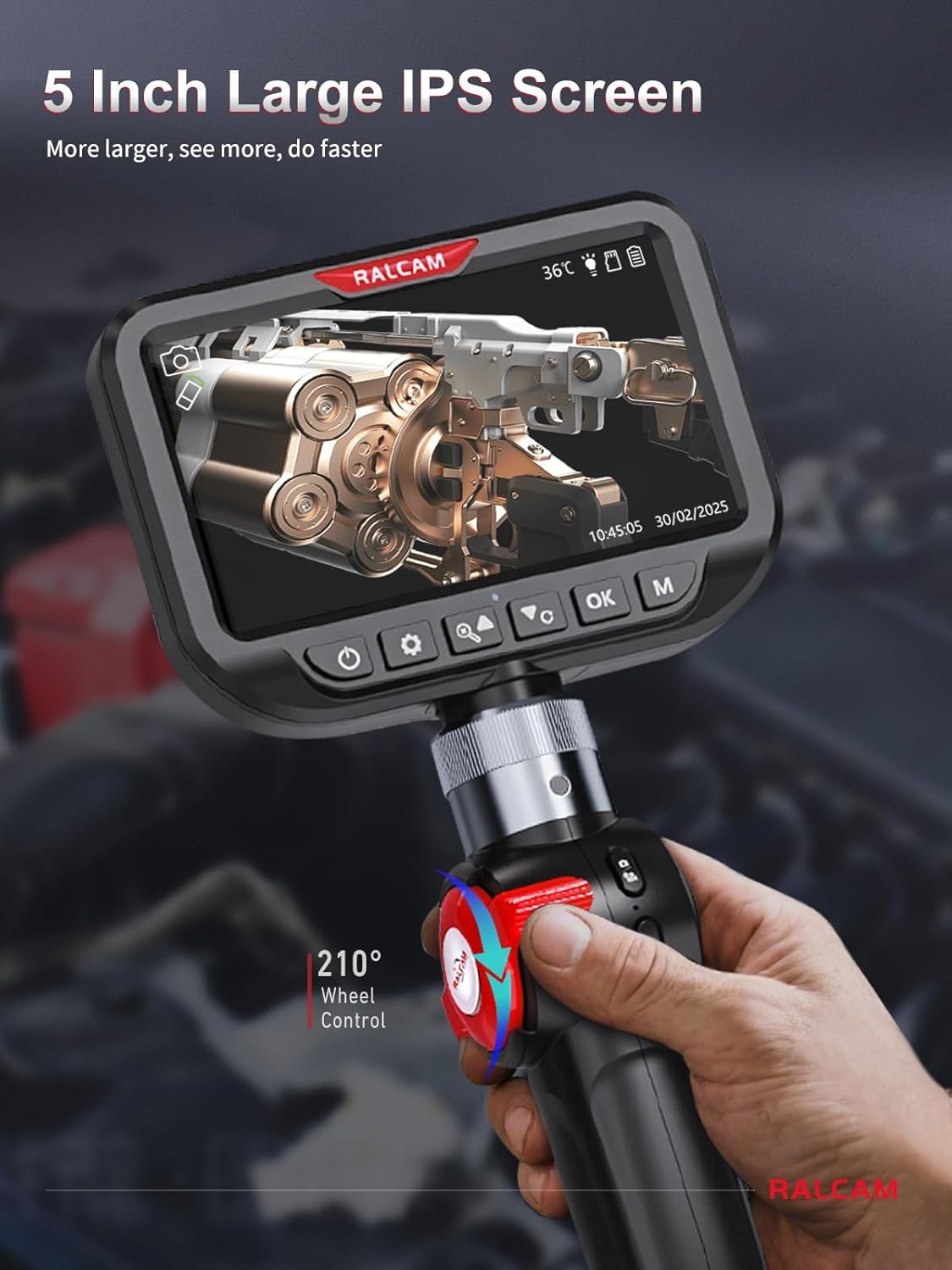

- Screen: 5 inch IPS display
- Lighting: 6+1 adjustable LEDs
- Waterproof rating: IP67
- Power: rechargeable internal battery
Benefits
Having two viewing directions in a single pass reduces the time spent pulling back and reorienting the camera, which can be particularly useful during engine diagnostics or when inspecting the interior of wall pipes. The larger 5 inch screen makes it easier to detect small defects on site and to share findings with colleagues on the spot. The semi‑rigid cable balances flexibility with control so the probe stays where you position it, while the slim head minimises the risk of catching or damaging internal surfaces.
Usage Recommendations
For automotive work, use the side view to scan cylinder walls and valve areas without withdrawing the probe after each angle change. In plumbing inspections, feed the thin probe into tight joints and use the adjustable LED levels to reduce glare from wet surfaces. Clean the metal scratch‑resistant camera head after use and dry the cable if it has been submerged despite the IP67 protection. Consider that image clarity and battery life may vary depending on usage conditions and lighting settings, and that extremely confined bends may still limit how far the semi‑rigid tube can be advanced.
