4 Pin camera spring extension, 6m cable
Product description
A 4-pin camera spring extension cable helps you bridge the space between your reversing camera and the rest of your rearview system without creating a messy wiring run. The PNGKNYOCN 4 pin aviation connector cable is made for backup camera setups, with a retractable design that keeps storage neat when you do not need the extra length. It extends from 1.2 m up to 6 m, so you can route it across different vehicle layouts with more flexibility. 🔧
The essentials
If you are fitting or upgrading a reversing camera for a vehicle with longer runs, this retractable cable can make the job easier. When retracted, it stays compact at 1.2 m, which helps you tidy the area around the camera and connector points. When you need reach, it extends smoothly to 6 m to support extended wiring needs across typical rearview imaging installations. 🌟
This model uses a standard 4-pin aviation connector built for camera systems, which matters because a stable connection supports consistent signal transmission. The cable is also described as plug-and-play, so basic alignment and a simple tighten step are all you need to complete the connection. It is a practical choice for owners working with rearview camera setups on motorhomes, trucks, trailers, and passenger vehicles.
A useful point to keep in mind is that the system is intended for 4-pin backup camera wiring, so it is not meant as a general-purpose cable for unrelated connectors. If your camera harness already uses the matching aviation style connector, you can focus on neat routing and getting the correct length for your vehicle.
Tech specs
- Name: PNGKNYOCN 4 Pin Aviation Connector Camera Spring Coil Extension Cable
- Type: Camera spring extension cable

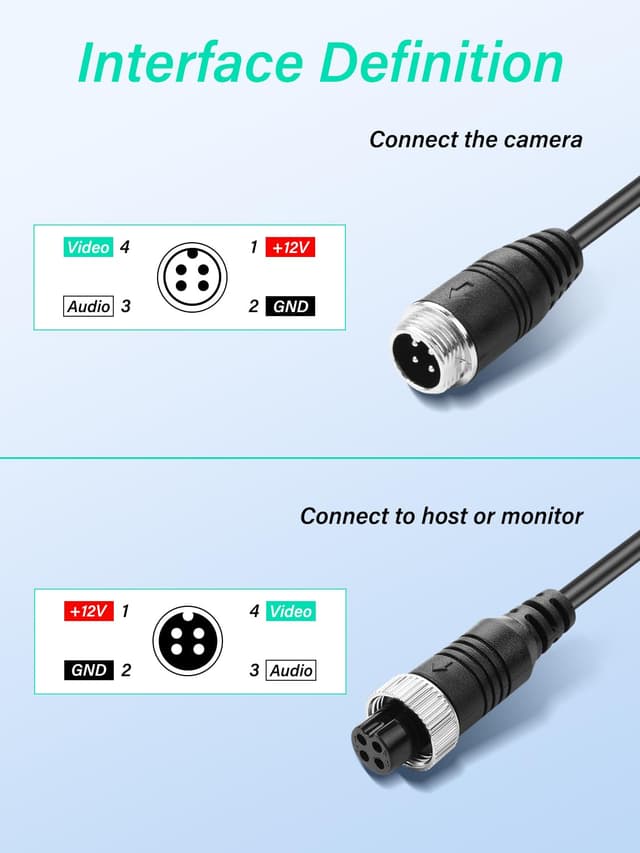

- Format: 4-pin aviation connector

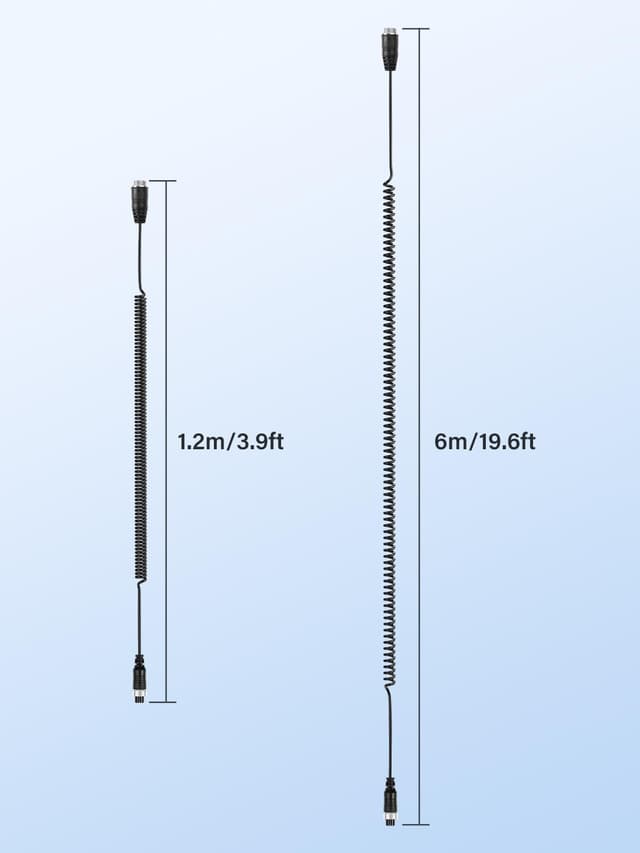

- Size: 1.2 m retracted length
- Length: extends up to 6 m
- Material: metal casing and PVC insulation layer
- Compatibility: suitable for backup camera rearview systems using mainstream 4-pin CCTV reversing cameras
What stands out
The retractable spring coil design is the main differentiator, because it helps you avoid leaving a long loose cable behind when you only need short reach. With the cable retracted, storage is tidier around the vehicle bodywork, which can reduce strain on connector areas. When you need more distance, the cable extends out to meet the routing requirements, then automatically resets when retracted. ✅
The durable materials are also a key part of the value. The robust metal casing is described as providing corrosion resistance, helping maintain stable signal transmission across high-temperature, low-temperature, and humid environments. Around vehicles, conditions can vary quickly, and the insulation is intended to support reliable power supply while staying flexible.

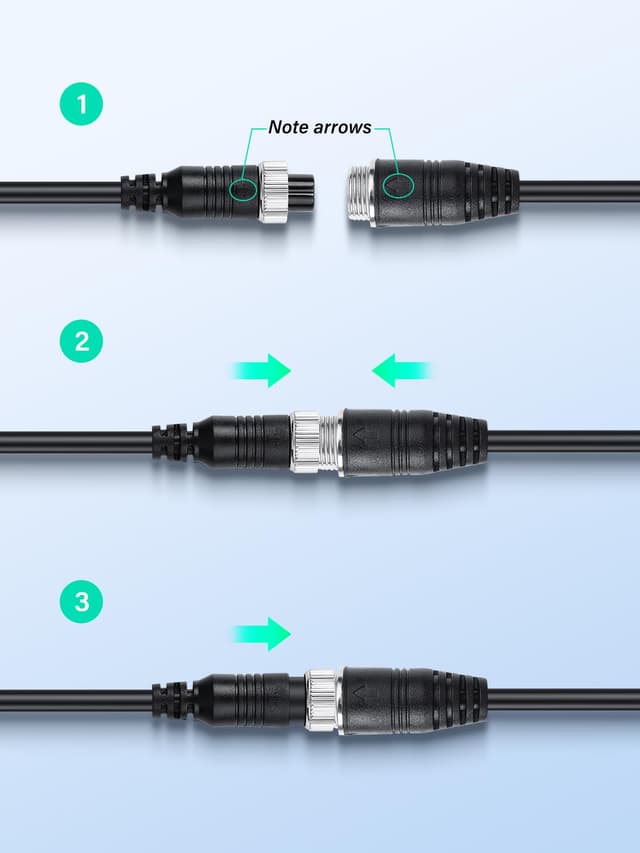

Installation is described as straightforward plug-and-play. Align the arrow markings on the male and female connectors, push them together, and then tighten the nut to complete the connection. This simple approach can be especially handy if you are installing in confined spaces where careful handling is needed.
Compatibility & requirements
Worth considering if you have a reversing camera setup that uses a standard 4-pin aviation connector and you want an extra-reach solution without a permanently long cable. It is described as fully compatible with most rearview imaging systems found in motorhomes, trucks, trailers, and passenger vehicles. The cable is also said to support most 12V and 24V vehicle power systems, which broadens fit across common vehicle types such as lorries, vans, SUVs, and saloon cars.
If your camera system uses a different connector type or you are not working with a backup camera rearview setup, this particular cable may not be the right match. Checking that your existing harness is built for a 4-pin CCTV reversing camera connection is the sensible first step before you buy.
The cable is built for everyday reliability, with the connector and insulation designed to help maintain signal transmission in real vehicle conditions. That makes it a practical add-on for people who want cleaner routing, flexible reach, and a tidy retractable cable solution for rearview imaging.
