NEEWER F600 7-inch Camera Field Monitor with 2400nit Touchscreen, 4K HDMI Loop and Custom 3D LUT

The essentials

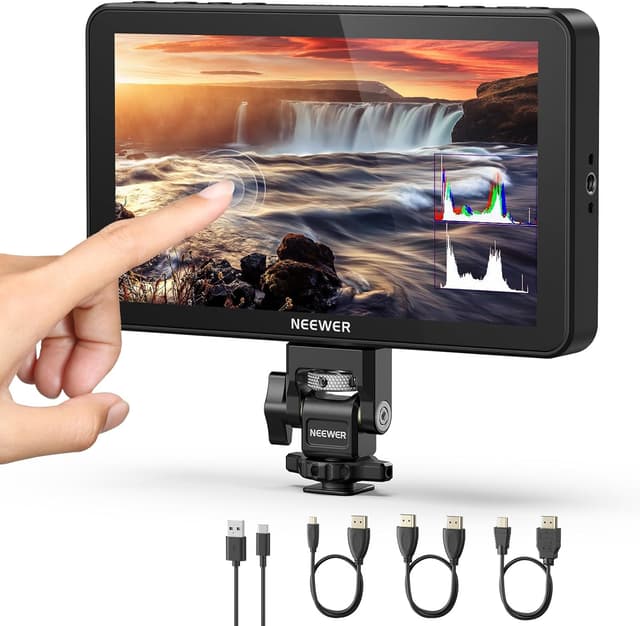

The NEEWER F600 is a 7-inch on-camera field monitor aimed at DSLR/mirrorless and video work where you need to see your image clearly, even outdoors. On paper, it leans towards practical shooting rather than studio-only monitoring: a bright 2400nit IPS touchscreen, a built-in ambient light sensor for auto brightness changes, and a feature set that includes waveform tools, vectorscope-style viewing, false colour and zebras, plus peak focus support.

It’s also designed for workflow. There’s 4K HDMI loop in/out, a 3.5mm headphone jack for audio monitoring, and quick-access buttons (F1, F2, F3) so you can jump between monitoring modes without digging through menus. Add in the ability to upload custom 3D LUTs (with 15 preloaded) and it starts to look like a sensible “do more on set” monitor.

That said, a field monitor is never perfect for everyone. This one may feel feature-rich, but you’ll want to check whether your setup matches what it offers—especially if you rely on batteries or specific power arrangements.

What you’ll notice day to day

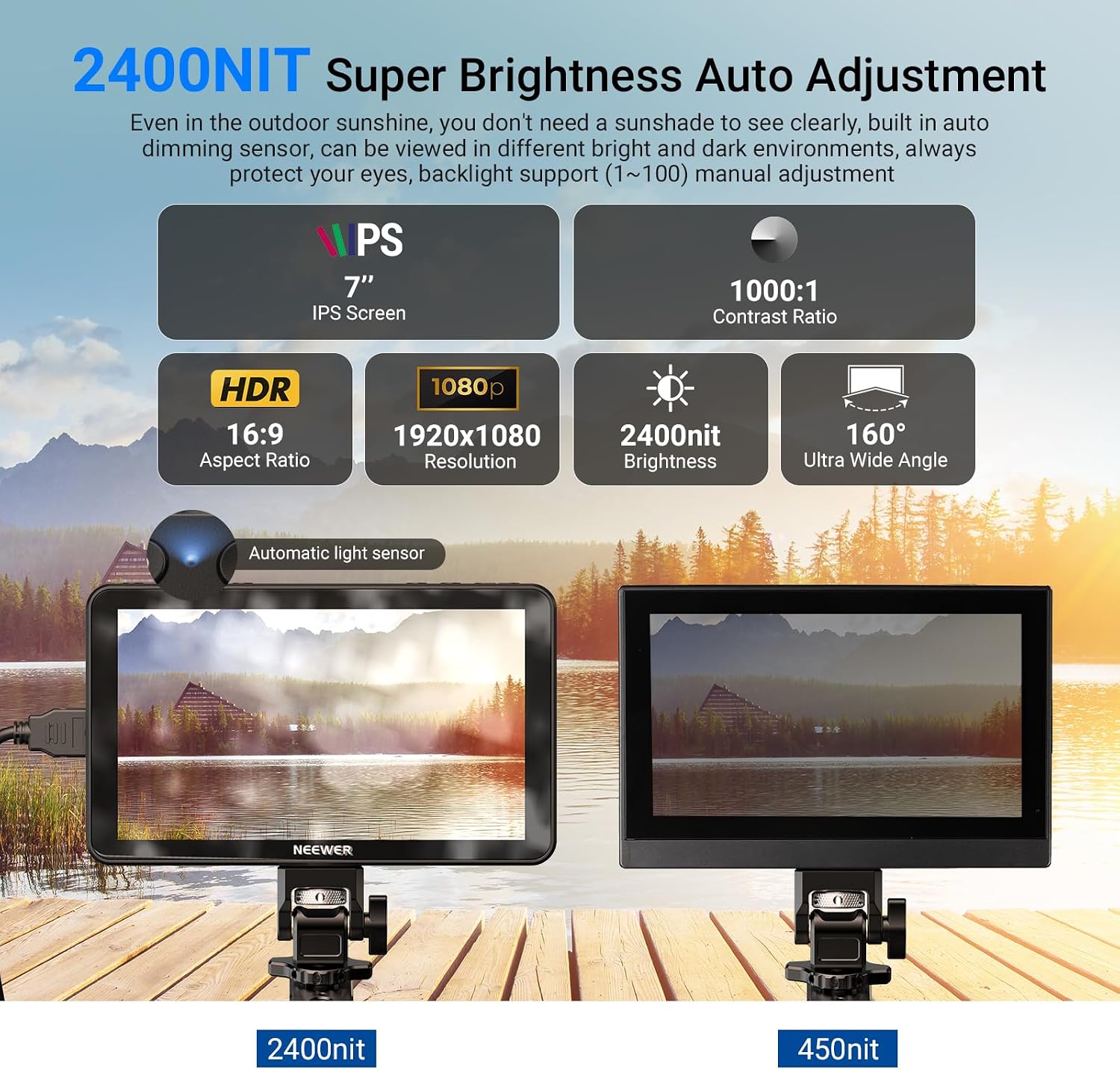

Brightness is the headline here. The 7-inch IPS touchscreen can reach up to 2400nit, and the monitor can automatically adjust brightness (1–100) based on ambient light, with the ability to dim in darker conditions for eye comfort. In practice, this matters if you’ve ever tried to judge exposure on a dim screen while standing under harsh sunlight.

A small but meaningful plus is the ultra-wide viewing angle (160°). If you shoot with an assistant pulling focus, or you’re framing from slightly off-centre, this helps keep the image usable without constantly adjusting your body position.

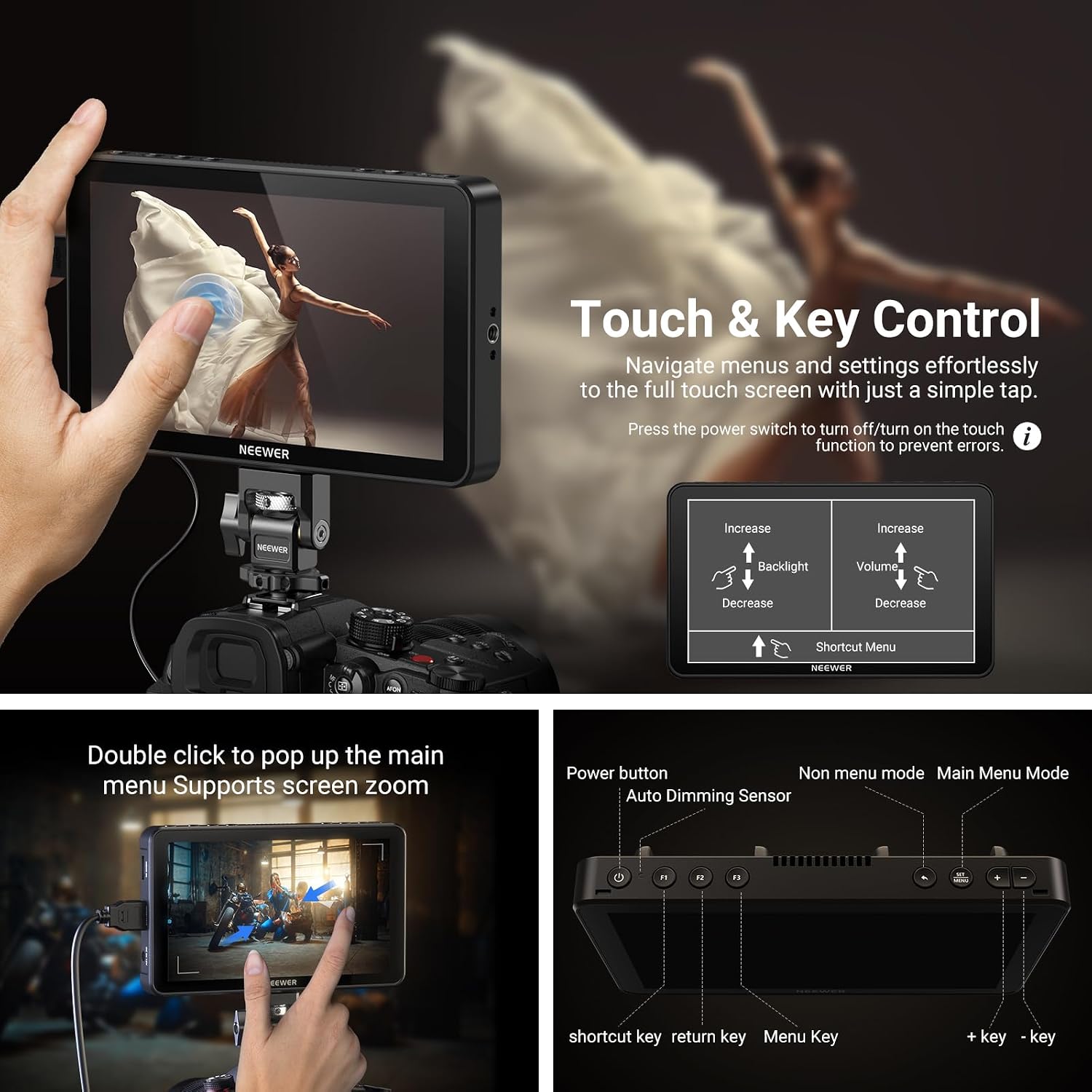

The touchscreen is also there for speed. Depending on how you like to operate, touch controls can make it easier to toggle views and verify details. Just keep in mind that on-set touches can be a mixed blessing—if you’re wearing gloves or you’re moving quickly, you may find physical controls still matter most.

Monitoring tools and colour workflow (including 3D LUTs)

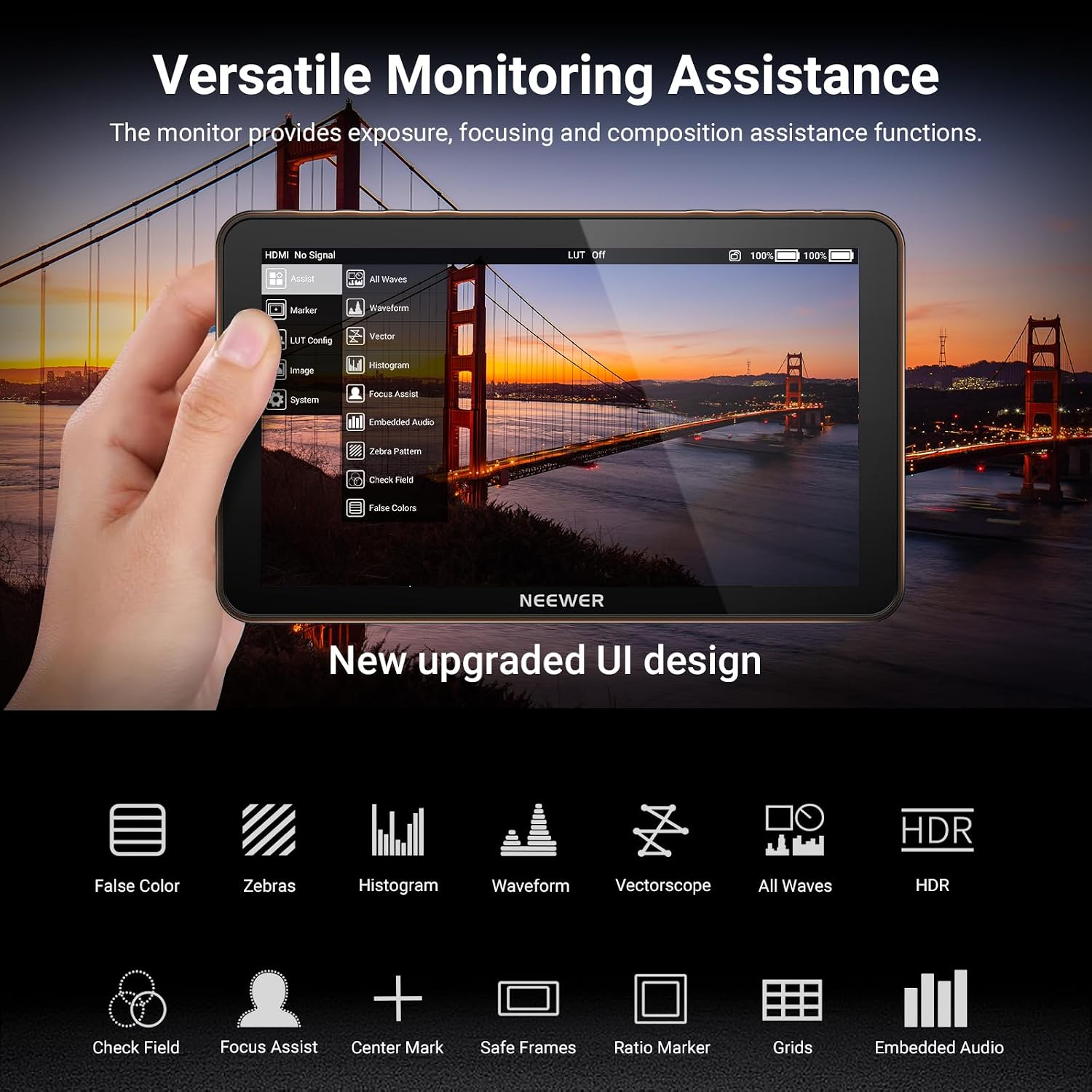

If you care about getting exposure and look right in-camera, the F600 is built for that. It follows the Rec.709 HD colour standard and includes a range of monitoring functions: false colour, zebras, histogram, oscillogram, full waveform, and more. There’s also HDR-related monitoring, vectorscope-style viewing, single colour mode, and an audio bar.

The peak focus feature is particularly relevant for fast check-ins—think of running a quick focus pull, then pausing to confirm sharpness using on-screen feedback. It’s not the same as a dedicated focus system, but it can make manual judgement less guessy.

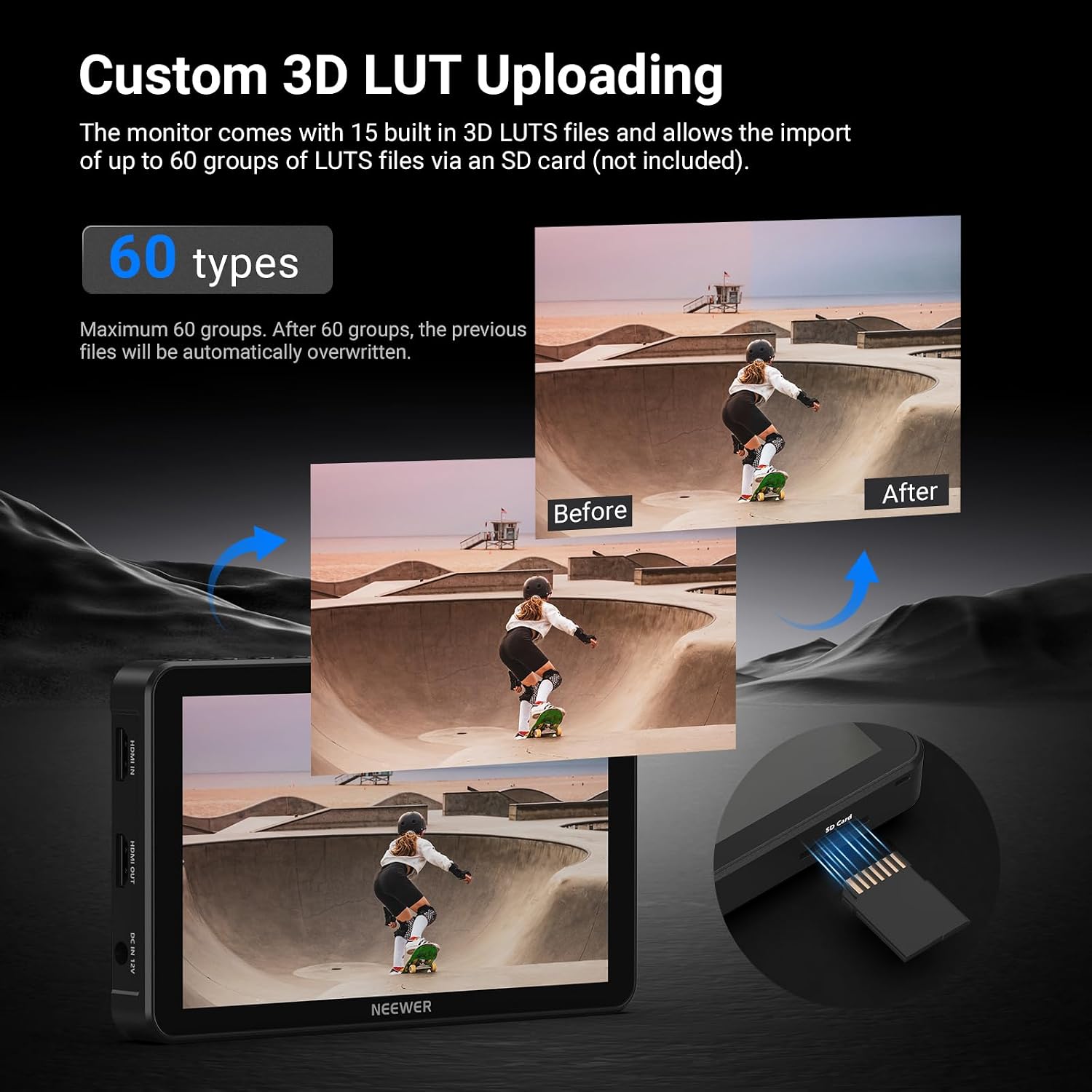

For colour management-style workflows, the monitor includes 15 preloaded 3D LUTs and supports uploading up to 60 custom 3D LUT files. That gives you room to set up a look ahead of time, rather than relying entirely on “fix it later” thinking.

4K HDMI loop in/out and practical connectivity

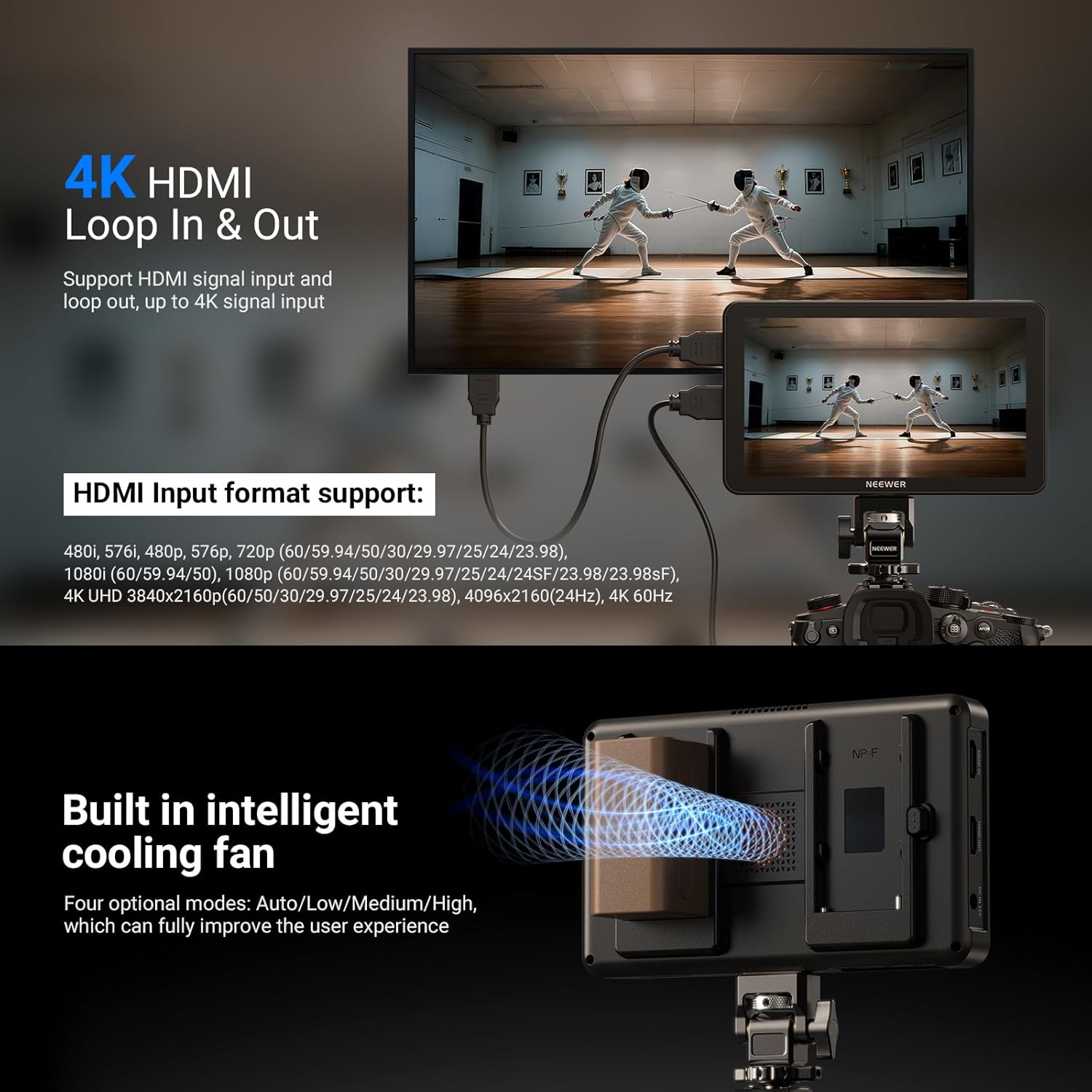

Where the F600 is more than just a display is the HDMI loop-through idea: it supports 4K HDMI loop input and output, handling a range of video formats. The listed input/output formats include common 1080i/1080p variations, plus 3840×2160 and 4096×2160 at specified frame rates.

This is useful if you want to monitor while also passing the signal onward in your rig—so the monitor becomes part of the chain rather than a dead end.

There’s also simultaneous audio monitoring via a 3.5mm headphone jack (headphones aren’t included). That’s a practical checkbox for location work: you can keep an ear on levels while you check picture tools.

One thing to note: the monitor supports firmware upgrades via an SD card (not included). If you already keep an SD card for production tools, that’s fine—if not, it’s worth remembering.

Power, mounting and cooling (and where it can limit you)

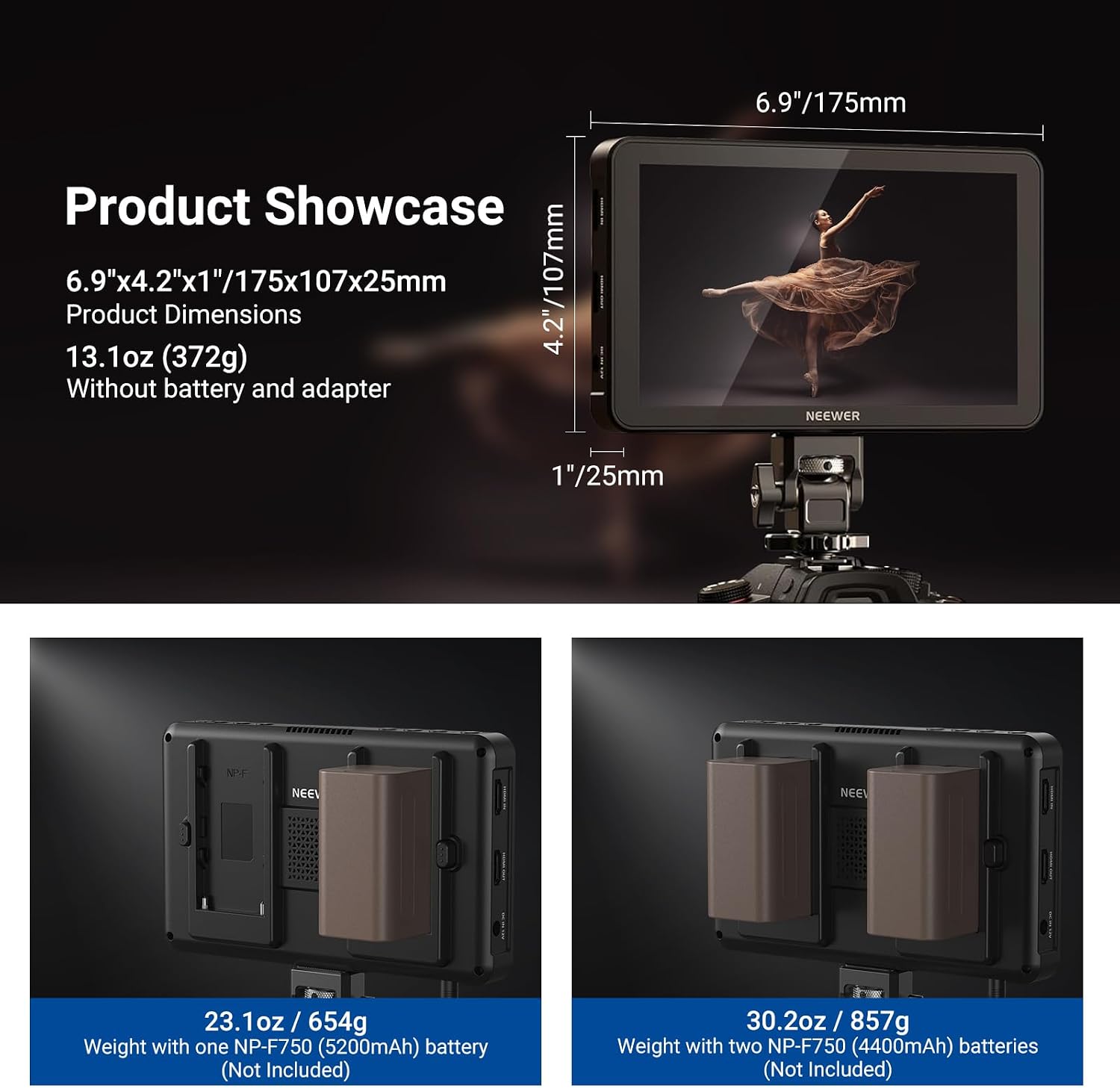

The F600 offers multiple power options, which is the kind of flexibility you tend to appreciate once you’re away from mains. It supports NP-F battery compatibility (NP-F550/750/970), but those batteries are not included. It also includes a DC port (cable not included) and Type C charging via USB to Type C cable (included).

It’s also described as doubling as a dummy battery for a camera using a DC 8V/1.5A output for prolonged outdoor filming. That could be handy if you’re trying to keep your camera running for long takes outdoors, but whether it fits your camera depends on your existing power/dummy battery setup.

For mounting, you get a cold shoe mount plus 180° adjustment, and the monitor includes 1/4-inch screw holes on the bottom and side for flexible rigging.

Cooling is handled with built-in fans, with automatic/low/medium/high modes. That helps with sustained operation, though no fan system is magic—if you’re running long in very hot conditions, ventilation still matters.

Key takeaways for buying

It’s a good fit if you want a bright 7-inch field monitor with touchscreen control, outdoor-friendly visibility, and on-screen tools like waveform/full waveform, zebras/false colour, histogram, HDR monitoring and peak focus. It also suits shooters who like a LUT workflow and want 4K HDMI loop-through for cleaner rig setups.

It might not be for you if you’re expecting a simple “plug in and forget” monitor with minimal configuration, or if you specifically need included batteries/cables out of the box (NP-F batteries and the DC cable are not included, and the SD card for upgrades isn’t included either). You may also want to skip it if your priority is purely lightweight kit over feature depth, because this is clearly built to support more monitoring functions and a more robust shooting workflow.

Final verdict

Is it worth it?

If you’re buying for location work and you regularly struggle with visibility, the NEEWER F600’s 2400nit touchscreen plus ambient auto brightness control is the kind of practical upgrade that can pay off quickly. The monitoring feature set (false colour/zebras/histograms/waveforms) and LUT upload support give it enough depth for real-world grading decisions on set.

At the same time, it’s worth checking your power plan before you commit. Batteries aren’t included, the DC cable is not included, and firmware updates require an SD card you’ll need to have to hand. If you can cover those basics, the F600 looks like a solid mid-range approach to field monitoring rather than a “budget-only” afterthought.

Mini FAQ

What’s the main benefit of the auto brightness sensor?

It helps keep the screen readable outdoors by boosting brightness under strong light and dimming in darkness, aiming for visibility without constantly adjusting settings.

Does it support custom 3D LUTs?

Yes. It includes 15 preloaded 3D LUTs and supports uploading custom 3D LUT files (up to 60 custom LUT files are supported).

Can I monitor audio while filming?

Yes, via the built-in 3.5mm headphone jack. Headphones themselves aren’t included.

Is the battery included?

No. It supports NP-F batteries (NP-F550/750/970), but the batteries are not included.

Does it loop the video signal through?

It supports 4K HDMI loop in and loop out, with the monitor also listing a variety of supported input/output format options.
