Metal Concealed Hinge Jig, 35MM Cabinet Hinge Jig Drilling Hole Puncher with Quick Clamp
Product description
What matters most
A rugged, all-metal 35mm hinge jig designed to streamline the process of drilling concealed cabinet hinges. Built from high-quality aluminium alloy, it aims to be more durable and accurate than plastic alternatives, with a flat bottom surface to help stabilise drilling and reduce lateral wobble.
How it works in practice

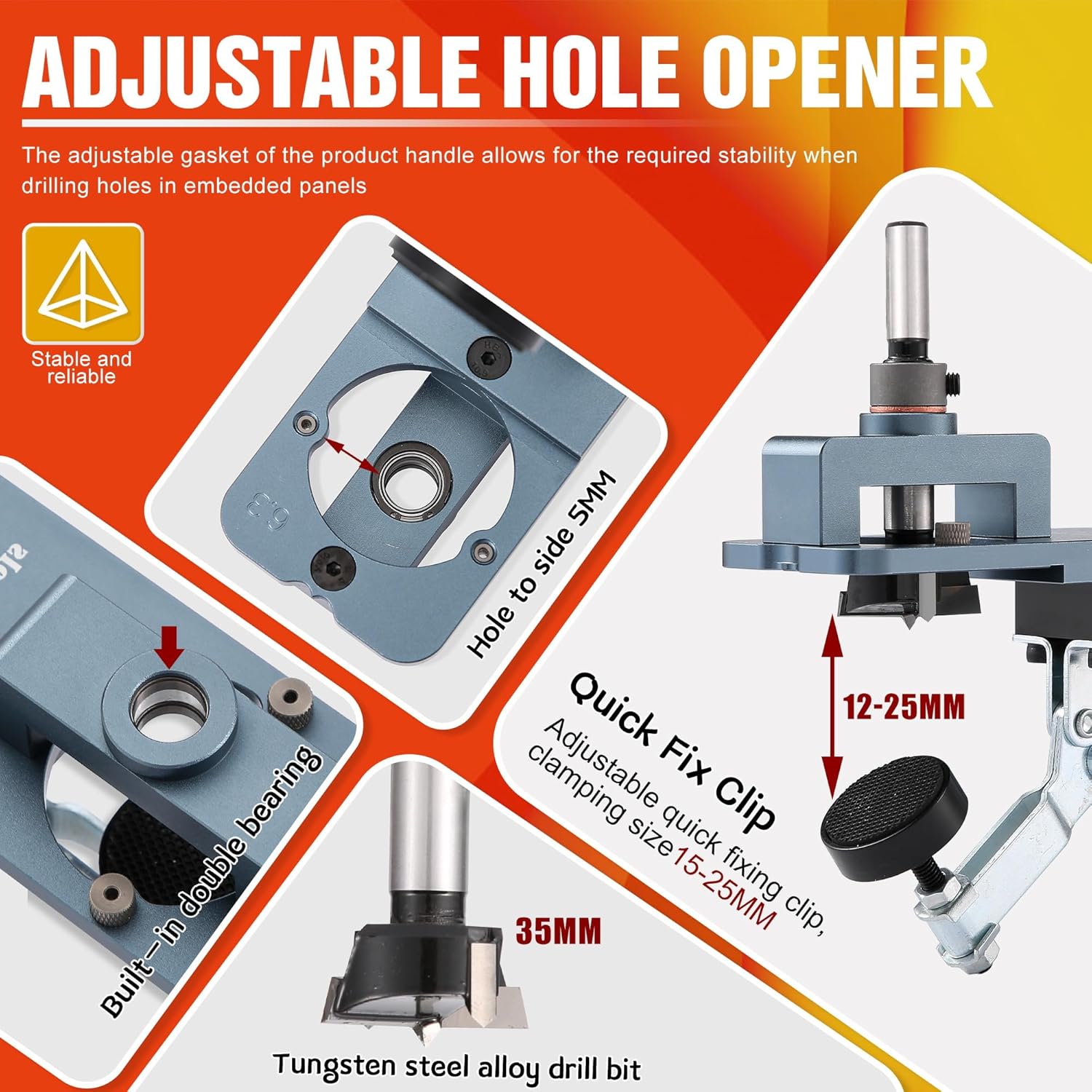

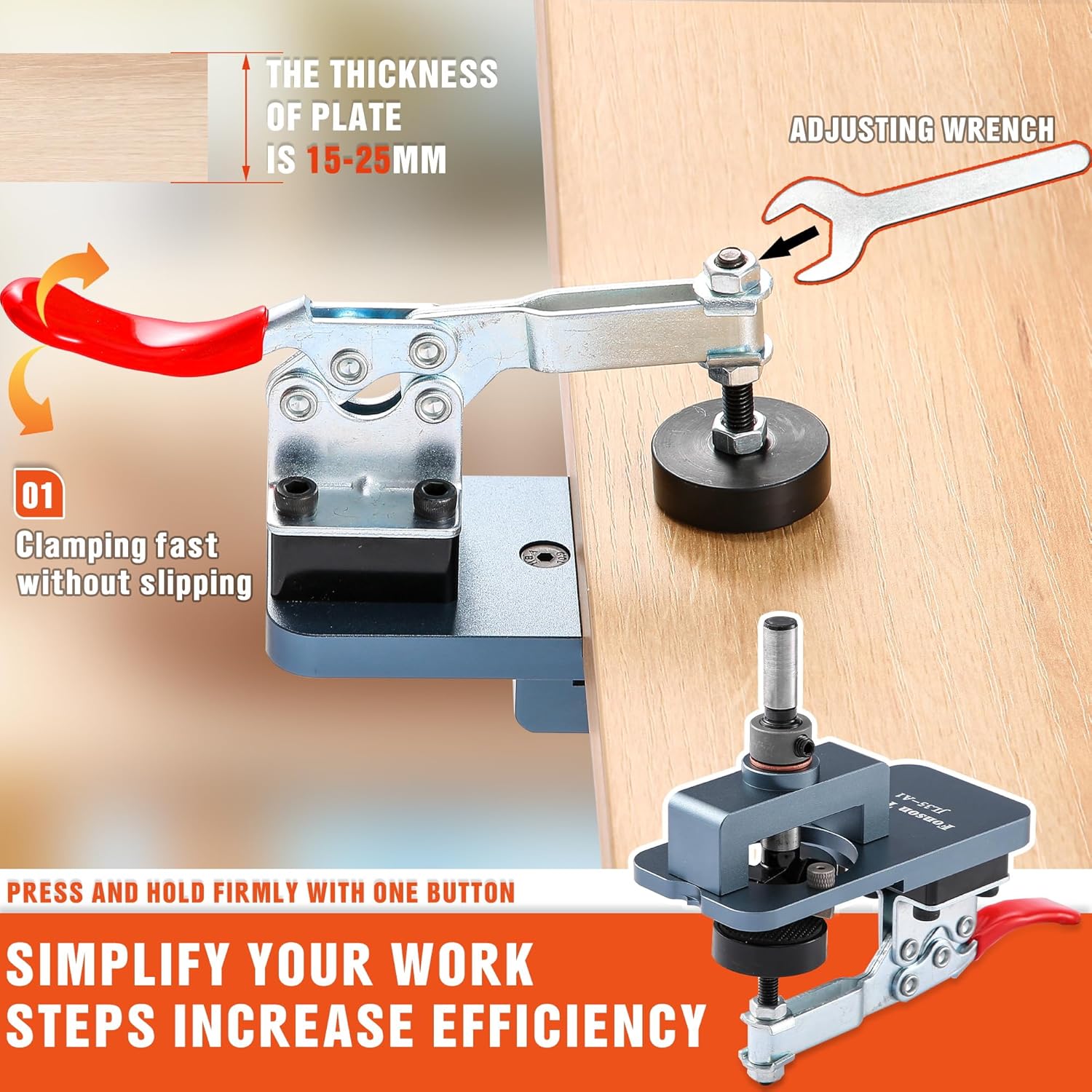

The jig features a quick clamp and a depth-setting mechanism to position the hole punch quickly and precisely. You clamp the board, lock the clip, and drill from the marked position. It includes a 35mm hole saw and a 2mm drill bit, and is compatible with standard electric drills. The design, including integrated bearings, is intended to minimise lateral movement during drilling for more consistent hinge holes.
What stands out
On paper, the all-metal construction and built-in bearings aim to improve stability and accuracy, particularly when drilling through 12–25mm boards. The setup promises faster hinge hole execution and less fiddling with alignment, which could be helpful for DIY cabinets and kitchens with concealed hinges.
Pros and potential drawbacks
- Pros: robust metal construction, flat base for stability, quick-depth setting, simple locking mechanism, includes essential bits and a 35mm hole saw, designed for repeatable 35mm hinge holes.
- Cons/Limitations: as with many dedicated jigs, effectiveness depends on board thickness tolerance and edge clearance, it’s a specialised tool, so use outside typical woodworking contexts may not be as justified, exact performance can vary with drill quality and clamping method.
Who it suits and who should think twice
This jig is well-suited for someone installing concealed hinges on cabinet doors in kitchens, wardrobes or bathrooms where precise 35mm holes matter and speed helps. If your projects rarely use concealed hinges or you work with non-standard hinge sizes or edge distances, you may find it less indispensable.
When it makes sense to buy
If you’re aiming to improve consistency of hinge holes on 12–25mm boards and want a dedicated, repeatable method with a quick clamp, this jig could help cut down misalignment and rework time.
Things to review before buying
- Confirm your boards fall within the supported thickness (12–25mm) and that your hinge style matches the 35mm diameter requirement.
- Check how you clamp and fix the jig on your workpiece, the effectiveness hinges on a solid, stable setup.
- Consider whether you already own a drill bit set that includes a 2mm option and the supplied 35mm bit, ensuring compatibility with your drill.
Practical use example

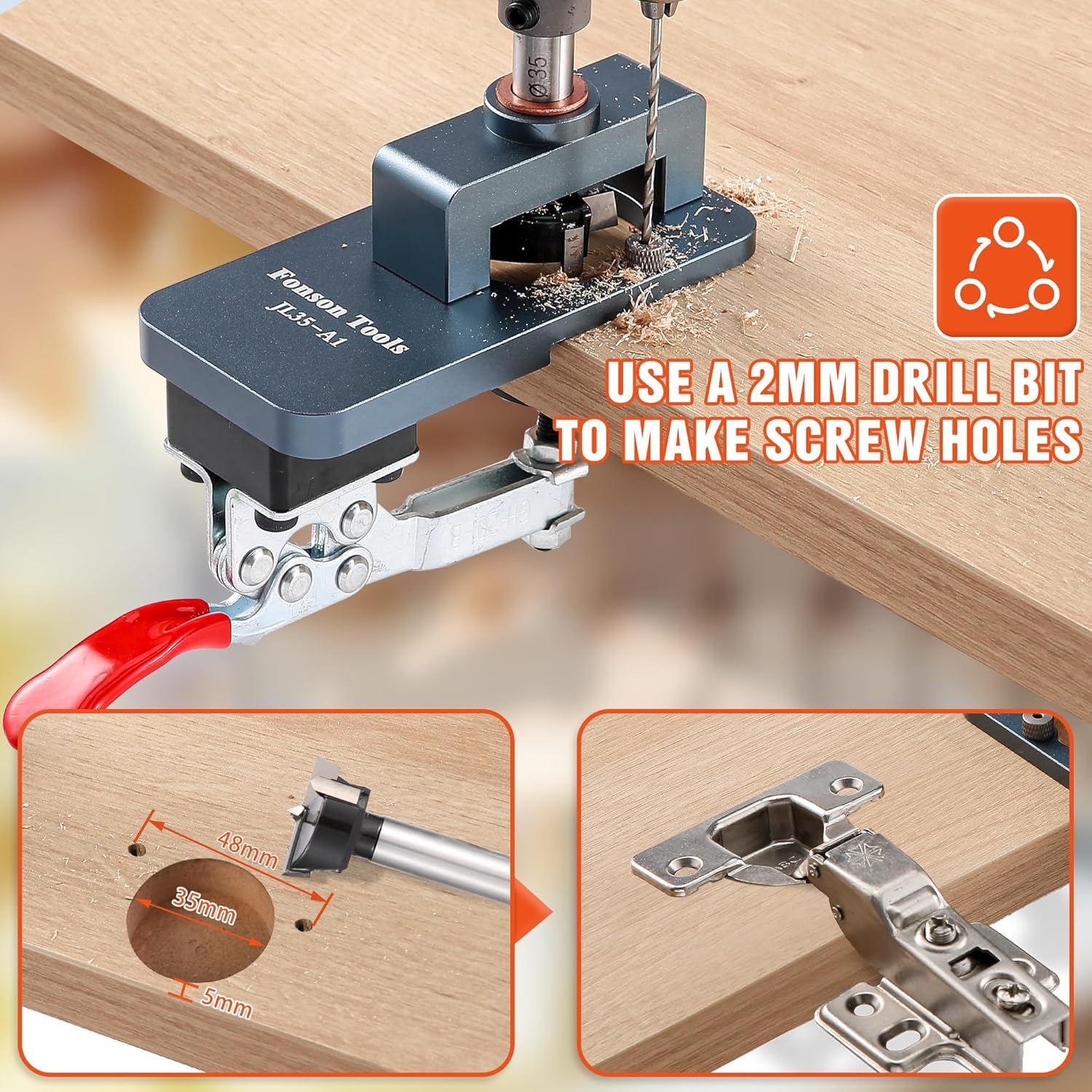

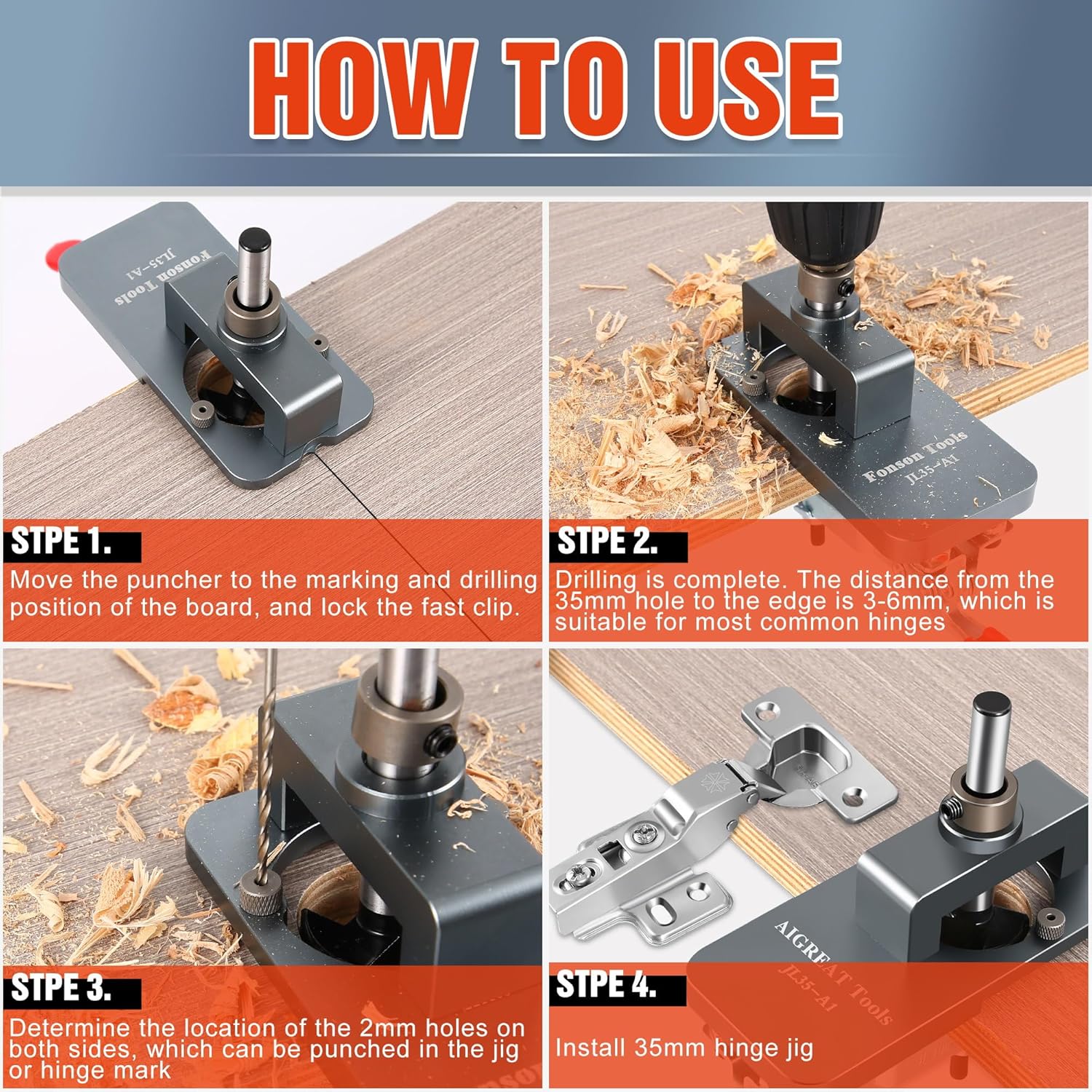

Imagine a small kitchen overhaul: you clamp the jig on each door, set the drilling depth to 12–13mm, lock it, and drill the 35mm hinge hole plus two small guide holes. The result is neatly aligned hinges with less guesswork, allowing quicker hanging of doors with a consistent gap around the frame.
Tech overview
- Type: Hinge drilling locator
- Material: All-metal aluminium alloy
- Hole size: 35mm

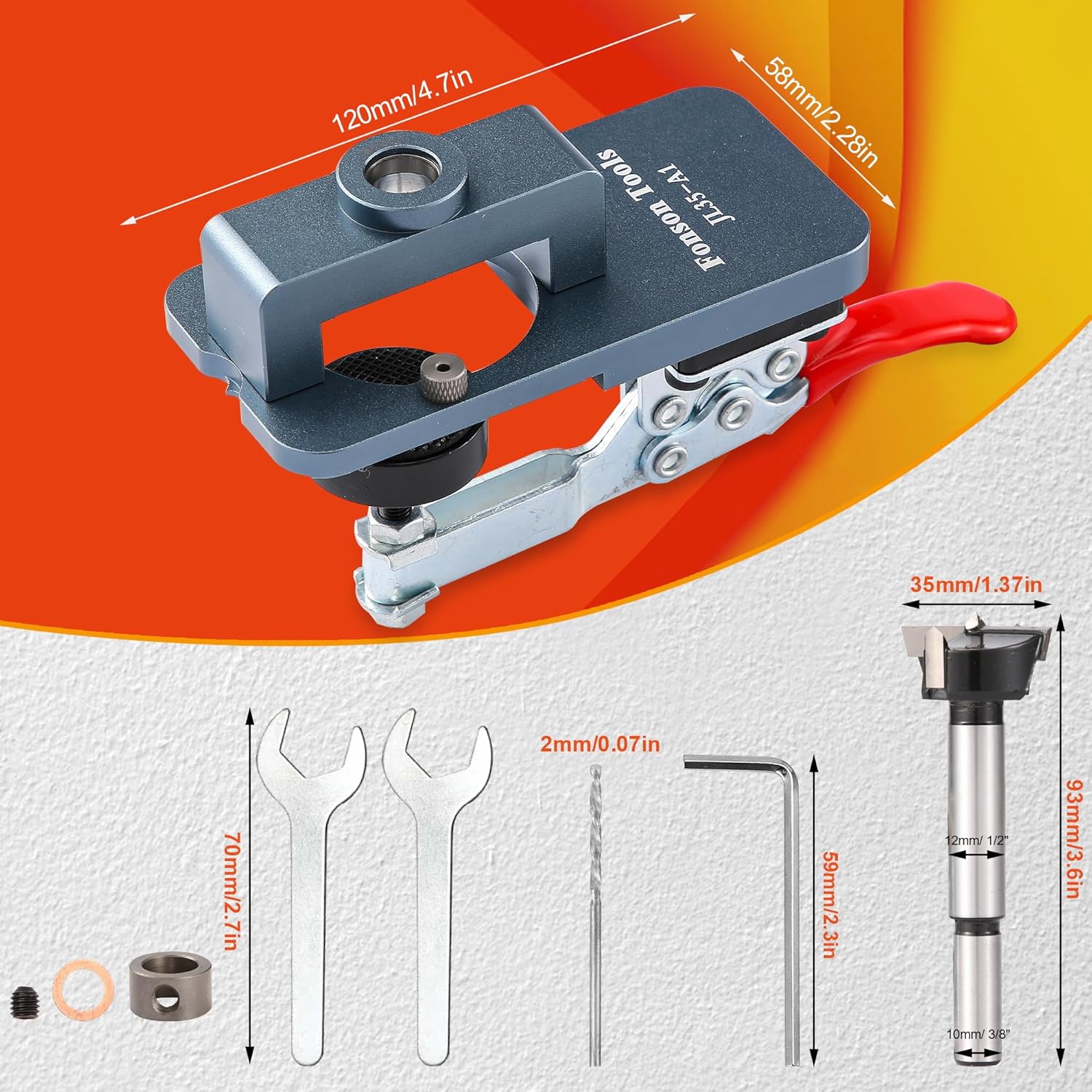

- Included bits: 35mm hole saw, 2mm drill bit
- Board thickness compatibility: 12–25mm
- Mounting: Quick clamp with locking plate
- Accessories: 2 small wrenches, hex tool, one screw, limit ring
FAQ
- Do I need special tools to use this jig? A standard electric drill is sufficient, the jig is designed to work with common drills.
- Can I reuse this on multiple projects? Yes, the quick clamp and depth settings are intended for repeated use across doors and cabinets.
- Is it suitable for very thin panels? It supports down to 12mm thickness, so very thin panels may require care to maintain accuracy.
Final verdict
Final verdict: Worth considering if you prioritise repeatable 35mm hinge holes on 12–25mm boards and want to speed up installation with a sturdy, all-metal jig. It may not be the best fit if you rarely work with concealed hinges or require adjustable non-35mm hole sizes. A practical choice for regular cabinet hinge mounting where durability and accuracy matter.
