Lemorele Wireless HDMI Transmitter and Receiver (R5000) – 200m range, 1080p@60Hz, up to 4 receivers
Product description
If you’re setting up a shoot where cables get in the way, an HDMI wireless link can feel like a breath of fresh air. The Lemorele Wireless HDMI Transmitter and Receiver is built for that kind of on-set convenience: plug the transmitter into your camera/source, connect a receiver to a monitor/TV/projector, and you’re aiming for a clean live feed without a tangled run.
That said, it’s not a “one-size-fits-all” solution. Wireless HDMI can be sensitive to real-world conditions (distance, obstacles, and power stability), so it’s worth thinking through your exact layout before you buy.
Key takeaways
On paper, the strongest draw here is the combination of 1080p up to 60Hz, a stated low latency (50ms), and a quoted long range of up to 200m in obstacle-free environments. It’s designed for live monitoring and multi-angle setups, with support for one transmitter feeding up to four receivers.
Another practical point is the workflow: it’s positioned as plug-and-play, with no mention of PC drivers or network configuration for getting started. There’s also TuTuPlay app preview support, which can be useful when you want a quick look on your phone/tablet before you even add full monitor receivers.
The main limitation to keep in mind is that the mobile preview is only within a shorter distance (stated as 20m), and the RX units that you purchase separately require manual pairing.
What it is and what it’s for

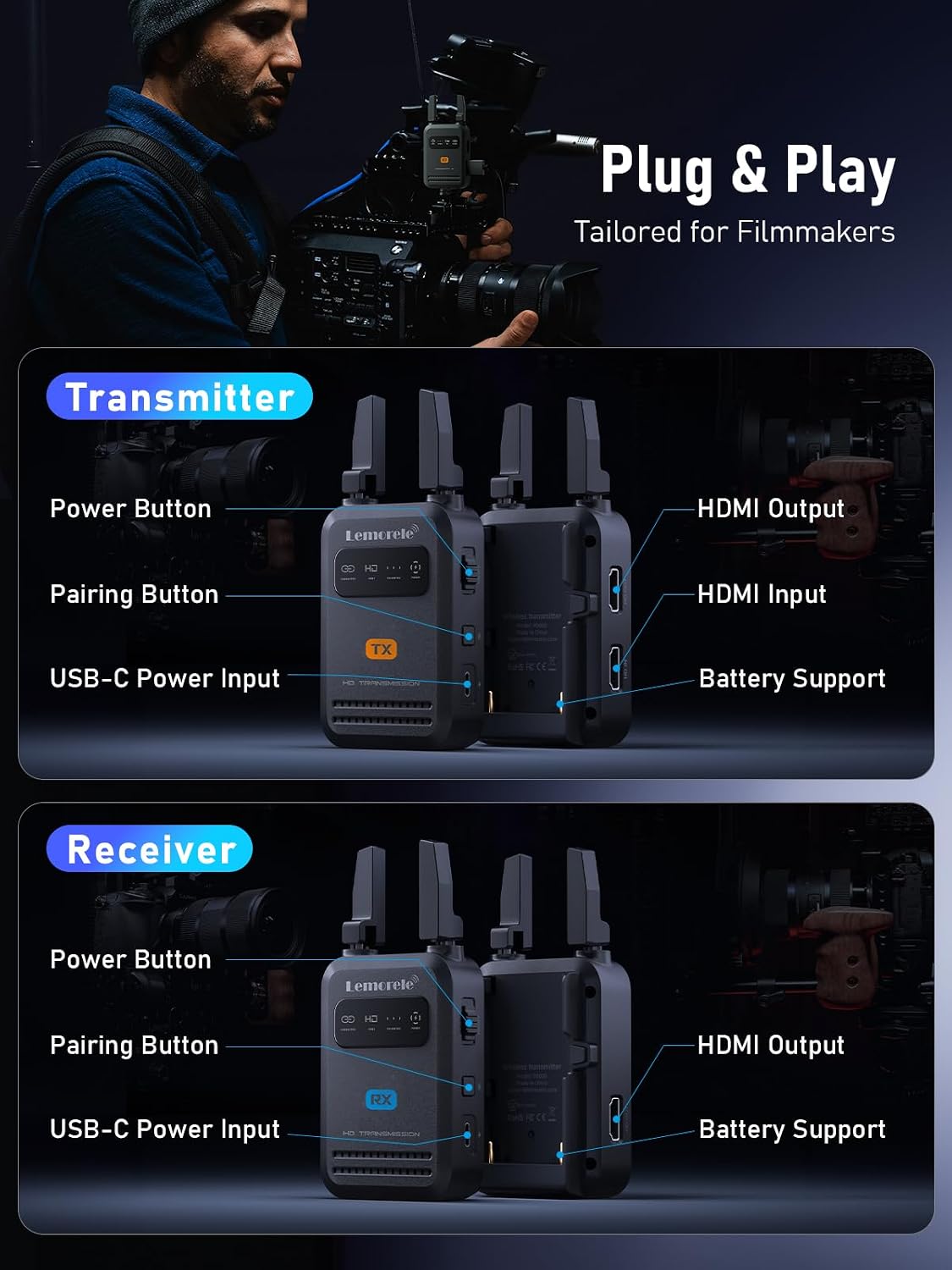

This is a wireless HDMI video transmission kit made up of a transmitter and a receiver. You use the transmitter with a source device that outputs HDMI (the input could be your computer or another signal source). The receiver is then connected to a display device via HDMI such as a monitor, projector, or TV.
Where this setup tends to make sense is when you want real-time viewing during filming, live streaming, or multi-camera direction and feedback. The inclusion of HDMI “loop” support on the receiver and transmitter is also aimed at those workflows where you may want to keep signals moving without adding extra switching boxes.
A simple way to picture it: you set your camera/source at one end of the space, place a director’s monitor on the other side, and keep the movement of your crew cable-light. Instead of laying a long HDMI run, you’re relying on the wireless link and aiming for smooth monitoring for framing and on-the-fly checks.
Key features that matter in use
The headline spec for day-to-day usability is 1080p at up to 60Hz, paired with a stated low latency of 50ms. For monitoring, that’s the difference between “usable live view” and “it’s just too laggy to trust.” It won’t eliminate real-world motion delay caused by your specific setup, but the intent is clearly real-time feedback.
The connection is based on 5GHz Wi‑Fi technology with an external antenna design (dual antenna on the system, with stated antenna gain of 5 dB). In plain terms, it’s trying to behave like a stable wireless bridge rather than a novelty.
Multi-screen capability is also a genuine plus: one transmitter can support up to four receivers. If you’re directing from multiple locations or running several monitors simultaneously, that avoids the need to duplicate transmitters.
Range, latency, and the part where reality can differ
The product claims a transmission range of up to 200m in environments without obstacles, with latency listed as 50ms. That’s a strong spec on paper, but it’s also the first place to be realistic.
Wireless performance depends a lot on where you use it—walls, metal structures, and general RF noise can reduce effective range. If your shoot location isn’t open and obstacle-free, you may need to assume the “up to” figure becomes a lot more modest.
Also take note of power. The system is described as needing a stable 5V 2A power supply to keep the Wi‑Fi module running properly. If you under-power it, the downside described is delays, freezing, or disconnects. That’s one of those details that matters far more than it sounds when you’re on a deadline.
App preview (TuTuPlay) and what it changes
TuTuPlay app preview is included as a way to view live images from the transmitter via a mobile device. The stated preview distance is up to 20m, which makes it best for checking quickly—think “is the camera feed actually alive?” or “are we in the right ballpark for framing?”
The app can also be used for basic monitoring without an RX receiver. That can be handy early in a setup when you’re still moving gear around.
One caveat: the transmitter and receiver behaviour are different. The description says that pairing is needed for an RX unit purchased separately, so if you plan to expand to additional monitors, factor in that extra step.
Tech details (quick scan)
- Type: Wireless HDMI transmitter and receiver kit
- Max video format: 1080p
- Max refresh/frame rate: 60Hz
- Stated latency: 50ms (0.05 seconds)
- Wireless band: 5GHz Wi‑Fi
- Range (stated): up to 200m in obstacle-free environments
- Mobile preview range (stated): up to 20m
- Multi-receiver support: 1TX to up to 4RX
- Power requirement (stated): 5V 2A stable power
Should you buy it?
A solid pick if you want a wireless HDMI link for live monitoring on set or for live streaming, and you’re working in an environment where you can realistically keep the transmitter and receiver within range. It’s especially worth considering if you like the idea of supporting one source to multiple displays (up to four receivers) and you want low-latency viewing rather than a slow “record later” style setup.
You may want to skip it if your shooting spaces are heavily obstructed (and you can’t adjust your placement), or if you know you won’t be able to provide a stable 5V 2A power feed. It might not be a great match if you’re expecting the “up to 200m” figure to hold in complex real-world locations, or if you don’t want to deal with manual pairing for separately bought receivers.
Mini FAQ
How long does it take to start up?
The kit is described as plug-and-play and ready quickly. It mentions waiting about 5 to 10 seconds for a successful projection.
Can I use the mobile app without buying extra receivers?
Basic monitoring without an RX receiver is described as possible via TuTuPlay. However, the app preview distance is stated as up to 20m.
Can one transmitter run multiple monitors?
Yes—one transmitter supports up to four receivers (RX). You’ll need the appropriate RX units, and separately purchased receivers require manual pairing.
What power supply do I need?
The system requires a stable 5V 2A power supply. Insufficient power is described as a cause of connection delays, freezing, or screen disconnects.
Final verdict
If your priority is real-time-ish wireless HDMI monitoring at up to 1080p 60Hz with a stated 50ms latency—and you can plan your placement and power—this is the kind of kit that can make on-location filming and live streaming feel simpler. Just don’t bank on the headline range without considering obstacles, and make sure you’re ready for the practical pairing steps if you expand to multiple receivers.
