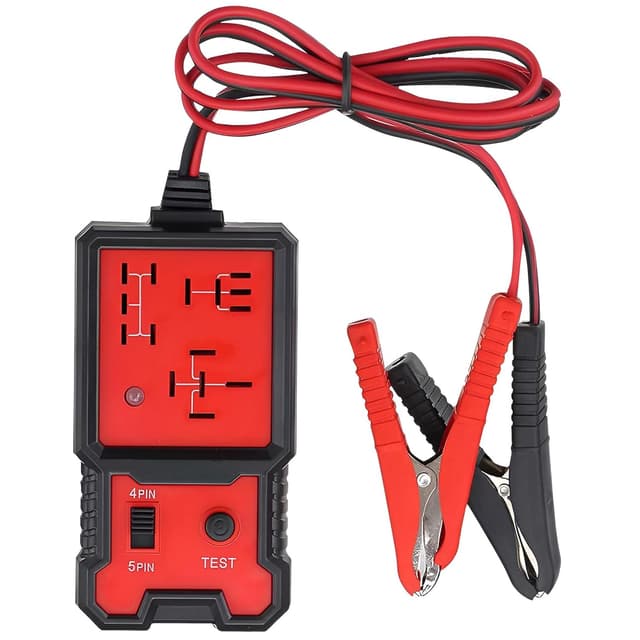

KTCINA 12V Car Relay Tester Kit – LED relay circuit test tool for cars and trucks
Product description
Quick overview
If you do any regular DIY electrical work on a car or van, a relay tester can save you from a lot of guesswork. The KTCINA 12V Car Relay Tester Kit is designed to check automotive relays using a battery-powered approach, with LED indicators to tell you whether the relay appears to behave normally.
On paper, the idea is simple: the tool continuously runs the car battery (11V–15V) to the relay coil during testing, so you can assess the relay contact function across the test phase. If the relay acts up, you get an obvious red LED signal, if things look consistent, a green LED shows up.
Key features you’ll notice in use
The biggest practical win here is the LED-based feedback. Instead of needing to interpret complex readings, you get a straightforward “abnormal vs normal” indication. That’s useful when you’re working in a driveway, under a bonnet, or in a tight space where you don’t want to keep flicking between manuals and multimeter settings.
It also has an “automated” element to the testing flow in the sense that it will detect the pin position, the release time of the action, and whether the relay remains consistent through each phase of the test. For everyday troubleshooting—like trying to identify whether a relay is actually the problem—this can feel quicker than more manual methods.
How to use it (and what to double-check)
Using the kit is built around clipping directly onto the battery. You connect the alligator clips so the tester can use the vehicle’s battery (11V–15V) during the check, with the black clip on the negative pole and the red clip on the positive pole. Once the red LED lights, the tester is ready to start the test.
That “ready to test” step matters, because it’s easy to assume power is present and move on too fast. Take a moment to confirm the LED indication before you run the test.
It’s also worth keeping in mind the stated requirement: it needs to be connected to the car’s battery to perform the relay check. If you’re troubleshooting with the engine off and you don’t have stable battery access, or you’re working on a vehicle where accessing the battery is awkward, you may find the process less convenient than a tool that works without that dependency.
Where it shines, and where it may fall short
Where this kit makes sense is in quick “is the relay working?” diagnostics for common general-purpose automotive relays. The compact design is another plus—if you’re keeping it with your basic garage tools, it’s the kind of item you’ll actually carry and use rather than leaving in a drawer.
That said, it’s not positioned as a universal lab-grade diagnostic tool. It’s focused on relay testing using a 11V–15V battery connection and LED outcomes. If you’re expecting deep waveform analysis or very granular fault logging, you may feel it stays more in the practical troubleshooting lane than in advanced diagnostics.
Worth considering if you want a cleaner workflow than “swap parts and hope”, but you still want something simple enough for routine checks.
Is it the right fit for your needs?
It suits you if you frequently deal with relay-related electrical faults and you want a relatively straightforward way to verify whether the relay contact function looks consistent during the test phase.
It might not be for you if you only test occasionally and you’d rather use a general-purpose multimeter in a “measure first” approach, or if your priority is diagnosing beyond relay function. Also, if your relays aren’t the general-purpose type the tool is meant to cover, you’ll want to be careful with expectations—fitment is described as “suitable for most general-purpose automotive relays”, which leaves room for exceptions.
Buying verdict
Final verdict
Buy the KTCINA 12V Car Relay Tester Kit if you want a compact, battery-clipped relay test tool with clear LED feedback, and your goal is to quickly confirm whether a relay appears normal or abnormal during testing.
Skip it if you need broader electrical diagnostics beyond relay behaviour, or if you’re not comfortable relying on the 11V–15V battery connection as part of the testing process. It’s a sensible pick for routine DIY troubleshooting on cars and trucks, but it’s not the kind of tool you’d choose when you’re chasing very detailed technical measurements.
Tech specs
- Name: KTCINA 12V Car Relay Tester Kit
- Type: Automotive relay tester / circuit tester
- Format: Automotive battery clip tester
- Size: Compact (for easy portability)
- Voltage range (battery use): 11V–15V
- Display / indicators: LED light (red for abnormal, green for normal)
Practical tips (so you get reliable results)
When you’re testing, make sure your battery connections are secure and correctly placed (negative to negative, positive to positive). Loose clips can lead to confusing outcomes, especially if you’re testing in less-than-ideal lighting.
Also, try to keep your work method consistent: once the red LED indicates readiness, run the test and then interpret the LED result. If you get an unexpected outcome, double-check the relay type and the connections before assuming the relay is definitely faulty.
Mini FAQ
Does it test relay contact function automatically?
It’s designed to check the relay contact function by running the car battery (11V–15V) to the relay coil, and it can detect pin position and release time as part of the test phases.
What do the LEDs mean?
If the relay is abnormal, the red LED will light. If it’s normal, the green LED will light.
What power does it need?
It needs to be connected to the car battery within the stated 11V–15V range to run the relay testing.
Is it suitable for all relays?
It’s described as suitable for most general-purpose automotive relays, so it’s not guaranteed for every relay type out there. If you’re unsure, it’s sensible to confirm your relay is in that general-purpose category before buying.
