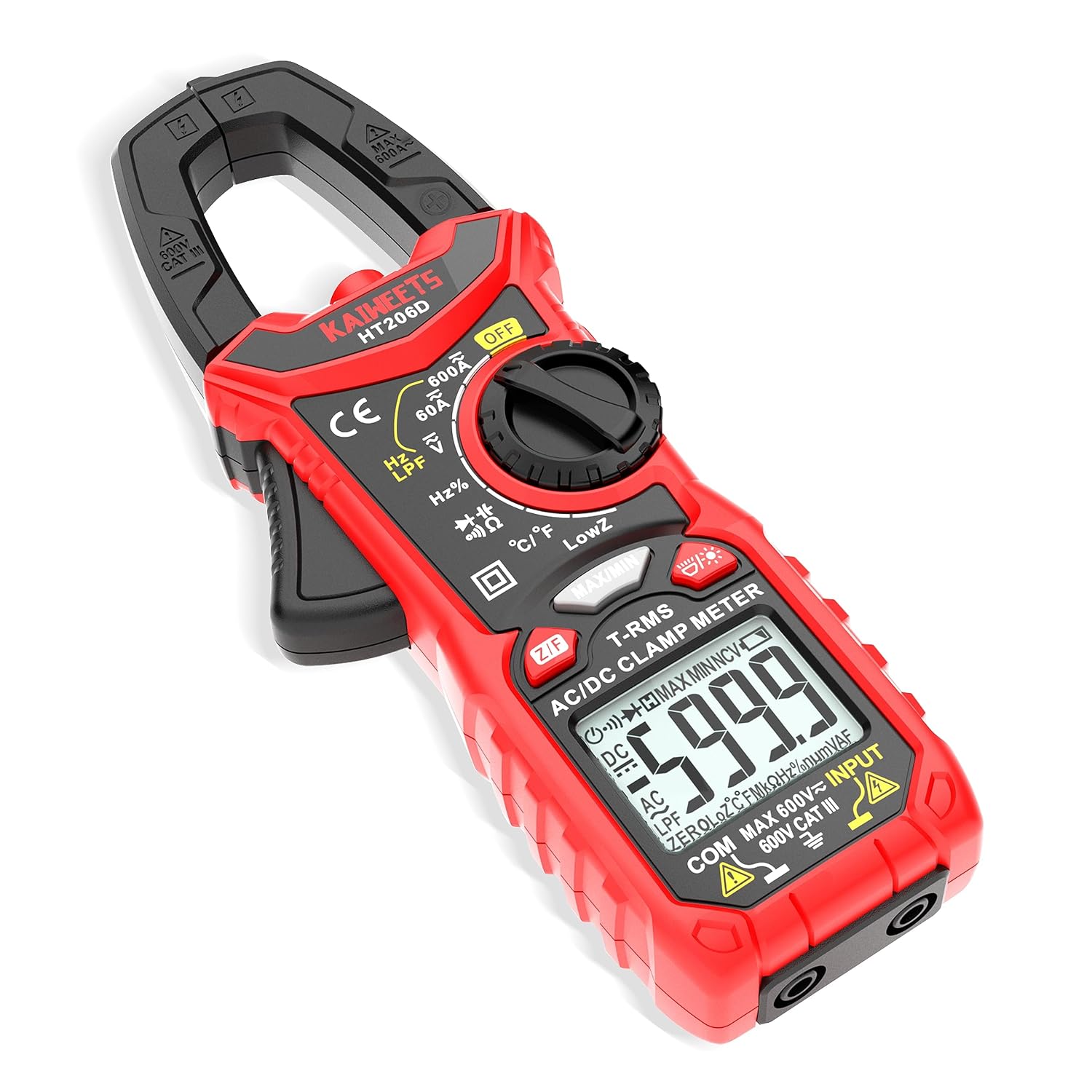

KAIWEETS HT206D Clamp Meter (True-RMS) – Auto-range 6000 counts, AC/DC current & voltage with NCV
Product description
At a glance
If you want one clamp meter that does more than just “current in AC”, the KAIWEETS HT206D is built for that sort of day-to-day troubleshooting. On paper, it covers AC/DC current and voltage, plus extras like frequency or duty cycle, resistance, capacitance, diode/continuity, temperature via included thermocouples, and an NCV (non-contact voltage detection) button.
It also leans into measurement quality where it matters: it uses True-RMS for non-linear loads, and it’s designed to reduce “ghost voltage” style false readings thanks to low input impedance. Depending on the work you do, that can be the difference between “quick check” and having to re-check everything twice.
That said, it’s still a clamp multimeter in the mid-range bracket—so while the feature list is broad, you’ll want to be realistic about how far it goes versus higher-end instruments and specialist tools.
What you’ll notice in use

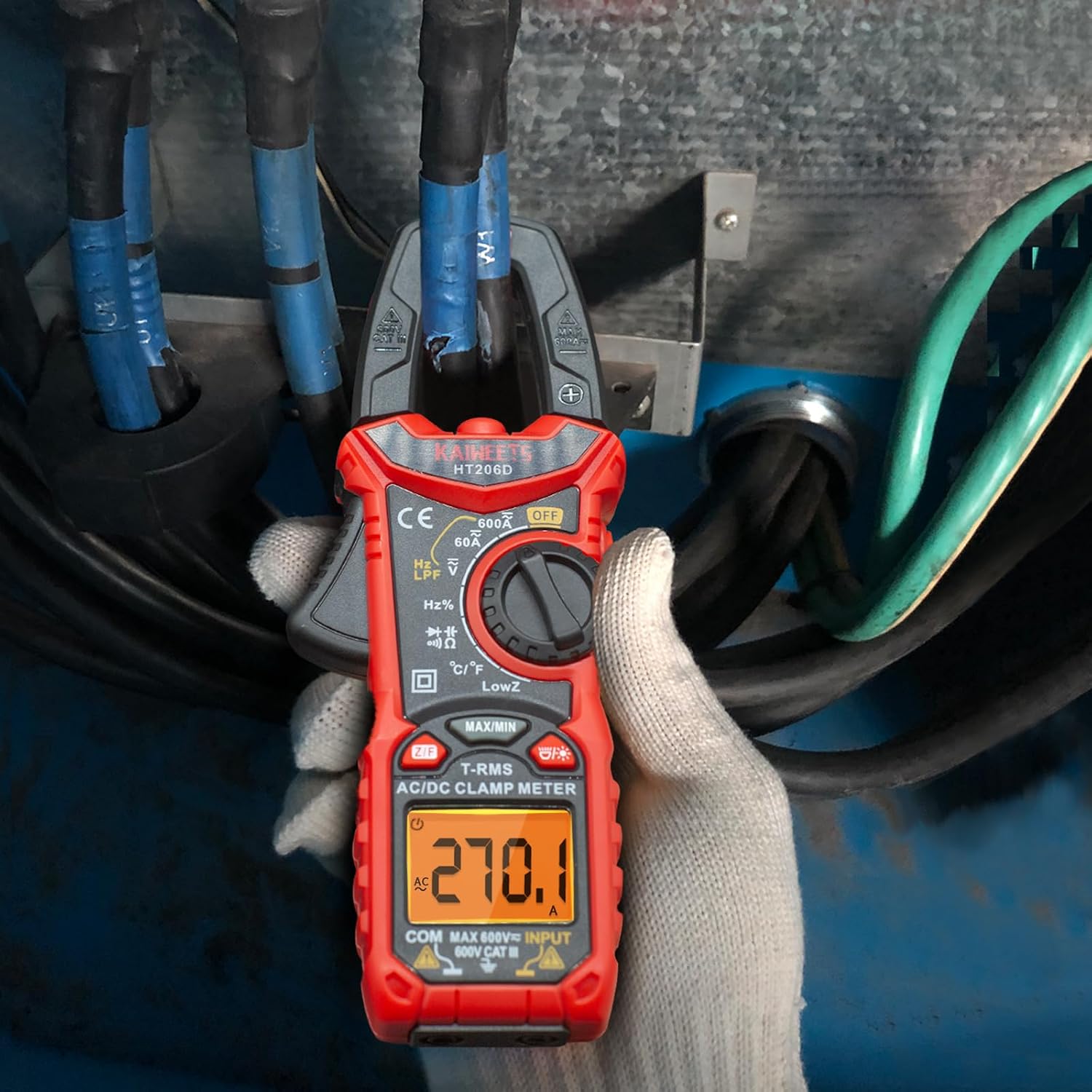

The clamp part is straightforward: to measure current, you clamp around one of the wires rather than clamping the whole power cord. That sounds basic, but it’s worth getting right—clamping around the wrong section is one of the most common ways people end up with puzzling readings.
The display is a double-colour backlit LCD. When voltage is above 80V or current above 3A, it turns orange to warn you of higher voltage. For inspections and fault-finding, that kind of visual cue helps you keep focus—especially if you’re moving between tight cupboards, switchgear enclosures, or low-light locations.

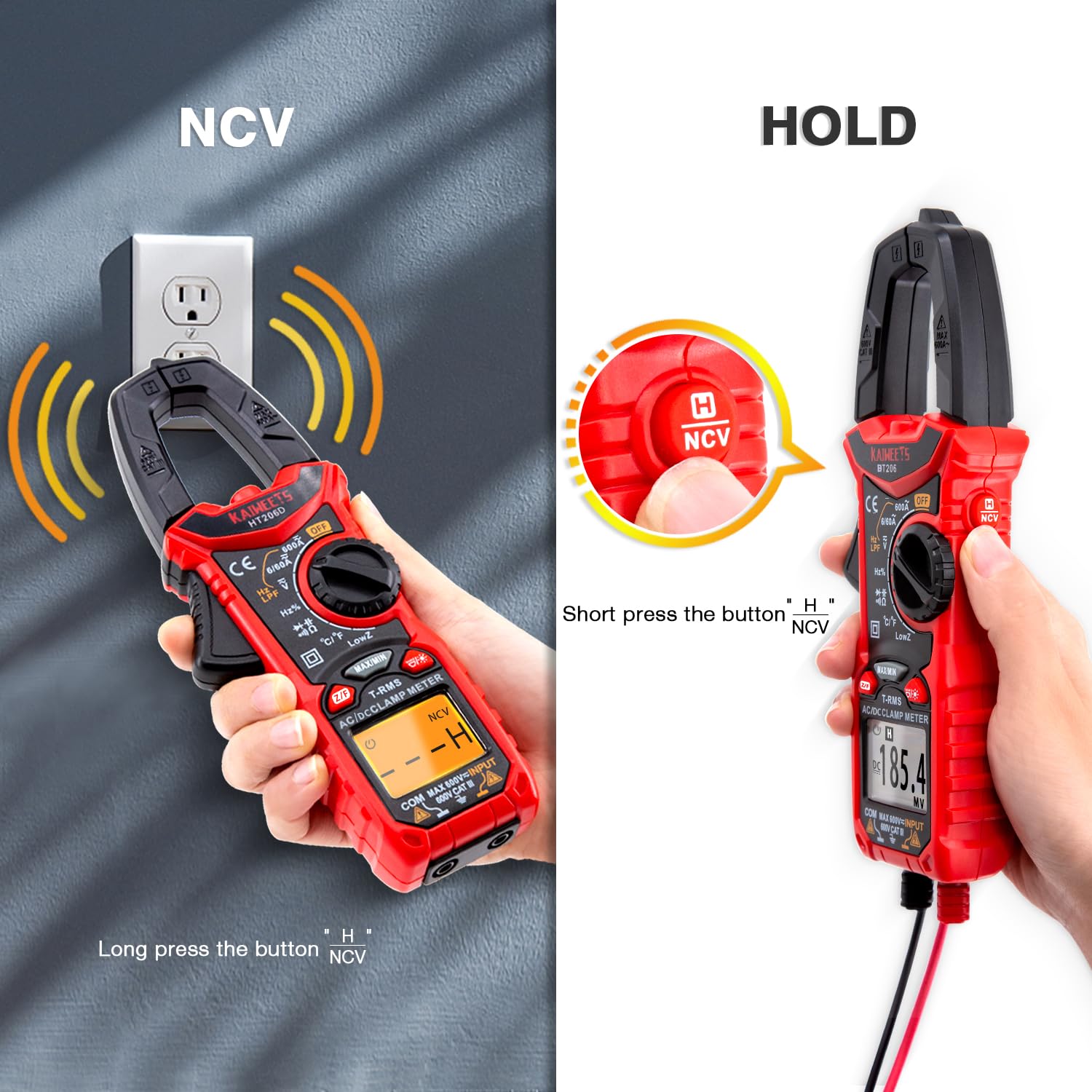

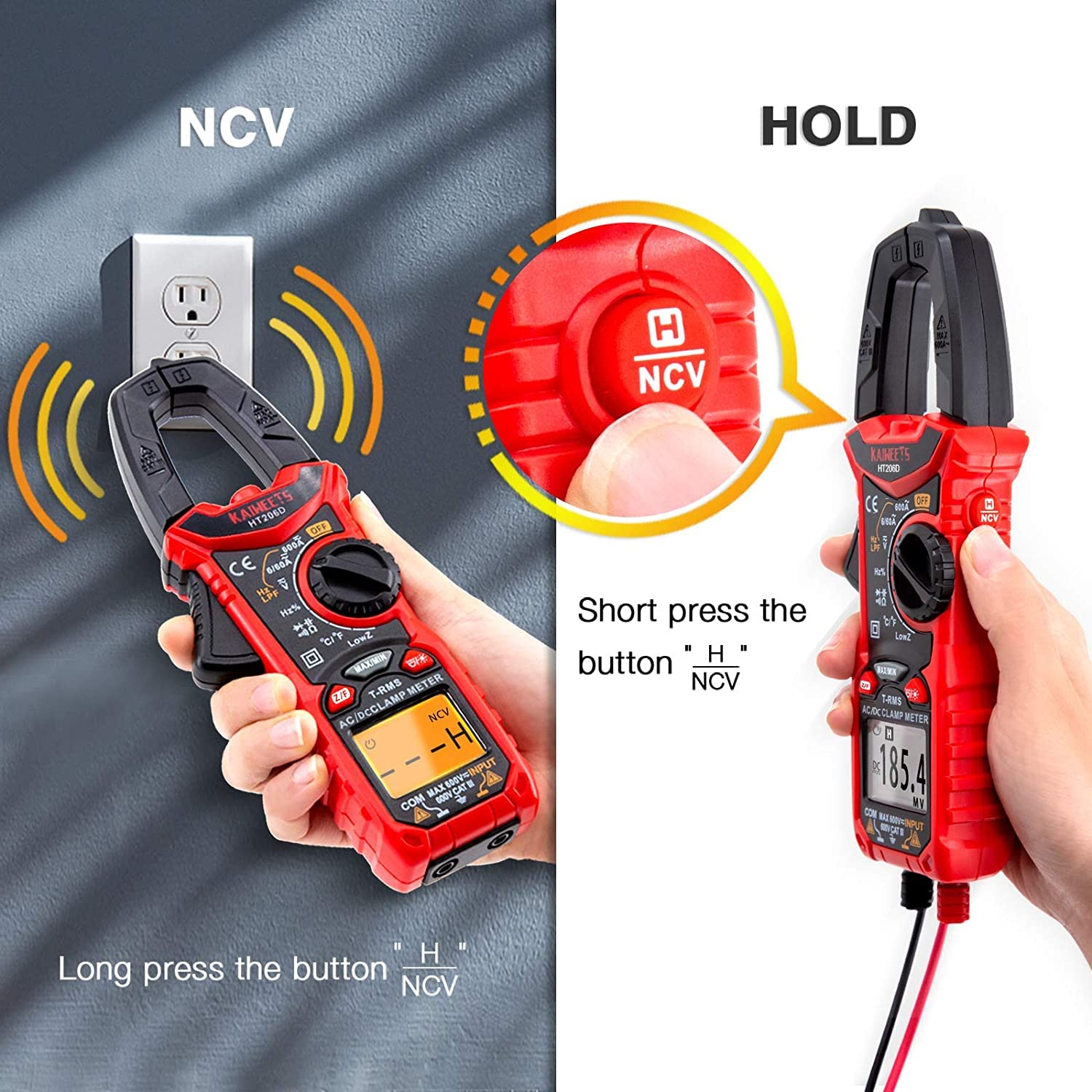

For a practical micro-example: imagine you’re checking whether a faulty appliance circuit is actually live before you touch anything. You can use the NCV function to detect voltage presence by measuring the EM field intensity without touching the conductor first. If the meter flags it, you pause and switch to more controlled testing with the probes and clamp.
The essentials (modes and tests)
This model is multi-function rather than “single-purpose”, which is useful if you don’t want to swap tools. The included test areas cover:
- Electrical measurements: AC/DC current and AC/DC voltage, plus frequency or duty cycle
- Component-style checks: resistance and capacitance
- Semiconductor/electrical continuity checks: diode test and continuity

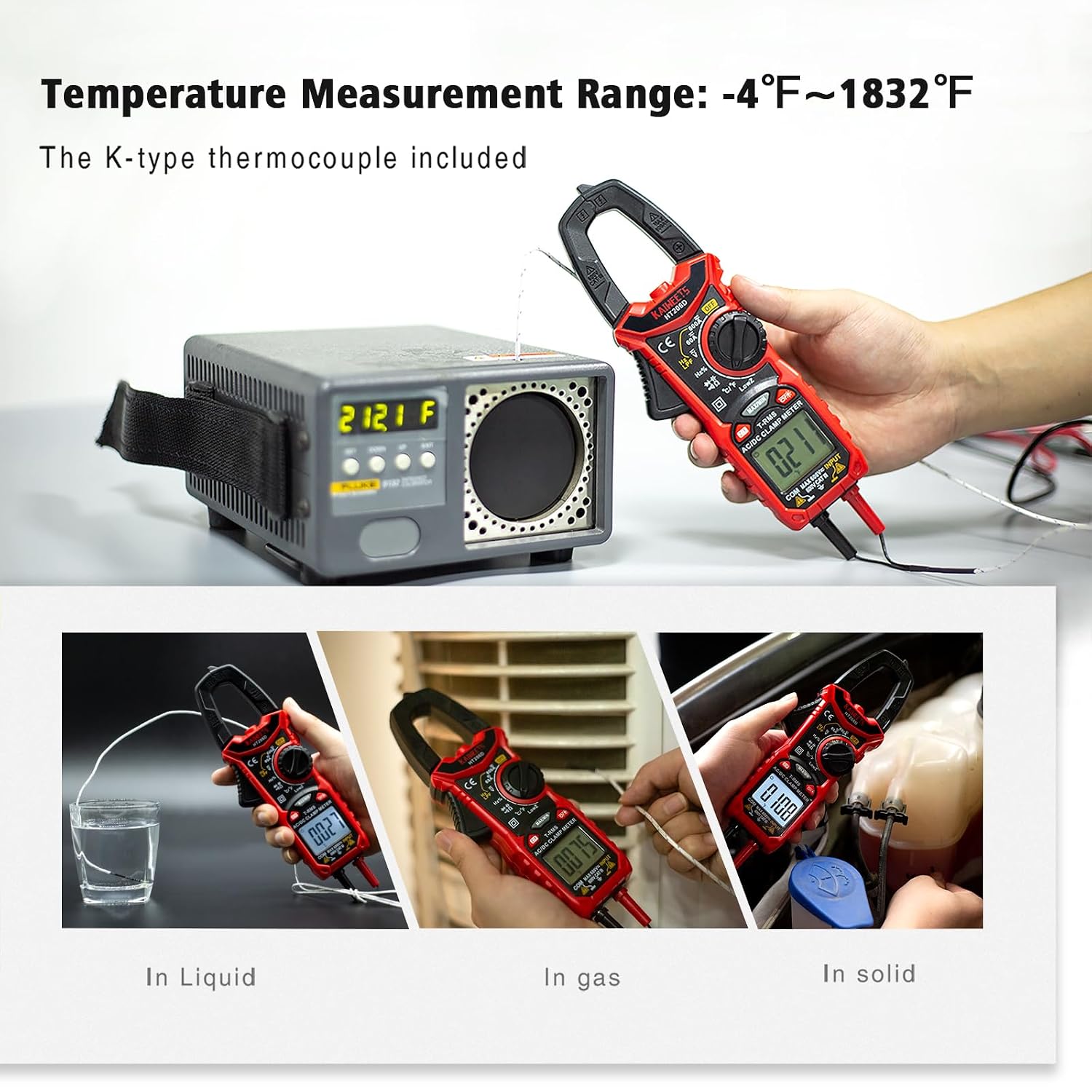

- Temperature checks: temperature testing using the included thermocouples
- Diagnostics: NCV non-contact voltage detection
Where it gets a bit more specialised is around variable loads. The low input impedance feature is intended to prevent false readings due to ghost voltage, and the low pass filter (LPF) is aimed at improving measurement accuracy for variable frequency drive signals when measuring motors and transformer-related signals.
Worth noting: if you’re mainly doing simple household troubleshooting, you may not use all the extra functions every week. Still, having them available can save time when a fault isn’t obvious.
Key specifications, explained simply

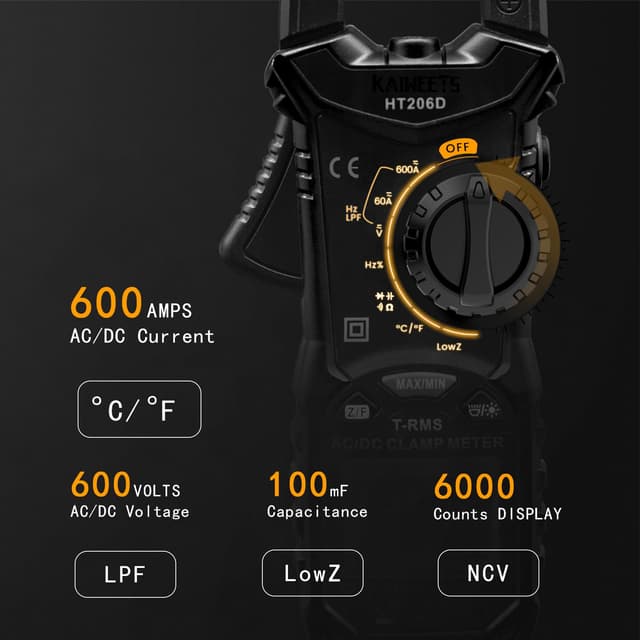

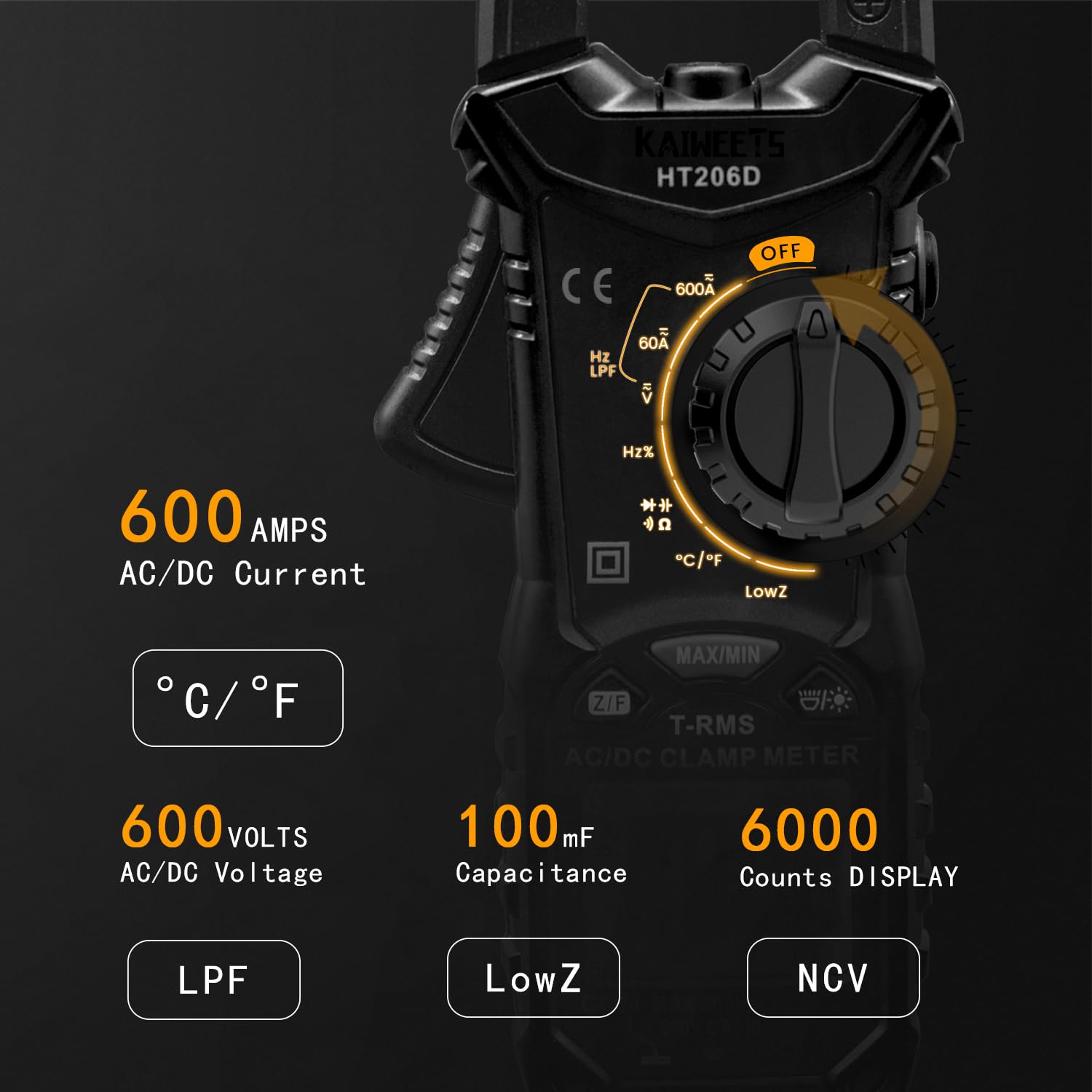

This clamp meter is offered as a 6000 counts auto-range instrument, and it’s positioned with a safety and reliability focus. The description references IEC 61010-1 CAT III 600V and double insulation.
True-RMS is included, which is relevant when dealing with non-linear loads—these are common in modern electronics and inverter/drive systems. LowZ and the LPF are also described as features intended to improve the accuracy of readings in those “messier” real-world scenarios.
One limitation to keep in mind: the feature set is broad, but the more functions you use, the more important it becomes to understand the measurement category and your setup. If you need extremely precise results for a narrow professional use-case, it’s worth checking whether your work demands a more specialised tool than a general clamp multimeter.
What stands out (and what might not suit you)
Where it shines
- You want one meter for both current and voltage checks, plus common electronic tests
- You value True-RMS performance for non-linear loads
- You want low input impedance and LPF support if you work around motors, transformers, or variable frequency drives
- You like the practical safety step of NCV before contact testing
Where it may not be a great match
It might not be the best choice if your priority is deep, laboratory-style measurement performance or if you specifically need a dedicated instrument for one measurement type. It’s also a tool you’ll get the most out of if you’re comfortable with basic clamp positioning and correct wiring access.
Also, the backlight indicator only kicks in at higher voltage/current thresholds (as described), so don’t expect it to replace proper awareness and procedure for everyday safe testing.
Buying verdict
It’s a good fit if you’re looking for a clamp meter that covers AC/DC current and voltage while still including the “extras” you tend to want during real troubleshooting—continuity, diode checks, resistance/capacitance, frequency or duty cycle, temperature testing, and NCV.
You may want to skip it if you only need one basic measurement type (for example, current only) or if you need a specialist tool for advanced accuracy in a narrow domain. If you do occasional electrical checks in workshops, factories, or around the home, this sort of all-in-one approach is typically where value comes from.
Before buying, it’s worth checking that the included thermocouples meet your practical temperature-testing needs, and that you’re comfortable with the safety category and NCV approach outlined in the description.
Mini FAQ
Is it suitable for non-contact voltage checks?
Yes, the NCV function is designed for non-contact voltage detection by measuring EM field intensity without touching the wires.
Does it measure both AC and DC?
The description says it can measure AC/DC current and AC/DC voltage.
Does it include temperature testing?
It does—temperature testing is supported using the included thermocouples.
What’s the point of True-RMS here?
True-RMS is intended for more accurate measurements on non-linear loads, where basic RMS or average methods can be less reliable.
What do I get in the box?

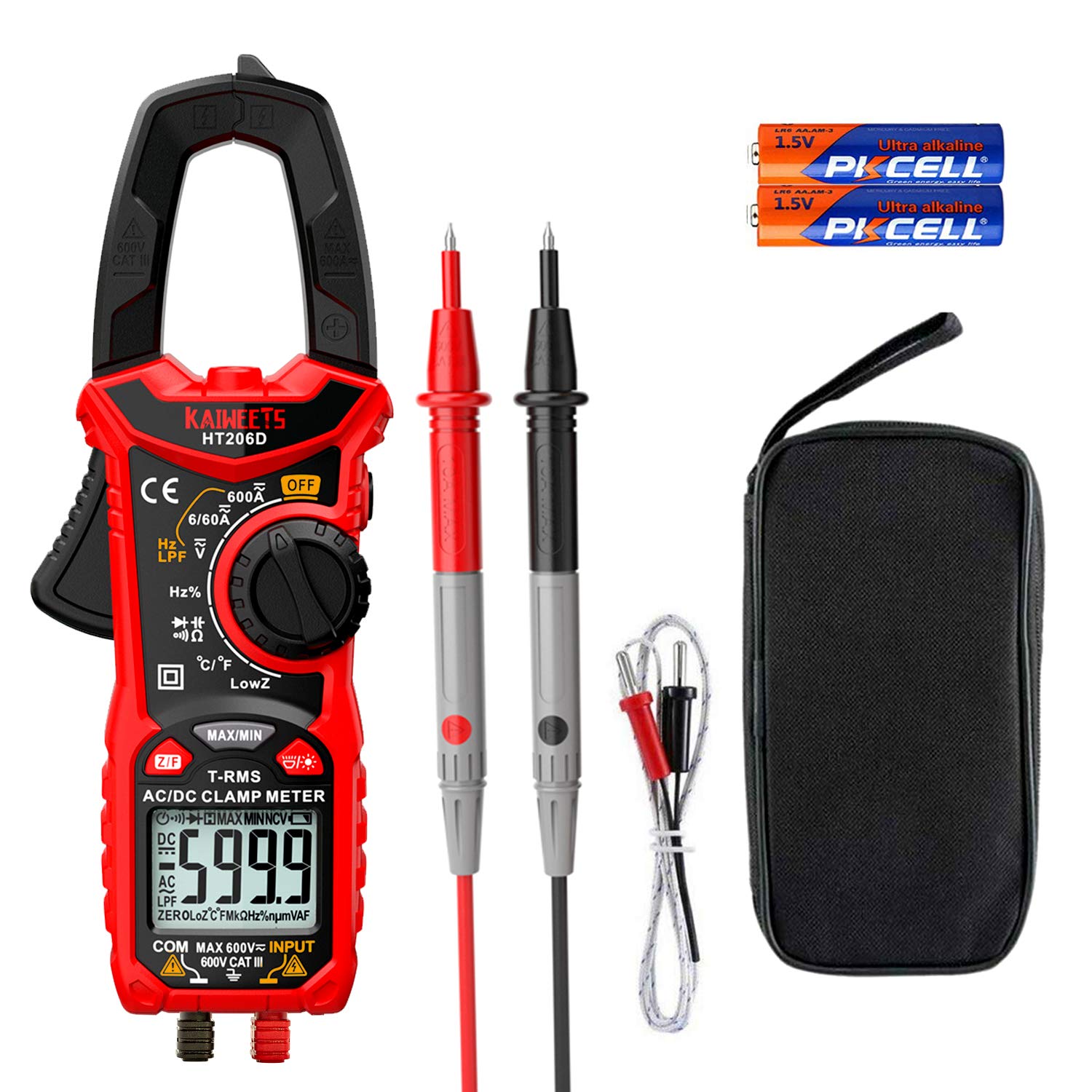

The package includes the digital clamp meter, test leads, thermocouples, two AAA batteries, a storage bag, and a user manual.
