Justech Heavy Duty DC 12V Linear Actuator Motor 250mm (3000N) with Mounting Brackets – Black

The essentials

This Justech heavy duty DC 12V linear actuator is built for people who want a straightforward way to move something in a straight line: open and close an electric door, raise a platform, adjust a bed, or help with a conversion project on vehicles and equipment. On paper it’s aimed at tougher, more industrial-leaning jobs thanks to its “heavy duty” approach, a 250mm stroke length, and a 3000N force rating.

Where it really starts to make sense is outdoors or in environments that aren’t perfectly clean. The unit is described as having IP65 protection, and the housing is aluminium alloy. It’s also positioned as quiet for its class, with a stated noise level below 50 dB, and a smooth movement profile based on speed figures given for loaded and unloaded conditions.

That said, linear actuators aren’t plug-and-play magic for every setup. You still need to match your mounting plan, power/control requirements, and the mechanical load you’re asking it to move. If your application is very light-duty or you’re mainly after simple DIY furniture movement, this might feel like overkill.

Key features that matter day to day

The headline details here are the ones you feel in use: movement consistency, noise, and protection from the weather.

• IP65-rated protection: helpful if your actuator will be exposed to water spray, dust, or corrosive conditions. It’s the kind of spec you notice once you stop treating your build like an indoor electronics project.
• Aluminium alloy construction: aimed at durability and stability, which is a big deal when an actuator is moving under load for extended periods.
• Smooth/low-noise operation: the motor is described as offering quiet movement, with noise listed as under 50 dB. It’s not silent, but it’s more comfortable than loud actuators in enclosed spaces like vehicle cabins.
• Defined travel speeds: the listing gives 5 mm/s without load and 3.5 mm/s with load. That gives you a realistic sense of how quickly motion will happen in real conditions.
• Metal internal gears: the description specifically mentions metal gears inside, which usually points to a tougher build than purely light-duty mechanisms.

A small practical note: the speed will slow down with load, so if you need the fastest possible movement, you’ll want to consider how much the actuator is actually carrying in your setup.

What you’ll use it for (and what to check)

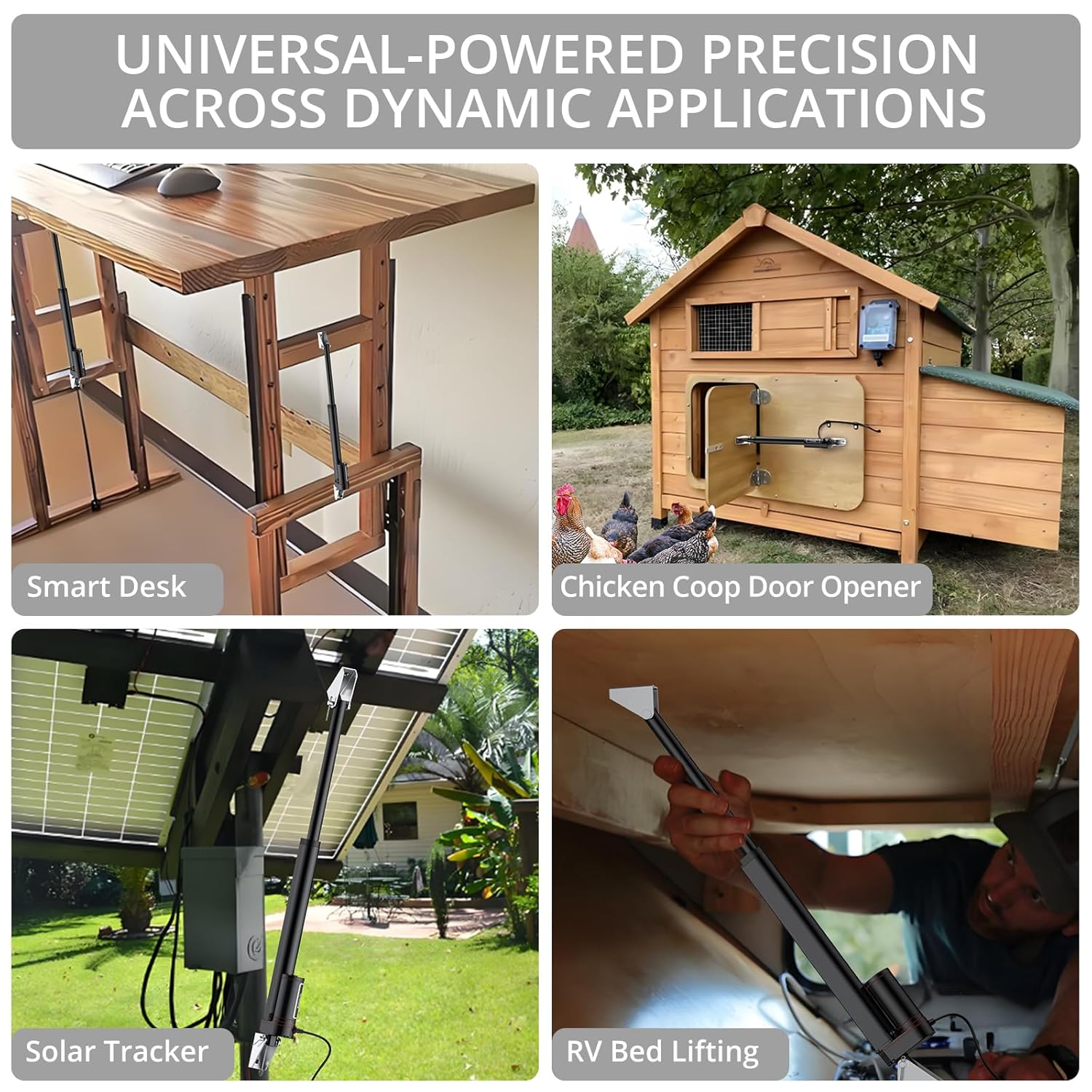

Justech positions this actuator for conversion and lift/adjust tasks across a range of equipment types. The description calls out applications like trailer tilt conversions, raising motorised pallet trucks, adjusting electric beds, and similar movement-and-lift jobs. It also mentions use for auto car, RV electric door opening, and industrial/agricultural machinery contexts.

A concrete example: if you’re designing an electric window or small hatch on a vehicle body, the 250mm stroke can give you a believable lift range for a compact mechanism. You’d pair the actuator with suitable linkages and ensure the brackets align so the rod moves straight—because any binding will increase strain and can ruin the smooth feel.

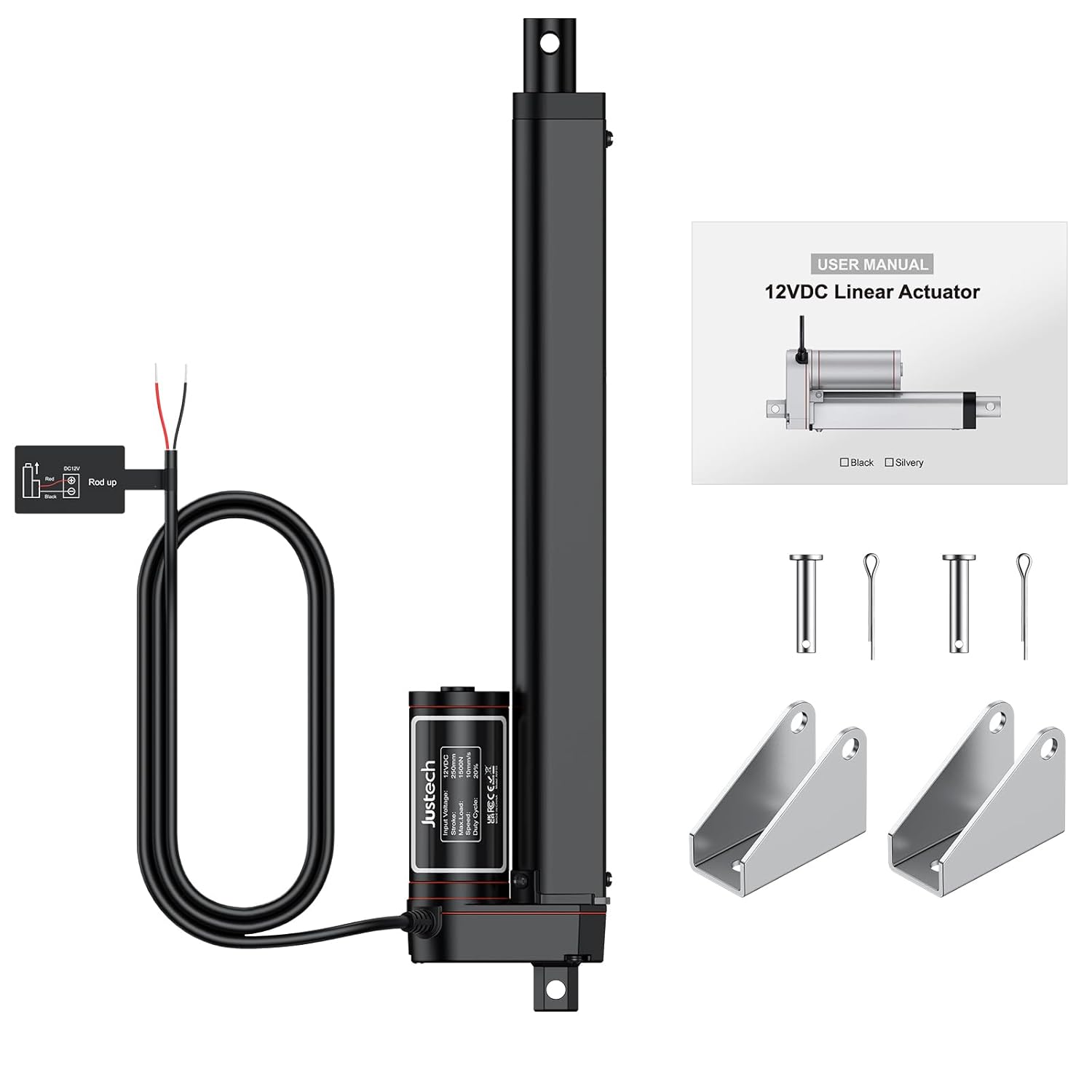

Before buying, the main things to verify are: - Whether the 250mm stroke is enough for your required opening/raising distance. - Whether 3000N is appropriate for your load and linkage geometry. More force doesn’t always mean better if your mechanism introduces leverage problems. - Whether your mounting points suit the supplied brackets (the product name mentions mounting brackets, but the listing doesn’t spell out exact dimensions here—so you’ll want to check fit with your plan). - Your speed expectations under load, since the figures provided drop when loaded.

Tech summary

This model is described as a heavy duty DC linear actuator with these key details: - Type: Linear actuator motor - Name: Justech Linear Actuator Motor Heavy Duty DC 12V - Size: 250mm stroke - Force capacity: 3000N - Ingress protection: IP65 - Noise: under 50 dB - Speed: 5 mm/s without load and 3.5 mm/s with load - Material: aluminium (alloy mentioned)

Who it suits (and who should think twice)

It’s a sensible match if you’re building something where the actuator will see the outside world—dust, spray, and less-than-ideal conditions—and you want a quieter, smoother linear motion. It also fits well when you’re doing a conversion and need a compact, defined travel like 250mm rather than a vague “electric ram” approach.

It might not be the best choice if: - your application is purely indoor and light-duty (this could be more robust than you actually need), - you need very fast motion regardless of load (speed drops with load, and the listed values suggest a moderate pace), - you don’t have a clear mounting/control plan, because actuator performance lives or dies by alignment and how you drive it.

If you’re comparing it to simpler actuators in the same general category, the strongest differentiators you can justify from the description are the IP65 protection and the heavy duty build. Those are the points worth paying attention to when you want something that’s meant to last through real use.

Is it worth it?

Worth buying if you’re looking for a DC 12V linear actuator with a 250mm stroke and 3000N force, and you need IP65 protection and quieter, smoother travel for vehicle, RV, or industrial/agricultural-style projects.

You may want to skip it if your movement requirements are smaller, your environment is reliably dry and clean, or you can’t confidently match the stroke length and mounting/bracket layout to your mechanism. In those cases, a less demanding actuator approach could be a better fit.

Mini FAQ

How does the actuator behave under load?

The listing gives a speed of 5 mm/s without load and 3.5 mm/s with load, so you should expect it to move more slowly once it’s actually lifting or pushing.

Is it suitable for outdoor or dirty environments?

It’s described as IP65, with protection against water, dust and corrosion effects. That’s the main reason to consider it for exposed setups.

Will it be quiet enough for vehicle use?

The noise level is stated as below 50 dB, which suggests it’s designed to be relatively quiet for its purpose.

Do I need to plan the mounting carefully?

Yes. Even with heavy duty force and robust construction, linear actuators rely on correct alignment and linkage design. The description mentions mounting brackets, but you should still check that they suit your build.
