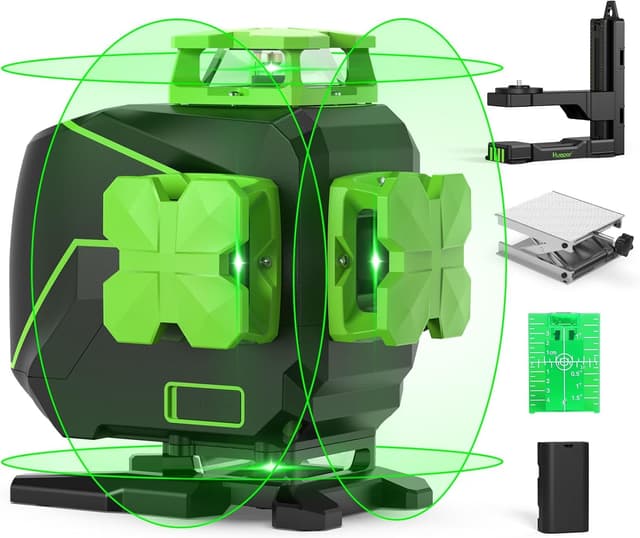

Huepar S04CG-L 16-line 4D green laser level 📷
Description:
This 4D laser level projects four full 360 degree planes to simplify tiling, ceiling layout and squaring jobs. If you need a green beam 16-line laser level for visible reference across large rooms, this Huepar model offers floor and ceiling horizontals plus crossed verticals to mark plumb lines and right angles quickly.
Key Points
The unit includes Huepar S04CG-L / S04CG-LC as the identifiable model in the box and it focuses on visibility with a green beam that, according to the manufacturer, is significantly brighter than red alternatives. The two full 360 degree horizontal planes make ceiling alignment and tile layout faster, while the dual 360 degree vertical planes cross at 90 degrees to help establish accurate squaring for flooring or wall tiling projects. ⚒️

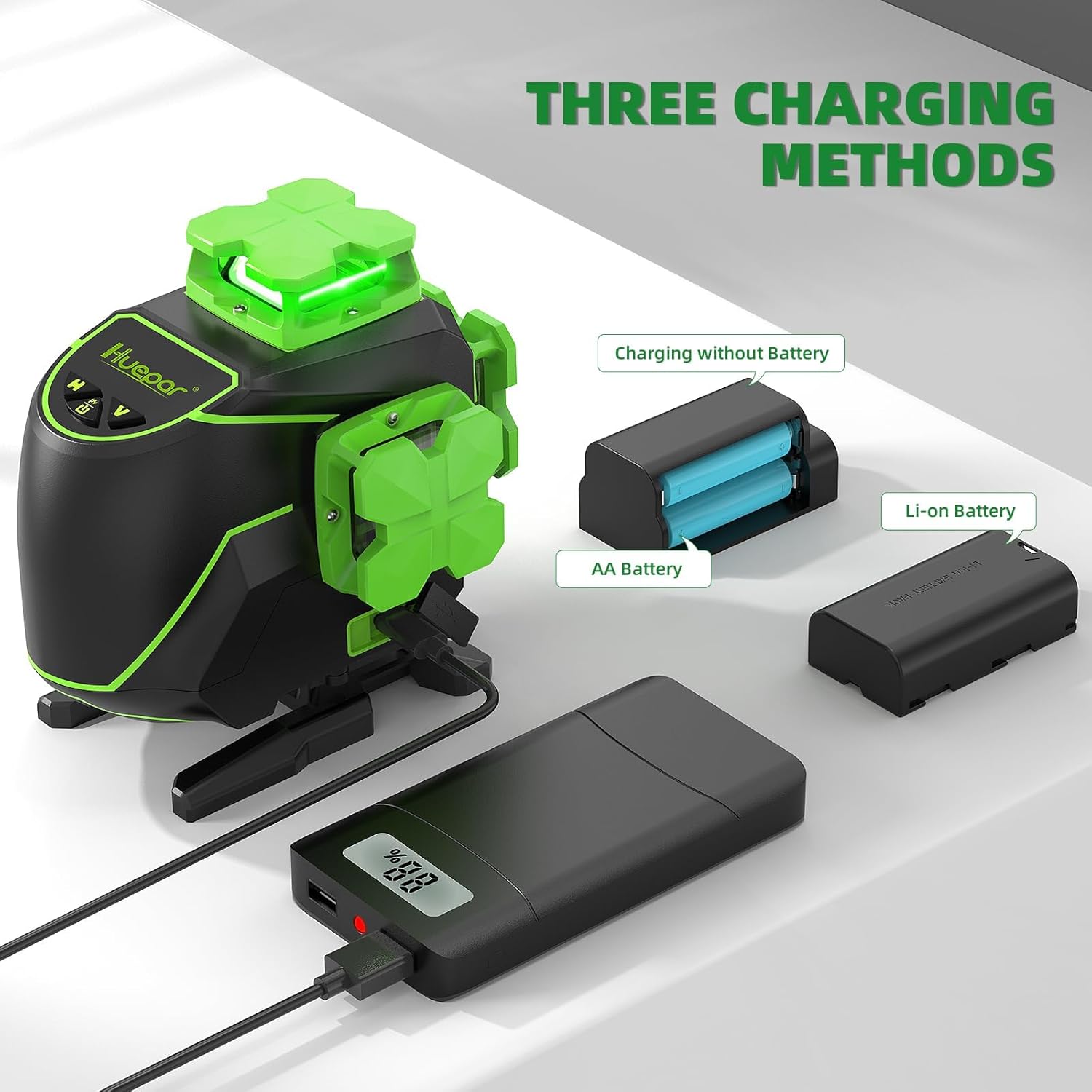

Power options are flexible, with a high-capacity rechargeable lithium-ion battery, the ability to run on four AA alkaline cells, or continuous use while plugged in via the USB Type-C port. This adaptability is useful on sites where mains power is intermittent or when a quick swap of batteries is needed. Note that the pulse mode and receiver are recommended for extended outdoor range in bright conditions.
Technical Specifications
- Name: Huepar S04CG-L / S04CG-LC
- Laser planes: 4 x 360° (two horizontal, two vertical)
- Beam colour: Green
- Self-levelling range: ± 3.5° with audible out-of-level alarm
- Accuracy: ± 1/9 inch at 33 ft (manufacturer specification)
- Working range: up to 130 ft visual, up to 200 ft with Huepar LR-5RG or LR-6RG receiver

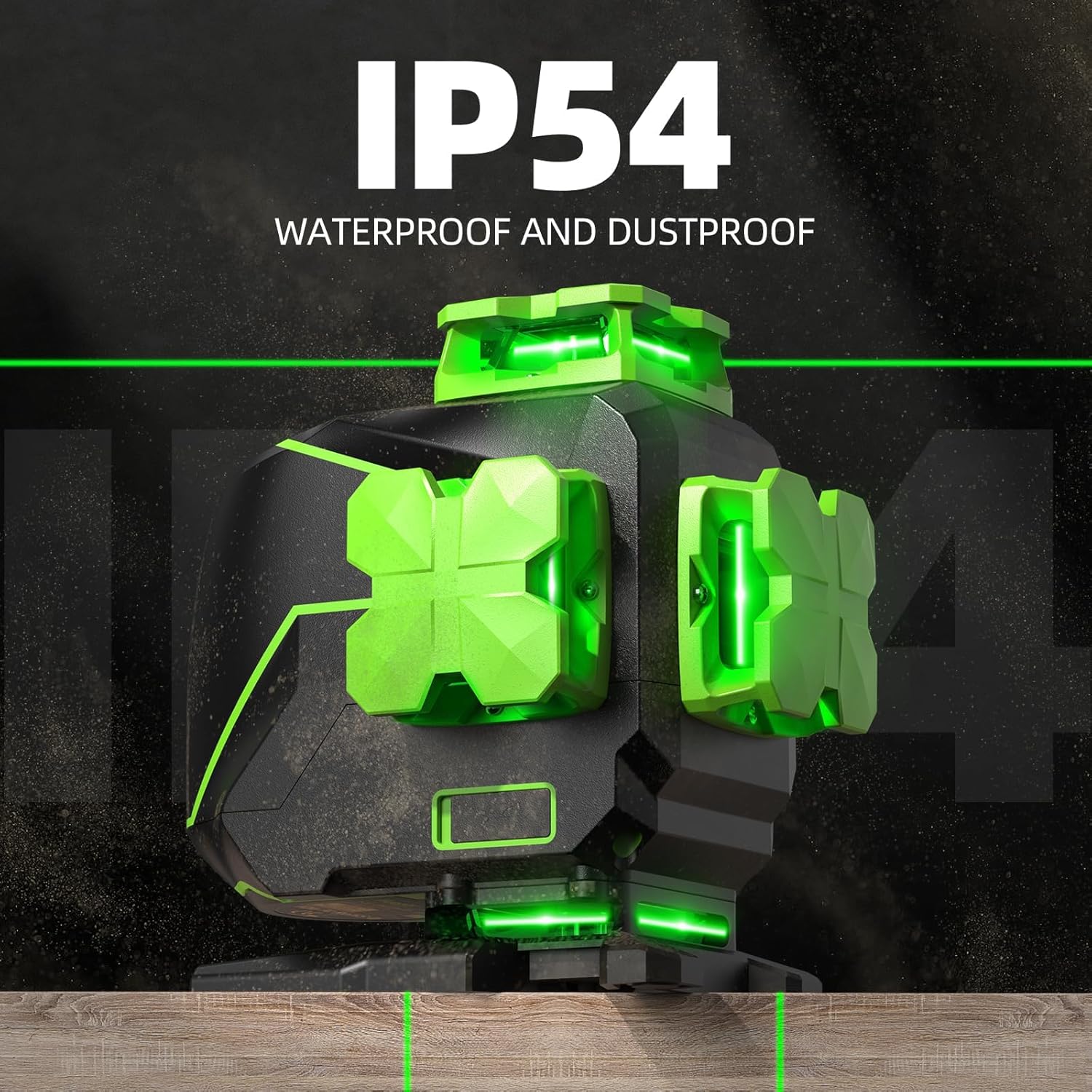

- Protection: IP54 splash and dust resistance
Usage Recommendations

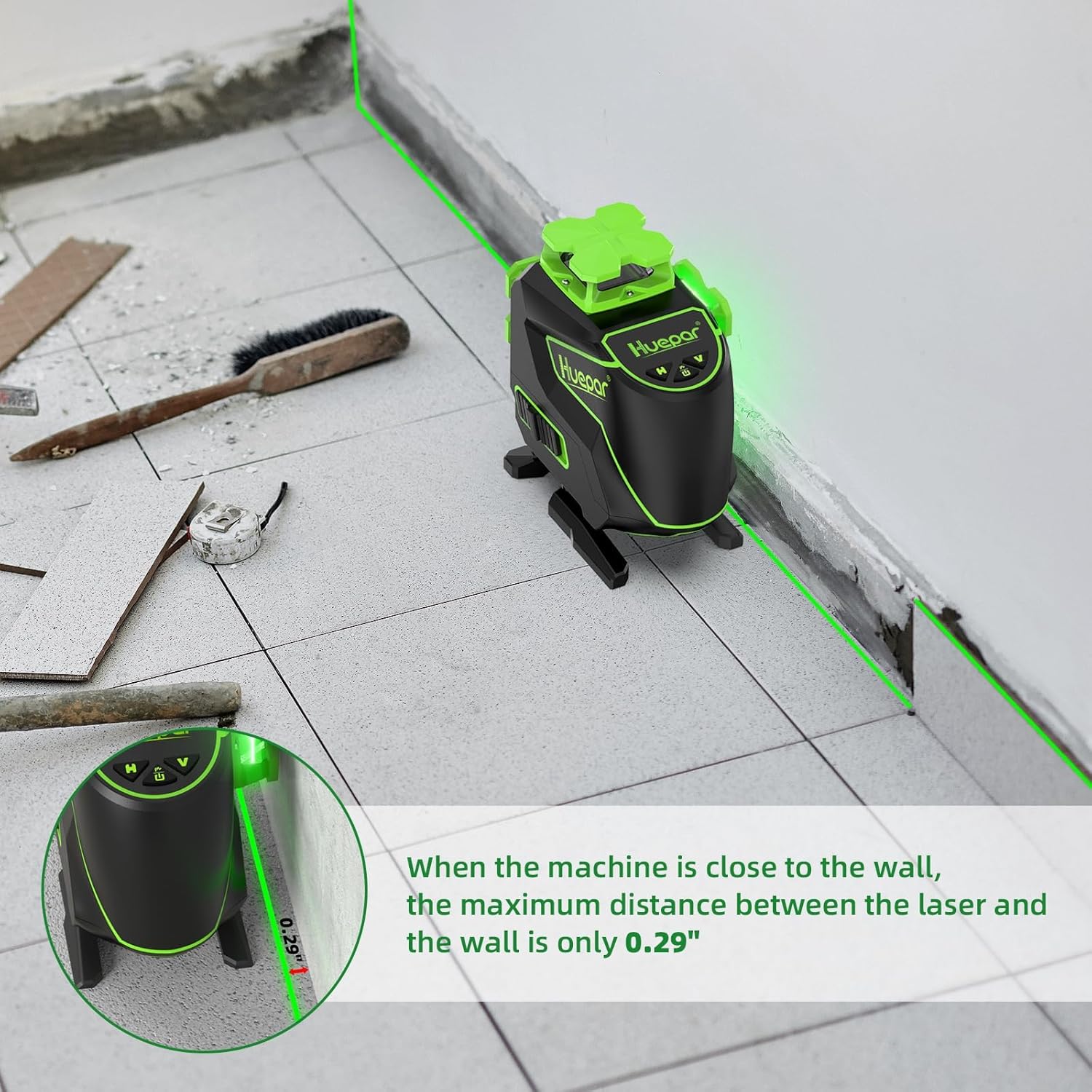

For indoor tiling and ceiling grid work, use the floor 360° line together with the lifting base to project over small obstacles and uneven surfaces. The base raises the floor line between about 1 inch and 3.54 inches, which helps when setting tile lines from a raised datum. For outdoor or brightly lit spaces, switch to pulse mode and pair the laser with a compatible receiver to extend the effective range up to the stated 200 ft. 🔋

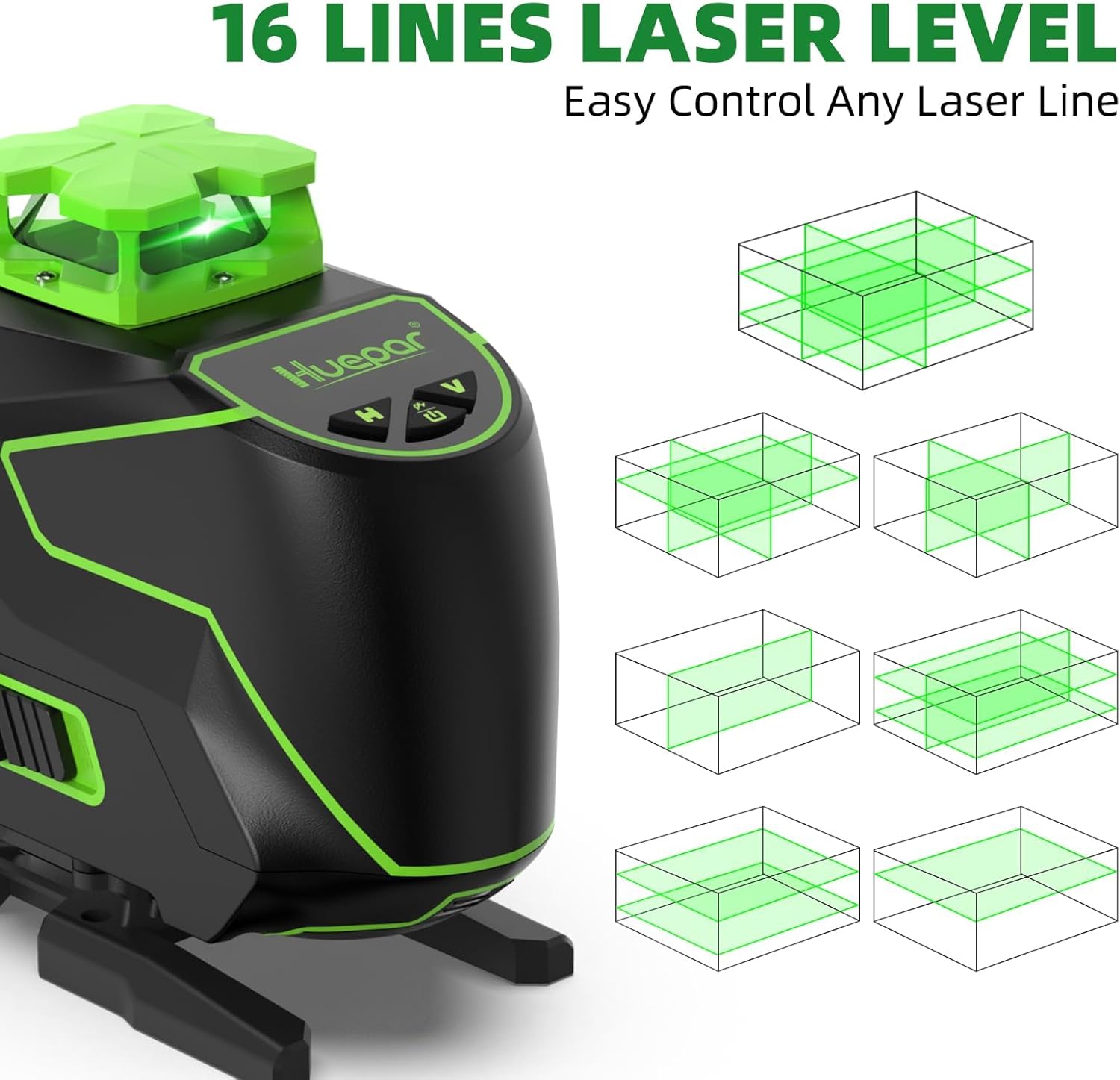

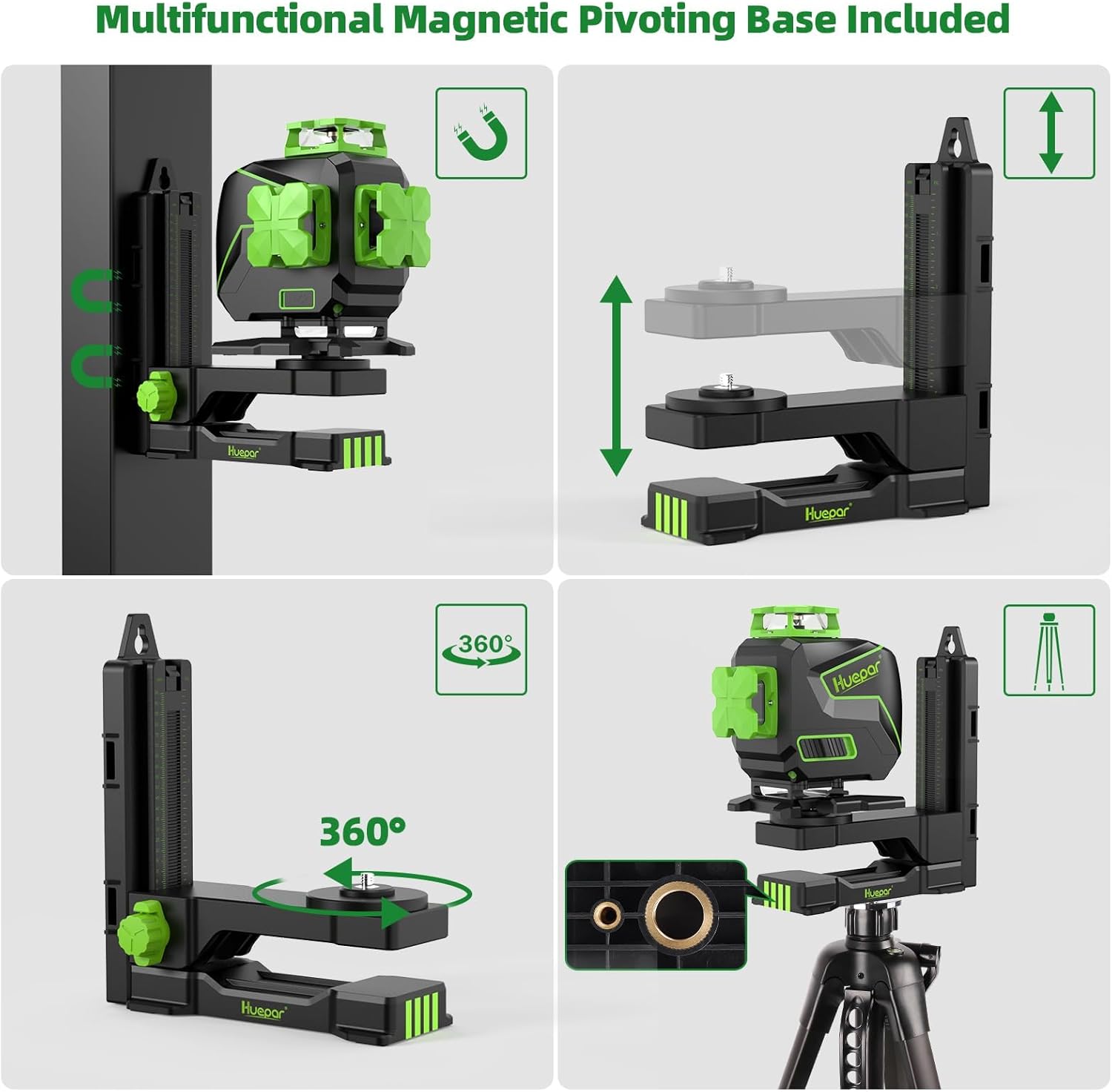

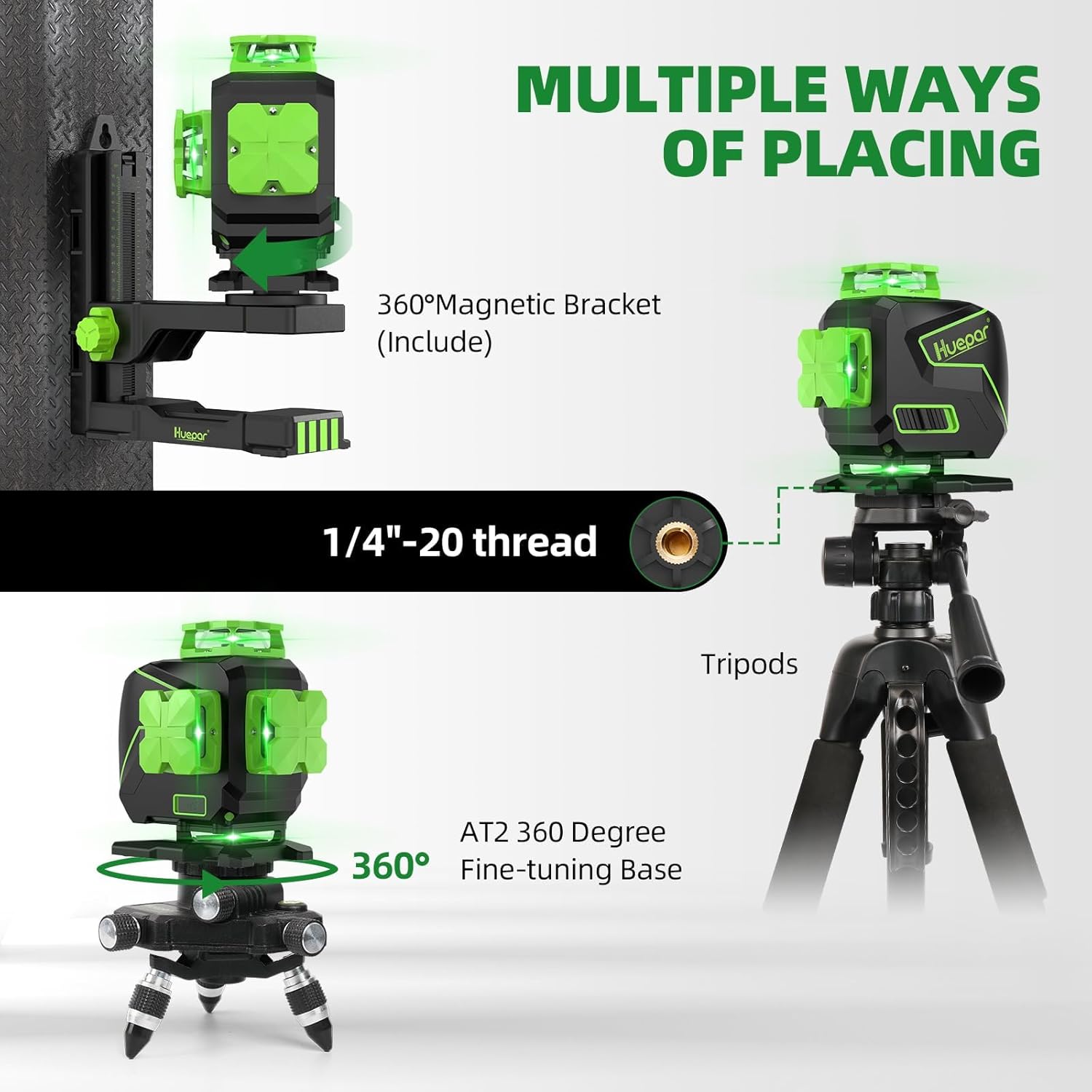

Operate the separate H and V controls to select individual planes or combinations, and lock the pendulum when you need to fix lines at an angle for stair stringers or ramp layouts. Consider that green lasers are easier to see but may still require a receiver in full sunlight. The tool includes a mounting thread for tripod use, a magnetic bracket, a target plate and both rechargeable battery and AA battery options for versatile site use. 📐.
