FS2A 4CH AFHDS 2A Receiver
Product description
The essentials

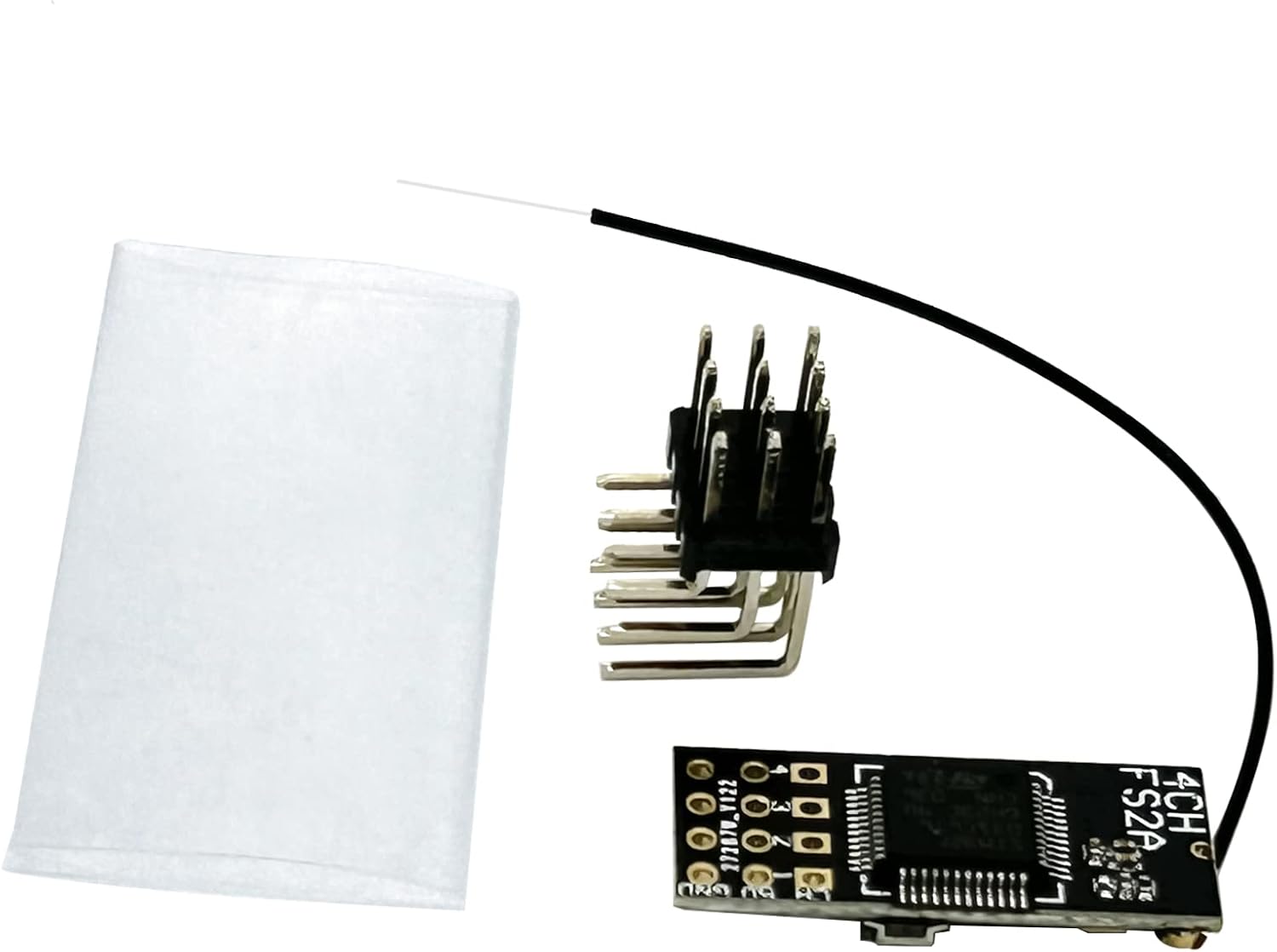

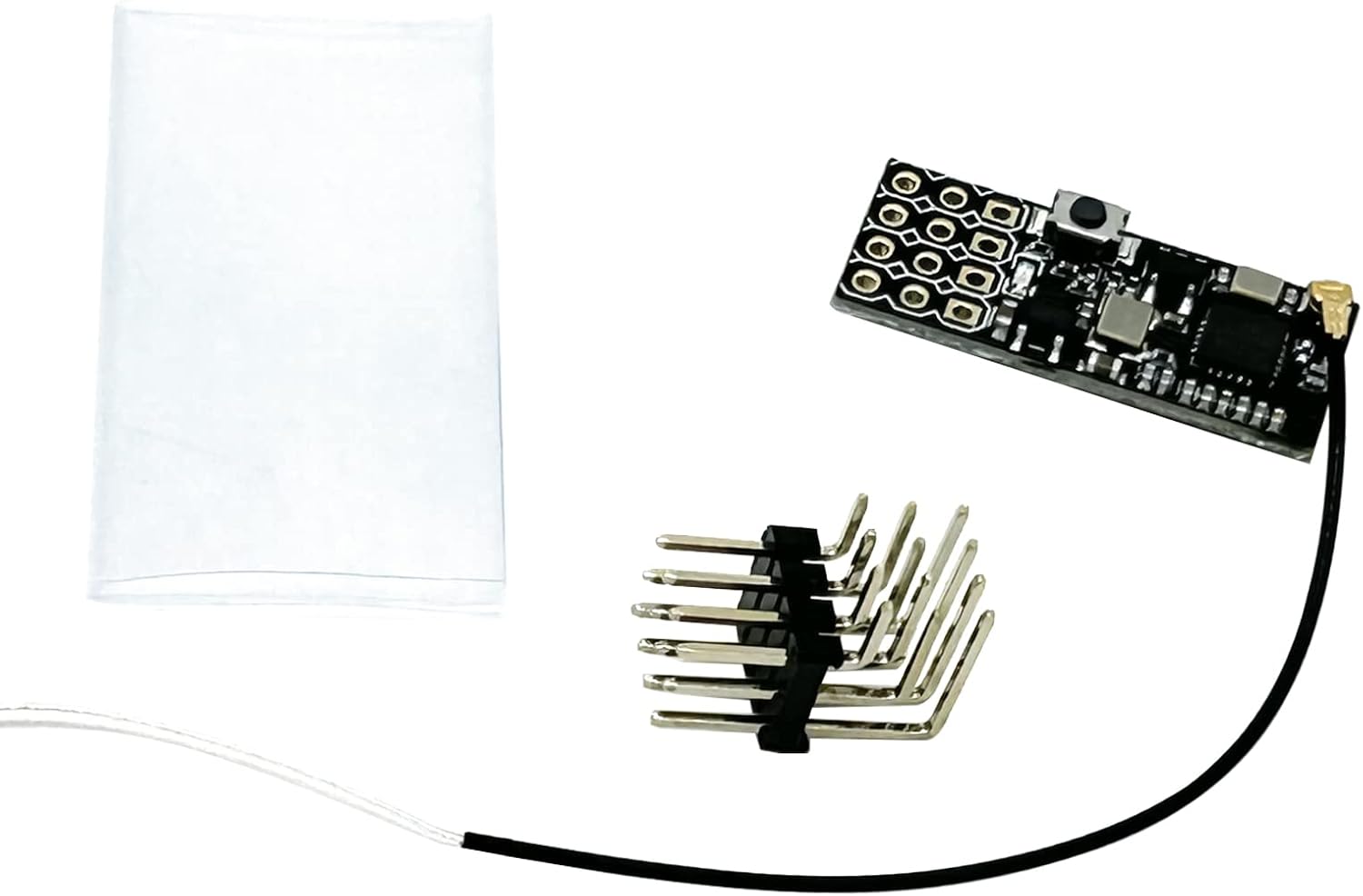

The FS2A 4CH AFHDS 2A receiver is a compact, micro unit designed for Flysky systems. It supports several AFHDS 2A transmitters including FS-I6, FS-I6X, FS-I6S, FS-TM8, FS-TM10 and FS-I10, making it a practical choice for versatile setups. With a PWM output, it provides straightforward integration into a range of FPV and RC configurations. Its small footprint and reliable signal reception make it well suited to hobbyists seeking dependable control in a compact package 🕹️. This receiver is easy to bind, and once paired, the blue indicator confirms a stable connection, ready for use in daily flights or ground testing.
The unit operates in the 2.408–2.475 GHz band and offers four channels, giving you essential control surfaces or mixed channel configurations. The listed receiver sensitivity of -92 dBm supports stable performance even in moderate interference environments, which helps reduce glitches during operation. Its rebind procedure is simple: long-press the bind button, observe the blue light behaviour, and confirm a successful failsafe setup. This makes it a practical upgrade or replacement for existing Flysky systems that rely on AFHDS 2A protocol.
For everyday use, the FS2A 4CH AFHDS 2A receiver delivers solid value with dependable PWM outputs and compact dimensions. The 11 by 25 mm form factor ensures easy mounting in compact airframes or bespoke builds, while the four channels cover basic servo and control needs. Although small, this receiver is built to perform reliably, with clear status indicators that help you troubleshoot quickly if needed 🔧. Given its compatibility footprint and straightforward binding process, it represents a pragmatic option for pilots upgrading or expanding a Flysky-based setup, without overcomplicating the electronics.
Technical details
- Name: FS2A 4CH AFHDS 2A Mini Receiver
- Type: Receiver
- Size: 11 x 25 mm
- Dimensions: 11 x 25 mm

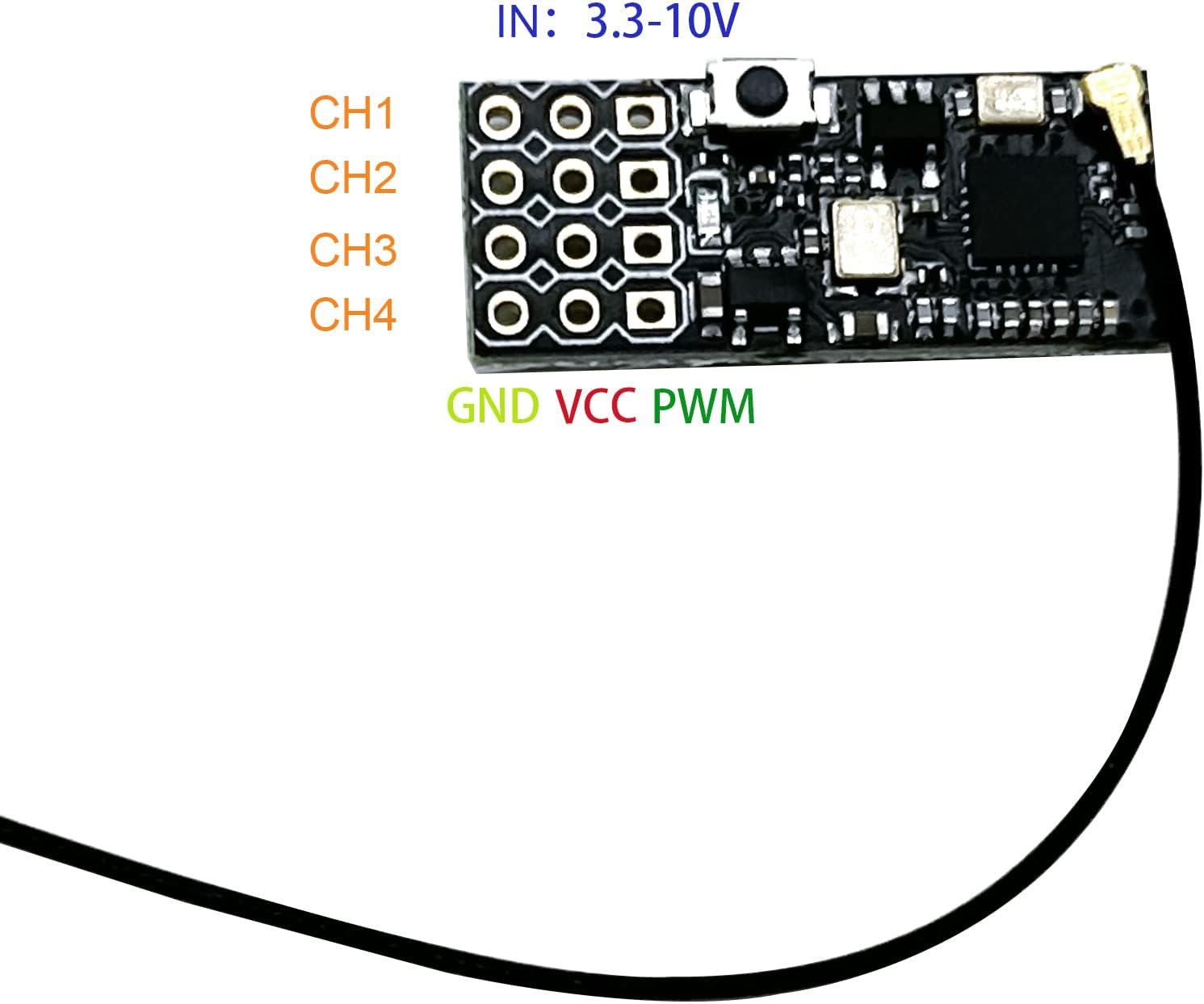

- Format: PWM
- Capacity: 4 channels
