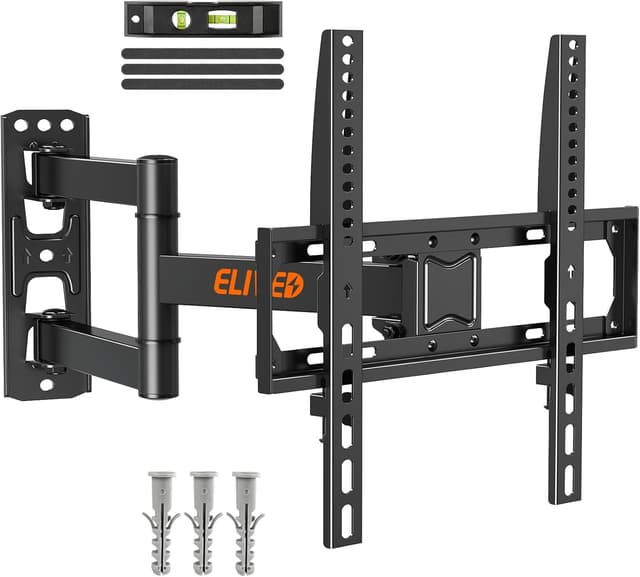

ELIVED EV011 tilt swivel TV bracket 35KG
Product description
Key features
A practical full motion TV bracket, the ELIVED EV011 supports most 26 to 60 inch flat or curved LCD, LED and OLED screens and helps you position the set for comfortable viewing. With tilt, swivel and an extendable arm, it reduces glare and neck strain while keeping the installation secure according to the manufacturer.
Tech specs
- Name: ELIVED Tilt and Swivel TV Bracket EV011
- Size: 26-60 inch compatible

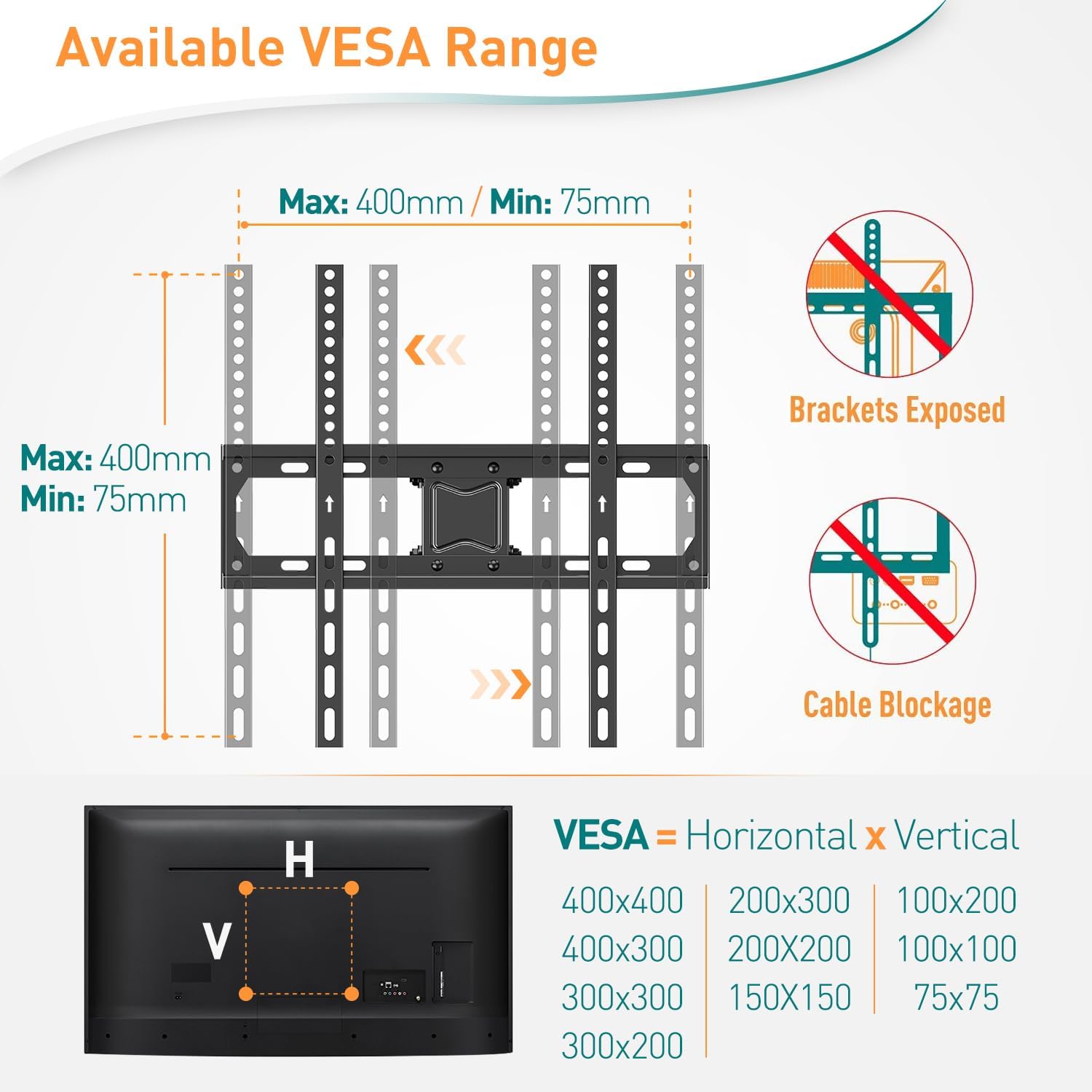

- VESA: 75x75 to 400x400mm
- Capacity: up to 35KG

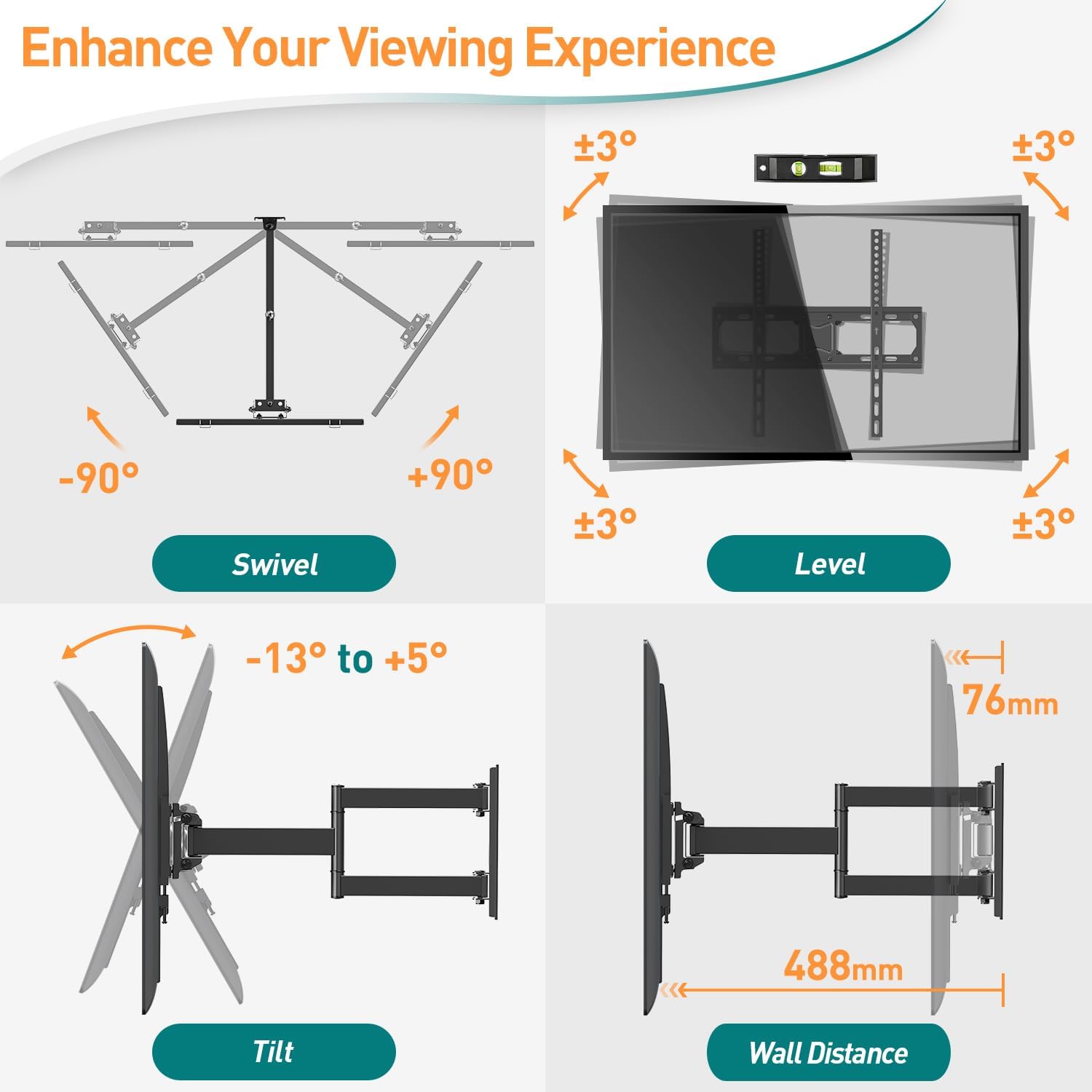

- Extension: 76mm retracted to 488mm extended
Why it’s worth it

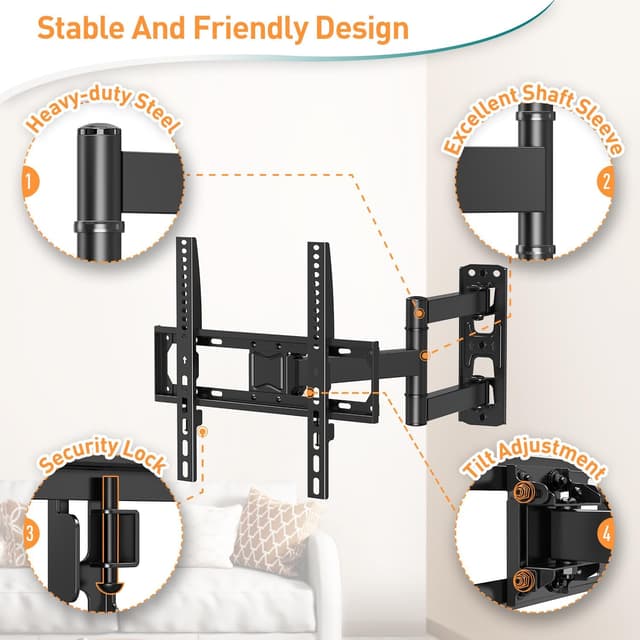

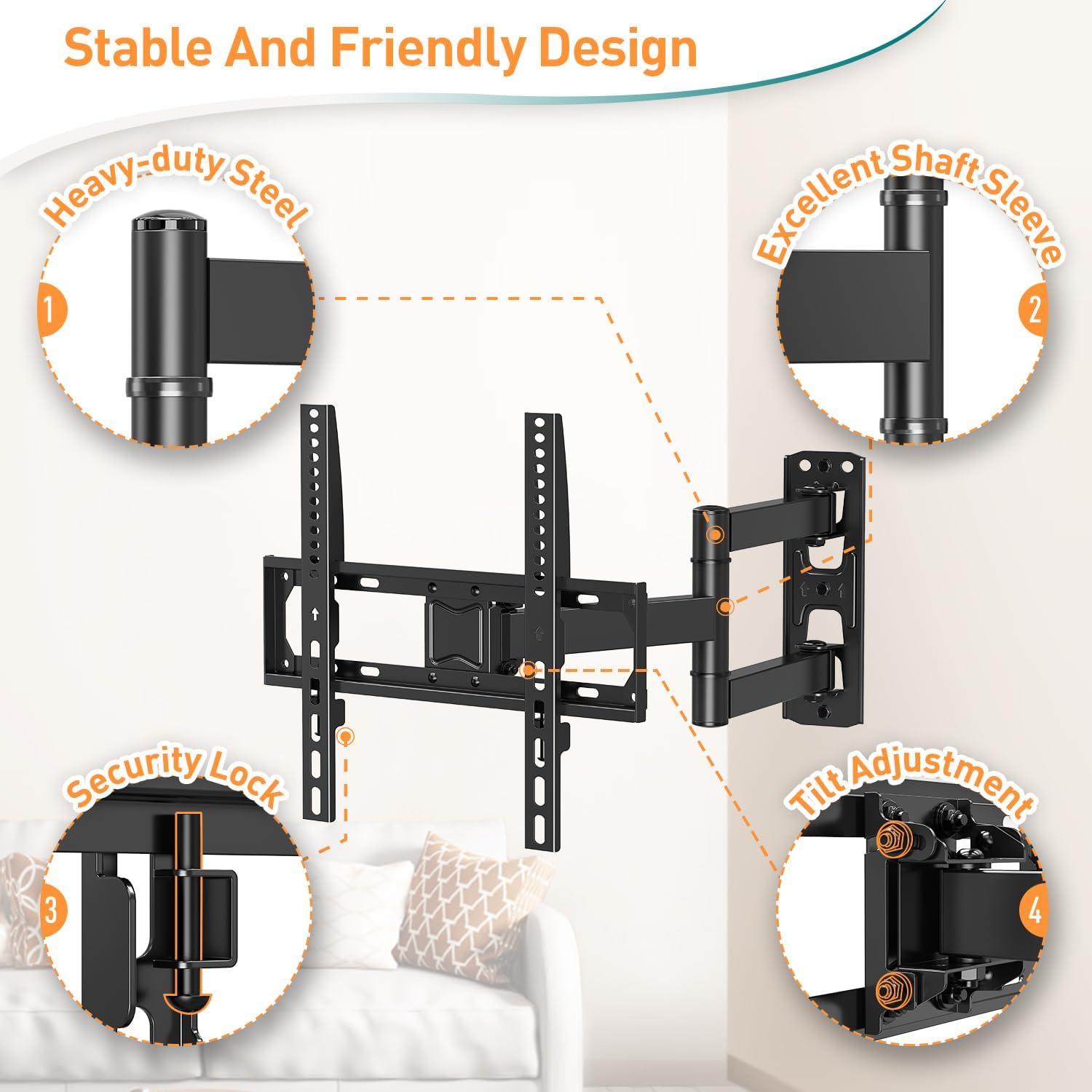

The bracket blends reach and movement with a modest footprint on the wall. Swivel range allows wide lateral adjustment, while the slight upward and downward tilt helps fine tune viewing angle. Built from cold rolled steel with a powder coated finish, the mount includes a shaft sleeve at the arm joint to resist bending under load. Strength testing is noted by the manufacturer which adds reassurance for everyday use, though you should follow the recommendation not to install only into drywall.
How to use it

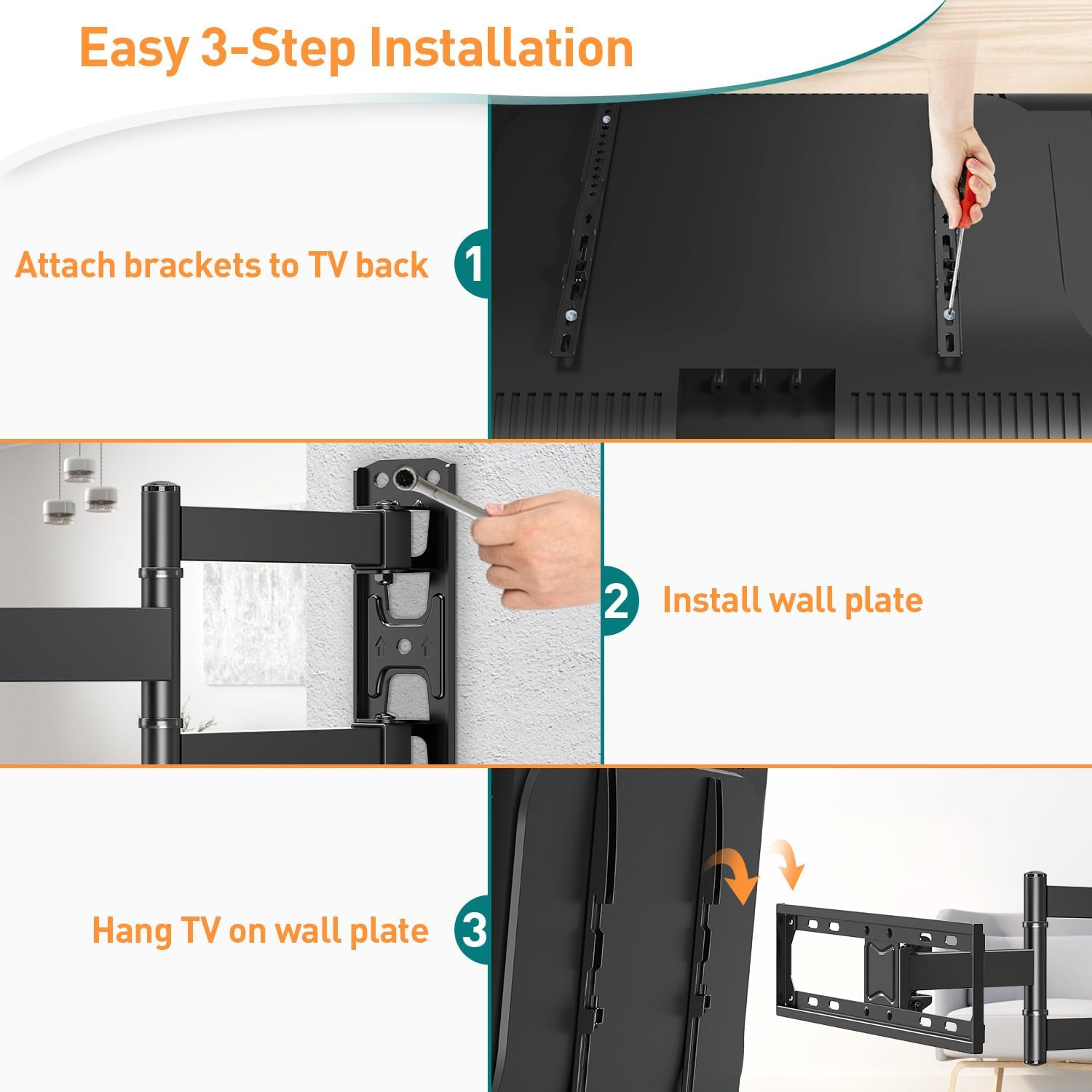

Installation uses the supplied hardware and offers ±3° post-install levelling so you can correct small misalignments without extra drilling. Check your TV’s VESA pattern, weight and size before purchase, and contact the seller if you need additional screws or spacers. If you prefer a flush appearance, retract the arm to 76mm after adjusting the tilt and swivel.
Compatibility & requirements

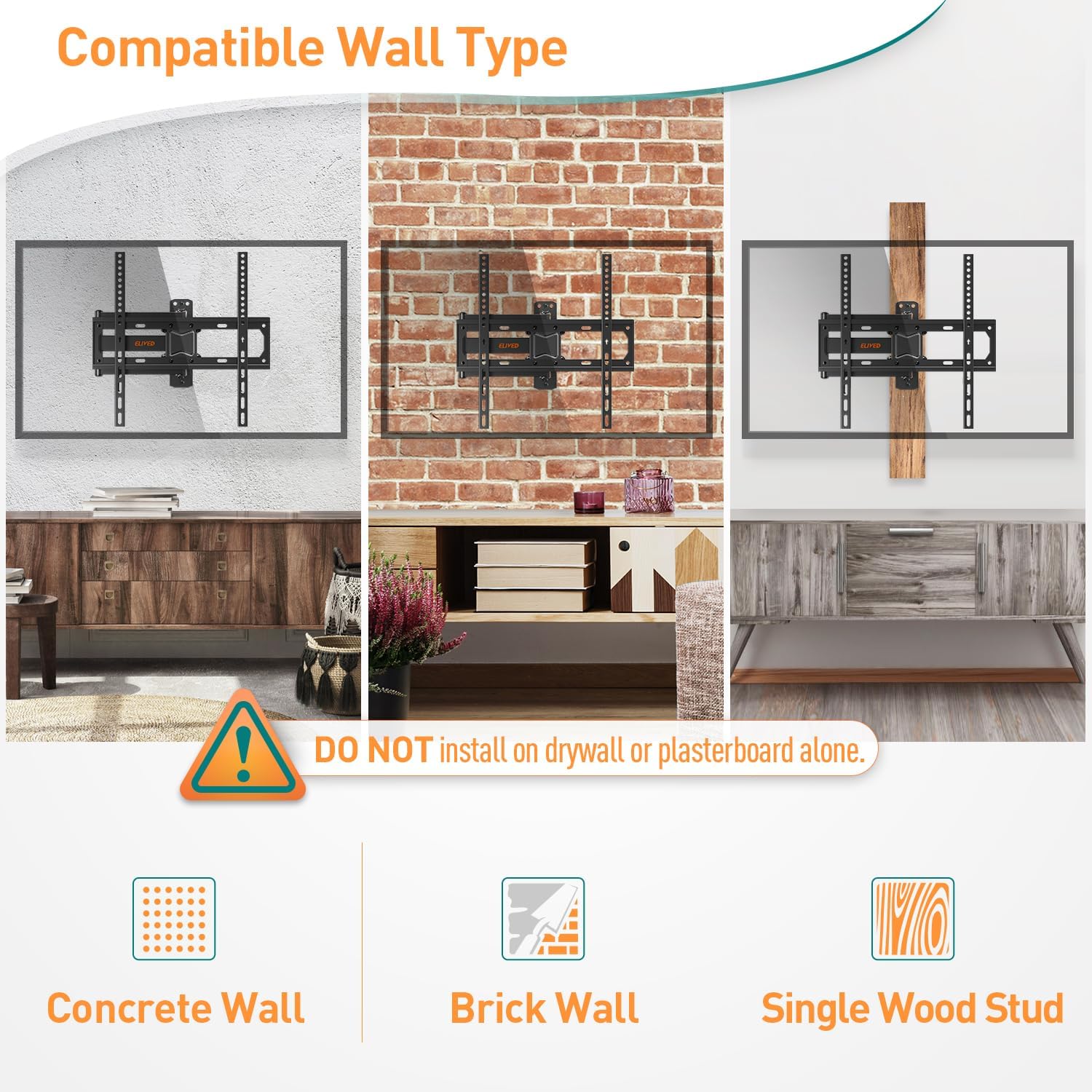

Fits VESA patterns from 75x75 to 400x400mm and accommodates most brands including Samsung LG Sony Hisense Toshiba TCL and Philips according to the product notes. Remember that the maximum supported weight is 35KG and the manufacturer advises against fixing the unit into drywall only.
