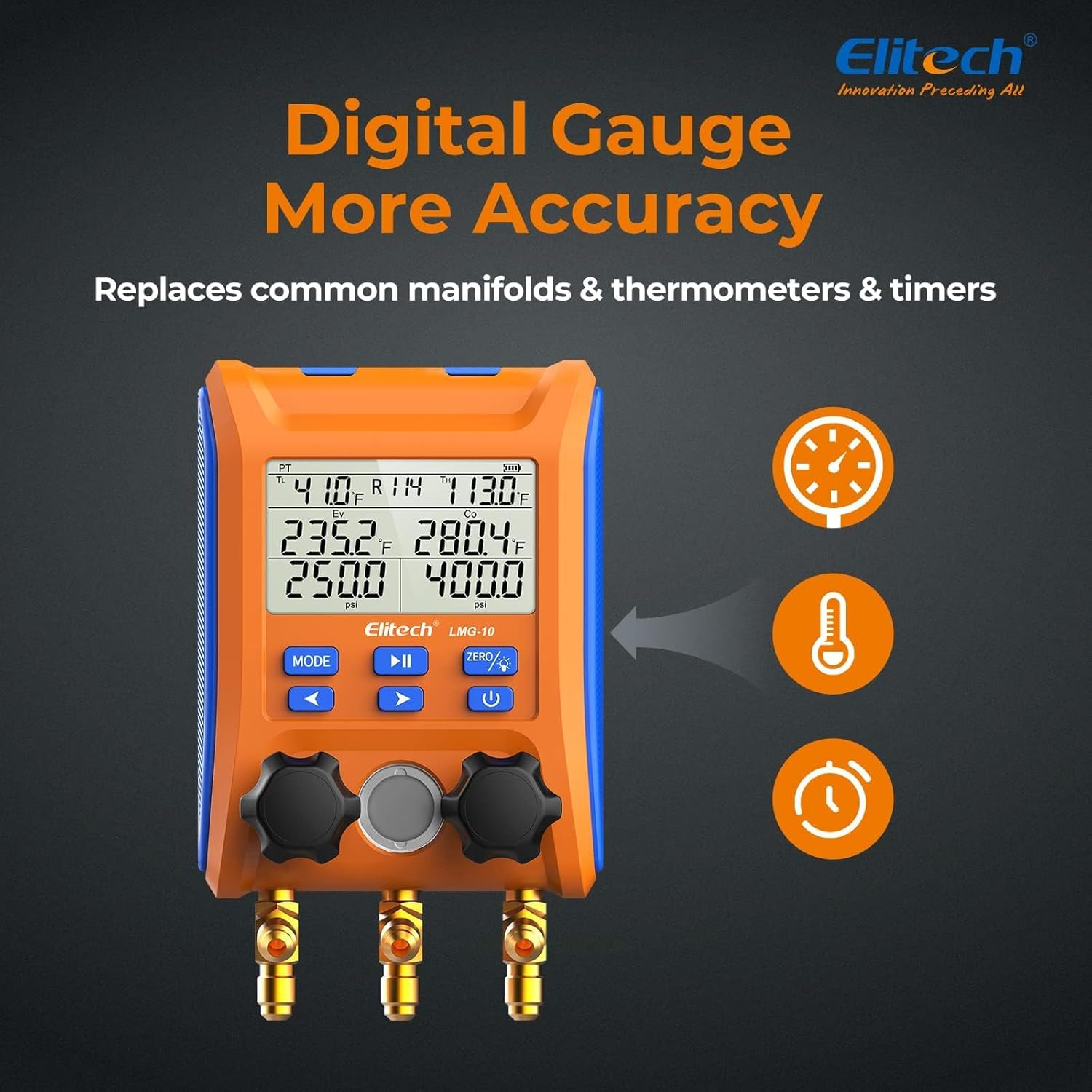

Elitech LMG-10 digital manifold gauge for HVAC testing with 2 temperature clamps
Product description
The essentials
If you’re doing refrigeration and air-conditioning testing day in, day out, a basic pressure gauge often isn’t enough. The Elitech LMG-10 is a digital manifold-style pressure gauge aimed at professionals who want pressure holding and vacuum leakage checks with built-in temperature compensation. It’s positioned as “affordable yet functional”, so it won’t replace top-end lab gear, but it does focus on the practical measurements you actually need on-site.
One thing to know up front: the pack includes the main unit plus two temperature clamps, and it’s without hoses. That changes how you plan your setup—so it’s worth checking you already have the rest of the test kit you need.
What it’s for (and how it fits HVAC work)
On paper, the LMG-10 is designed to support common refrigeration test routines where pressure readings can be affected by conditions around the system. It specifically mentions tests for pressure holding and vacuum leakage, and it includes temperature compensation to reduce false positives caused by ambient temperature changes.
A realistic micro-scenario: you pull down to create a vacuum, then monitor whether the system maintains it. Instead of watching raw pressure alone, the gauge is intended to account for temperature shifts via the included thermometer clamps, which can make your “is it leaking?” call a bit less guessy.

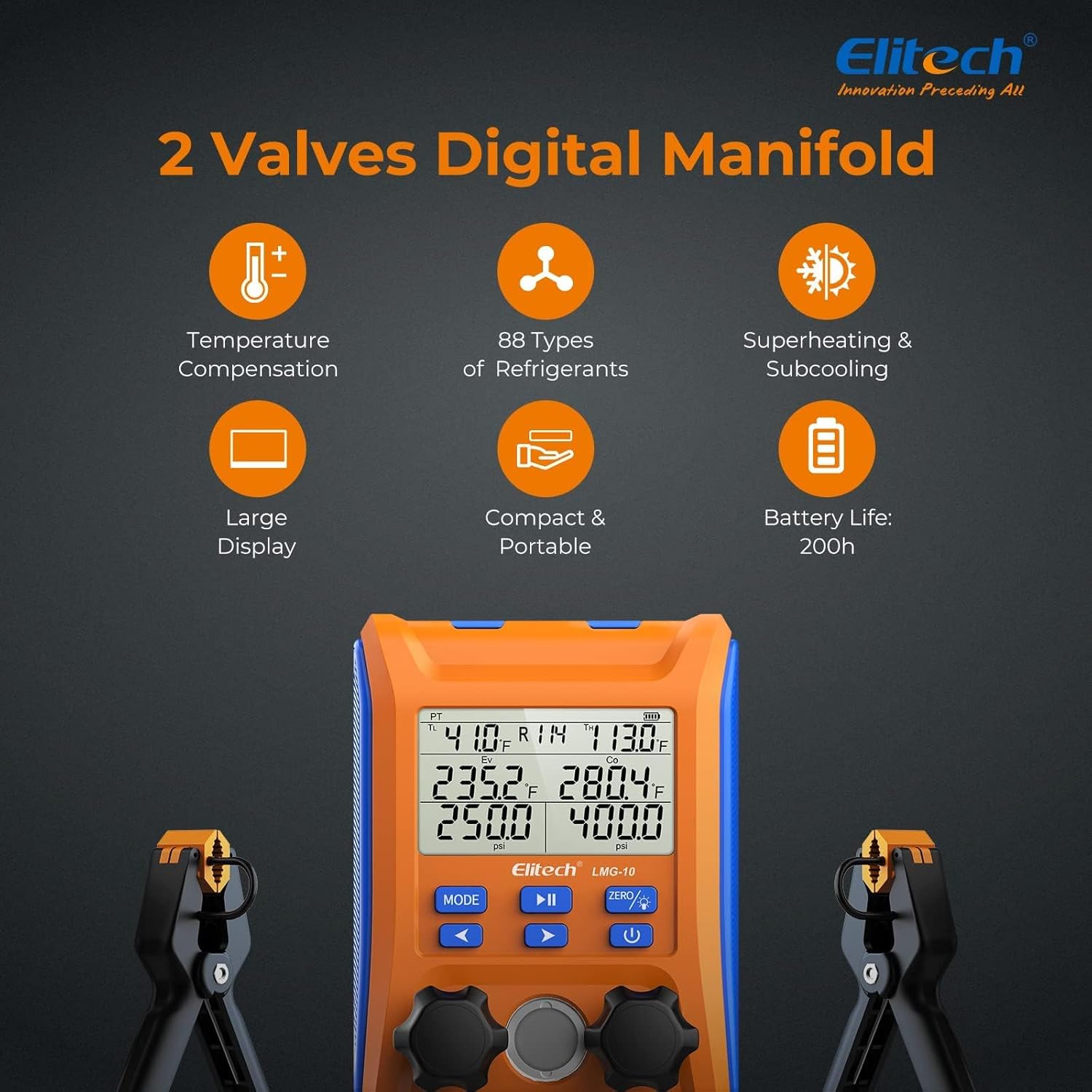

Key features that matter in day-to-day testing

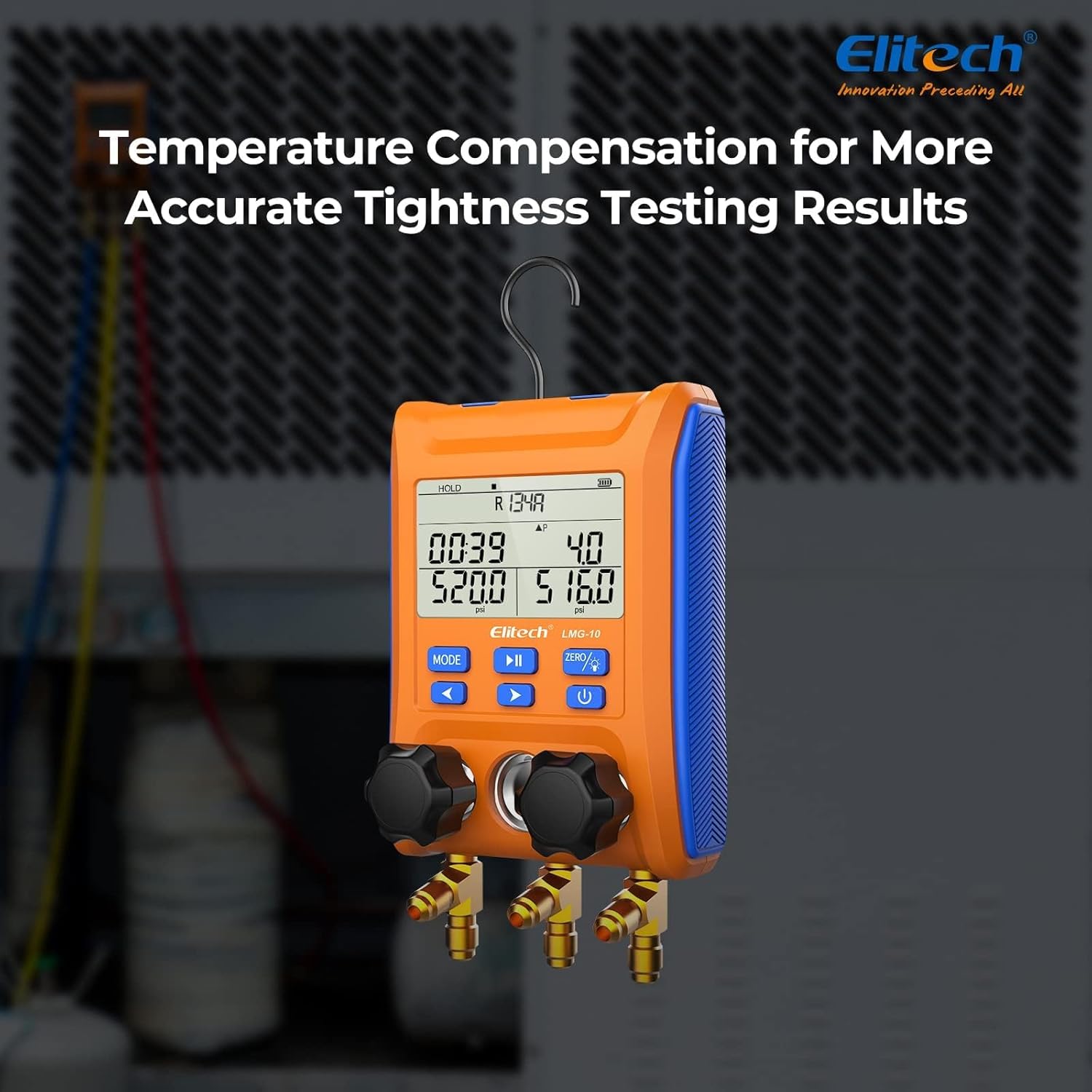

Temperature compensation is the headline idea here. By measuring temperature through the provided clamps and applying compensation, it aims to avoid pressure changes that don’t actually come from the refrigeration circuit.

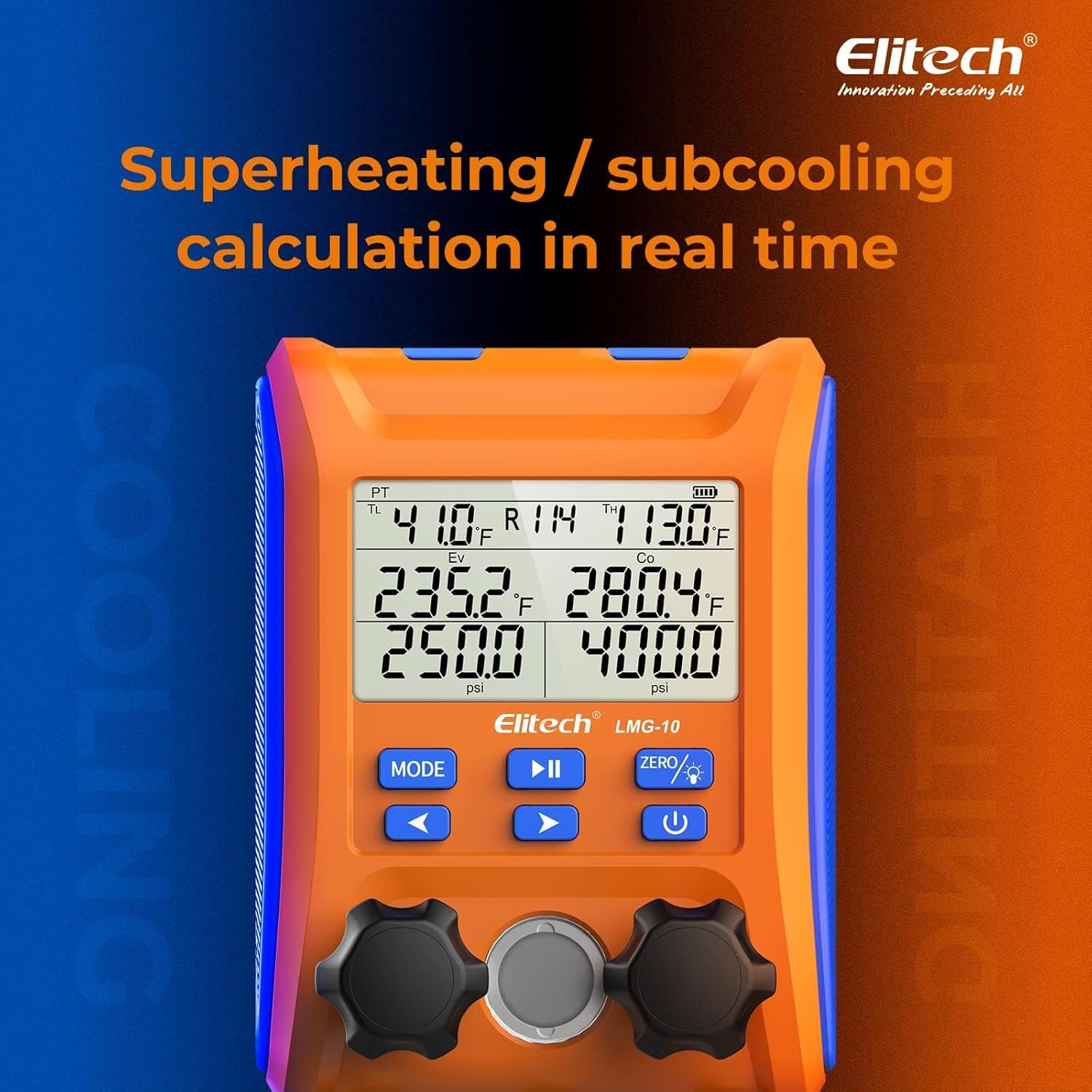

Beyond that, the LMG-10 focuses on workflow needs: - It supports 88 types of refrigerants. - It can auto-calculate overheating and supercooling. - It offers pressure units in psi, kg/cm2, kPa, MPa and bar, plus temperature units in °F/°C. - There’s an auto-off function, which helps preserve battery life. - It uses an ultra-low power approach with a stated battery life of up to 200 hours, plus a replaceable battery.
In terms of useability, it’s built to be carried: compact and portable, with a large display and a hanging hook on the back.
What you’ll notice when using it (and the limits)
In practice, the value of a gauge like this is whether it reduces the time spent re-checking readings. The temperature compensation system is meant to do exactly that, and it’s a useful concept when you’re working in less-than-ideal ambient conditions.
That said, it may not be the best choice if you expect a fully complete kit in one box. The listing note that it includes only the main unit and two temperature clamps, without hoses. If you don’t already have the hoses and connection parts you need, you could end up buying extra just to get started. Also, because the information provided doesn’t spell out every connection standard or hose compatibility, it’s sensible to double-check your existing manifold setup before committing.

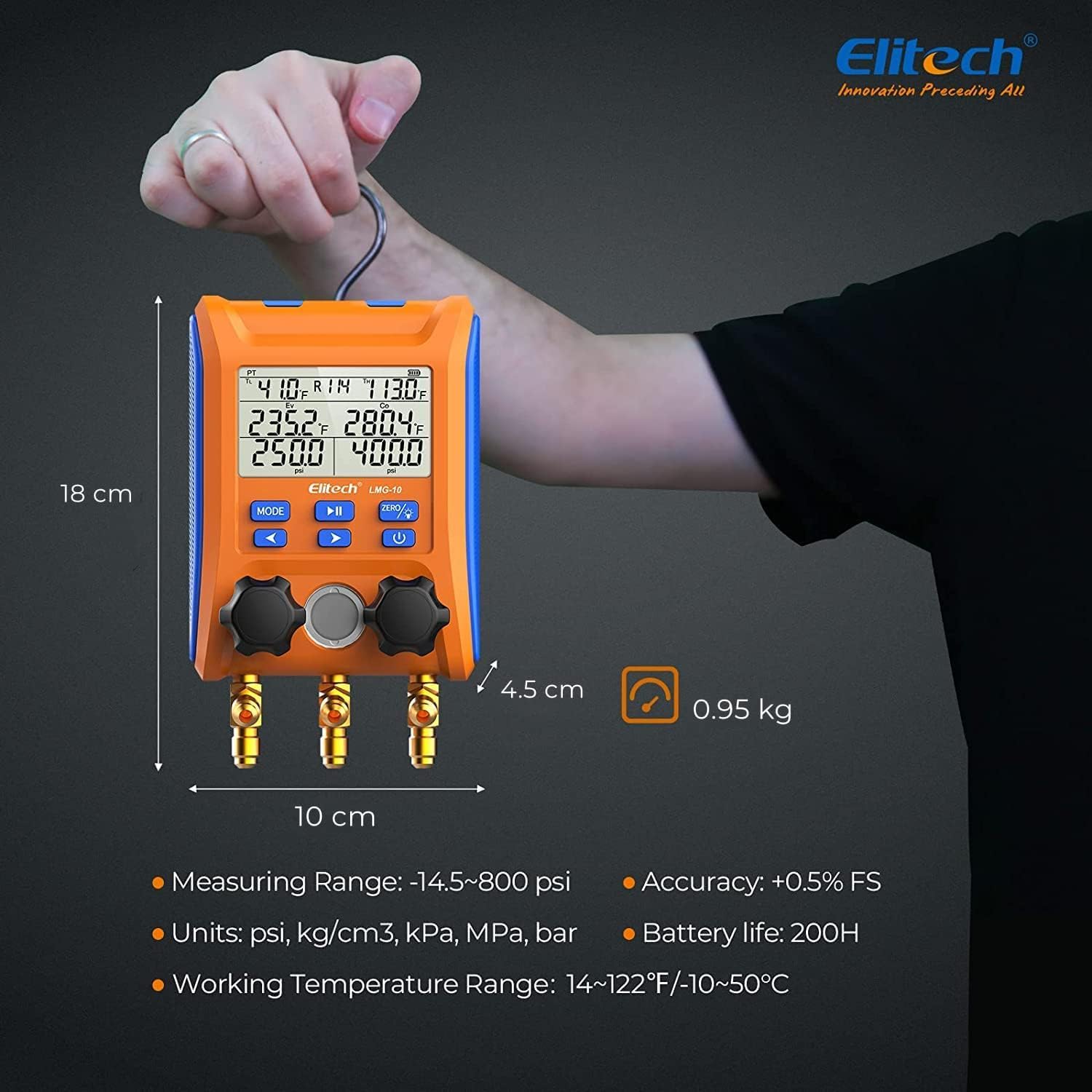

Tech specs (quick, practical overview)
- Name: LMG-10 digital manifold gauge refrigeration
- Type: Digital pressure gauge with thermometer clamps (without hoses in the package)
- Battery life: Up to 200 hours
- Battery: Replaceable battery
- Pressure units: psi, kg/cm2, kPa, MPa, bar
- Temperature units: °F, °C
- Included: Main unit and two temperature clamps (no hoses)
- Features mentioned: pressure holding and vacuum leakage testing, temperature compensation, auto calculation of overheating and supercooling, auto-off
- Refrigerant support: 88 refrigerants types
- Display: Large display
Who it suits best (and who should look elsewhere)
It makes sense if you’re an HVAC or refrigeration technician who wants a single digital gauge approach for pressure holding and vacuum leakage tests, and you specifically care about temperature compensation to avoid misleading results.
It’s not for you if you’re expecting a complete manifold/hose bundle straight out of the box, or if your setup depends on specific connection arrangements that aren’t covered in the provided details.
You’ll likely get the most from it when you already have the hoses/parts for your testing routine. If you’re starting from zero, you may find yourself piecing together the kit.
Should you buy it?
A solid pick if temperature compensation and straightforward refrigeration testing are priorities, and if you already have hoses or a compatible testing setup to pair with the two included thermometer clamps. The battery life claim (up to 200 hours) and the replaceable battery also suit technicians who use tools regularly and don’t want constant charging.
Better avoided if you need the full test manifold and hoses included in the package, or if you can’t confirm connection compatibility with your existing equipment. It’s value-for-money in the way it’s designed for the job, but it does look more like a focused instrument than a complete turn-key kit.
Mini FAQ

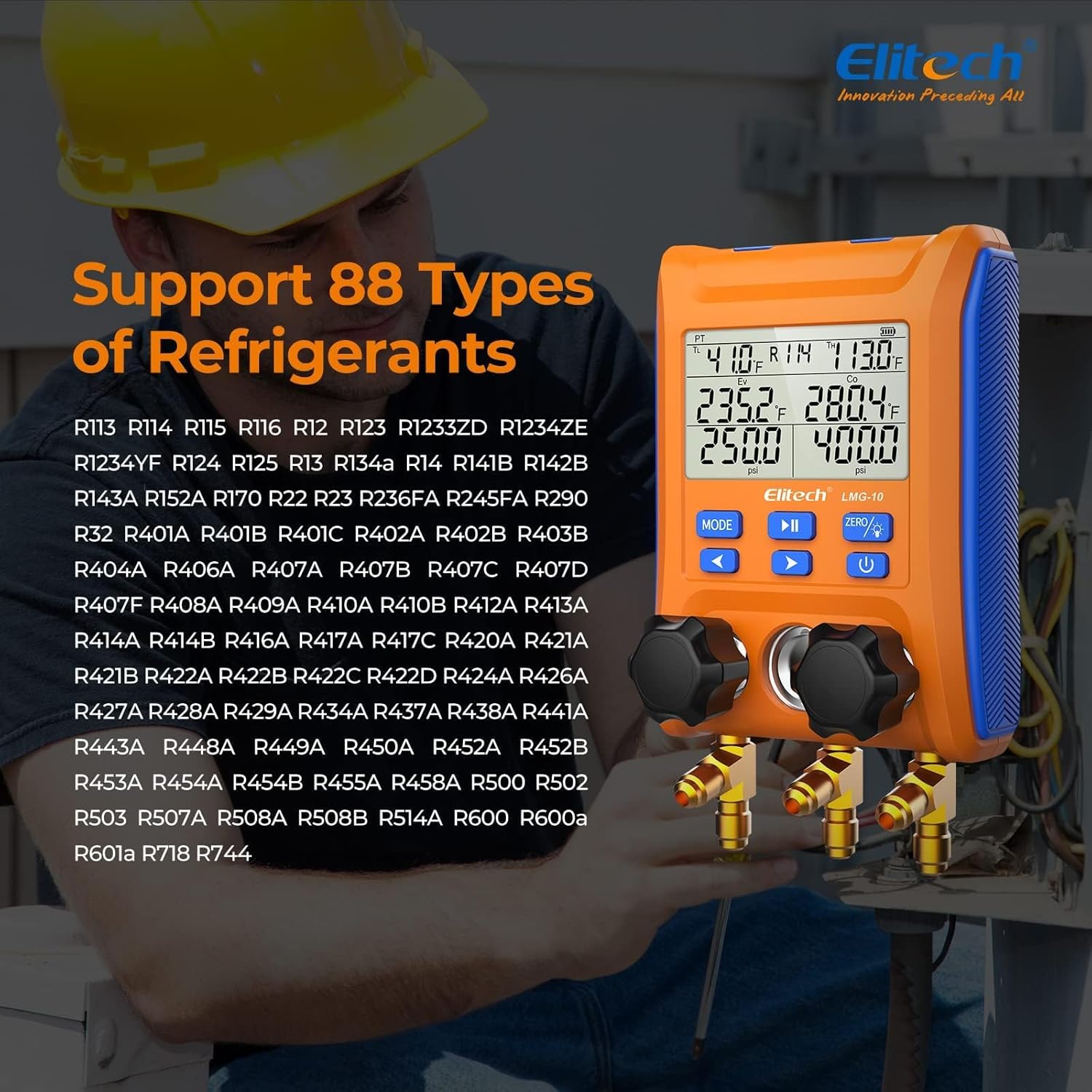

How many refrigerant types does it support?
The LMG-10 is stated to support 88 types of refrigerants.

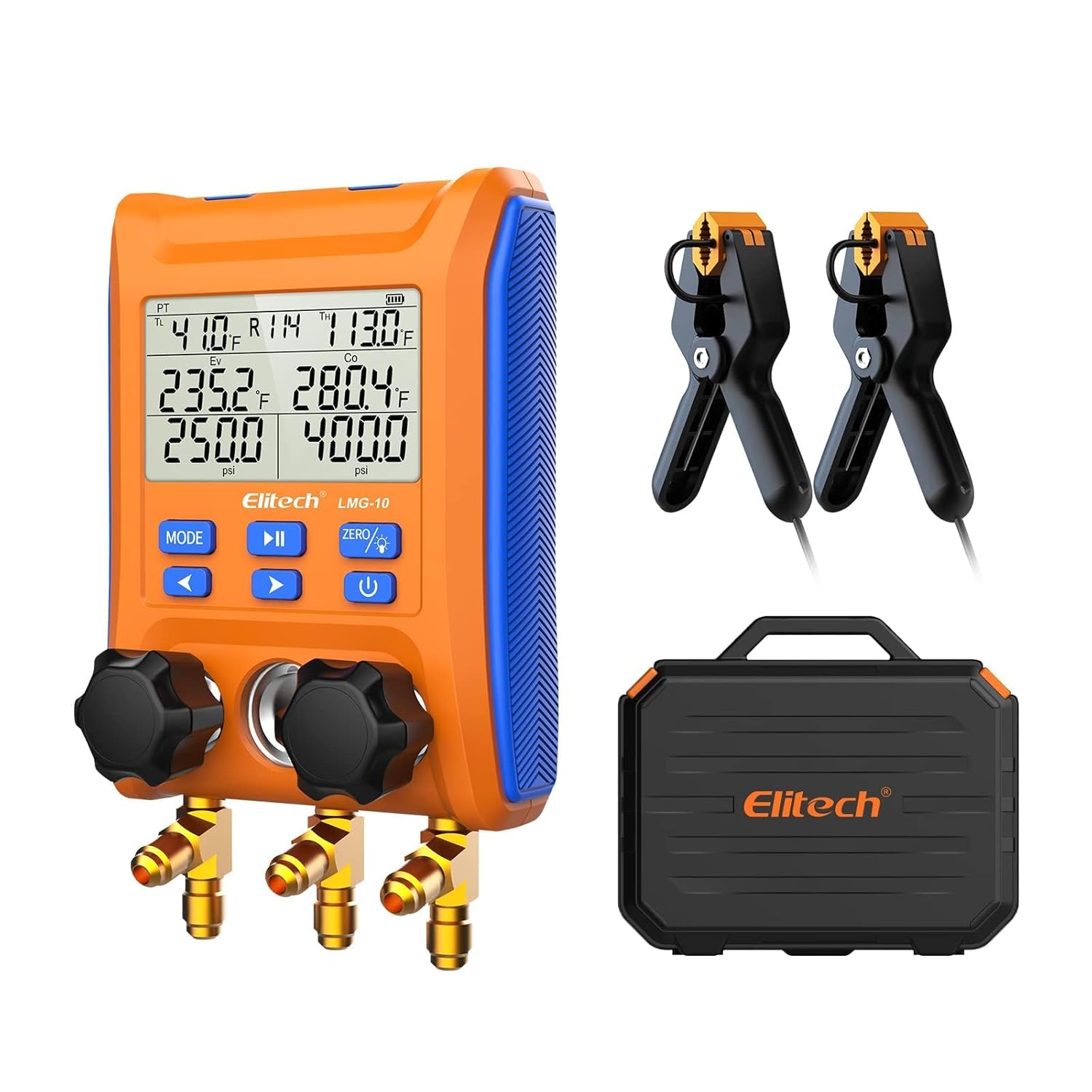

What’s included in the box?
The package includes the main unit and two temperature clamps, but it does not include hoses.
Does it compensate for ambient temperature?
Yes—temperature compensation is included, and it’s intended to reduce pressure changes caused by ambient temperature, which can otherwise lead to false positives.
What pressure and temperature units can you use?
It supports pressure units of psi, kg/cm2, kPa, MPa and bar, and temperature units of °F and °C.
How long does the battery last?
Battery life is stated as up to 200 hours, and the battery is replaceable.
